PRE-INSPECTION FOR DIAGNOSTIC

ADP-155

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

ON-VEHICLE MAINTENANCE

PRE-INSPECTION FOR DIAGNOSTIC

Basic Inspection

INFOID:0000000003935607

1.

 CHECK POWER SUPPLY AND DROUND CIRCUIT

Check the power supply and ground circuit as shown below.
• Driver seat control unit :Refer to

ADP-42, "DRIVER SEAT CONTROL UNIT : Diagnosis Procedure"

.

• Automatic drive positioner control unit: Refer to

ADP-42, "AUTOMATIC DRIVE POSITIONER CONTROL

UNIT : Diagnosis Procedure"

.

Is the inspection result normally?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning part.

2.

 CHECK MANUAL FUNCTION

Check the manual function operations by operating the relevant switches as shown below.
• Seat (slide, reclining, lifting front, lifting rear)
• Pedal assembly (forward, backward)
• Door mirror

Do all manual functions operate normally?

YES

>> GO TO 3

NO (Seat, pedal, door mirror)>>Go to SYMPTOM 1, refer to

ADP-150, "Symptom Table"

. And, GO TO 4 if

the result of SYMPTOM 1 is OK.

3.

 CHECK MEMORY FUNCTION 1

Register the seat positions (refer to Owner’s Manual) and check that all parts of the seat, pedals, and door mir-
rors move to their memory positions correctly.

Are the operations normal?

YES

>> Check each malfunction according to the instruction of the SYMPTOM 4, refer to

ADP-150,

"Symptom Table"

.

NO (memory indicator operates normally)>> Go to SYMPTOM 2, refer to

ADP-150, "Symptom Table"

.

NO (memory indicator does not operate normally either)>> GO TO 5

4.

 CHECK MEMORY FUNCTION 2

Register the seat positions (refer to Owner’s Manual) and check that all parts of the seat, pedals, and door mir-
rors move to their memory positions correctly.

Are the operations normal?

YES

>> Check intermittent incident. Refer to

GI-49, "Intermittent Incident"

.

NO

>> GO TO 7

5.

 CHECK SEAT MEMORY SWITCH/MEMORY INDICATOR

Check the seat memory switch/memory switch indicator of the SYMPTOM 5, refer to

ADP-150, "Symptom

Table"

.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> Repair or replace the malfunctioning part.

6.

 CHECK OPERATION CONDITION

Check the memory operation conditions (refer to

ADP-10, "AUTOMATIC DRIVE POSITIONER SYSTEM :

System Description"

).

Are all operation conditions fulfilled?

YES

>> Go to SYMPTOM 6, refer to

ADP-150, "Symptom Table"

.

NO

>> Fulfill the operation conditions. Refer to

ADP-10, "AUTOMATIC DRIVE POSITIONER SYSTEM :

System Description"

.

7.

 CHECK MECHANISM

2009 Pathfinder

ADP-156

< ON-VEHICLE MAINTENANCE >

PRE-INSPECTION FOR DIAGNOSTIC

Check for the following.
• Mechanism deformation or pinched foreign materials.
• Interference with other parts because of poor installation.

Is any malfunction present in the relevant parts?

YES

>> Go to SYMPTOM 3, refer to

ADP-150, "Symptom Table"

.

NO

>> Repair or replace the malfunctioning part.

2009 Pathfinder

PREPARATION

ADP-157

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

PREPARATION

PREPARATION

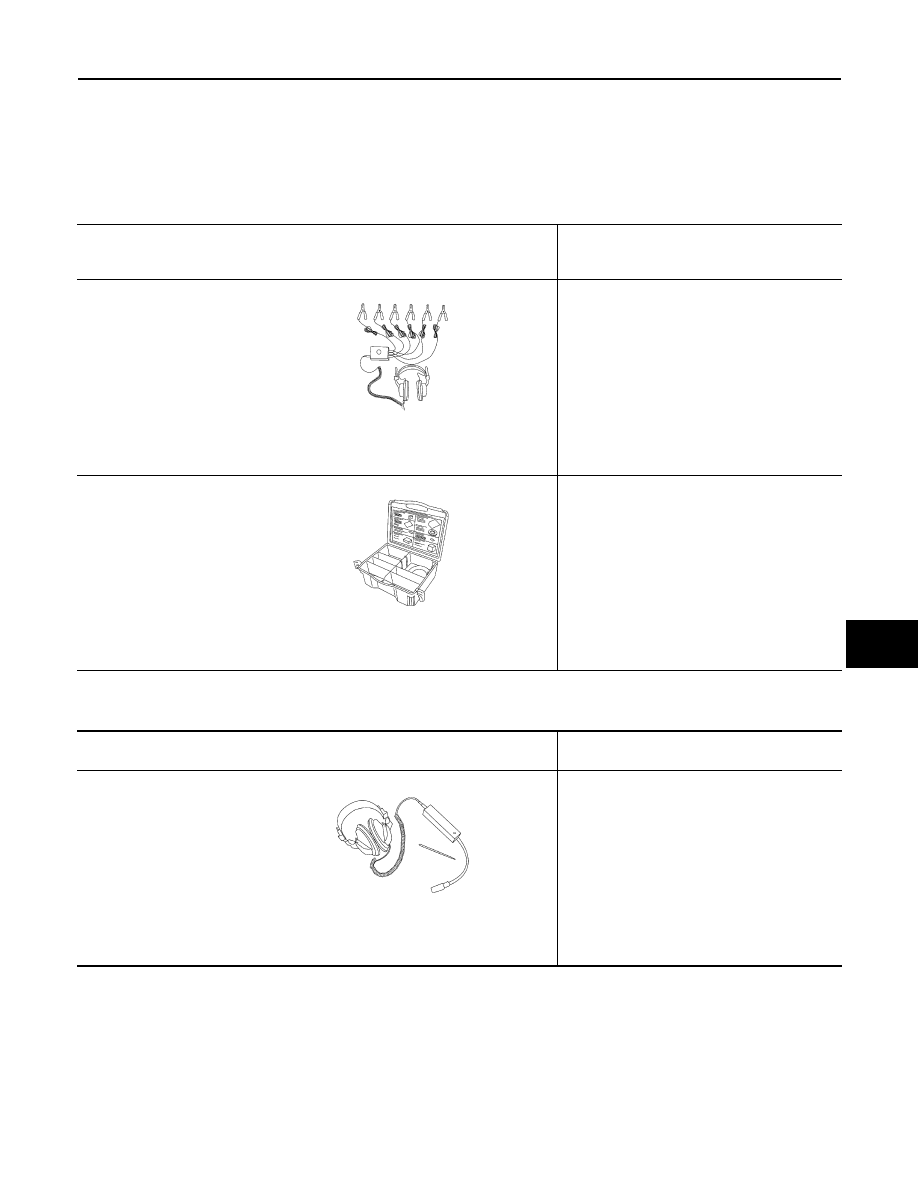

Special Service Tool

INFOID:0000000003935608

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000003935609

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis ear

Locating the noise

—

(J-43980)
NISSAN Squeak  and Rattle
Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

SIIA0995E

2009 Pathfinder

ADP-158

< ON-VEHICLE REPAIR >

DRIVER SEAT CONTROL UNIT

ON-VEHICLE REPAIR

DRIVER SEAT CONTROL UNIT

Removal and Installation

INFOID:0000000003935610

Refer to

SE-33, "Exploded View"

 for removal and installation of driver seat control unit.

2009 Pathfinder

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

ADP-159

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

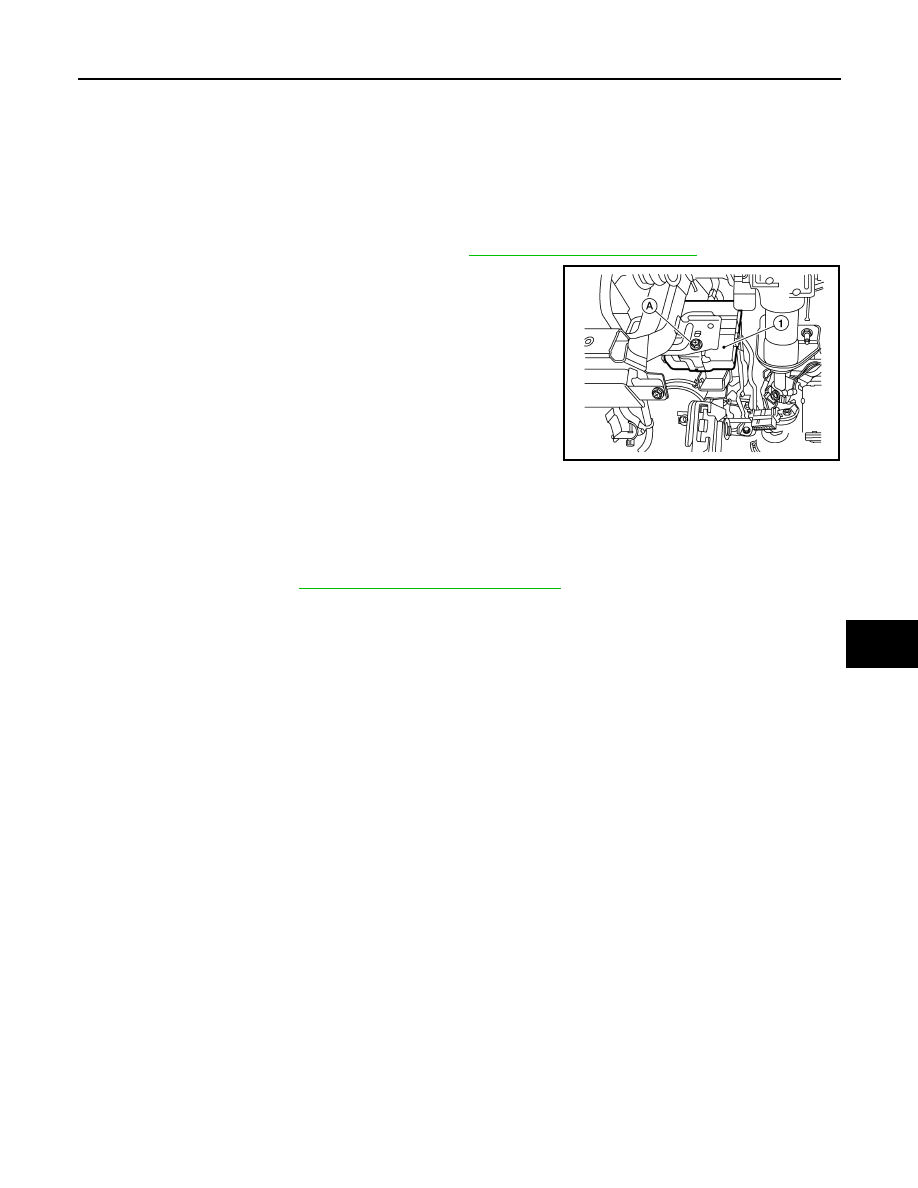

Removal and Installation

INFOID:0000000003935611

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the battery negative terminal.

2.

Remove the instrument driver lower panel. Refer to

IP-11, "Removal and Installation"

.

3.

Remove the screw (A).

4.

Remove automatic drive positioner control unit (1) from bracket
and disconnect electrical connectors.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Clamp the harness in position.
NOTE:
After installing the automatic drive positioner control unit, perform additional service when disconnecting bat-
tery negative terminal. Refer to

ADP-8, "Special Repair Requirement"

.

ALIIA0210GB

2009 Pathfinder

ADP-160

< ON-VEHICLE REPAIR >

SEAT MEMORY SWITCH

SEAT MEMORY SWITCH

Removal and Installation

INFOID:0000000003935612

Refer to

INT-14, "Removal and Installation"

 for removal and installation of seat memory switch.

2009 Pathfinder

DOOR MIRROR REMOTE CONTROL SWITCH

ADP-161

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

DOOR MIRROR REMOTE CONTROL SWITCH

Removal and Installation

INFOID:0000000003935613

Refer to

MIR-15, "Door Mirror Assembly"

 for removal and installation of door mirror remote control switch.

2009 Pathfinder

ADP-162

< ON-VEHICLE REPAIR >

PEDAL ADJUSTING MOTOR

PEDAL ADJUSTING MOTOR

Removal and Installation

INFOID:0000000003935614

Refer to

ACC-4, "Removal and Installation"

 for accelerator pedal and

BR-23, "Removal and Installation"

 for

brake pedal when removing pedal adjusting motors.
