Nissan Pathfinder (2008 year). Manual - part 587

TM-38

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (TCM)

*1: Refer to

TM-34, "Malfunction Indicator Lamp (MIL)"

*2:These malfunctions cannot be displayed MIL if another malfunction is assigned to MIL.

*3:With manual mode.

DATA MONITOR MODE

Display Items List

ATF TEMP SEN/CIRC

• During running, the ATF temperature sensor signal

voltage is excessively high or low

P1710

P0710

TM-77

VEH SPD SE/CIR·MTR

• Signal (CAN communication) from vehicle speed

sensor MTR not input due to cut line or the like

• Unexpected signal input during running

P1721

—

TM-80

A/T INTERLOCK

• Except during shift change, the gear position and

ATF pressure switch states are monitored and com-
parative judgement made.

P1730

TM-82

A/T 1ST E/BRAKING

• Each ATF pressure switch and solenoid current is

monitored and if a pattern is detected having engine
braking 1st gear other than in the “1” position, a mal-
function is detected.

P1731

—

TM-84

I/C SOLENOID/CIRC

• Normal voltage not applied to solenoid due to func-

tional malfunction, cut line, short, or the like

• TCM detects as irregular by comparing target value

with monitor value.

P1752

TM-86

FR/B SOLENOID/CIRC

• Normal voltage not applied to solenoid due to func-

tional malfunction, cut line, short, or the like

• TCM detects as irregular by comparing target value

with monitor value.

P1757

TM-88

D/C SOLENOID/CIRC

• Normal voltage not applied to solenoid due to cut

line, short, or the like

• TCM detects as irregular by comparing target value

with monitor value.

P1762

TM-90

HLR/C SOL/CIRC

• Normal voltage not applied to solenoid due to func-

tional malfunction, cut line, short, or the like

• TCM detects as irregular by comparing target value

with monitor value.

P1767

TM-92

LC/B SOLENOID/CIRC

• Normal voltage not applied to solenoid due to func-

tional malfunction, cut line, short, or the like

P1772

TM-94

LC/B SOLENOID FNCT

• TCM detects an improper voltage drop when it tries

to operate the solenoid valve.

• Condition of ATF pressure switch 2 is different from

monitor value, and relation between gear position
and actual gear ratio is irregular.

P1774

P1774*2

TM-96

MANU MODE SW/
CIRC *3

• When an impossible pattern of switch signals is de-

tected, a malfunction is detected.

P1815

—

TM-98

NO DTC IS DETECTED
FURTHER TESTING
MAY BE REQUIRED

• No NG item has been detected.

—

Items (CONSULT-III

screen terms)

Malfunction is detected when...

TCM self-di-

agnosis

OBD-II (DTC)

Reference

page

“A/T” with

CONSULT-III

MIL indicator
lamp*1, “EN-

GINE” with

CONSULT-III or

GST

DIAGNOSIS SYSTEM (TCM)

TM-39

< FUNCTION DIAGNOSIS >

X: Standard, —: Not applicable,

: Option

Monitored item (Unit)

Monitor Item Selection

Remarks

ECU IN-

PUT SIG-

NALS

MAIN SIG-

NALS

SELEC-

TION

FROM
MENU

VHCL/S SE·A/T (km/h)

Revolution sensor

VHCL/S SE·MTR (km/h)

—

ACCELE POSI (0.0/8)

—

Accelerator pedal position signal

THROTTLE POSI (0.0/8)

Degree of opening for accelerator recognized by
the TCM
For fail-safe operation, the specific value used
for control is displayed.

CLSD THL POS (ON-OFF display)

—

Signal input with CAN communications

W/O THL POS (ON-OFF display)

—

BRAKE SW (ON-OFF display)

—

Stop lamp switch

GEAR

—

Gear position recognized by the TCM updated
after gear-shifting

ENGINE SPEED (rpm)

TURBINE REV (rpm)

OUTPUT REV (rpm)

GEAR RATIO

—

TC SLIP SPEED (rpm)

—

Difference between engine speed and torque
converter input shaft speed

F SUN GR REV (rpm)

—

F CARR GR REV (rpm)

—

ATF TEMP SE 1 (V)

—

ATF TEMP SE 2 (V)

—

ATF TEMP 1 (

—

ATF TEMP 2 (

—

BATTERY VOLT (V)

—

ATF PRES SW 1 (ON-OFF display)

(for FR/B solenoid)

ATF PRES SW 2 (ON-OFF display)

(for LC/B solenoid)

ATF PRES SW 3 (ON-OFF display)

(for I/C solenoid)

ATF PRES SW 5 (ON-OFF display)

(for D/C solenoid)

ATF PRES SW 6 (ON-OFF display)

(for HLR/C solenoid)

PNP SW 1 (ON-OFF display)

—

PNP SW 2 (ON-OFF display)

—

PNP SW 3 (ON-OFF display)

—

PNP SW 4 (ON-OFF display)

—

1 POSITION SW (ON-OFF display)

—

1st position switch

SLCT LVR POSI

—

Selector lever position is recognized by the TCM.
For fail-safe operation, the specific value used
for control is displayed.

TM-40

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (TCM)

OD CONT SW (ON-OFF display)

—

POWERSHIFT SW (ON-OFF display)

—

Not mounted but displayed.

HOLD SW (ON-OFF display)

—

MANU MODE SW (ON-OFF display)

—

NON M-MODE SW (ON-OFF display)

—

UP SW LEVER (ON-OFF display)

—

DOWN SW LEVER (ON-OFF display)

—

SFT UP ST SW (ON-OFF display)

—

Not mounted but displayed.

SFT DWN ST SW (ON-OFF display)

—

ASCD-OD CUT (ON-OFF display)

—

ASCD-CRUISE (ON-OFF display)

—

ABS SIGNAL (ON-OFF display)

—

ACC OD CUT (ON-OFF display)

—

Not mounted but displayed.

ACC SIGNAL (ON-OFF display)

—

TCS GR/P KEEP (ON-OFF display)

—

TCS SIGNAL 2 (ON-OFF display)

—

TCS SIGNAL 1 (ON-OFF display)

—

TCC SOLENOID (A)

—

LINE PRES SOL (A)

—

I/C SOLENOID (A)

—

FR/B SOLENOID (A)

—

D/C SOLENOID (A)

—

HLR/C SOL (A)

—

ON OFF SOL (ON-OFF display)

—

LC/B solenoid

TCC SOL MON (A)

—

L/P SOL MON (A)

—

I/C SOL MON (A)

—

FR/B SOL MON (A)

—

D/C SOL MON (A)

—

HLR/C SOL MON (A)

—

ONOFF SOL MON (ON-OFF display)

—

LC/B solenoid

P POSI IND (ON-OFF display)

—

R POSI IND (ON-OFF display)

—

N POSI IND (ON-OFF display)

—

D POSI IND (ON-OFF display)

—

Monitored item (Unit)

Monitor Item Selection

Remarks

ECU IN-

PUT SIG-

NALS

MAIN SIG-

NALS

SELEC-

TION

FROM
MENU

DIAGNOSIS SYSTEM (TCM)

TM-41

< FUNCTION DIAGNOSIS >

4TH POSI IND (ON-OFF display)

—

3RD POSI IND (ON-OFF display)

—

2ND POSI IND (ON-OFF display)

—

1ST POSI IND (ON-OFF display)

—

MANU MODE IND (ON-OFF display)

—

POWER M LAMP (ON-OFF display)

—

F-SAFE IND/L (ON-OFF display)

—

ATF WARN LAMP (ON-OFF display)

—

BACK-UP LAMP (ON-OFF display)

—

STARTER RELAY (ON-OFF display)

—

PNP SW3 MON (ON-OFF display)

—

C/V CLB ID1

—

C/V CLB ID2

—

C/V CLB ID3

—

UNIT CLB ID1

—

UNIT CLB ID2

—

UNIT CLB ID3

—

TRGT GR RATIO

—

TRGT PRES TCC (kPa)

—

TRGT PRES L/P (kPa)

—

TRGT PRES I/C (kPa)

—

TRGT PRE FR/B (kPa)

—

TRGT PRES D/C (kPa)

—

TRG PRE HLR/C (kPa)

—

SHIFT PATTERN

—

DRV CST JUDGE

—

START RLY MON

—

NEXT GR POSI

—

SHIFT MODE

—

MANU GR POSI

—

VEHICLE SPEED (km/h)

—

Vehicle speed recognized by the TCM.

Voltage (V)

—

Displays the value measured by the voltage
probe.

Monitored item (Unit)

Monitor Item Selection

Remarks

ECU IN-

PUT SIG-

NALS

MAIN SIG-

NALS

SELEC-

TION

FROM
MENU

TM-42

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (TCM)

DTC WORK SUPPORT MODE

Display Items List

Diagnosis Procedure without CONSULT-III

INFOID:0000000001282759

OBD-II SELF-DIAGNOSTIC PROCEDURE (WITH GST)

Refer to

EC-83, "Generic Scan Tool (GST) Function"

(VQ40DE) or

EC-551, "Generic Scan Tool (GST) Func-

tion"

(VK56DE).

OBD-II SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)

Refer to

TM-34, "Malfunction Indicator Lamp (MIL)"

TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)

Description

When the ignition switch is switched “ON”, the O/D OFF indicator lamp lights up for 2 seconds. As a method
for locating the suspect circuit, when the self-diagnostics start signal is input, the memory for the malfunction
location is output and the O/D OFF indicator lamp flashes to display the corresponding DTC.

Diagnostic Procedure

CHECK O/D OFF INDICATOR LAMP

Start the engine with selector lever in “P” position. Warm engine to normal operating temperature.

Turn ignition switch ON and OFF at least twice, then leave it in the OFF position.

Frequency (Hz)

—

The value measured by the pulse probe is dis-
played.

DUTY-HI (high) (%)

—

DUTY-LOW (low) (%)

—

PLS WIDTH-HI (ms)

—

PLS WIDTH-LOW (ms)

—

Monitored item (Unit)

Monitor Item Selection

Remarks

ECU IN-

PUT SIG-

NALS

MAIN SIG-

NALS

SELEC-

TION

FROM
MENU

DTC work support item

Description

Check item

1ST GR FUNCTN P0731

Following items for "1st gear function" can be confirmed.
• Self-diagnosis status (whether the diagnosis is being performed

or not)

• Self-diagnostic results (OK or NG)

• Input clutch solenoid valve
• Front brake solenoid valve
• Direct clutch solenoid valve
• High and low reverse clutch

solenoid valve

• Each clutch
• Hydraulic control circuit

2ND GR FUNCTN P0732

Following items for "2nd gear function" can be confirmed.
• Self-diagnosis status (whether the diagnosis is being performed

or not)

• Self-diagnostic results (OK or NG)

3RD GR FUNCTN P0733

Following items for "3rd gear function" can be confirmed.
• Self-diagnosis status (whether the diagnosis is being performed

or not)

• Self-diagnostic results (OK or NG)

4TH GR FUNCTN P0734

Following items for "4th gear function" can be confirmed.
• Self-diagnosis status (whether the diagnosis is being performed

or not)

• Self-diagnostic results (OK or NG)

5TH GR FUNCTN P0735

Following items for "5th gear function" can be confirmed.
• Self-diagnosis status (whether the diagnosis is being performed

or not)

• Self-diagnostic results (OK or NG)

DIAGNOSIS SYSTEM (TCM)

TM-43

< FUNCTION DIAGNOSIS >

Wait 10 seconds.

Turn ignition switch ON. (Do not start engine.)

Does O/D OFF indicator lamp come on for about 2 seconds?

YES

>> GO TO 2.

>> GO TO

TM-126, "O/D OFF Indicator Lamp Does Not Come On (Without Manual Mode)"

CHECK VEHICLE EQUIPMENT

Is vehicle equipped with manual mode?

YES or NO?

YES

>> GO TO 3.

>> GO TO 4.

JUDGEMENT PROCEDURE STEP 1 (WITH MANUAL MODE)

Turn ignition switch OFF.

Keep pressing shift lock release button.

Move selector lever from “P” to “D” position.

Release accelerator pedal. (Set the closed throttle position signal “ON”.)

Depress brake pedal. (Stop lamp switch signal “ON”.)

Turn ignition switch ON (Do not start engine.)

Wait 3 seconds.

Move the selector lever to the manual shift gate side. (Manual mode signal "ON".)

Release brake pedal. (Stop lamp switch signal “OFF”.)

10. Move the selector lever to "D" position. (Manual mode signal ON.)
11. Depress brake pedal. (Stop lamp switch signal “ON”.)
12. Release brake pedal. (Stop lamp switch signal "OFF".)
13. Depress accelerator pedal fully and release it.

>> GO TO 5.

JUDGEMENT PROCEDURE STEP 1 (WITHOUT MANUAL MODE)

Turn ignition switch OFF.

Keep pressing shift lock release button.

Move selector lever from “P” to “D” position.

Release accelerator pedal. (Set the closed throttle position signal “ON”.)

Depress brake pedal. (Stop lamp switch signal “ON”.)

Turn ignition switch ON. (Do not start egine.)

Wait 3 seconds.

Move the selector lever from “D” to “3” position.

Release brake pedal. (Stop lamp switch signal “OFF”.)

10. Move the selector lever from “3” to “2” position.
11. Depress brake pedal. (Stop lamp switch signal “ON”.)
12. Depress accelerator pedal fully and release it.

>> GO TO 5.

CHECK SELF-DIAGNOSIS CODE

Check O/D OFF indicator lamp.
Refer to "Judgement Self-diagnosis Code".
If the system does not go into self-diagnostics. Refer to

TM-50, "Diagnosis Procedure"

TM-104, "Diagnosis

Procedure"

TM-105, "Diagnosis Procedure"

TM-98, "Diagnosis Procedure"

>> DIAGNOSIS END

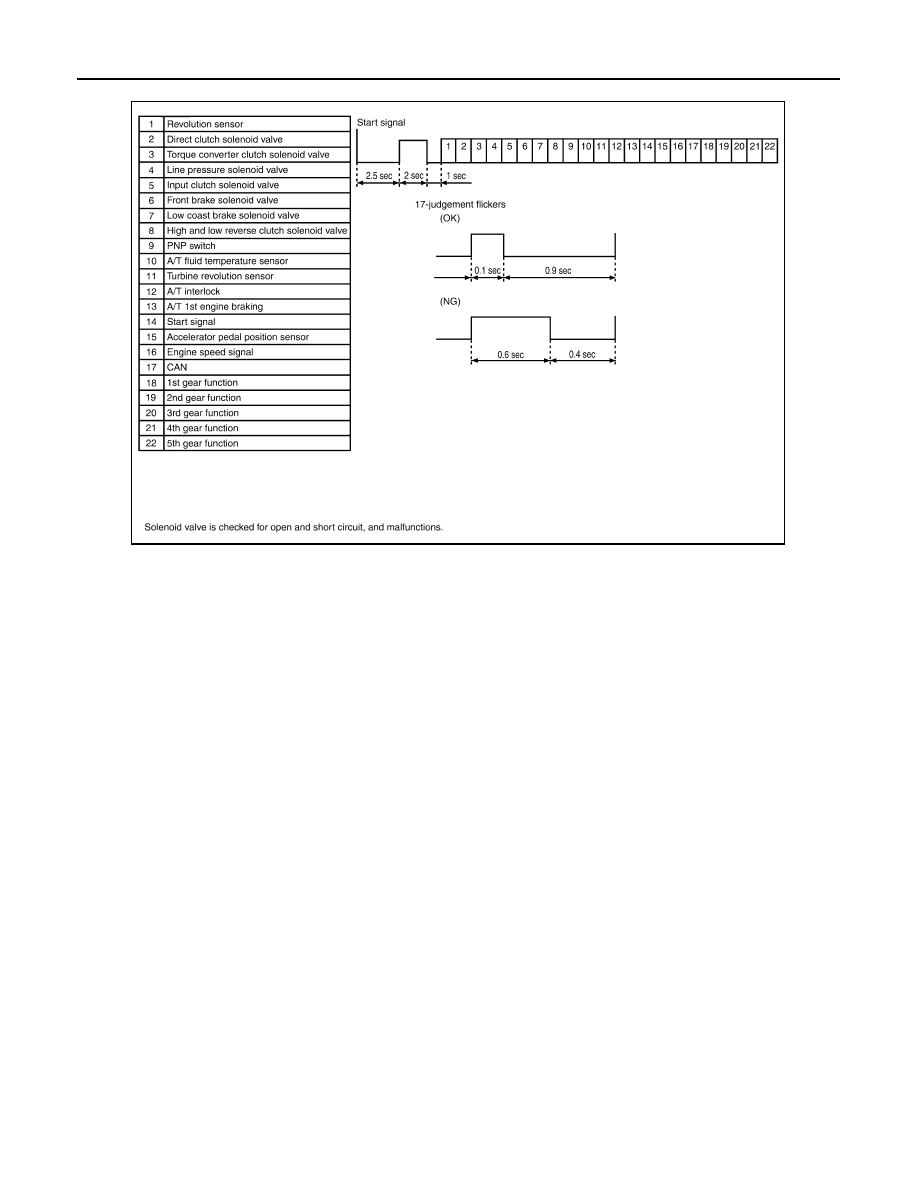

Judgement Self-diagnosis Code

TM-44

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (TCM)

If there is a malfunction, the lamp lights up for the time corresponding to the suspect circuit.

Erase Self-diagnosis

• In order to make it easier to find the cause of hard-to-duplicate malfunctions, malfunction information is

stored into the control unit as necessary during use by the user. This memory is not erased no matter how
many times the ignition switch is turned ON and OFF.

• However, this information is erased by turning ignition switch OFF after executing self-diagnostics or by

erasing the memory using the CONSULT-III.

AWDIA0084GB

DTC U1000 CAN COMMUNICATION LINE

TM-45

< COMPONENT DIAGNOSIS >

COMPONENT DIAGNOSIS

DTC U1000 CAN COMMUNICATION LINE

Description

INFOID:0000000001282760

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent malfunction detection ability.
Many electronic control units are equipped onto a vehicle, and each control unit shares information and links
with other control units during operation (not independent). In CAN communication, control units are con-
nected with 2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission
with less wiring. Each control unit transmits/receives data but selectively reads required data only.

On Board Diagnosis Logic

INFOID:0000000001282761

• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “U1000 CAN COMM CIRCUIT” with CONSULT-III or 17th judgement flicker without

CONSULT-III is detected when TCM cannot communicate to other control units.

Possible Cause

INFOID:0000000001282762

Harness or connectors
(CAN communication line is open or shorted.)

DTC Confirmation Procedure

INFOID:0000000001282763

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-III

Turn ignition switch “ON”. (Do not start engine.)

Select “DATA MONITOR” mode for “ENGINE” with CONSULT-III.

Start engine and wait for at least 6 seconds.

If DTC is detected, go to

TM-45, "Diagnosis Procedure"

WITH GST

Follow the procedure “WITH CONSULT-III”.

Diagnosis Procedure

INFOID:0000000001282765

CHECK CAN COMMUNICATION CIRCUIT

With CONSULT-III
