Nissan Pathfinder (2008 year). Manual - part 536

RF-46

< ON-VEHICLE REPAIR >

SUNROOF SYSTEM

1.

Remove the headlining. Refer to

INT-16, "Removal and Installation"

.

2.

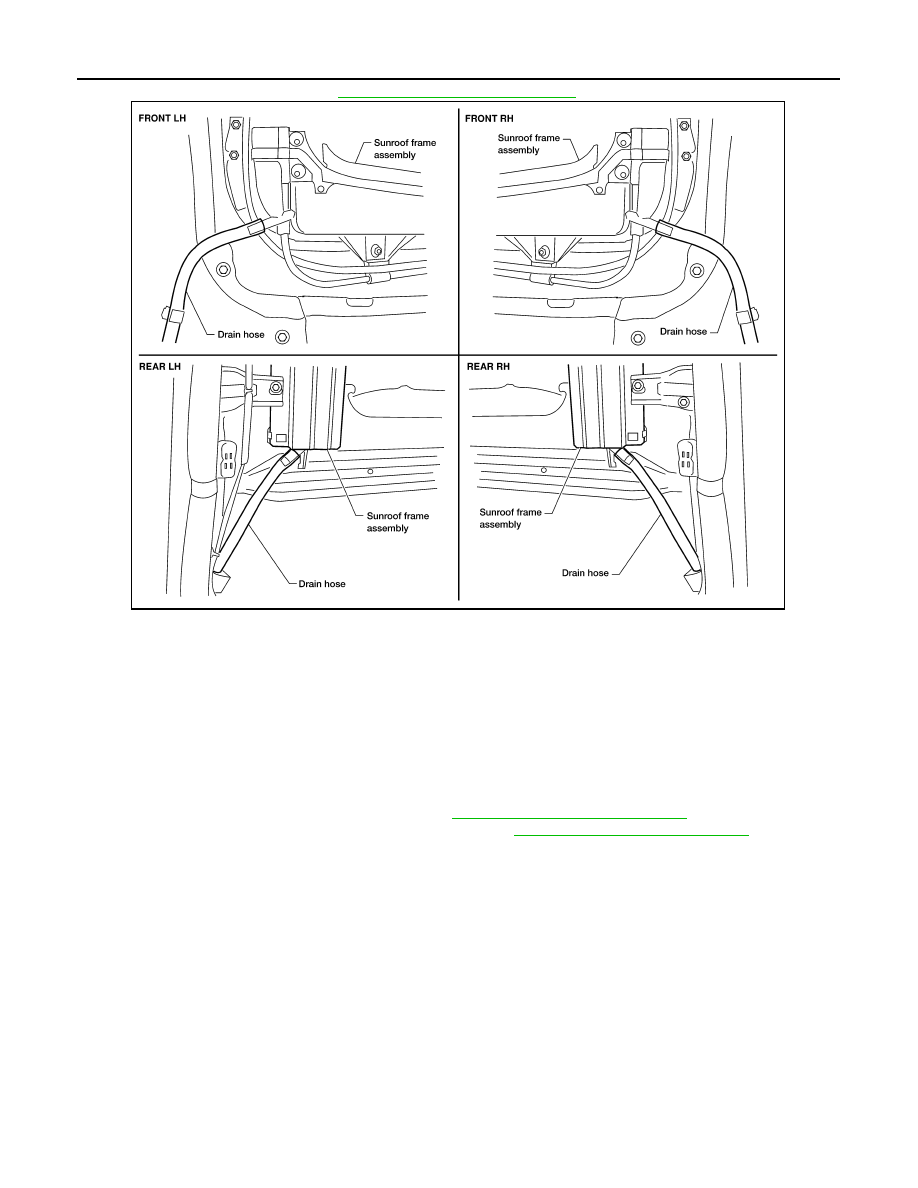

Visually check the drain hoses for proper connections, damage or deterioration.

3.

Remove each drain hose and check visually for damage, cracks or deterioration.

4.

Pour water through the drain hose to check for damage.

• If any damage is found, replace the drain hose.

Installation

Installation is in the reverse order of removal.

WEATHERSTRIP

Visually check weatherstrip for any damage, deterioration, or flattening.
• In the case of leakage around glass lid, close glass lid and pour water around it to find the damaged or

gaped portion, remove glass lid assembly. Refer to:

RF-42, "Removal and Installation"

.

• If any damage is found, replace glass lid assembly. Refer to:

RF-42, "Removal and Installation"

.

CAUTION:

Do not remove weatherstrip.

LINK AND WIRE ASSEMBLY

NOTE:
Before replacing any suspect part, be sure it is the source of the noise.

1.

Visually check to determine if a sufficient amount of petroleum jelly has been applied to the wire or rail
groove. If not, add petroleum jelly as required.

2.

Check wire for any damage or deterioration. If any damage is found, remove rear guide, then replace
wire.

LIIA0272E

RSU-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

RSU

A

B

RSU

N

O

P

CONTENTS

REAR SUSPENSION

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution for Rear Suspension  ...............................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Commercial Service Tool  ..........................................

3

SYMPTOM DIAGNOSIS  ...............................

4

NOISE, VIBRATION, AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

4

NVH Troubleshooting Chart  ......................................

4

ON-VEHICLE MAINTENANCE .....................

5

REAR SUSPENSION ASSEMBLY  .....................

5

On-Vehicle Inspection  ...............................................

5

Wheel Alignment Inspection ......................................

5

SHOCK ABSORBER  ..........................................

8

Inspection ..................................................................

8

ON-VEHICLE REPAIR ..................................

9

REAR SUSPENSION ASSEMBLY  .....................

9

Component ...............................................................

9

REMOVAL AND INSTALLATION  ...............

10

REAR SUSPENSION MEMBER .......................

10

Removal and Installation  .........................................

10

SHOCK ABSORBER  ........................................

14

Removal and Installation  .........................................

14

SUSPENSION ARM  ..........................................

15

Removal and Installation  .........................................

15

FRONT LOWER LINK .......................................

17

Removal and Installation  .........................................

17

REAR LOWER LINK & COIL SPRING .............

19

Removal and Installation  .........................................

19

STABILIZER BAR .............................................

21

Removal and Installation  .........................................

21

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

22

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

22

Wheel Alignment  .....................................................

22

Ball Joint  ..................................................................

22

Wheelarch Height (Unladen*) ..................................

23

RSU-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001675459

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution for Rear Suspension

INFOID:0000000001675460

• When installing the rubber bushings, the final tightening must be done under unladen condition and with the

tires on level ground. Oil will shorten the life of the rubber bushings, so wipe off any spilled oil immediately.

• Unladen condition means the fuel tank, engine coolant and lubricants are at the full specification. The spare

tire, jack, hand tools, and mats are in their designated positions. There are no passengers in the vehicle.

• After installing suspension components, check the wheel alignment.
• Caulking nuts are not reusable. Always use new caulking nuts for installation. New caulking nuts are pre-

oiled, do not apply any additional lubrication.

PREPARATION

RSU-3

< PREPARATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

PREPARATION

PREPARATION

Commercial Service Tool

INFOID:0000000001675550

Tool name

Description

Power tool

Removing bolts and nuts

PBIC0190E

RSU-4

< SYMPTOM DIAGNOSIS >

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000001675551

Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

RSU-9

RSU-8

RSU-5

RSU-9

RSU-23

RSU-9

RSU-5

RSU-21

DLN-306, "

NVH T

rou

bl

es

ho

ot

in

g

 Cha

rt

"

 (2

F1

31

0)

DLN-314, "

NVH T

rou

bl

es

ho

ot

in

g

 Cha

rt

"

 (2S

1

3

30)

DLN-323, "

NVH T

rou

bl

es

ho

ot

in

g

 Cha

rt

"

 (2S

1

3

50)

DLN-336, "

NVH T

rou

bl

es

ho

oti

n

g

 Cha

rt

"

 (R18

0A)

DLN-370, "

NVH T

ro

u

b

les

h

oot

in

g Ch

art

"

 (M

20

5)

FS

U-4, "

NVH T

rou

bl

es

ho

oti

n

g

 Cha

rt

"

FA

X

-4

, "

NVH T

ro

u

b

les

ho

ot

ing

 Ch

art

"

WT

-3

3

, "

NV

H T

rou

bl

es

ho

oti

n

g

 Cha

rt

"

WT

-3

3

, "

NV

H T

rou

bl

es

ho

oti

n

g

 Cha

rt

"

FA

X

-4

, "

NVH T

ro

u

b

les

ho

ot

ing

 Ch

art

"

BR

-5

, "

NV

H T

rou

bl

es

ho

oti

n

g

 Cha

rt

"

ST

-9, "

NVH T

rou

bl

es

ho

ot

ing

 Cha

rt

"

Possible cause and SUSPECTED PARTS

Im

p

rop

er i

n

s

ta

lla

ti

o

n

, lo

os

en

es

s

Sh

oc

k abs

o

rber de

form

at

io

n,

d

a

m

a

g

e

 or

d

e

fl

ec

ti

on

Bu

sh

in

g o

r m

oun

ti

ng

de

teri

ora

tio

n

Part

s interference

S

p

rin

g

 f

a

ti

gu

e

Su

sp

en

si

on

 lo

os

en

es

s

In

co

rrec

t wh

ee

l a

lig

nm

en

t

S

tab

ili

ze

r ba

r fa

tig

u

e

PROPELLER S

H

A

F

T

DIFF

ERENTIAL

FRONT S

U

S

PENSION

FRONT A

X

LE

TIRE

S

ROAD WHEEL

DRIVE SHAFT

BRAKE

S

STE

E

RING

Symptom

Noise

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

×

×

×

×

Shudder

×

×

×

×

×

×

×

×

Poor quality ride or handling

×

×

×

×

×

×

×

×

×

×

REAR SUSPENSION ASSEMBLY

RSU-5

< ON-VEHICLE MAINTENANCE >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

ON-VEHICLE MAINTENANCE

REAR SUSPENSION ASSEMBLY

On-Vehicle Inspection

INFOID:0000000001675566

• Check all of the component mountings for any excessive looseness, or backlash. Repair or replace the com-

ponents as necessary.

• Check the components for any excessive wear, damage, or abnormal conditions. Repair or replace the com-

ponents as necessary.

• Check the shock absorbers for any oil leaks or damage, and replace as necessary.

Wheel Alignment Inspection

INFOID:0000000001675567

Rear Wheel Alignment Adjusting Bolts

PRELIMINARY INSPECTION

WARNING:

Always adjust the alignment with the vehicle on a flat surface.
NOTE:
If alignment is out of specification, inspect and replace any damaged or worn rear suspension parts before
making any adjustments.
1.

Check and adjust the wheel alignment with the vehicle under unladen conditions. “Unladen conditions”
means that the fuel, coolant, and lubricants are all full, and that the spare tire, jack, hand tools and mats
are in their designated positions, and there are no passengers in the vehicle.

2.

Check the tires for incorrect air pressure and excessive wear. Refer to

WT-40, "Tire"

.

3.

Check the wheels for runout and damage. Refer to

WT-34, "Inspection"

.

4.

Check the wheel bearing axial end play.

5.

Check the shock absorbers for any oil leaks or damage.

6.

Check each mounting point of the suspension components for any excessive looseness or damage.

7.

Check each link, arm, and the rear suspension member for any damage.

8.

Check the vehicle height. Refer to

FSU-24, "Wheelarch Height (Unladen*

1

)"

.

GENERAL INFORMATION AND RECOMMENDATIONS

1.

A Four-Wheel Thrust Alignment should be performed.

WEIA0102E

1.

Rear lower link adjusting bolt, LH

2.

Front lower link adjusting bolt, LH

3.

Front lower link adjusting bolt, RH

4.

Rear lower link adjusting bolt, RH

Axial end play

: 0 mm (0 in)

RSU-6

< ON-VEHICLE MAINTENANCE >

REAR SUSPENSION ASSEMBLY

• This type of alignment is recommended for any NISSAN vehicle.
• The four-wheel “thrust” process helps ensure that the vehicle is properly aligned and the steering wheel

is centered.

• The alignment machine itself should be capable of accepting any NISSAN vehicle.
• The alignment machine should be checked to ensure that it is level.

2.

Make sure the alignment machine is properly calibrated.
• Your alignment machine should be regularly calibrated in order to give correct information.
• Check with the manufacturer of your specific alignment machine for their recommended Service/Cali-

bration Schedule.

THE ALIGNMENT PROCESS

IMPORTANT: Use only the alignment specifications listed in this Service Manual. Refer to

RSU-22, "Wheel

Alignment"

.

1.

When displaying the alignment settings, many alignment machines use “indicators”: (Green/red, plus or
minus, Go/No Go). Do NOT use these indicators.
• The alignment specifications programmed into your alignment machine that operate these indicators

may not be correct.

• This may result in an ERROR.

2.

Some newer alignment machines are equipped with an optional “Rolling Compensation” method to “com-
pensate” the sensors (alignment targets or head units). Do NOT use this “Rolling Compensation”
method.
• Use the “Jacking Compensation” method. After installing the alignment targets or head units, raise the

vehicle and rotate the wheels 1/2 turn both ways.

• See Instructions in the alignment machine you are using for more information.

CAMBER

1.

Measure camber of both the right and left wheels with a suitable
alignment gauge and adjust as necessary to specification.

2.

If outside of the specified value, adjust the camber using the
adjusting bolt in the front lower link.

CAUTION:

After adjusting the camber then check the toe-in.
NOTE:
Camber changes about 0

°

 5' with each graduation of the adjust-

ing bolt.

3.

Tighten the adjusting bolt nuts to specification.

TOE-IN

1.

Bounce the rear of the vehicle up and down two to three times to stabilize the vehicle height. Refer to

FSU-24, "Wheelarch Height (Unladen*

1

)"

.

2.

Push the vehicle straight ahead about 5 m (16 ft).

Camber

: Refer to

FSU-23, "Wheel Alignment (Un-

laden*1)"

.

SRA096A

LEIA0041E

REAR SUSPENSION ASSEMBLY

RSU-7

< ON-VEHICLE MAINTENANCE >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

3.

Put a mark on the base line of the tread (rear side) of both of the
tires at the same height as the center of the hub. These will be
the measuring points.

4.

Measure the distance “A” (rear side) across from tire to tire.

5.

Push the vehicle slowly ahead to rotate the wheels 180

°

degrees (a half turn).
If the wheels are rotated more than 180

°

 degrees (a half turn),

then repeat the above steps. Never push the vehicle backward.

6.

Measure the distance “B” (front side) across from tire to tire.

7.

If the toe-in is outside the specified value, adjust the toe-in using
the adjusting bolt in the rear lower link.

CAUTION:

Be sure to adjust equally on the RH and LH sides using the
adjusting bolt.
NOTE:
Toe changes about 1.5 mm (0.059 in) [one side] with each grad-
uation of the adjusting bolt.

8.

Tighten the adjusting bolt nuts to specification.

SFA614B

Total toe-in

: Refer to

FSU-23, "Wheel Alignment (Un-

laden*1)"

.

SFA234AC

LEIA0009E
