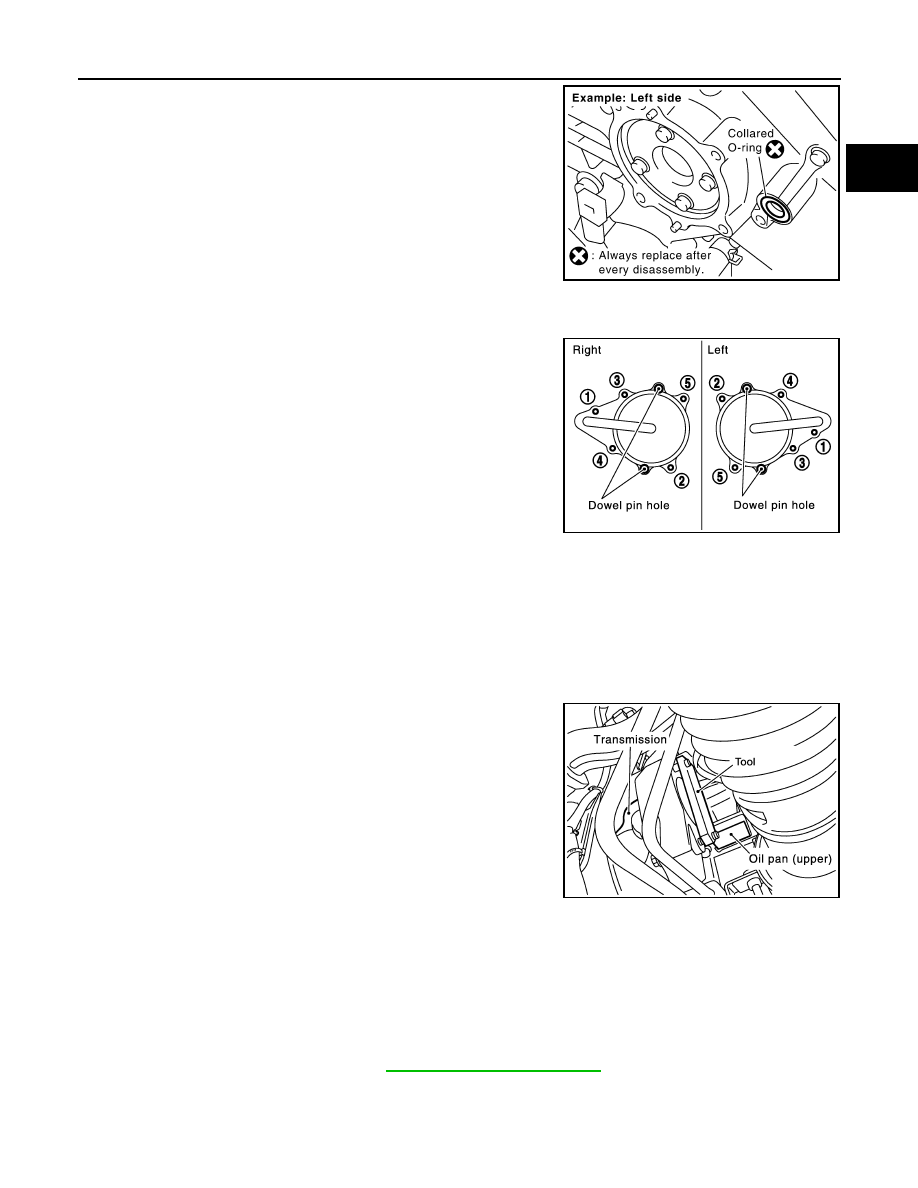

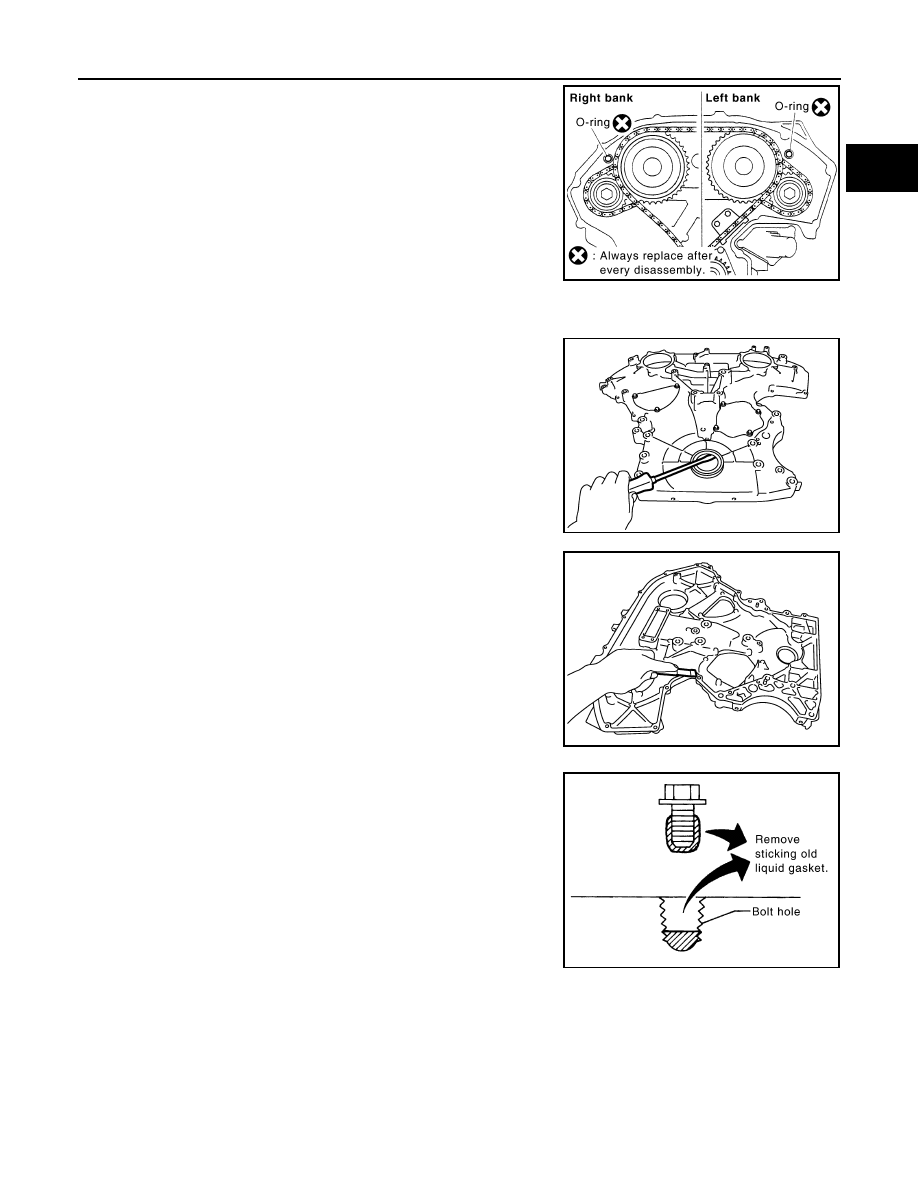

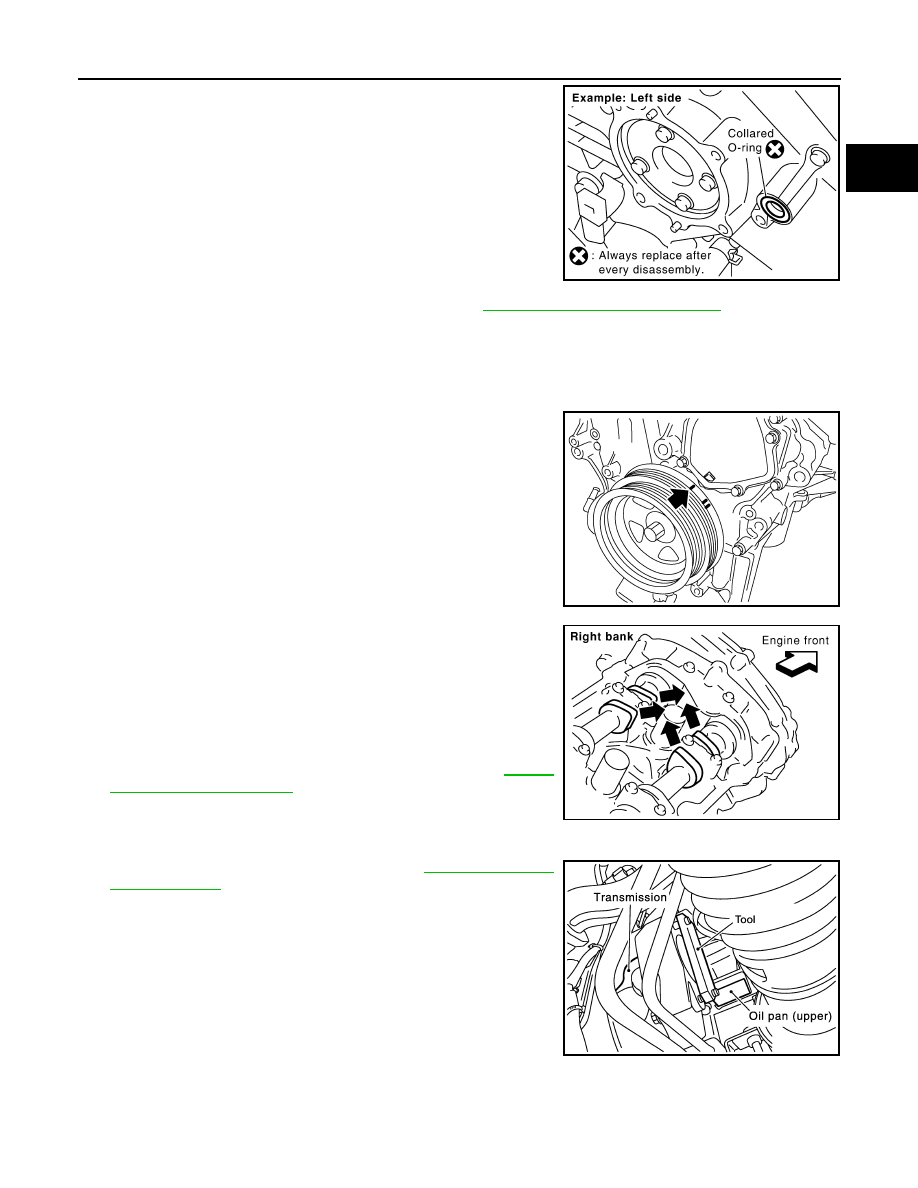

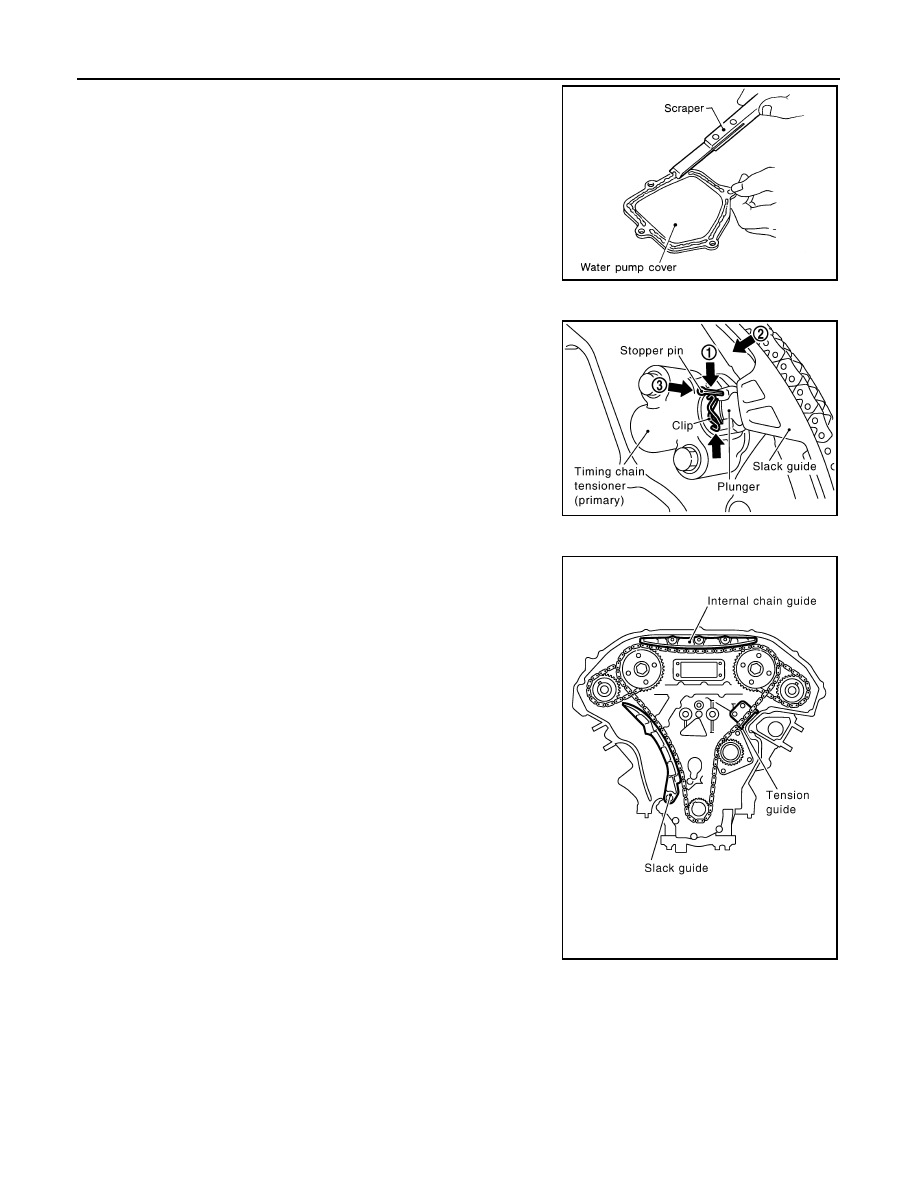

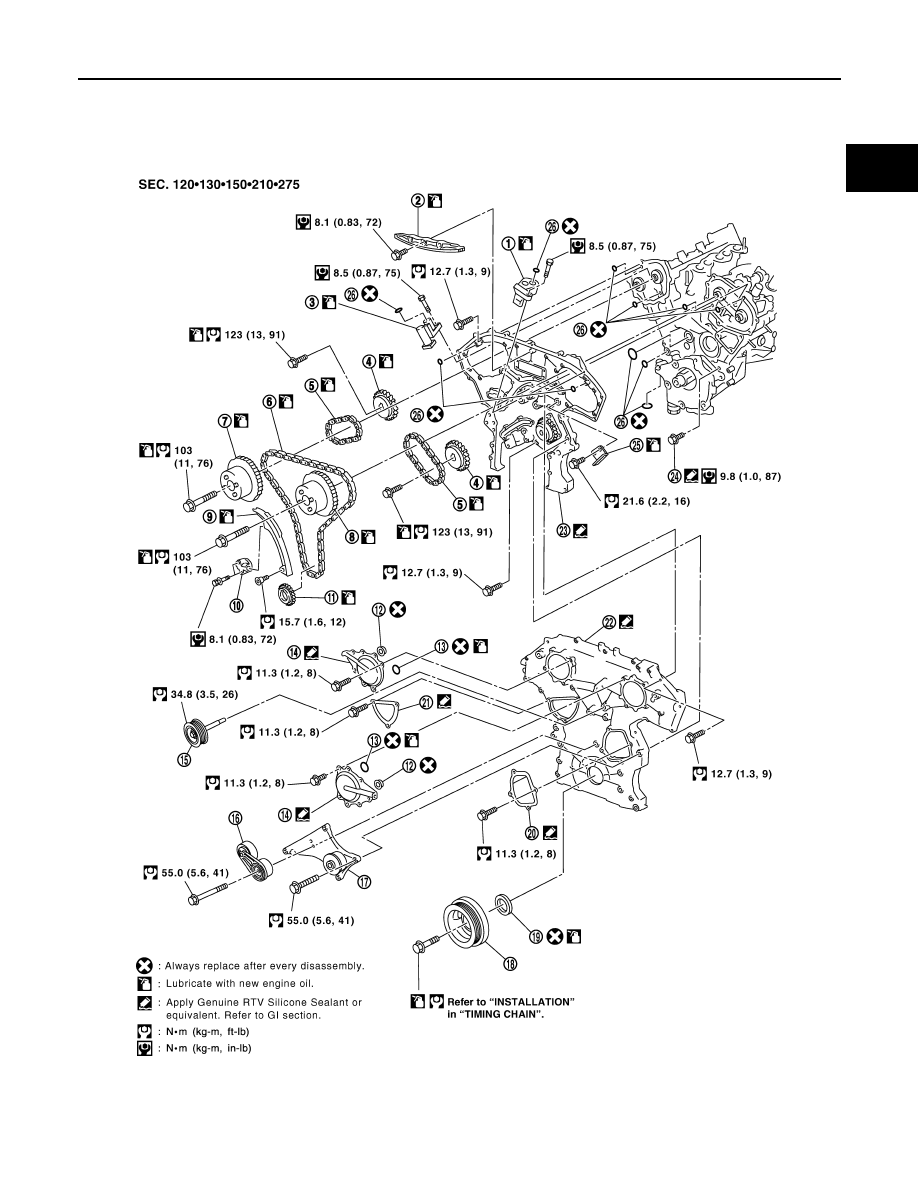

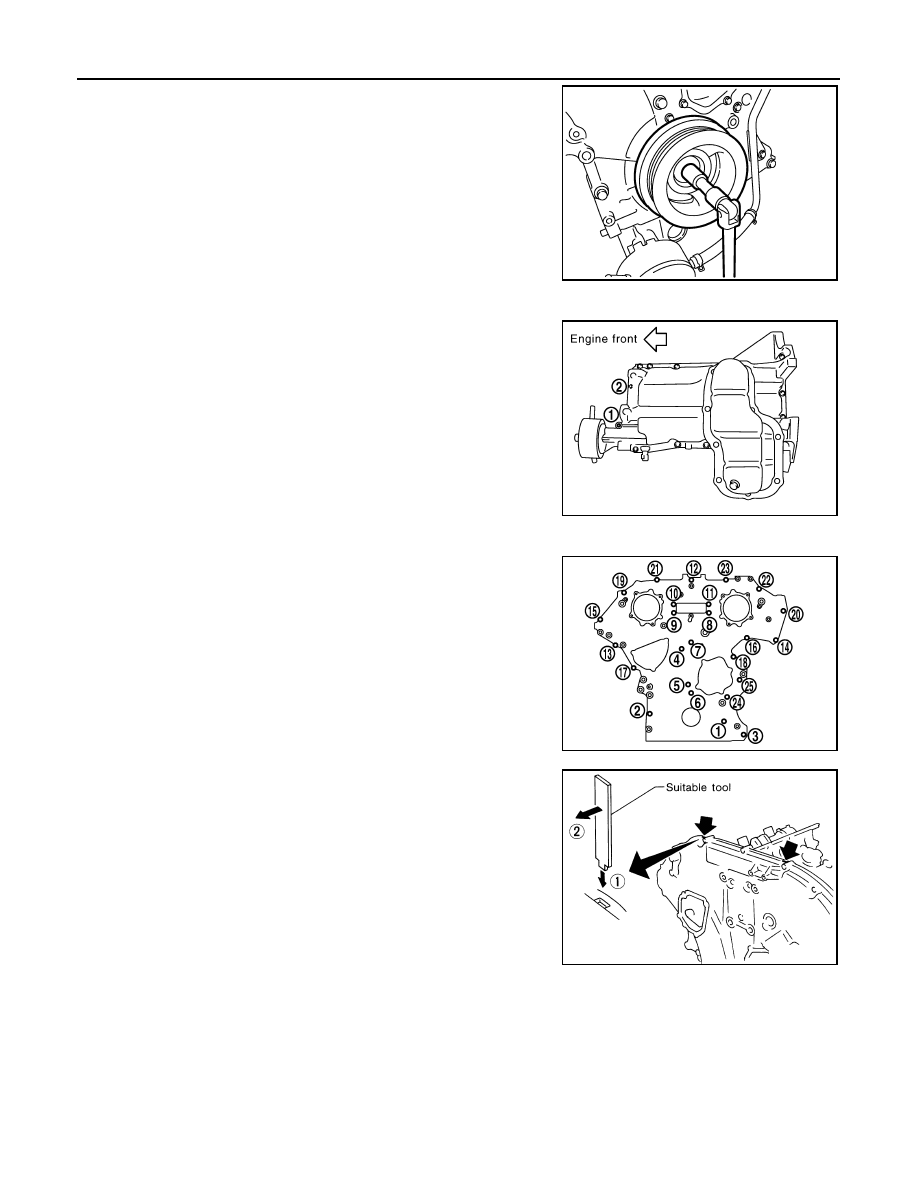

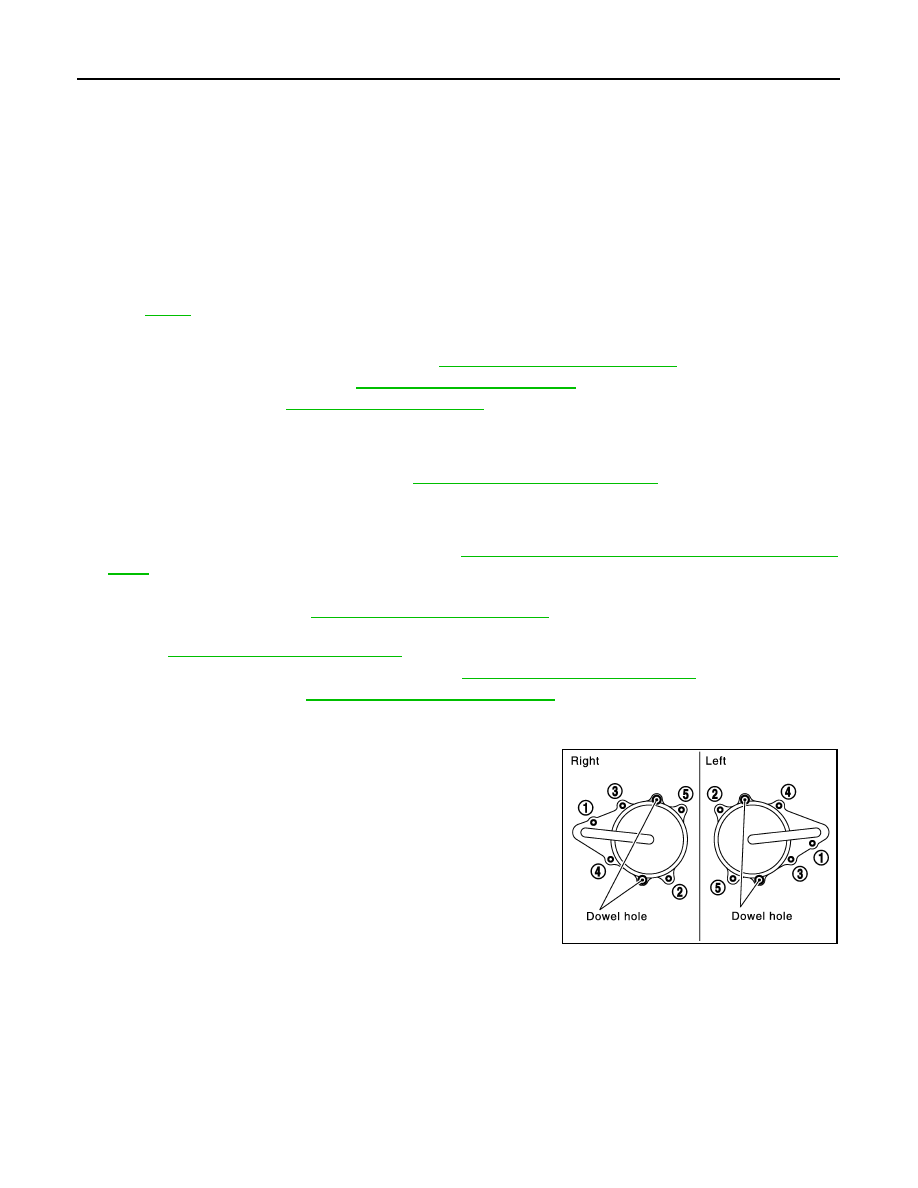

FRONT TIMING CHAIN CASE EM-59 < ON-VEHICLE REPAIR > [VQ40DE] C D E F G H I J K L M A EM N P O c. Install new collared O-rings in front timing chain case oil hole d. Being careful not to move seal ring from the installation groove, align dowel pins on front timing chain e. Tighten bolts in numerical order as shown. 7. Install crankshaft pulley as follows: a. Install crankshaft pulley, taking care not to damage front oil seal. b. Tighten crankshaft pulley bolt in two steps. c. Remove Tool. 8. Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns 9. Installation of the remaining components is in the reverse order of removal after this step. Inspection for Leaks Inspection for Leaks The following are procedures for checking fluid leaks, lubricant leaks and exhaust gases leaks. quantity, fill to the specified level. Refer to MA-10, "Fluids and Lubricants" . • Use procedure below to check for fuel leakage. age at connection points. • Start engine. With engine speed increased, check again for fuel leakage at connection points. PBIC2631E PBIC0918E Step 1 : 44.1 N·m (4.5 kg-m, 33 ft-lb) Step 2 :84 ° - 90 ° degrees clockwise Tool number : KV10117700 (J-44716) WBIA0580E |
