P2A00, P2A03 A/F SENSOR 1

EC-853

< COMPONENT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

OK

>> GO TO 9.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

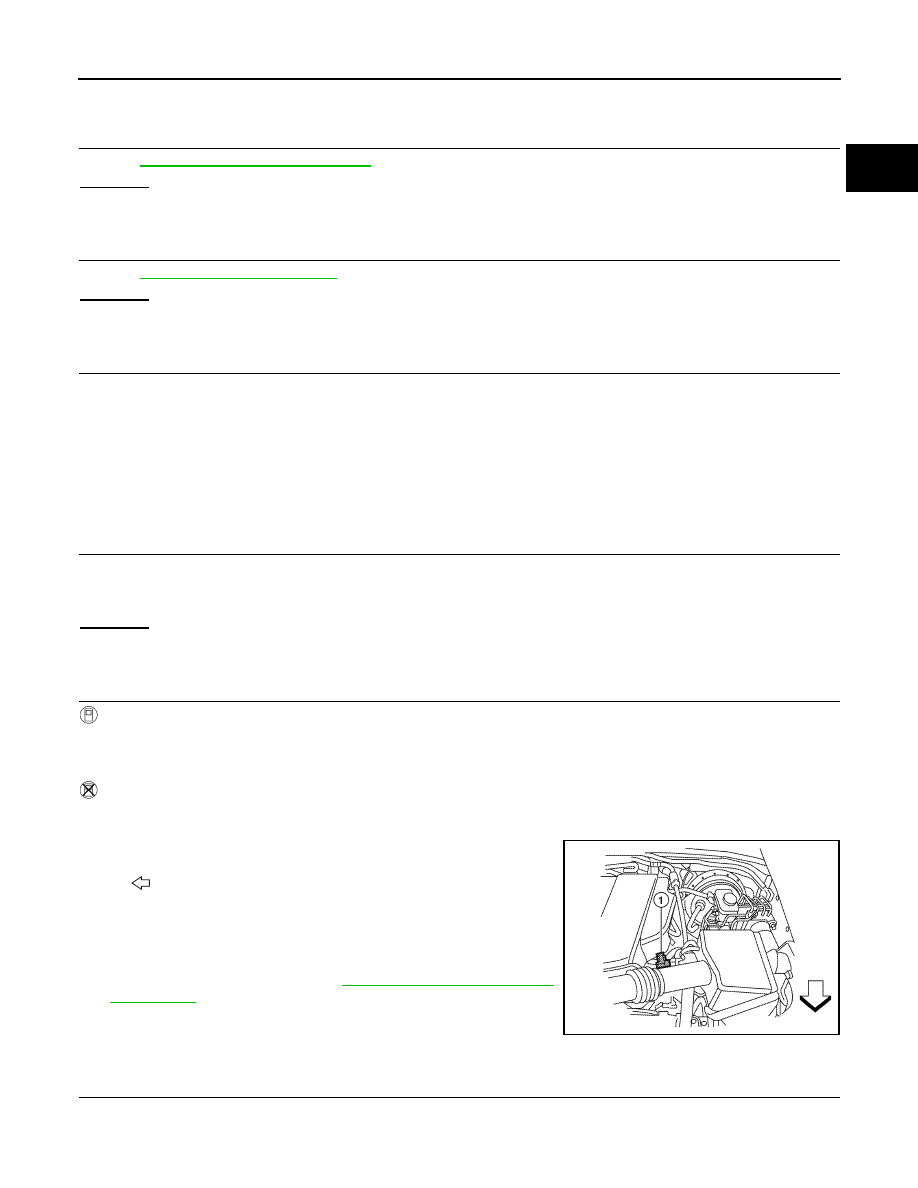

9.

CHECK A/F SENSOR 1 HEATER

Refer to

EC-577, "Component Inspection"

.

OK or NG

OK

>> GO TO 10.

NG

>> GO TO 11.

10.

CHECK INTERMITTENT INCIDENT

Refer to

GI-51, "Intermittent Incident"

.

OK or NG

OK

>> GO TO 11.

NG

>> Repair or replace.

11.

REPLACE AIR FUEL RATIO (A/F) SENSOR 1

Replace malfunctioning air fuel ratio (A/F) sensor 1.

CAUTION:

• Discard any A/F sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a

hard surface such as a concrete floor; use a new one.

• Before installing new A/F sensor, clean exhaust system threads using Oxygen Sensor Thread

Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

>> GO TO 12.

12.

CONFIRM A/F ADJUSTMENT DATA

1.

Turn ignition switch OFF and then ON.

2.

Select “A/F ADJ-B1” and “A/F ADJ-B2” in “DATA MONITOR” mode with CONSULT-III.

3.

Make sure that “0.000” is displayed on CONSULT-III screen.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 13.

13.

CLEAR THE SELF-LEARNING DATA

 With CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT-III.

3.

Clear the self-learning control coefficient by touching “CLEAR”.

 Without CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF.

3.

Disconnect mass air flow sensor (1) harness connector.

4.

Restart engine and let it idle for at least 5 seconds.

5.

Stop engine and reconnect mass air flow sensor harness con-
nector.

6.

Make sure DTC P0102 is displayed.

7.

Erase the DTC memory. Refer to

EC-534, "Malfunction Indicator

Lamp (MIL)"

.

8.

Make sure DTC P0000 is displayed.

>> GO TO 14.

14.

CONFIRM A/F ADJUSTMENT DATA

1.

Turn ignition switch OFF and then ON.

2.

Select “A/F ADJ-B1” and “A/F ADJ-B2” in “DATA MONITOR” mode with CONSULT-III.

Vehicle front

ALBIA0353ZZ

EC-854

< COMPONENT DIAGNOSIS >

[VK56DE]

P2A00, P2A03 A/F SENSOR 1

3.

Make sure that “0.000” is displayed on CONSULT-III screen.

>> INSPECTION END

ASCD BRAKE SWITCH

EC-855

< COMPONENT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

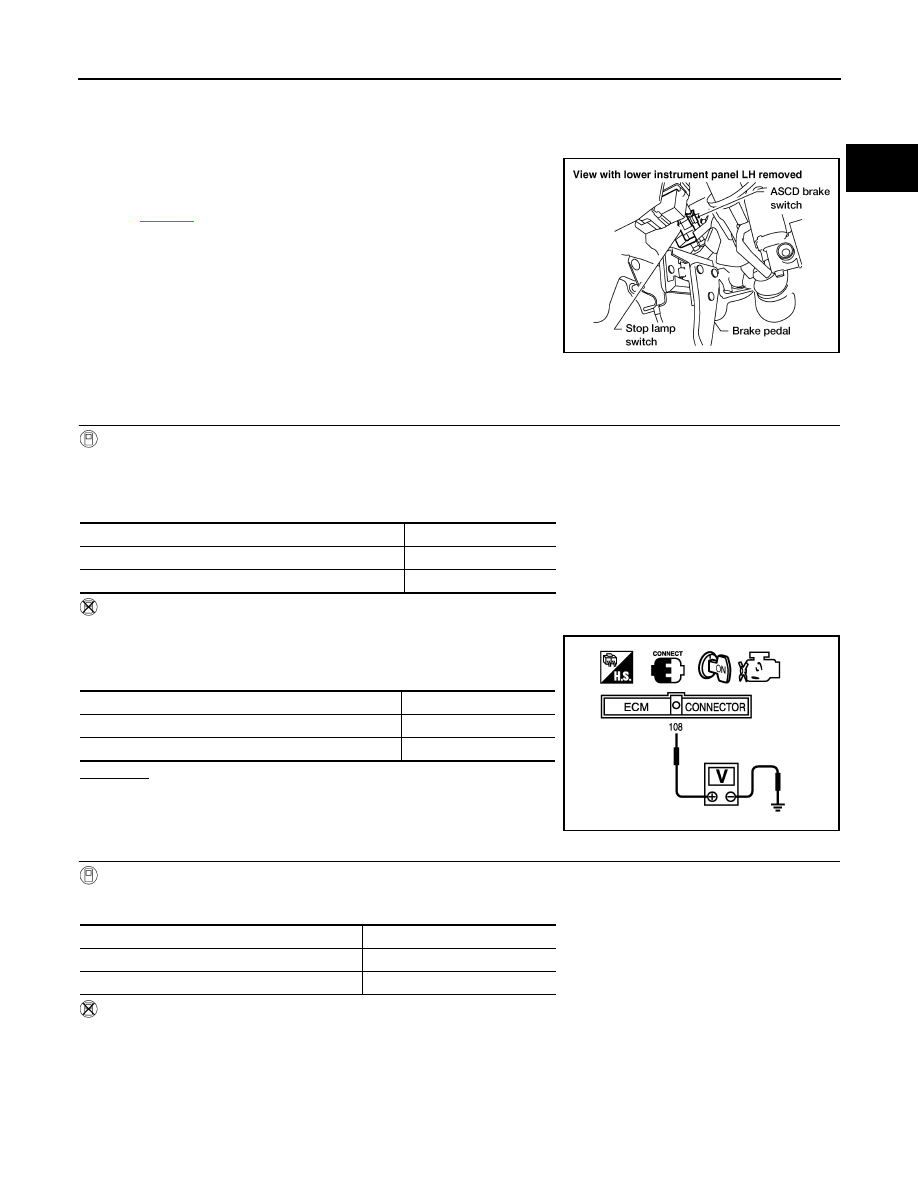

ASCD BRAKE SWITCH

Component Description

INFOID:0000000001537988

When the brake pedal is depressed, ASCD brake switch is turned
OFF and stop lamp switch is turned ON. ECM detects the state of
the brake pedal by this input of two kinds (ON/OFF signal).
Refer to

EC-513

 for the ASCD function.

Diagnosis Procedure

INFOID:0000000001537989

1.

CHECK OVERALL FUNCTION-I

 With CONSULT-III

1.

Turn ignition switch ON.

2.

Select “BRAKE SW 1” in “DATA MONITOR” mode with CONSULT-III.

3.

Check “BRAKE SW 1” indication under the following conditions.

 Without CONSULT-III

1.

Turn ignition switch ON.

2.

Check voltage between ECM terminal 108 and ground under the
following conditions.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

2.

CHECK OVERALL FUNCTION-II

 With CONSULT-III

Check “BRAKE SW 2” indication in “DATA MONITOR” mode.

 Without CONSULT-III

Check voltage between ECM terminal 101 and ground under the following conditions.

BBIA0560E

CONDITION

INDICATION

Brake pedal: Slightly depressed

OFF

Brake pedal: Fully released

ON

CONDITION

VOLTAGE

Brake pedal: Slightly depressed

Approximately 0V

Brake pedal: Fully released

Battery voltage

MBIB0061E

CONDITION

INDICATION

Brake pedal: Fully released

OFF

Brake pedal: Slightly depressed

ON

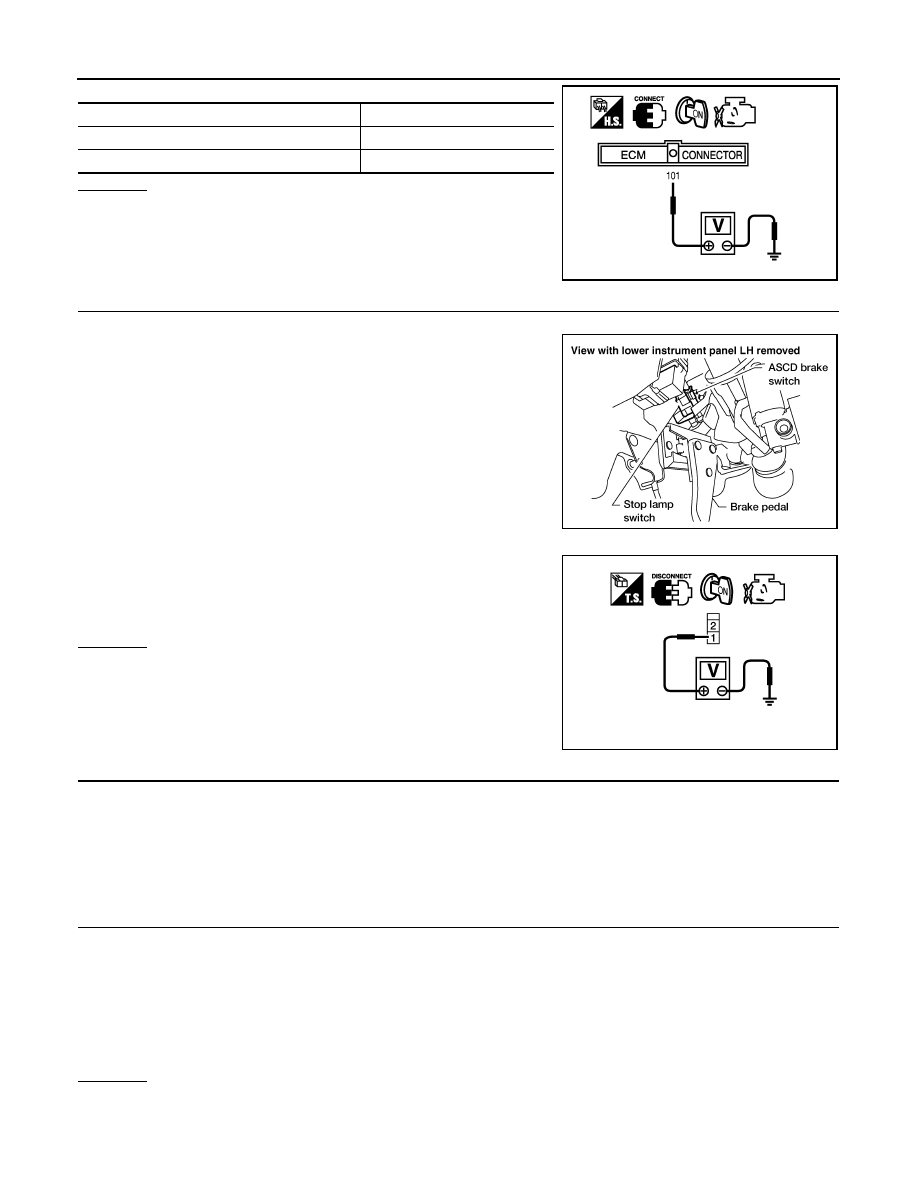

EC-856

< COMPONENT DIAGNOSIS >

[VK56DE]

ASCD BRAKE SWITCH

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 7.

3.

CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ASCD brake switch harness connector.

3.

Turn ignition switch ON.

4.

Check voltage between ASCD brake switch terminal 1 and
ground with CONSULT-III or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.
• Fuse block (J/B) connector E160
• 10A fuse
• Harness for open or short between ASCD brake switch and fuse

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminal 108 and ASCD brake switch terminal 2.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 6.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

CONDITION

VOLTAGE

Brake pedal: Fully released

Approximately 0V

Brake pedal: Slightly depressed

Battery voltage

PBIB1537E

BBIA0560E

Voltage: Battery voltage

PBIB0857E

Continuity should exist.

ASCD BRAKE SWITCH

EC-857

< COMPONENT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

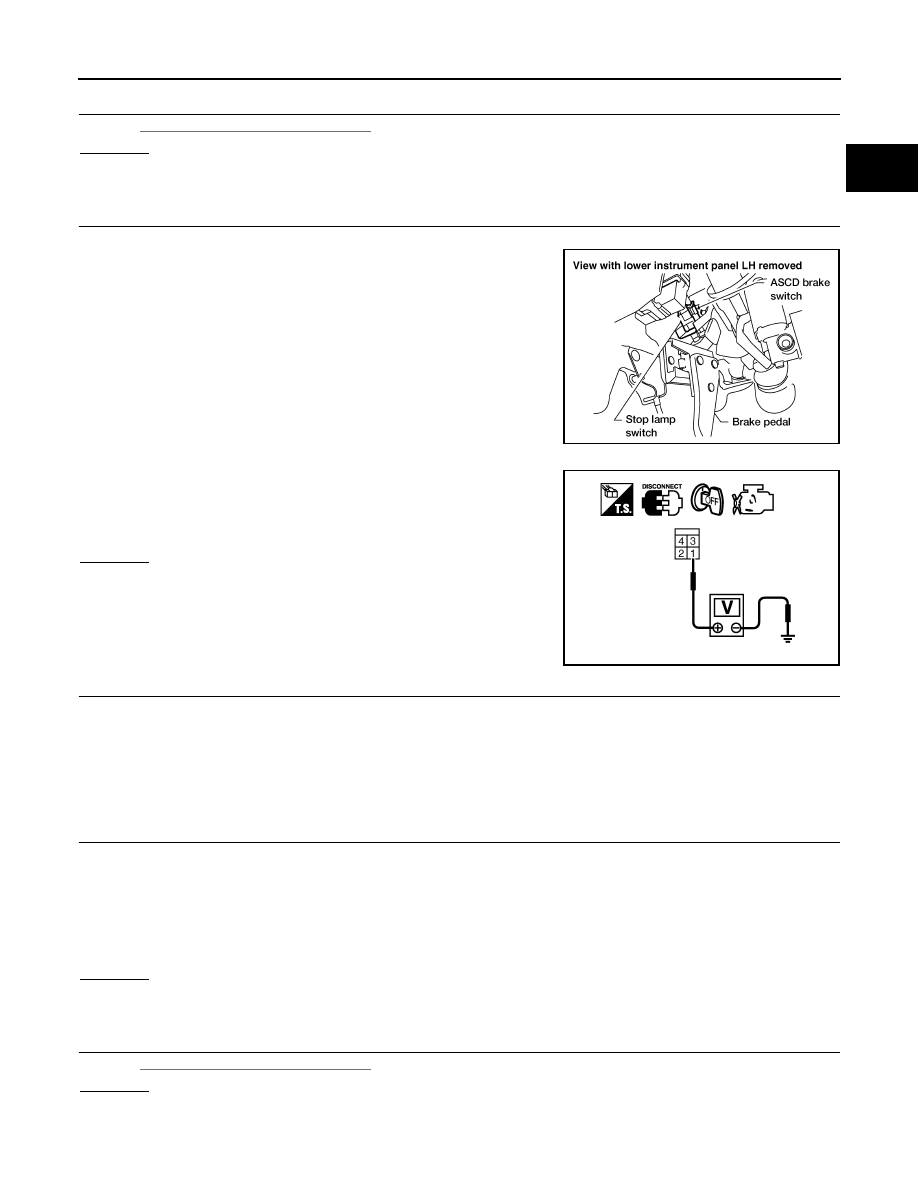

6.

CHECK ASCD BRAKE SWITCH

Refer to

EC-858, "Component Inspection"

.

OK or NG

OK

>> GO TO 11.

NG

>> Replace ASCD brake switch.

7.

CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp switch harness connector.

3.

Check voltage between stop lamp switch terminal 1 and ground
with CONSULT -III or tester.

OK or NG

OK

>> GO TO 9.

NG

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART

Check the following.
• Fuse block (J/B) connector E160
• 10A fuse
• Harness for open or short between stop lamp switch and battery

>> Repair open circuit or short to ground or short to power in harness or connectors.

9.

CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Disconnect ECM harness connector.

2.

Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2.
Refer to Wiring Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 10.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

10.

CHECK STOP LAMP SWITCH

Refer to

EC-858, "Component Inspection"

.

OK or NG

OK

>> GO TO 11.

NG

>> Replace stop lamp switch.

BBIA0560E

Voltage: Battery voltage

PBIB1184E

Continuity should exist.

EC-858

< COMPONENT DIAGNOSIS >

[VK56DE]

ASCD BRAKE SWITCH

11.

CHECK INTERMITTENT INCIDENT

Refer to

GI-51, "Intermittent Incident"

.

>> INSPECTION END

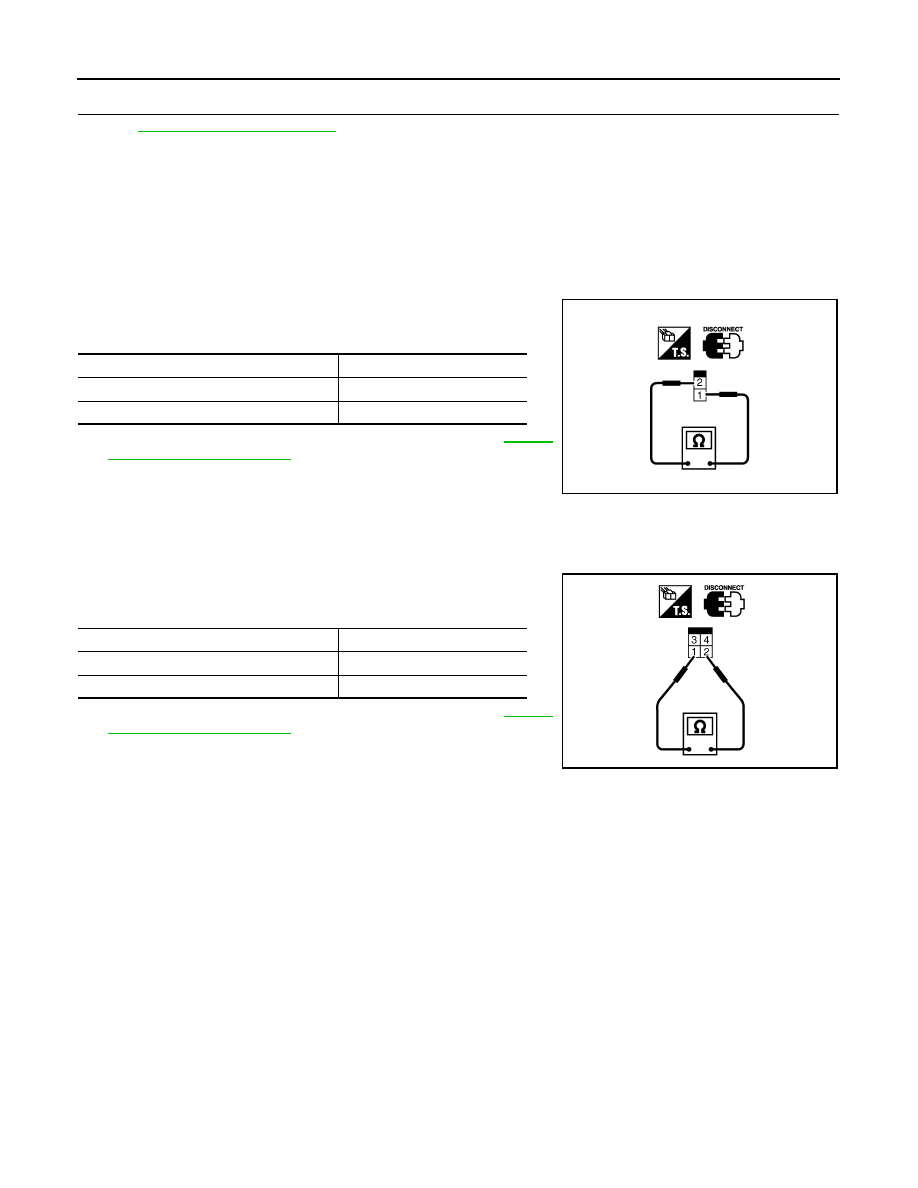

Component Inspection

INFOID:0000000001537990

ASCD BRAKE SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect ASCD brake switch harness connector.

3.

Check harness continuity between ASCD brake switch terminals
1 and 2 under the following conditions.

If NG, adjust ASCD brake switch installation, refer to

BR-15,

"Removal and Installation"

, and perform step 3 again.

STOP LAMP SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp switch harness connector.

3.

Check harness continuity between stop lamp switch terminals 1
and 2 under the following conditions.

If NG, adjust stop lamp switch installation, refer to

BR-15,

"Removal and Installation"

, and perform step 3 again.

Condition

Continuity

Brake pedal: Fully released.

Should exist.

Brake pedal: Slightly depressed.

Should not exist.

SEC023D

Condition

Continuity

Brake pedal: Fully released.

Should not exist.

Brake pedal: Slightly depressed.

Should exist.

PBIB1185E

ASCD INDICATOR

EC-859

< COMPONENT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

ASCD INDICATOR

Component Description

INFOID:0000000001537991

ASCD indicator lamp illuminates to indicate ASCD operation status. Lamp has two indicators, CRUISE and
SET, and is integrated in combination meter.
CRUISE indicator illuminates when MAIN switch on ASCD steering switch is turned ON to indicate that ASCD
system is ready for operation.
SET indicator illuminates when following conditions are met.
• CRUISE indicator is illuminated.
• SET/COAST switch on ASCD steering switch is turned ON while vehicle speed is within the range of ASCD

setting.

SET indicator remains lit during ASCD control.
Refer to

EC-513

 for the ASCD function.

Diagnosis Procedure

INFOID:0000000001537992

1.

CHECK OVERALL FUNCTION

Check ASCD indicator under the following conditions.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

2.

CHECK DTC

Check that DTC U1000 or U1001 is not displayed.
OK or NG

OK

>> GO TO 3.

NG

>> Perform trouble diagnosis for DTC U1000, U1001. Refer to

EC-566

.

3.

 CHECK COMBINATION METER FUNCTION

Refer to

MWI-24, "CONSULT-III Function (METER/M&A)"

.

OK or NG

OK

>> GO TO 4.

NG

>> Go to

MWI-3, "Work Flow"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-51, "Intermittent Incident"

.

>> INSPECTION END

ASCD INDICATOR

CONDITION

SPECIFICATION

CRUISE LAMP

• Ignition switch: ON

• MAIN switch: Pressed at the 1st

time

→

 at the 2nd time

ON

→

 OFF

SET LAMP

• MAIN switch: ON
• When vehicle speed : Between

40 km/h (25 MPH) and 144 km/h
(89 MPH)

• ASCD:  Operating

ON

• ASCD: Not operating

OFF

EC-860

< COMPONENT DIAGNOSIS >

[VK56DE]

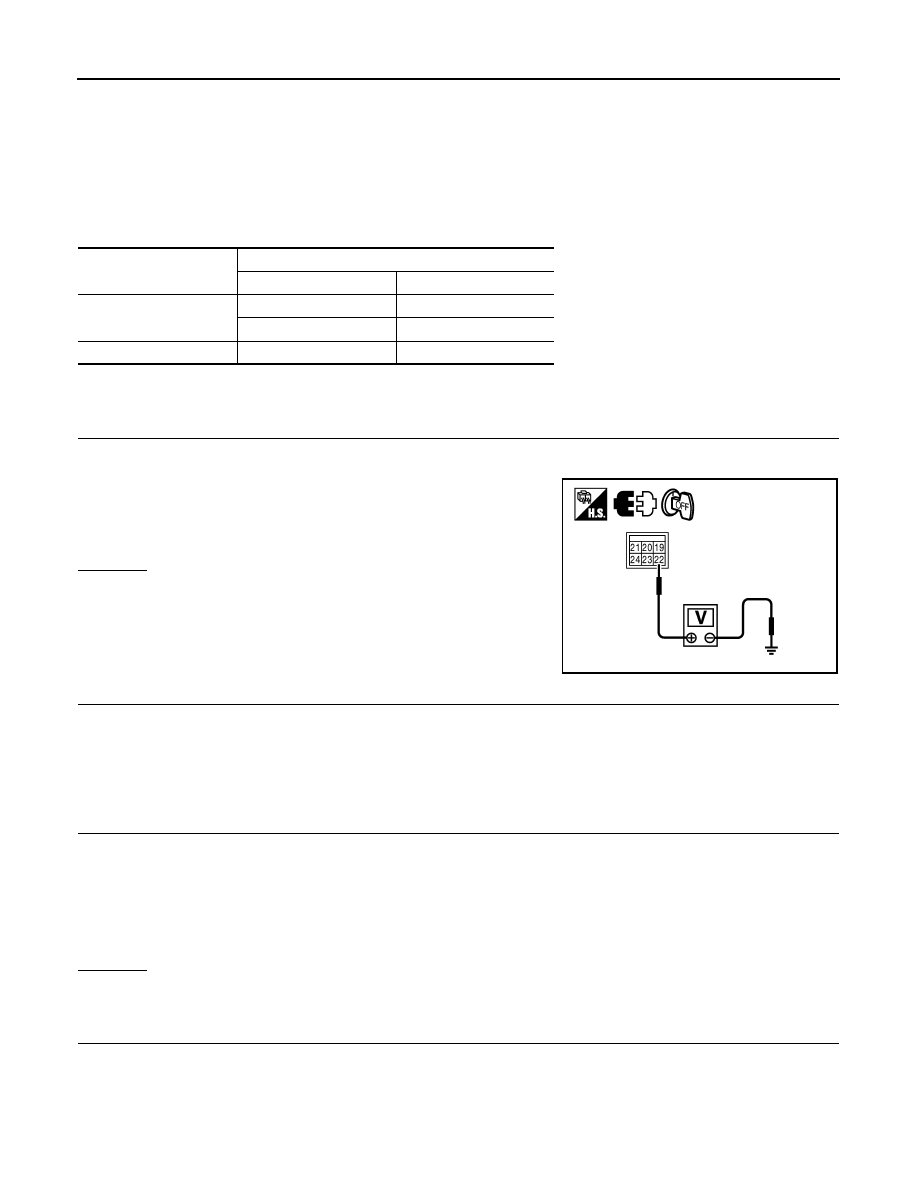

COOLING FAN

COOLING FAN

Description

INFOID:0000000001559412

COMPONENT DESCRIPTION

Cooling Fan Motor

The cooling fan operates at each speed when the current flows in the cooling fan motor as follows.

Diagnosis Procedure

INFOID:0000000001559413

1.

CHECK IPDM E/R POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R harness connectors E120.

3.

Check voltage between IPDM E/R terminal 22 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.
• 40A fusible link
• Harness for open or short between IPDM E/R and battery

>> Repair open circuit or short to ground in harness or connectors.

3.

CHECK IPDM E/R GROUND CIRCUIT

1.

Disconnect IPDM E/R harness connectors E122, E124.

2.

Check harness continuity between IPDM E/R terminals 38, 59 and ground.
Refer to Wiring Diagram.

3.

Also check harness for short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to power in harness or connectors.

4.

CHECK COOLING FAN MOTOR CIRCUIT FOR OPEN AND SHORT

Cooling fan speed

Cooling fan motor terminals

(+)

(

−

)

Low (LOW)

1

3 and 4

2

3 and 4

High (HI)

1 and 2

3 and 4

Voltage: Battery voltage

PBIB2607E

Continuity should exist.
