Nissan Pathfinder (2008 year). Manual - part 160





HOOD

DLK-181

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

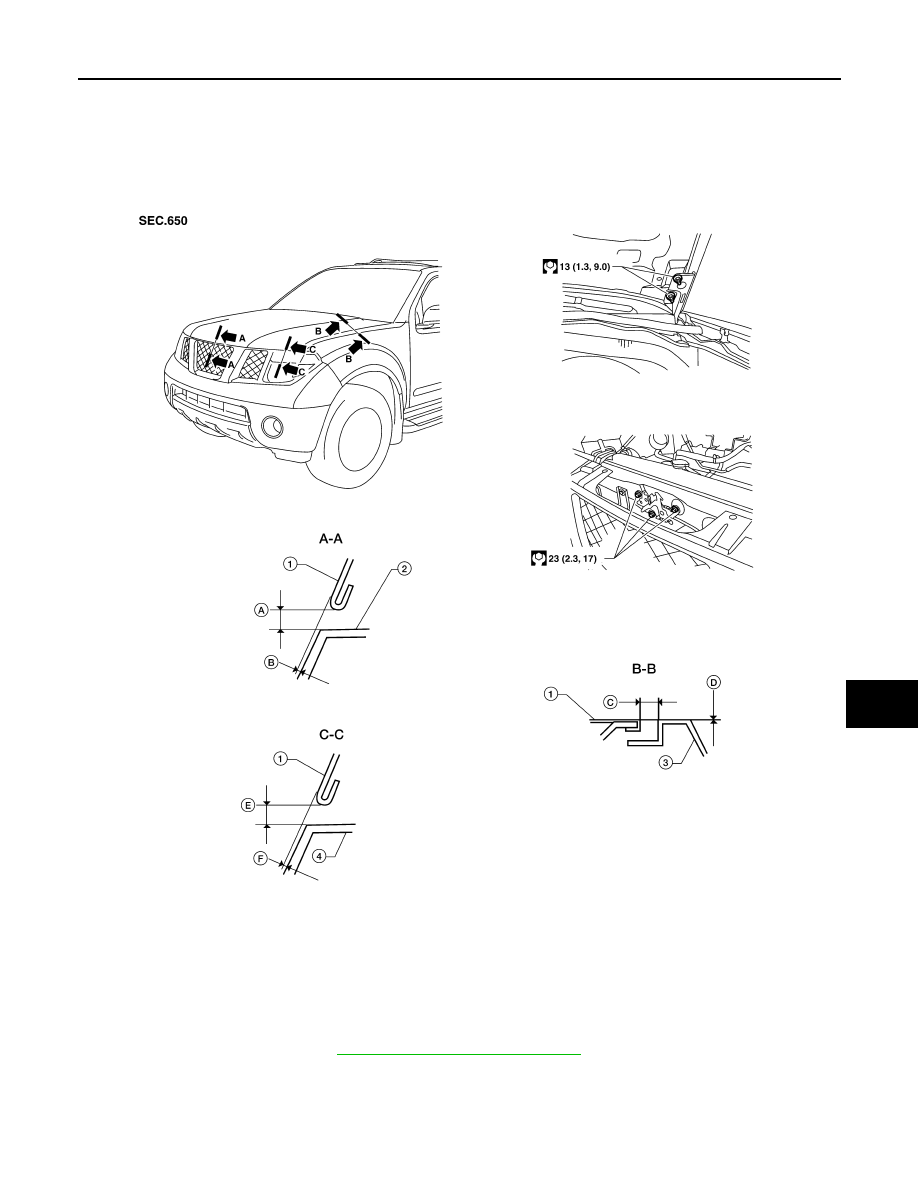

ON-VEHICLE REPAIR

HOOD

Fitting Adjustment

INFOID:0000000001563782

CLEARANCE AND SURFACE HEIGHT ADJUSTMENT

1.

Remove the front grille. Refer to

EXT-16, "Removal and Installation"

.

2.

Loosen the hood lock assembly and adjust the rubber bumpers until the surface height of the hood
becomes 1 mm (0.04 in) lower than the fender.

3.

Engage the hood striker and temporarily tighten.

4.

Check the lock and striker for looseness.

1.

Hood

2.

Front grille

3.

Front fender

4.

Headlamp assembly

A.

6.0 mm (0.24 in)

B.

0.7 mm (0.03 in)

C.

4.5 mm (0.18 in)

D.

 0.0 mm (0.0 in)

E.

6.0 mm (0.24 in)

F.

0.7 mm (0.03 in)

WIIA0774E

DLK-182

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

HOOD

5.

Tighten the bolts to specification.

6.

Adjust the surface height of the hood according to the fitting standard dimension by rotating right and left
rubber bumpers.

7.

Install the front grille. Refer to

EXT-16, "Removal and Installation"

.

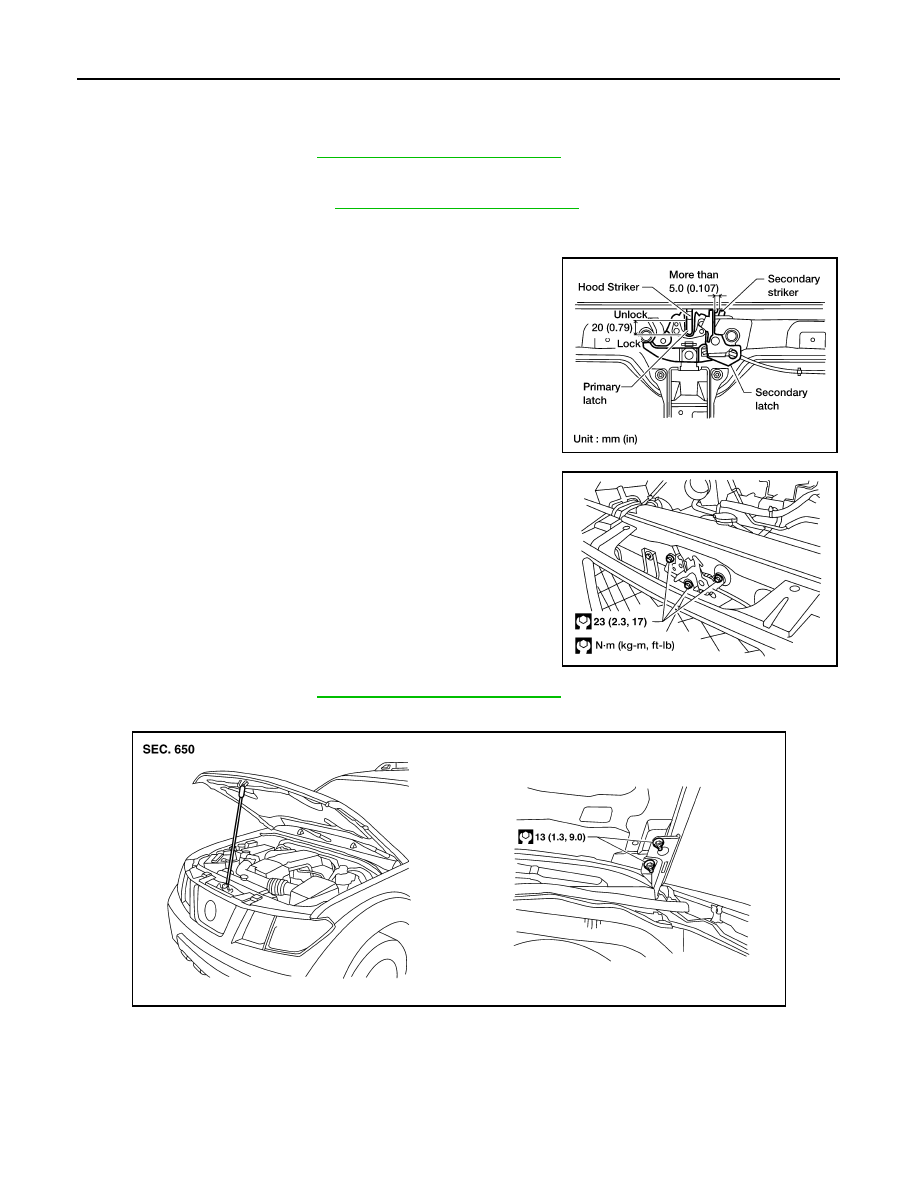

HOOD LOCK ADJUSTMENT

1.

Remove the front grille. Refer to

EXT-16, "Removal and Installation"

.

2.

Move the hood lock to the left or right so that striker center is vertically aligned with hood lock center
(when viewed from vehicle front).

3.

Make sure the secondary latch is properly engaged with the sec-
ondary striker with hood's own weight by dropping it from
approx. 200 mm (7.87 in) height or by pressing it lightly approx.
3 kg (29 N, 7lb).

CAUTION:

Do not drop the hood from 300 mm (11.81 in) height or
higher.

4.

After adjusting hood lock, tighten the lock bolts to the specified
torque.

5.

Install the front grille. Refer to

EXT-16, "Removal and Installation"

.

Removal and Installation of Hood Assembly

INFOID:0000000001563783

1.

Support the hood striker with suitable tool to prevent it from falling.

2.

Remove the hinge nuts from the hood to remove the hood assembly.

CAUTION:

Operate with two workers, because of its heavy weight.
Installation is in the reverse order of removal.

LIIA1696E

LIIA1701E

WIIA1055E

HOOD

DLK-183

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

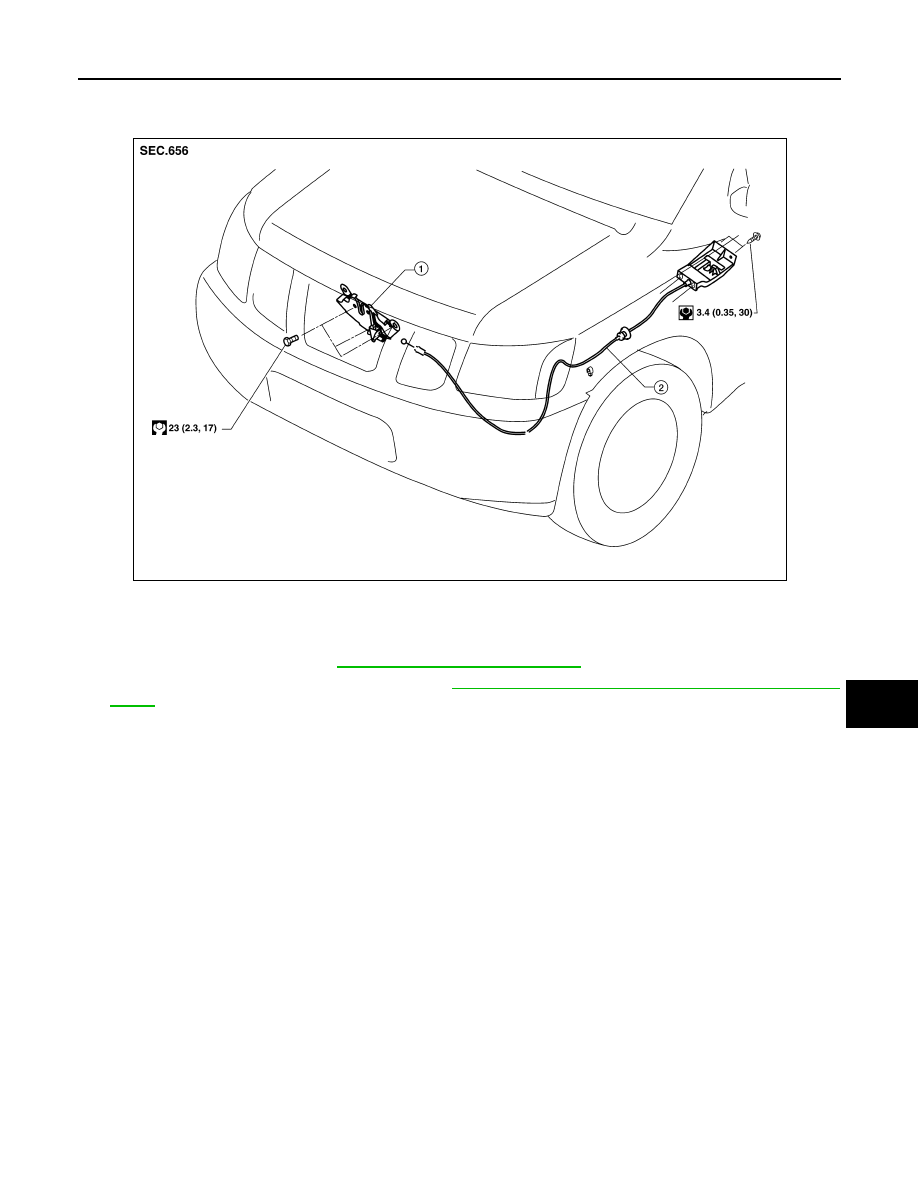

Removal and Installation of Hood Lock Control

INFOID:0000000001563784

REMOVAL

1.

Remove the front grille. Refer to

EXT-16, "Removal and Installation"

.

2.

Remove the front fender protector (LH). Refer to

EXT-20, "Removal and Installation of Front Fender Pro-

tector"

.

3.

Disconnect the hood lock cable from the hood lock, and unclip it from the radiator core support upper and
hoodledge.

4.

Remove the bolts, and the hood release handle.

5.

Separate the grommet from the lower dash panel. Pull the hood lock cable out through the passenger
compartment.

CAUTION:

While pulling, be careful not to damage the outside of the hood lock cable.

INSTALLATION

1.

Pull the hood lock cable through the lower dash panel hole into the engine room.

1.

Hood lock assembly

2.

Hood lock cable

WIIA0775E

DLK-184

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

HOOD

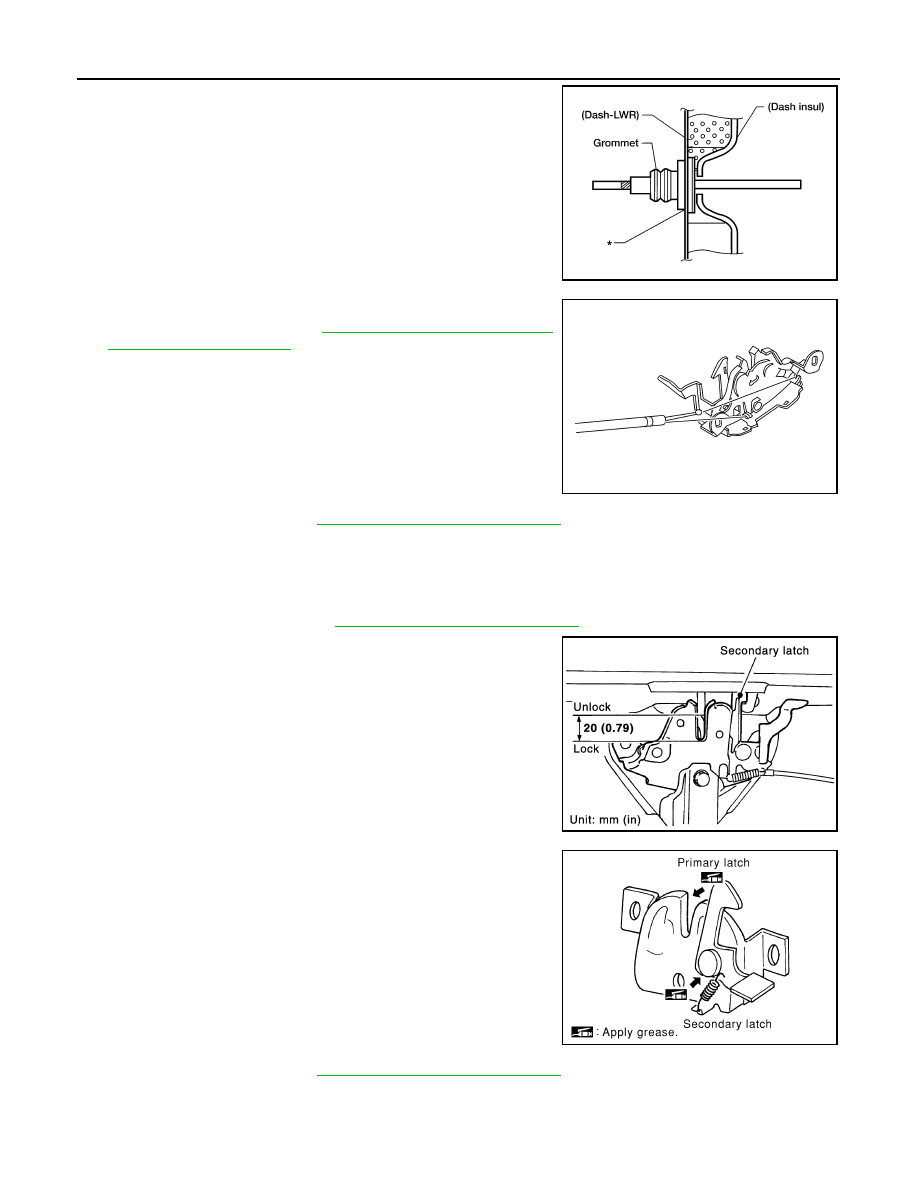

Be careful not to bend the cable too much, keep the radius
100mm (3.94 in) or more.

2.

Make sure the cable is not offset from the grommet, and push
the grommet into the lower dash panel hole securely.

3.

Apply sealant around the grommet at * mark.

4.

Install the cable securely to the lock.

5.

Adjust the hood lock. Refer to

DLK-183, "Removal and Installa-

tion of Hood Lock Control"

.

6.

Install the front grille. Refer to

EXT-16, "Removal and Installation"

.

Hood Lock Control Inspection

INFOID:0000000001563785

CAUTION:

If the hood lock cable is bent or deformed, replace it.
1.

Remove the front grille. Refer to

EXT-16, "Removal and Installation"

.

2.

Make sure the secondary latch is properly engaged with the sec-
ondary striker with hood's own weight by dropping it from
approx. 200 mm (7.87 in) height.

3.

While operating the hood opener, carefully make sure the front
end of the hood is raised by approx. 20 mm (0.79 in). Also make
sure the hood opener returns to the original position.

4.

Check the hood lock lubrication condition. If necessary, apply
“body grease” to the points shown.

5.

Install the front grille. Refer to

EXT-16, "Removal and Installation"

.

LIIA1698E

LIIA1699E

PIIA1086E

PIIA0176E

DOOR

DLK-185

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

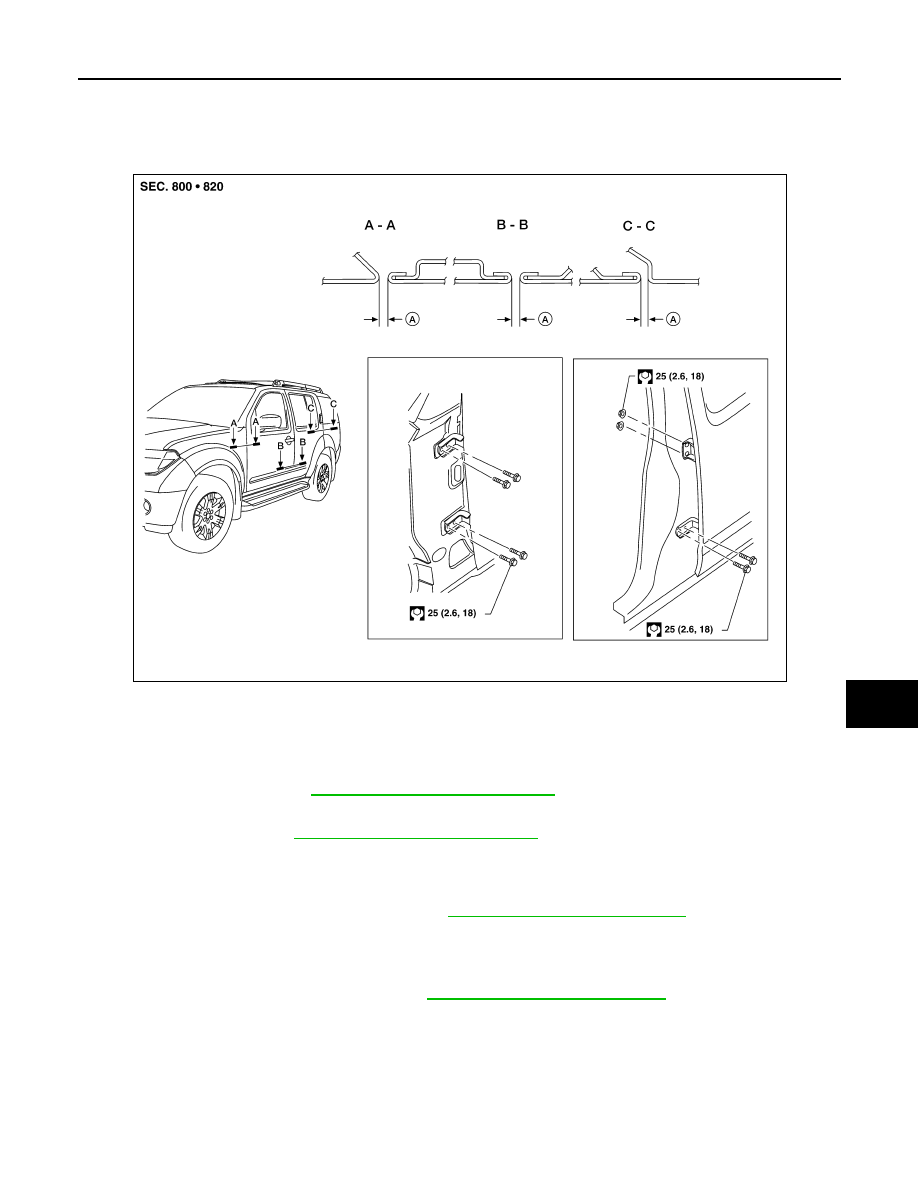

DOOR

Fitting Adjustment

INFOID:0000000001563786

Front door

Longitudinal clearance and surface height adjustment at front end

1.

Remove the fender. Refer to

EXT-18, "Removal and Installation"

.

2.

Loosen the hinge bolts. Raise or lower the front door at rear end to adjust.

3.

Install the fender. Refer to

EXT-18, "Removal and Installation"

.

Rear door

Longitudinal clearance and surface height adjustment at front end

1.

Remove the center pillar upper finisher. Refer to

INT-13, "Removal and Installation"

.

2.

Loosen the lower hinge bolts.

3.

From inside the vehicle, loosen the upper hinge nuts. Open the door, and raise or lower the rear end of the
door to adjust.

4.

Install the center pillar lower finisher. Refer to

INT-13, "Removal and Installation"

.

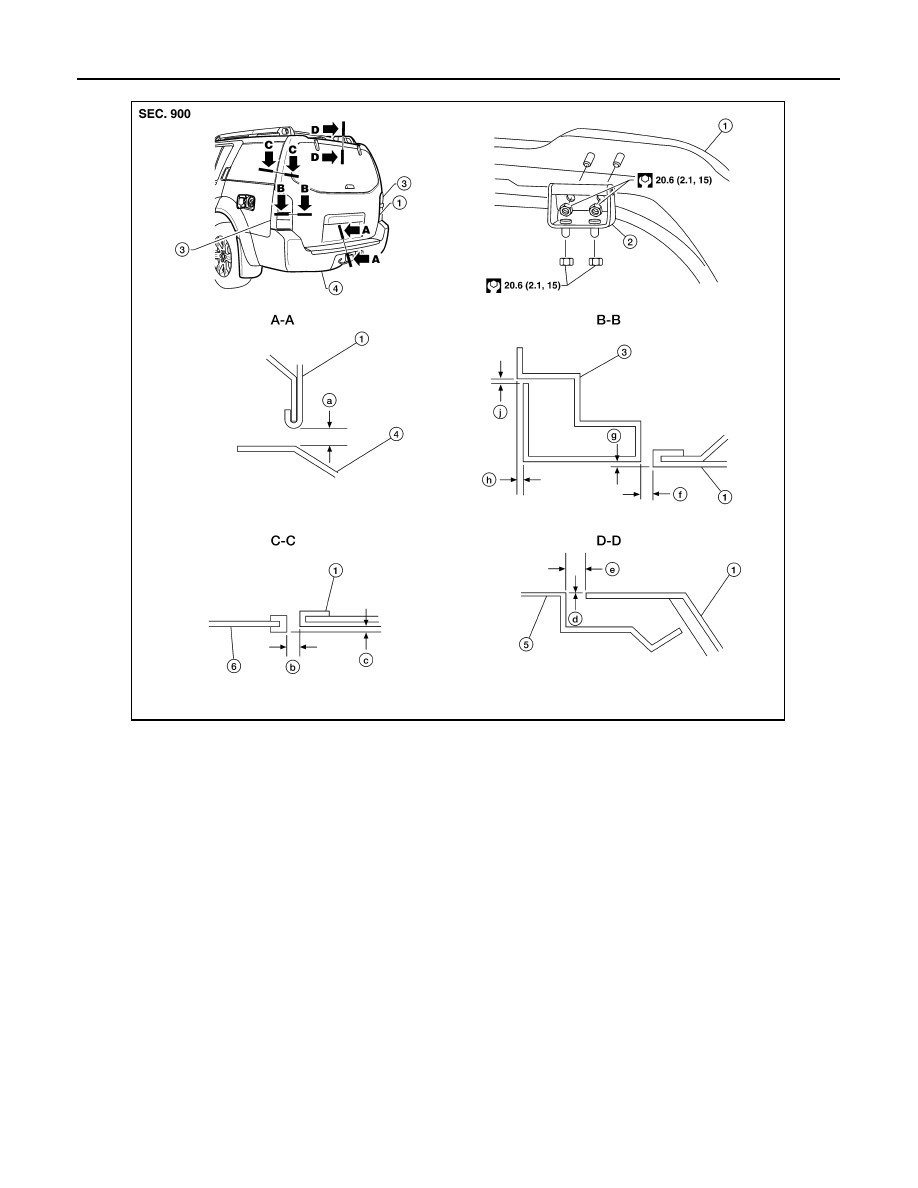

Back door

Longitudinal clearance and surface height adjustment

A.

4.5

±

 1.0 mm (0.177

±

 0.039 in)

WIIA0732E

DLK-186

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

DOOR

1.

Open and support the back door.

2.

Slightly loosen the hinge nuts.

3.

Reposition the door as necessary and tighten the nuts.

4.

Confirm the adjustment. Repeat as necessary to obtain the desired fit.

Striker adjustment

BODY SIDE DOORS

1.

Back door assembly

2.

Back door hinge

3.

Tail lamp assembly

4.

Rear bumper fascia

5.

Roof

6.

Side window glass

a.

7.2

±

 2.0 mm (0.28

±

 0.06 in)

b.

6.0

±

 1.5 mm (0.24

±

 0.06 in)

c.

2.0

±

  2.0 mm ( 0.08

±

 0.08 in)

d.

1.0

±

 1.5 mm (0.04

±

 0.06 in)

e.

8.0

±

 1.5 mm (0.31

±

 0.06 in)

f.

5.3

±

  2.0 mm (0.21

±

 0.08 in)

g.

0.8

±

 2.0 mm (0.03

±

 0.08 in)

h.

0.8

±

 1.0 mm (0.03

±

 0.04 in)

j.

2.0

±

 1.0 mm (0.08

±

  0.04 in)

WIIA0733E

DOOR

DLK-187

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

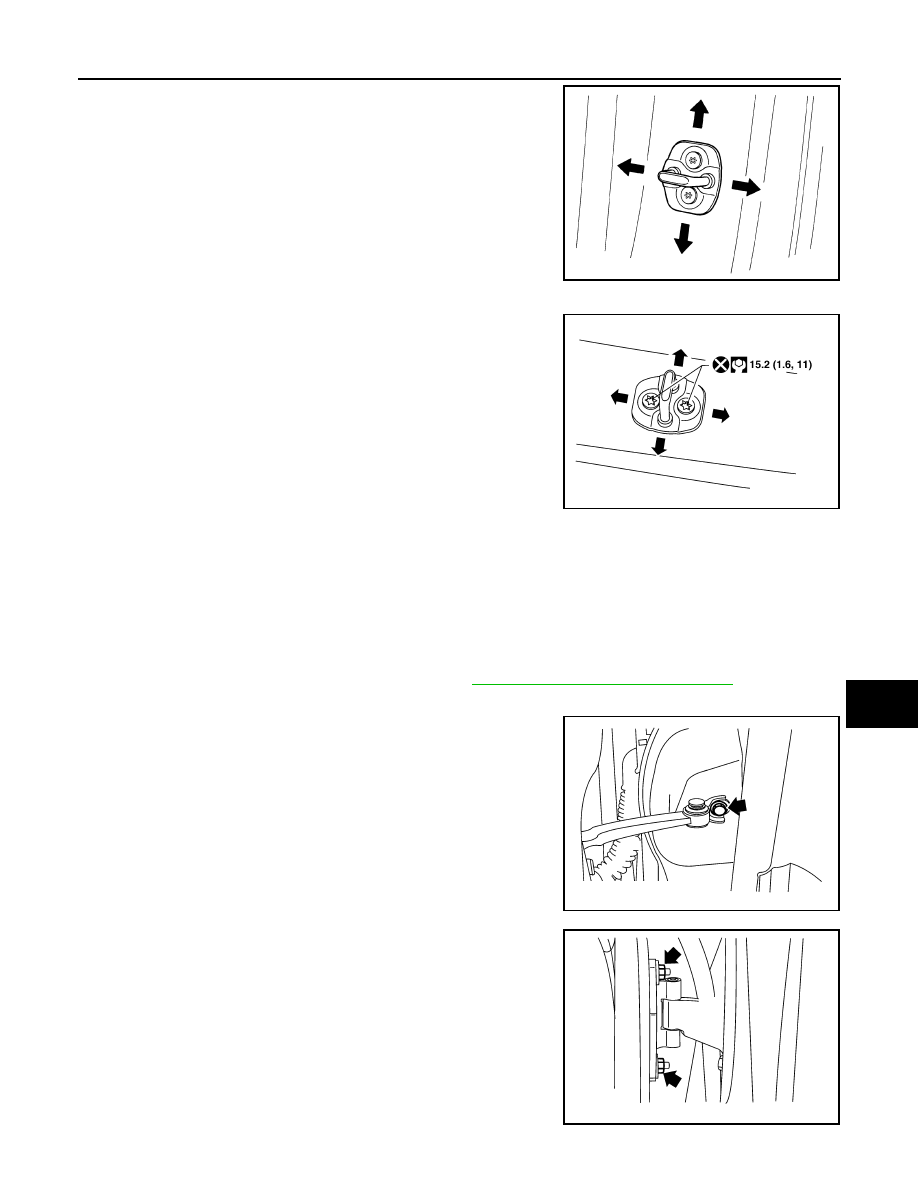

1.

Adjust the striker so that it becomes parallel with the lock inser-
tion direction.

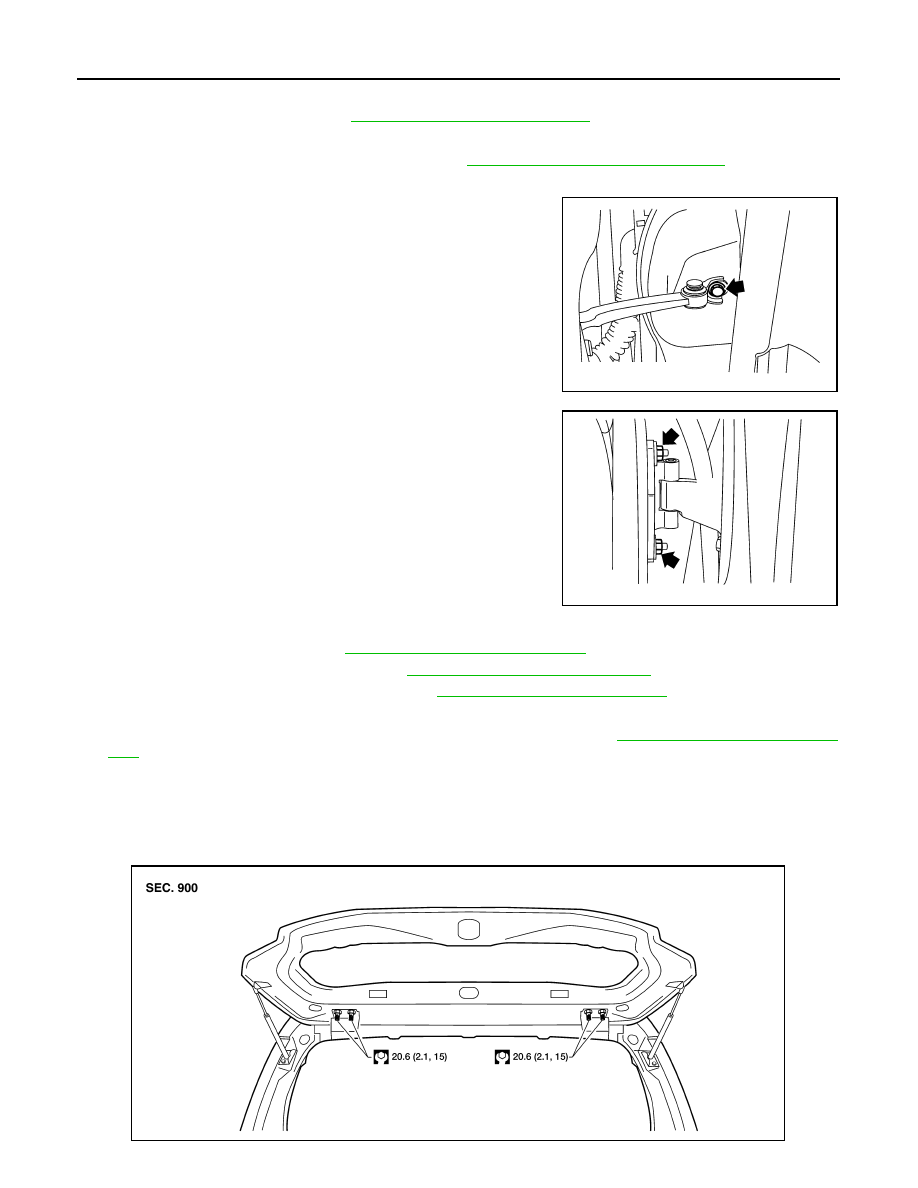

BACK DOOR

1.

Adjust the striker so that it becomes parallel with the lock inser-
tion direction.

Removal and Installation

INFOID:0000000001563787

FRONT DOOR

CAUTION:

• When removing and installing the door assembly, support the door with a jack and shop cloth to pro-

tect the door and body.

• When removing and installing door assembly, be sure to carry out the fitting adjustment.
• Check the hinge rotating part for poor lubrication. If necessary, apply "body grease".

1.

Remove the front door glass and regulator. Refer to

GW-14, "Front Door Glass Regulator"

.

2.

Remove the door harness.

3.

Remove the check link bolt from the hinge pillar.

4.

Remove the door-side hinge nuts, and the door assembly.

Installation is in the reverse order of removal.

PIIB2804J

WIIA0735E

LIIA1726E

LIIA1727E

DLK-188

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

DOOR

REAR DOOR

1.

Remove the door finisher. Refer to

INT-10, "Removal and Installation"

.

2.

Remove the inner seal.

3.

Remove the rear door glass and regulator. Refer to

GW-18, "Rear Door Glass Regulator"

.

4.

Remove the door harness.

5.

Remove the check link bolt from the hinge pillar.

6.

Remove the door-side hinge nuts, and remove the door assem-
bly.

Installation is in the reverse order of removal.

BACK DOOR

1.

Remove the glass hatch. Refer to

GW-23, "Removal and Installation"

.

2.

Remove the license lamp finisher. Refer to

EXT-19, "Removal and Installation"

.

3.

Remove the back door lock assembly. Refer to

DLK-194, "Component Structure"

.

4.

Remove the back door wire harness.

5.

Remove the rear washer nozzle and hose from the back door. Refer to

WW-54, "Removal and Installa-

tion"

CAUTION:

Two technicians should be used to avoid damaging the back door during removal.
6.

Support the back door.

7.

Remove the back door stays.

8.

Remove the door side nuts and the back door assembly.

LIIA1726E

LIIA1727E

WIIA1056E
