Nissan Pathfinder (2008 year). Manual - part 152

BCM (BODY CONTROL MODULE)

DLK-117

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

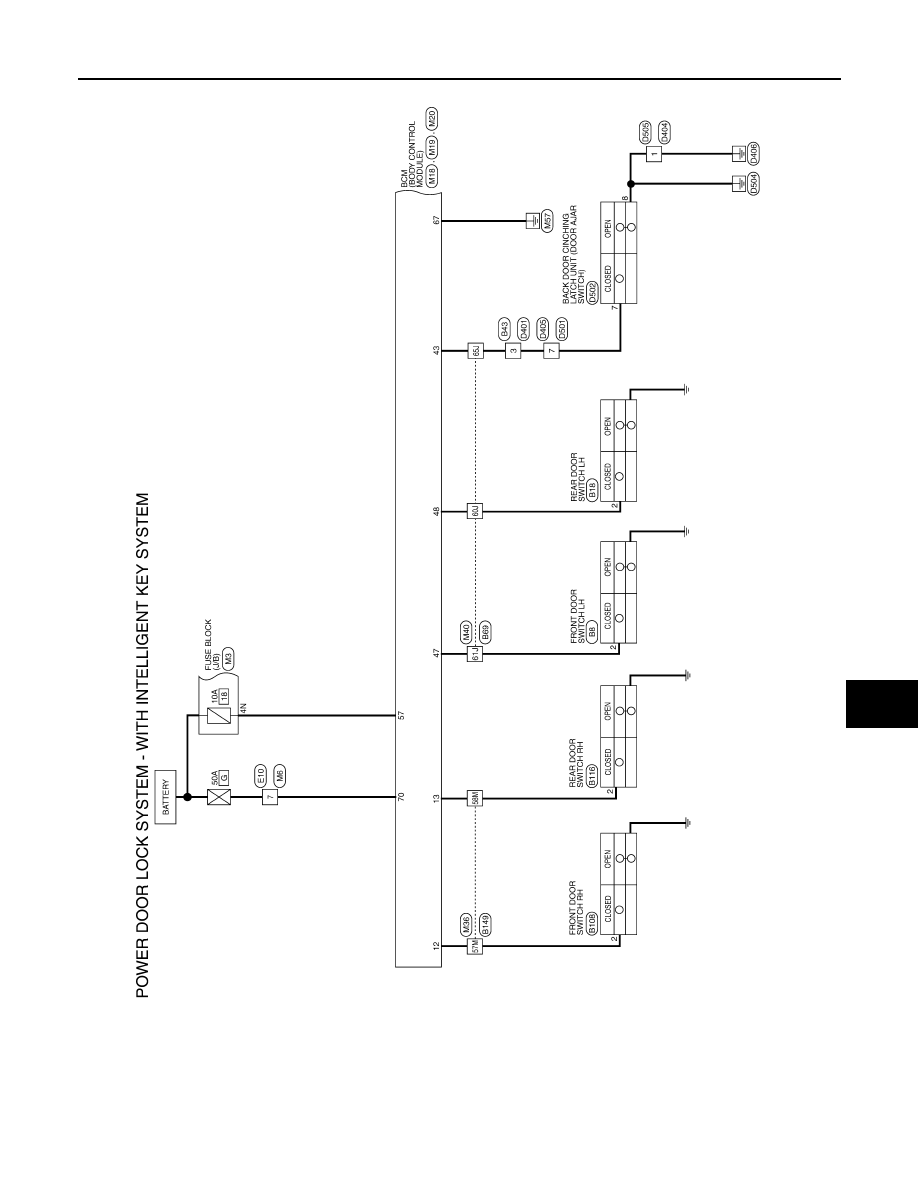

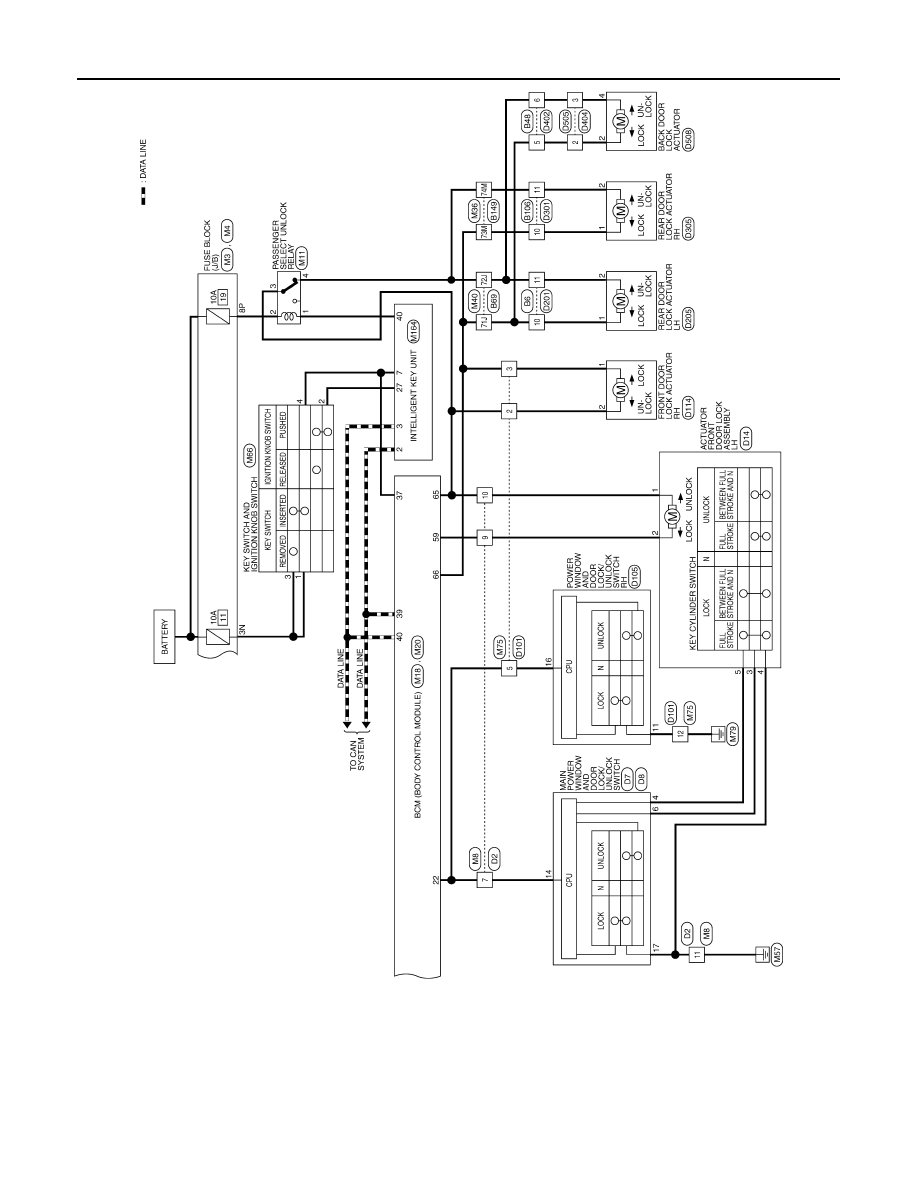

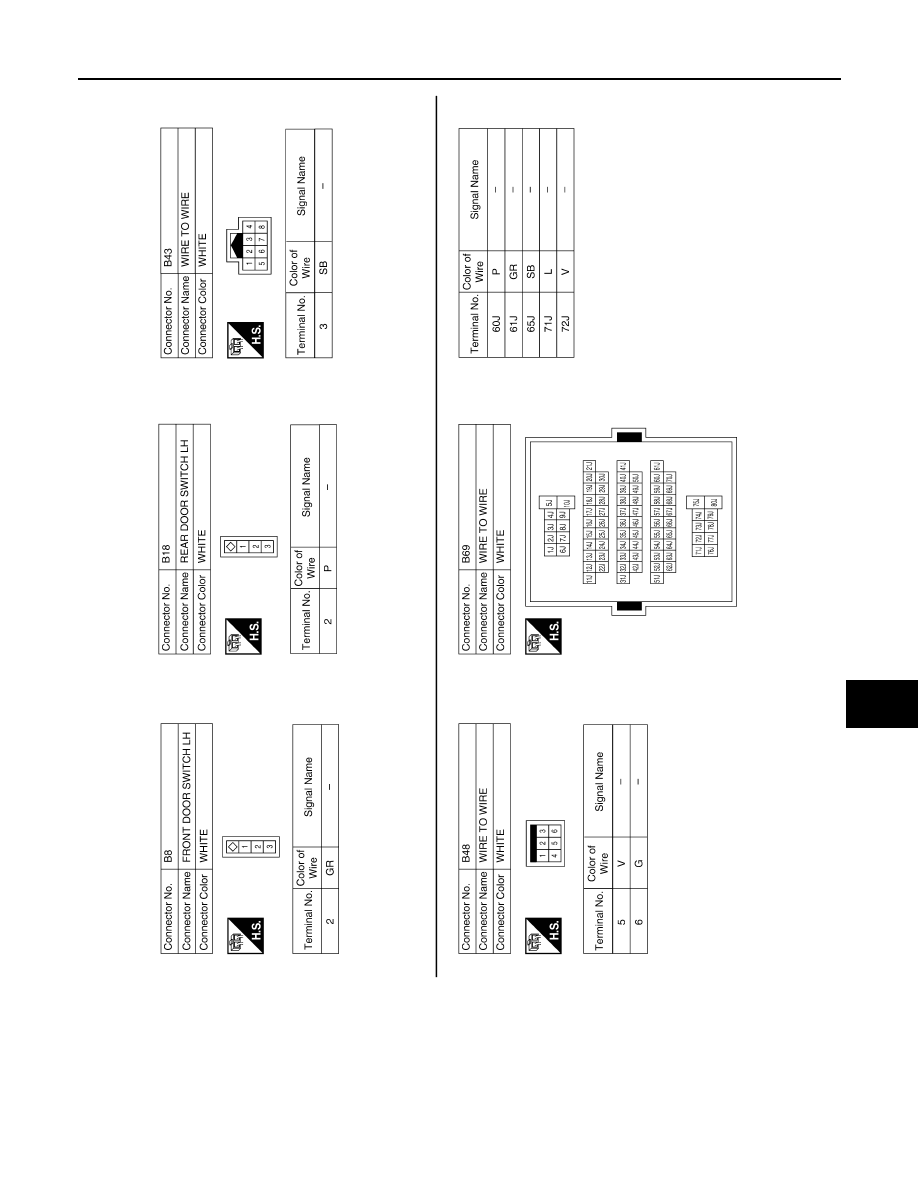

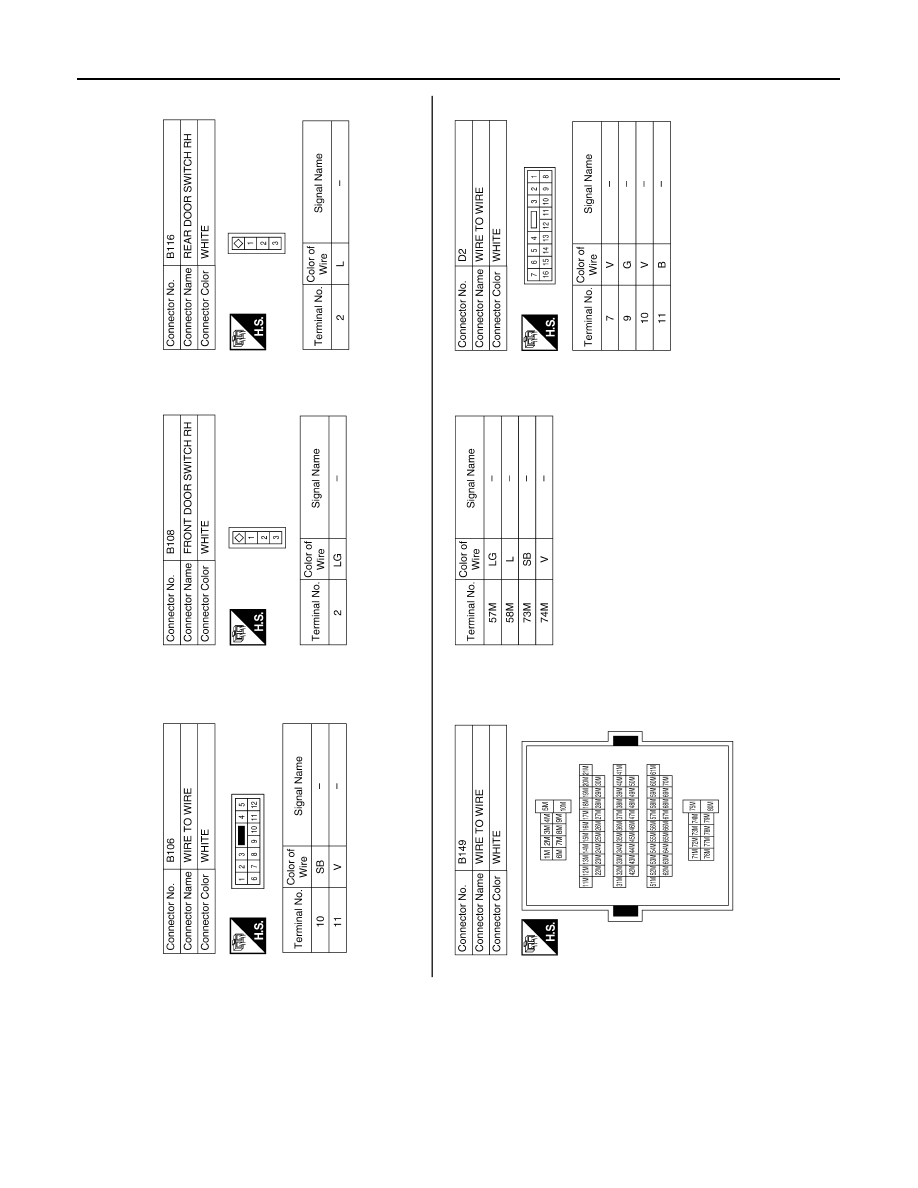

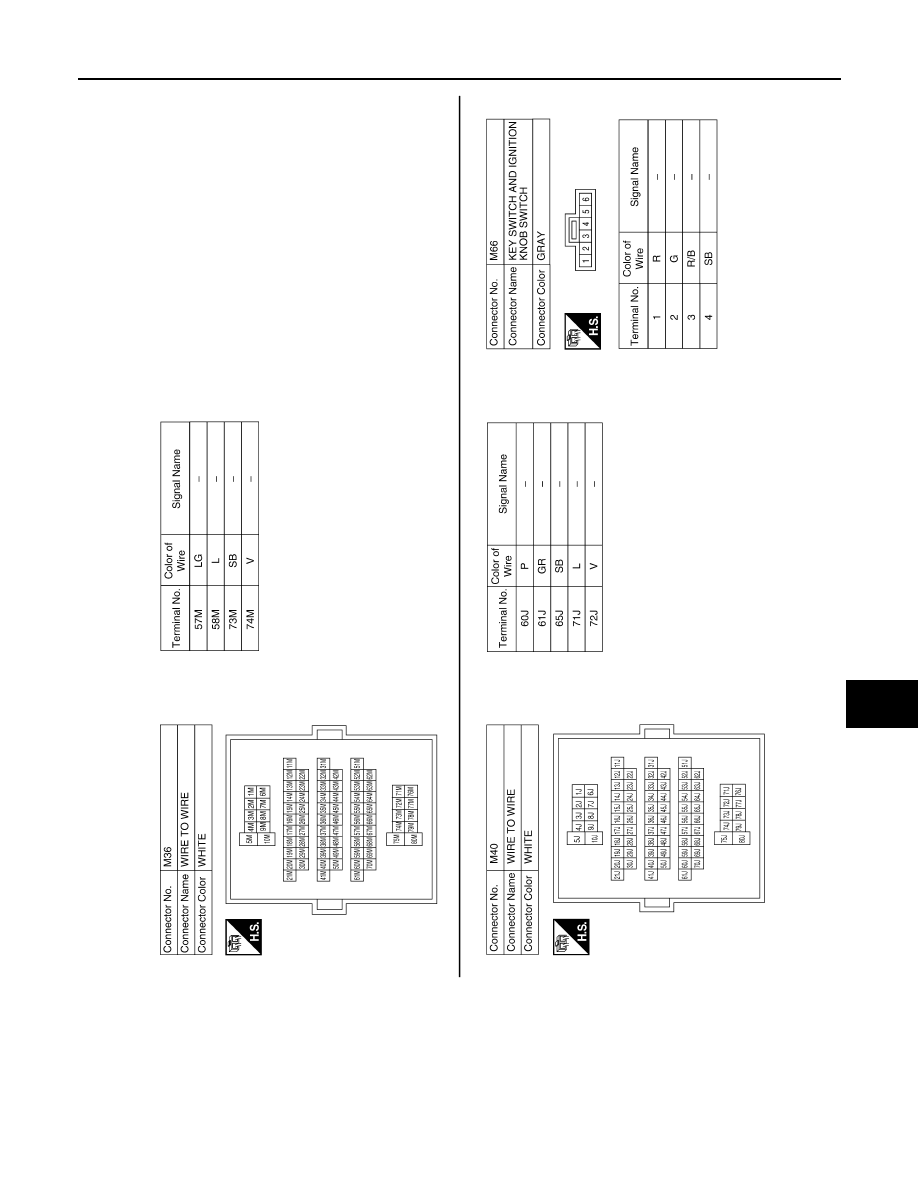

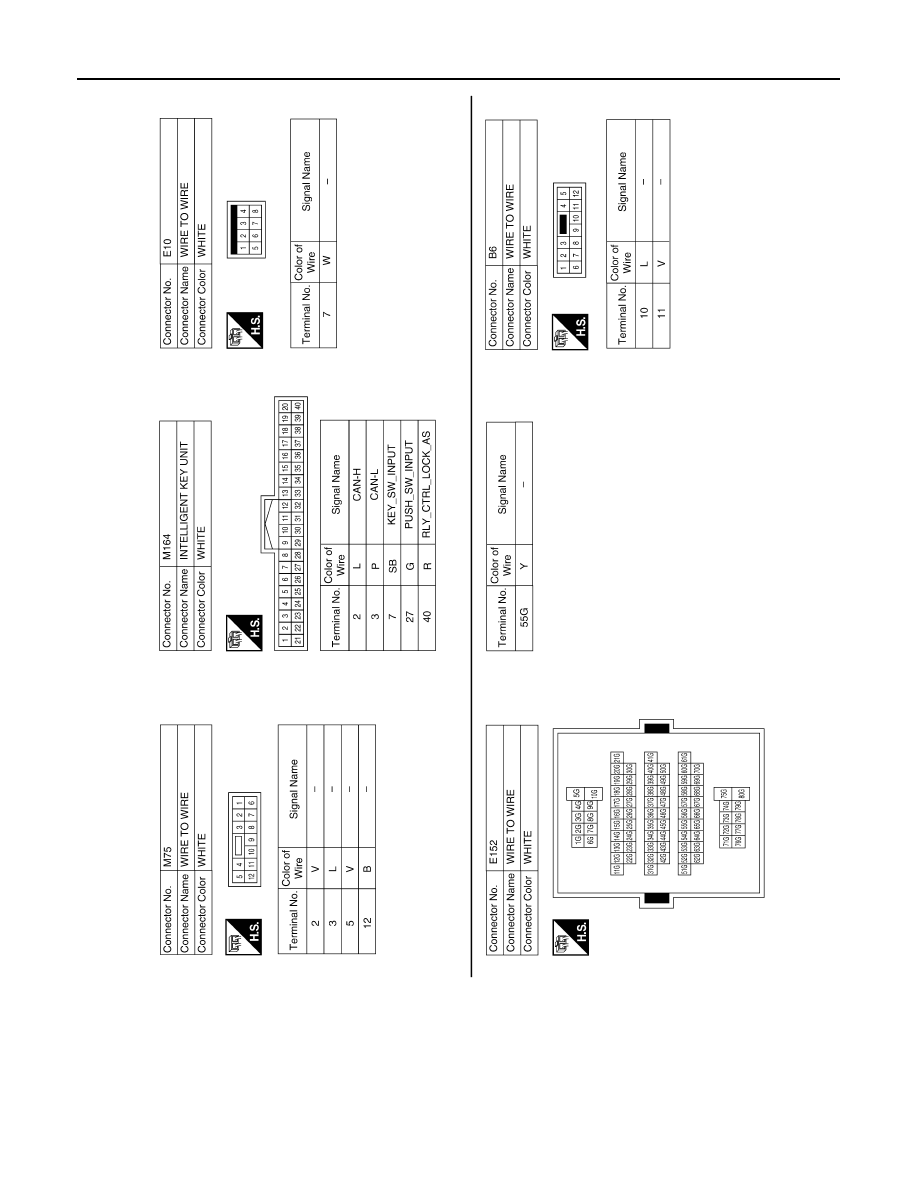

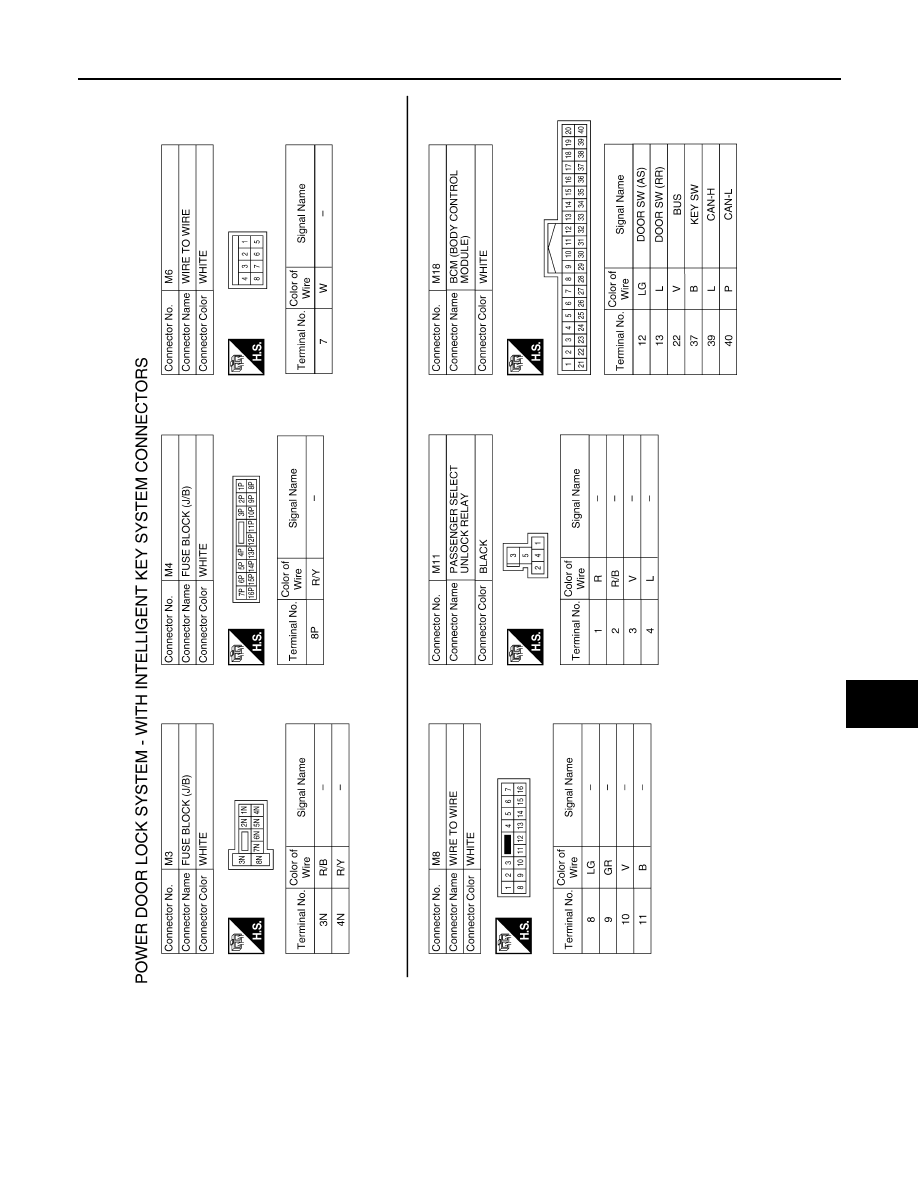

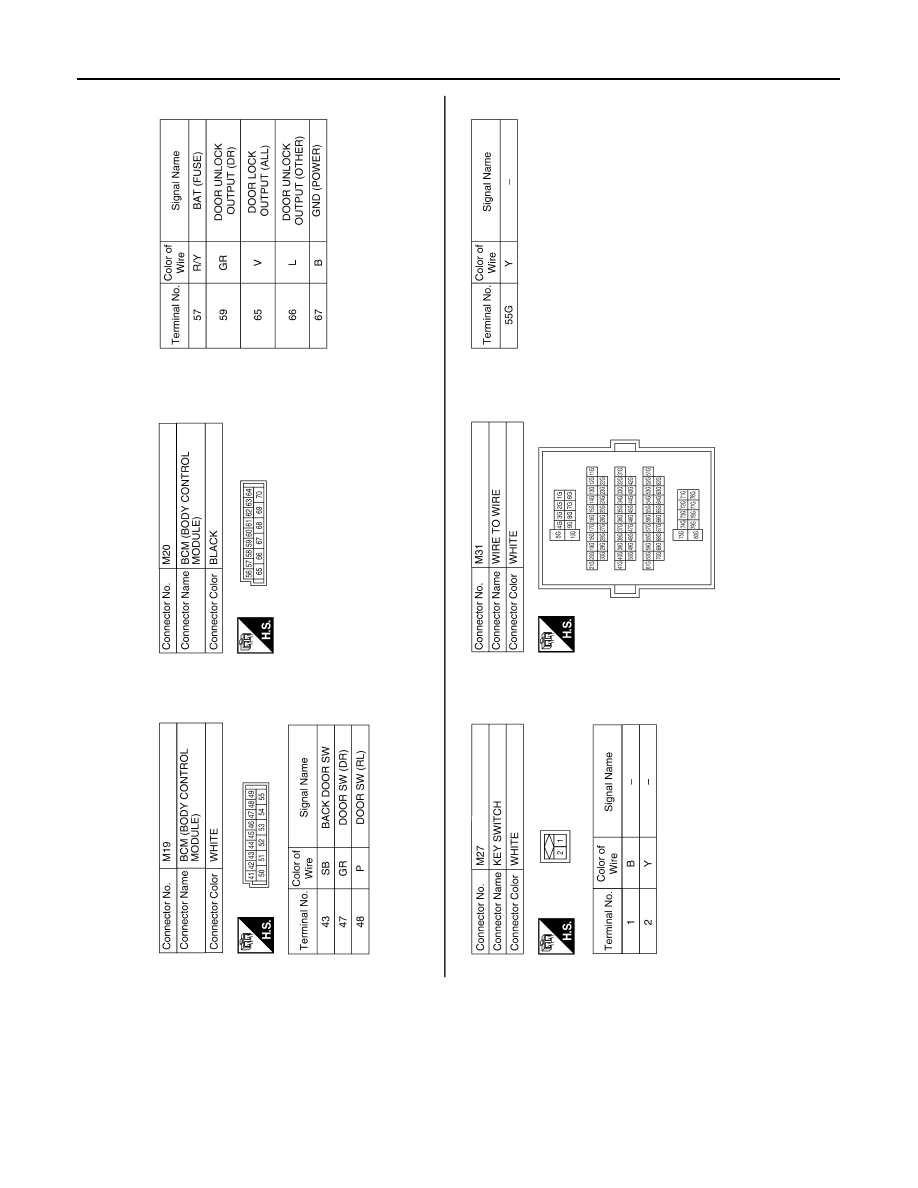

Wiring Diagram — POWER DOOR LOCK SYSTEM —

INFOID:0000000001563594

ALKWA0145GB
