AV-304

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

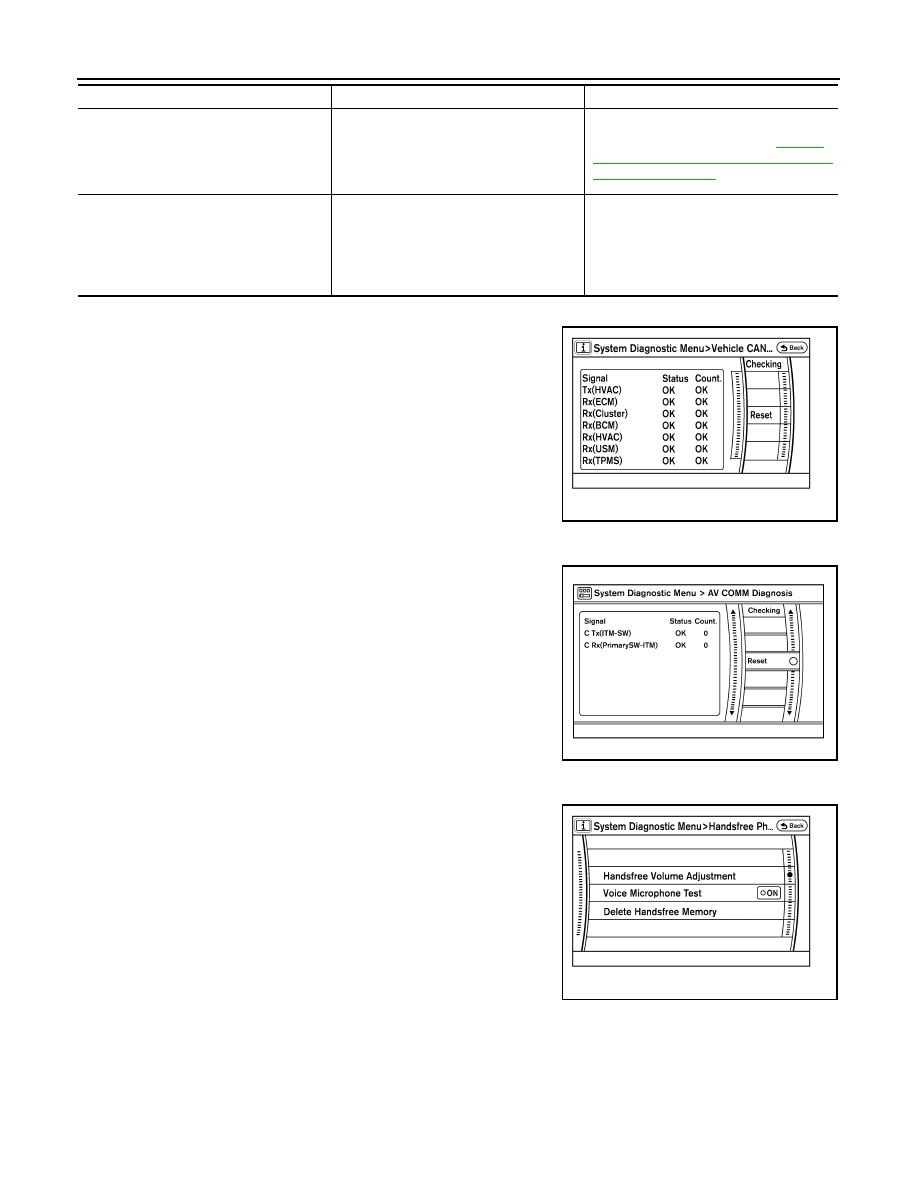

Vehicle CAN Diagnosis

• CAN communication status and error counter is displayed.
• The error counter displays “OK” if any malfunction was not

detected in the past and displays “0” if a malfunction is detected. It
increases by 1 if the condition is normal at the next ignition switch
ON cycle. The upper limit of the counter is 39.

• The error counter is erased if reset.

AV COMM Diagnosis

• AV communication status and error counter is displayed.
• The error counter displays “OK” if any malfunction was not

detected in the past and displays “0” if a malfunction is detected. It
increases by 1 if the condition is normal at the next ignition switch
ON cycle. The upper limit of the counter is 39.

• The error counter is erased if reset.

Handsfree Phone

The hands-free phone reception volume adjustment, microphone
and speaker test, and memory erase functions are also available.

Bluetooth

Passkey confirmation/change

• AV COMM CIRCUIT
• Rear View Camera Connection Error

• A malfunction is detected in camera con-

trol unit power supply and ground circuits

• Malfunction is detected on AV communi-

cation signal between camera control
unit and AV control unit

Rear view camera control unit power sup-
ply and ground circuits. Refer to

AV-340,

"REAR VIEW CAMERA CONTROL UNIT :
Diagnosis Procedure"

• AV COMM CIRCUIT
• Rear View Camera Connection Error
• Rear View Camera Control Unit Connec-

tion Error

• Malfunction is detected in AV communi-

cation circuit between camera control
unit and AV control unit

• Malfunction is detected on AV communi-

cation signal between camera control
unit and AV control unit

AV communication circuit between Camera
control unit and AV control unit

Error item

Description

Possible malfunction factor/Action to take

ALNIA0227GB

ALNIA0265GB

ALNIA0228GB

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-305

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

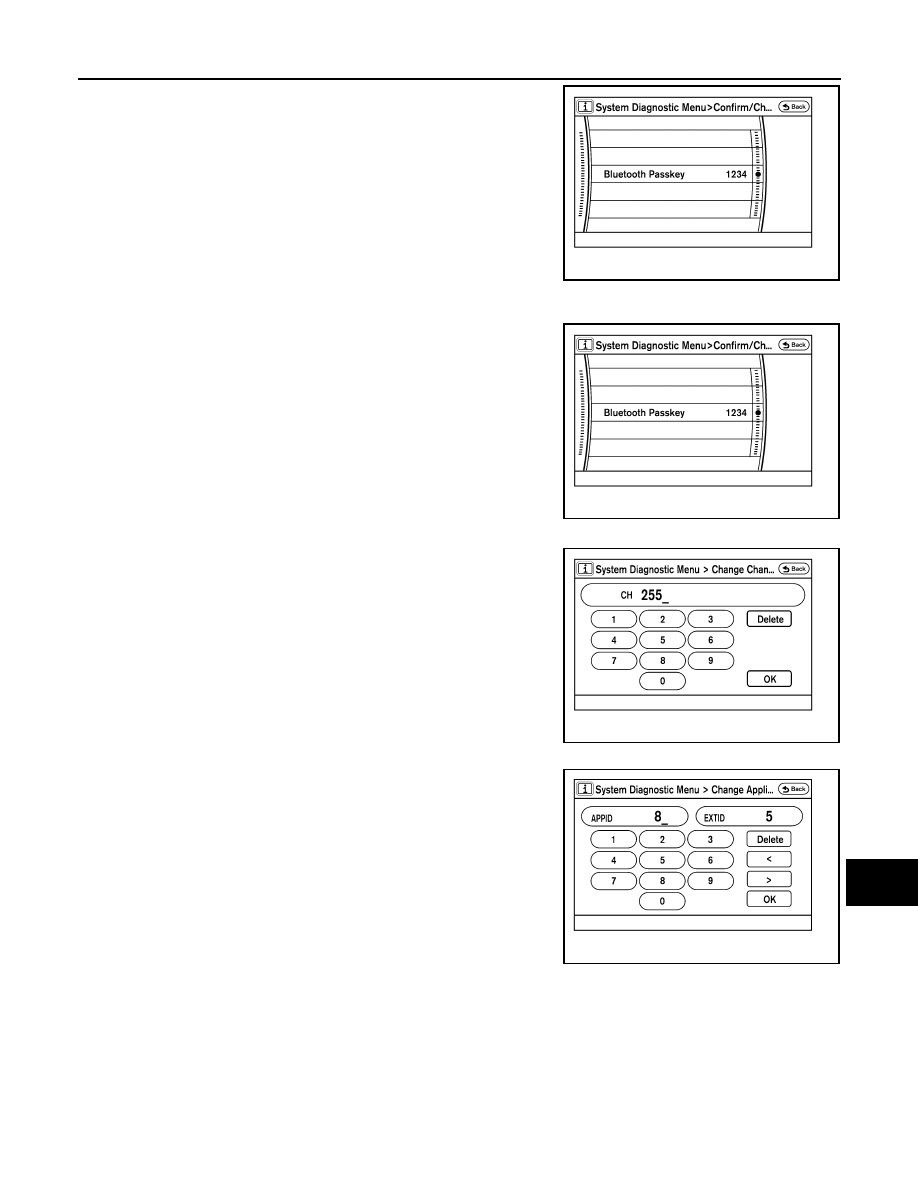

• The passkey of Bluetooth can be confirmed and changed.
• The passkey can be changed by four digits within 0 to 9.

Device name check/change
• The device name of Bluetooth can be confirmed and changed.
• The device name can be changed by sixteen digits within A to Z

(small character can be used) and - (hyphen).

SAT

• Change Channel
- Any necessary channels required to receive traffic information from

the satellite radio system can be set.

• Change Application ID
- Any application ID's required to receive traffic information from the

satellite radio system can be set.

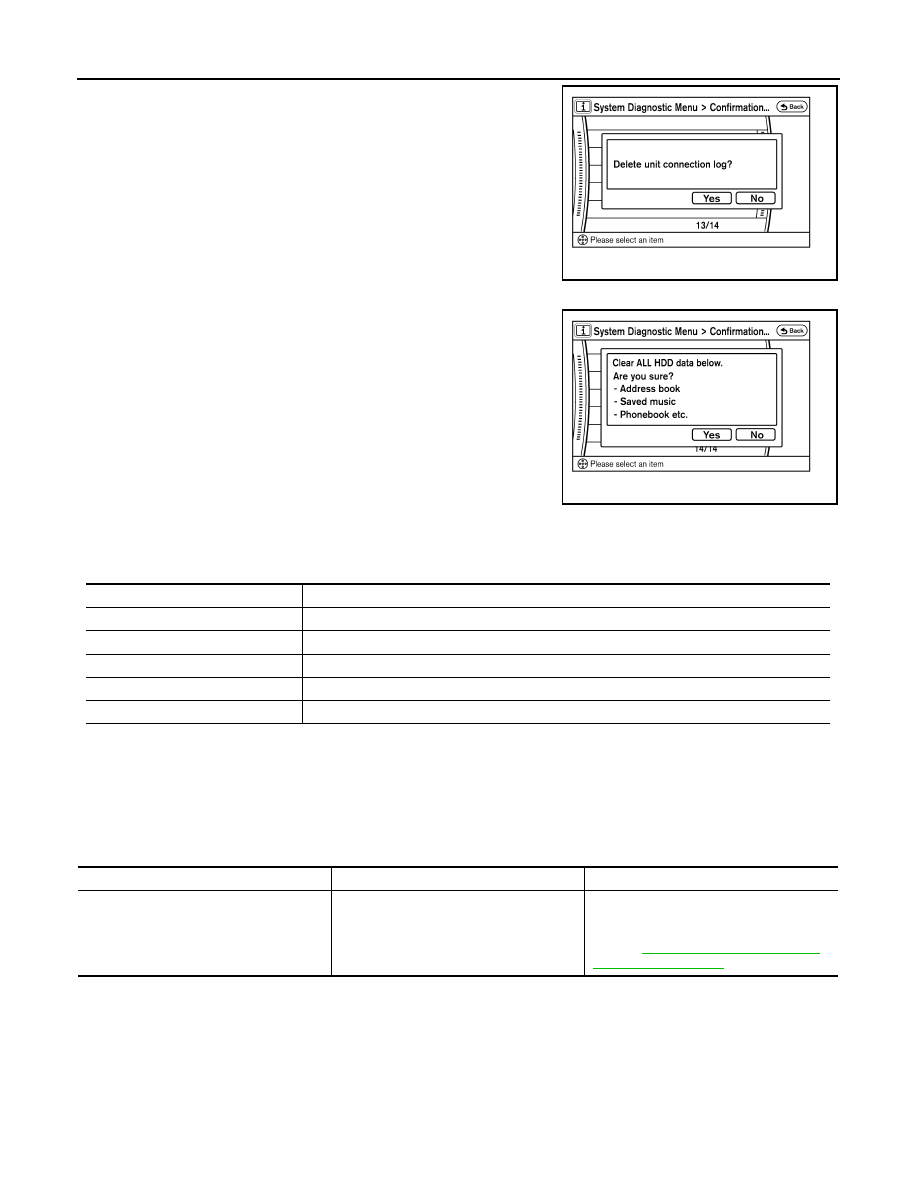

Delete Unit Connection Log

ALNIA0233GB

ALNIA0233GB

ALNIA0236GB

ALNIA0237GB

AV-306

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Deletes any unit connection records and error records from the AV
control unit memory. (Clear the records of the unit that has been
removed)

Inititialize Settings

Initializes the AV control unit memory.

AV CONTROL UNIT : CONSULT-III Function

INFOID:0000000001450550

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

Self-diagnosis results

• In CONSULT-III self-diagnosis, self-diagnosis results and error history are displayed collectively.
• The current malfunction indicates “CRNT”. The past malfunction indicates “PAST”.
• The timing is displayed as “0” if any of the error codes [U1000], [U1010], [U1300] and [U1310] is detected.

The counter increases by 1 if the condition is normal at the next ignition switch ON cycle.

Self-diagnosis results display item

ALNIA0239GB

ALNIA0240GB

MULTI AV diagnosis mode

Description

SELF-DIAG RESULTS

Displays AV control unit self-diagnosis results.

DATA MONITOR

Displays AV control unit input/output data in real time.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

AV COMM MONITOR

Allows the technician to monitor the status of the Multi AV system communication signals.

ECU PART NUMBER

The part number of AV control unit can be checked.

Error item

Description

Possible malfunction factor/Action to take

CAN COMM CIRCUIT[U1000]

CAN communication malfunction is detect-
ed

Perform diagnosis with CONSULT-III, and
then repair the malfunctioning parts accord-
ing to the diagnosis results.
Refer to

AV-306, "AV CONTROL UNIT :

CONSULT-III Function"

.

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-307

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CONTROL UNIT (CAN) [U1010]

CAN initial diagnosis malfunction is detect-
ed

Replace the AV control unit

CONTROL UNIT (AV) [U1310]

AV communication circuit initial diagnosis
malfunction is detected

Control Unit FLASH-ROM [U1200]

AV control unit malfunction is detected

Gyro NO CONN [U1201]

CAN CONT [U1216]

BLUETOOTH CONN [U1217]

HDD CONN [U1218]

HDD READ [U1219]

XM SERIAL COMM [U1220]

HDD WRITE [U121A]

HDD COMM [U121B]

HDD ACCESS [U121C]

DSP CONN [U121D]

DSP COMM [U121E]

INTERNAL COMM [U121F]

AV control unit power supply and ground
circuit

GPS COMM [U1204]

GPS malfunction is detected

An intermittent error caused by strong radio
interference may be detected unless any
symptoms (GPS reception error, etc.) oc-
cur.
Replace the AV control unit if the malfunc-
tion occurs constantly.

GPS ROM [U1205]

GPS RAM [U1206]

GPS RTC [U1207]

FRONT DISP CONN [U1243]

• Display unit power supply and ground

circuit malfunction is detected

• Malfunction is detected on communica-

tion circuit between display unit and AV
control unit

• Malfunction is detected on communica-

tion signal between display unit and AV
control unit

• Display unit power supply and ground

circuit

• Communication circuit between display

unit and AV control unit

GPS ANTENNA CONN [U1244]

GPS antenna connection malfunction is de-
tected

GPS antenna

XM ANTENNA CONN [U1258]

Poor connection is detected in satellite ra-
dio antenna

Satellite radio antenna

CAMERA CONT. CONN [U1250]

A malfunction is detected in Camera-con-
nection recognition signal circuit

Camera-connection recognition signal cir-
cuit

• AV COMM CIRCUIT [U1300]
• SWITCHE CONN [U1240]

• Multifunction switch power supply and

ground circuit malfunction is detected

• A malfunction is detected in AV commu-

nication circuit between AV control unit
and multifunction switch

• A malfunction is detected in AV commu-

nication signal between AV control unit
and multifunction switch

• Multifunction switch power supply and

ground circuits

• AV communication circuit between AV

control unit and multifunction switch

Error item

Description

Possible malfunction factor/Action to take

AV-308

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

DATA MONITOR

Display Item List

A/C AND AV SWITCH ASSEMBLY

A/C AND AV SWITCH ASSEMBLY : Component Function Check

INFOID:0000000001450551

A/C and AV switch assembly self-diagnosis function

Description

The ON/OFF operation (continuity) of each switch in the A/C and AV switch assembly can be checked.

Self-diagnosis mode

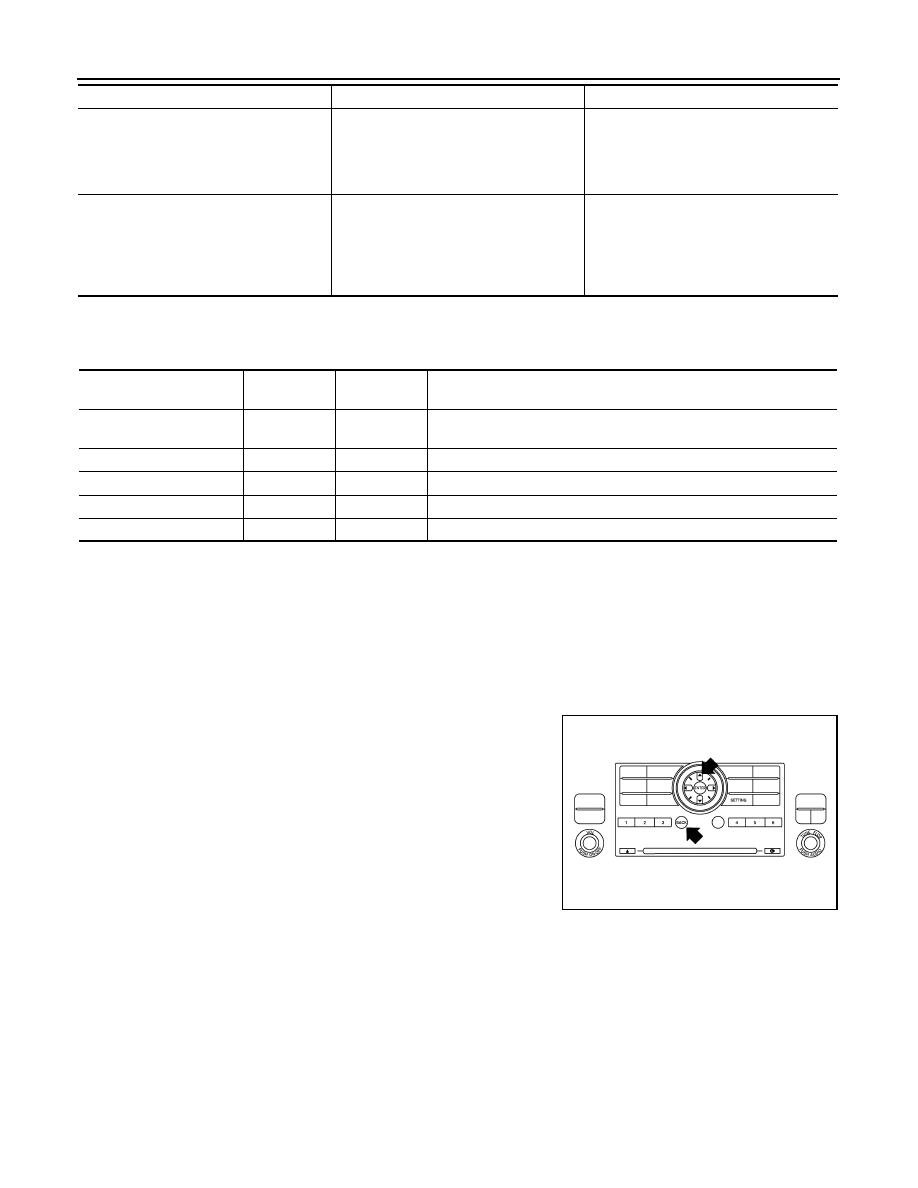

• Press the “BACK” button and the “UP” button within 10 seconds

after turning the ignition switch from OFF to ACC and hold them for
3 seconds or more. When the self-diagnosis mode starts, a beep
will sound and all LED indicators of the switch will illuminate.

• The continuity of each switch and control dial of the A/C and AV

switch assembly can be checked. If the switch is operating nor-
mally, the system will beep and the LED's will illuminate when each
switch is operated.

Finishing self-diagnosis mode

Self-diagnosis mode is canceled when the ignition switch is turned OFF.

• AV COMM CIRCUIT [U1300]
• REAR CAMERA LAN CONN [U1252]

• A malfunction is detected in camera con-

trol unit power supply and ground circuits

• Malfunction is detected on AV communi-

cation signal between Camera control
unit and AV control unit

Camera control unit power supply and
ground circuits

• AV COMM CIRCUIT [U1300]
• CAMERA CONT. CONN [U1250]
• REAR CAMERA LAN CONN [U1252]

• Malfunction is detected on AV communi-

cation circuit between camera control
unit and AV control unit

• Malfunction is detected on AV communi-

cation signal between camera control
unit and AV control unit

AV communication circuit between camera
control unit and AV control unit

Error item

Description

Possible malfunction factor/Action to take

Display item [unit]

ALL

SIGNALS

SELECTION

FROM MENU

Description

VHCL SPD SIG [ON/OFF]

X

X

Displays “ON” when vehicle speed > 0 km/h. Displays “OFF” when ve-
hicle speed = 0 km/h.

PKB SIG [ON/OFF]

X

X

Displays [ON/OFF] condition of parking brake switch.

ILLUM SIG [ON/OFF]

X

X

Displays [ON/OFF] condition of lighting switch.

IGN SIG [ON/OFF]

X

X

Displays [ON/OFF] condition of ignition switch.

REV SIG [ON/OFF]

X

X

Displays [ON/OFF] condition of back-up lamp switch.

AWIIA0171GB

AV

U1000 CAN COMM CIRCUIT

AV-309

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

COMPONENT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000001450552

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN-H, CAN-L) allowing a high rate of information transmission with less wiring. Each
control unit transmits/receives data but selectively reads required data only.
CAN Communication Signal Chart. Refer to

LAN-13, "How to Use CAN Communication Signal Chart"

.

DTC Logic

INFOID:0000000001450553

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000001450554

1.

PERFORM SELF DIAGNOSTIC

1.

Turn ignition switch ON and wait for 2 seconds or more.

2.

Check “Self Diagnostic Result” of “AV Control Unit”.

Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to “LAN system”. Refer to

LAN-14, "Trouble Diagnosis Flow Chart"

.

NO

>> Refer to GI section. Refer to

GI-51, "Intermittent Incident"

.

DTC

Display contents of CON-

SULT-III

Diagnostic item is detected when ...

Probable malfunction location

U1000

CAN COMM CIRCUIT

When AV control unit is not transmitting or re-
ceiving CAN communication signal for 2 sec-
onds or more.

CAN communication system

AV-310

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

U1010 CONTROL UNIT (CAN)

U1010 CONTROL UNIT (CAN)

Description

INFOID:0000000001450555

Initial diagnosis of AV control unit.

DTC Logic

INFOID:0000000001450556

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000001450557

1.

REPLACE AV CONTROL UNIT

When DTC U1010 is detected, replace AV control unit. Refer to

AV-423, "Removal and Installation"

.

>> INSPECTION END.

DTC

Display contents of CON-

SULT-III

Diagnostic item is detected when ...

Probable malfunction location

U1010

CONTROL UNIT (CAN)

CAN initial diagnosis malfunction is detected

AV control unit

AV

U1200 AV CONTROL UNIT

AV-311

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U1200 AV CONTROL UNIT

Description

INFOID:0000000001450558

Replace the AV control unit if this DTC is displayed. Refer to

AV-423, "Removal and Installation"

.

DTC Logic

INFOID:0000000001450559

Part name

Description

AV CONTROL UNIT

• It is the master unit of the MULTI AV system  and it is connected to each control

unit by means of communication. It operates each system according to com-
munication signals from the AV control unit.

• AV control unit includes audio function and vehicle information function.
• It is connected to ECM and combination meter via CAN communication to ob-

tain necessary information for the vehicle information function.

• It inputs the automatic brightness ON/OFF signals that are required for the dis-

play dimming control.

• It inputs the signals for driving status recognition (vehicle speed, reverse and

parking brake).

DTC

Display contents of CONSULT-III

DTC Detection Condition

Action to take

U1200

Control Unit
FLASH- ROM
[U1200]

An internal malfunction is detected in AV control unit
(FLASH-ROM).

Replace AV control unit. Re-
fer to

AV-423, "Removal and

Installation"















Content      ..     56      57      58      59     ..
