PRECAUTIONS

TF-185

[TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2007 Pathfinder

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EDS0037N

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for Transfer Assembly and Transfer Control Unit Replacement

EDS0037O

When replacing transfer assembly or transfer control unit, check the 4WD shift indicator pattern and adjust-
ment of the position between transfer assembly and transfer control unit if necessary.

CHECK 4WD SHIFT INDICATOR PATTERN

1.

Set 4WD shift switch to “2WD”, “4H”, “4LO”, “4H” and “2WD” in order. Stay at each switch position for at
least 2 seconds.

2.

Confirm 4WD shift indicator lamp and 4LO indicator lamp are changed properly as follows.

If OK, the position between transfer assembly and transfer control unit is correct.

If NG, the position is different between transfer assembly and transfer control unit.
Adjust the position between transfer assembly and transfer control unit. Refer to pattern table below.

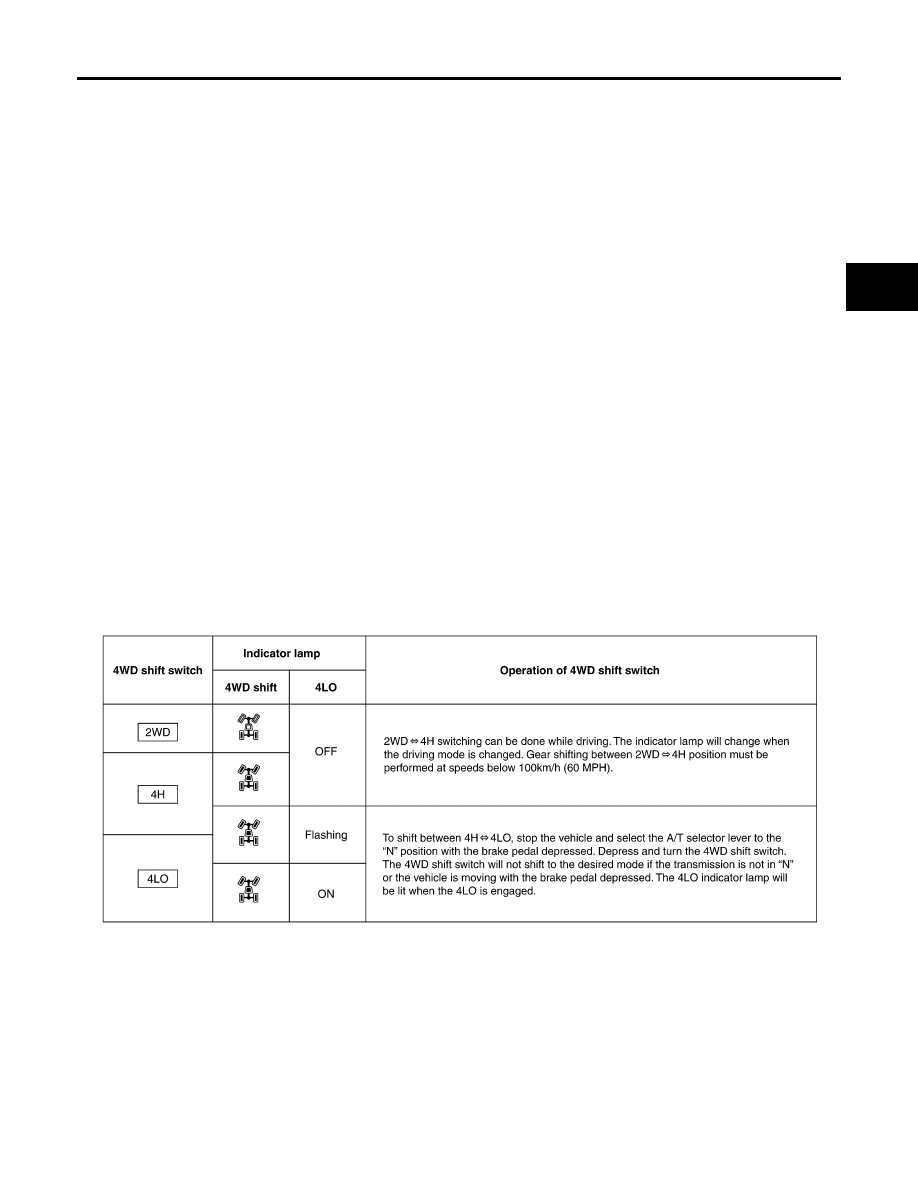

WDIA0137E

TF-186

[TX15B]

PRECAUTIONS

2007 Pathfinder

Transfer position adjustment pattern

NOTE:
Method of adjustment can be chosen voluntarily, according to location of 4WD shift switch.

METHOD FOR ADJUSTMENT WITH 4WD SHIFT SWITCH AT “2WD”
Select Adjustment Pattern

1.

Start engine. Run engine for at least 10 seconds.

2.

Check 4WD shift indicator lamp and 4LO indicator lamp.

Pattern A

1.

Stop vehicle and move A/T selector lever to “N” position with brake pedal depressed. Stay in "N" for at
least 2 seconds.

2.

Turn 4WD shift switch to “4LO” position. Stay in "4LO" for at least 2 seconds.

3.

Turn ignition switch “OFF”.

4.

Start engine.

5.

Erase self-diagnosis. Refer to

TF-218, "How to Erase Self-diagnostic Results"

  (with CONSULT-II) or

TF-

221, "ERASE SELF-DIAGNOSIS"

  (without CONSULT-II).

6.

Check 4WD shift indicator lamp and 4LO indicator lamp again. Refer to

TF-185, "CHECK 4WD SHIFT

INDICATOR PATTERN"

 .

If 4WD shift indicator lamp and 4LO indicator lamp do not indicate proper pattern, install new transfer con-
trol unit and retry the above check.

Pattern B

1.

Stop vehicle and move A/T selector lever to “N” position with brake pedal depressed. Stay in "N" for at
least 2 seconds.

2.

Turn ignition switch “OFF”.

3.

Start engine.

4.

Erase self-diagnosis. Refer to

TF-218, "How to Erase Self-diagnostic Results"

  (with CONSULT-II) or

TF-

221, "ERASE SELF-DIAGNOSIS"

  (without CONSULT-II).

5.

Check 4WD shift indicator lamp and 4LO indicator lamp again. Refer to

TF-185, "CHECK 4WD SHIFT

INDICATOR PATTERN"

 .

If 4WD shift indicator lamp and 4LO indicator lamp do not indicate proper pattern, install new transfer con-
trol unit and retry the above check.

METHOD FOR ADJUSTMENT WITH 4WD SHIFT SWITCH AT “4H” OR “4LO”

1.

Start engine. Run the engine for at least 10 seconds.

2.

Stop vehicle and move A/T selector lever to “N” position with brake pedal depressed. Stay in "N" for at
least 2 seconds.)

3.

Turn 4WD shift switch to “2WD” position. Stay in "2WD" for at least 2 seconds.

4.

Turn ignition switch “OFF”.

5.

Start engine.

6.

Erase self-diagnosis. Refer to

TF-218, "How to Erase Self-diagnostic Results"

  (with CONSULT-II) or

TF-

221, "ERASE SELF-DIAGNOSIS"

  (without CONSULT-II).

7.

Check 4WD shift indicator lamp and 4LO indicator lamp again. Refer to

TF-185, "CHECK 4WD SHIFT

INDICATOR PATTERN"

 .

If 4WD shift indicator lamp and 4LO indicator lamp do not indicate proper pattern, install new transfer con-
trol unit and retry the above check.

4WD shift switch condition

Refer procedure

4WD shift switch is under “2WD” condition when engine is being stopped.

TF-186, "METHOD FOR ADJUSTMENT WITH

4WD SHIFT SWITCH AT “2WD”"

4WD shift switch is under “4H” or “4LO” condition when engine is being stopped.

TF-186, "METHOD FOR ADJUSTMENT WITH

4WD SHIFT SWITCH AT “4H” OR “4LO”"

Indicator lamp condition

Refer procedure

When 4WD shift indicator lamp or 4LO indicator lamp is flashing.

TF-186, "Pattern A"

Except for above.

TF-186, "Pattern B"

PRECAUTIONS

TF-187

[TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2007 Pathfinder

Precautions

EDS0037P

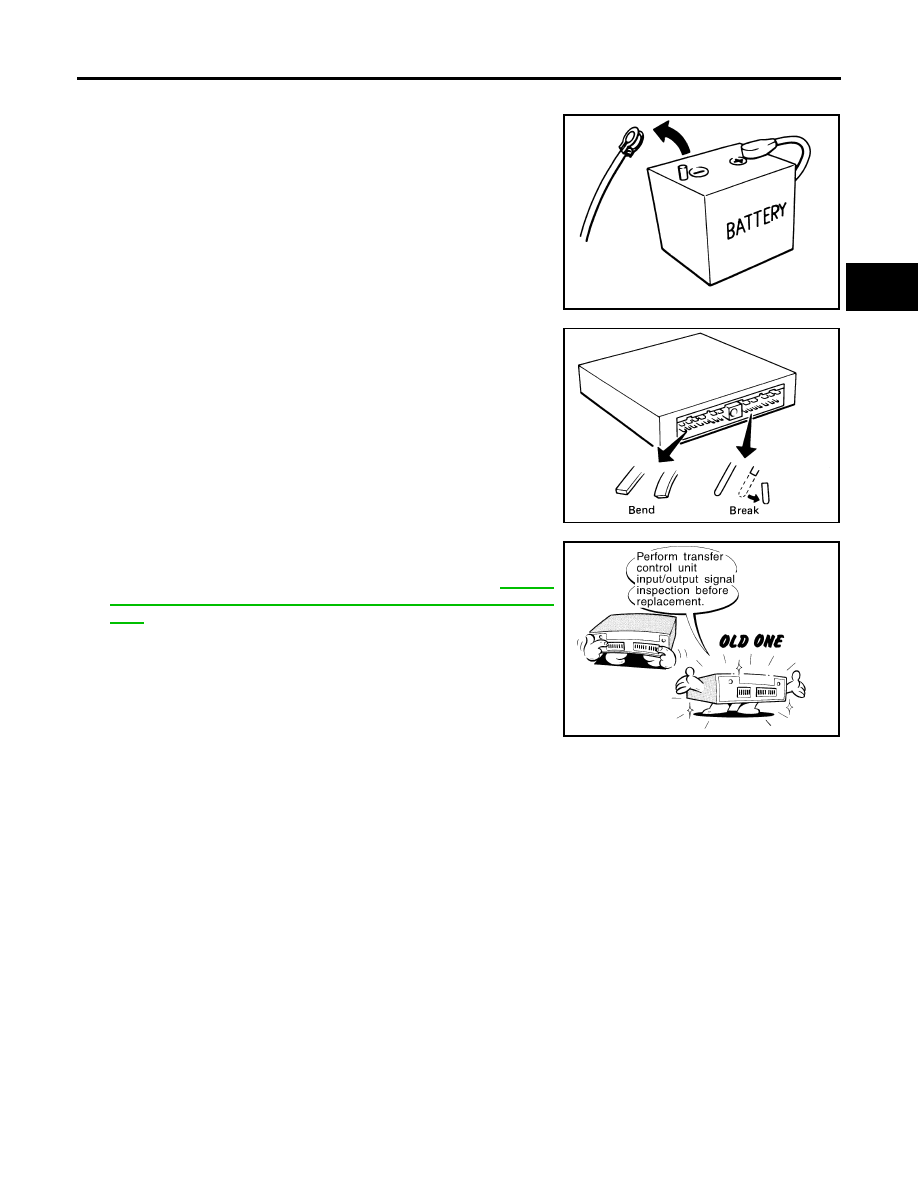

Before connecting or disconnecting the transfer control
unit harness connector, turn ignition switch “OFF” and dis-
connect the battery cables. Battery voltage is applied to
transfer control unit even if ignition switch is turned “OFF”.

When connecting or disconnecting pin connectors into or
from transfer control unit, take care not to damage pin ter-
minals (bend or break).
When connecting pin connectors make sure that there are
not any bends or breaks on transfer control unit pin termi-
nals.

Before replacing transfer control unit, perform transfer con-
trol unit input/output signal inspection and make sure
transfer control unit functions properly. Refer to

TF-211,

"Transfer Control Unit Input/Output Signal Reference Val-
ues"

 .

Service Notice

EDS0037Q

After overhaul refill the transfer with new transfer fluid.

Check the fluid level or replace the fluid only with the vehicle parked on level ground.

During removal or installation, keep inside of transfer clear of dust or dirt.

Disassembly should be done in a clean work area.

Before proceeding with disassembly, thoroughly clean the transfer. It is important to prevent the internal
parts from becoming contaminated by dirt or other foreign matter.

Check for the correct installation status prior to removal or disassembly. If matchmarks are required, be
certain they do not interfere with the function of the parts when applied.

All parts should be carefully cleaned with a general purpose, non-flammable solvent before inspection or
reassembly.

Check appearance of the disassembled parts for damage, deformation, and unusual wear. Replace them
with a new ones if necessary.

Gaskets, seals and O-rings should replaced any time the transfer is disassembled.

In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to outside. If
tightening sequence is specified, use it.

Observe the specified torque when assembling.

Clean and flush the parts sufficiently and blow-dry them.

Be careful not to damage sliding surfaces and mating surfaces.

SEF289H

SEF291H

MEF040DB

TF-188

[TX15B]

PRECAUTIONS

2007 Pathfinder

Use lint-free cloth or towels for wiping parts clean. Common shop rags can leave fibers that could interfere
with the operation of the transfer.

PREPARATION

TF-189

[TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2007 Pathfinder

PREPARATION

PFP:00002

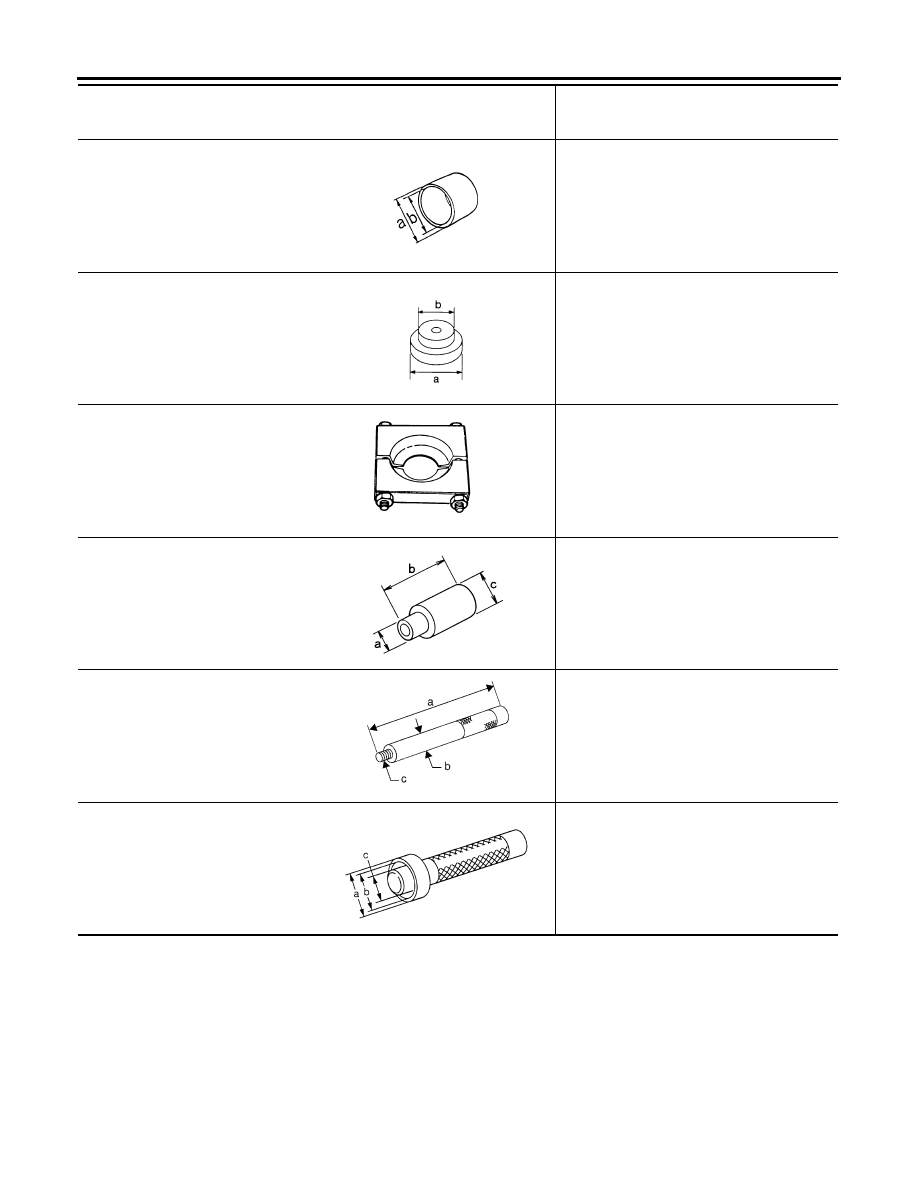

Special Service Tools

EDS0037S

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV40104000
(

)

Flange wrench

Removing self-lock nut

Installing self-lock nut

a: 85 mm (3.35 in)
b: 65 mm (2.56 in)

ST33290001
(J-34286)
Puller

Removing front oil seal

Removing rear oil seal

Removing metal bushing

KV38100500
(

)

Drift

Installing front oil seal

Installing rear oil seal

Installing rear bearing

Installing front bearing

a: 80 mm (3.15 in) dia.
b: 60 mm (2.36 in) dia.

KV40105310
(

)

Drift

Installing dust cover

a: 89 mm (3.50 in) dia.
b: 80.7 mm (3.17 in) dia.

KV38100200
(

)

Drift

Removing sun gear assembly and planetary
carrier assembly

Removing input bearing

Installing sun gear assembly and planetary
carrier assembly

a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.

ST30720000
(J-25405)
Drift

Installing input bearing

Installing input oil seal

Installing carrier bearing

a: 77 mm (3.03 in) dia.
b: 55 mm (2.17 in) dia.

KV32102700
(

)

Drift

Installing mainshaft rear bearing

a: 48 mm (1.89 in) dia.
b: 41 mm (1.61 in) dia.

NT659

ZZA0601D

ZZA0811D

ZZA1003D

ZZA1143D

ZZA0811D

ZZA0534D

TF-190

[TX15B]

PREPARATION

2007 Pathfinder

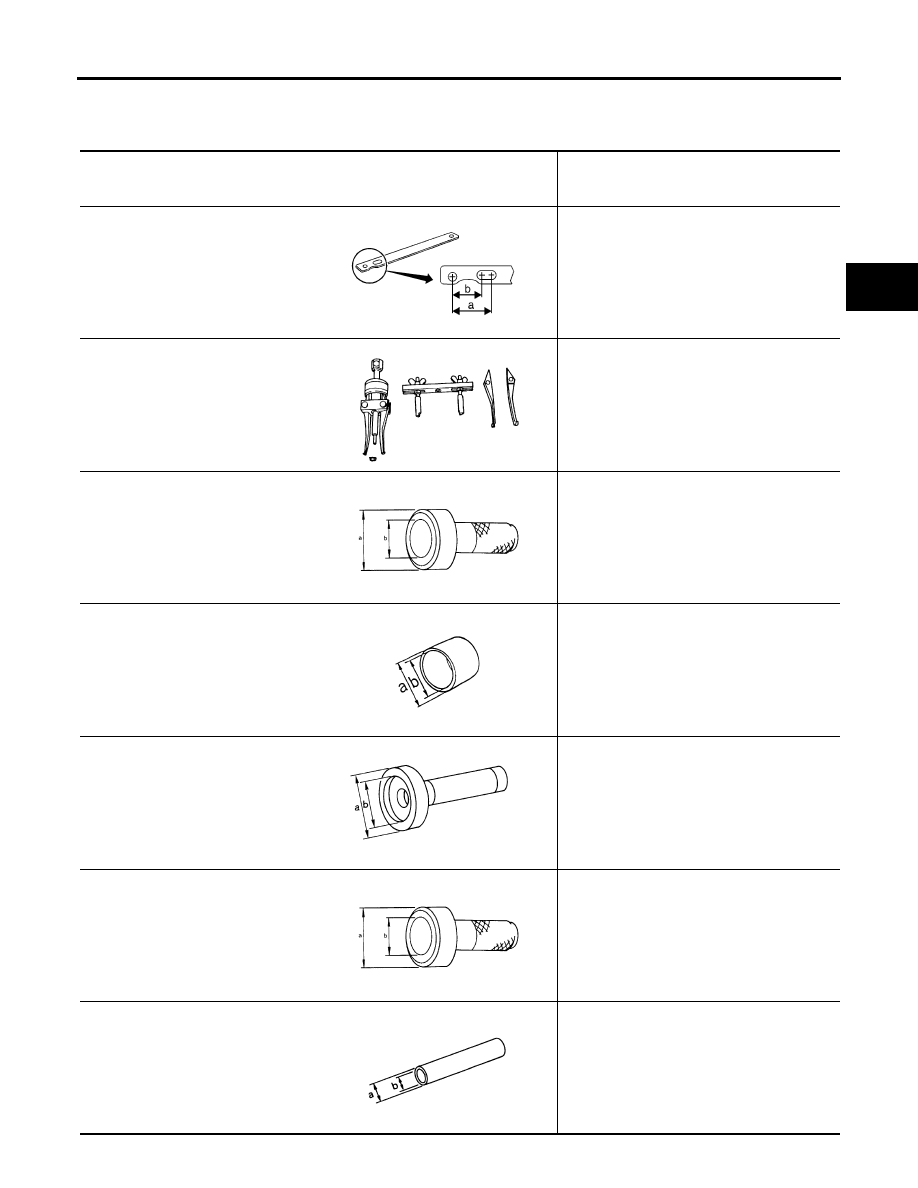

KV40104830
(

)

Drift

Installing input oil seal

a: 70 mm (2.76 in) dia.
b: 63.5 mm (2.50 in) dia.

ST35300000
(

)

Drift

Removing carrier bearing

Installing metal bushing

Removing front bearing

a: 59 mm (2.32 in) dia.
b: 45 mm (1.77 in) dia.

ST30021000
(J-22912-01)
Puller

Removing carrier bearing

Removing front bearing

Removing rear bearing

ST33710000
(

)

Drift

Removing needle bearing

Removing metal bushing

Removing rear bearing

a: 89 mm (3.5 in)
b: 30 mm (1.18 in) dia.
c: 24 mm (0.94 in) dia.

ST35325000
(

)

Drift bar

Removing metal bushing

a: 215 mm (8.46 in)
b: 25 mm (0.98 in) dia.
c: M12

×

 1.5P

ST33220000
(

)

Drift

Installing needle bearing

a: 37 mm (1.46 in) dia.
b: 31 mm (1.22 in) dia.
c: 22 mm (0.87 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA1003D

NT073

ZZA0537D

ZZA1057D

NT663

ZZA1046D

PREPARATION

TF-191

[TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2007 Pathfinder

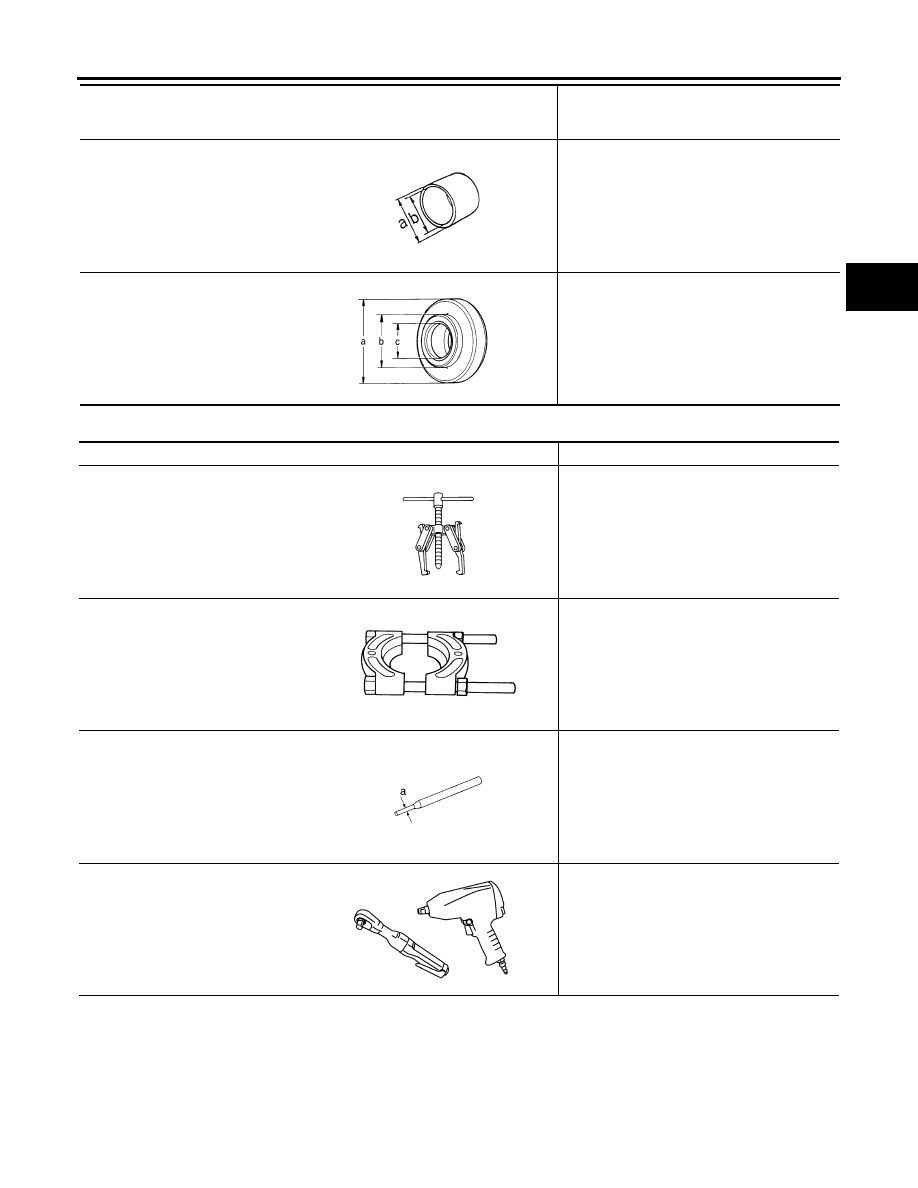

Commercial Service Tools

EDS0037T

ST27863000
(

)

Drift

Installing carrier bearing

a: 75 mm (2.95 in) dia.
b: 62 mm (2.44 in) dia.

ST30901000
(J-26010-01)
Drift

Installing rear bearing

Installing front bearing

a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.38 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA1003D

ZZA0978D

Tool name

Description

Puller

Removing companion flange

Removing mainshaft rear bearing

Puller

Removing mainshaft rear bearing

Pin punch

Removing retaining pin

a: 6 mm (0.24 in) dia.

Power tool

Loosening bolts and nuts

NT077

ZZB0823D

NT410

PBIC0190E

TF-192

[TX15B]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

2007 Pathfinder

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

PFP:00003

NVH Troubleshooting Chart

EDS0037U

Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspec-
tion. If necessary, repair or replace these parts.

Reference page

TF

-1

93

TF

-2

78

TF

-3

01

TF

-2

86

TF

-2

96

SUSPECTED PARTS
(Possible cause)

TR

AN

SF

ER

 FL

UI

D

 (

L

eve

l l

o

w)

TR

AN

SF

ER

 FL

UI

D

 (

W

ro

n

g

)

TR

AN

SF

ER

 FL

UI

D

 (

L

eve

l t

o

o h

igh

)

LI

Q

U

ID

 G

A

S

K

E

T

 (

D

am

ag

ed

)

O

-R

IN

G

 (

W

or

n o

r da

m

a

ge

d)

O

IL

 S

EAL

 (

W

or

n

 or

 dam

ag

ed)

SH

IF

T

 FO

R

K

 (

W

or

n

 or

 da

m

a

g

e

d

)

G

E

AR

 (

W

or

n

 or

 dam

ag

ed)

BE

AR

IN

G

 (

W

or

n

 or

 dam

ag

ed

)

Symptom

Noise

1

2

3

3

Transfer fluid leakage

3

1

2

2

2

Hard to shift or will not shift

1

1

2















Content      ..     411      412      413      414     ..
