PARKING BRAKE CONTROL

PB-5

C

D

E

G

H

I

J

K

L

M

A

B

PB

2007 Pathfinder

CAUTION:

Do not reuse adjusting nut after removing it.

4.

Remove the lock plate from the front cable.

5.

Remove front parking brake cable bolt and nut.

6.

Disconnect return spring from equalizer.

7.

Disconnect the front parking brake cable from the equalizer and remove front cable.

8.

Remove the rear disc rotors. Refer to

BR-31, "Removal and Installation of Brake Caliper and Disc Rotor"

 .

9.

Remove parking brake shoes, and remove rear cable from toggle lever. Refer to

PB-6, "PARKING BRAKE

SHOE"

 .

10. Remove equalizer from right and left rear cables.

11. Remove right and left rear cable bolts and nuts, then remove right and left rear cables.

INSTALLATION

●

Installation is in the reverse order of removal.

CAUTION:

Do not reuse adjusting nut after removing it.

●

Adjust parking brake. Refer to

PB-3, "ADJUSTMENT"

 .

PB-6

PARKING BRAKE SHOE

2007 Pathfinder

PARKING BRAKE SHOE

PFP:44060

Removal and Installation

EFS0064E

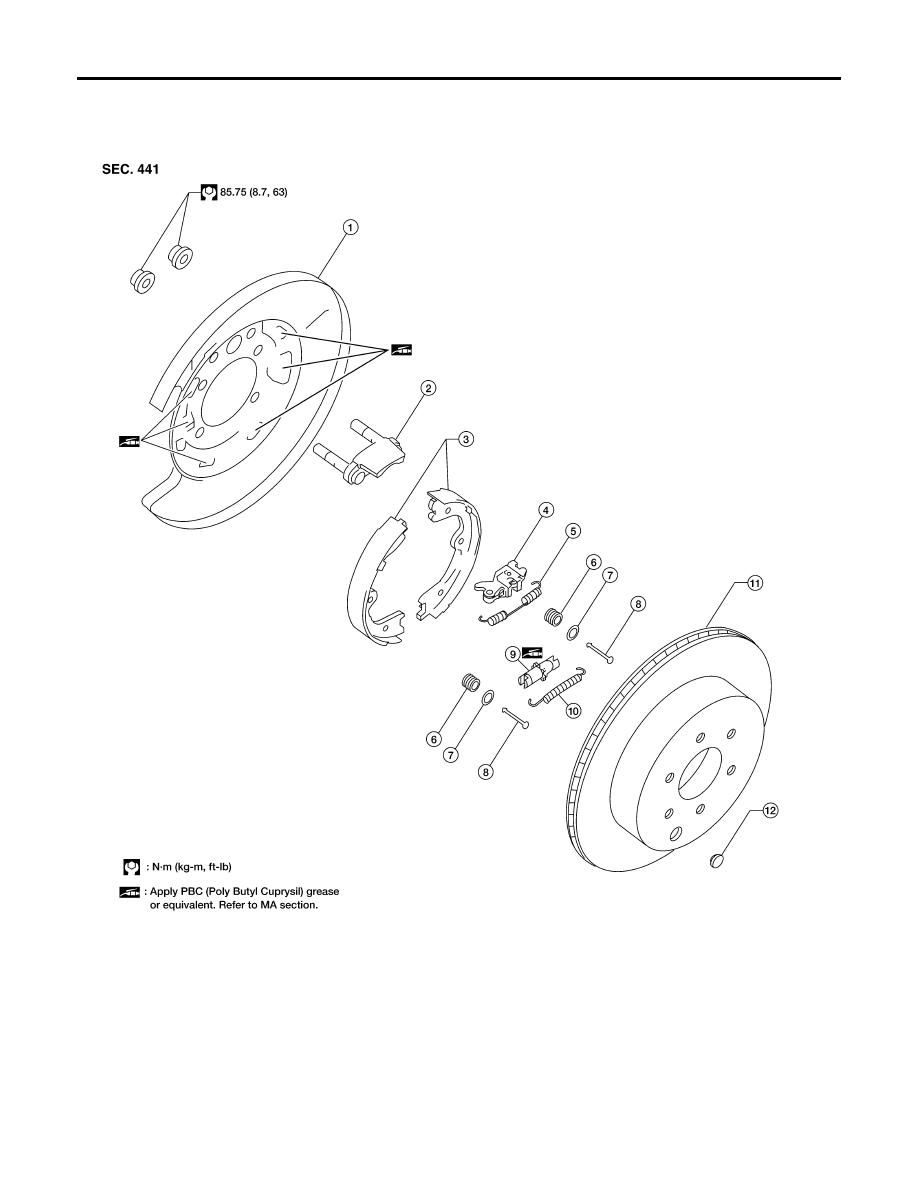

COMPONENTS

REMOVAL

WARNING:

Clean the brakes with a vacuum dust collector to minimize the hazard of airborne particles or other
materials.

NOTE:
Remove the disc rotor only with the parking brake pedal completely disengaged.

1.

Back plate

2.

Anchor

3.

Shoes

4.

Toggle lever

5.

Upper return spring

6.

Shoe hold-down spring

7.

Retainer

8.

Shoe hold-down pin

9.

Adjuster

10. Lower return spring

11.

Disc rotor

12. Adjuster access plug

LFIA0230E

PARKING BRAKE SHOE

PB-7

C

D

E

G

H

I

J

K

L

M

A

B

PB

2007 Pathfinder

1.

Remove the rear disc rotor. Refer to

BR-31, "Removal and Installation of Brake Caliper and Disc Rotor"

 .

2.

Remove the rear drive shaft. Refer to

RAX-7, "Removal and Installation"

 .

3.

Disconnect wheel sensor at harness connector. Then remove wheel sensor wire from grommet mounts.

4.

Remove wheel hub and bearing assembly. Refer to

RAX-5, "Removal and Installation"

 .

●

Withdraw wheel sensor harness through back plate when removing wheel hub and bearing assembly.

5.

Remove the return springs.

6.

Remove the adjuster.

7.

Remove the retainers, anti-rattle pins and shoes.

8.

Disconnect the parking brake cable from the toggle lever.

9.

Remove back plate.

INSPECTION AFTER REMOVAL
Lining Thickness Inspection

●

Check thickness of lining.

Drum Inner Diameter Inspection

●

Check drum inner diameter.

Other Inspections

●

Check shoe sliding surface for excessive wear and damage.

●

Check anti-rattle pin for excessive wear and corrosion.

●

Check return spring for sagging.

●

Check adjuster for rough operation.

●

When disassembling adjuster, apply PBC (Poly Butyl Cuprysil) grease or equivalent to the adjuster
threads. Refer to

MA-11, "Fluids and Lubricants"

 .

●

Check either visually or with a vernier caliper to see if there is any excessive wear, cracks, or damage
inside drum.

INSTALLATION

Installation is in the reverse order of removal.

●

Apply brake grease to the specified points during assembly. Refer to

PB-6, "COMPONENTS"

 .

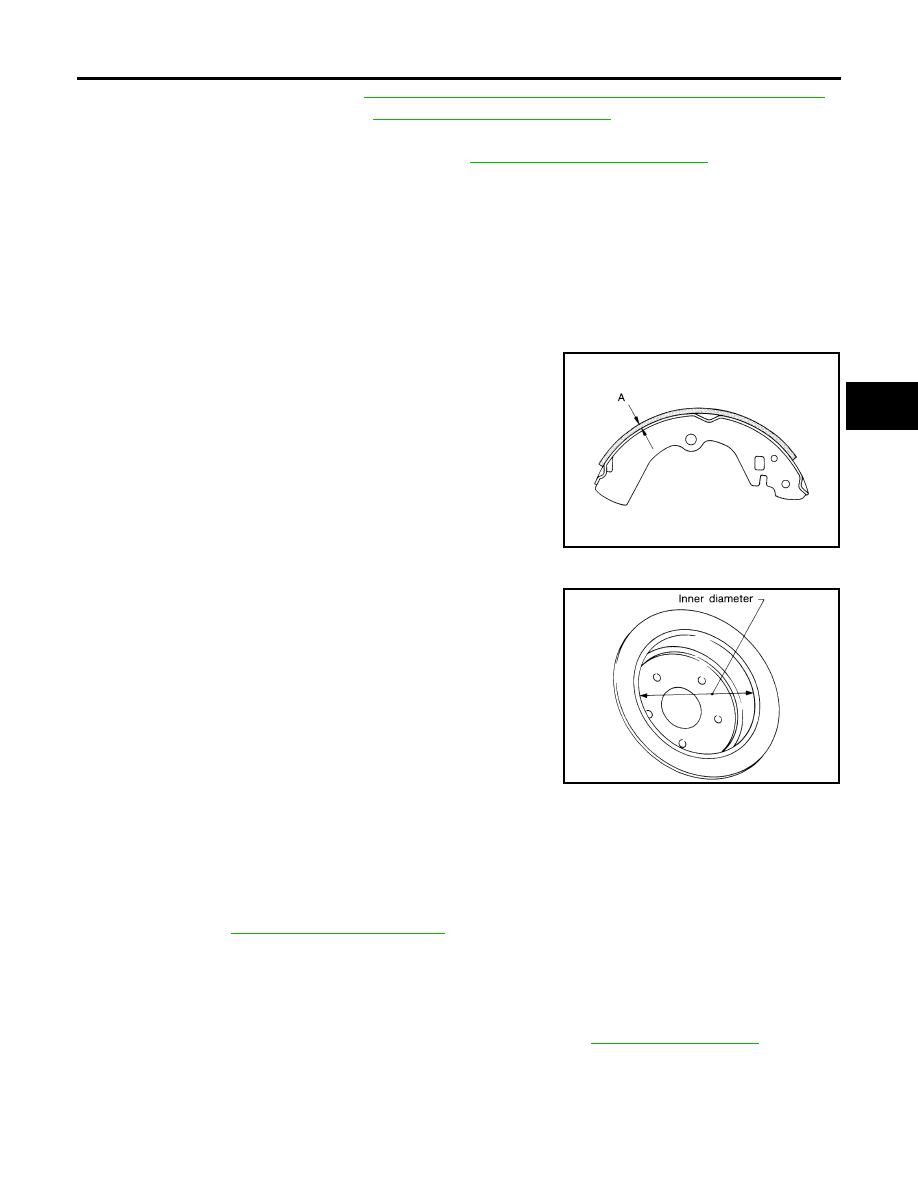

Standard thickness "A"

: 5.15

±

 0.25 mm

(0.203

±

 0.010 in)

Repair limit thickness "A"

: 0.5 mm (0.020 in)

SBR021A

Standard inner diameter

: 205

±

 0.13 mm

(8.07

±

 0.01 in)

Maximum inner diameter

: 205.7 mm (8.10 in)

SBR768A

PB-8

PARKING BRAKE SHOE

2007 Pathfinder

●

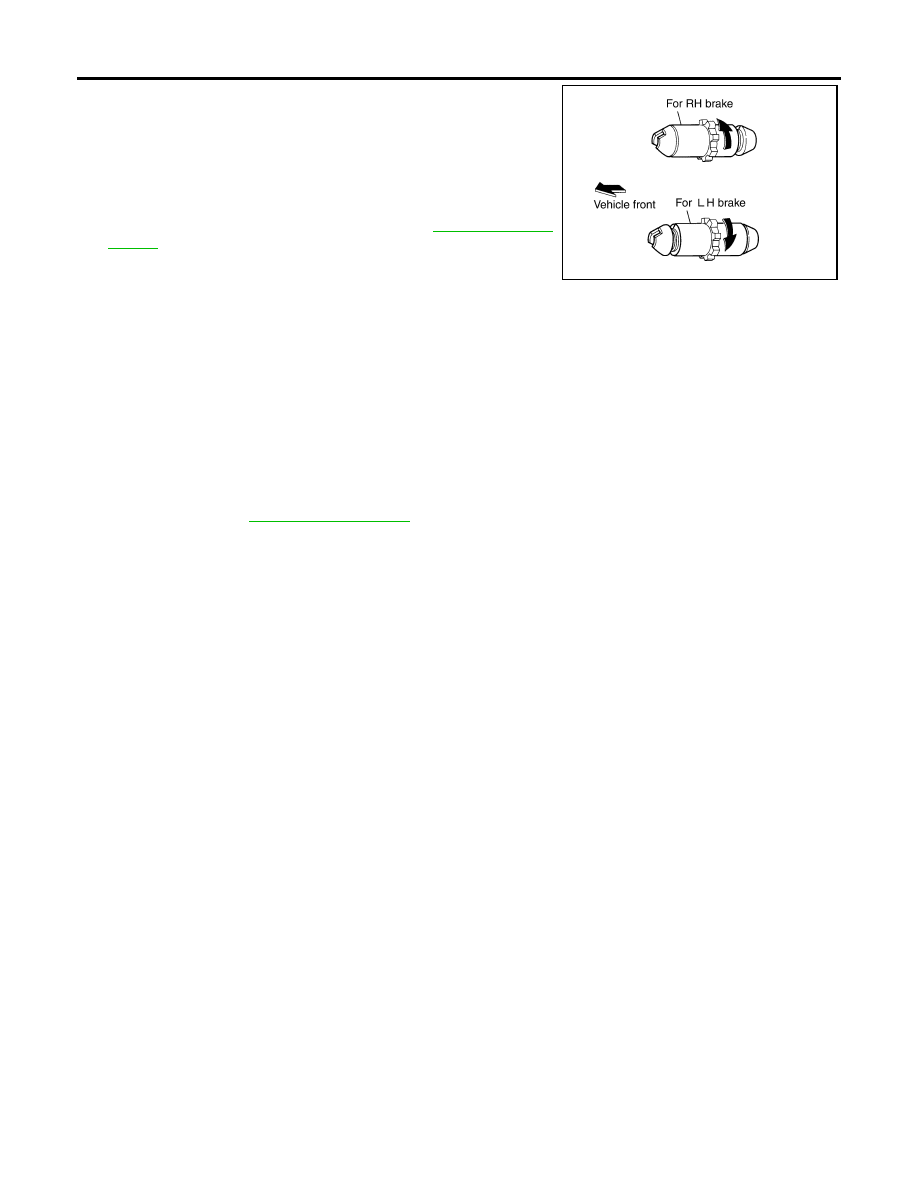

Install adjuster so that threaded part expands when rotating it in
the direction shown by the arrow.

●

Shorten adjuster by rotating it in the opposite direction as shown
by the arrow.

NOTE:
After replacing brake shoes or disc rotors, or if parking brake does
not function well, perform break-in operation as follows.

1.

Adjust parking brake pedal stroke. Refer to

PB-3, "ADJUST-

MENT"

 .

2.

Perform parking brake burnishing operation by driving the vehicle forward under the following conditions:

CAUTION:

●

To prevent lining from getting too hot, allow a cool off period of approximately 5 minutes after
every break-in operation.

●

Do not perform excessive break-in operations, because it may cause uneven or early wear of
lining.

3.

After burnishing operation, check parking brake pedal stroke. Readjust if it is now longer than the speci-
fied stroke. Refer to

PB-3, "ADJUSTMENT"

 .

SFIA0153E

●

Vehicle speed 40 km/h (25 MPH) set (forward)

●

Parking brake operating force 196 N (20.0 kg-f, 44.1 lb-f) set

●

Apply time 30 sec.

SERVICE DATA AND SPECIFICATIONS (SDS)

PB-9

C

D

E

G

H

I

J

K

L

M

A

B

PB

2007 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Parking Drum Brake

EFS0064F

Unit: mm (in)

Parking Brake Control

EFS0064G

Type

Drum

Brake lining

Standard thickness (new)

5.15

±

 0.25 (0.203

±

 0.010)

Wear limit thickness

0.5 (0.020)

Drum inner diameter (disc)

Standard inner diameter (new)

205

±

 0.13 (8.07

±

 0.01)

Wear limit of inner diameter

205.7 (8.10)

Control type

Foot pedal

Number of notches [under force of 196 N (20.0 kg-f, 44.1 lb-f)]

4 – 5 notches

Number of notches when warning lamp switch comes on

1 notch

PB-10

SERVICE DATA AND SPECIFICATIONS (SDS)

2007 Pathfinder
