COMBINATION SWITCH

LT-73

C

D

E

F

G

H

I

J

L

M

A

B

LT

2007 Pathfinder

COMBINATION SWITCH

PFP:25567

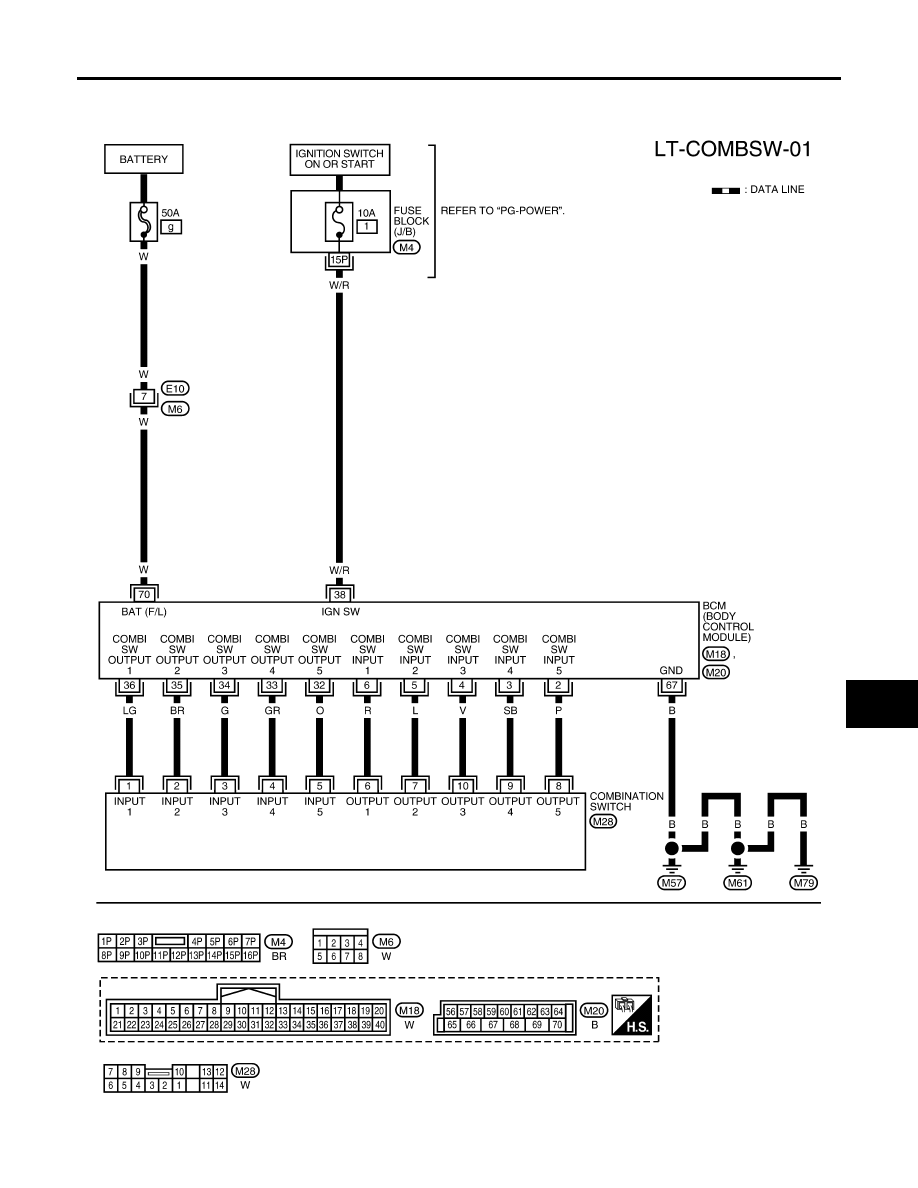

Wiring Diagram — COMBSW —

EKS00FWB

WKWA5442E

LT-74

COMBINATION SWITCH

2007 Pathfinder

Combination Switch Reading Function

EKS00FWC

For details, refer to

BCS-3, "COMBINATION SWITCH READING FUNCTION"

 .

CONSULT-II Function (BCM)

EKS00FWD

Refer to

LT-12, "CONSULT-II Function (BCM)"

 .

CONSULT-II START PROCEDURE

Refer to

GI-38, "CONSULT-II Start Procedure"

 .

DATA MONITOR
Display Item List

Monitor item name

 "OPERATION OR UNIT"

Contents

TURN SIGNAL R

"ON/OFF"

Displays "Turn Right (ON)/Other (OFF)" status, determined from lighting switch signal.

TURN SIGNAL L

"ON/OFF"

Displays "Turn Left (ON)/Other (OFF)" status, determined from lighting switch signal.

HI BEAM SW

"ON/OFF"

Displays status (high beam switch: ON/Others: OFF) of high beam switch judged from lighting
switch signal.

HEAD LAMP SW 1

"ON/OFF"

Displays "Headlamp switch 1 (ON)/Other (OFF)" status, determined from lighting switch signal.

HEAD LAMP SW 2

"ON/OFF"

Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 2 judged from lighting
switch signal.

LIGHT SW 1ST

"ON/OFF"

Displays status (lighting switch 1st position: ON/Others: OFF) of lighting switch judged from lighting
switch signal.

PASSING SW

"ON/OFF"

Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from lighting
switch signal.

AUTO LIGHT SW

"ON/OFF"

Displays "Auto light switch (ON)/Other (OFF)" status, determined from lighting switch signal.

FR FOG SW

"ON/OFF"

Displays "Front fog lamp switch (ON)/Other (OFF)" status, determined from lighting switch signal.

FR WIPER HI

"ON/OFF"

Displays "Front Wiper HI (ON)/Other (OFF)" status, determined from wiper switch signal.

FR WIPER LOW

"ON/OFF"

Displays "Front Wiper LOW (ON)/Other (OFF)" status, determined from wiper switch signal.

FR WIPER INT

"ON/OFF"

Displays "Front Wiper INT (ON)/Other (OFF)" status, determined from wiper switch signal.

FR WASHER SW

"ON/OFF"

Displays "Front Washer Switch (ON)/Other (OFF)" status, determined from wiper switch signal.

INT VOLUME

[1 - 7]

Displays intermittent operation knob setting (1 - 7), determined from wiper switch signal.

RR WIPER ON

"ON/OFF"

Displays "Rear Wiper (ON)/(OFF)" status, determined from wiper switch signal.

RR WIPER INT

"ON/OFF"

Displays "Rear Wiper INT (ON)/(OFF)" status, determined from wiper switch signal.

RR WASHER SW

"ON/OFF"  Displays "Rear Washer (ON)/(OFF)" status, determined from wiper switch signal.

COMBINATION SWITCH

LT-75

C

D

E

F

G

H

I

J

L

M

A

B

LT

2007 Pathfinder

Combination Switch Inspection

EKS00FWE

1.

SYSTEM CHECK

Referring to table below, check to which system the malfunctioning switch belongs.

>> GO TO 2.

2.

SYSTEM CHECK

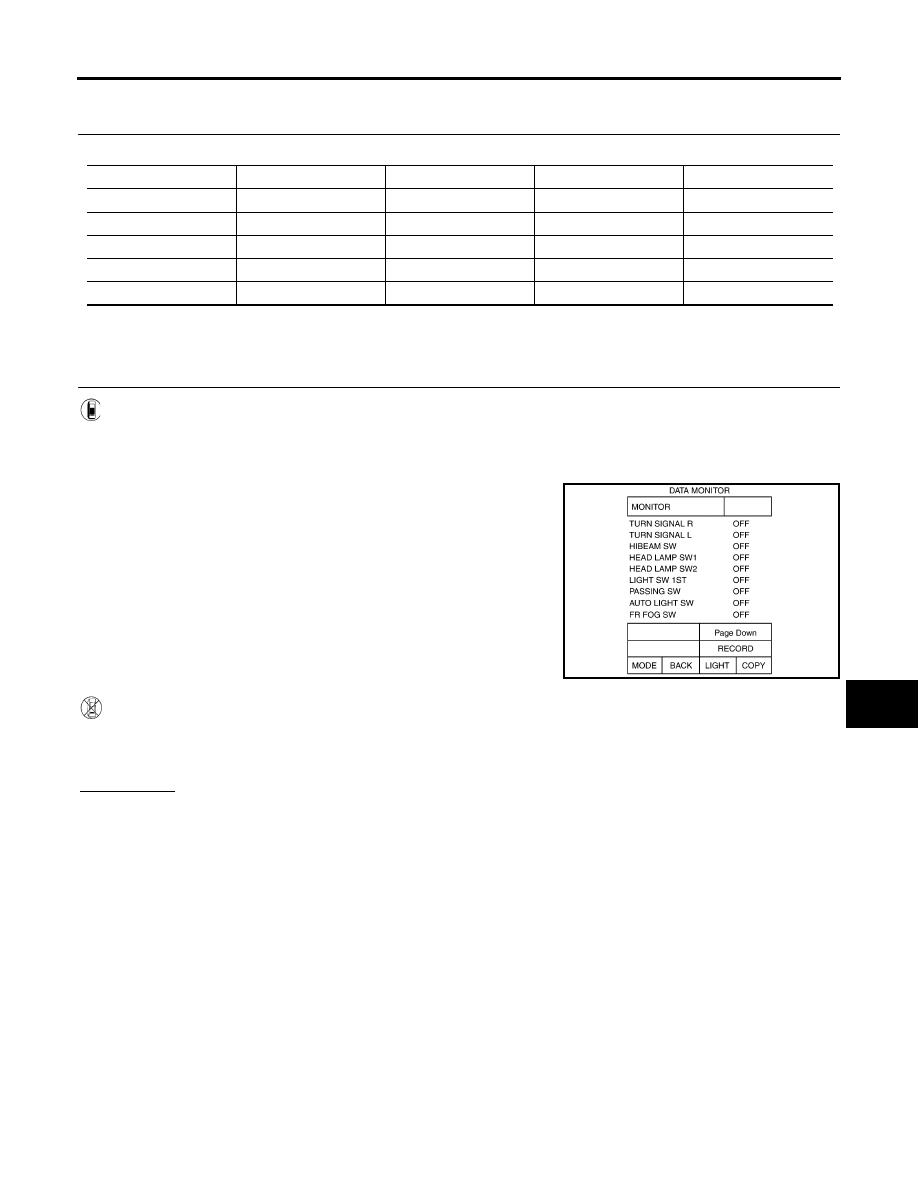

With CONSULT-II

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

1.

Connect CONSULT-II, and select "COMB SW" on "SELECT
TEST ITEM" screen.

2.

Select "DATA MONITOR".

3.

Select "START", and confirm that other switches in malfunction-
ing system operate normally.
Example: When auto light switch is malfunctioning, confirm that
"FRONT WIPER LOW" and "FRONT WIPER INT" in System 3,
to which the auto light switch belongs, turn ON-OFF normally.

Without CONSULT-II

Operate combination switch, and confirm that other switches in malfunctioning system operate normally.
Example: When auto light switch is malfunctioning, confirm that "FRONT WIPER LOW" and "FRONT WIPER
INT" in System 3, to which the auto light switch belongs, operate normally.

Check results

Other switches in malfunctioning system operate normally.>>Replace lighting switch or wiper switch.
Other switches in malfunctioning system do not operate normally.>>GO TO 3.

System 1

System 2

System 3

System 4

System 5

—

FR WASHER

FR WIPER LO

TURN LH

TURN RH

FR WIPER HI

—

FR WIPER INT

PASSING

HEAD LAMP1

INT VOLUME 1

RR WASHER

—

HEAD LAMP2

HI BEAM

RR WIPER INT

INT VOLUME 3

AUTO LIGHT

—

TAIL LAMP

INT VOLUME 2

RR WIPER ON

—

FR FOG

—

SKIA7075E

LT-76

COMBINATION SWITCH

2007 Pathfinder

3.

HARNESS INSPECTION

1.

Turn ignition switch OFF.

2.

Disconnect BCM and combination switch connectors.

3.

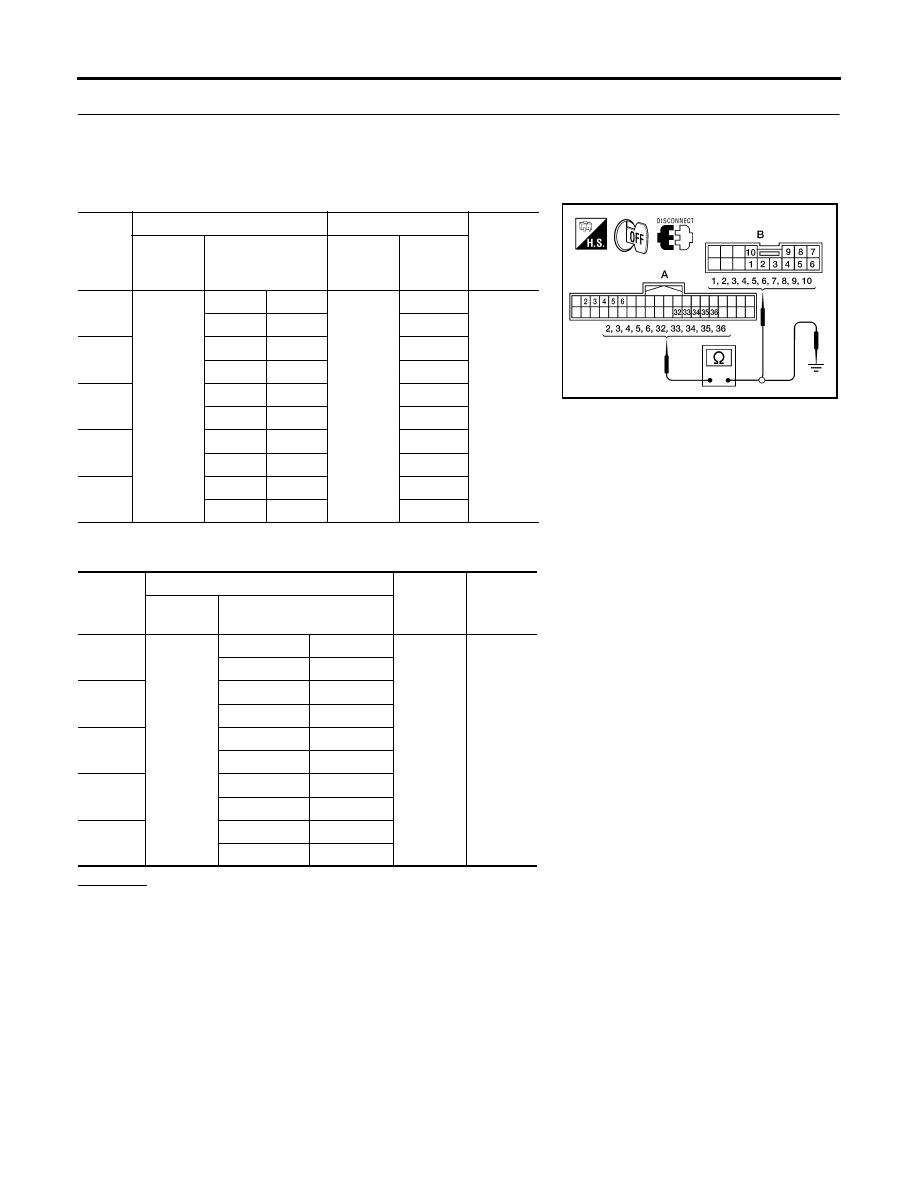

Check for continuity between BCM harness connector of the suspect system and the corresponding com-
bination switch connector terminals.

4.

Check for continuity between each terminal of BCM harness connector in suspect malfunctioning system
and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Check harness between BCM and combination switch for open or short circuit.

Sus-

pect

system

A

B

Continuity

BCM

connector

Terminal

Combina-

tion switch

connector

Terminal

1

M18

Input 1

6

M28

6

Yes

Output 1

36

1

2

Input 2

5

7

Output 2

35

2

3

Input 3

4

10

Output 3

34

3

4

Input 4

3

9

Output 4

33

4

5

Input 5

2

8

Output 5

32

5

Suspect

system

A

Continuity

BCM

connector

Terminal

1

A: M18

Input 1

6

Ground

No

Output 1

36

2

Input 2

5

Output 2

35

3

Input 3

4

Output 3

34

4

Input 4

3

Output 4

33

5

Input 5

2

Output 5

32

WKIA5841E

COMBINATION SWITCH

LT-77

C

D

E

F

G

H

I

J

L

M

A

B

LT

2007 Pathfinder

4.

BCM OUTPUT TERMINAL INSPECTION

1.

Connect BCM and combination switch connectors.

2.

Turn lighting switch and wiper switch to OFF.

3.

Set wiper dial to position 4.

4.

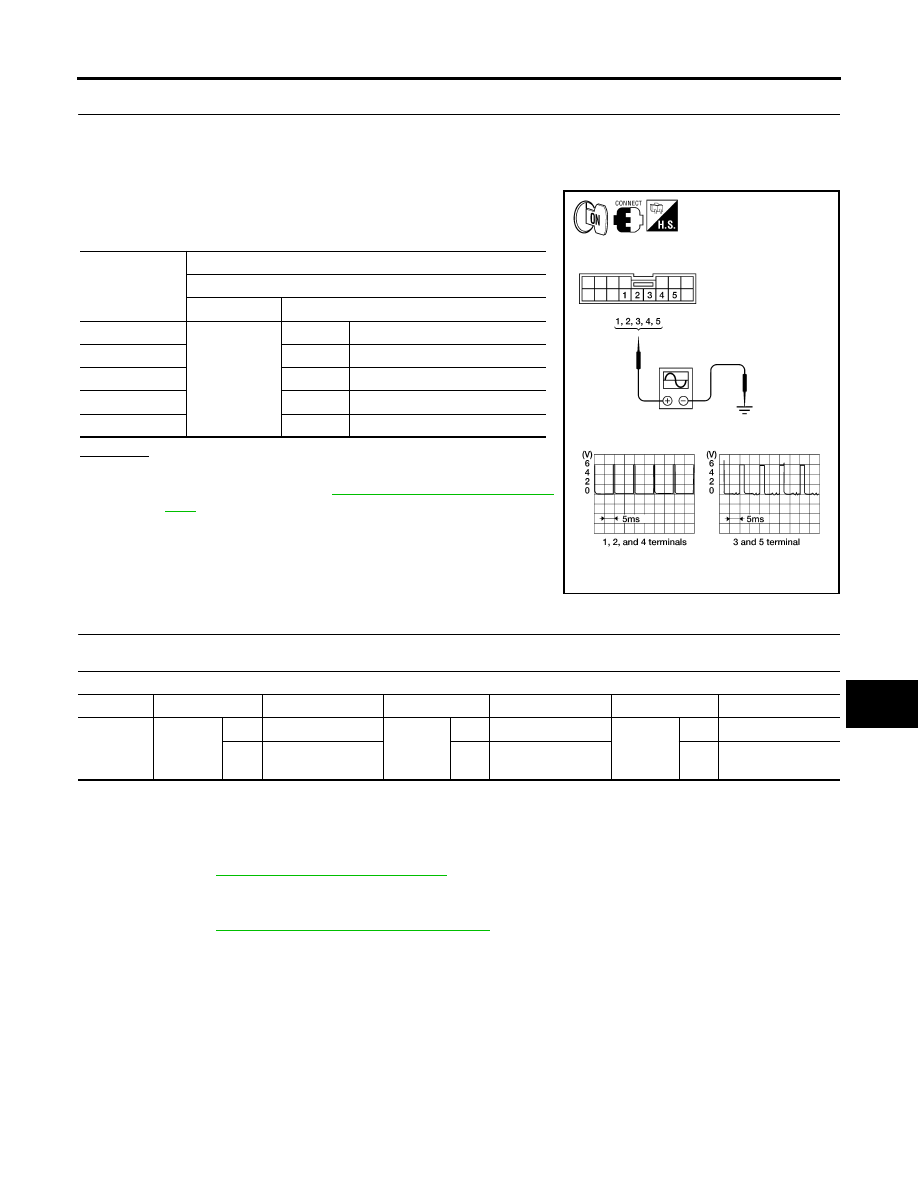

Turn ignition switch ON, and check  combination switch input
(BCM output) terminal voltage waveform of suspect malfunction-
ing system.

OK or NG

OK

>> Open circuit in combination switch, GO TO 5.

NG

>> Replace BCM. Refer to

BCS-25, "Removal and Installa-

tion"

 .

5.

COMBINATION SWITCH INSPECTION

Referring to table below, perform combination switch inspection.

>> Inspection End.

Removal and Installation

EKS00FWF

For details, refer to

LT-71, "Removal and Installation"

 .

Switch Circuit Inspection

EKS00FWG

For details, refer to

LT-75, "Combination Switch Inspection"

 .

Suspect system

Combination switch

 (+)

Connector

Terminal

1

M28

Input 1

1

2

Input 2

2

3

Input 3

3

4

Input 4

4

5

Input 5

5

WKIA5842E

Procedure

1

2

3

4

5

6

7

Replace

lighting

switch.

Confirm
check
results.

OK

INSPECTION END

Confirm
check
results.

OK

INSPECTION END

Confirm
check
results.

OK

INSPECTION END

NG

Replace wiper
switch.

NG

Replace switch
base.

NG

Confirm symptom
again.

LT-78

STOP LAMP

2007 Pathfinder

STOP LAMP

PFP:26550

System Description

EKS00FWH

Power is supplied at all times

●

through 10A fuse [No. 20, located in fuse block (J/B)]

●

to stop lamp switch terminal 1, and

●

to stop lamp relay terminals 2 and 3 (with hill descent control and hill start assist).

When the brake pedal is pressed, the stop lamp switch is closed and power is supplied

●

through stop lamp switch terminal 2

●

to rear combination lamp LH and RH terminal 2

●

to high-mounted stop lamp terminal 1

●

to ABS actuator and electric unit (control unit) terminal 41.

Ground is supplied

●

to rear combination lamp LH terminal 5

●

through grounds B7 and B19, and

●

to high-mounted stop lamp terminal 2

●

through grounds D406 and D504, and

●

to rear combination lamp RH terminal 5

●

through grounds B117 and B132.

With power and ground supplied, the stop lamps illuminate.

STOP LAMP

LT-79

C

D

E

F

G

H

I

J

L

M

A

B

LT

2007 Pathfinder

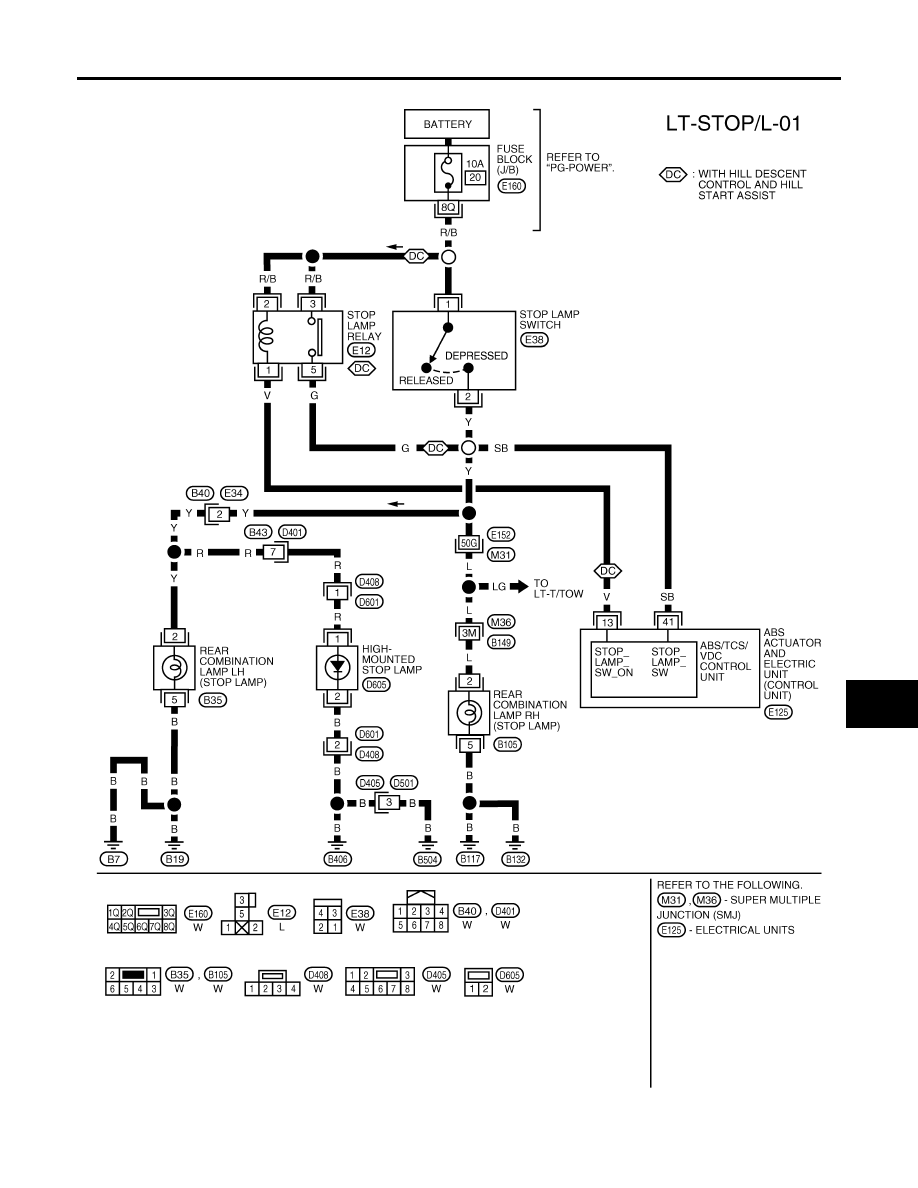

Wiring Diagram — STOP/L —

EKS00FWI

WKWA4341E

LT-80

STOP LAMP

2007 Pathfinder

High-Mounted Stop Lamp

EKS00FWJ

BULB REPLACEMENT

The high-mounted stop lamp bulbs are not serviceable.

REMOVAL AND INSTALLATION
Removal

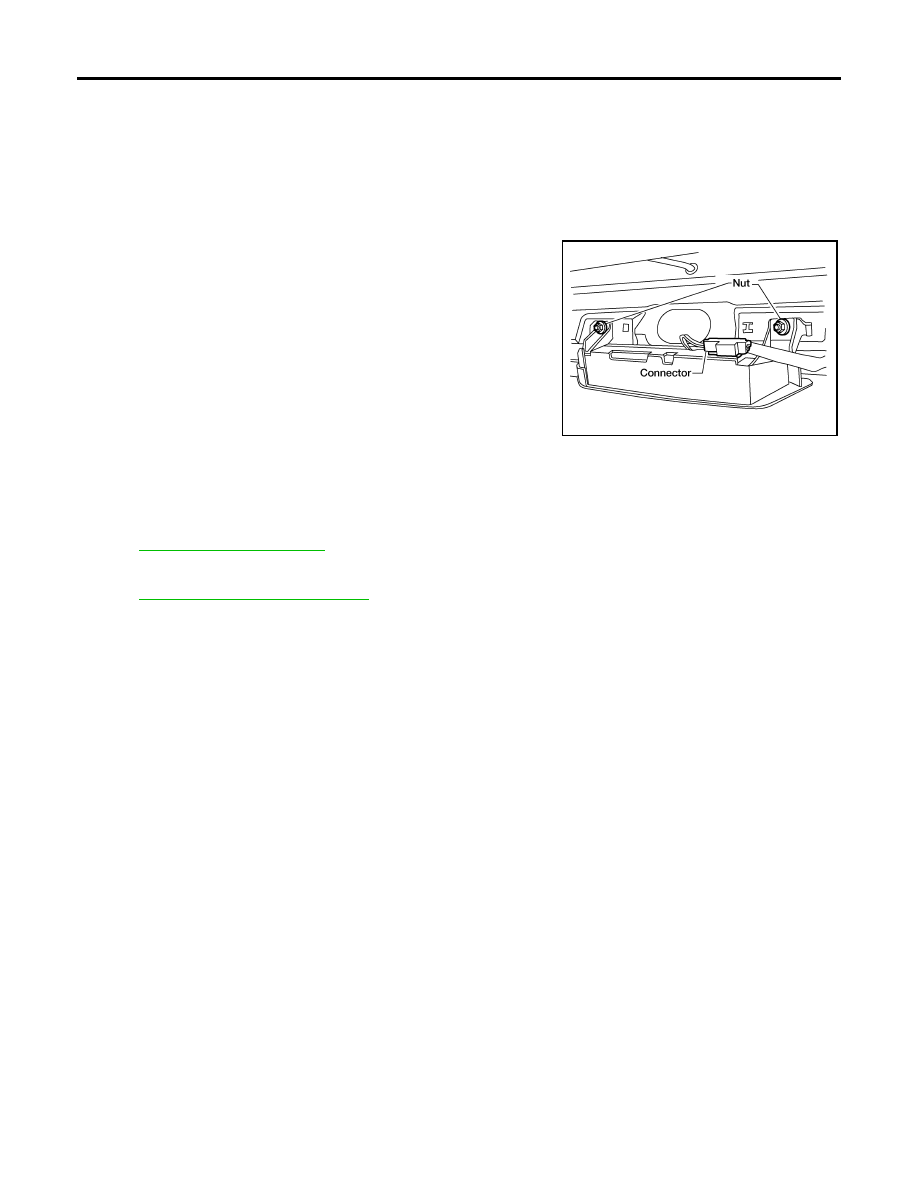

1.

Remove back door window garnish.

2.

Disconnect high-mounted stop lamp connector.

3.

Remove nuts and remove high-mounted stop lamp.

Installation

Installation is in the reverse order of removal.

Stop Lamp

EKS00FWK

BULB REPLACEMENT

Refer to

LT-98, "Bulb Replacement"

 .

REMOVAL AND INSTALLATION

Refer to

LT-98, "Removal and Installation"

 .

LKIA0576E
