Check for the correct installation status prior to removal or disassembly. When matching marks are
required, be certain they do not interfere with the function of the parts they are applied to.

●

Overhaul should be done in a clean work area, a dust proof area is recommended.

●

Before disassembly, completely remove sand and mud from the exterior of the unit, preventing them from
entering into the unit during disassembly or assembly.

●

Always use shop paper for cleaning the inside of components.

●

Avoid using cotton gloves or a shop cloth to prevent the entering of lint.

●

Check appearance of the disassembled parts for damage, deformation, and abnormal wear. Replace
them with new ones if necessary.

●

Gaskets, seals and O-rings should be replaced any time the unit is disassembled.

●

Clean and flush the parts sufficiently and blow them dry.

●

Be careful not to damage sliding surfaces and mating surfaces.

●

When applying sealant, remove the old sealant from the mating surface; then remove any moisture, oil,
and foreign materials from the application and mating surfaces.

●

In principle, tighten nuts or bolts gradually in several steps working diagonally from inside to outside. If a
tightening sequence is specified, observe it.

●

During assembly, observe the specified tightening torque.

●

Add new differential gear oil, petroleum jelly, or multi-purpose grease, as specified.

PREPARATION

FFD-3

FFD

2007 Pathfinder

PREPARATION

PFP:00002

Special Service Tools

EDS0039H

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

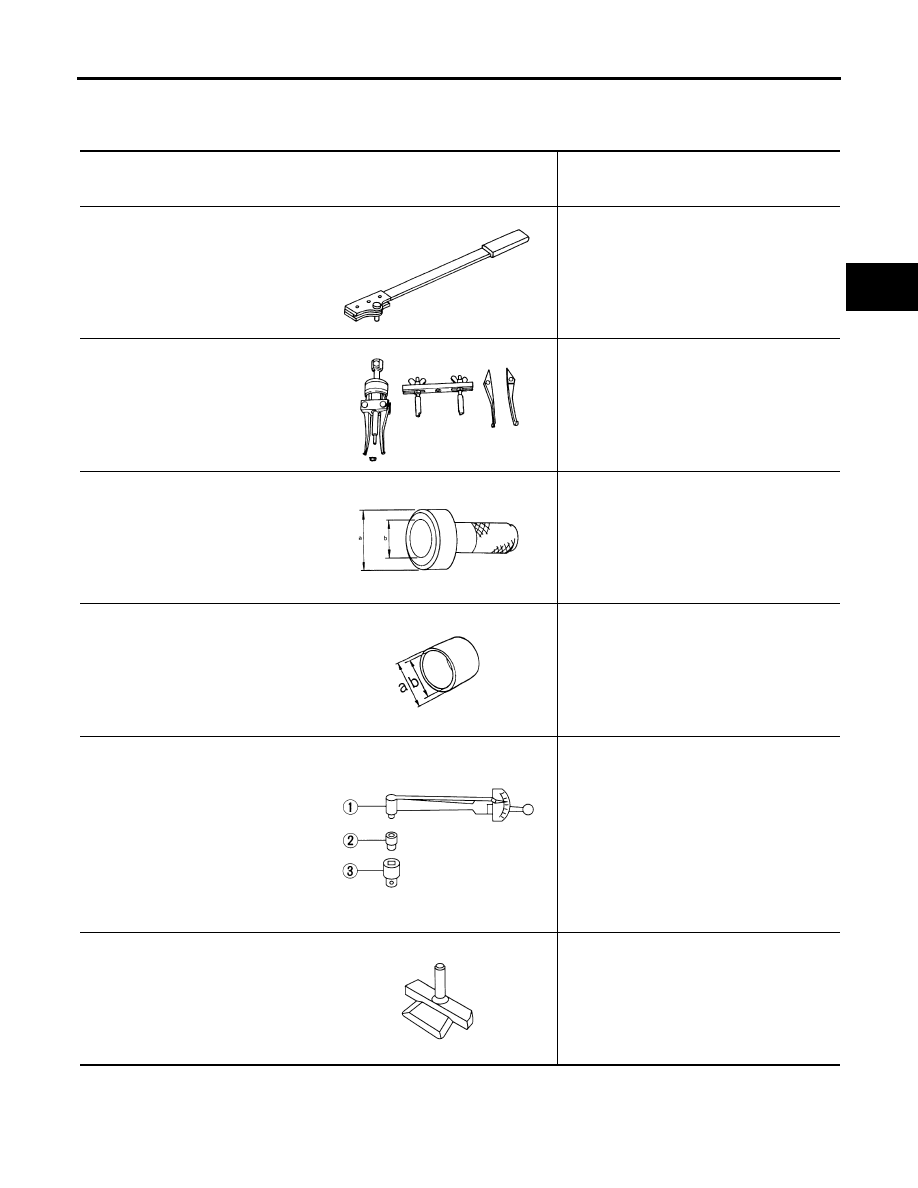

KV38108300
(J-44195)
Flange wrench

Removing and installing drive pinion lock nut

KV381054S0
(J-34286)
Puller

Removing front oil seal

ST30720000
(J-25405)
Drift

●

Installing front oil seal

●

Installing side oil seal

a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.

ST27863000
(

—

)

Drift

●

Installing front oil seal

●

Installing side oil seal

a: 74.5 mm (2.933 in) dia.
b: 62.5 mm (2.461 in) dia.

ST3127S000
(J-25765-A)
Preload gauge
1: GG91030000

(J-25765)
Torque wrench

2: HT62940000

(

—

)

Socket adapter (1/2

″

)

3: HT62900000

(

—

)

Socket adapter (3/8

″

)

Measuring drive pinion bearing preload torque
and total preload torque

KV10111100
(J-37228)
Seal cutter

Removing carrier cover

NT771

ZZA0601D

ZZA0811D

ZZA1003D

NT124

S-NT046

FFD-4

PREPARATION

2007 Pathfinder

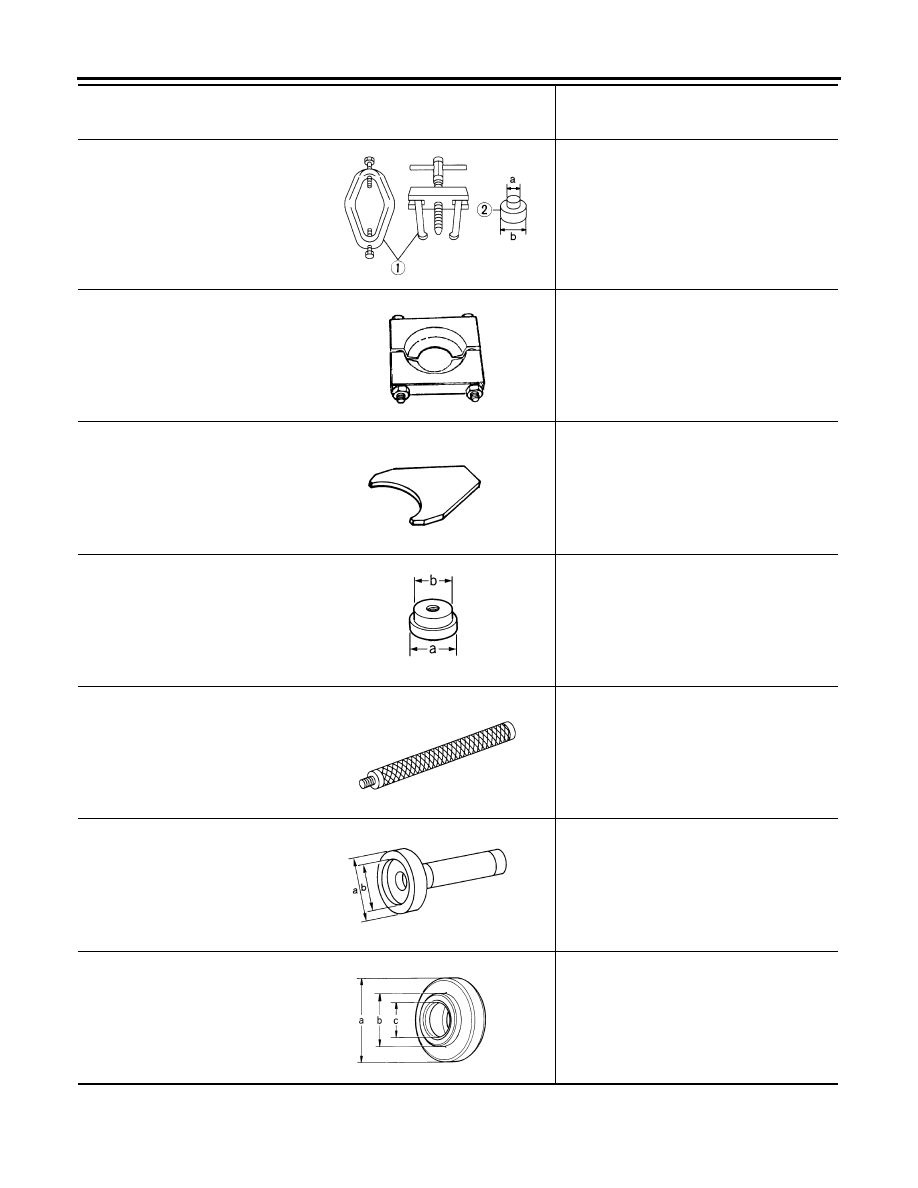

ST3306S001
(

—

)

Differential side bearing puller set
1: ST33051001

(J-22888-20)
Puller

2: ST33061000

(J-8107-2)
Base

Removing and installing side bearing inner
race
a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.

ST30031000
(J-22912-01)
Replacer

Removing drive pinion rear bearing inner race

KV38100600
(J-25267)
Drift

Installing side bearing adjusting washer

ST30613000
(J-25742-3)
Drift

Installing drive pinion rear bearing outer race
a: 72 mm (2.83 in) dia.
b: 48 mm (1.89 in) dia.

ST30611000
(J-25742-1)
Drift bar

Installing drive pinion rear bearing outer race
(Use with ST30613000)

KV38100200
(J-26233)
Drift

Installing drive pinion front bearing outer race
a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.

ST30901000
(J-26010-01)
Drift

Installing drive pinion rear bearing inner race
a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.386 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

NT072

ZZA0700D

SDIA0429J

ZZA1000D

S-NT090

ZZA1143D

ZZA0978D

PREPARATION

FFD-5

FFD

2007 Pathfinder

Commercial Service Tools

EDS0039I

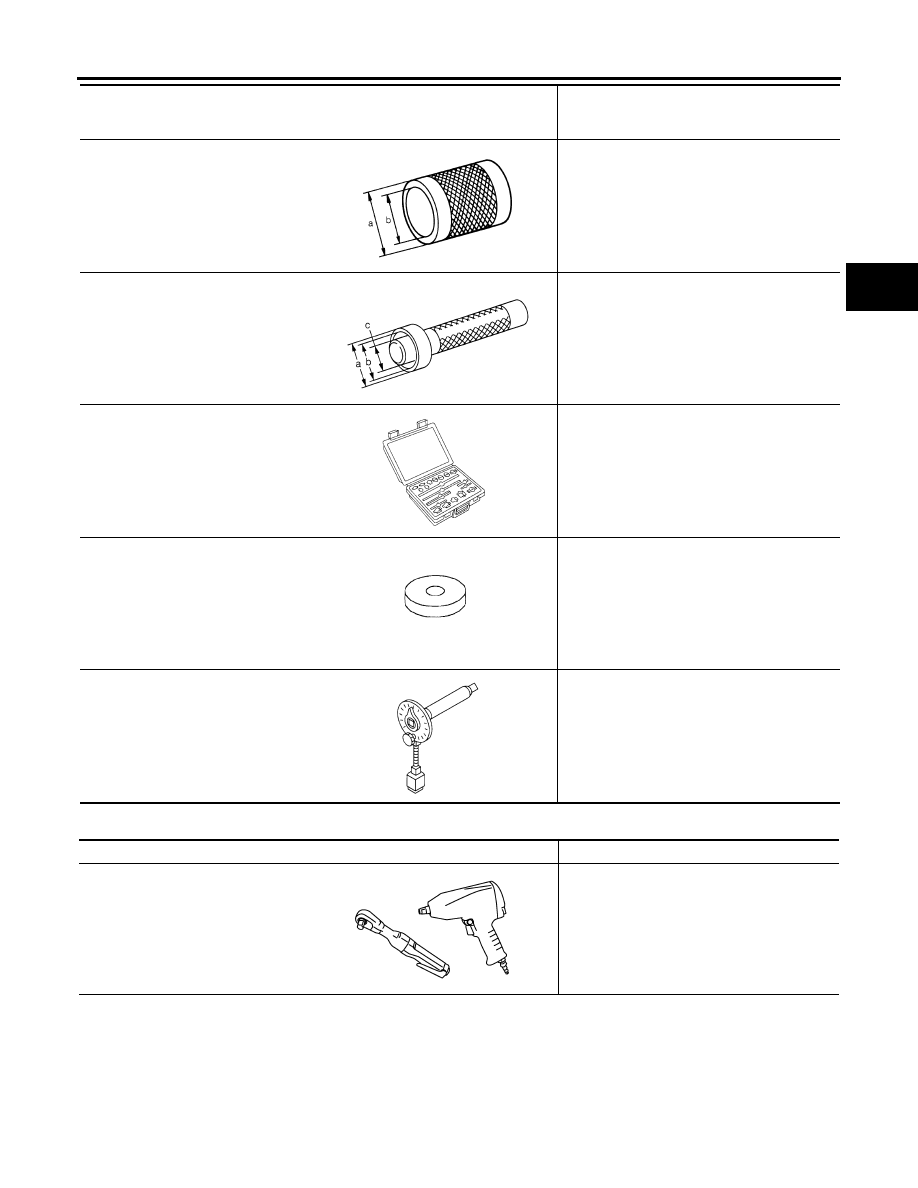

ST33200000
(J-26082)
Drift

Installing drive pinion front bearing inner race
a: 60 mm (2.36 in) dia.
b: 44.5 mm (1.752 in) dia.

ST33230000
(J-35867)
Drift

Installing side bearing inner race
a: 51 mm (2.01 in) dia.
b: 41 mm (1.61 in) dia.
c: 28 mm (1.10 in) dia.

(

—

)

(J-34309)
Differential shim selector tool

Adjusting bearing preload and drive pinion
height

(

—

)

(J-25269-18)
Side bearing disc (2 Req'd)

Selecting drive pinion height adjusting washer

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for drive gear

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA1002D

ZZA1046D

NT134

NT135

NT014

Tool name

Description

Power tool

Loosening nuts and bolts

PBIC0190E

FFD-6

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

2007 Pathfinder

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

PFP:00003

NVH Troubleshooting Chart

EDS0039J

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

: Applicable

Reference page

Possible cause and SUSPECTED PARTS

roug

r c

t i

sur

fac

ckl

ash

ect

pan

lan

rop

R S

T AXL

Symptom

Noise

DESCRIPTION

FFD-7

FFD

2007 Pathfinder

DESCRIPTION

PFP:00000

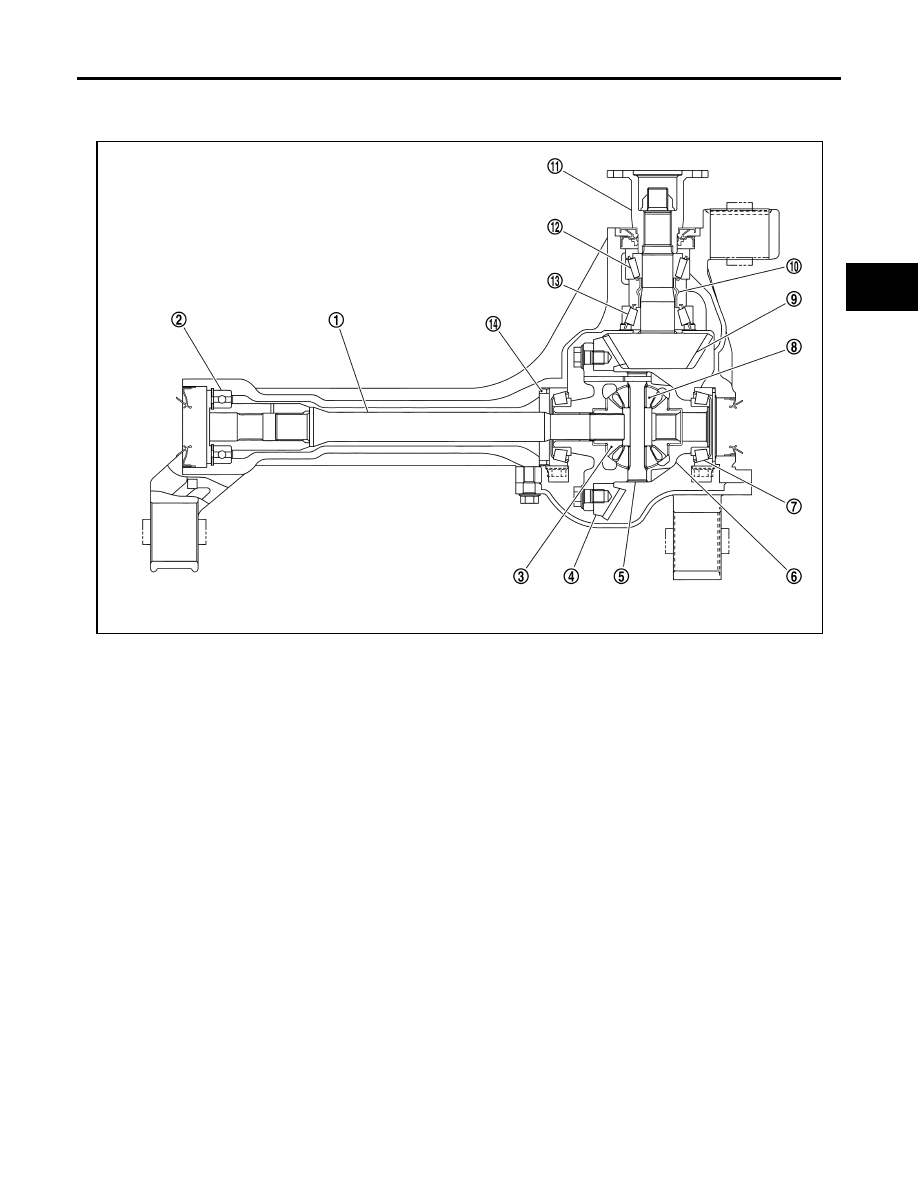

Cross-Sectional View

EDS0039K

Differential side shaft

Differential side shaft bearing

Side gear

Drive gear

Pinion mate shaft

Differential case

Side bearing

Pinion mate gear

Drive pinion

10. Collapsible spacer

11.

Companion flange

12. Drive pinion front bearing

13. Drive pinion rear bearing

14. Housing spacer

PDIA0695E

FFD-8

DIFFERENTIAL GEAR OIL

2007 Pathfinder

DIFFERENTIAL GEAR OIL

PFP:KLD30

Changing Differential Gear Oil

EDS0039L

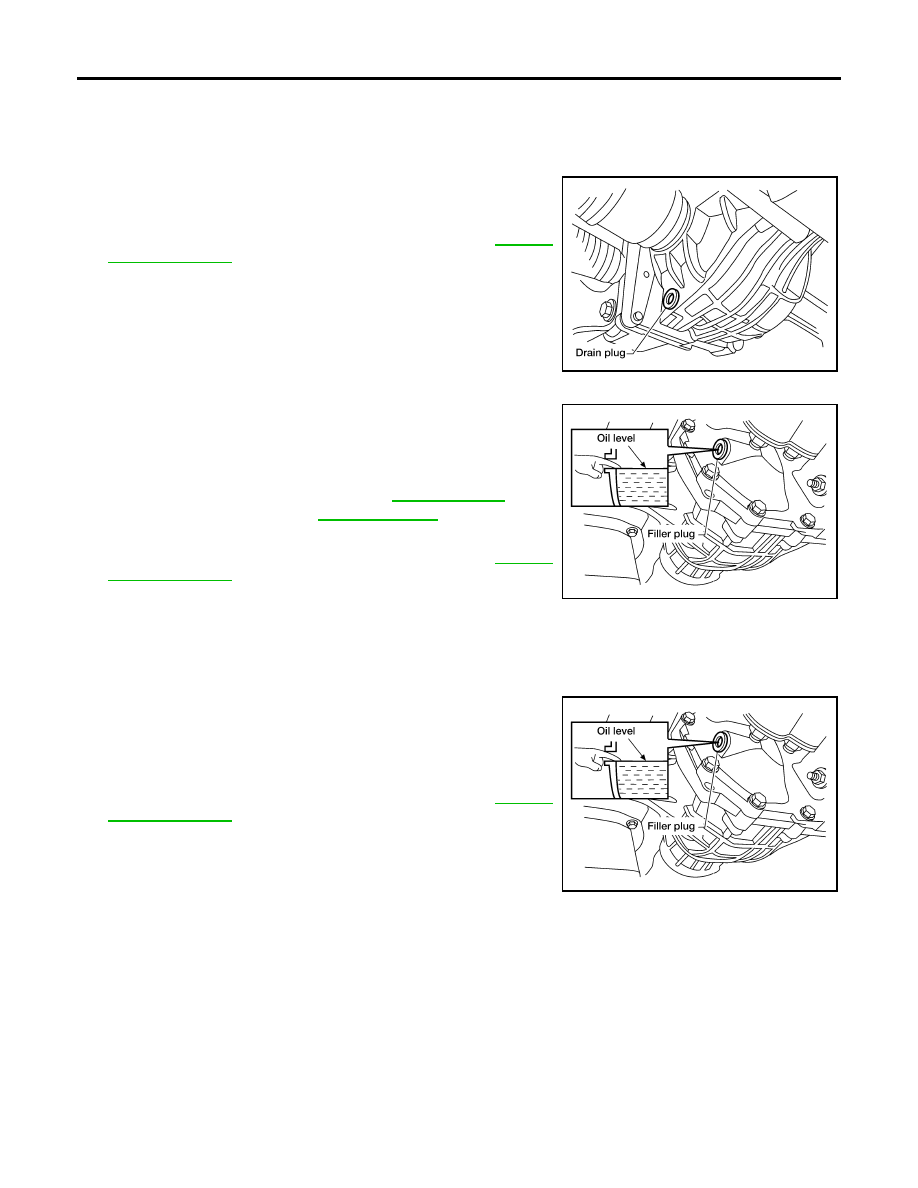

DRAINING

Stop the engine.

Remove the drain plug and gasket from the front final drive
assembly to drain the differential gear oil.

Install the drain plug with a new gasket to the front final drive
assembly. Tighten to the specified torque. Refer to

FFD-15,

"COMPONENTS"

CAUTION:

Do not reuse gasket.

FILLING

Remove the filler plug and gasket from the front final drive
assembly.

Fill the front final drive assembly with new differential gear oil
until the level reaches the specified level near the filler plug hole.

Install the filler plug with a new gasket on it to the front final drive
assembly. Tighten to the specified torque. Refer to

FFD-15,

"COMPONENTS"

CAUTION:

Do not reuse gasket.

Checking Differential Gear Oil

EDS0039M

DIFFERENTIAL GEAR OIL LEAKAGE AND LEVEL

Make sure that differential gear oil is not leaking from the front final drive assembly or around it.

Check the differential gear oil level from the filler plug hole as
shown.

CAUTION:

Do not start engine while checking differential gear oil level.

Install the filler plug with a new gasket on it to the front final drive
assembly. Tighten to the specified torque. Refer to

FFD-15,

"COMPONENTS"

CAUTION:

Do not reuse gasket.

LDIA0175E

Differential gear oil
grade and capacity

: Refer to

MA-11, "Fluids

and Lubricants"

LDIA0176E
