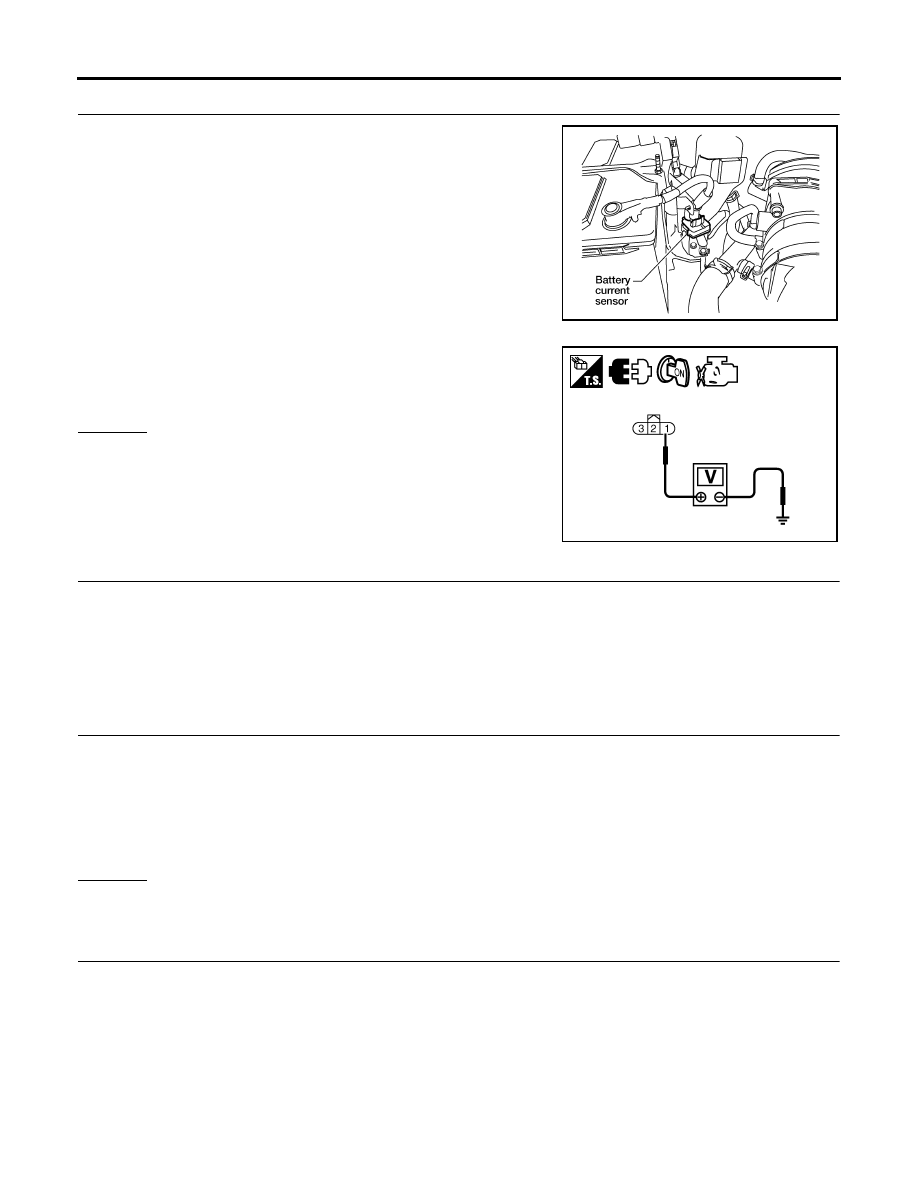

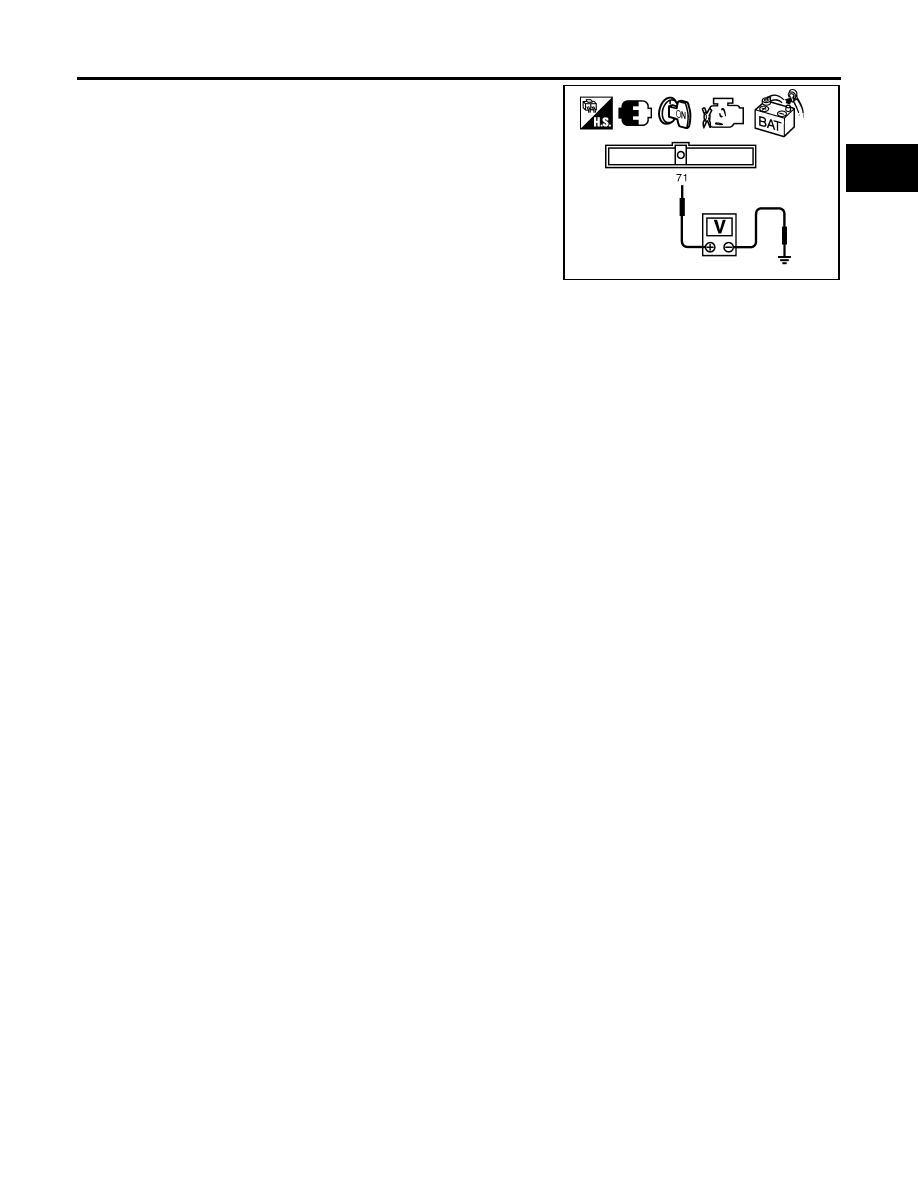

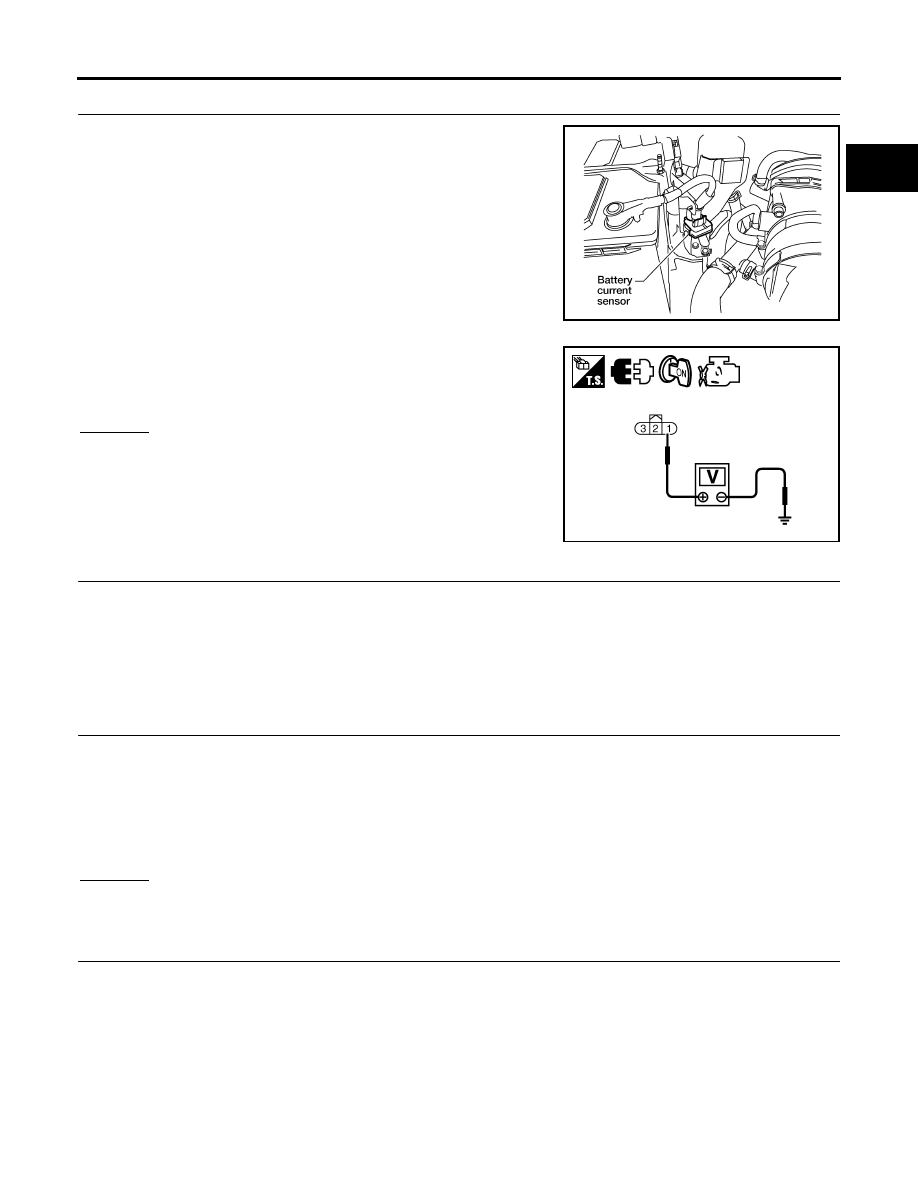

DTC P1551, P1552 BATTERY CURRENT SENSOR EC-515 C D E F G H I J K L M A EC 2007 Pathfinder 2. CHECK BATTERY CURRENT SENSOR POWER SUPPLY CIRCUIT 1. Disconnect battery current sensor harness connector. 2. Turn ignition switch ON. 3. Check voltage between battery current sensor terminal 1 and OK or NG OK >> GO TO 4. NG >> GO TO 3. 3. DETECT MALFUNCTIONING PART Check the following. ● Harness connectors E5, F14 ● Harness for open or short between battery current sensor and ECM >> Repair circuit or short to ground or short to power in harness or connectors. 4. CHECK BATTERY CURRENT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch OFF. 2. Disconnect ECM harness connector. 3. Check harness continuity between battery current sensor terminal 2 and ECM terminal 67. 4. Also check harness for short to ground and short to power. OK or NG OK >> GO TO 6. NG >> GO TO 5. 5. DETECT MALFUNCTIONING PART Check the following. ● Harness connectors E5, F14 ● Harness for open or short between battery current sensor and ECM >> Repair circuit or short to ground or short to power in harness or connectors. BBIA0582E Voltage: Approximately 5V PBIB2609E Continuity should exist. |
