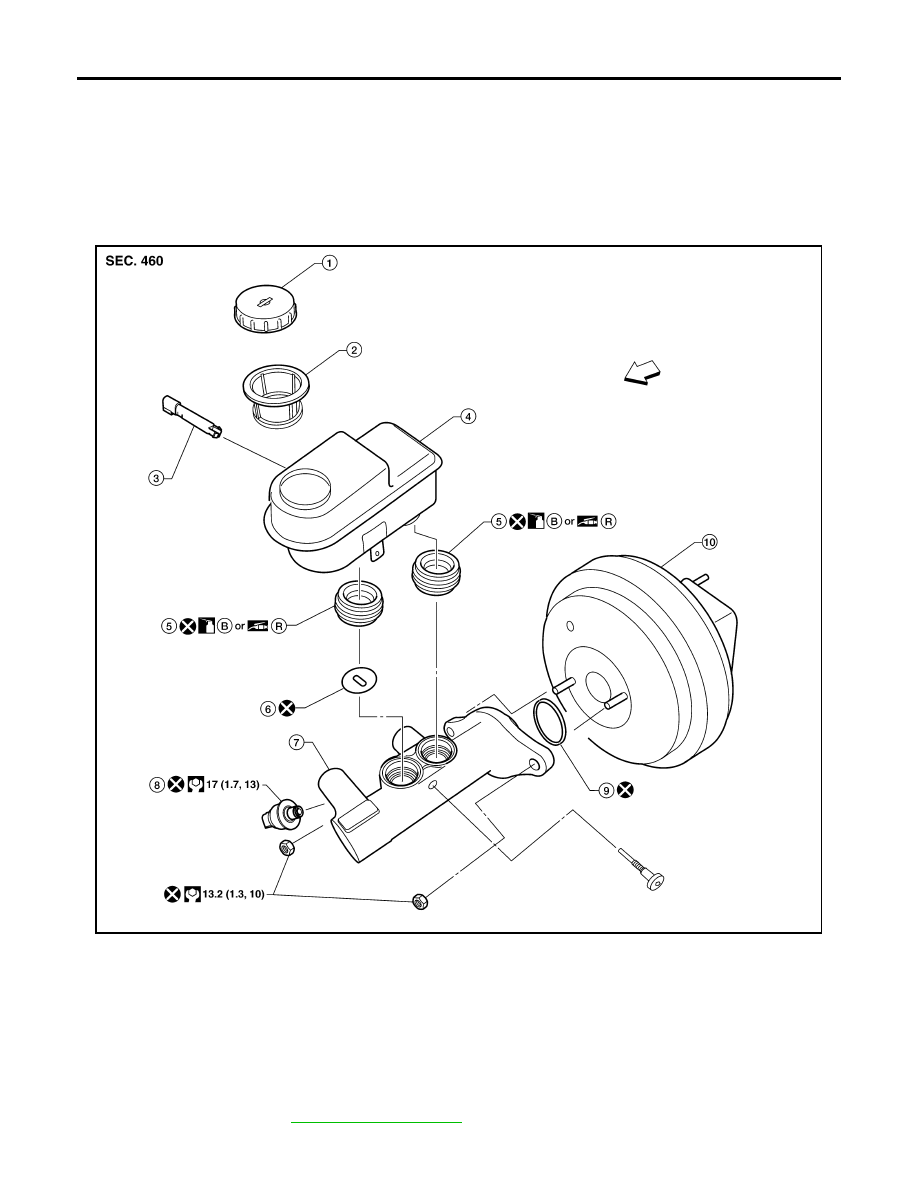

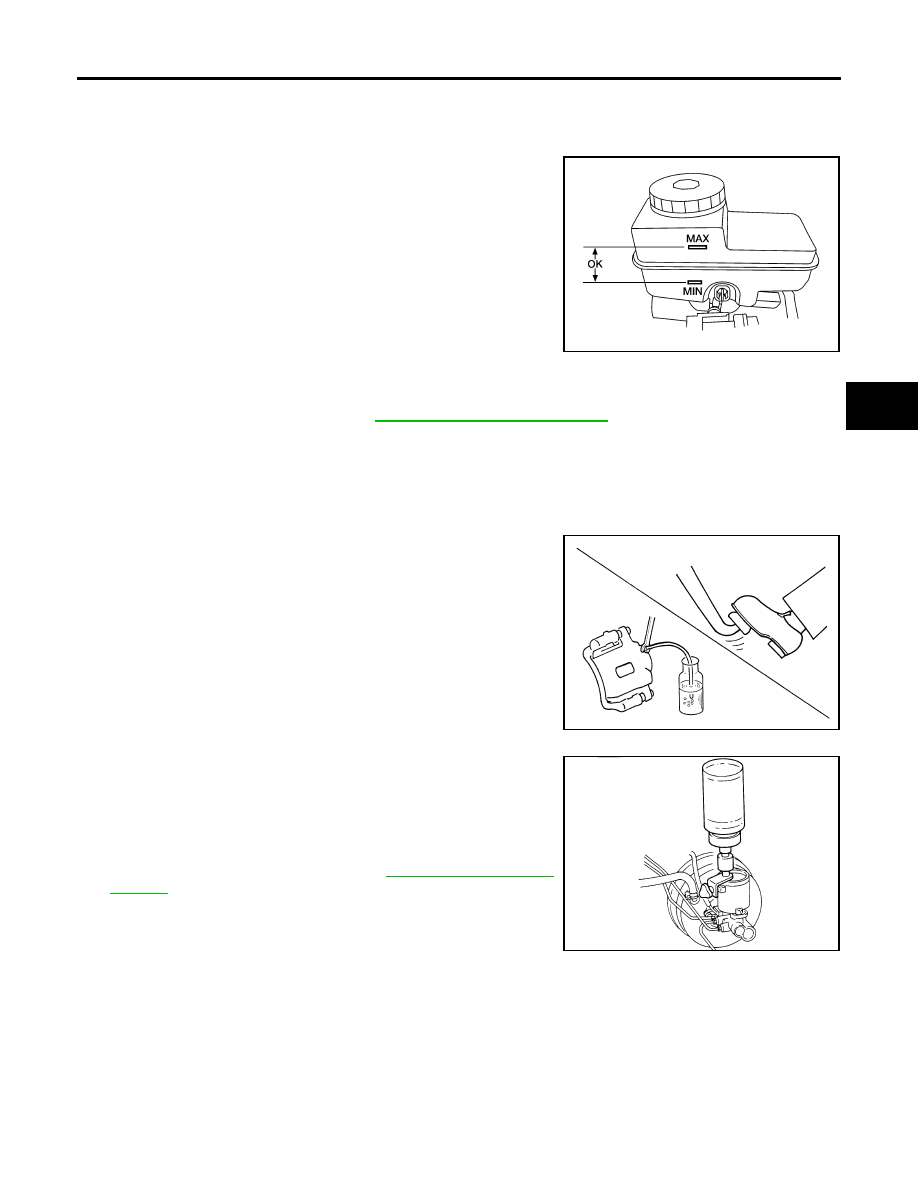

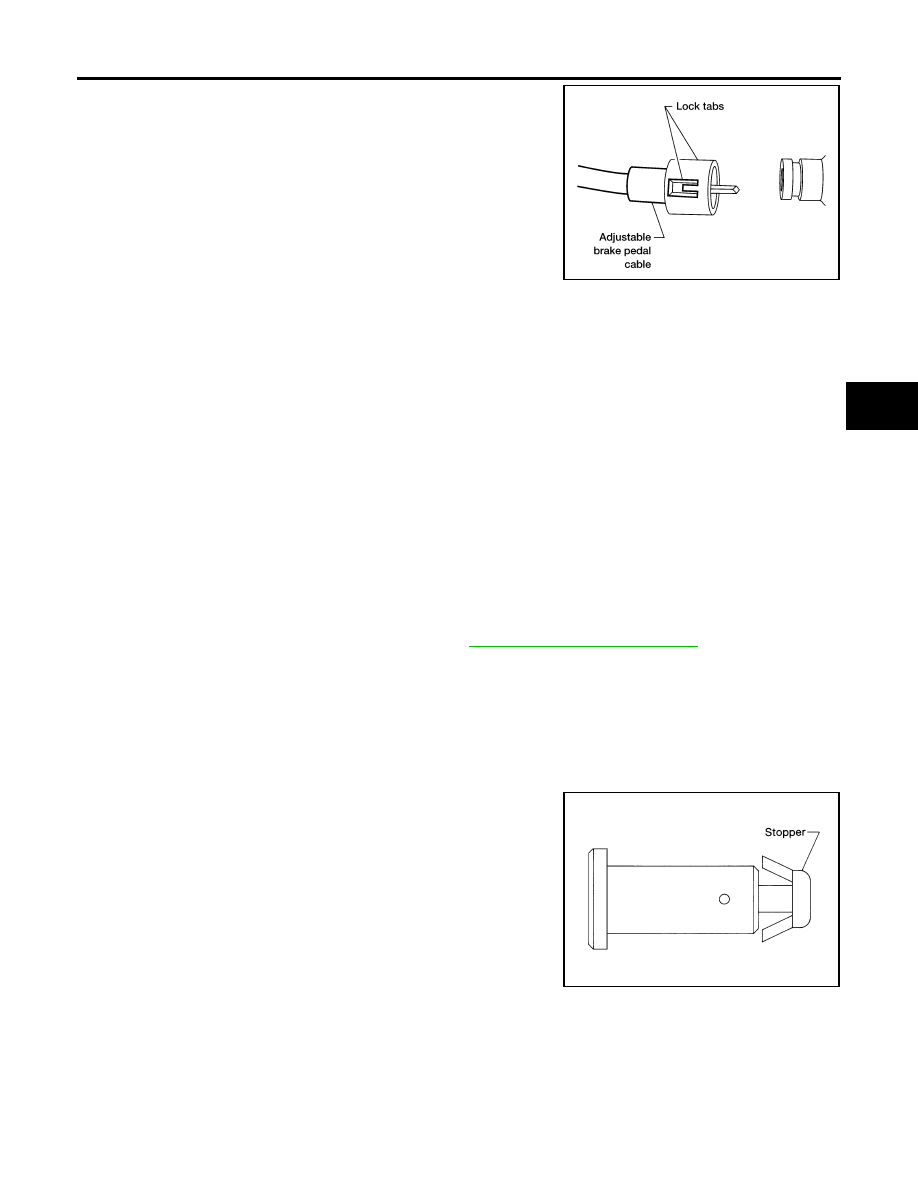

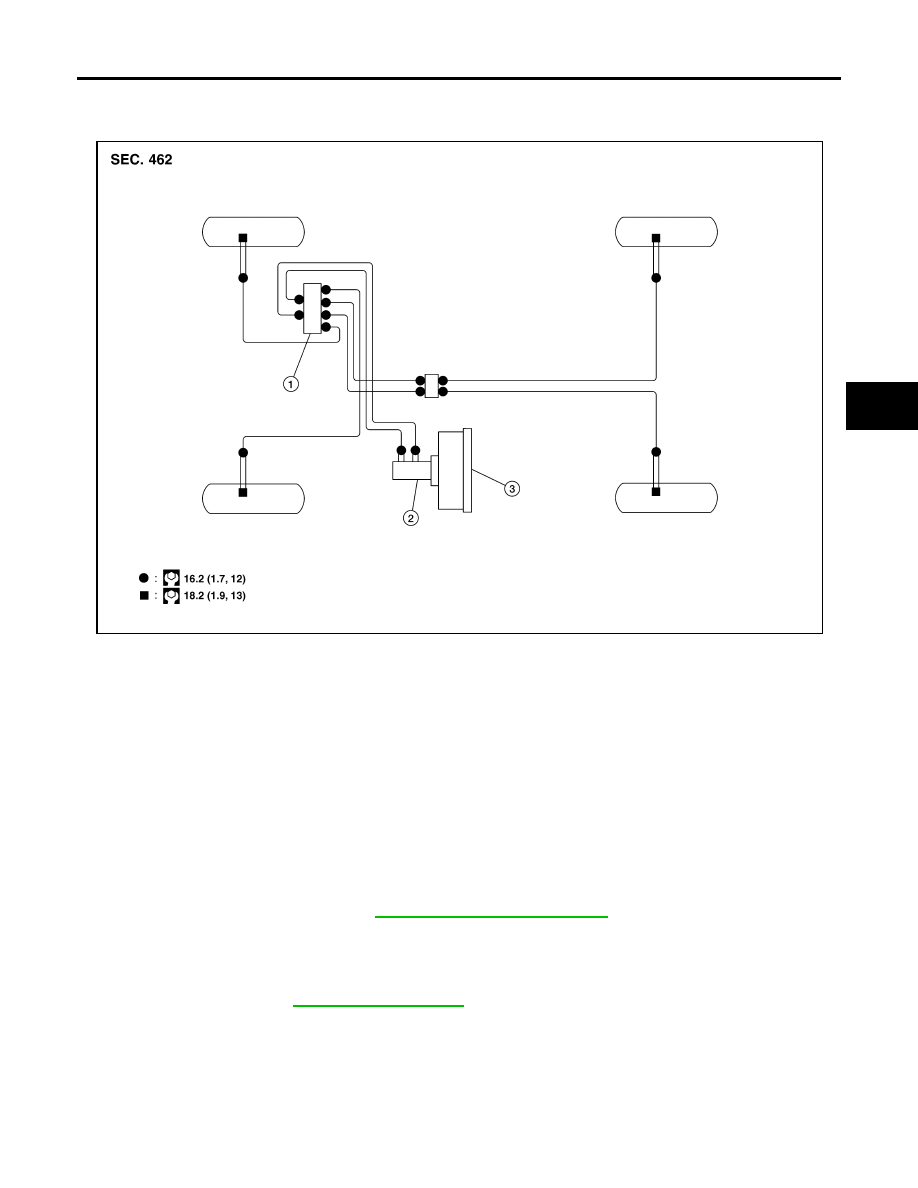

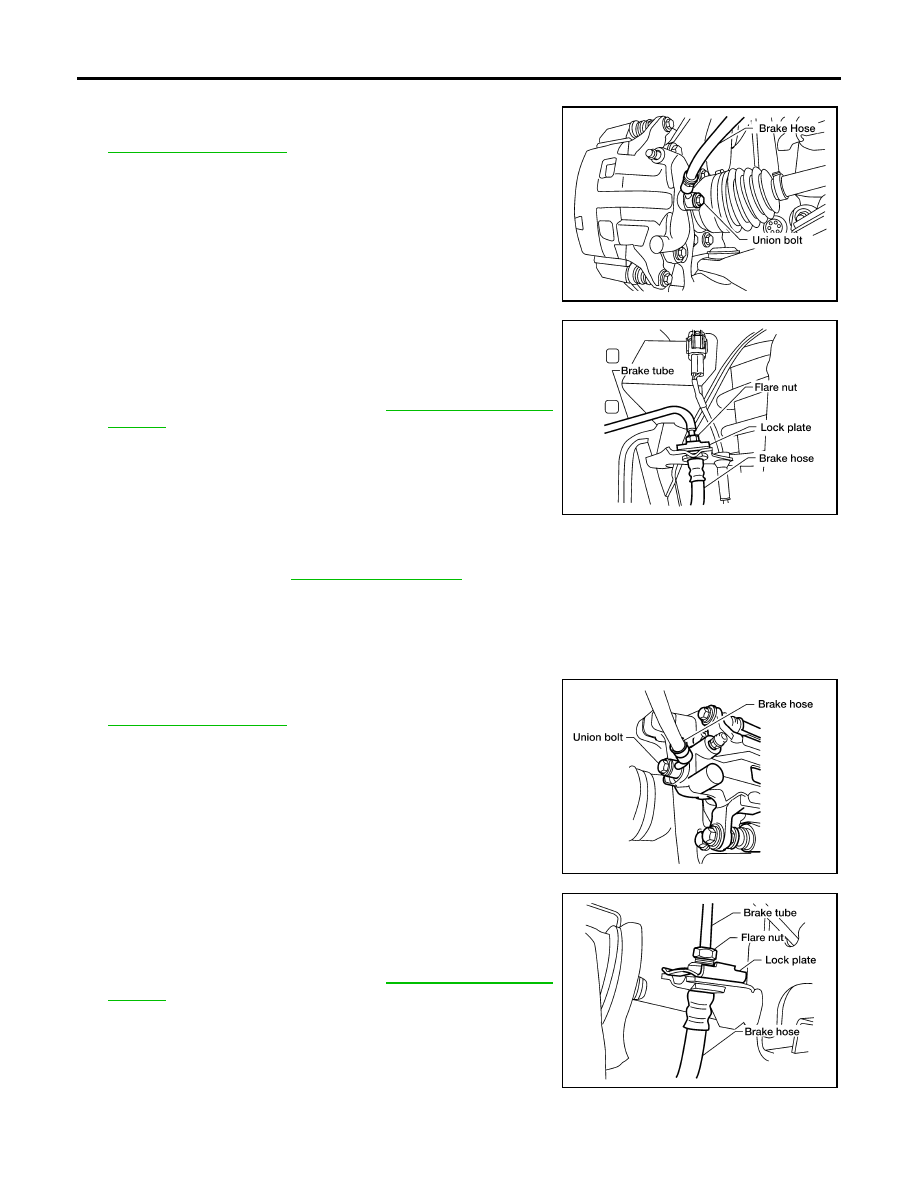

BRAKE PEDAL BR-9 C D E G H I J K L M A B BR 2007 Pathfinder 3. Disconnect the adjustable brake pedal cable from the adjustable ● Release the two lock tabs, then pull the adjustable brake 4. Remove snap pin and clevis pin from the clevis of the brake booster. 5. Remove mounting nuts and the pedal assembly. ● Temporarily install the nuts by hand to support the booster. CAUTION: ● Before removal and installation the accelerator and brake pedals must be in the frontmost posi- ● Do not disassemble the brake pedal adjusting mechanism. ● Avoid damage from dropping the brake pedal assembly during handling. ● Keep the brake pedal assembly away from water. REMOVAL FOR NON-ADJUSTABLE BRAKE PEDAL WARNING: Do not deform the brake tube. CAUTION: ● Do not disassemble the brake pedal assembly. ● Avoid damage from dropping the brake pedal assembly during handling. ● Keep the brake pedal assembly away from water. 1. Remove the lower driver instrument panel. Refer to IP-10, "Removal and Installation" 2. Remove the stop lamp switch and ASCD cancel switch from the pedal assembly. 3. Remove snap pin and clevis pin from the clevis of the brake booster. 4. Remove mounting nuts and the pedal assembly. ● Temporarily install the nuts by hand to support the booster. INSPECTION AFTER REMOVAL Check brake pedal for following items. ● Crack or deformation of clevis pin stopper ● Clevis pin deformation ● Crack of any welded portion ● Brake pedal bend INSTALLATION 1. Installation is in the reverse order of removal. ● Check the brake pedal for smooth operation. There should be no binding or sticking when applying or ● On models equipped with adjustable brake pedal, check the adjustable feature for smooth operation. LFIA0233E SBR997 |
