AUDIO

AV-57

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

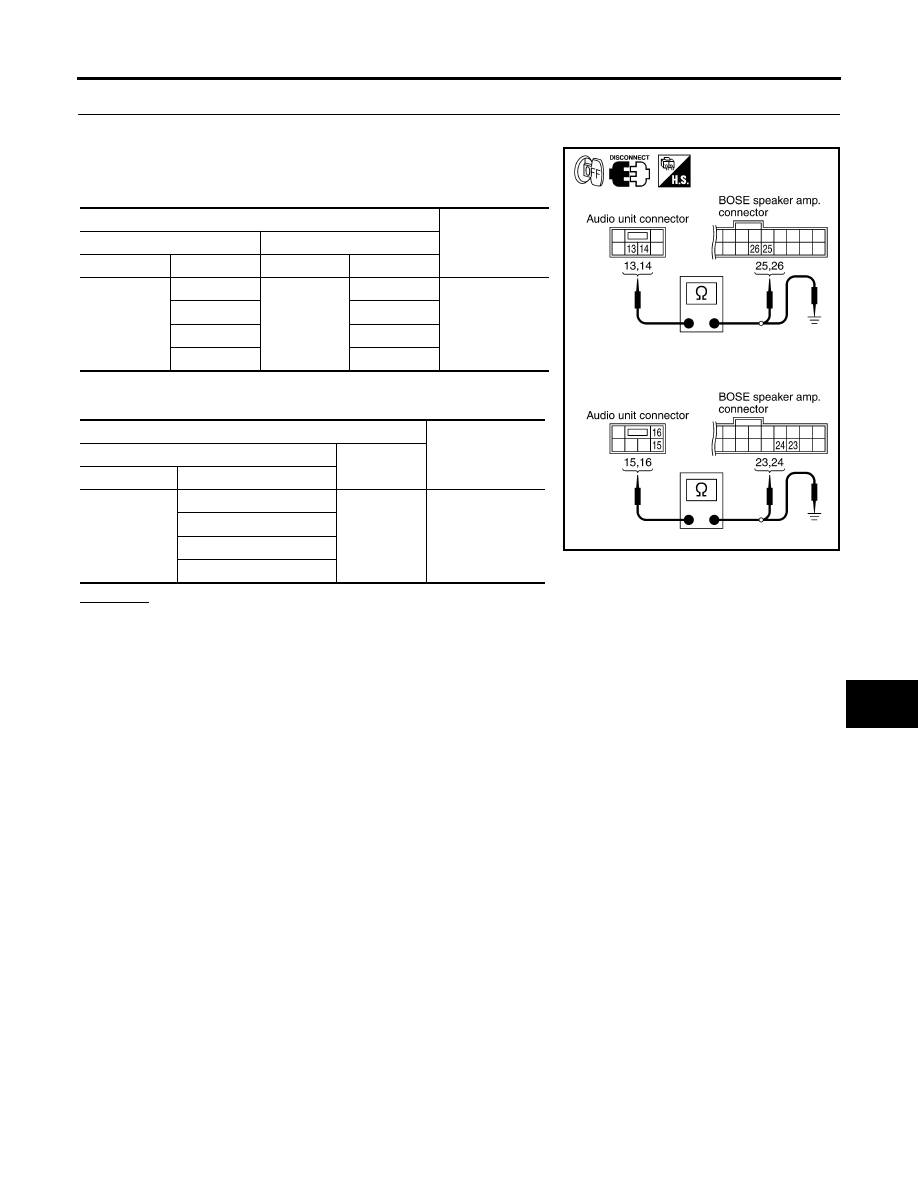

3.

HARNESS CHECK

1.

Disconnect audio unit connector M44 and BOSE speaker amp. connector B75.

2.

Check continuity between audio unit harness connector M44 ter-
minals and BOSE speaker amp. harness connector B75 termi-
nals.

3.

Check continuity between audio unit harness connector terminal
and ground.

OK or NG

OK

>> GO TO 4.

NG

>>

Check connector housings for disconnected or loose terminals.

Repair harness or connector.

Terminals

Continuity

Audio unit

BOSE speaker amp.

Connector

Terminal

Connector

Terminal

M44

13

B75

25

Yes

14

26

15

23

16

24

Terminals

Continuity

Audio unit

Connector

Terminal

M44

13

Ground

No

14

15

16

SKIA4315E

AV-58

AUDIO

2007 Pathfinder

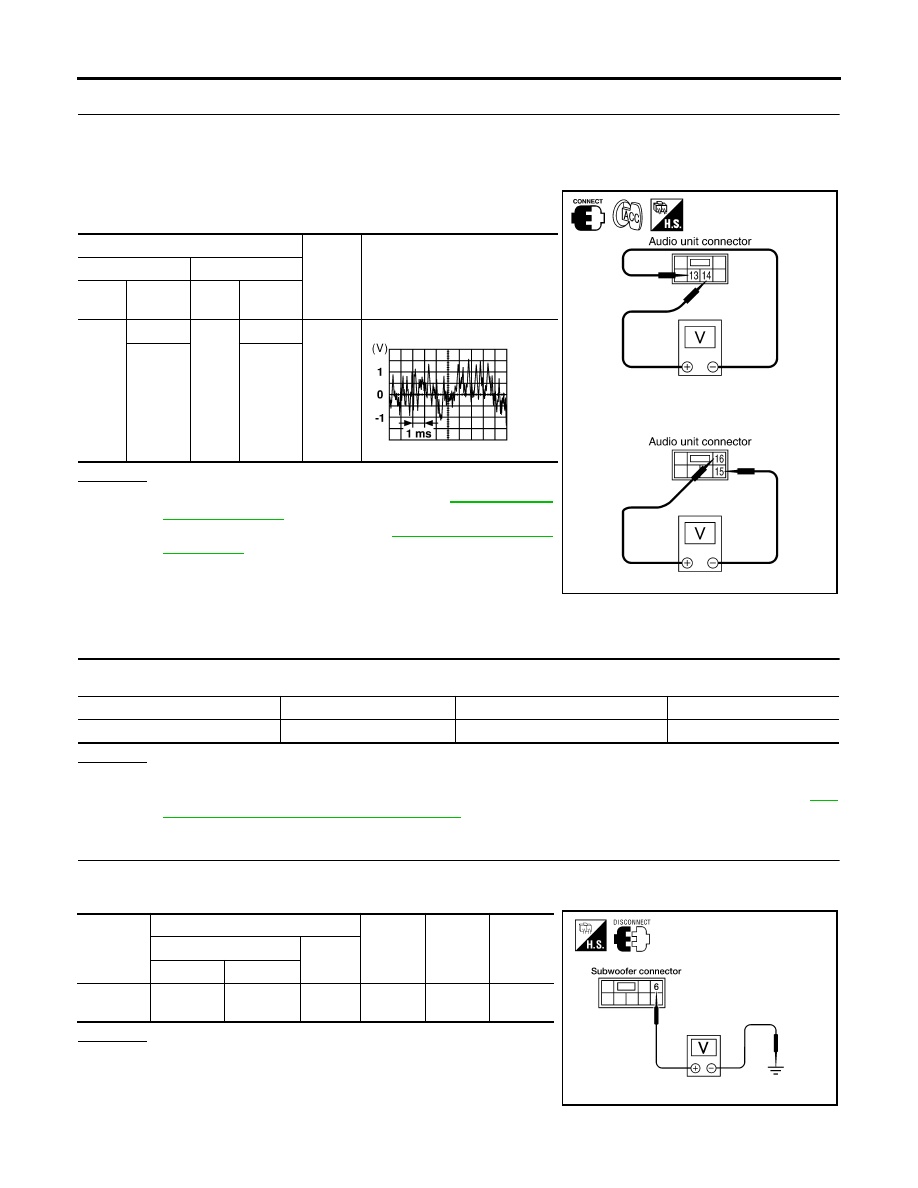

4.

REAR SPEAKER SIGNAL CHECK

1.

Connect audio unit connector M44 and BOSE speaker amp. connector B75.

2.

Turn ignition switch to ACC.

3.

Push “POWER” switch.

4.

Check the signal between audio unit harness connector M44
terminals with CONSULT-II or oscilloscope.

OK or NG

OK

>> Replace BOSE speaker amp. Refer to

AV-61, "BOSE

SPEAKER AMP."

 .

NG

>> Replace audio unit. Refer to

AV-61, "Removal and

Installation"

 .

Sound Is Not Heard From Subwoofer (BOSE System)

EKS00G5V

1.

CHECK FUSE

Check that the following fuse is not blown.

OK or NG

OK

>> GO TO 2.

NG

>> If fuse is blown, be sure to eliminate cause of blown fuse before installing new fuse. Refer to

PG-

4, "POWER SUPPLY ROUTING CIRCUIT"

 .

2.

POWER SUPPLY CIRCUIT CHECK

1.

Disconnect subwoofer connector.

2.

Check voltage between the subwoofer and ground.

OK or NG

OK

>> GO TO 3.

NG

>>

Check connector housings for disconnected or loose
terminals.

Repair harness or connector.

Terminals

Condi-

tion

Reference

signal

(+)

(-)

Con-

nector

Terminal

Con-

nector

Terminal

M44

14

M44

13

Receive
audio
signal

16

15

SKIA4316E

SKIA0177E

Unit

Terminal

Signal name

Fuse No.

Subwoofer

6

Battery power

17

Unit

Terminal No.

OFF

ACC

ON

(+)

(-)

Connector

Terminal

Sub-
woofer

B72

6

Ground

Battery
voltage

Battery
voltage

Battery
voltage

WKIA3236E

AUDIO

AV-59

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

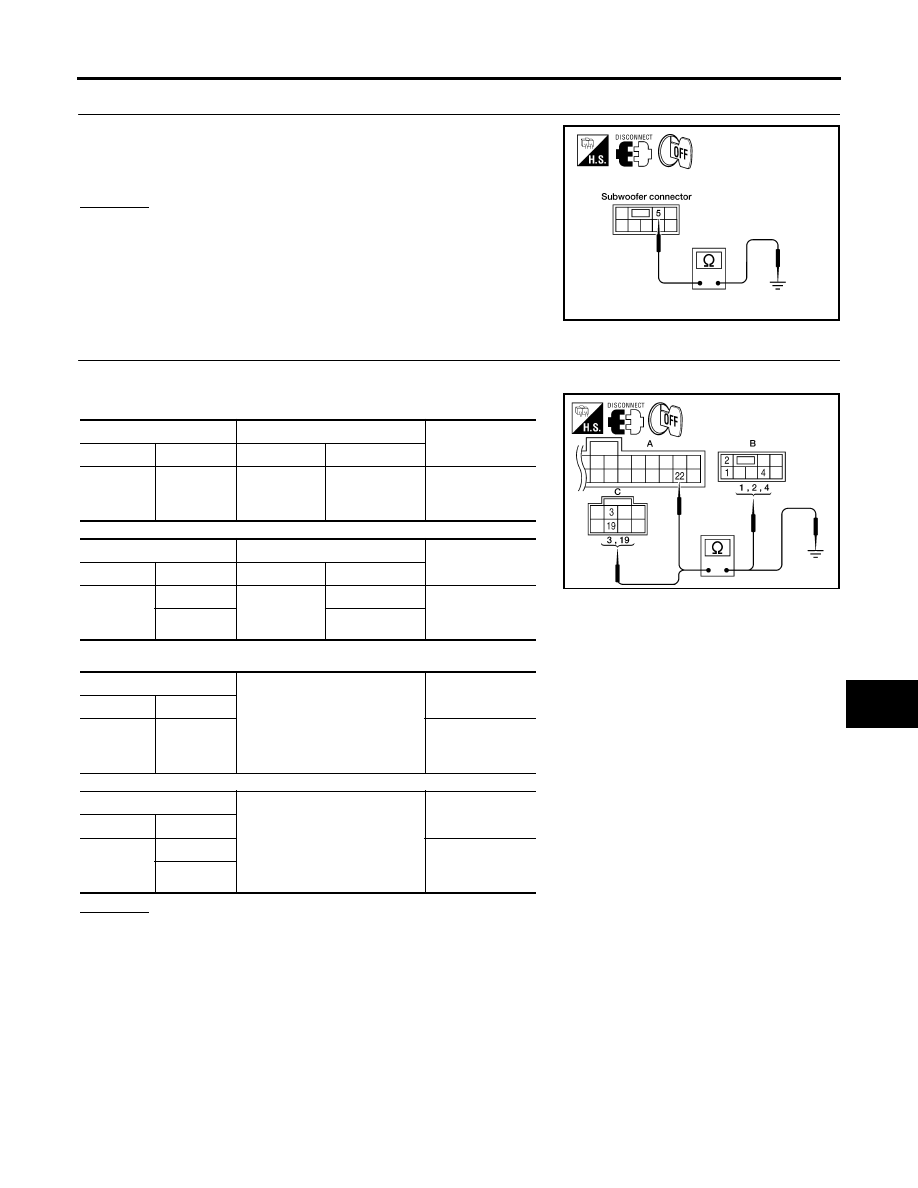

3.

GROUND CIRCUIT CHECK

Check continuity between subwoofer harness connector B72 termi-
nal 5 and ground.

OK or NG

OK

>> GO TO 4.

NG

>>

Check connector housings for disconnected or loose
terminals.

Repair harness or connector.

4.

HARNESS CHECK

1.

Disconnect BOSE speaker amp. connectors B74 and B75 and subwoofer connector B72.

2.

Check continuity between BOSE speaker amp. and subwoofer.

3.

Check continuity between BOSE speaker amp. and ground.

OK or NG

OK

>> GO TO 5.

NG

>>

Check connector housings for disconnected or loose terminals.

Repair harness or connector.

Continuity should exist.

WKIA3237E

A

B

Continuity

Connector

Terminal

Connector

Terminal

BOSE

speaker

amp.: B75

22

Subwoofer:

B72

4

Yes

C

B

Continuity

Connector

Terminal

Connector

Terminal

BOSE

speaker

amp.: B74

3

Subwoofer:

B72

1

Yes

19

2

A

Ground

Continuity

Connector

Terminal

BOSE

speaker

amp.: B75

22

No

C

Ground

Continuity

Connector

Terminal

BOSE

speaker

amp.: B74

3

No

19

WKIA4125E

AV-60

AUDIO

2007 Pathfinder

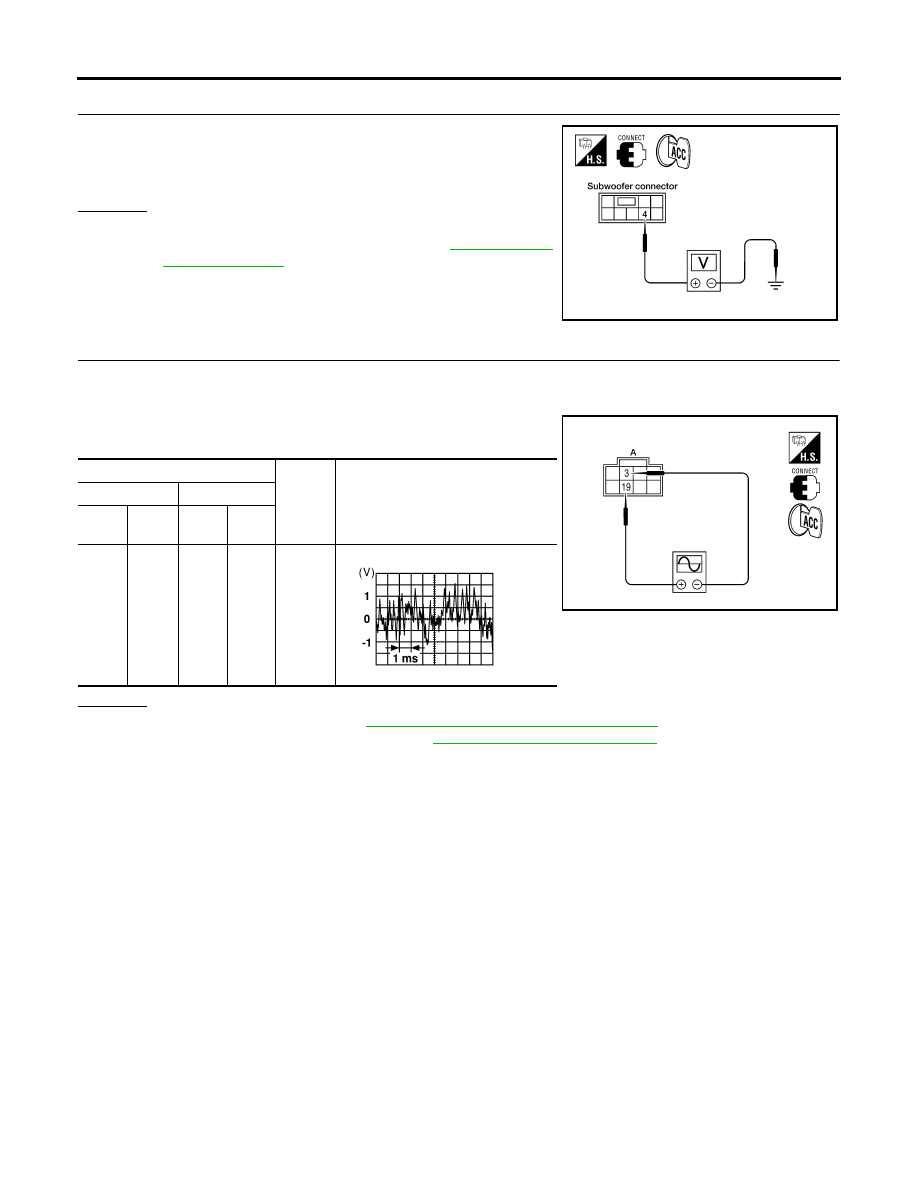

5.

CHECK SUBWOOFER AMP. ON SIGNAL

1.

Operate system and check voltage between subwoofer harness
connector B72 terminal 4 and ground.

OK or NG

OK

>> GO TO 6.

NG

>> Replace BOSE speaker amp. Refer to

AV-61, "BOSE

SPEAKER AMP."

 .

6.

SUBWOOFER SIGNAL CHECK

1.

Connect BOSE speaker amp. connector and subwoofer connector.

2.

Turn ignition switch to ACC.

3.

Check the signal between BOSE speaker amp. terminals with
CONSULT-II or oscilloscope.

OK or NG

OK

>> Replace subwoofer. Refer to

AV-64, "SUBWOOFER (BOSE SYSTEM)"

 .

NG

>> Replace BOSE speaker amp. Refer to

AV-61, "BOSE SPEAKER AMP."

 .

Voltage

: More than approx. 6.5V

WKIA3238E

A

Condi-

tion

Reference

signal

(+)

(-)

Con-

nector

Termi-

nal

Con-

nector

Termi-

nal

BOSE
speak

er

amp.:

B74

19

BOSE

speak

er

amp.:

B74

3

Receive
audio
signal



WKIA4126E

SKIA0177E

AUDIO

AV-61

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

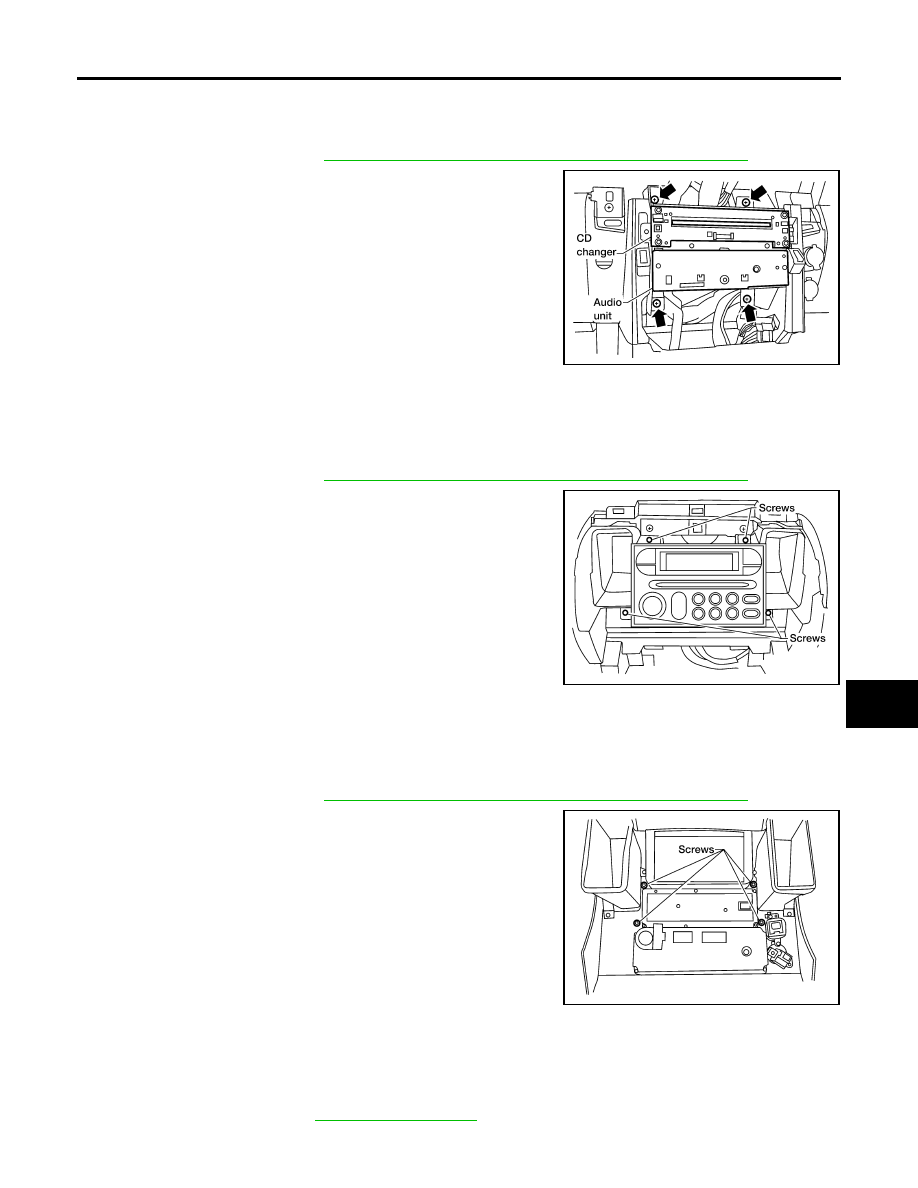

Removal and Installation

EKS00G5W

AUDIO UNIT - WITH NAVI
Removal

1.

Remove cluster lid C. Refer to

IP-11, "CLUSTER LID C -WITHOUT NAVIGATION SYSTEM"

 .

2.

Remove the audio unit screws, using power tool.

3.

Remove audio unit and disconnect audio unit connectors.

Installation

Installation is in the reverse order of removal.

AUDIO UNIT - WITHOUT NAVI
Removal

1.

Remove cluster lid C. Refer to

IP-11, "CLUSTER LID C -WITHOUT NAVIGATION SYSTEM"

 .

2.

Remove the audio unit screws, using power tool.

3.

Remove audio unit and disconnect audio unit connectors.

Installation

Installation is in the reverse order of removal.

AV SWITCH
Removal

1.

Remove cluster lid C. Refer to

IP-11, "CLUSTER LID C -WITHOUT NAVIGATION SYSTEM"

 .

2.

Remove the AV switch screws.

3.

Remove AV switch.

Installation

Installation is in the reverse order of removal.

BOSE SPEAKER AMP.
Removal

1.

Remove driver seat. Refer to

SE-84, "FRONT SEAT"

 .

LKIA0583E

LKIA0582E

LKIA0584E

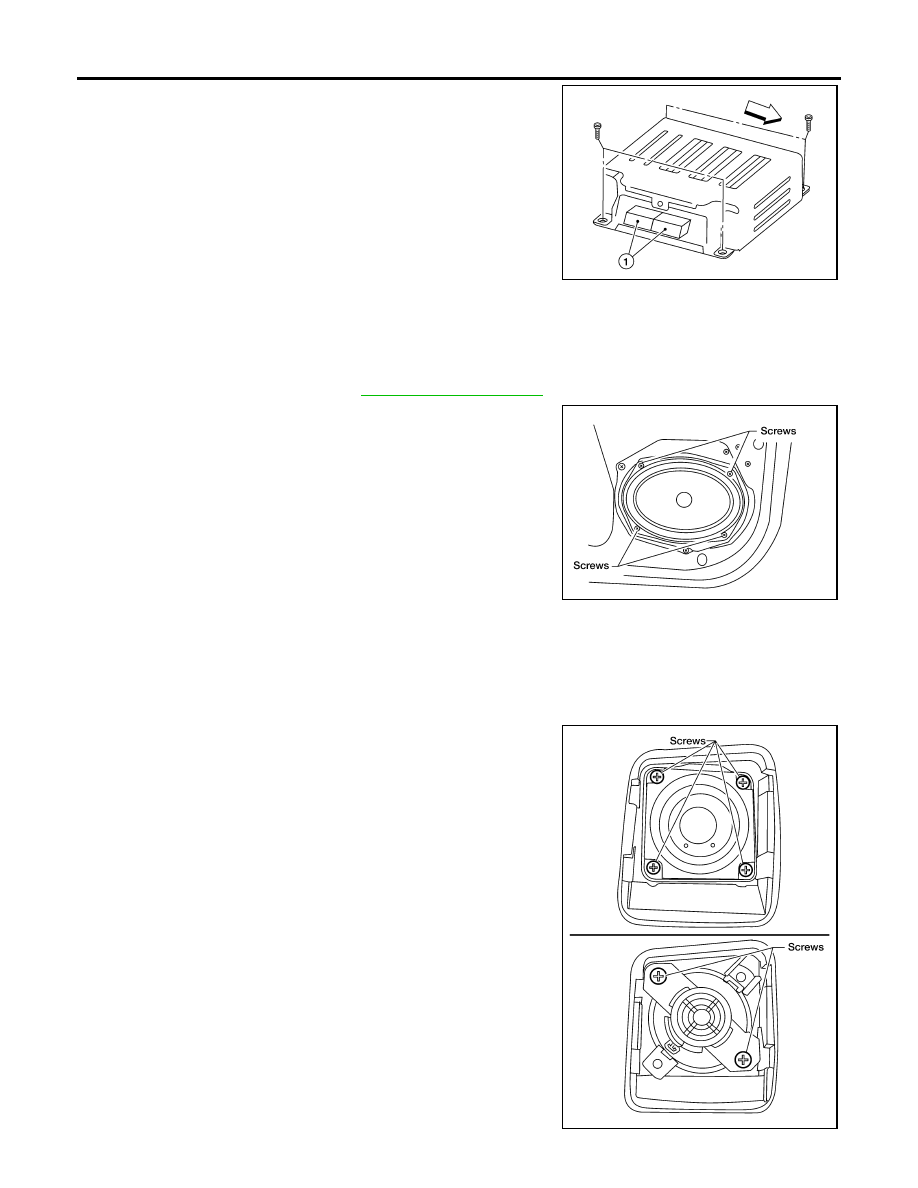

AV-62

AUDIO

2007 Pathfinder

2.

Remove kick shield screws, using power tool.

Þ

: Vehicle front

3.

Disconnect Bose speaker amp. connectors (1) and remove
Bose speaker amp.

Installation

Installation is in the reverse order of removal.

FRONT DOOR SPEAKER
Removal

1.

Remove front door finisher. Refer to

EI-26, "DOOR FINISHER"

 .

2.

Remove the front door speaker screws.

3.

Remove front door speaker and disconnect front door speaker
connector.

Installation

Installation is in the reverse order of removal.

FRONT TWEETER
Removal

1.

Remove the front tweeter grille.

2.

Remove the front tweeter screws.

NOTE:
The standard front tweeter has four screws, the optional Bose
front tweeter has two screws as shown.

3.

Remove front tweeter and disconnect front tweeter connector.

LKIA0661E

WKIA1498E

LKIA0585E

AUDIO

AV-63

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

Installation

Installation is in the reverse order of removal.

REAR DOOR SPEAKER
Removal

1.

Remove the rear door finisher. Refer to

EI-27, "REAR DOOR"

 .

2.

Remove the rear door speaker screws.

3.

Remove rear door speaker and disconnect rear door connector.

Installation

Installation is in the reverse order of removal.

REAR DOOR TWEETER
Removal

1.

Remove rear door finisher. Refer to

EI-27, "REAR DOOR"

 .

2.

Remove the rear door tweeter screws.

3.

Remove rear door tweeter.

Installation

Installation is in the reverse order of removal.

SATELLITE RADIO ANTENNA
Removal

1.

Lower headlining. Refer to

EI-31, "HEADLINING"

 .

2.

Disconnect satellite radio antenna connector.

3.

Remove satellite radio antenna nut.

4.

Remove satellite radio antenna.

Installation

Installation is in the reverse order of removal.

WKIA1492E

LKIA0586E

LKIA0679E

AV-64

AUDIO

2007 Pathfinder

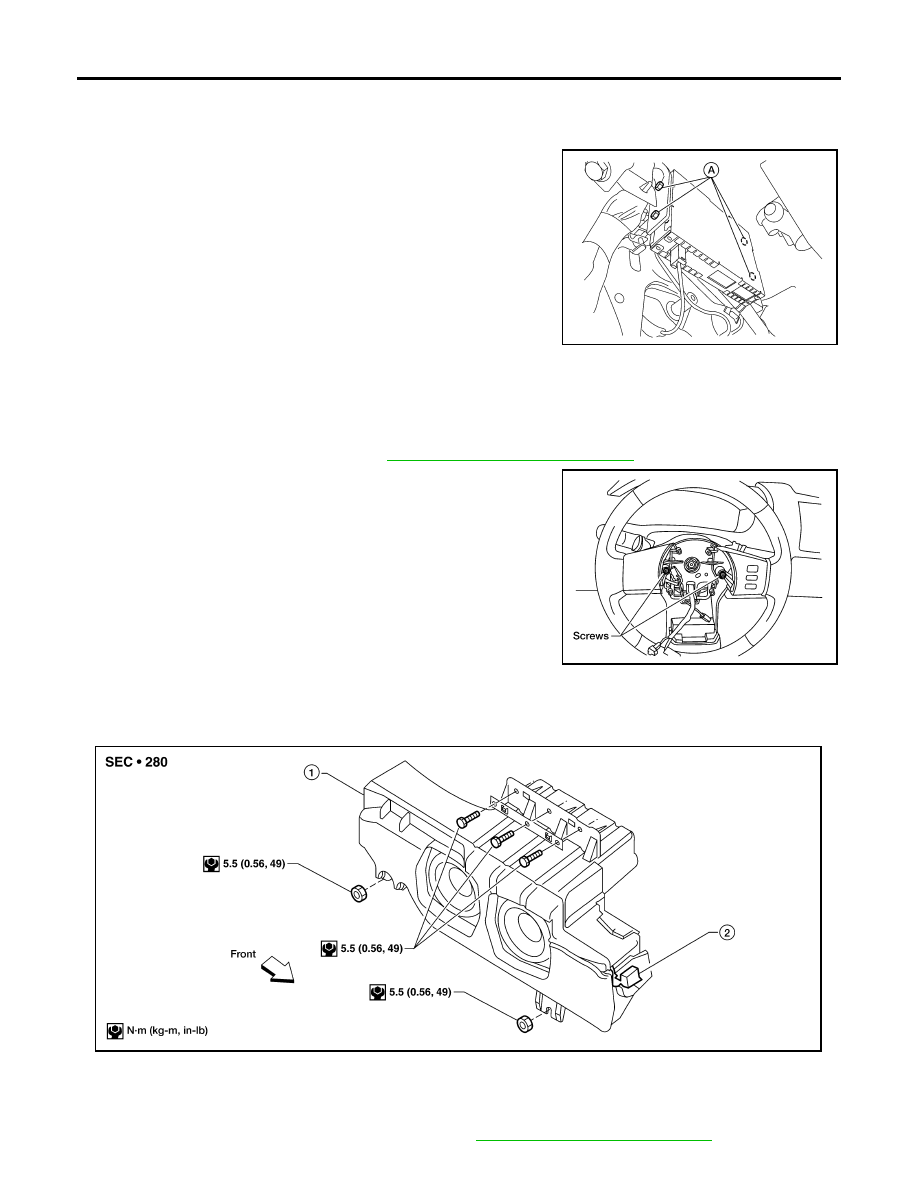

SATELLITE RADIO TUNER

1.

Disconnect battery negative terminal.

2.

Disconnect satellite radio tuner connectors.

3.

Remove satellite radio tuner screws (A), and remove satellite
radio tuner from above the parking brake pedal.

Installation

Installation is in the reverse order of removal.

STEERING WHEEL AUDIO CONTROL SWITCHES
Removal

1.

Remove driver air bag module. Refer to

SRS-38, "Removal and Installation"

 .

2.

Remove steering wheel audio control switch assembly screws.

3.

Disconnect steering wheel audio control switches connector and
remove steering wheel audio control switches.

Installation

Installation is in the reverse order of removal.

SUBWOOFER (BOSE SYSTEM)

Removal

1.

Disconnect battery negative terminal.

2.

Remove the luggage side lower finisher LH. Refer to

EI-33, "LUGGAGE FLOOR TRIM"

 .

LKIA0684E

LKIA0589E

1.

Subwoofer (Bose system)

2.

Subwoofer (Bose system) connector

WKIA3712E
