AV Switch Self-Diagnosis Function

EKS00G5J

It can check ON/OFF operation of each switch in the AV switch (with NAVI) or audio unit (without NAVI) and
diagnose the input signals from the steering switch.

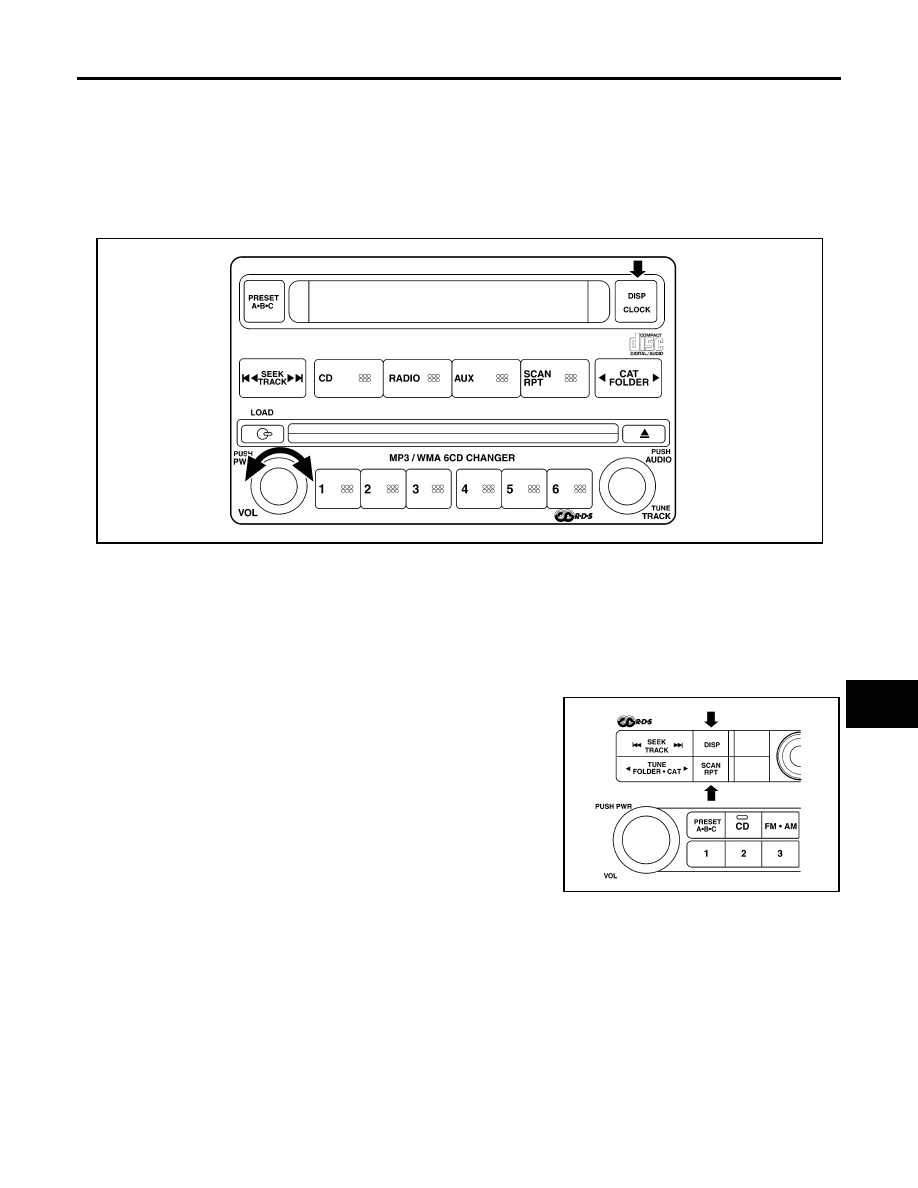

STARTING THE SELF-DIAGNOSIS MODE (MID LEVEL SYSTEM)

1.

Turn ignition switch from OFF to ACC.

2.

Press and hold the “DISP/CLOCK” switch and turn the volume control dial clockwise or counterclockwise
for 30 clicks or more.

Then the self-diagnosis operates. A single beep indicates self-diagnosis mode is active.

3.

Initially, all display segments will be illuminated.

4.

Press each switch. When each switch is pressed, its name and communication code will be displayed.

NOTE:
CD player LOAD and EJECT buttons are not included in this test and will not change the display when
pressed.

STARTING THE SELF-DIAGNOSIS MODE (BOSE SYSTEM WITH NAVI)

1.

Turn ignition switch from OFF to ACC.

2.

Within 10 seconds press and hold the switches “SCAN/RPT”
and "DISP" simultaneously for 3 seconds.
Then the self-diagnosis operates. A single beep indicates self-
diagnosis mode is active.

3.

Press each switch and listen for beep.

NOTE:
CD player LOAD and EJECT buttons are not included in this test
and will not beep when pressed.

EXITING THE SELF-DIAGNOSIS MODE

Turn ignition switch OFF. Then the self-diagnosis ends.

DIAGNOSIS FUNCTION

It can check for continuity of the switches by sounding the beep when each AV switch and steering switch
is pressed.

It can check for continuity of harness between AV switch and steering switch.

WKIA5819E

WKIA5820E

AV-34

AUDIO

2007 Pathfinder

Trouble Diagnosis

EKS00G5K

The majority of the audio troubles are the result of outside causes (bad CD, electromagnetic interference,
etc.). Check the inspection items below to diagnose the malfunction.

MALFUNCTION WITH RADIO AND CD (BASE AND MID LEVEL SYSTEM)

MALFUNCTION WITH RADIO AND CD (BOSE SYSTEM)

Before proceeding on models with NAVI, confirm that other AV switch functions (except audio functions) oper-
ate. If not, refer to

AV-145, "Unable to Operate All of AV Switches (Unable to Start Self-Diagnosis)"

 .

Symptom

Possible cause

Inoperative

Audio unit power circuit check. Refer to

AV-37, "Power Supply Circuit

Inspection"

 .

If above check is OK, replace audio unit.

Steering switch does not operate (with mid level
audio system)

Steering switch check. Refer to

AV-45, "Steering Switch Check (Without

NAVI)"

 .

If above check is OK, replace audio unit.

All speakers do not sound

Audio unit

One or several speakers do not sound

Front door speaker check. Refer to

AV-47, "Sound Is Not Heard From Front

Door Speaker or Front Tweeter (Base and Mid Level System)"

 .

Rear door speaker check. Refer to

AV-49, "Sound Is Not Heard From Rear

Door Speaker (Base and Mid Level System)"

 .

Poor sound

Audio unit

Speaker

Noisy

Audio unit

Electrical equipment (generator, bonding wire, etc.)

Open in shield circuit

Symptom

Possible cause

Inoperative

Audio unit power circuit check. Refer to

AV-37, "Power Supply Circuit

Inspection"

 .

Audio communication line check (with Navigation System). Refer to

AV-126,

"Audio Communication Line Check (Between Display Control Unit and
Audio Unit)"

 .

AV switch check. Refer to

AV-46, "AV Switch Check (With NAVI)"

 .

If above check is OK, replace audio unit.

Steering switch does not operate

Steering switch check. Refer to

AV-43, "Steering Switch Check (With NAVI)"



.

AV switch check. Refer to

AV-46, "AV Switch Check (With NAVI)"

 .

Audio communication line check (with Navigation System). Refer to

AV-126,

"Audio Communication Line Check (Between Display Control Unit and
Audio Unit)"

 .

If above check is OK, replace audio unit.

Audio information is not displayed on screen (with
NAVI)

Display unit check. Refer to

AV-104, "Self-Diagnosis Mode (DCU)"

 .

All speakers do not sound

Audio unit

BOSE speaker amp. power supply and ground circuit check. Refer to

AV-37,

"Power Supply Circuit Inspection"

 .

BOSE speaker amp. ON signal

BOSE speaker amp.

One or several speakers do not sound

Front door speaker check. Refer to

AV-51, "Sound Is Not Heard From Front

Door Speaker or Front Tweeter (BOSE System)"

 .

Rear door speaker check. Refer to

AV-55, "Sound Is Not Heard From Rear

Door Speaker or Rear Door Tweeter (BOSE System)"

 .

Subwoofer check. Refer to

AV-58, "Sound Is Not Heard From Subwoofer

(BOSE System)"

 .

AUDIO

AV-35

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

FOR RADIO ONLY

NOTE:
The following noise results from variations in field strength, such as fading noise and multi-path noise, or
external noise from trains and other sources. It is not a malfunction.

Fading noise: This noise occurs because of variations in the field strength in a narrow range due to moun-
tains or buildings blocking the signal.

Multi-path noise: This noise results from the waves sent directly from the broadcast station arriving at the
antenna at a different time from the waves which reflect off mountains or buildings.

FOR CD ONLY

Poor sound

Audio unit

BOSE speaker amp.

Speaker

Noisy

Audio unit

BOSE speaker amp.

Electrical equipment (generator, bonding wire, etc.)

Open in shield circuit

Symptom

Possible cause

Symptom

Possible cause

No sound

Audio unit

Antenna feeder, wiring or connections

Antenna amplifier, power supply, wiring or connections

Noisy

Audio unit

Audio unit case ground

Antenna feeder, wiring or connections

Antenna amplifier, power supply, wiring or connections

Noise prevention parts

Electrical equipment

Wire harness of each piece of electrical equipment

Open in shield circuit

All radio stations stored in memory are deleted

Audio unit power circuit. Refer to

AV-37, "Power Supply Circuit

Inspection"

 .

Audio unit

Symptom

Possible cause

CD cannot be inserted.

CD

Audio unit

CD cannot be ejected.

The CD cannot be played.

The sound skips, stops suddenly, or is distorted.

AV-36

AUDIO

2007 Pathfinder

FOR SATELLITE RADIO TUNER (FACTORY INSTALLED) ONLY

NOTE:
In vehicles equipped with NAVI, when pressing the SAT button, the display unit will display `NO SAT' when the
following conditions exist:

Loss of power to the satellite radio tuner

Open or short in the REQ1, TXD, or RXD circuits.

If the satellite antenna is disconnected or inoperative, the display unit will display ANTENNA.

Noise Inspection

EKS00G5L

The vehicle itself can be a source of noise if noise prevention parts or electrical equipment is malfunctioning.
Check if noise is caused and/or changed by engine speed, ignition switch turned to each position, and opera-
tion of each piece of electrical equipment, and determine the cause.

NOTE:
The source of the noise can be found easily by listening to the noise while removing the fuses of electrical
components, one by one.

TYPE OF NOISE AND POSSIBLE CAUSE

Symptom

Possible cause

Inoperative

Satellite radio tuner (factory installed) power and ground circuit inspection.
Refer to

AV-39, "Satellite Radio Tuner (Factory Installed) Power and Ground

Supply Circuit Inspection"

 .

Satellite radio tuner (factory installed) communication circuit inspection.
Refer to

AV-40, "Satellite Radio Tuner (Factory Installed) Communication

Circuit Inspection"

 .

If above check is OK, replace satellite radio tuner. Refer to

AV-64, "SATEL-

LITE RADIO TUNER"

 .

Right or left channel does not sound

Satellite radio tuner (factory installed) right channel audio signal circuit
inspection. Refer to

AV-43, "Satellite Radio Tuner (Factory Installed) Right

Channel Audio Signal Circuit Inspection"

 .

Satellite radio tuner (factory installed) left channel audio signal circuit
inspection. Refer to

AV-42, "Satellite Radio Tuner (Factory Installed) Left

Channel Audio Signal Circuit Inspection"

 .

If above check is OK, replace satellite radio tuner. Refer to

AV-64, "SATEL-

LITE RADIO TUNER"

 .

Poor reception

Location of vehicle. Make certain vehicle is in an open area.

Satellite radio antenna or antenna feeder. Refer to

AV-68, "Location of

Antenna"

 .

Noisy

Satellite radio tuner (factory installed) ground.

Satellite radio tuner (factory installed) harness shield wires.

Electrical equipment (generator, bonding wire, etc.). Refer to

AV-36, "Noise

Inspection"

 .

Open in shield circuit

Occurrence condition

Possible cause

Occurs only when engine is ON.

A continuous growling noise occurs. The speed of
the noise varies with changes in the engine speed.

Ignition components

A whistling noise occurs while the engine speed is
high. A booming noise occurs while the engine is
running and the lighting switch is ON.

Generator

The occurrence of the noise is linked with the operation of the fuel pump.

Fuel pump condenser

Noise only occurs when various
electrical components are oper-
ating.

A cracking or snapping sound occurs with the
operation of various switches.

Relay malfunction, audio unit malfunction

The noise occurs when various motors are operat-
ing.

Motor case ground

Motor

AUDIO

AV-37

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

Power Supply Circuit Inspection

EKS00G5M

1.

CHECK FUSES

Check that the following fuses are not blown.

OK or NG

OK

>> GO TO 2.

NG

>> If fuse is blown, be sure to eliminate cause of blown fuse before installing new fuse. Refer to

PG-

4, "POWER SUPPLY ROUTING CIRCUIT"

 .

The noise occurs constantly, not just under certain conditions.

Rear defogger coil malfunction

Open circuit in printed heater

Poor ground of antenna amplifier or
antenna feeder line

A cracking or snapping sound occurs while the vehicle is being driven, especially
when it is vibrating excessively.

Ground wire of body parts

Ground due to improper part installation

Wiring connections or a short circuit

Occurrence condition

Possible cause

Unit

Terminals

Signal name

Fuse No.

Audio unit

6

Battery power

29

10

Ignition switch ACC or ON

4

AV switch

1

Battery power

29

2

Ignition switch ACC or ON

4

BOSE speaker amp. (with BOSE)

1

Battery power

29

Display control unit

12

Ignition switch ON or START

12

Subwoofer (BOSE system)

6

Battery power

17

AV-38

AUDIO

2007 Pathfinder

2.

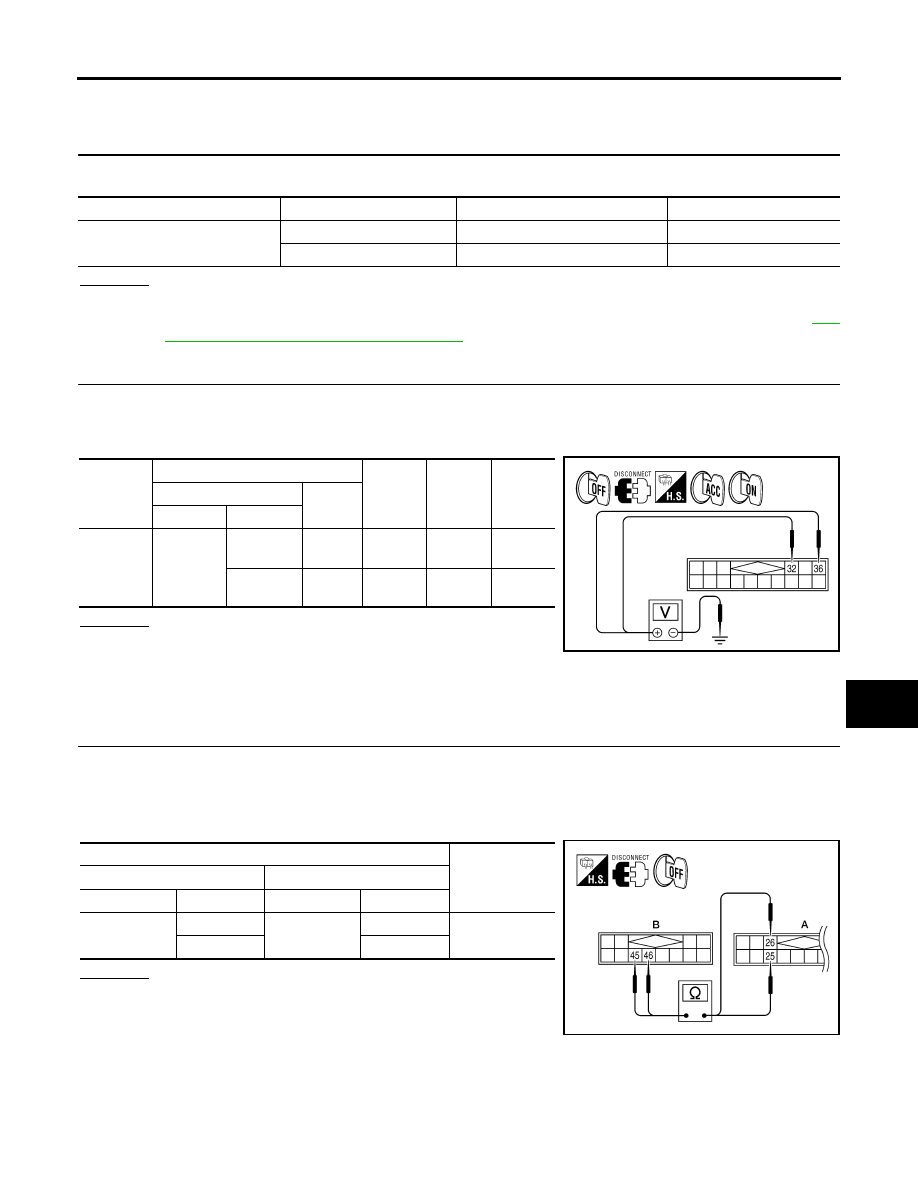

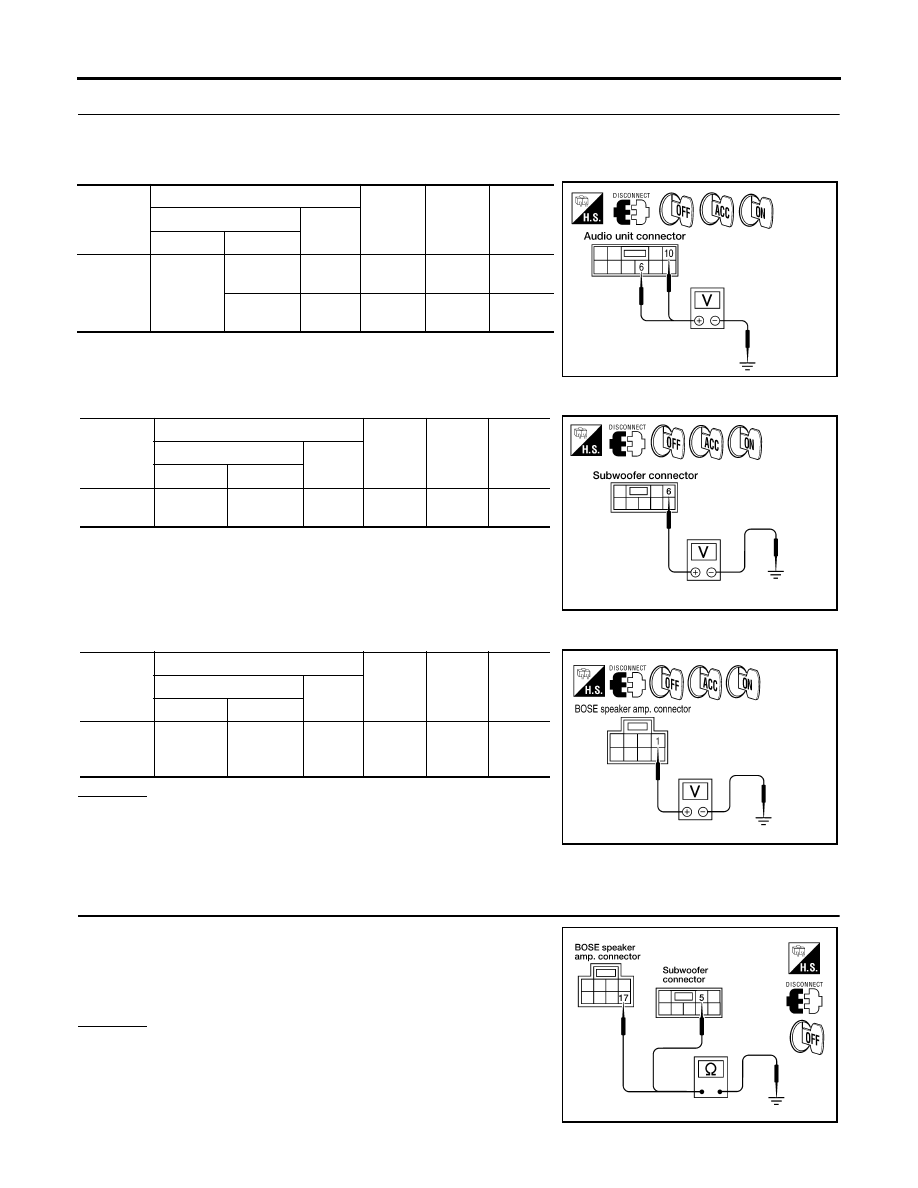

POWER SUPPLY CIRCUIT CHECK

1.

Disconnect audio unit connector M43, subwoofer connector B72 (with BOSE) and BOSE speaker amp.
connector B74 (with BOSE).

2.

Check voltage between the audio unit and ground.

3.

Check voltage between subwoofer (BOSE system) and ground.

4.

Check voltage between BOSE speaker amp. (with BOSE) and ground.

OK or NG

OK

>> GO TO 3.

NG

>>

Check connector housings for disconnected or loose
terminals.

Repair harness or connector.

3.

GROUND CIRCUIT CHECK

Check continuity between subwoofer (BOSE system) harness con-
nector B72 terminal 5 and BOSE speaker amp. (with BOSE) harness
connector B74 terminal 17 and ground.

OK or NG

OK

>> Inspection End.

NG

>>

Check connector housings for disconnected or loose
terminals.

Repair harness or connector.

Unit

Terminal No.

OFF

ACC

ON

(+)

(-)

Connector

Terminal

Audio unit

M43

6

Ground

Battery
voltage

Battery
voltage

Battery
voltage

10

Ground

0V

Battery
voltage

Battery
voltage

WKIA3228E

Unit

Terminal No.

OFF

ACC

ON

(+)

(-)

Connector

Terminal

Sub-
woofer

B72

6

Ground

Battery
voltage

Battery
voltage

Battery
voltage

WKIA3229E

Unit

Terminal No.

OFF

ACC

ON

(+)

(-)

Connector

Terminal

BOSE
speaker
amp.

B74

1

Ground

Battery
voltage

Battery
voltage

Battery
voltage

WKIA3230E

Continuity should exist.

WKIA3231E

AUDIO

AV-39

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

Satellite Radio Tuner (Factory Installed) Power and Ground Supply Circuit
Inspection

EKS00HK9

1.

CHECK FUSES

Check that the following fuses are not blown.

OK or NG

OK

>> GO TO 2.

NG

>> If fuse is blown, be sure to eliminate cause of blown fuse before installing new fuse. Refer to

PG-

4, "POWER SUPPLY ROUTING CIRCUIT"

 .

2.

POWER SUPPLY CIRCUIT CHECK

1.

Turn ignition switch OFF.

2.

Disconnect satellite radio tuner (factory installed) M41 connector.

3.

Check voltage between the satellite radio tuner (factory installed) and ground.

OK or NG

OK

>> GO TO 3.

NG

>>

Check connector housings for disconnected or loose
terminals.

Repair harness or connector.

3.

GROUND CIRCUIT CHECK

1.

Turn ignition switch OFF.

2.

Inspect satellite radio tuner (factory installed) case ground.

3.

Disconnect satellite radio tuner (factory installed) connector M41 (A) and audio unit connector M42 (B).

4.

Check continuity between satellite radio tuner (factory installed) and audio unit.

OK or NG

OK

>> Inspection End.

NG

>>

Check connector housings for disconnected or loose
terminals.

Repair harness, connector or satellite radio tuner (fac-
tory installed) case ground.

Unit

Terminals

Signal name

Fuse No.

Satellite radio tuner (factory
installed)

32

Battery power

17

36

Ignition switch ACC or ON

4

Unit

Terminal No.

OFF

ACC

ON

(+)

(-)

Connector

Terminal

Satellite
radio tuner
(factory
installed)

M41

32

Ground

Battery
voltage

Battery
voltage

Battery
voltage

36

Ground

0V

Battery
voltage

Battery
voltage

WKIA4539E

Terminals

Continuity

Satellite radio tuner

Audio unit

Connector

Terminal

Connector

Terminal

A: M41

25

B: M42

45

Yes

26

46

WKIA4540E

AV-40

AUDIO

2007 Pathfinder

Satellite Radio Tuner (Factory Installed) Communication Circuit Inspection

EKS00HKA

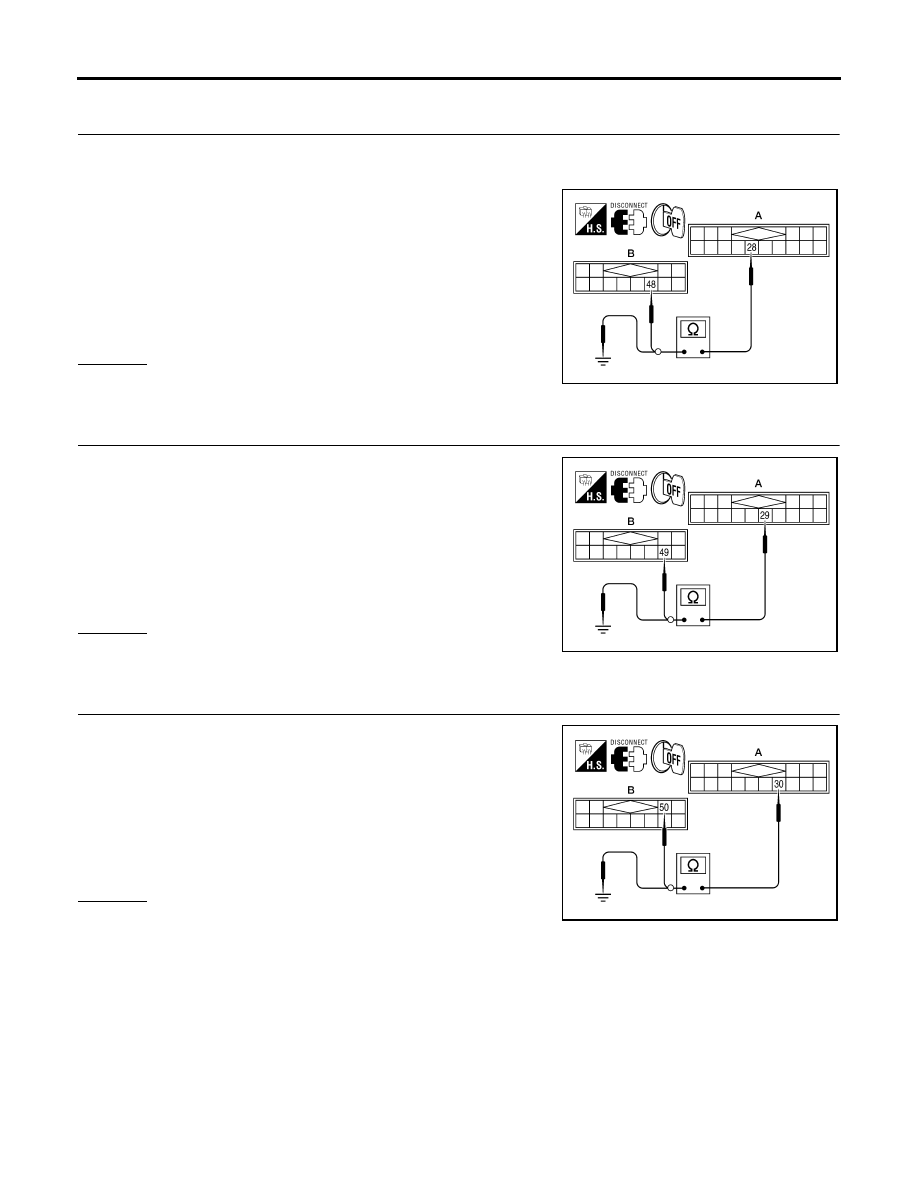

1.

CHECK HARNESS - 1

1.

Turn ignition switch OFF.

2.

Disconnect satellite radio tuner (factory installed) connector M41 and audio unit connector M42.

3.

Check continuity between satellite radio tuner (factory installed)
harness connector M41 (A) terminal 28 and audio unit harness
connector M42 (B) terminal 48

4.

Check continuity between satellite radio tuner (factory installed)
harness connector M41 (A) terminal 28 and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Repair harness or connector.

2.

CHECK HARNESS - 2

1.

Check continuity between satellite radio tuner (factory installed)
harness connector M41 (A) terminal 29 and audio unit harness
connector M42 (B) terminal 49

2.

Check continuity between satellite radio tuner (factory installed)
harness connector M41 (A) terminal 29 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness or connector.

3.

CHECK HARNESS - 3

1.

Check continuity between satellite radio tuner (factory installed)
harness connector M41 (A) terminal 30 and audio unit harness
connector M42 (B) terminal 50

2.

Check continuity between satellite radio tuner (factory installed)
harness connector M41 (A) terminal 30 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair harness or connector.

Continuity should exist.

Continuity should not exist.

WKIA4541E

Continuity should exist.

Continuity should not exist.

WKIA4542E

Continuity should exist.

Continuity should not exist.

WKIA4543E















Content      ..     68      69      70      71     ..
