Nissan Pathfinder (2007 year). Manual - part 67

AUDIO

AV-9

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

Schematic

EKS00G5D

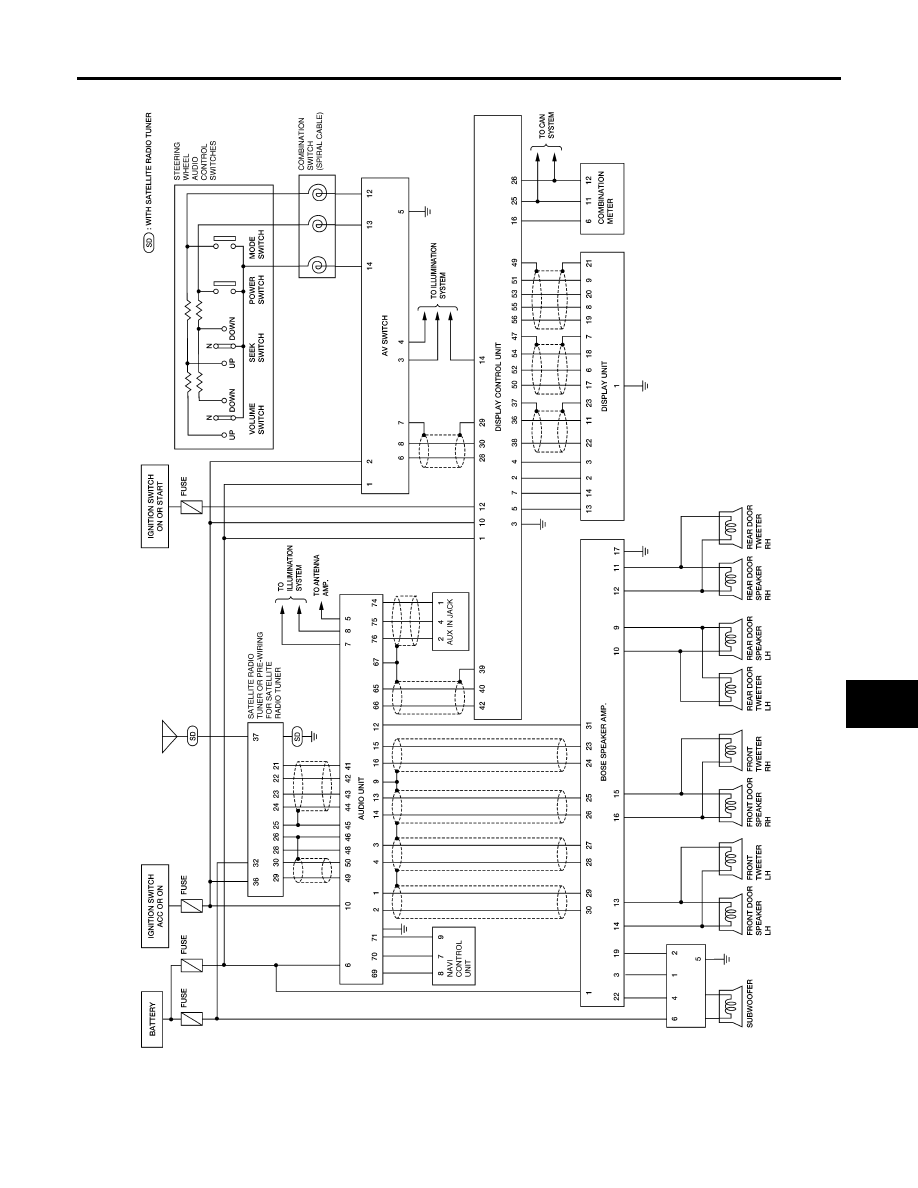

BASE AND MID LEVEL SYSTEM

WKWA5376E

AV-10

AUDIO

2007 Pathfinder

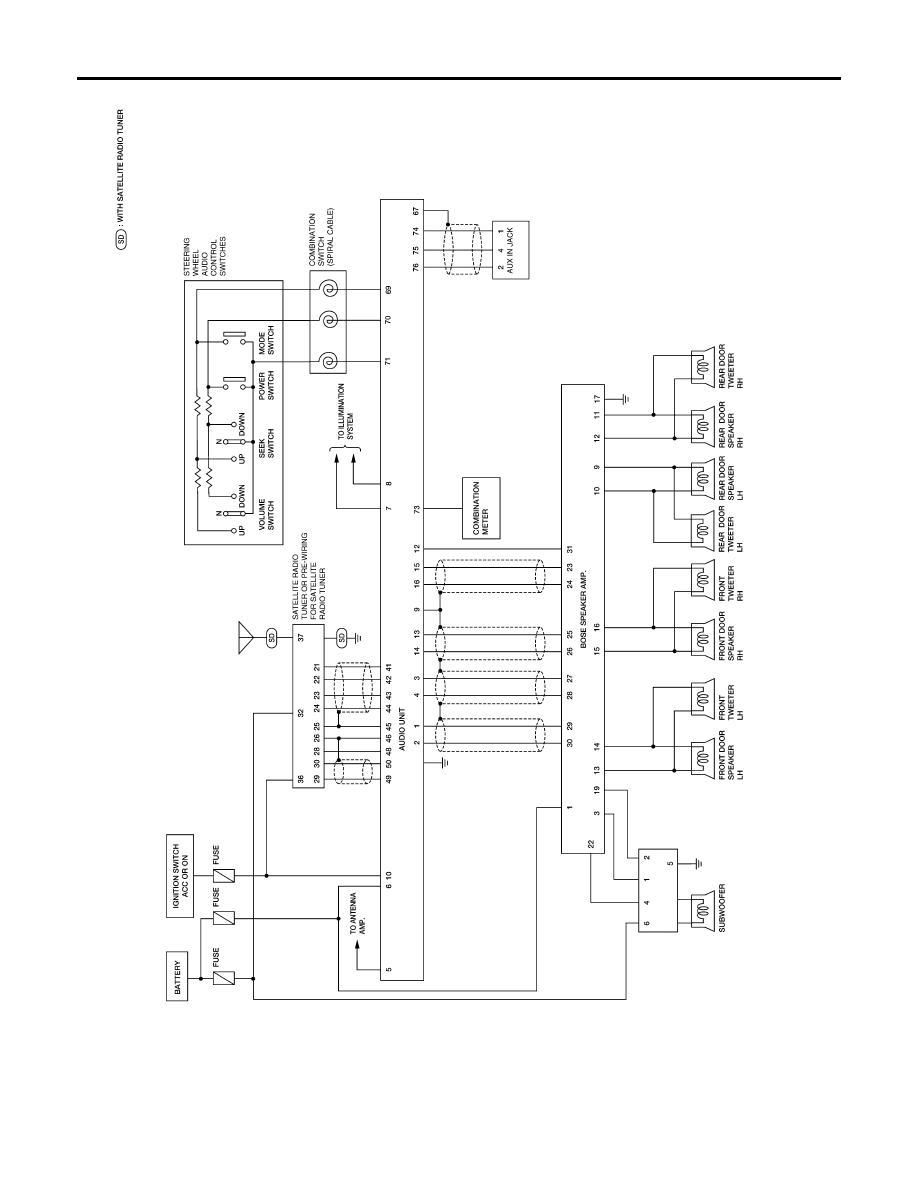

BOSE SYSTEM (WITHOUT NAVI)

WKWA5377E

AUDIO

AV-11

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

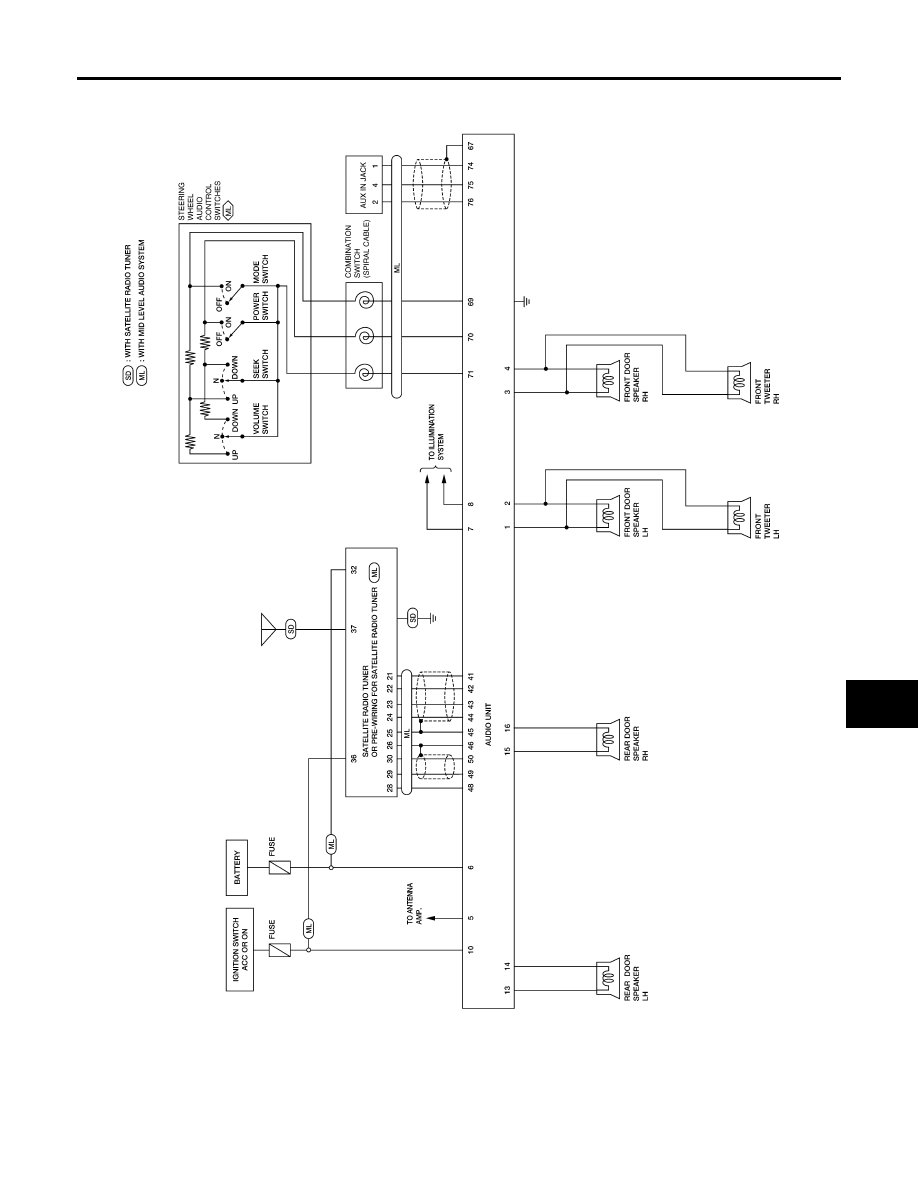

BOSE SYSTEM (WITH NAVI)

WKWA5378E

AV-12

AUDIO

2007 Pathfinder

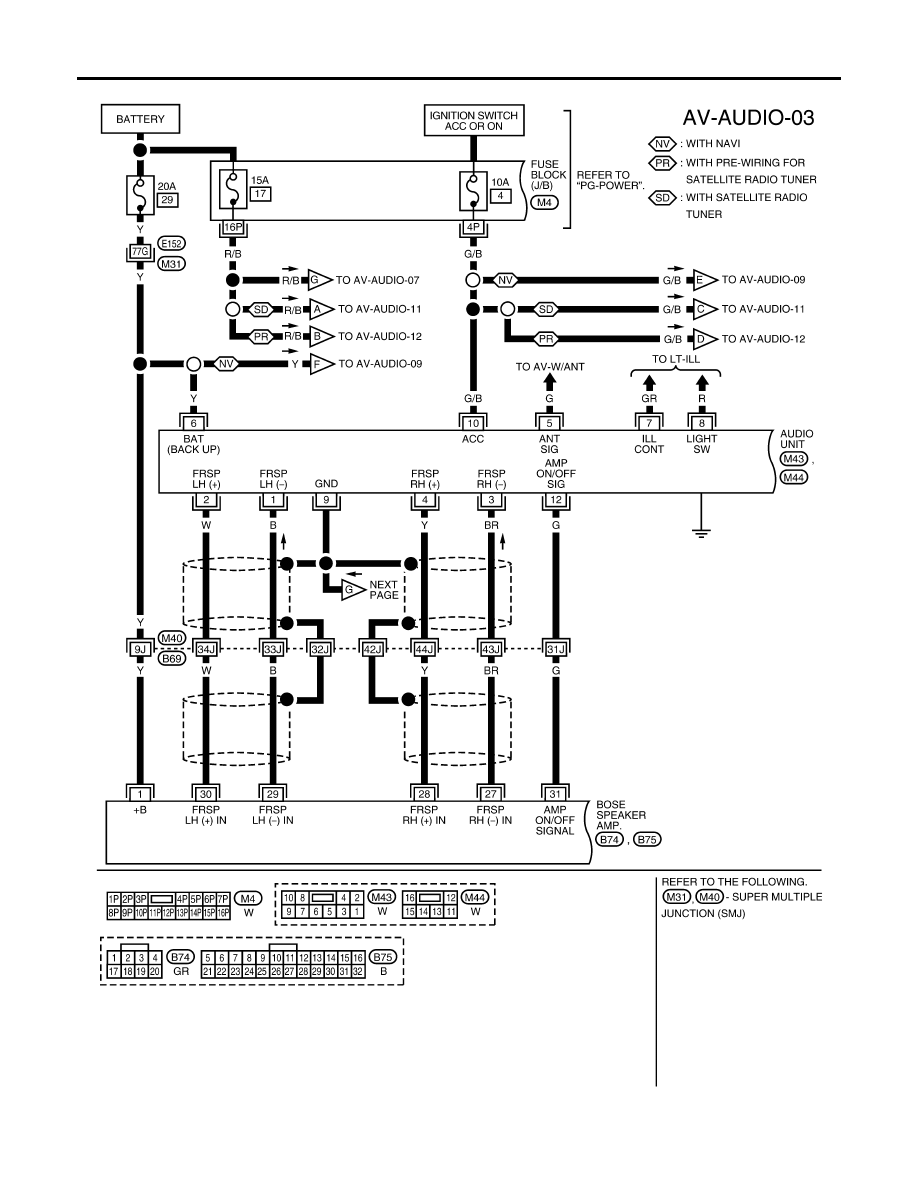

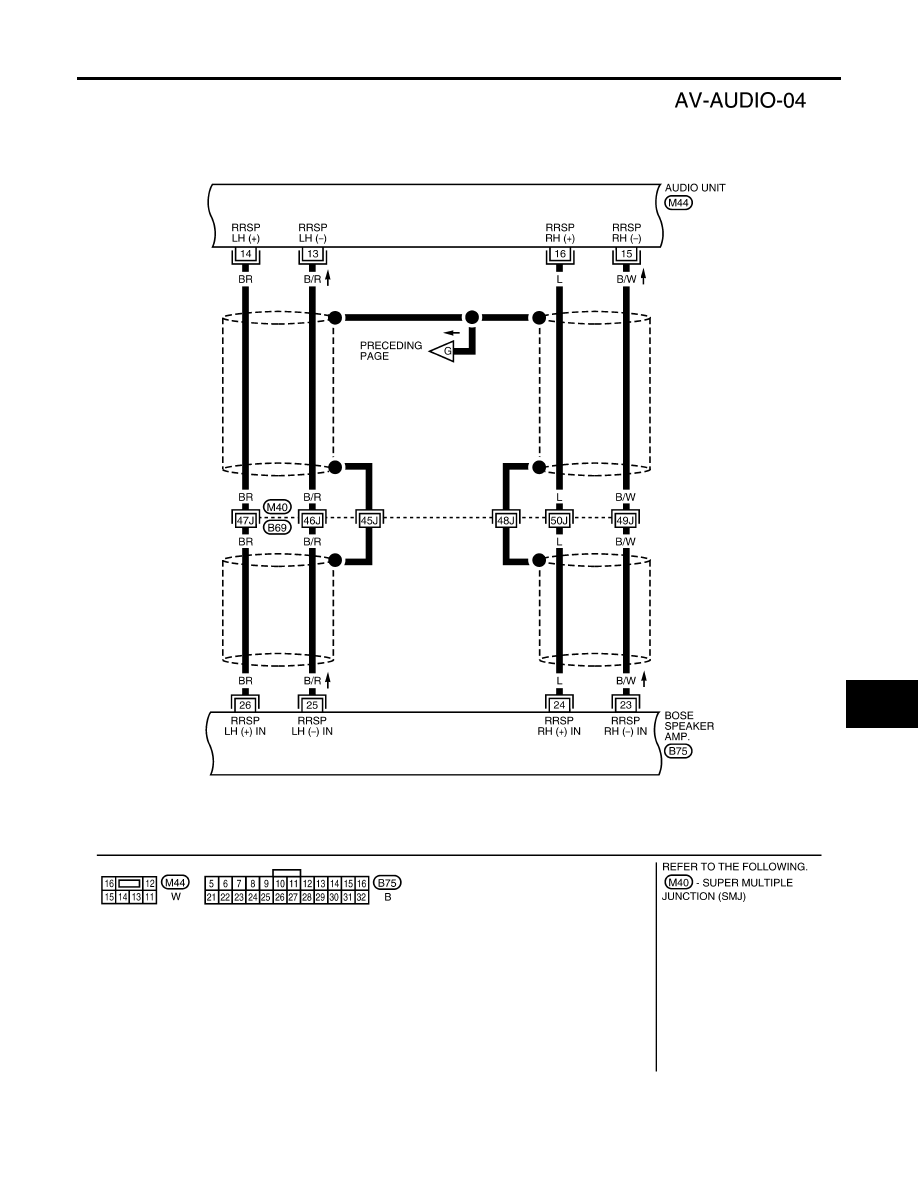

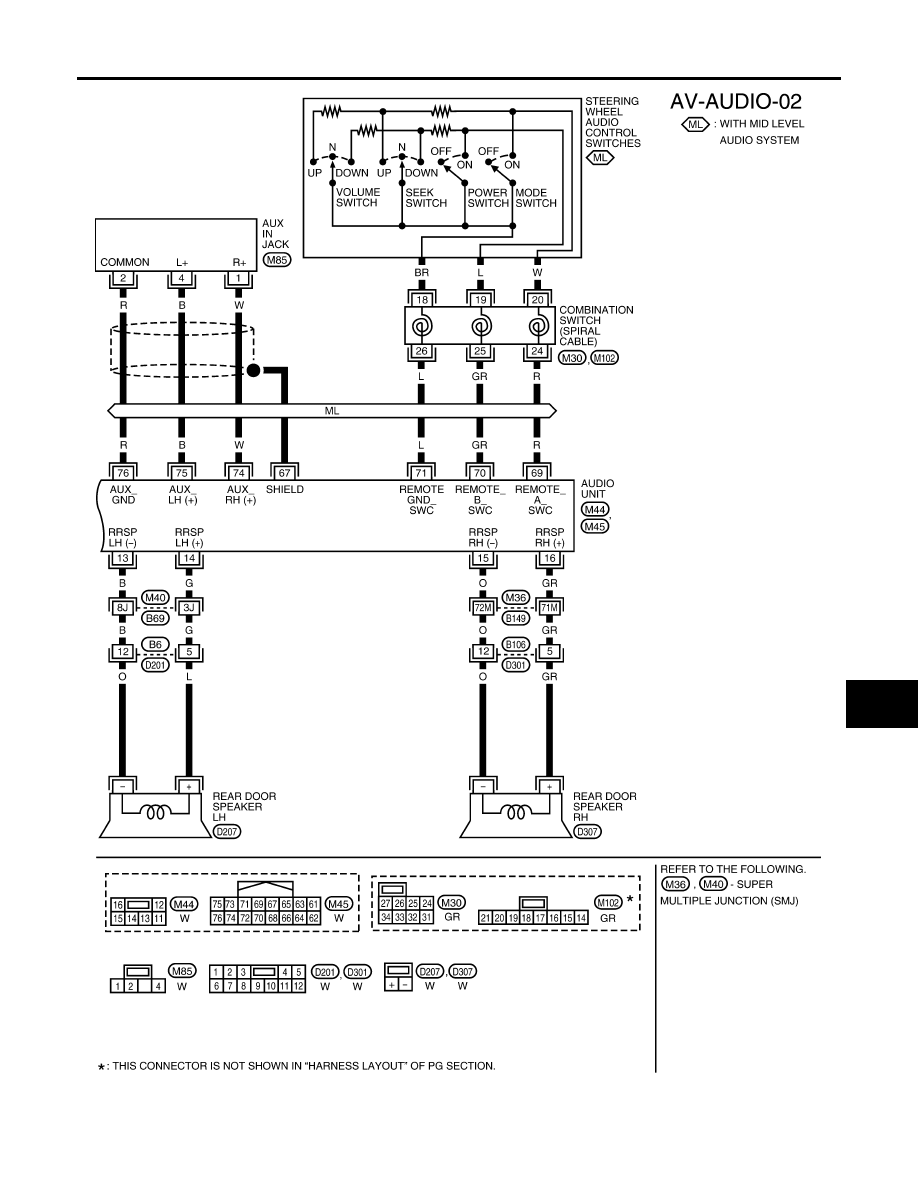

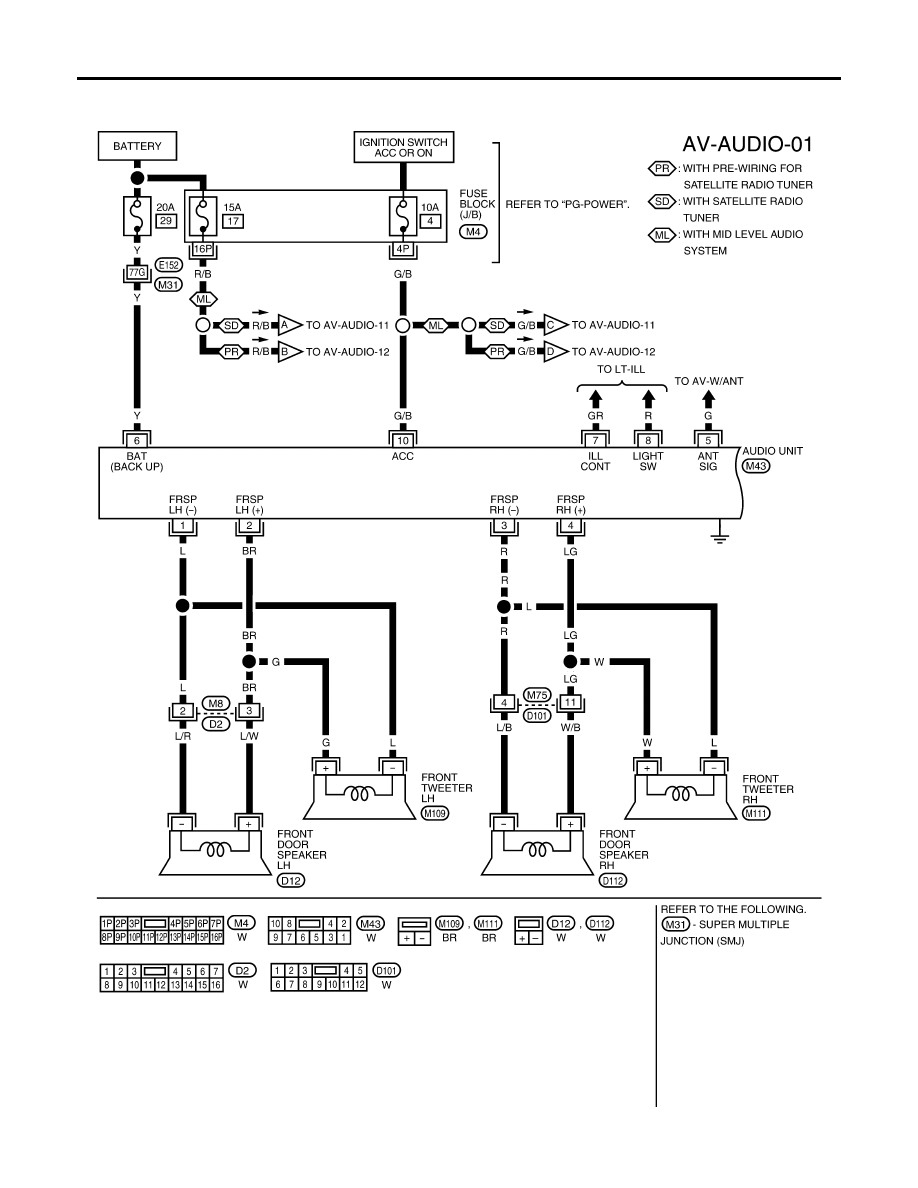

Wiring Diagram — AUDIO —

EKS00G5E

BASE AND MID LEVEL SYSTEM

WKWA4198E

AUDIO

AV-13

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

WKWA5379E

AV-14

AUDIO

2007 Pathfinder

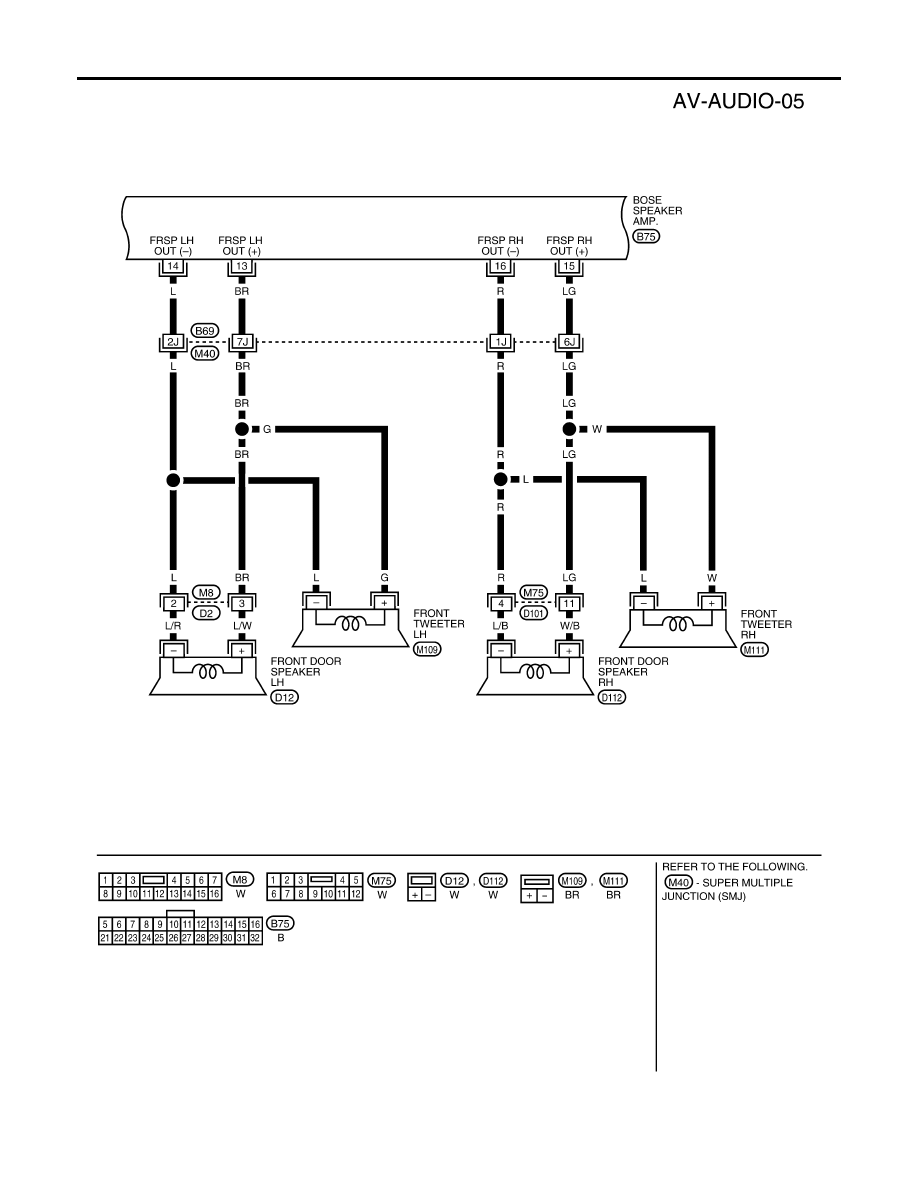

BOSE SYSTEM

WKWA5380E

AUDIO

AV-15

C

D

E

F

G

H

I

J

L

M

A

B

AV

2007 Pathfinder

WKWA4201E

AV-16

AUDIO

2007 Pathfinder

WKWA4202E
