DTC P1752 INPUT CLUTCH SOLENOID VALVE

AT-139

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

DTC P1752 INPUT CLUTCH SOLENOID VALVE

PFP:31940

Description

ECS00EIE

Input clutch solenoid valve is controlled by the TCM in response to signals sent from the PNP switch, vehicle
speed sensor and accelerator pedal position sensor (throttle position sensor). Gears will then be shifted to the
optimum position.

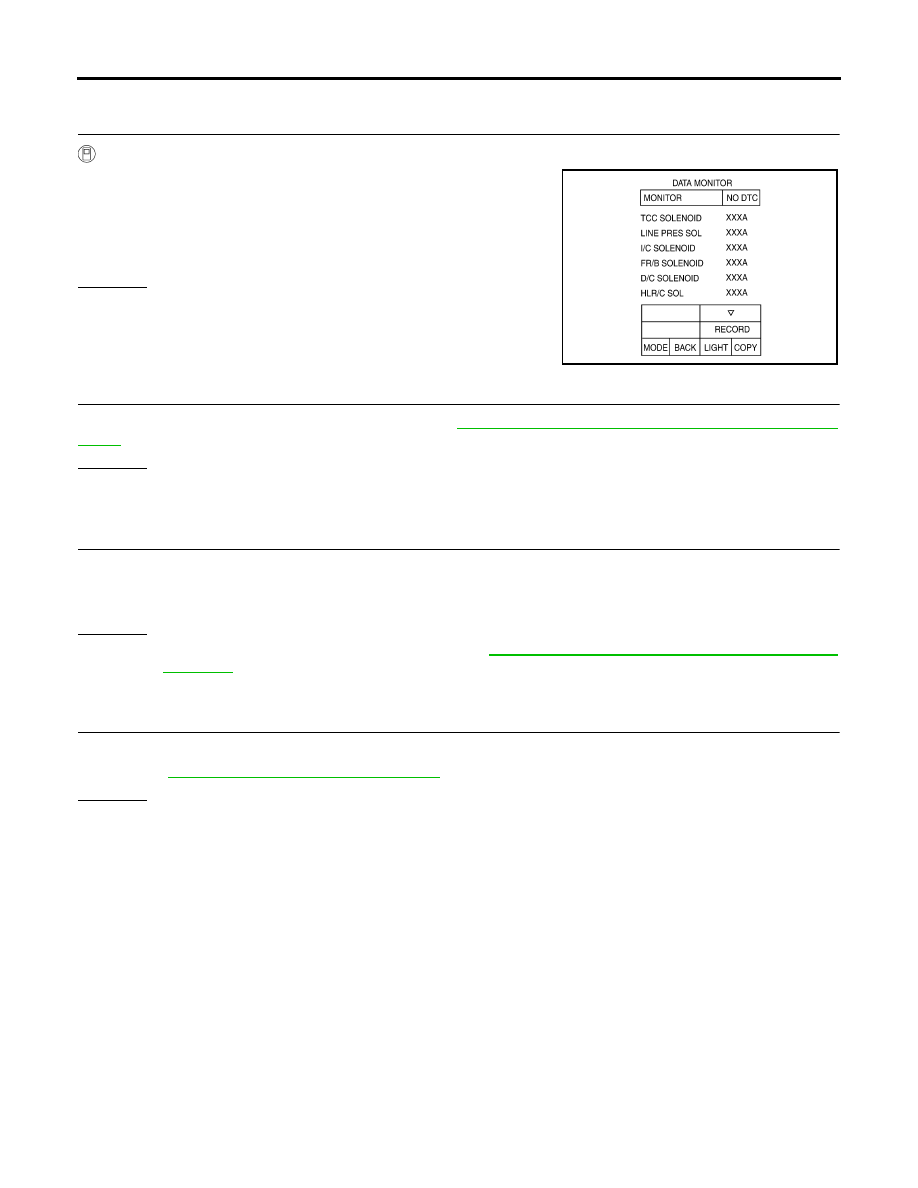

CONSULT-II Reference Value

ECS00EIF

 On Board Diagnosis Logic

ECS00EIG

●

This is an OBD-II self-diagnostic item.

●

Diagnostic trouble code “P1752 I/C SOLENOID/CIRC” with CONSULT-II or 5th judgement flicker without
CONSULT-II is detected under the following conditions.

–

When TCM detects an improper voltage drop when it tries to operate the solenoid valve.

–

When TCM detects as irregular by comparing target value with monitor value.

Possible Cause

ECS00EIH

●

Harness or connectors
(The solenoid circuit is open or shorted.)

●

Input clutch solenoid valve

DTC Confirmation Procedure

ECS00EII

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

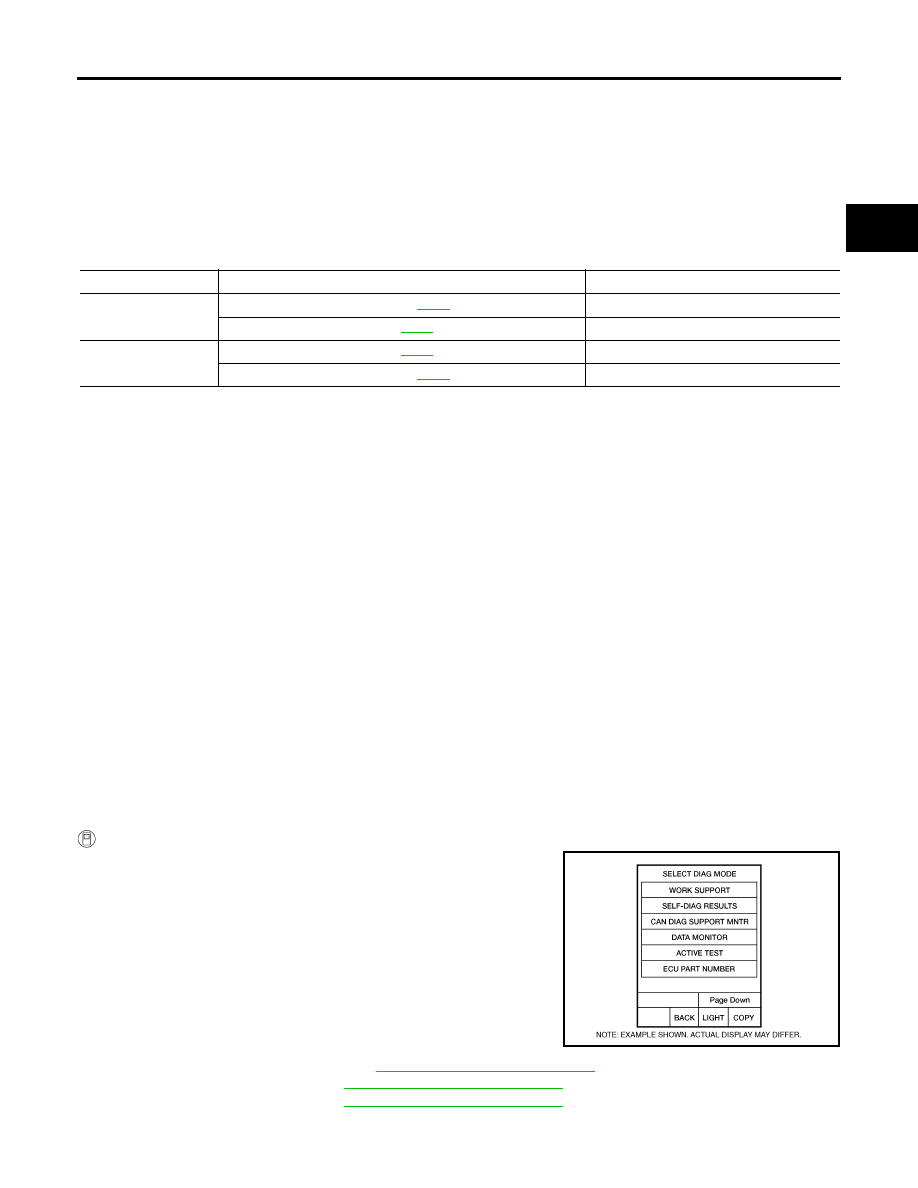

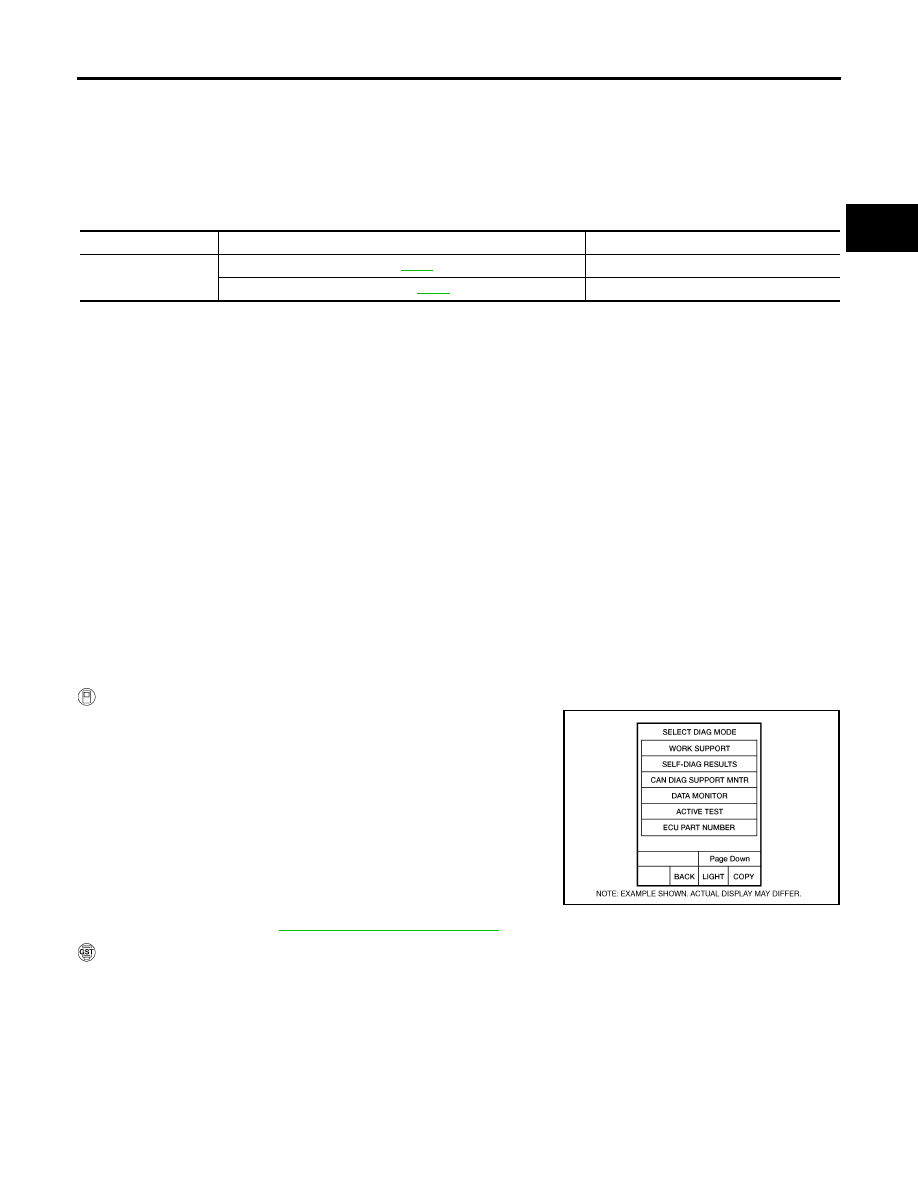

 WITH CONSULT-II

1.

Turn ignition switch “ON”. (Do not start engine.)

2.

Select “DATA MONITOR” mode for “A/T” with CONSULT-II.

3.

Start engine.

4.

Drive vehicle and maintain the following conditions for at least 5
consecutive seconds.
ACCELE POS: 1.5/8 - 2.0/8
Selector lever: “D” position
Gear position: 3rd

Þ

 4th Gear (I/C ON/OFF)

Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.

5.

If DTC is detected go to

AT-140, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II”.

Item name

Condition

Display value (Approx.)

I/C SOLENOID

Input clutch disengaged. Refer to

AT-21

 .

0.6 - 0.8 A

Input clutch engaged. Refer to

AT-21

 .

0 - 0.05 A

BCIA0031E

AT-140

DTC P1752 INPUT CLUTCH SOLENOID VALVE

2007 Pathfinder

Diagnostic Procedure

ECS00EIJ

1.

CHECK INPUT SIGNAL

 With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.

3.

Start the engine.

4.

Read out the value of “I/C SOLENOID” while driving.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-167, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check the following.

●

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

AT-167, "MAIN POWER SUPPLY AND GROUND

CIRCUIT"

 .

NG

>> Repair or replace damaged parts.

4.

CHECK DTC

Perform “DTC Confirmation Procedure”.

●

Refer to

AT-139, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

SCIA4793E

DTC P1754 INPUT CLUTCH SOLENOID VALVE FUNCTION

AT-141

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

DTC P1754 INPUT CLUTCH SOLENOID VALVE FUNCTION

PFP:31940

Description

ECS00EIK

●

Input clutch solenoid valve is controlled by the TCM in response to signals sent from the PNP switch, vehi-
cle speed sensor and accelerator pedal position sensor (throttle position sensor). Gears will then be
shifted to the optimum position.

●

This is not only caused by electrical malfunction (circuits open or shorted) but also by mechanical mal-
function such as control valve sticking, improper solenoid valve operation.

CONSULT-II Reference Value

ECS00EIL

On Board Diagnosis Logic

ECS00EIM

●

This is an OBD-II self-diagnostic item.

●

Diagnostic trouble code “P1754 I/C SOLENOID FNCTN” with CONSULT-II or 5th judgement flicker with-
out CONSULT-II is detected under the following conditions.

–

When TCM detects that actual gear ratio is irregular, and relation between gear position and condition of
pressure switch 3 is irregular during depressing accelerator pedal. (Other than during shift change)

–

When TCM detects that relation between gear position and condition of ATF pressure switch 3 is irregular
during releasing accelerator pedal. (Other than during shift change)

Possible Cause

ECS00EIN

●

Harness or connectors
(The solenoid and switch circuits are open or shorted.)

●

Input clutch solenoid valve

●

ATF pressure switch 3

DTC Confirmation Procedure

ECS00EIO

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Start engine.

2.

Accelerate vehicle to maintain the following conditions.
ACCELE POSI: 1.5/8 - 2.0/8
Selector lever: “D” position
Gear position: 3rd

Þ

 4th Gear (I/C ON/OFF)

Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.

3.

Perform step “2” again.

4.

Turn ignition switch “OFF”, then perform step “1” to “3” again.

5.

Check “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II. If DTC (P1754) is detected, refer to

AT-142, "Diagnostic Procedure"

 .

If DTC (P1752) is detected, go to

AT-140, "Diagnostic Procedure"

 .

If DTC (P1843) is detected, go to

AT-162, "Diagnostic Procedure"

 .

Item name

Condition

Display value (Approx.)

I/C SOLENOID

Input clutch disengaged. Refer to

AT-21

 .

0.6 - 0.8 A

Input clutch engaged. Refer to

AT-21

 .

0 - 0.05 A

ATF PRES SW 3

Input clutch engaged. Refer to

AT-21



.

ON

Input clutch disengaged. Refer to

AT-21



.

OFF

BCIA0031E

AT-142

DTC P1754 INPUT CLUTCH SOLENOID VALVE FUNCTION

2007 Pathfinder

 WITH GST

Follow the procedure “WITH CONSULT-II”.

Diagnostic Procedure

ECS00EIP

1.

CHECK INPUT SIGNALS

 With CONSULT-II

1.

Start engine.

2.

Select “SELECTION FROM MENU” in “DATA MONITOR” mode
for “A/T” with CONSULT-II.

3.

Drive vehicle in “D” position (3rd

Þ

 4th gear), and confirm the

ON/OFF actuation of “ATF PRES SW 3” and electrical current
value of “I/C SOLENOID”.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-167, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check the following.

●

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

AT-227, "Control Valve With TCM and A/T Fluid

Temperature Sensor 2"

 .

NG

>> Repair or replace damaged parts.

4.

CHECK DTC

Perform “DTC Confirmation Procedure”.

●

Refer to

AT-141, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

SCIA4795E

DTC P1757 FRONT BRAKE SOLENOID VALVE

AT-143

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

DTC P1757 FRONT BRAKE SOLENOID VALVE

PFP:31940

Description

ECS00EIQ

Front brake solenoid valve is controlled by the TCM in response to signals sent from the PNP switch, vehicle
speed sensor and accelerator pedal position sensor (throttle position sensor). Gears will then be shifted to the
optimum position.

CONSULT-II Reference Value

ECS00EIR

On Board Diagnosis Logic

ECS00EIS

●

This is an OBD-II self-diagnostic item.

●

Diagnostic trouble code “P1757 FR/B SOLENOID/CIRC” with CONSULT-II or 6th judgement flicker with-
out CONSULT-II is detected under the following conditions.

–

When TCM detects an improper voltage drop when it tries to operate the solenoid valve.

–

When TCM detects as irregular by comparing target value with monitor value.

Possible Cause

ECS00EIT

●

Harness or connectors
(The solenoid circuit is open or shorted.)

●

Front brake solenoid valve

DTC Confirmation Procedure

ECS00EIU

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Turn ignition switch “ON”. (Do not start engine.)

2.

Select “DATA MONITOR” mode for “A/T” with CONSULT-II.

3.

Start engine.

4.

Drive vehicle and maintain the following conditions for at least 5
consecutive seconds.
ACCELE POS: 1.5/8 - 2.0/8
Selector lever: “D” position
Gear position: 3rd

Þ

 4th Gear (FR/B ON/OFF)

Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.

5.

If DTC is detected go to

AT-144, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II”.

Item name

Condition

Display value (Approx.)

FR/B SOLENOID

Front brake engaged. Refer to

AT-21

 .

0.6 - 0.8 A

Front brake disengaged. Refer to

AT-21

 .

0 - 0.05 A

BCIA0031E

AT-144

DTC P1757 FRONT BRAKE SOLENOID VALVE

2007 Pathfinder

Diagnostic Procedure

ECS00EIV

1.

CHECK INPUT SIGNAL

 With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.

3.

Start engine.

4.

Read out the value of “FR/B SOLENOID” while driving.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-167, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check the following.

●

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

AT-227, "Control Valve With TCM and A/T Fluid

Temperature Sensor 2"

 .

NG

>> Repair or replace damaged parts.

4.

CHECK DTC

Perform “DTC Confirmation Procedure”.

●

Refer to

AT-143, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

SCIA4793E

DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION

AT-145

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION

PFP:31940

Description

ECS00EIW

●

Front brake solenoid valve is controlled by the TCM in response to signals sent from the PNP switch, vehi-
cle speed sensor and accelerator pedal position sensor (throttle position sensor). Gears will then be
shifted to the optimum position.

●

This is not only caused by electrical malfunction (circuits open or shorted) but also by mechanical mal-
function such as control valve sticking, improper solenoid valve operation.

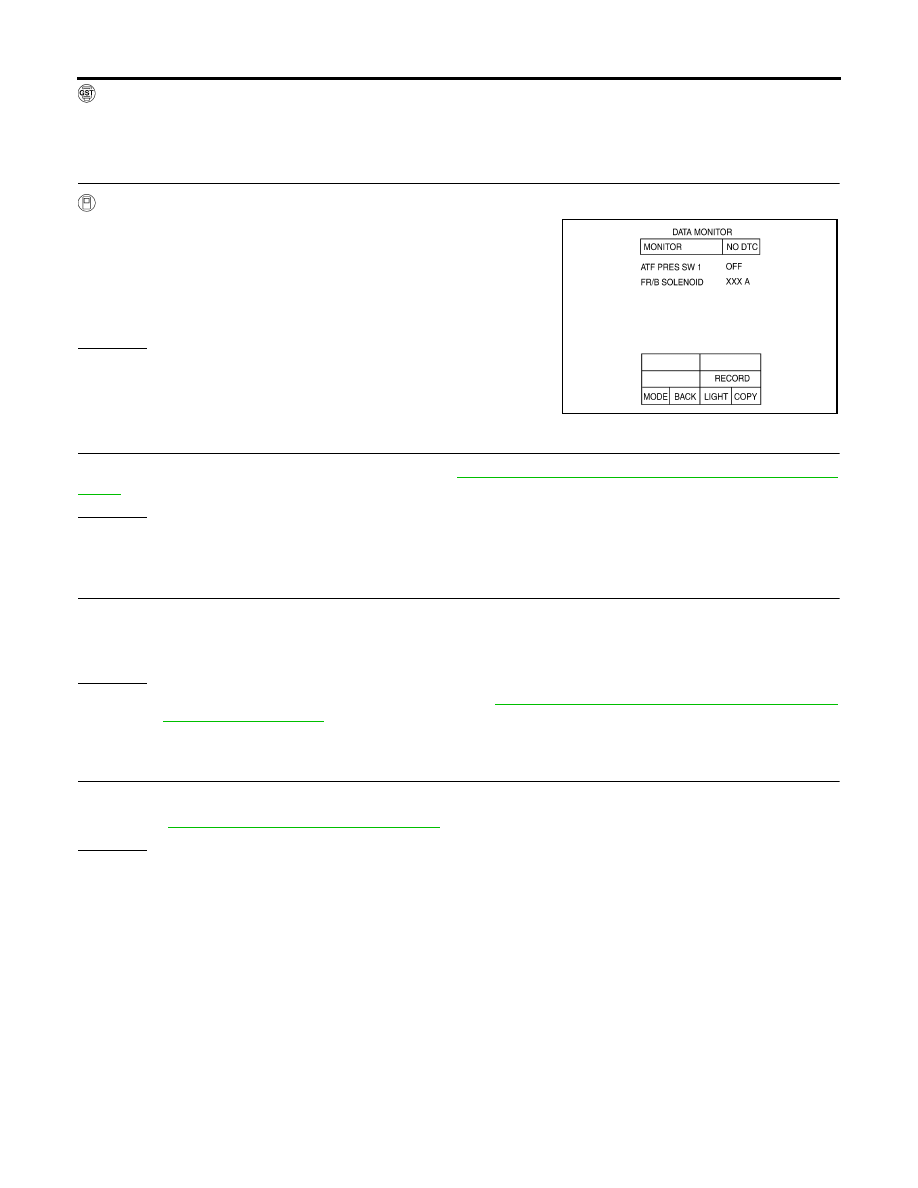

CONSULT-II Reference Value

ECS00EIX

On Board Diagnosis Logic

ECS00EIY

●

This is an OBD-II self-diagnostic item.

●

Diagnostic trouble code “P1759 FR/B SOLENOID FNCT” with CONSULT-II or 6th judgement flicker with-
out CONSULT-II is detected under the following conditions.

–

When TCM detects that actual gear ratio is irregular, and relation between gear position and condition of
ATF pressure switch 1 is irregular during depressing accelerator pedal. (Other than during shift change)

–

When TCM detects that relation between gear position and condition of ATF pressure switch 1 is irregular
during releasing accelerator pedal. (Other than during shift change)

Possible Cause

ECS00EIZ

●

Harness or connectors
(The solenoid and switch circuits are open or shorted.)

●

Front brake solenoid valve

●

ATF pressure switch 1

DTC Confirmation Procedure

ECS00EJ0

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Start engine.

2.

Accelerate vehicle to maintain the following conditions.
ACCELE POS: 1.5/8 - 2.0/8
Selector lever: “D” position
Gear position: 3rd

Þ

 4th Gear (FR/B ON/OFF)

Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.

3.

Perform step “2” again.

4.

Turn ignition switch “OFF”, then perform step “1” to “3” again.

5.

Check “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II. If DTC (P1759) is detected, refer to

AT-146, "Diagnostic Procedure"

 .

If DTC (P1757) is detected, go to

AT-144, "Diagnostic Procedure"

 .

If DTC (P1841) is detected, go to

AT-160, "Diagnostic Procedure"

 .

Item name

Condition

Display value (Approx.)

FR/B SOLENOID

Front brake engaged. Refer to

AT-21

 .

0.6 - 0.8 A

Front brake disengaged. Refer to

AT-21

 .

0 - 0.05 A

ATF PRES SW 1

Front brake engaged. Refer to

AT-21



.

ON

Front brake disengaged. Refer to

AT-21



.

OFF

BCIA0031E

AT-146

DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION

2007 Pathfinder

 WITH GST

Follow the procedure “WITH CONSULT-II”.

Diagnostic Procedure

ECS00EJ1

1.

CHECK INPUT SIGNALS

 With CONSULT-II

1.

Start engine.

2.

Select “SELECTION FROM MENU” in “DATA MONITOR” mode
for “A/T” with CONSULT-II.

3.

Drive vehicle in the “D” position (3rd

Þ

 4th gear), and confirm

the ON/OFF actuation of the “ATF PRES SW 1” and electrical
current value of “FR/B SOLENOID”.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-167, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check the following.

●

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

AT-227, "Control Valve With TCM and A/T Fluid

Temperature Sensor 2"

 .

NG

>> Repair or replace damaged parts.

4.

CHECK DTC

Perform “DTC Confirmation Procedure”.

●

Refer to

AT-145, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

SCIA4796E
