ACC-2

PRECAUTIONS

2007 Pathfinder

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EBS00T2F

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

●

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

●

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

●

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

ACCELERATOR CONTROL SYSTEM

ACC-3

C

D

E

F

G

H

I

J

K

L

M

A

ACC

2007 Pathfinder

ACCELERATOR CONTROL SYSTEM

PFP:18005

Components

EBS00QUL

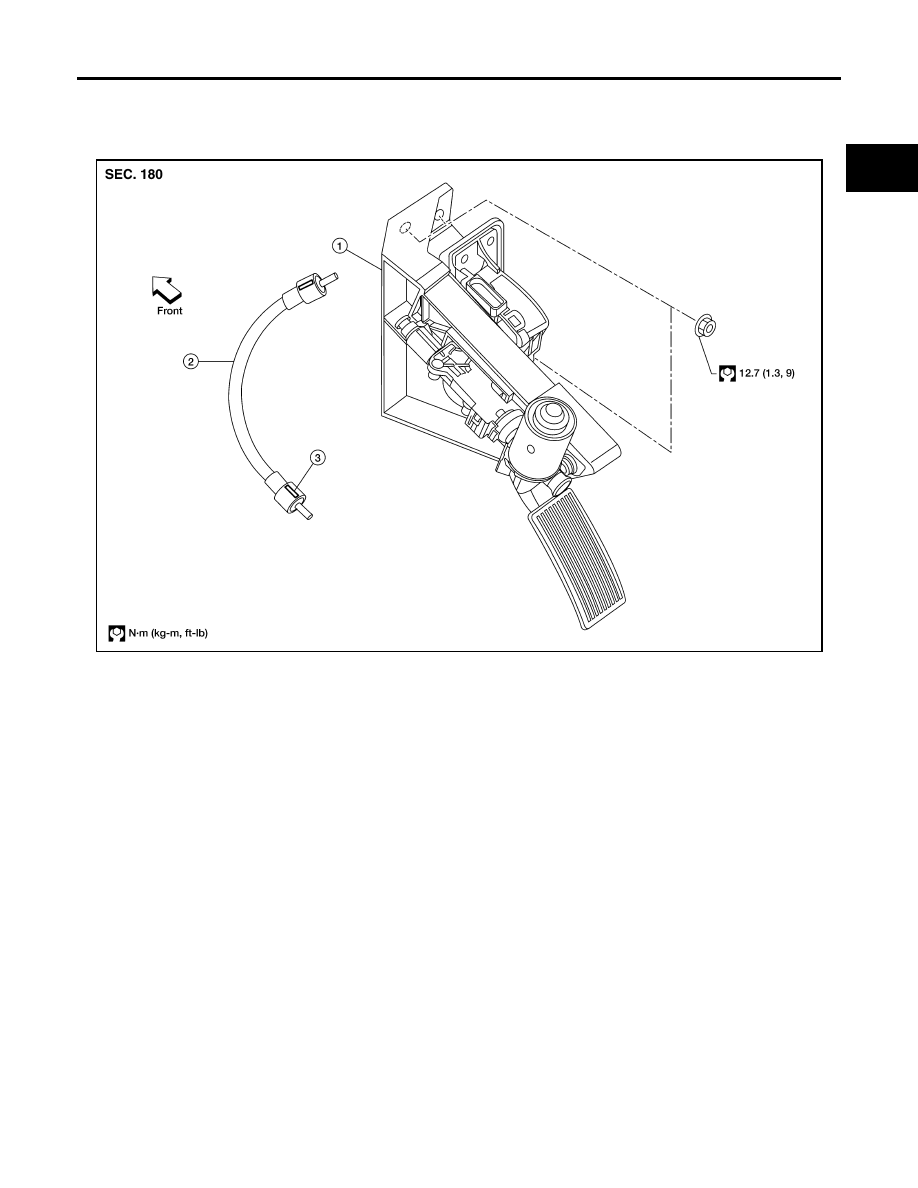

Adjustable Accelerator Pedal

WBIA0628E

1.

Adjustable accelerator pedal assembly

2.

Adjustable brake pedal cable

3.

Adjustable brake pedal cable lock
tab (part of the cable)

ACC-4

ACCELERATOR CONTROL SYSTEM

2007 Pathfinder

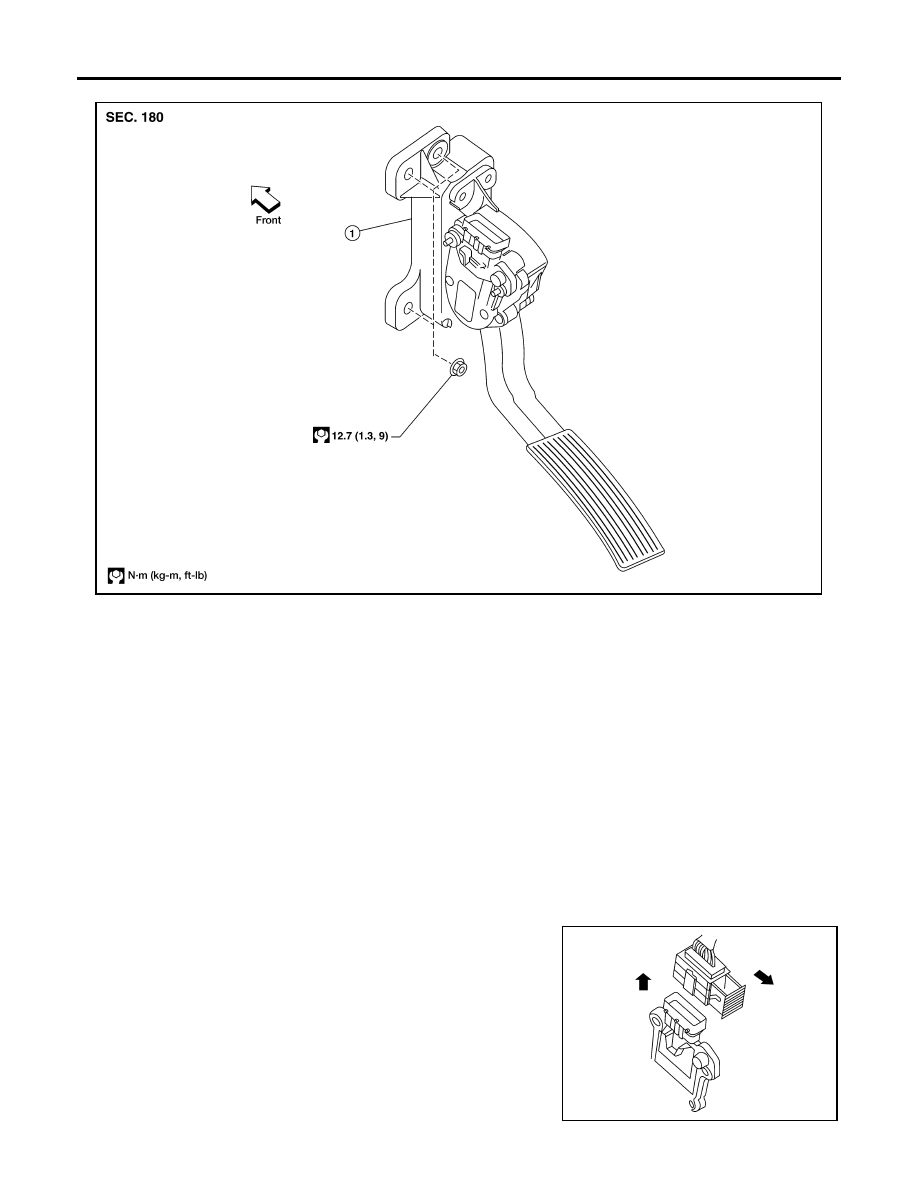

Non-adjustable Accelerator Pedal

CAUTION:

●

Before removal and installation, the adjustable accelerator and brake pedals must be in the front-
most position, if equipped. This is to align the base position of the accelerator and brake pedals.

●

Do not disassemble the accelerator pedal assembly.

●

Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.

●

Do not disassemble the accelerator pedal adjusting mechanism.

●

Avoid damage from dropping the accelerator pedal assembly during handling.

●

Keep the accelerator pedal assembly away from water.

Removal and Installation

EBS00QUM

REMOVAL FOR ADJUSTABLE ACCELERATOR PEDAL

1.

Move the accelerator and brake pedals to the frontmost position.

2.

Turn the ignition switch OFF and disconnect the negative battery terminal.

3.

Disconnect the adjustable pedal electric motor electrical connector.

4.

Disconnect the adjustable pedal electric motor memory electrical connector, if equipped.

5.

Disconnect the accelerator position sensor electrical connector.

a.

Pull the connector lock back to unlock the connector from the
accelerator pedal position sensor as shown.

b.

Pull up on the connector to disconnect it from the accelerator
pedal position sensor as shown.

WBIA0629E

1.

Non-adjustable accelerator pedal assembly

LBIA0333E

ACCELERATOR CONTROL SYSTEM

ACC-5

C

D

E

F

G

H

I

J

K

L

M

A

ACC

2007 Pathfinder

6.

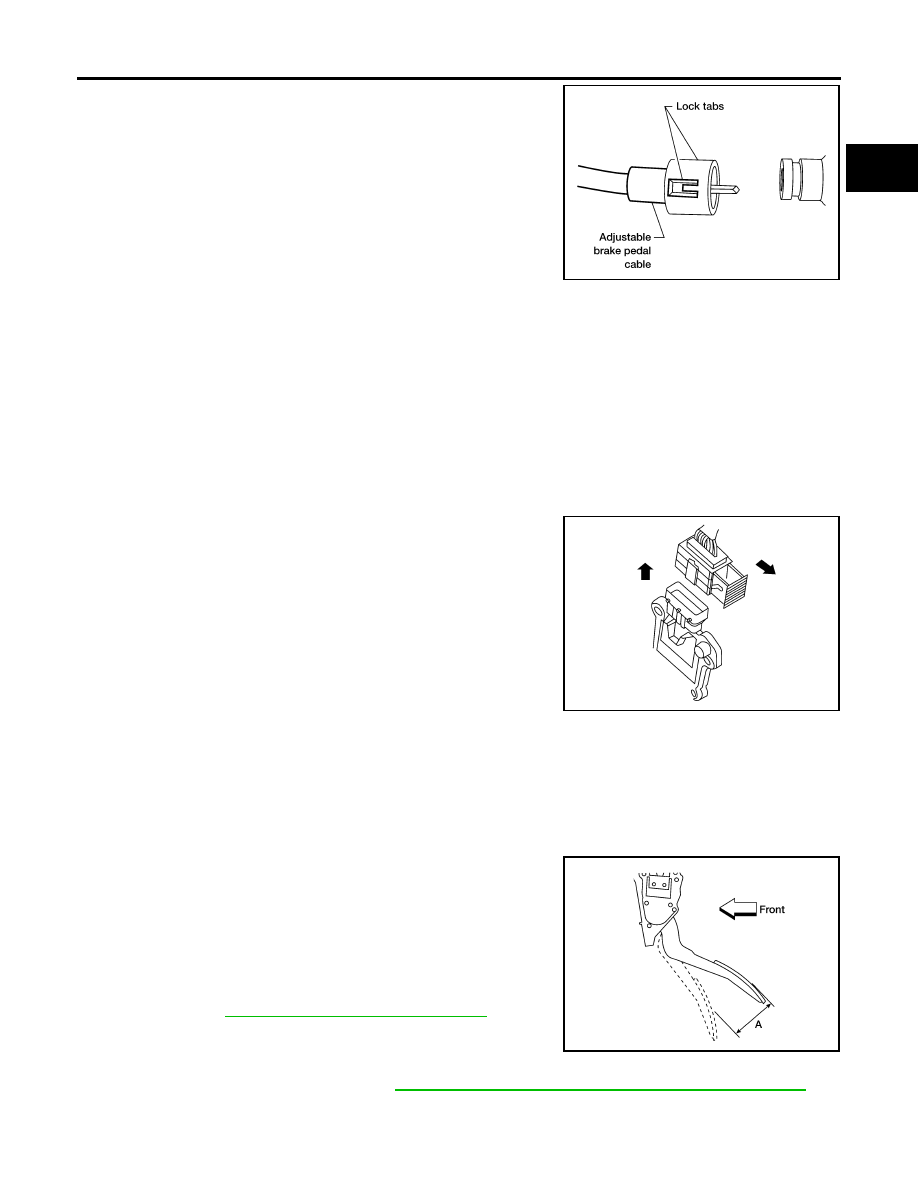

Disconnect the adjustable brake pedal cable from the adjustable
accelerator pedal.

●

Release the two lock tabs, then pull the adjustable brake
pedal cable to disconnect it from the adjustable accelerator
pedal.

7.

Remove the two upper and one lower accelerator pedal nuts.

8.

Remove the adjustable accelerator pedal assembly.

CAUTION:

●

Do not disassemble the accelerator pedal assembly.

●

Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.

●

Do not disassemble the accelerator pedal adjusting mechanism.

●

Avoid damage from dropping the accelerator pedal assembly during handling.

●

Keep the accelerator pedal assembly away from water.

REMOVAL FOR NON-ADJUSTABLE ACCELERATOR PEDAL

1.

Disconnect the negative battery terminal.

2.

Disconnect the accelerator position sensor electrical connector.

a.

Pull the connector lock back to unlock the connector from the
accelerator pedal position sensor as shown.

b.

Pull up on the connector to disconnect it from the accelerator
pedal position sensor as shown.

3.

Remove the two upper and one lower accelerator pedal nuts.

4.

Remove the accelerator pedal assembly.

CAUTION:

●

Do not disassemble the accelerator pedal assembly.

●

Do not remove the accelerator pedal position sensor
from the accelerator pedal bracket.

●

Avoid damage from dropping the accelerator pedal assembly during handling.

●

Keep the accelerator pedal assembly away from water.

INSTALLATION

Installation is in the reverse order of removal.

INSPECTION AFTER INSTALLATION

●

Check that the accelerator pedal moves smoothly within the
specified range.

●

Check that the accelerator pedal smoothly returns to the original
position.

●

Perform an electrical inspection of the accelerator pedal position
sensor. Refer to

EC-599, "DTC P2138 APP SENSOR"

 .

CAUTION:

When the harness connector of the accelerator pedal posi-
tion sensor is disconnected, perform

″

Accelerator Pedal

Released Position Learning

″

. Refer to

EC-77, "Accelerator Pedal Released Position Learning"

 .

LFIA0233E

LBIA0333E

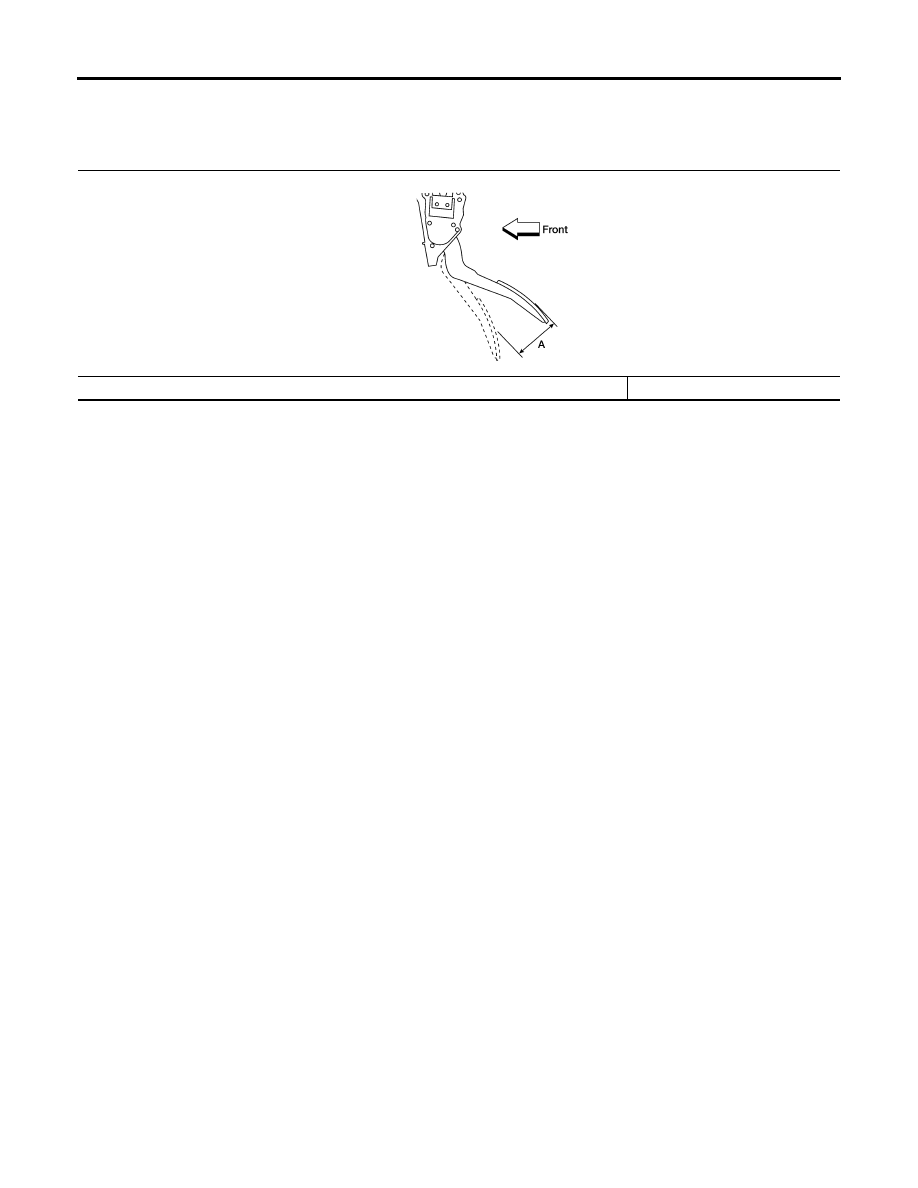

Accelerator pedal - total pedal
applied stroke “A”

: 48 mm (1.89 in)

LBIA0434E

ACC-6

SERVICE DATA AND SPECIFICATIONS (SDS)

2007 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Accelerator Control

EBS00QUN

ADJUSTABLE AND NON-ADJUSTABLE ACCELERATOR PEDAL

Unit: mm (in)

Accelerator pedal - total pedal applied stroke “A”

48 (1.89)

LBIA0434E
