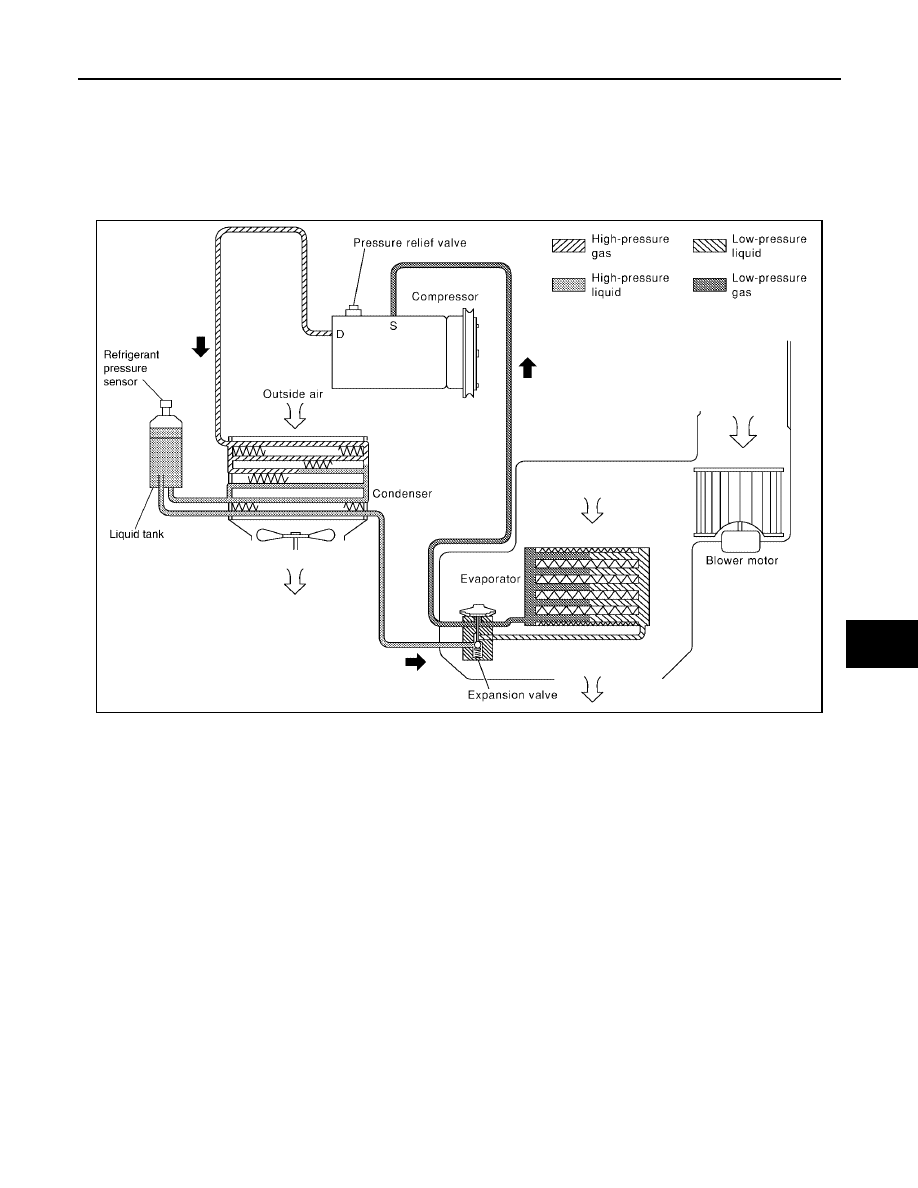

REFRIGERATION SYSTEM MTC-17 C D E F G H I K L M A B MTC 2006 Pathfinder Refrigerant Cycle EJS004R5 REFRIGERANT FLOW The refrigerant flows in the standard pattern. Refrigerant flows through the compressor, condenser, liquid tank, FREEZE PROTECTION The compressor cycles on and off to maintain the evaporator temperature within a specified range. When the Refrigerant System Protection EJS004R6 REFRIGERANT PRESSURE SENSOR The refrigerant system is protected against excessively high- or low-pressures by the refrigerant pressure sen- 2 , 398 psi), or below about 120 kPa (1.22 kg/cm 2 , 17.4 psi). 1. Defroster nozzle 2. LH side demister duct 3. LH ventilator duct 4. RH side demister duct 5. RH ventilator duct 6. Center ventilator duct 7. Front heater and cooling unit assembly 8. Floor connector duct grilles 9. Floor connector duct 10. Front ducts 11. Floor ducts 12. Rear console duct 13. Center console duct 14. Front console duct RJIA1552E |
