CAN SYSTEM (TYPE 4)

LAN-97

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

Case 11

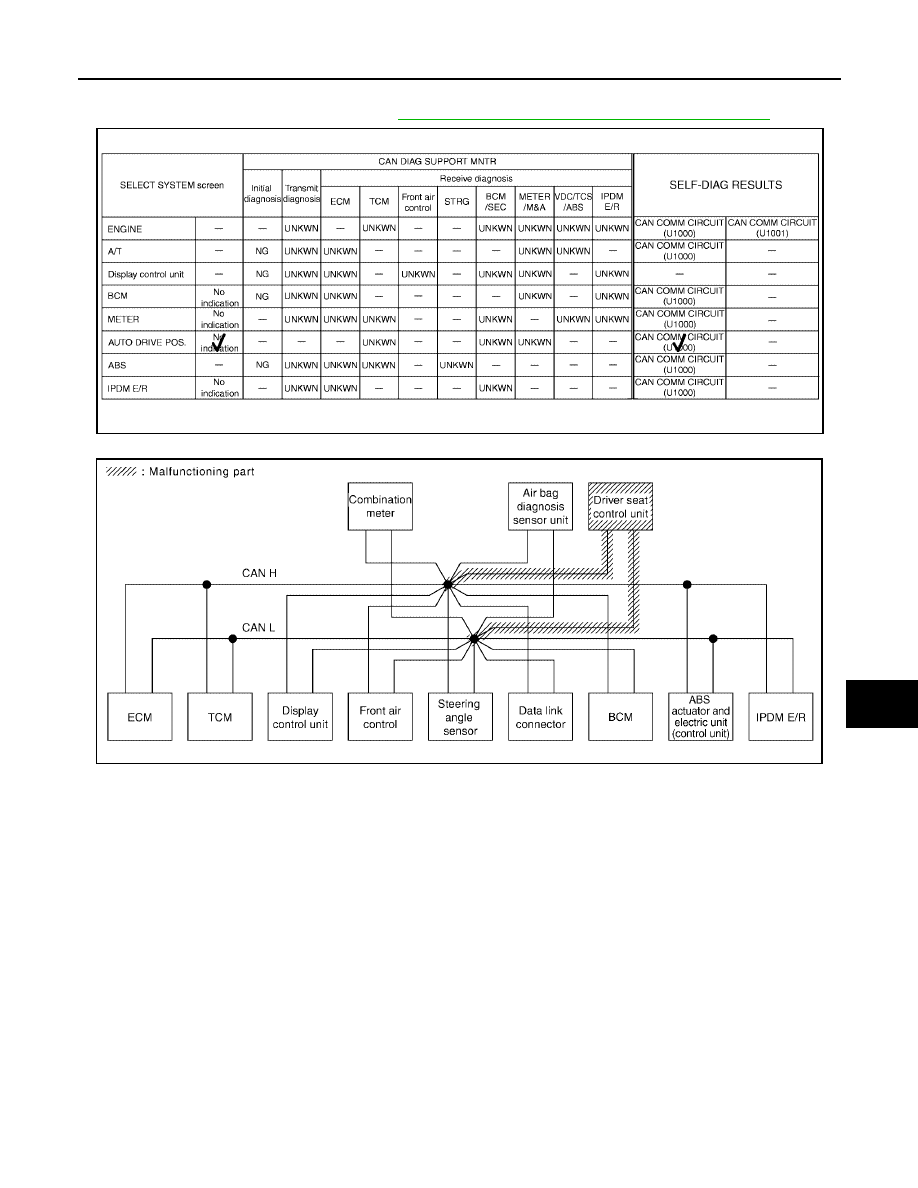

Check driver seat control unit circuit. Refer to

LAN-202, "Driver Seat Control Unit Circuit Inspection"

 .

PKIC5667E

PKIC5445E

LAN-98

[CAN]

CAN SYSTEM (TYPE 4)

2006 Pathfinder

Case 12

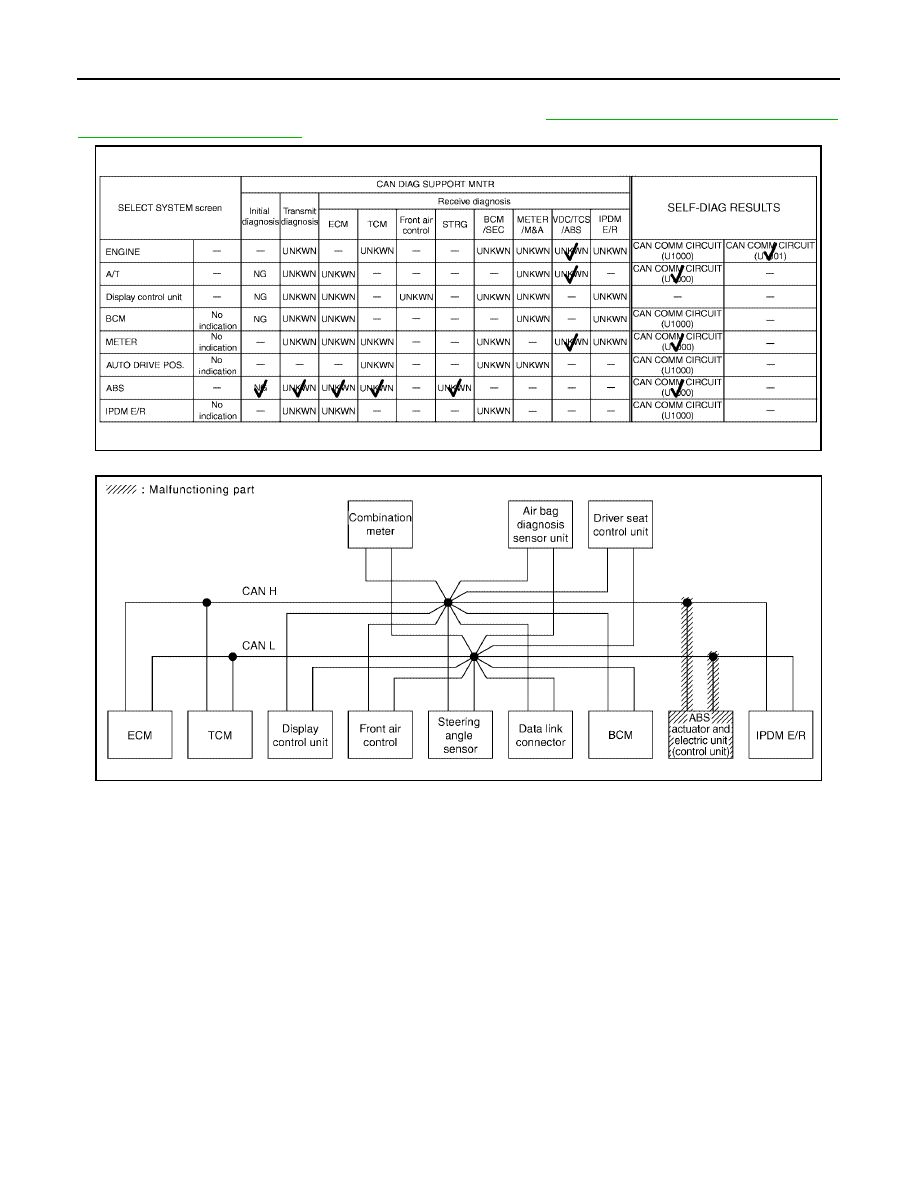

Check ABS actuator and electric unit (control unit) circuit. Refer to

LAN-202, "ABS Actuator and Electric Unit

(Control Unit) Circuit Inspection"

 .

PKIC5668E

PKIC5446E

CAN SYSTEM (TYPE 4)

LAN-99

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

Case 13

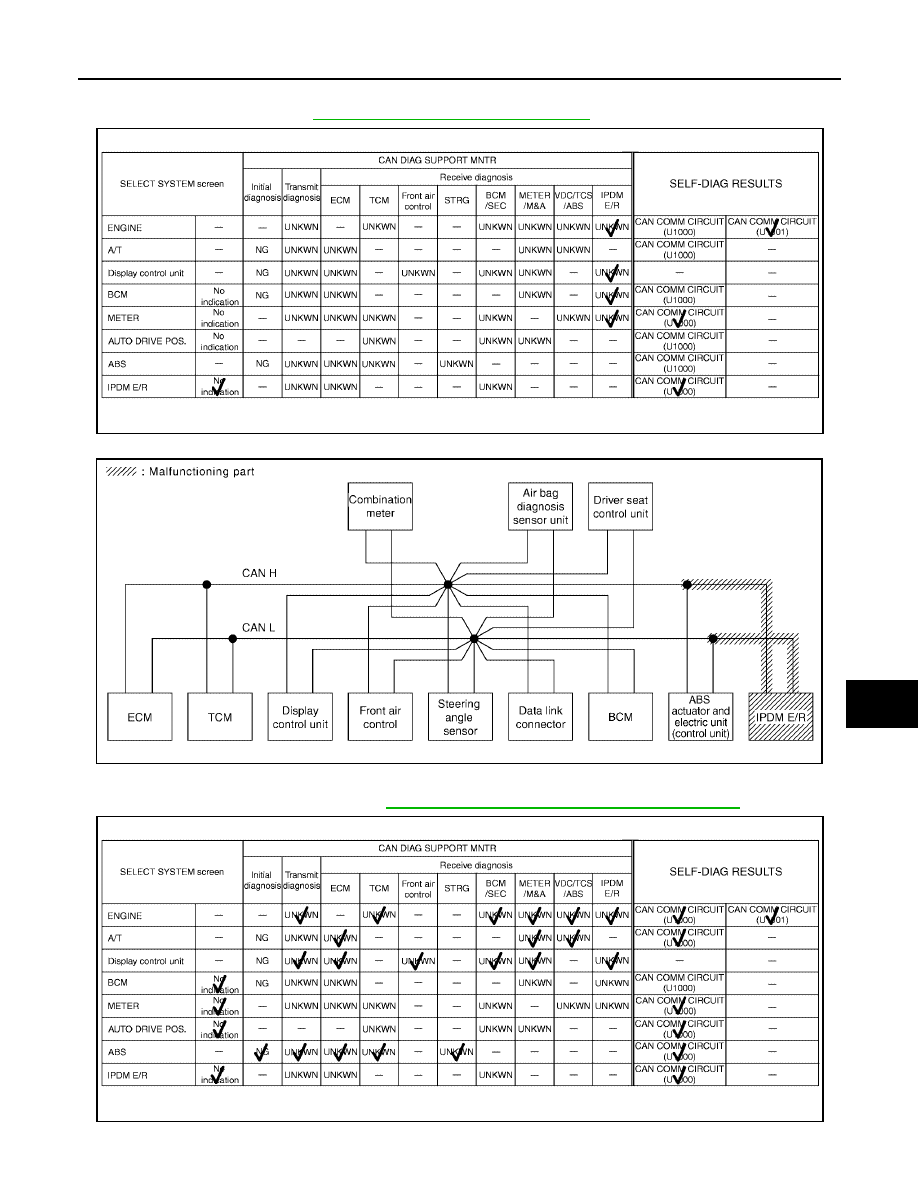

Check IPDM E/R circuit. Refer to

LAN-203, "IPDM E/R Circuit Inspection"

 .

Case 14

Check CAN communication circuit. Refer to

LAN-203, "CAN Communication Circuit Inspection"

 .

PKIC5669E

PKIC5447E

PKIC5670E

LAN-100

[CAN]

CAN SYSTEM (TYPE 4)

2006 Pathfinder

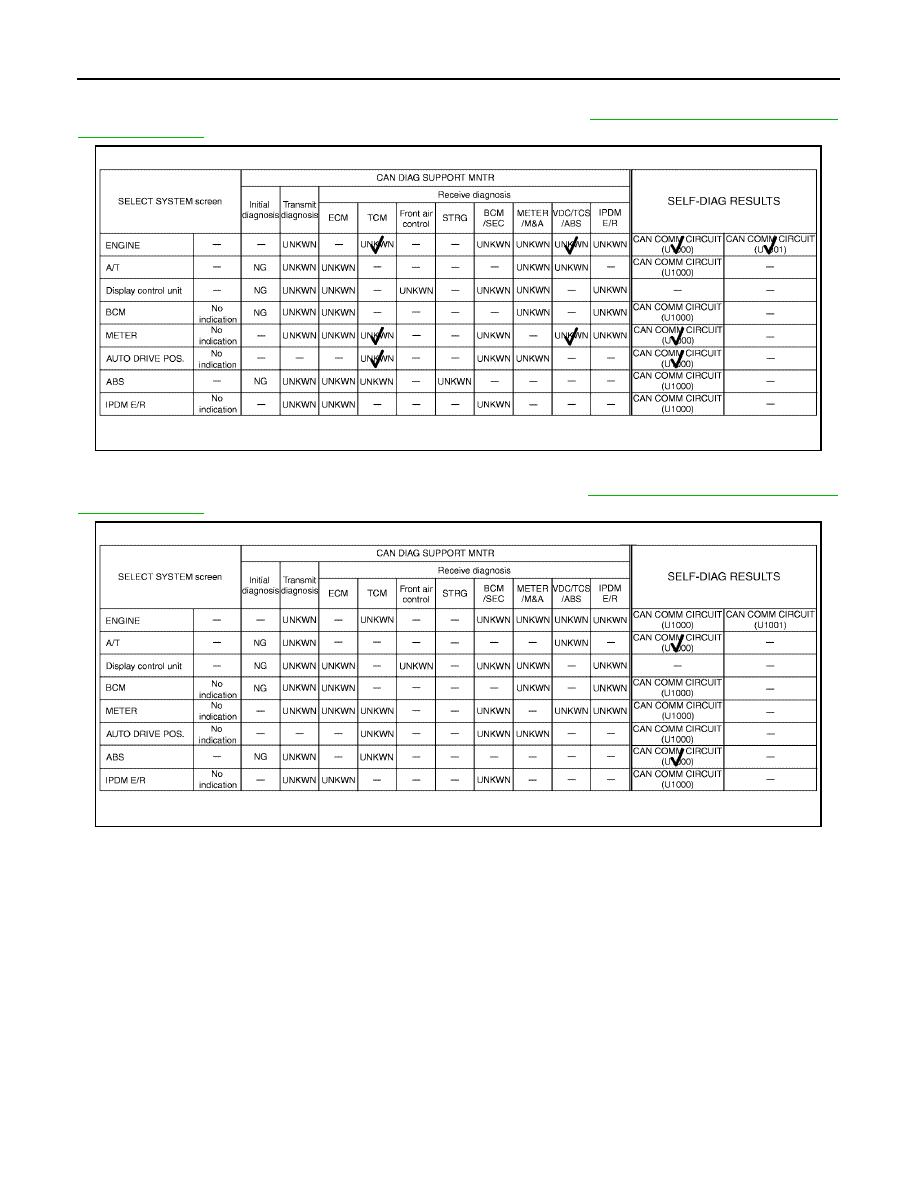

Case 15

Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to

LAN-204, "IPDM E/R Ignition Relay

Circuit Inspection"

 .

Case 16

Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to

LAN-204, "IPDM E/R Ignition Relay

Circuit Inspection"

 .

PKIC5671E

PKIC5672E

CAN SYSTEM (TYPE 5)

LAN-101

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

CAN SYSTEM (TYPE 5)

PFP:23710

Component Parts and Harness Connector Location

UKS0053I

Refer to

LAN-25, "Component Parts and Harness Connector Location"

 .

Schematic

UKS0053J

Refer to

LAN-26, "Schematic"

 .

Wiring Diagram — CAN —

UKS0053K

Refer to

LAN-27, "Wiring Diagram — CAN —"

 .

LAN-102

[CAN]

CAN SYSTEM (TYPE 5)

2006 Pathfinder

Check Sheet

UKS0053L

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

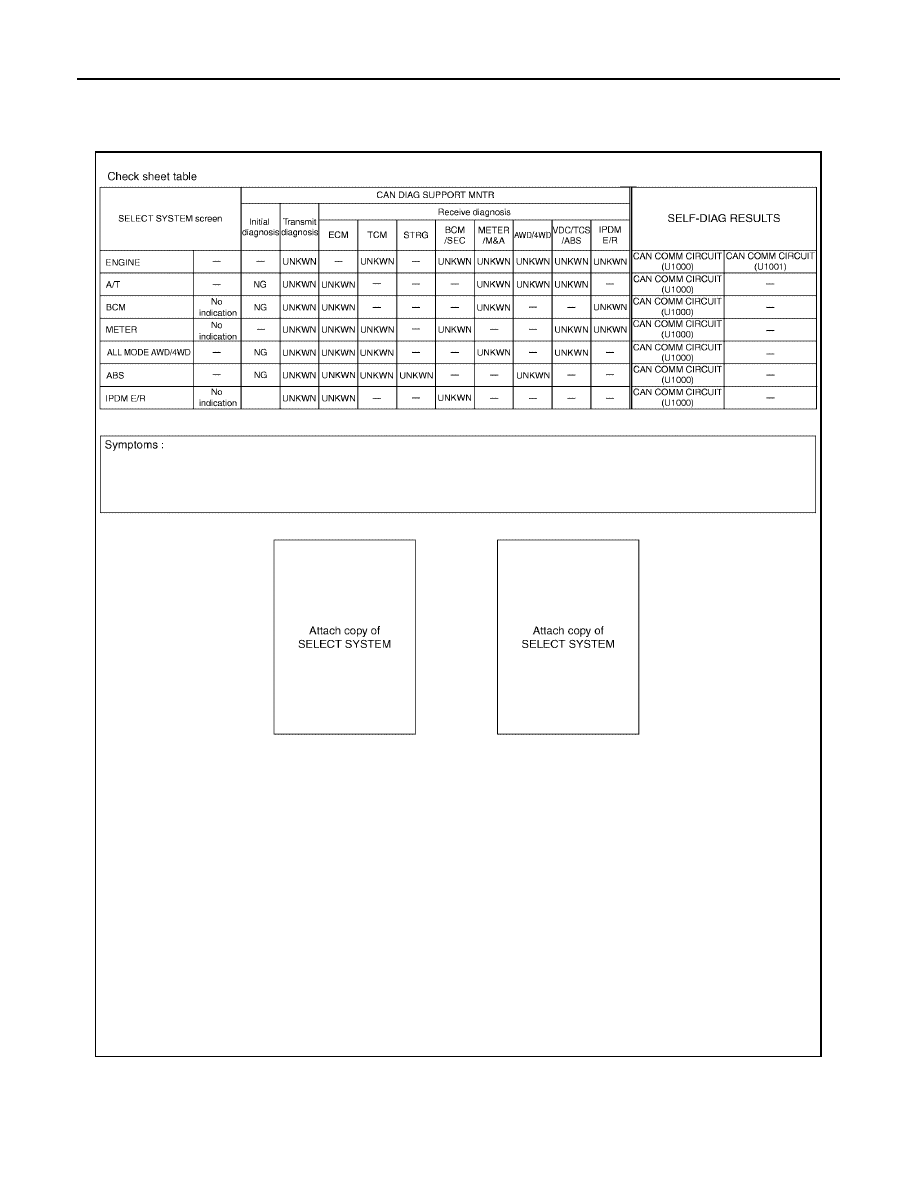

PKIC5673E

CAN SYSTEM (TYPE 5)

LAN-103

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

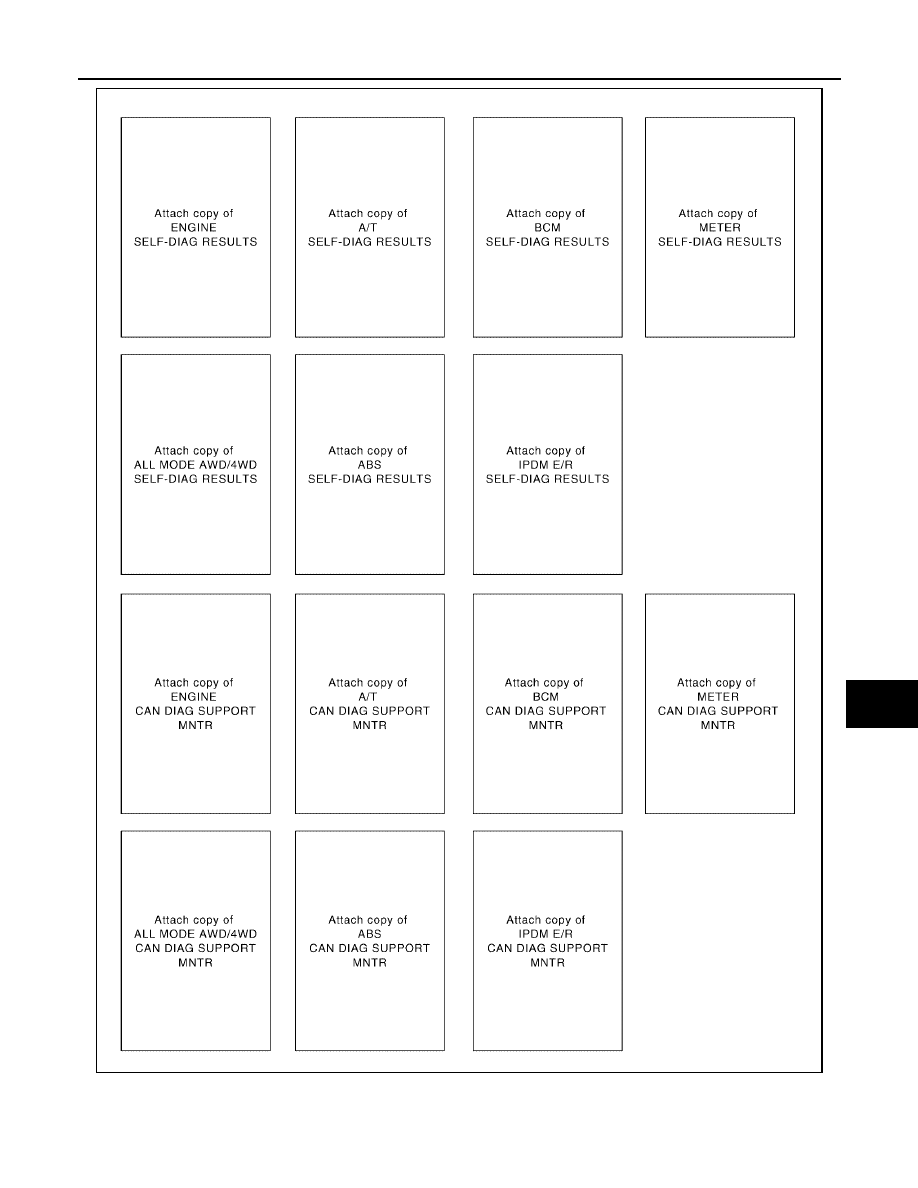

PKIC7066E

LAN-104

[CAN]

CAN SYSTEM (TYPE 5)

2006 Pathfinder

CHECK SHEET RESULTS (EXAMPLE)

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

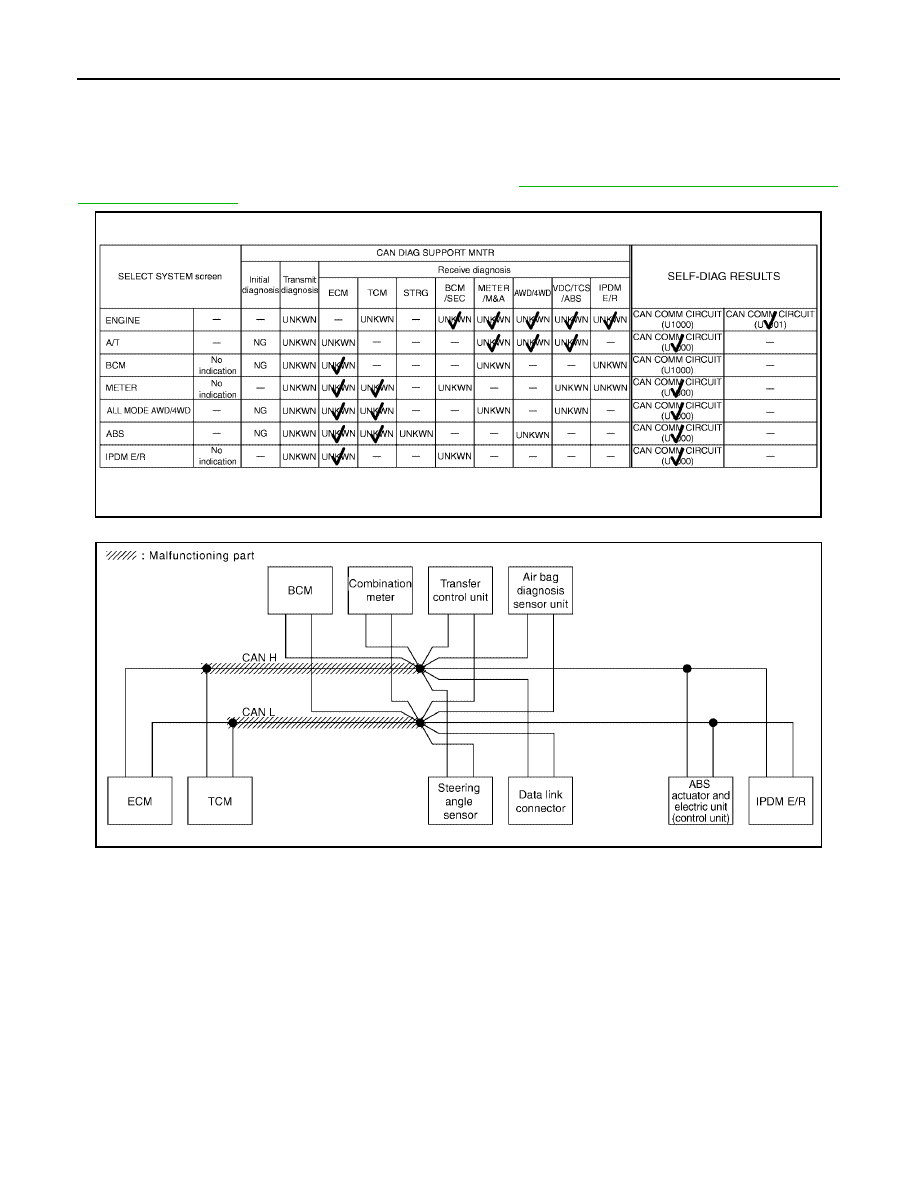

Case 1

Check harness between TCM and data link connector. Refer to

LAN-195, "Inspection Between TCM and Data

Link Connector Circuit"

 .

PKIC5674E

PKIC5448E
