Remove lower cylinder block and bearings, and using scale on
plastigage bag, measure the plastigage width.

NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the “Method by Calculation”.

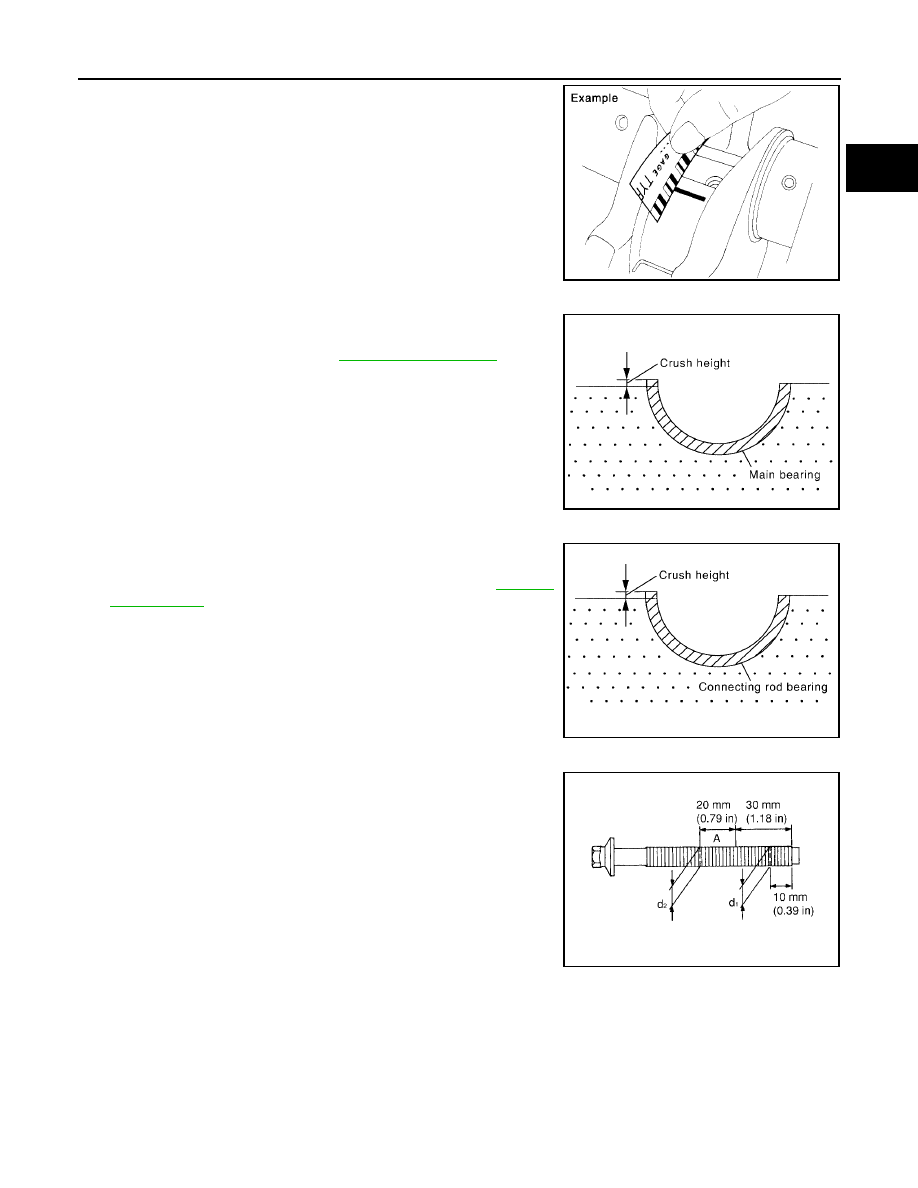

CRUSH HEIGHT OF MAIN BEARING

When lower cylinder block is removed after being tightened to
the specified torque with main bearings installed, the tip end of
bearing must protrude. Refer to

EM-112, "ASSEMBLY"

  for the

tightening procedure.

If the standard is not met, replace main bearings.

CRUSH HEIGHT OF CONNECTING ROD BEARING

When connecting rod bearing cap is removed after being tight-
ened to the specified torque with connecting rod bearings
installed, the tip end of bearing must protrude. Refer to

EM-112,

"ASSEMBLY"

  for the tightening procedure.

If the standard is not met, replace connecting rod bearings.

LOWER CYLINDER BLOCK BOLT OUTER DIAMETER

Measure the outer diameters (“d

1

 ”, “d

2

 ”) at two positions as

shown.

If reduction appears in “A” range, regard it as “d

2

 ”.

If it exceeds the limit (large difference in dimensions), replace
lower cylinder block bolt with new one.

PBIC1149E

Standard

: There must be crush height.

SEM502G

Standard

: There must be crush height.

PBIC1646E

Limit (“d

1

 ” – “d

2

 ”)

: 0.11 mm (0.0051 in)

PBIC0911E

EM-132

CYLINDER BLOCK

2006 Pathfinder

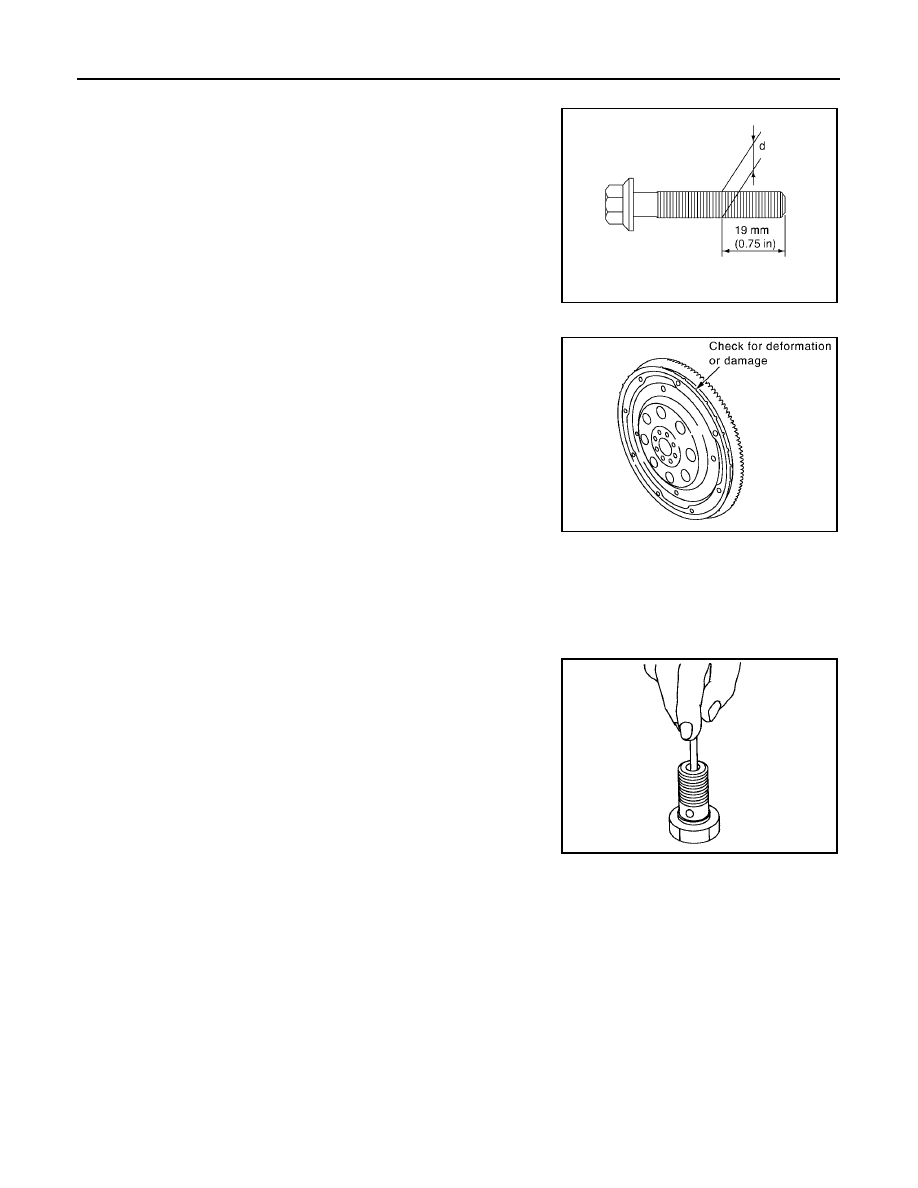

CONNECTING ROD BOLT OUTER DIAMETER

Measure the outer diameter “d” at position shown.

If the reduction appears in a position other than “d”, regard it as
“d”.

When “d” exceeds the limit (when it becomes thinner), replace
connecting rod bolt with new one.

DRIVE PLATE

Check drive plate and signal plate for deformation or cracks.

CAUTION:

Do not disassemble drive plate.

Do not place drive plate with signal plate facing down.

When handling signal plate, take care not to damage or
scratch it.

Handle signal plate in a manner that prevents it from
becoming magnetized.

If anything is found, replace drive plate.

OIL JET

Check nozzle for deformation and damage.

Blow compressed air from nozzle, and check for clogs.

If it is not satisfied, clean or replace oil jet.

OIL JET RELIEF VALVE

Using clean plastic stick, press check valve in oil jet relief valve.
Make sure that valve moves smoothly with proper reaction
force.

If it is not satisfied, replace oil jet relief valve.

Limit

: 7.75 mm (0.3051 in)

PBIC0912E

PBIC2938E

EMU0468D

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-133

C

D

E

F

G

H

I

J

K

L

M

A

EM

2006 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00100

Standard and Limit

EBS00QCD

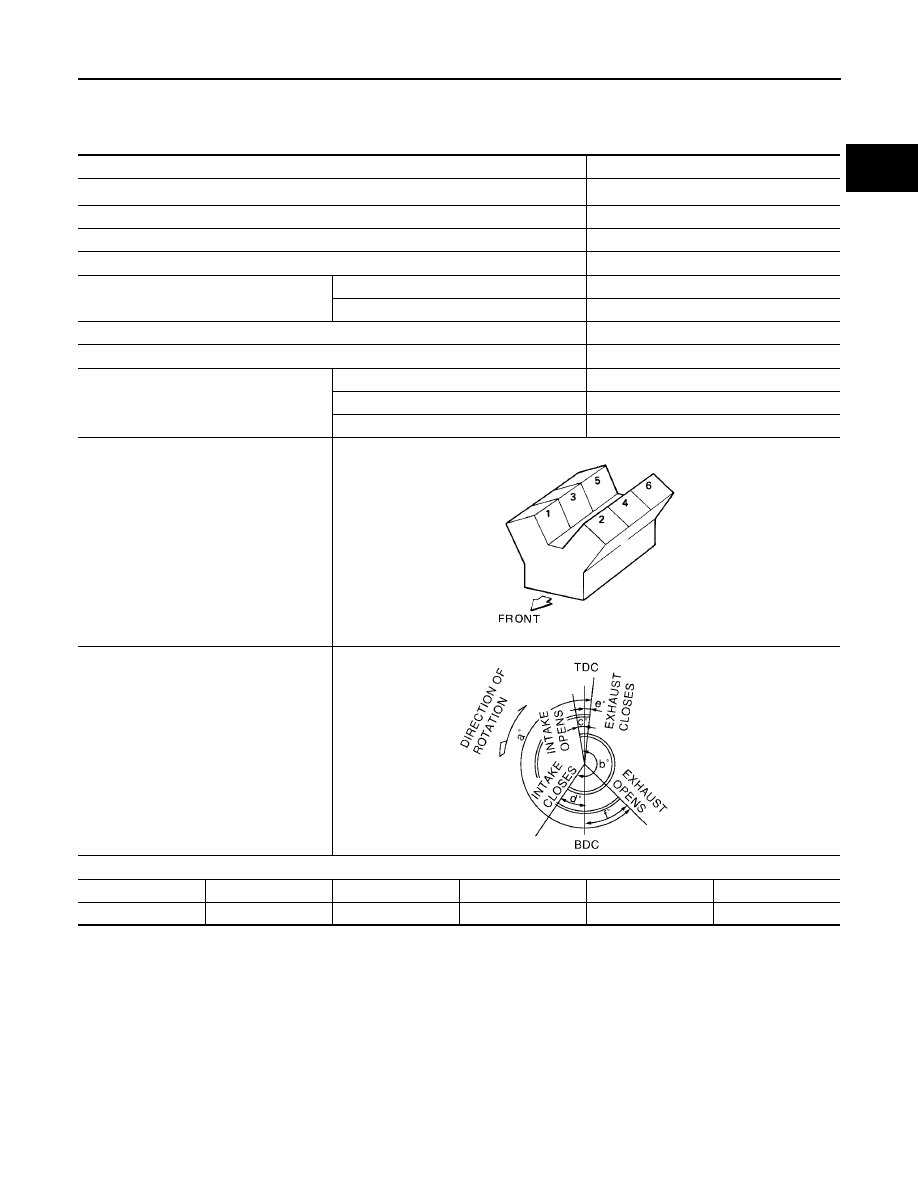

GENERAL SPECIFICATIONS

Cylinder arrangement

V-6

Displacement

cm

3

 (cu in)

3,954 (241.30)

Bore and stroke

mm (in)

95.5

×

 92.0 (3.76

×

 3.622)

Valve arrangement

DOHC

Firing order

1-2-3-4-5-6

Number of piston rings

Compression

2

Oil

1

Number of main bearings

4

Compression ratio

9.7

Compression pressure

kPa (kg/cm

2

 , psi)/300 rpm

Standard

1,275 (13.0, 185)

Minimum

981 (10.0, 142)

Differential limit between cylinders

98 (1.0, 14)

Cylinder number

Valve timing
(Intake valve timing control - “OFF”)

Unit: degree

a

b

c

d

e

f

244

240

4

64

6

58

SEM713A

PBIC0187E

EM-134

SERVICE DATA AND SPECIFICATIONS (SDS)

2006 Pathfinder

DRIVE BELT

INTAKE MANIFOLD COLLECTOR, INTAKE MANIFOLD AND EXHAUST MANIFOLD

Unit: mm (in)

SPARK PLUG

Tension of drive belts

Auto adjustment by auto tensioner

Items

                                Limit

Surface distortion

Intake manifold

0.1 (0.004)

Exhaust manifold

0.3 (0.012)

Make

NGK

Standard type

PLFR5A-11

Hot type

PLFR4A-11

Cold type

PLFR6A-11

Gap (nominal)

1.1 mm (0.043 in)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-135

C

D

E

F

G

H

I

J

K

L

M

A

EM

2006 Pathfinder

CAMSHAFT AND CAMSHAFT BEARING

Unit: mm (in)

*

1

 : Total indicator reading

Valve Lifter

Unit: mm (in)

Valve Clearance

Unit: mm (in)

*: Approximately 80

°

C (176

°

F)

Items

Standard

Limit

Camshaft journal oil clearance

No. 1

0.045 - 0.086 (0.0018 - 0.0034)

0.15 (0.0059)

No. 2, 3, 4

0.035 - 0.076 (0.0014 - 0.0030)

Camshaft bracket inner diameter

No. 1

26.000 - 26.021 (1.0236 - 1.0244)

No. 2, 3, 4

23.500 - 23.521 (0.9252 - 0.9260)

Camshaft journal diameter

No. 1

25.935 - 25.955 (1.0211 - 1.0218)

No. 2, 3, 4

23.445 - 23.465 (0.9230 - 0.9238)

Camshaft end play

0.115 - 0.188 (0.0045 - 0.0074)

0.24 (0.0094)

Camshaft cam height “A”

Intake

45.465 - 45.655 (1.7900 - 1.7921)

45.265 (1.7821)

Exhaust

45.075 - 45.265 (1.7746 - 1.7821)

44.875 (1.7667)

Camshaft runout [TIR*

1

 ]

Less than 0.02 mm (0.001)

0.05 (0.002)

Camshaft sprocket runout [TIR*

2

 ]

0.15 (0.0059)

SEM671

Items

Standard

Valve lifter outer diameter

33.977 - 33.987 (1.3377 - 1.3381)

Valve lifter hole diameter

34.000 - 34.016 (1.3386 - 1.3392)

Valve lifter clearance

0.013 - 0.039 (0.0005 - 0.0015)

Items

Cold

Hot* (reference data)

Intake

0.26 - 0.34 (0.010 - 0.013)

0.304 - 0.416 (0.012 - 0.016)

Exhaust

0.29 - 0.37 (0.011 - 0.015)

0.308 - 0.432 (0.012 - 0.017)

EM-136

SERVICE DATA AND SPECIFICATIONS (SDS)

2006 Pathfinder

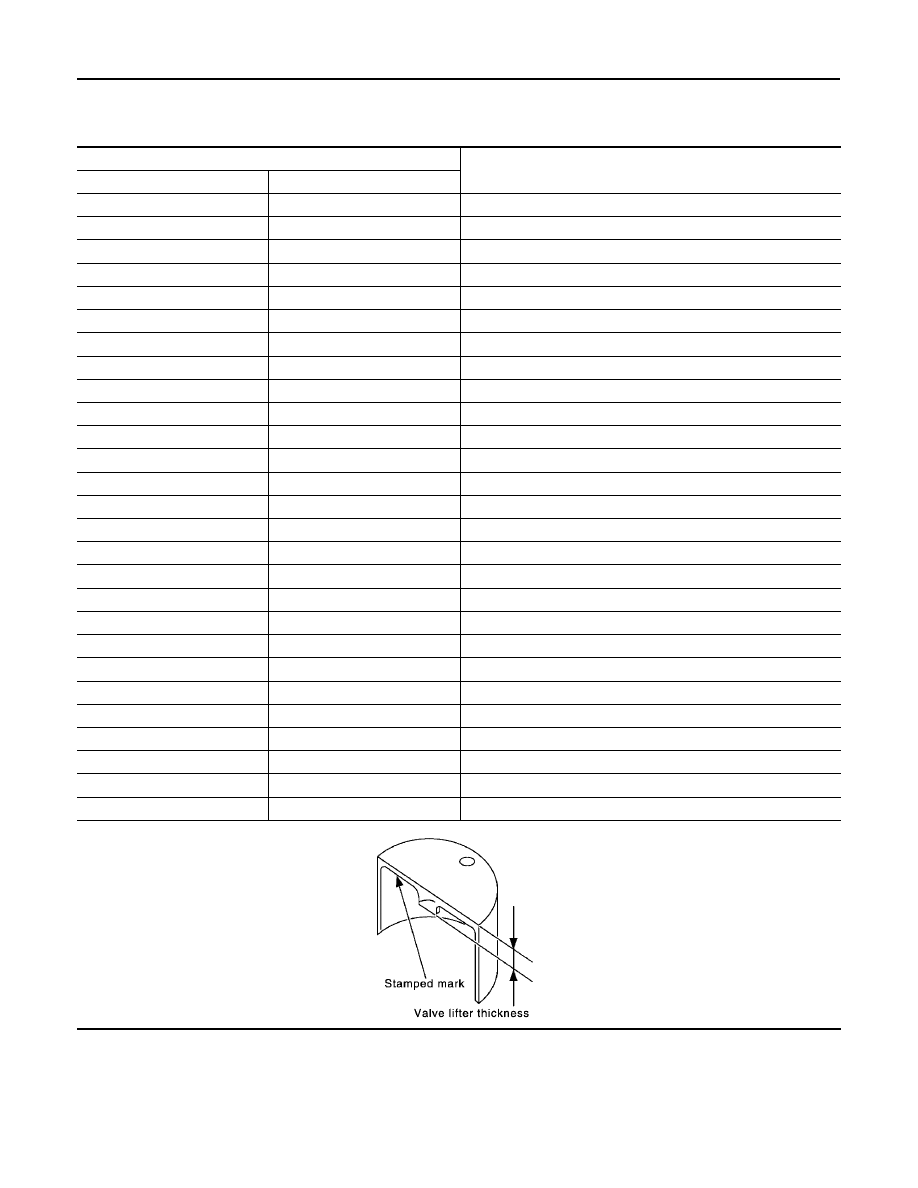

Available Valve Lifter

VQ40DE

Unit: mm (in)

Identification (stamped) mark

Thickness

Intake

Exhaust

788U

N788

7.88 (0.3102)

790U

N790

7.90 (0.3110)

792U

N792

7.92 (0.3118)

794U

N794

7.94 (0.3126)

796U

N796

7.96 (0.3134)

798U

N798

7.98 (0.3142)

800U

N800

8.00 (0.3150)

802U

N802

8.02 (0.3157)

804U

N804

8.04 (0.3165)

806U

N806

8.06 (0.3173)

808U

N808

8.08 (0.3181)

810U

N810

8.10 (0.3189)

812U

N812

8.12 (0.3197)

814U

N814

8.14 (0.3205)

816U

N816

8.16 (0.3213)

818U

N818

8.18 (0.3220)

820U

N820

8.20 (0.3228)

822U

N822

8.22 (0.3236)

824U

N824

8.24 (0.3244)

826U

N826

8.26 (0.3252)

828U

N828

8.28 (0.3260)

830U

N830

8.30 (0.3268)

832U N832

8.32

(0.3276)

834U

N834

8.34 (0.3283)

836U

N836

8.36 (0.3291)

838U

8.38 (0.3299)

840U

8.40 (0.3307)

SEM758G

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-137

C

D

E

F

G

H

I

J

K

L

M

A

EM

2006 Pathfinder

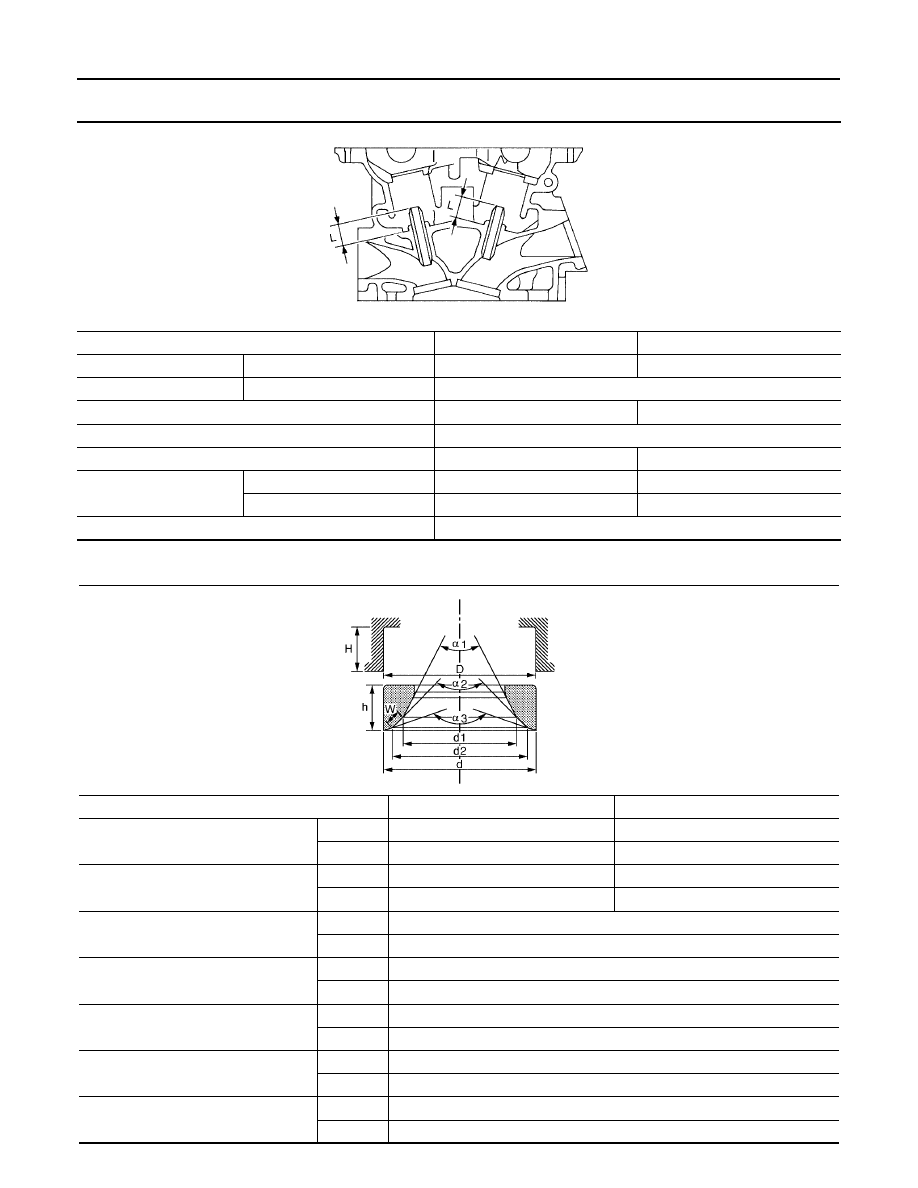

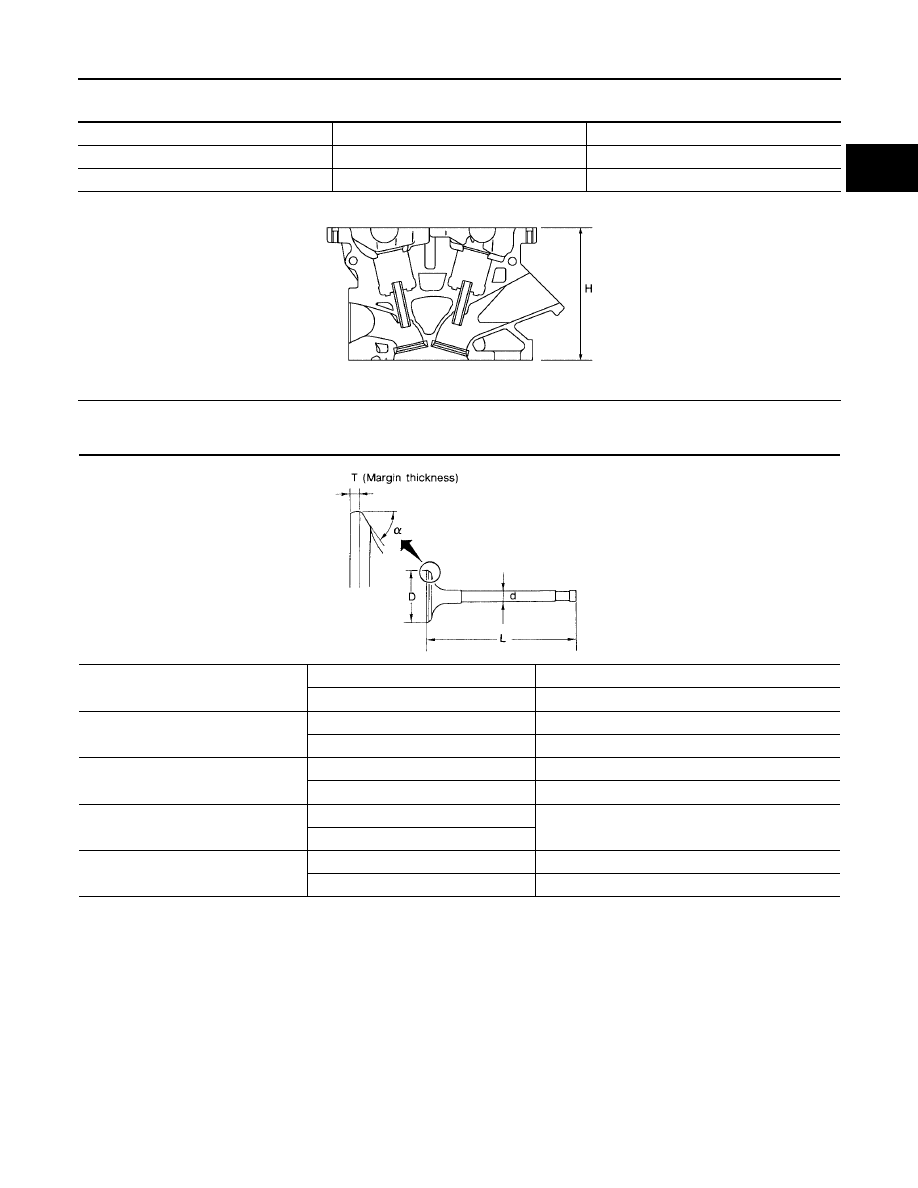

CYLINDER HEAD

Unit: mm (in)

Valve Dimensions

Unit: mm (in)

Items

Standard

Limit

Head surface distortion

Less than 0.03 (0.0012)

0.1 (0.004)

Normal cylinder head height “H”

126.3 - 126.5 (4.972 - 4.980)

PBIC0924E

Valve head diameter “D”

Intake

37.0 - 37.3 (1.4567 - 1.4685)

Exhaust

31.2 - 31.5 (1.228 - 1.240)

Valve length “L”

Intake

96.46 (3.7976)

Exhaust

93.99 (3.7004)

Valve stem diameter “d”

Intake

5.965 - 5.980 (0.2348 - 0.2354)

Exhaust

5.955 - 5.970 (0.2344 - 0.2350)

Valve seat angle “

α

Intake

45

°

15

 - 45

°

45

Exhaust

Valve margin “T”

Intake

1.1 (0.043)

Exhaust

1.3 (0.051)

SEM188

EM-138

SERVICE DATA AND SPECIFICATIONS (SDS)

2006 Pathfinder

Valve Guide

Unit: mm (in)

Valve Seat

Unit: mm (in)

Items

Standard

0.2 (0.008) oversize (Service)

Valve guide

Outer diameter

10.023 - 10.034 (0.3946 - 0.3950)

10.223 - 10.234 (0.4025 - 0.4029)

Inner diameter (Finished size)

6.000 - 6.018 (0.2362 - 0.2369)

Cylinder head valve guide hole diameter

9.975 - 9.996 (0.3927 - 0.3935)

10.175 - 10.196 (0.4006 - 0.4014)

Interference fit of valve guide

0.027 - 0.059 (0.0011 - 0.0023)

Items

Standard

Limit

Valve guide clearance

Intake

0.020 - 0.053 (0.0008 - 0.0021)

0.08 (0.003)

Exhaust

0.030 - 0.063 (0.0012 - 0.0025)

0.09 (0.004)

Projection length “L”

12.6 - 12.8 (0.496 - 0.504)

SEM950E

Items

Standard

Oversize [0.5 (0.02)] (Service)

Cylinder head seat recess diameter “D”

Intake

38.000 - 38.016 (1.4961 - 1.4967)

38.500 - 38.516 (1.5157 - 1.5164)

Exhaust

32.200 - 32.216 (1.2677 - 1.2683)

32.700 - 32.716 (1.2874 - 1.2880)

Valve seat outer diameter “d”

Intake

38.097 - 38.113 (1.4999 - 1.5005)

38.597 - 38.613 (1.5196 - 1.5202)

Exhaust

32.280 - 32.296 (1.2709 - 1.2715)

32.780 - 32.796 (1.2905 - 1.2912)

Valve seat interference fit

Intake

0.081 - 0.113 (0.0032 - 0.0044)

Exhaust

0.064 - 0.096 (0.0025 - 0.0038)

Diameter “d1”*

1

Intake

35 (1.38)

Exhaust

28.7 (1.130)

Diameter “d2”*

2

Intake

36.3 - 36.8 (1.429 - 1.449)

Exhaust

30.3 - 30.8 (1.193 - 1.213)

Angle “

α

1”

Intake

60

°

Exhaust

60

°

Angle “

α

2”

Intake

88

°

45

 - 90

°

15

Exhaust

88

°

45

 - 90

°

15

PBIC2745E
