PRECAUTIONS

2006 Pathfinder

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EBS00T2W

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

●

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

●

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

●

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for Drain Engine Coolant

EBS00QB8

Drain engine coolant when engine is cooled.

Precautions for Disconnecting Fuel Piping

EBS00QB9

●

Before starting work, make sure no fire or spark producing items are in the work area.

●

Release fuel pressure before disconnecting and disassembly.

●

After disconnecting pipes, plug openings to stop fuel leakage.

Precautions for Removal and Disassembly

EBS00QBA

●

When instructed to use SST, use specified tools. Always be careful to work safely, avoid forceful or unin-
structed operations.

●

Exercise maximum care to avoid damage to mating or sliding surfaces.

●

Cover openings of engine system with tape or equivalent, if necessary, to seal out foreign materials.

●

Mark and arrange disassembly parts in an organized way for easy troubleshooting and re-assembly.

●

When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be
used in the step.

Precautions for Inspection, Repair and Replacement

EBS00QBB

Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.

Precautions for Assembly and Installation

EBS00QBC

●

Use torque wrench to tighten bolts or nuts to specification.

●

When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the
ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is speci-
fied, do exactly as specified.

●

Replace with new gasket, packing, oil seal or O-ring.

●

Thoroughly wash, clean, and air-blow each part. Carefully check engine oil or engine coolant passages for
any restriction and blockage.

●

Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.
Before assembly, oil sliding surfaces well.

●

Release air within route when refilling after draining engine coolant.

PRECAUTIONS

EM-5

C

D

E

F

G

H

I

J

K

L

M

A

EM

2006 Pathfinder

●

After repairing, start engine and increase engine speed to check engine coolant, fuel, engine oil, and
exhaust gasses for leakage.

Parts Requiring Angle Tightening

EBS00QBD

●

For the final tightening of the following engine parts use Tool:

–

Cylinder head bolts

–

Lower cylinder block bolts

–

Connecting rod cap bolts

–

Crankshaft pulley bolt (No angle wrench is required as bolt flange is provided with notches for angle tight-
ening)

●

Do not use a torque value for final tightening.

●

The torque value for these parts are for a preliminary step.

●

Ensure thread and seat surfaces are clean and coated with engine oil.

Precautions for Liquid Gasket

EBS00QBE

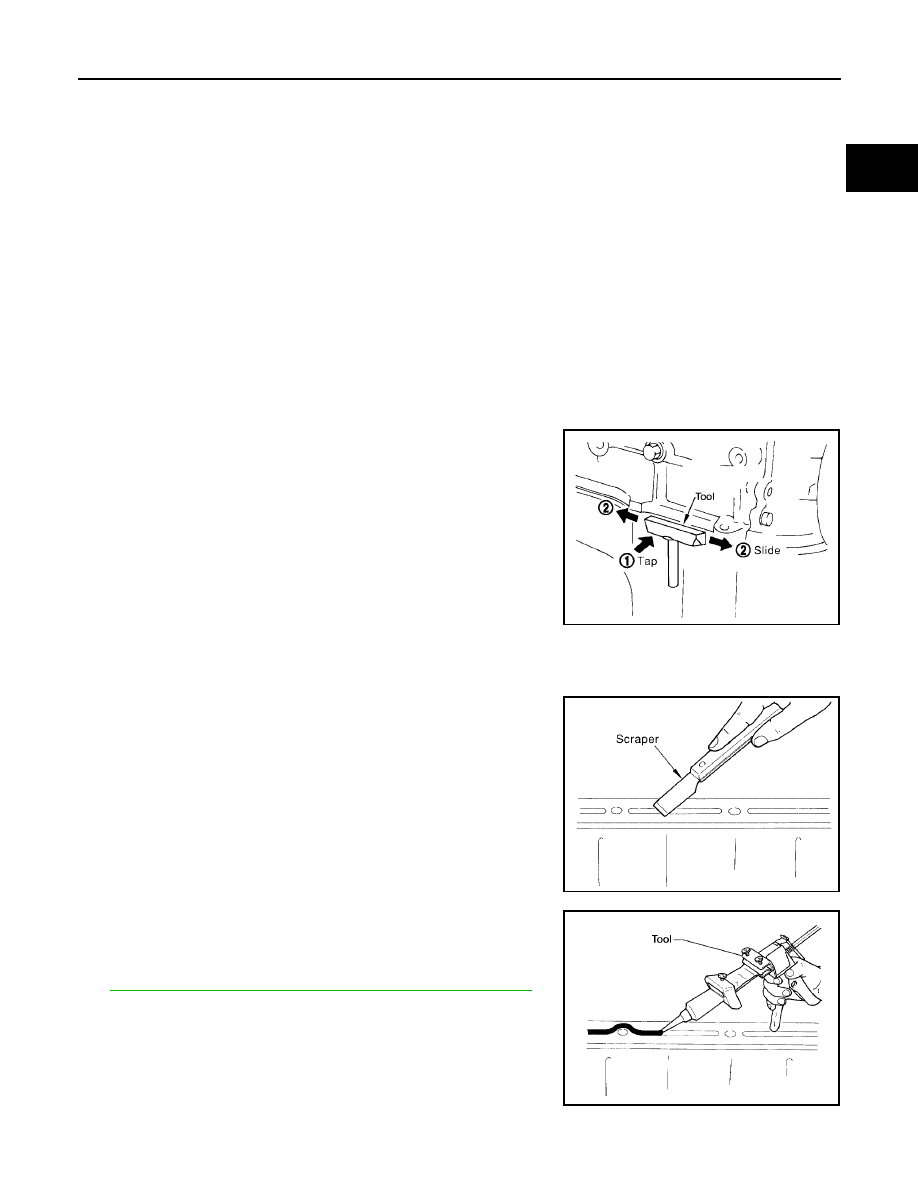

REMOVAL OF LIQUID GASKET SEALING

●

After removing nuts and bolts, separate the mating surface and
remove old liquid gasket sealing using Tool.

CAUTION:

Be careful not to damage the mating surfaces.

●

Tap seal cutter to insert it, and then slide it by tapping on the
side as shown.

●

In areas where Tool is difficult to use, use plastic hammer to
lightly tap the parts, to remove it.

CAUTION:

If for some unavoidable reason tool such as screwdriver is
used, be careful not to damage the mating surfaces.

LIQUID GASKET APPLICATION PROCEDURE

1.

Using scraper, remove old liquid gasket adhering to the gasket
application surface and the mating surface.

●

Remove liquid gasket completely from the groove of the gas-
ket application surface, bolts, and bolt holes.

2.

Thoroughly clean the mating surfaces and remove adhering
moisture, grease and foreign materials.

3.

Attach liquid gasket tube to Tool.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-47, "Recommended Chemical Products and Sealants"

 .

4.

Apply liquid gasket without breaks to the specified location with
the specified dimensions.

●

If there is a groove for liquid gasket application, apply liquid
gasket to the groove.

Tool number

: KV10112100 (BT-8653-A)

Tool number

: KV10111100 (J-37228)

WBIA0566E

PBIC0003E

Tool number

: WS39930000 (

—

)

WBIA0567E

EM-6

PRECAUTIONS

2006 Pathfinder

●

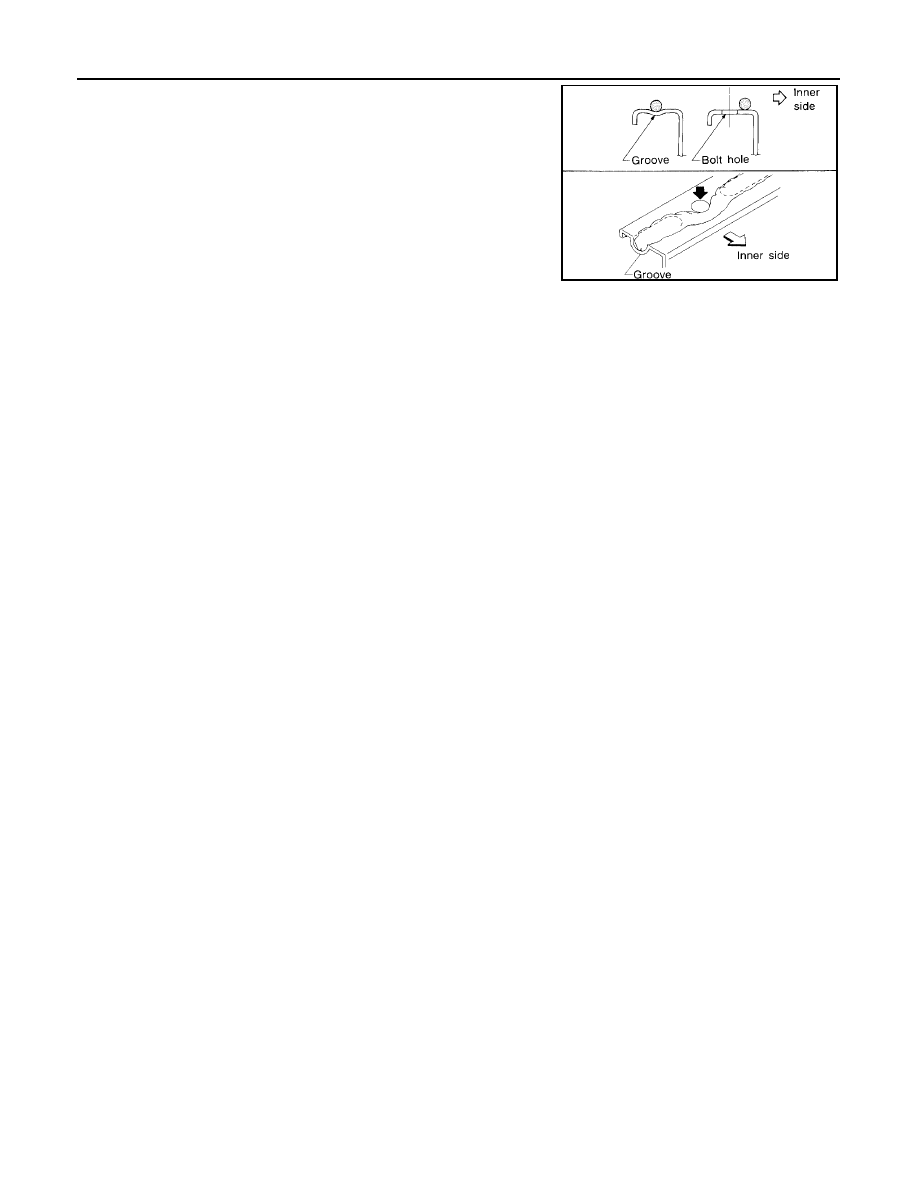

As for bolt holes, normally apply liquid gasket inside the
holes. Occasionally, it should be applied outside the holes.
Make sure to read the text of this manual.

●

Within five minutes of liquid gasket application, install the mat-
ing component.

●

If liquid gasket protrudes, wipe it off immediately.

●

Do not retighten nuts or bolts after the installation.

●

After 30 minutes or more have passed from the installation, fill
engine oil and engine coolant.

CAUTION:

If there are specific instructions in this manual, observe
them.

SEM159F

PREPARATION

EM-7

C

D

E

F

G

H

I

J

K

L

M

A

EM

2006 Pathfinder

PREPARATION

PFP:00002

Special Service Tools

EBS00QBF

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST0501S000
(

—

)

Engine stand assembly
1. ST05011000
(

—

)

Engine stand
2. ST05012000
(

—

)

Base

Disassembling and assembling engine

KV10116200
(J-26336-A)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2.KV10109220
(

—

)

Adapter

Disassembling valve mechanism
Part (1) is a component of KV10116200 (J-
26336-A), but Part (2) is not so.

KV10107902
(J-38959)
Valve oil seal puller

Replacing valve oil seal

—

(J-39386)
Valve oil seal drift

Installing valve oil seal

EM03470000
(J-8037)
Piston ring compressor

Installing piston assembly into cylinder bore

ST16610001
(J-23907)
Pilot bushing puller

Removing pilot converter (A/T models)

NT042

PBIC1650E

NT011

NT024

NT044

NT045

EM-8

PREPARATION

2006 Pathfinder

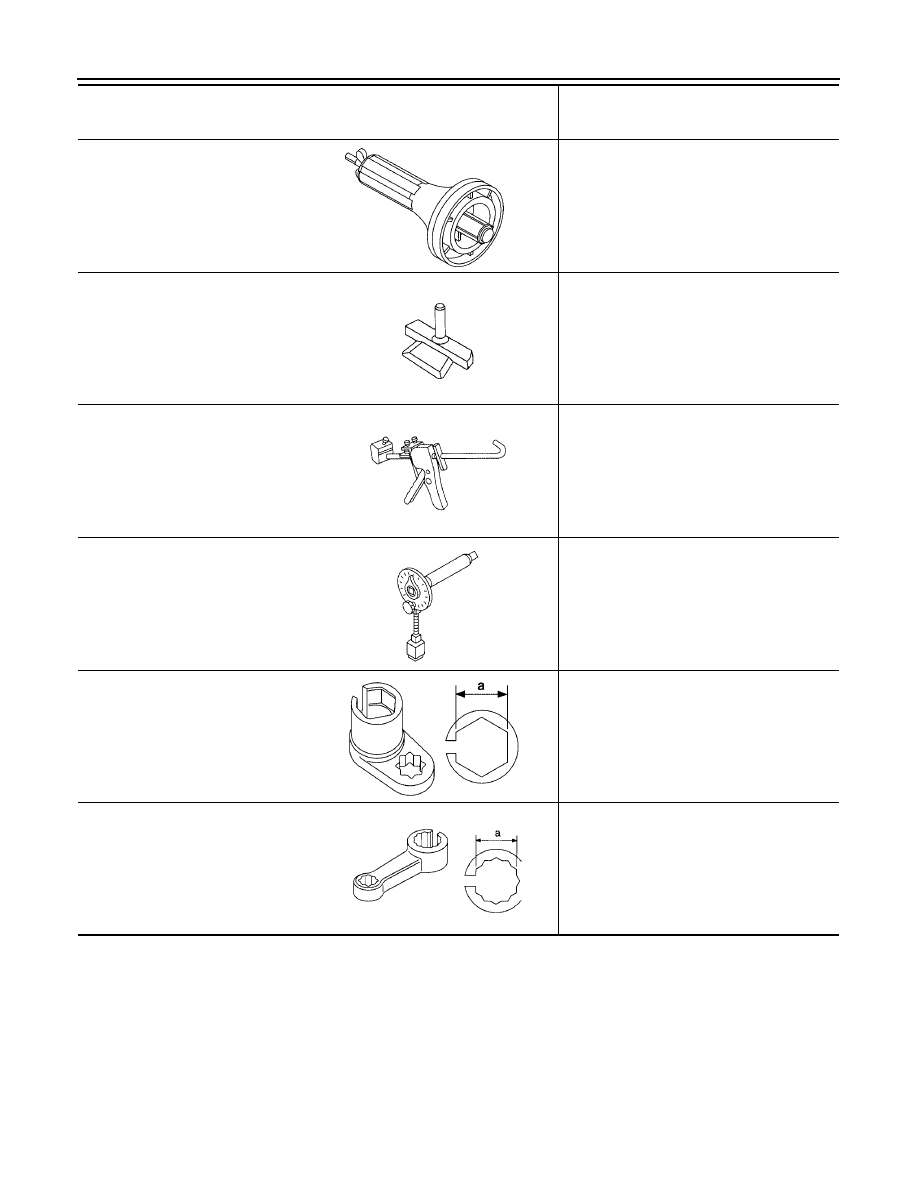

KV991J0120
(J-47128)
Seal installer

Installing rear main seal

KV10111100
(J-37228)
Seal cutter

Removing oil pan (lower and upper), front and
rear timing chain case, etc.

WS39930000
(

—

)

Tube presser

Pressing the tube of liquid gasket

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for bearing cap, cylinder
head, etc. in angle

KV991J0050
(J-44626)
Air fuel sensor Socket

Loosening or tightening air fuel ratio A/F sen-
sor
a: 22 mm (0.87 in)

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 1
a: 22 mm (0.87 in)

Tool number
(Kent-Moore No.)
Tool name

Description

LBIA0452E

NT046

NT052

NT014

LBIA0444E

NT636

PREPARATION

EM-9

C

D

E

F

G

H

I

J

K

L

M

A

EM

2006 Pathfinder

Commercial Service Tools

EBS00QBG

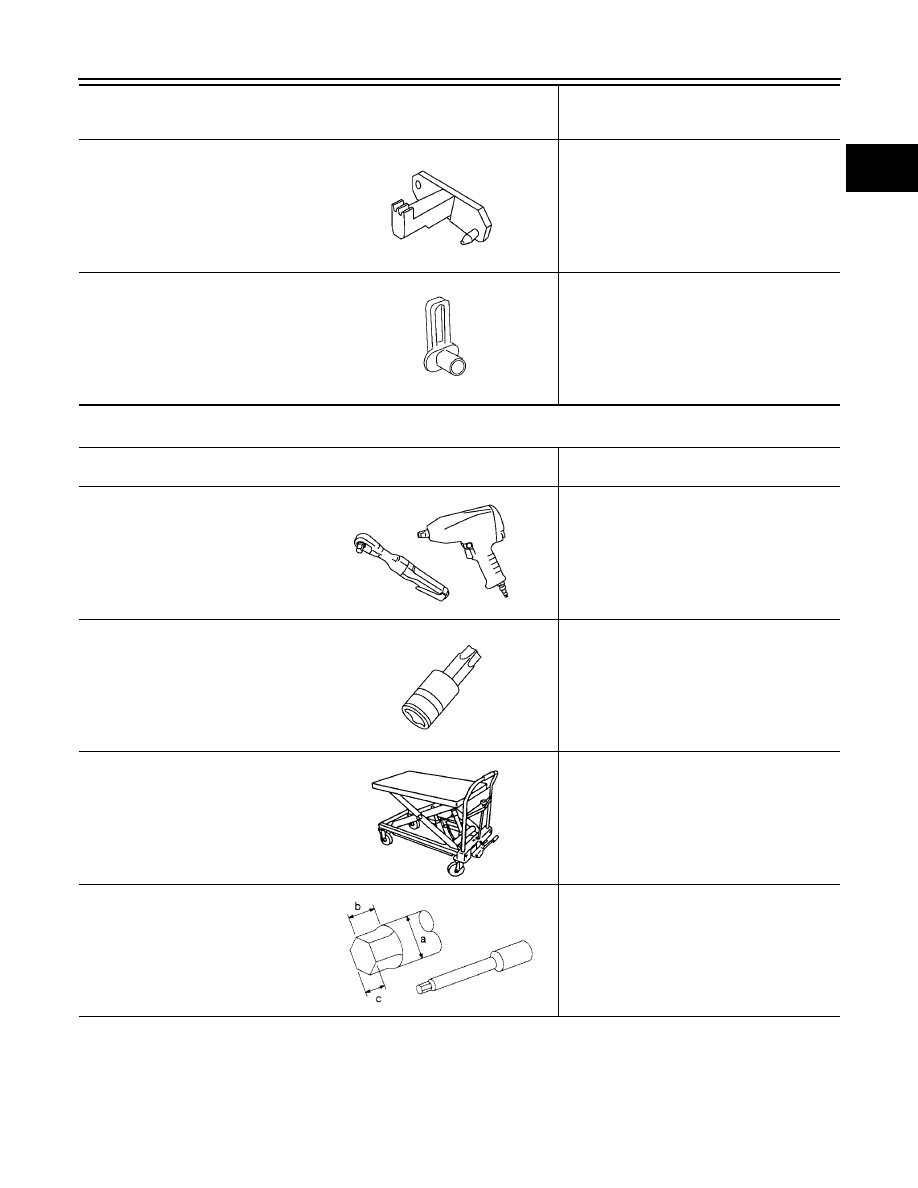

KV10117700
(J-44716)
Ring gear stopper

Removing and installing crankshaft pulley

—

(J-45488)
Quick connector release

Removing fuel tube quick connectors in en-
gine room
(Available in SEC. 164 of PARTS CATALOG:
Part No. 16441 6N210)

Tool number
(Kent-Moore No.)
Tool name

Description

NT822

PBIC0198E

(Kent-Moore No.)
Tool name

Description

(

—

)

Power tool

Loosening nuts and bolts

KV991J0100
(J-46531)
TORX socket

Removing and installing flywheel
Size: T55

(

—

)

Manual lift table caddy

Removing and installing engine

(J-24239-01)
Cylinder head bolt wrench

Loosening and tightening cylinder head bolt,
and used with angle wrench [SST:
KV10112100 (BT8653-A)]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)

PBIC0190E

PBIC1113E

ZZA1210D

NT583

EM-10

PREPARATION

2006 Pathfinder

(

—

)

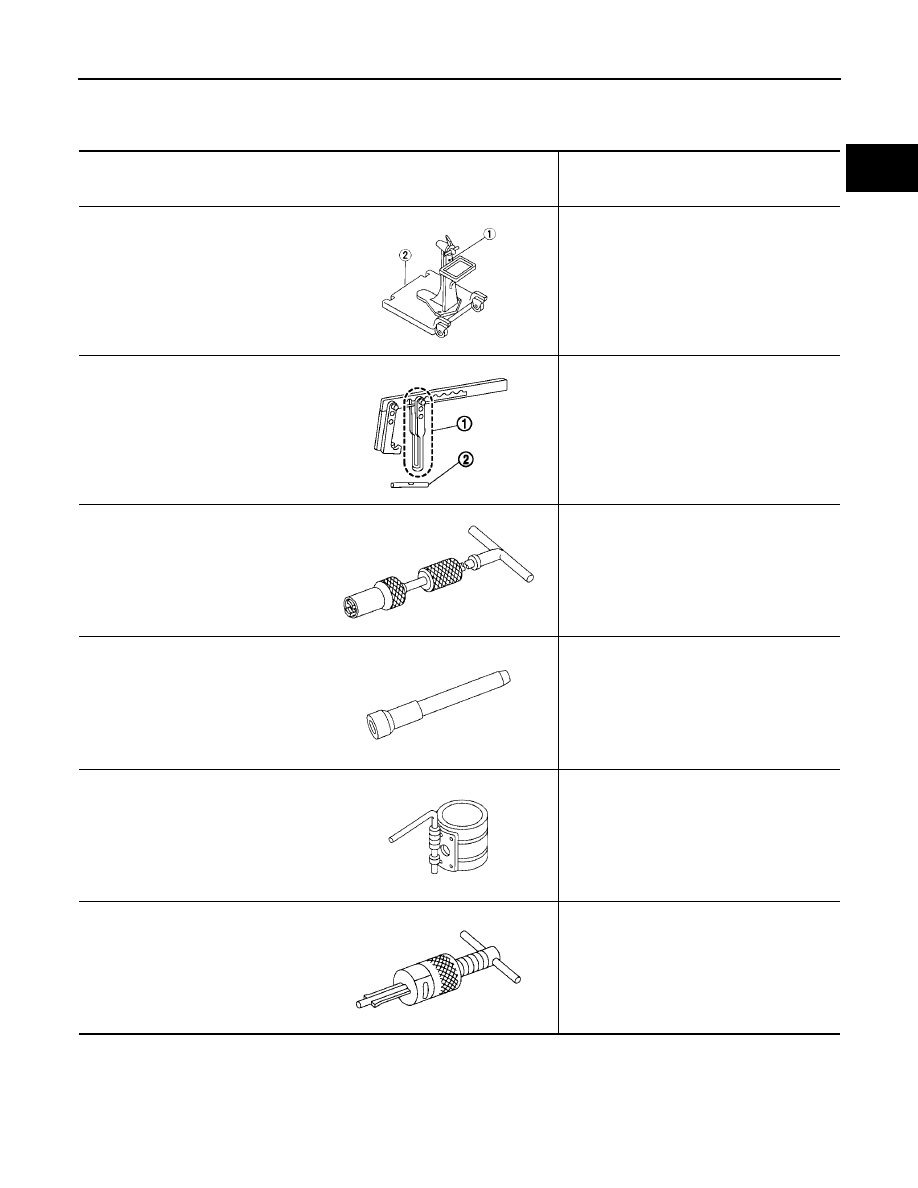

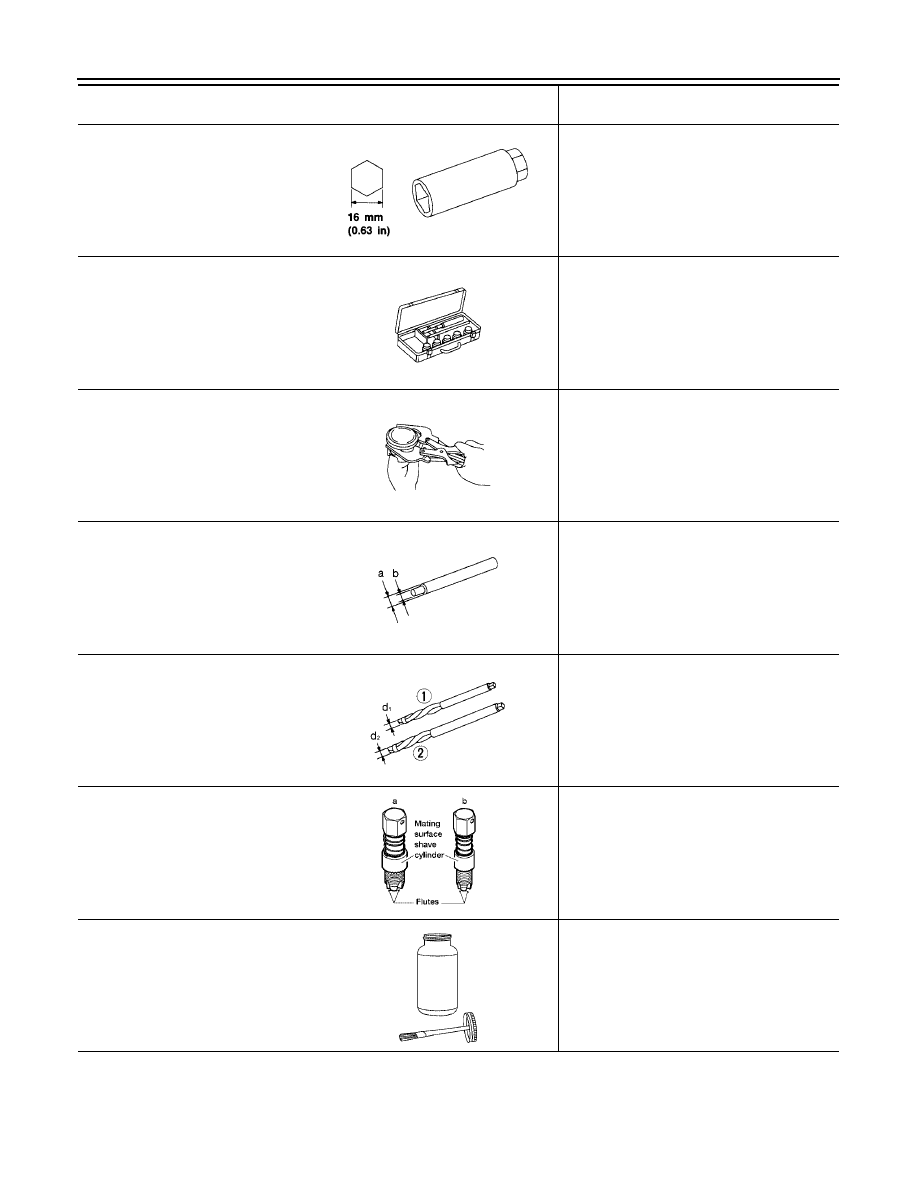

Spark plug wrench
