CLARIFY CONCERN

●

A customer's description of a vehicle concern may vary depend-
ing on the individual. It is important to clarify the customer's con-
cern.

●

Ask the customer about what symptoms are present under what
conditions. Use this information to reproduce the symptom while
driving.

●

It is also important to use the diagnosis sheet to understand
what type of trouble the customer is having.

EXAMPLE OF DIAGNOSIS SHEET

SBR339B

WFIA0097E

BRC-78

[HDC/HSA/VDC/TCS/ABS]

TROUBLE DIAGNOSIS

2006 Pathfinder

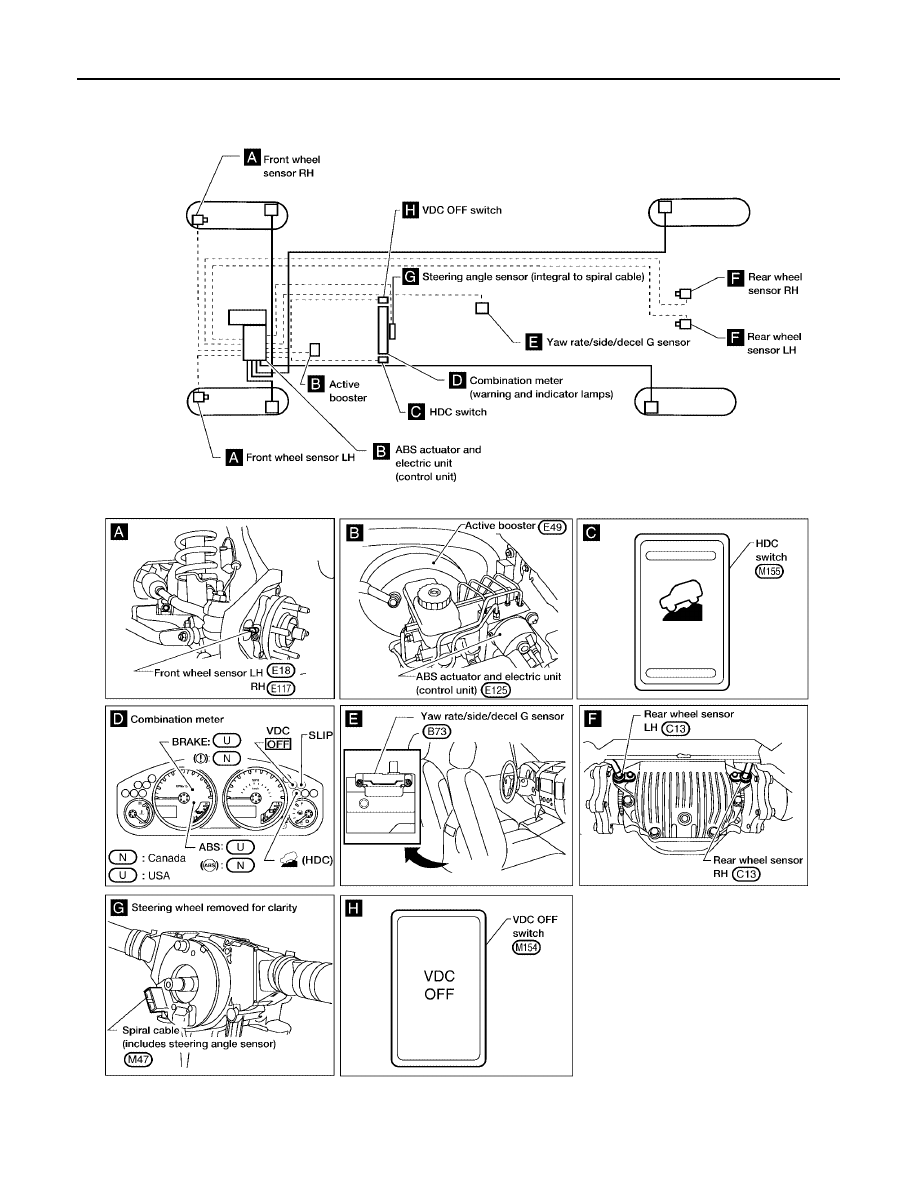

Component Parts and Harness Connector Location

EFS0066L

WFIA0348E

TROUBLE DIAGNOSIS

BRC-79

[HDC/HSA/VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

2006 Pathfinder

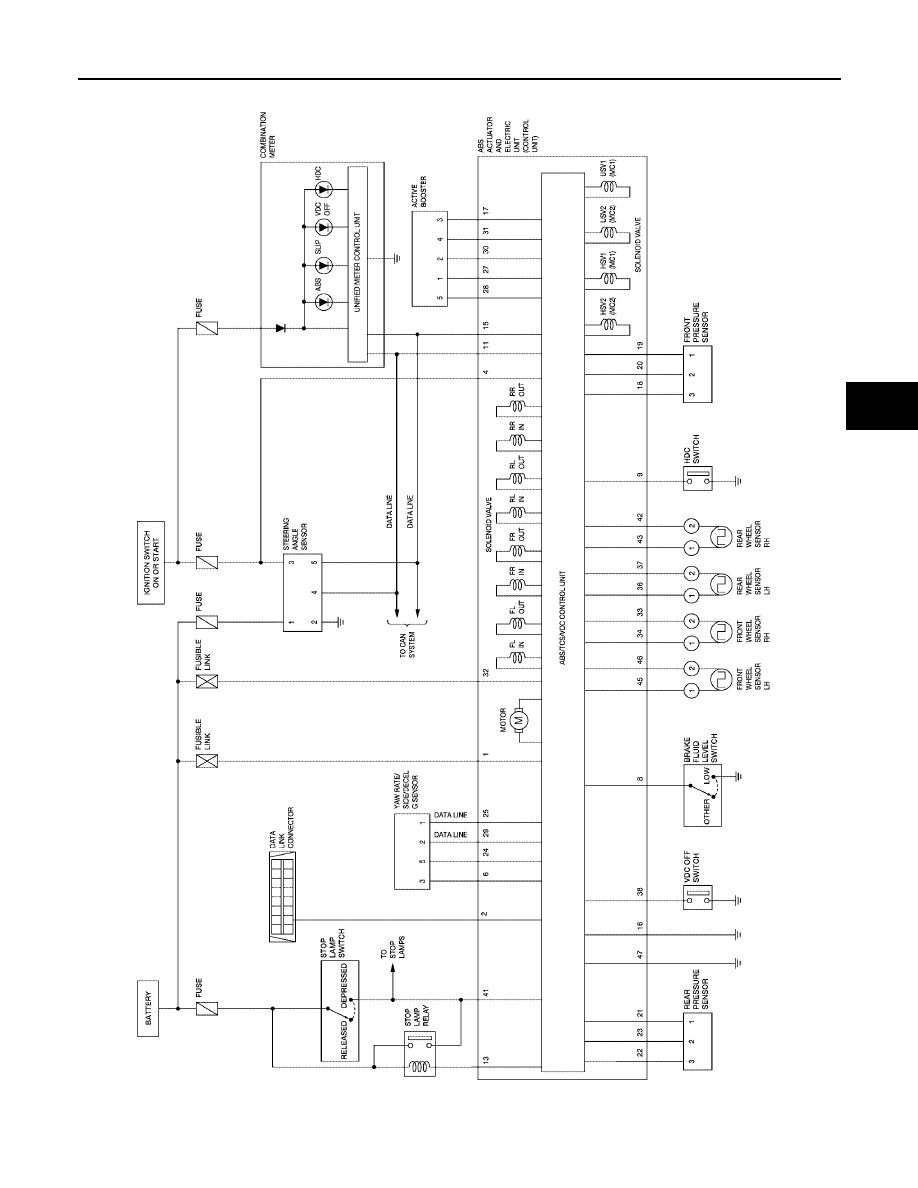

Schematic

EFS0066M

WFWA0369E

BRC-80

[HDC/HSA/VDC/TCS/ABS]

TROUBLE DIAGNOSIS

2006 Pathfinder

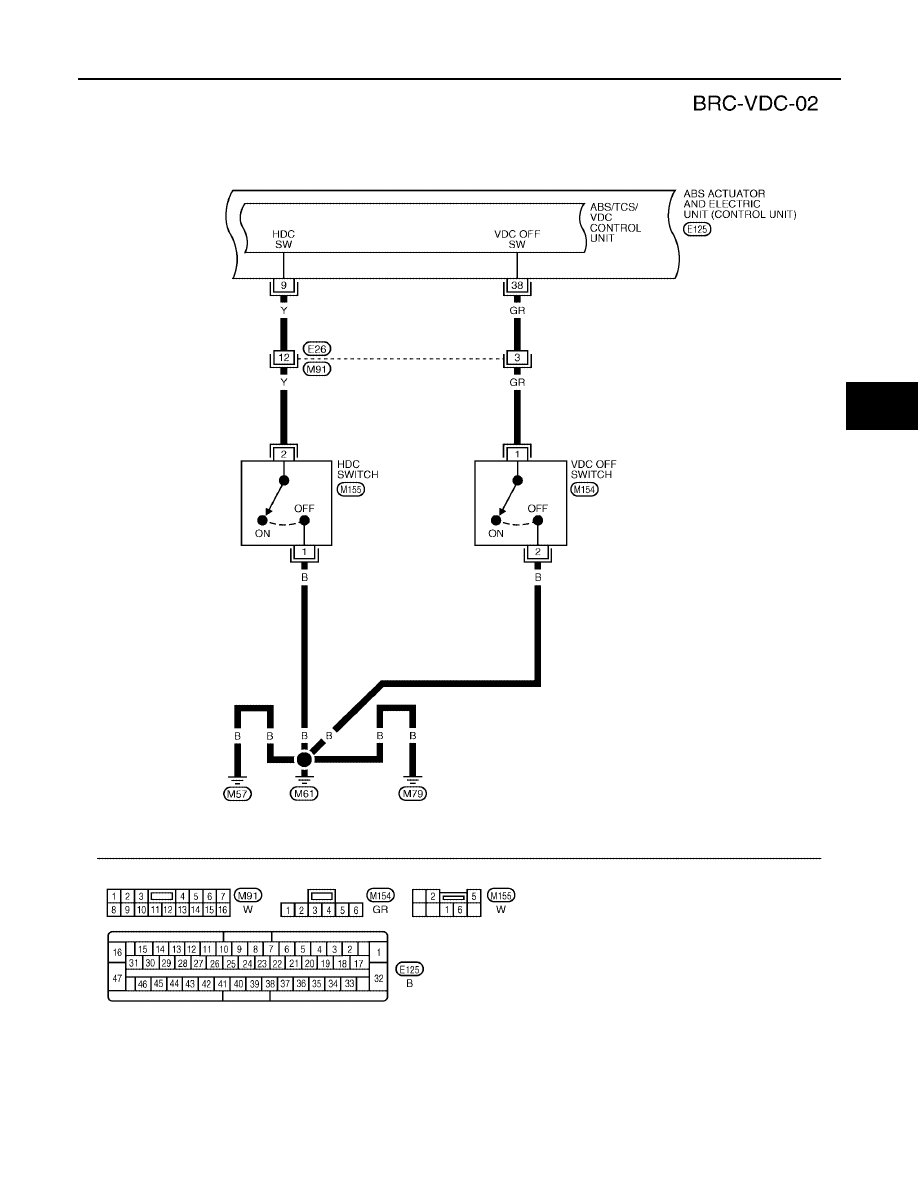

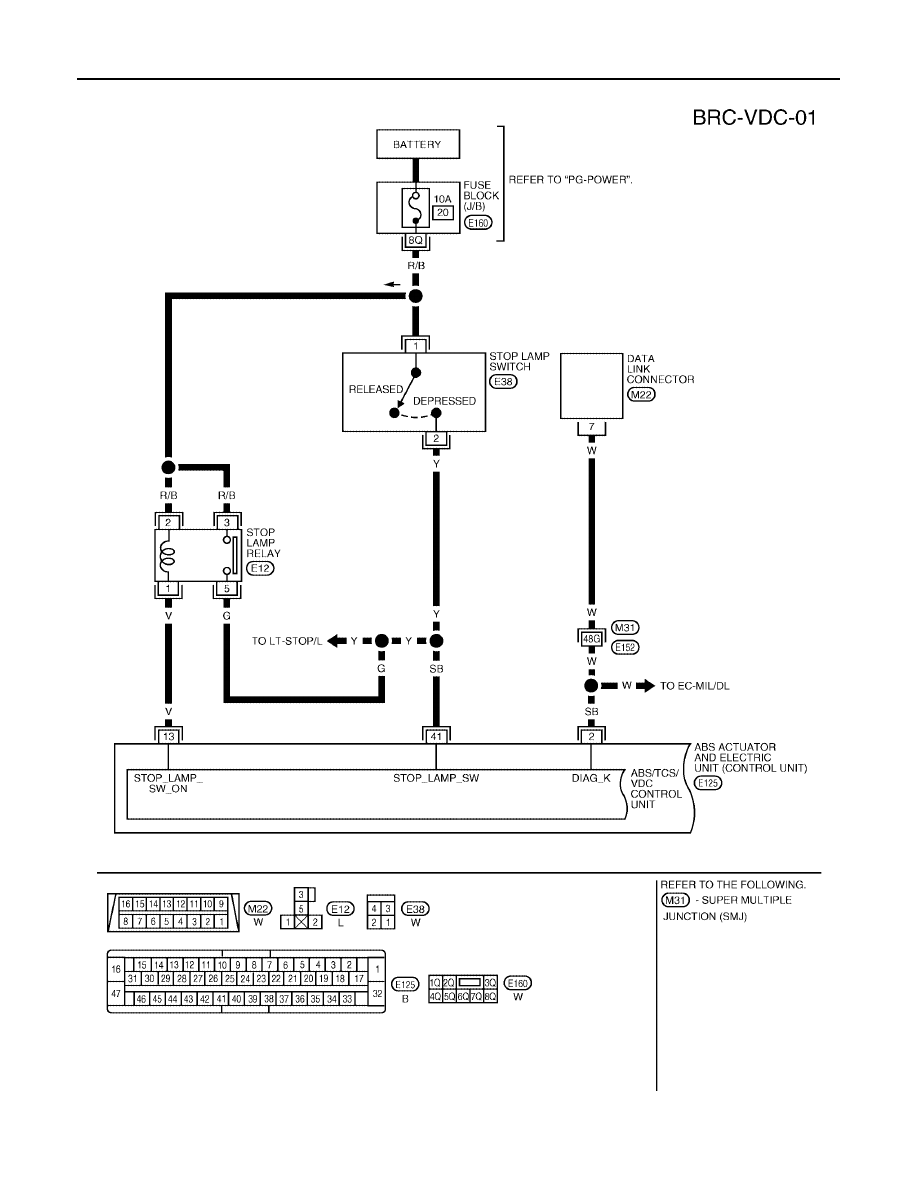

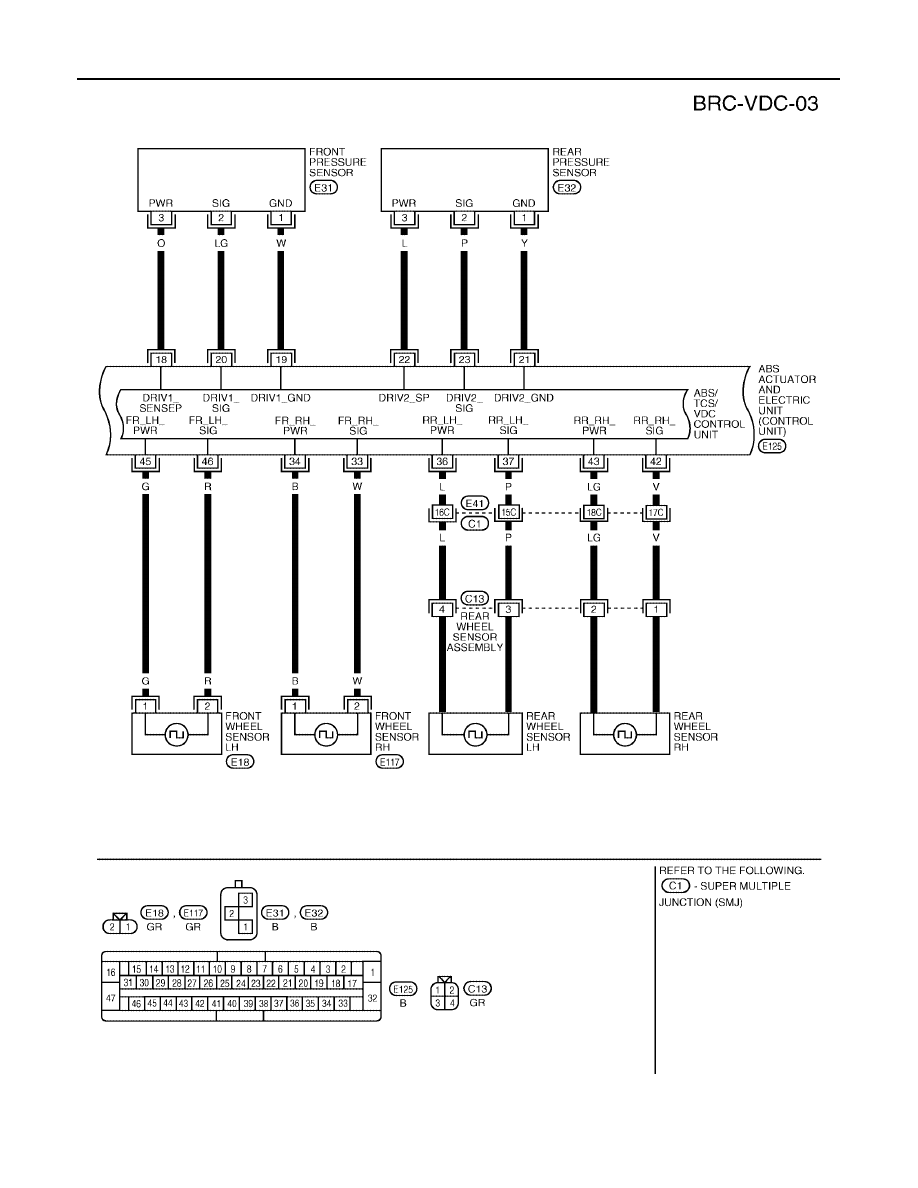

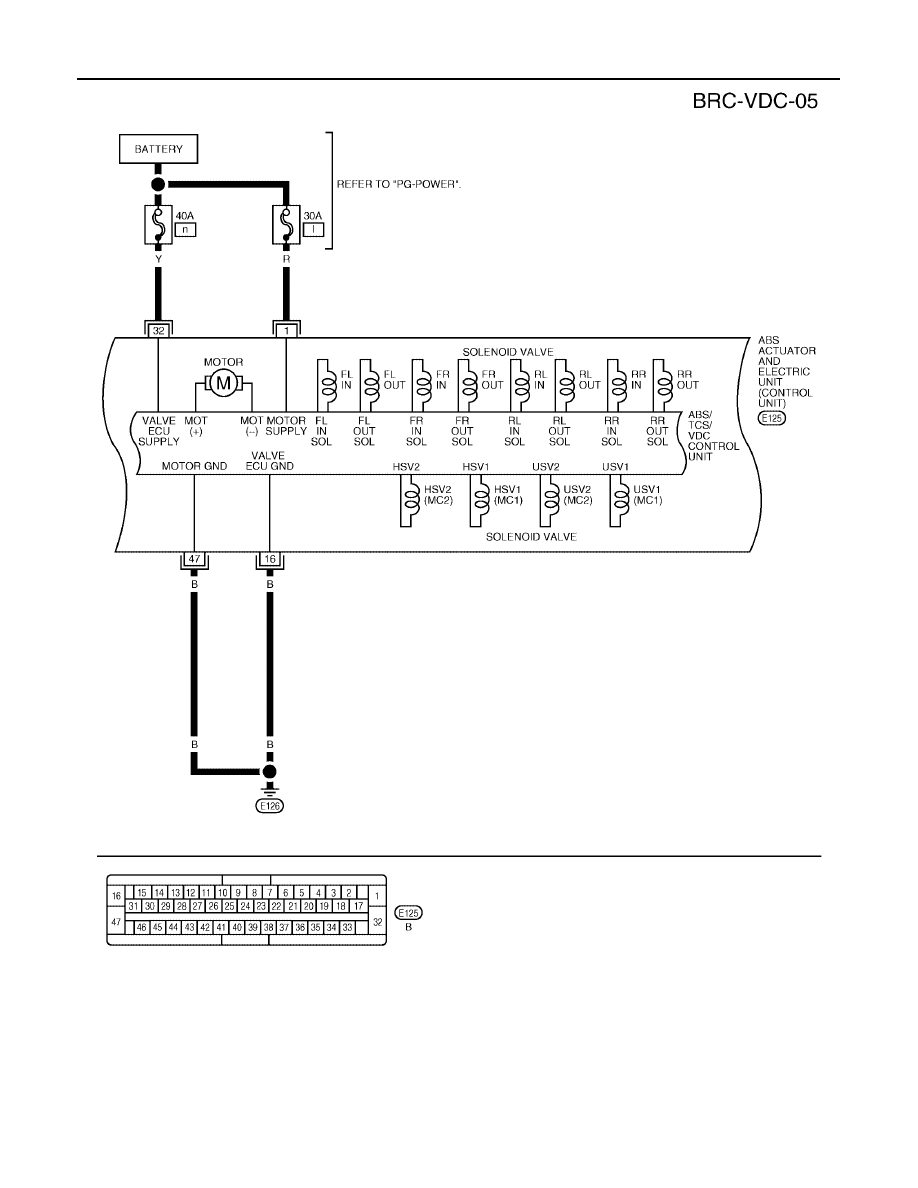

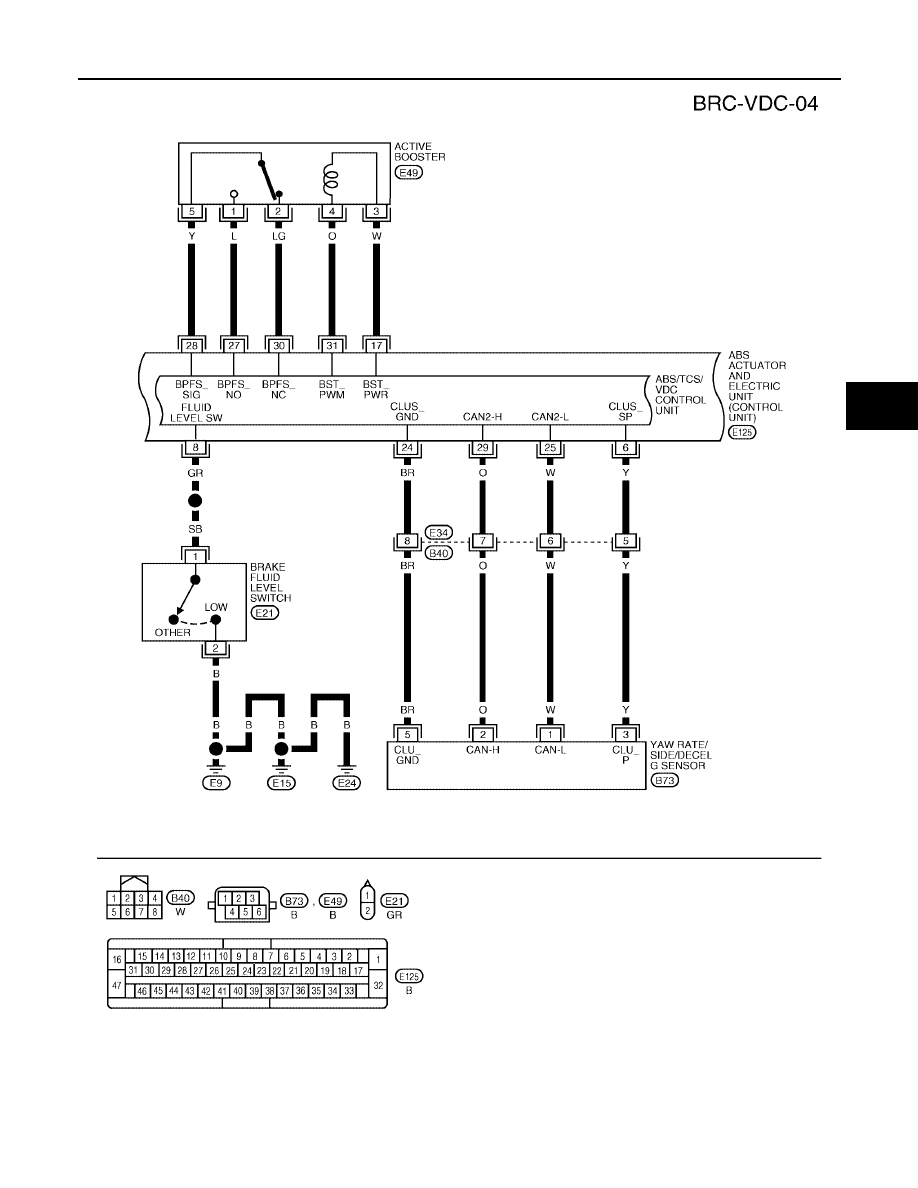

Wiring Diagram — VDC —

EFS0066N

WFWA0370E

TROUBLE DIAGNOSIS

BRC-81

[HDC/HSA/VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

2006 Pathfinder

WFWA0371E

BRC-82

[HDC/HSA/VDC/TCS/ABS]

TROUBLE DIAGNOSIS

2006 Pathfinder

WFWA0372E

TROUBLE DIAGNOSIS

BRC-83

[HDC/HSA/VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

2006 Pathfinder

WFWA0373E

BRC-84

[HDC/HSA/VDC/TCS/ABS]

TROUBLE DIAGNOSIS

2006 Pathfinder

WFWA0374E
