BCM (BODY CONTROL MODULE)

BCS-9

C

D

E

F

G

H

I

J

L

M

A

B

BCS

2006 Pathfinder

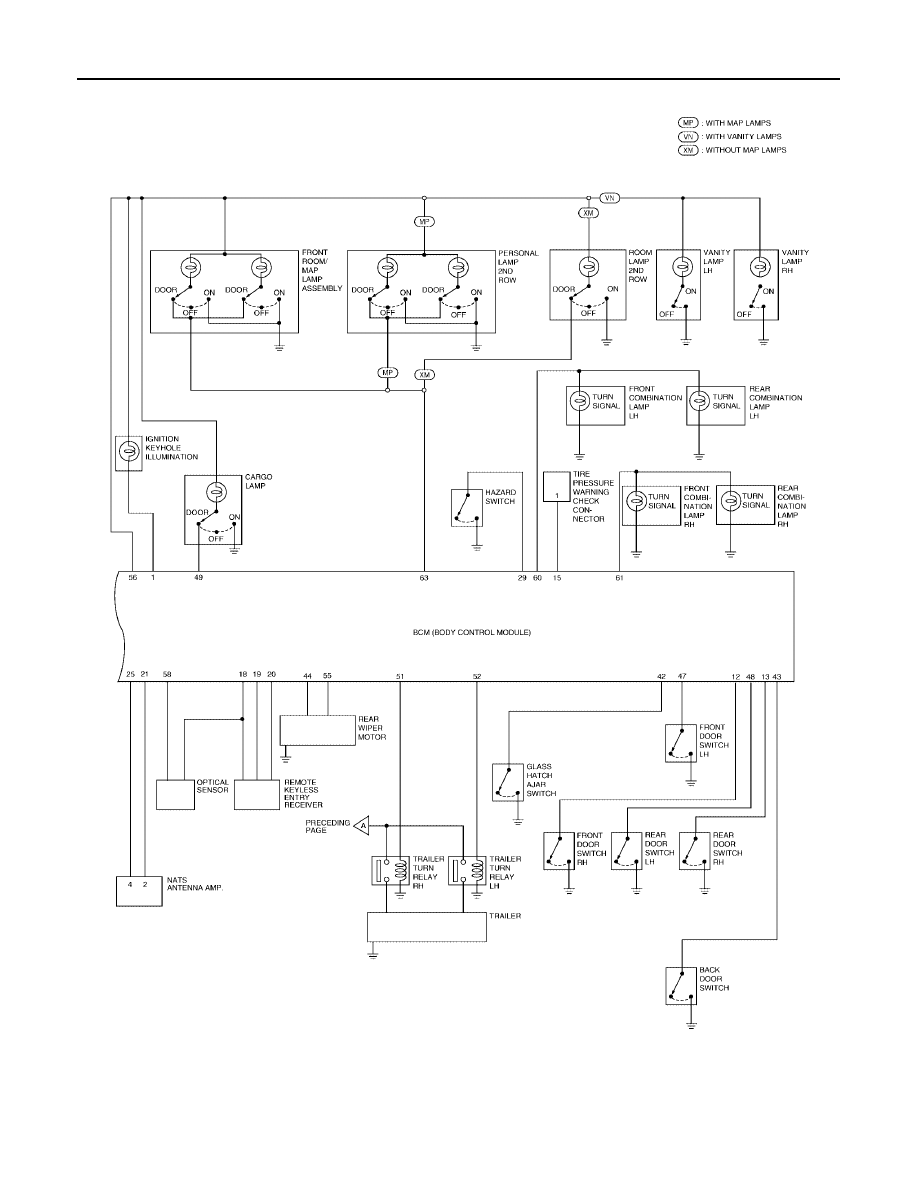

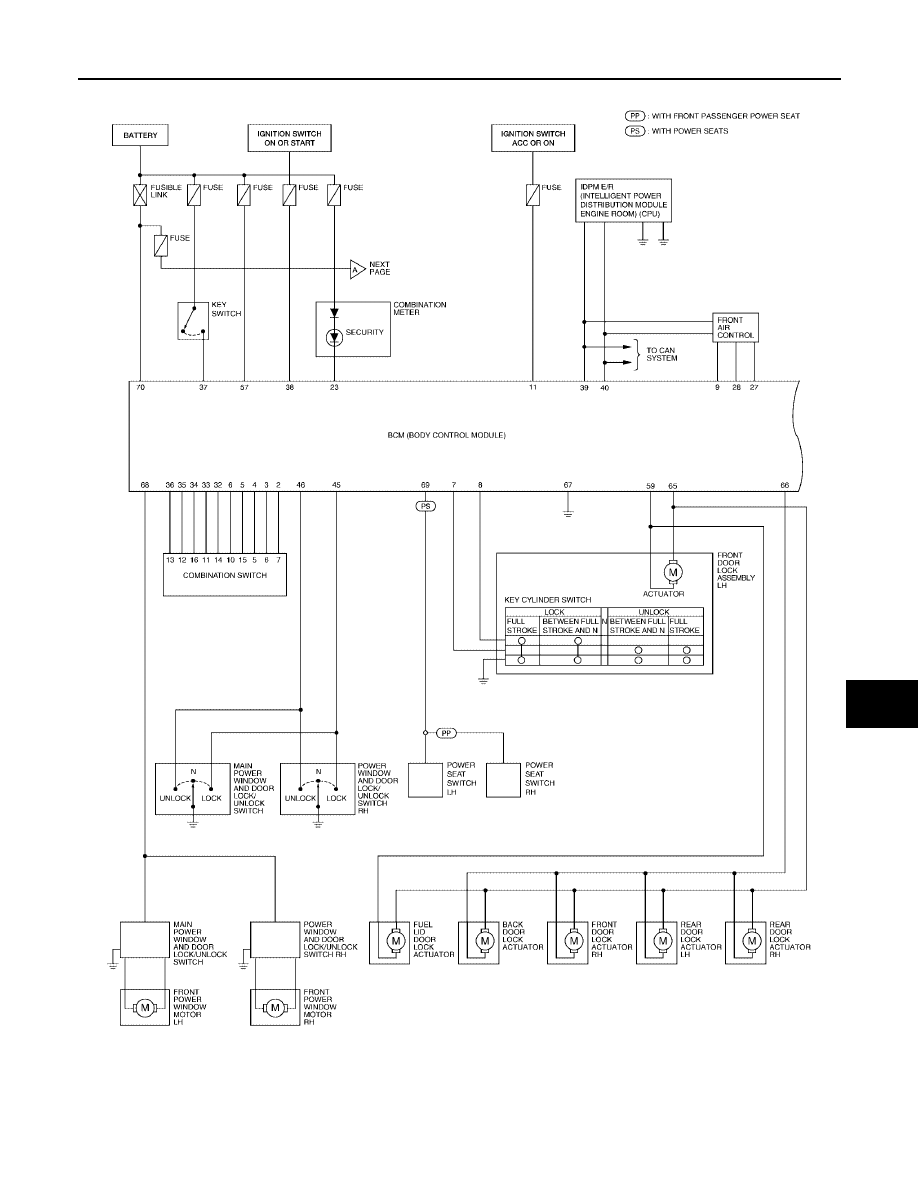

Schematic

EKS00G0O

WIWA1609E

BCS-10

BCM (BODY CONTROL MODULE)

2006 Pathfinder

WIWA1610E

BCM (BODY CONTROL MODULE)

BCS-11

C

D

E

F

G

H

I

J

L

M

A

B

BCS

2006 Pathfinder

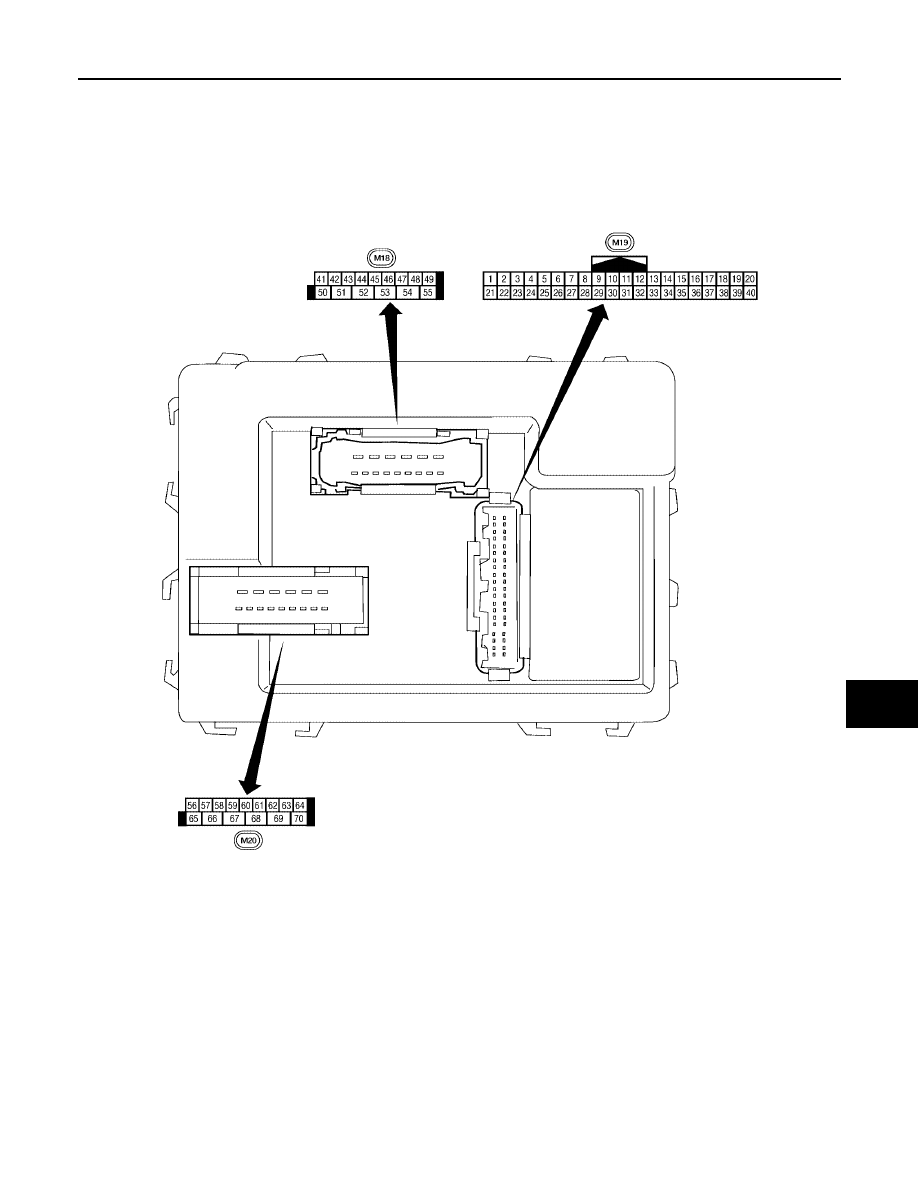

BCM Terminal Arrangement

EKS00HJY

LKIA0682E

BCS-12

BCM (BODY CONTROL MODULE)

2006 Pathfinder

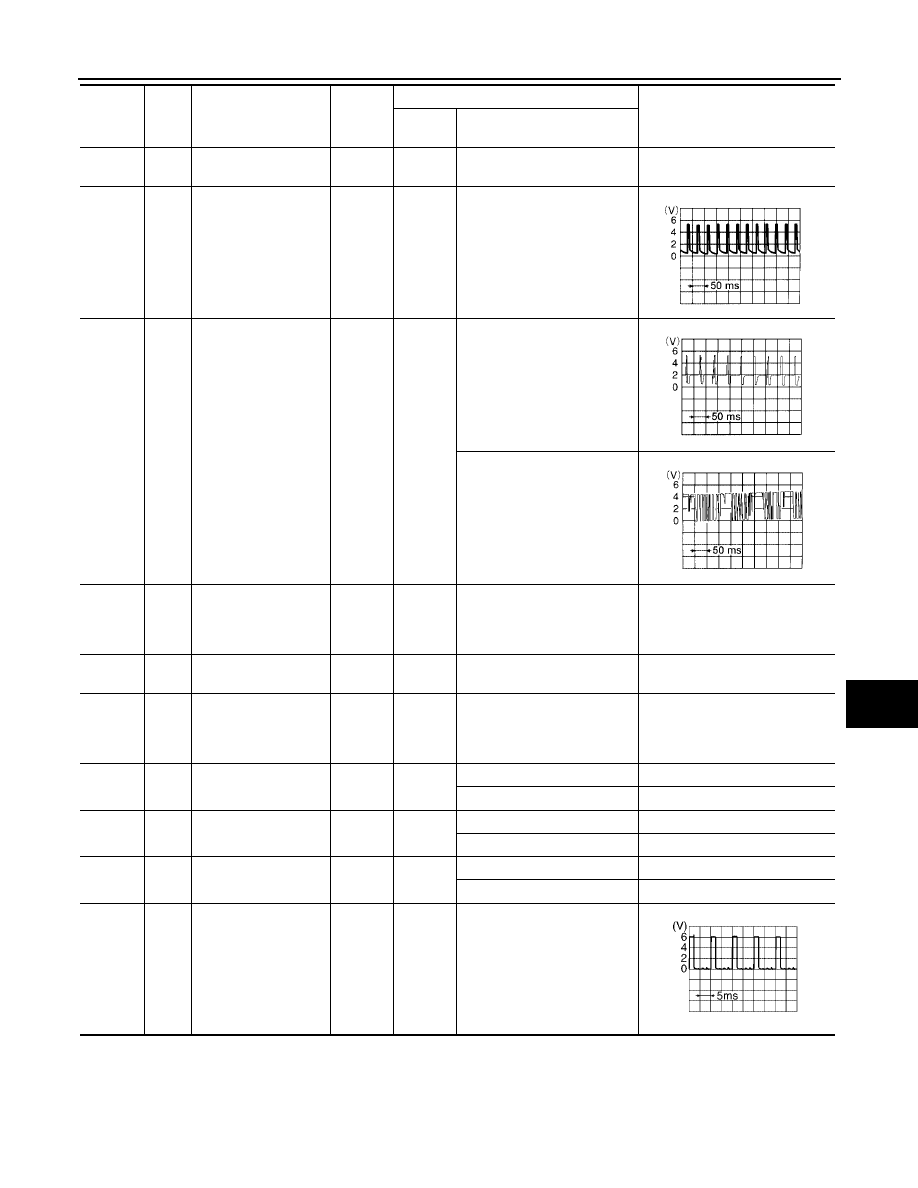

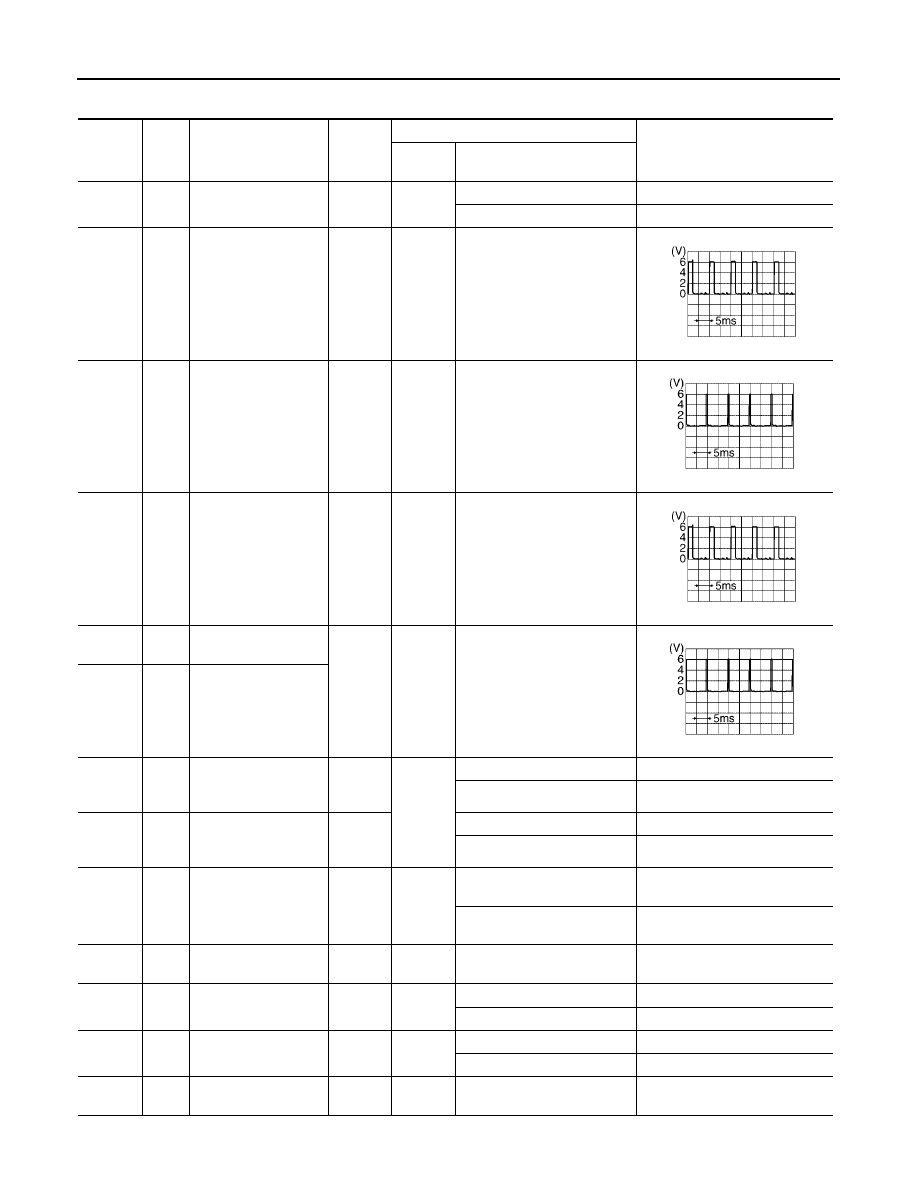

Terminals and Reference Values for BCM

EKS00HJZ

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

1

BR

Ignition keyhole illumi-
nation

Output

OFF

Door is locked (SW OFF)

Battery voltage

Door is unlocked (SW ON)

0V

2

P

Combination switch
input 5

Input

ON

Lighting, turn, wiper OFF
Wiper dial position 4

3

SB

Combination switch
input 4

Input

ON

Lighting, turn, wiper OFF
Wiper dial position 4

4

V

Combination switch
input 3

Input

ON

Lighting, turn, wiper OFF
Wiper dial position 4

5

L

Combination switch
input 2

Input

ON

Lighting, turn, wiper OFF
Wiper dial position 4

6

R

Combination switch
input 1

7

GR

Front door lock
assembly LH (key cyl-
inder switch) unlock

Input

OFF

ON (open, 2nd turn)

Momentary 1.5V

OFF (closed)

0V

8

SB

Front door lock
assembly LH (key cyl-
inder switch) lock

Input

On (open)

Momentary 1.5V

OFF (closed)

0V

9

Y

Rear window defog-
ger switch

Input

ON

Rear window defogger switch
ON

0V

Rear window defogger switch
OFF

5V

11

G/B

Ignition switch (ACC
or ON)

Input

ACC or

ON

Ignition switch ACC or ON

Battery voltage

12

LG

Front door switch RH

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

13

L

Rear door switch RH

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

15

W

Tire pressure warning
check connector

Input

OFF

—

5V

SKIA5291E

SKIA5292E

SKIA5291E

SKIA5292E

BCM (BODY CONTROL MODULE)

BCS-13

C

D

E

F

G

H

I

J

L

M

A

B

BCS

2006 Pathfinder

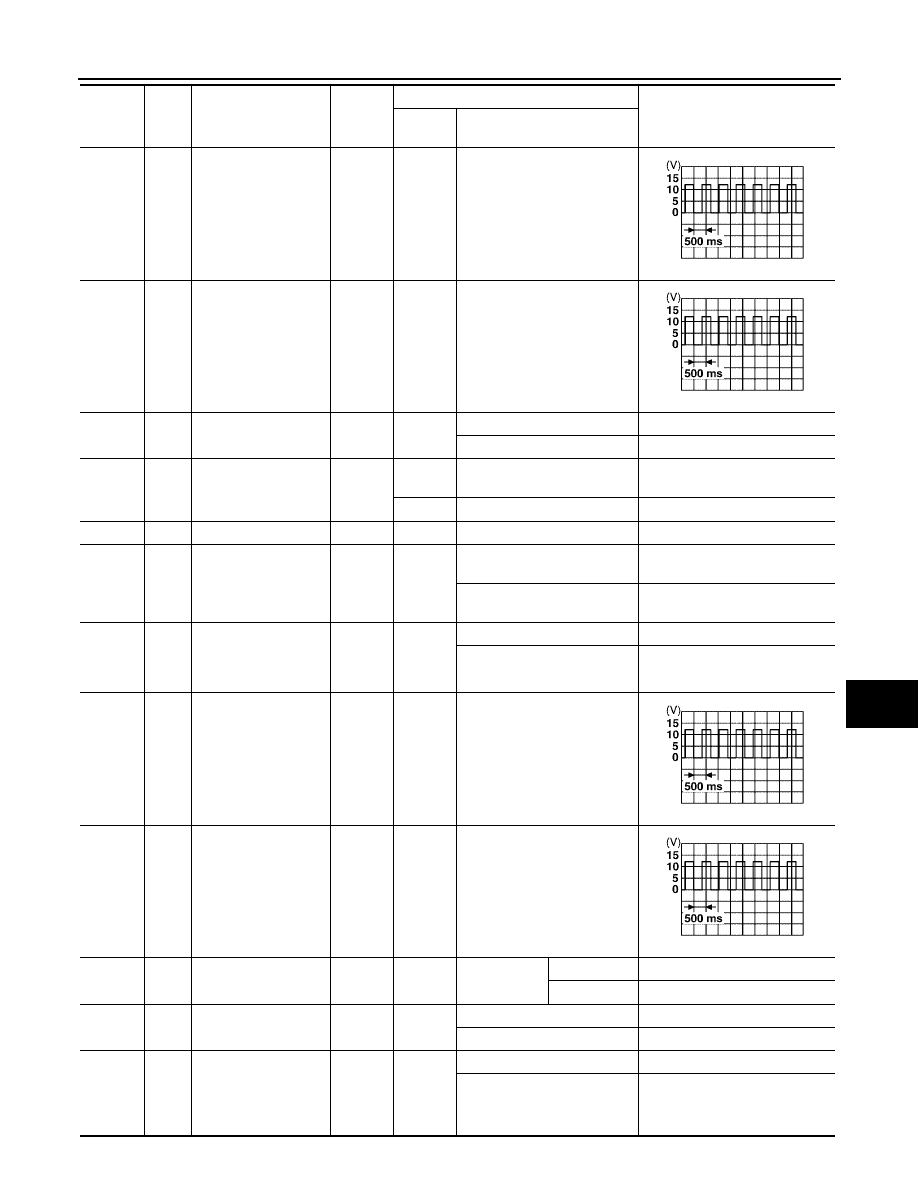

18

BR

Remote keyless entry
receiver (Ground)

Output

OFF

—

0V

19

V

Remote keyless entry
receiver (power sup-
ply)

Output

OFF

Ignition switch OFF

20

G

Remote keyless entry
receiver signal (Sig-
nal)

Input

OFF

Stand-by (keyfob buttons
released)

When remote keyless entry
receiver receives signal from
keyfob (keyfob buttons
pressed)

21

GR

NATS antenna amp.

Input

OFF

→



ON

Ignition switch (OFF

→

 ON)

Just after turning ignition switch

ON: Pointer of tester should

move for approx. 1 second, then

return to battery voltage.

23

G

Security indicator
lamp

Output

OFF

Goes OFF

→

 illuminates

(Every 2.4 seconds)

Battery voltage

→

 0V

25

BR

NATS antenna amp.

Input

OFF

→



ON

Ignition switch (OFF

→

 ON)

Just after turning ignition switch

ON: Pointer of tester should

move for approx. 1 second, then

return to battery voltage.

27

W

Compressor ON sig-
nal

Input

ON

A/C switch OFF

5V

A/C switch ON

0V

28

R

Front blower monitor

Input

ON

Front blower motor OFF

Battery voltage

Front blower motor ON

0V

29

G

Hazard switch

Input

OFF

ON

0V

OFF

5V

32

O

Combination switch
output 5

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

LIIA1893E

LIIA1894E

LIIA1895E

SKIA5291E

BCS-14

BCM (BODY CONTROL MODULE)

2006 Pathfinder

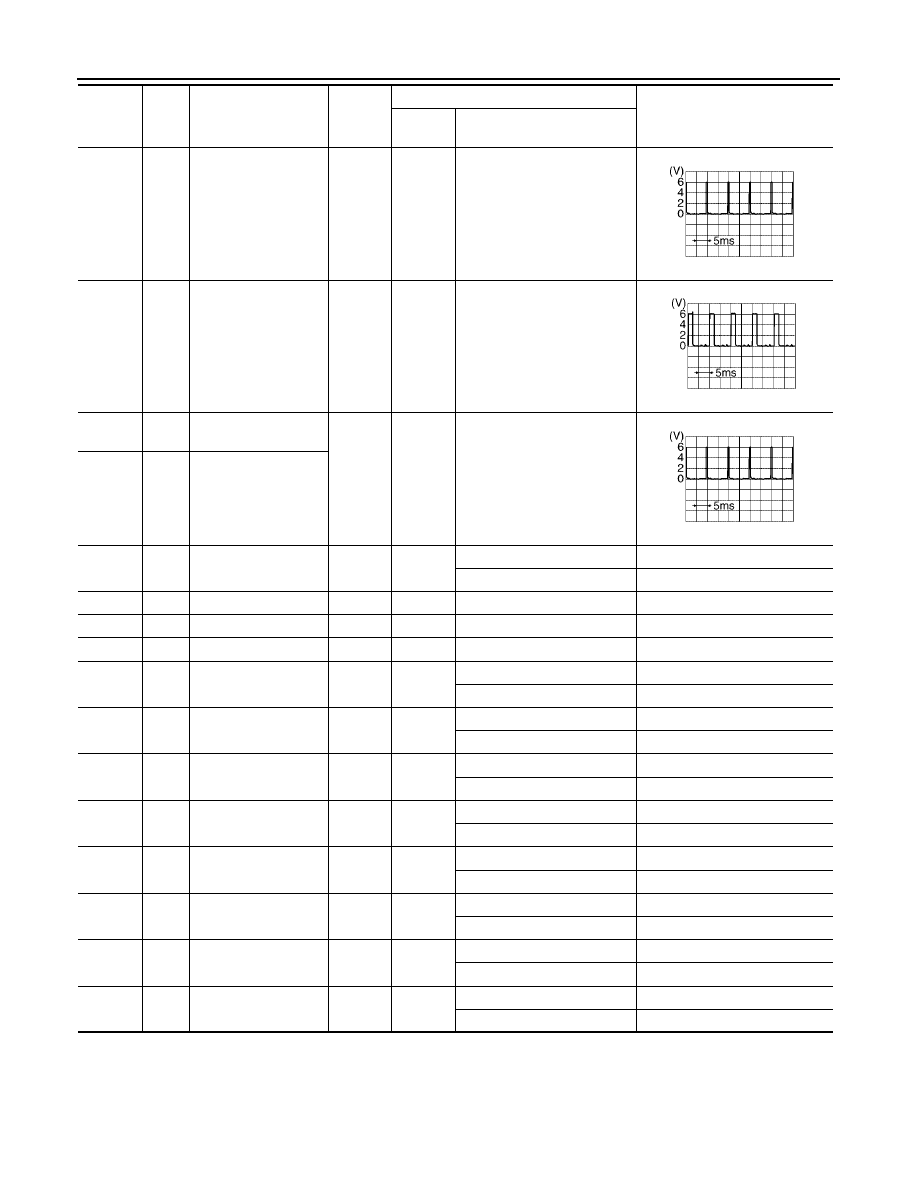

33

GR

Combination switch
output 4

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

34

G

Combination switch
output 3

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

35

BR

Combination switch
output 2

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

36

LG

Combination switch
output 1

37

B

Key switch

Input

OFF

Key inserted

Battery voltage

Key removed

0V

38

W/R

Ignition switch (ON)

Input

ON

—

Battery voltage

39

L

CAN-H

—

—

—

—

40

P

CAN-L

—

—

—

—

42

LG

Glass hatch ajar
switch

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

43

Y

Back door switch

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

44

O

Rear wiper auto stop

Input

ON

Rear wiper operating

0

Rear wiper stopped

Battery

45

V

Lock switch

Input

OFF

ON (lock)

0V

OFF

Battery voltage

46

LG

Unlock switch

Input

OFF

ON (unlock)

0V

OFF

Battery voltage

47

GR

Front door switch LH

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

48

P

Rear door switch LH

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

49

L

Cargo lamp

Output

OFF

Any door open (ON)

0V

All doors closed (OFF)

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

SKIA5292E

SKIA5291E

SKIA5292E

BCM (BODY CONTROL MODULE)

BCS-15

C

D

E

F

G

H

I

J

L

M

A

B

BCS

2006 Pathfinder

51

O

Trailer turn signal
(right)

Output

ON

Turn right ON

52

LG

Trailer turn signal (left)

Output

ON

Turn left ON

55

W

Rear wiper motor out-
put

Output

ON

OFF

0

ON

Battery voltage

56

V

Battery saver output

Output

OFF

30 minutes after ignition
switch is turned OFF

0V

ON

—

Battery voltage

57

R/Y

Battery power supply

Input

OFF

—

Battery voltage

58

W

Optical sensor

Input

ON

When optical sensor is illumi-
nated

3.1V or more

When optical sensor is not
illuminated

0.6V or less

59

GR

Front door lock
assembly LH and fuel
lid door lock actuator
(unlock)

Output

OFF

OFF (neutral)

0V

ON (unlock)

Battery voltage

60

LG

Turn signal (left)

Output

ON

Turn left ON

61

G

Turn signal (right)

Output

ON

Turn right ON

63

BR

Interior room/map
lamp

Output

OFF

Any door
switch

ON (open)

0V

OFF (closed)

Battery voltage

65

V

All door lock actuators
(lock)

Output

OFF

OFF (neutral)

0V

ON (lock)

Battery voltage

66

L

Front door lock actua-
tor RH, rear door lock
actuators LH/RH and
back door lock actua-
tor (unlock)

Output

OFF

OFF (neutral)

0V

ON (unlock)

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

SKIA3009J

SKIA3009J

SKIA3009J

SKIA3009J

BCS-16

BCM (BODY CONTROL MODULE)

2006 Pathfinder

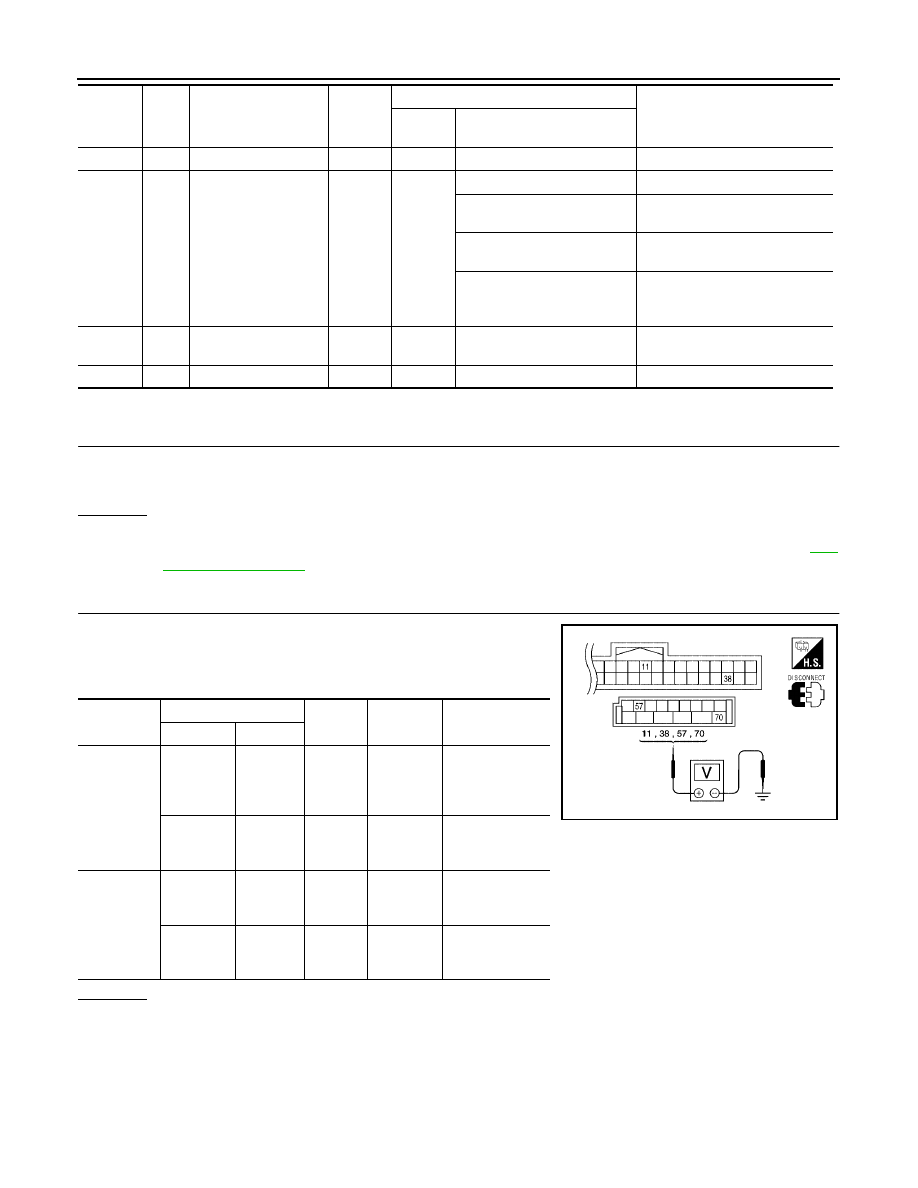

BCM Power Supply and Ground Circuit Check

EKS00HK0

1.

CHECK FUSES AND FUSIBLE LINK

●

Check 50A fusible link (letter g , located in the fuse and fusible link box).

●

Check 10A fuses [No. 1, 4 and 18, located in the fuse block (J/B)].

OK or NG

OK

>> GO TO 2.

NG

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to

PG-

3, "PRECAUTIONS"

 .

2.

CHECK BCM POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM.

3.

Check voltage between BCM connectors and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace the harness.

67

B

Ground

Input

ON

—

0V

68

O

Power window power
supply (RAP)

Output

—

Ignition switch ON

Battery voltage

Within 45 seconds after igni-
tion switch OFF

Battery voltage

More than 45 seconds after
ignition switch OFF

0V

When front door LH or RH is
open or power window timer
operates

0V

69

L

Power window power
supply

Output

—

—

Battery voltage

70

W

Battery power supply

Input

OFF

—

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

Connector

Terminals

Power

source

Condition

Voltage (V)

(Approx.)

(+)

(-)

M18

11

Ground

ACC

power

supply

Ignition

switch

ACC or

ON

Battery voltage

38

Ground

Ignition

power

supply

Ignition

switch ON

or START

Battery voltage

M20

57

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

70

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage
