Nissan Pathfinder (2006 year). Manual - part 82





NAVIGATION SYSTEM

AV-147

C

D

E

F

G

H

I

J

L

M

A

B

AV

2006 Pathfinder

2.

CHECK VEHICLE SPEED SIGNAL

Check vehicle speed signal. Refer to

AV-124, "Vehicle Speed Signal Check for Display Control Unit"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Check the malfunctioning parts.

3.

CHECK CAN COMMUNICATION LINE

Check CAN communication line. Refer to

AV-132, "CAN Communication Line Check"

 .

OK or NG

OK

>> Replace display control unit. Refer to

AV-161, "DISPLAY CONTROL UNIT"

 .

NG

>> After filling out CAN DIAG SUPPORT MONITOR check sheet, GO TO

LAN-25, "CAN COMMUNI-

CATION"

 .

Unable to Operate All of AV Switches (Unable to Start Self-Diagnosis)

EKS00HLE

1.

AV SWITCH SELF-DIAGNOSIS

AV switch self-diagnosis. Refer to

AV-117, "AV Switch Self-Diagnosis Function"

 .

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

2.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check power supply and ground circuit for AV switch. Refer to

AV-122, "Power Supply and Ground Circuit

Check for AV Switch"

 .

OK or NG

OK

>> Replace AV switch. Refer to

AV-61, "AV SWITCH"

 .

NG

>> Check the malfunctioning parts.

3.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check power supply and ground circuit for display control unit. Refer to

AV-119, "Power Supply and Ground

Circuit Check for Display Control Unit"

 .

OK or NG

OK

>> GO TO 4.

NG

>> Check the malfunctioning parts.

4.

CHECK COMMUNICATION LINE

Check communication line. Refer to

AV-131, "AV Communication Line Check (Between Display Control Unit

and AV Switch)"

 .

OK or NG

OK

>> Replace AV switch. Refer to

AV-61, "AV SWITCH"

 .

NG

>> Replace display control unit. Refer to

AV-161, "DISPLAY CONTROL UNIT"

 .

Audio Does Not Work

EKS00HLF

Refer to

AV-34, "Trouble Diagnosis"

 .

Navigation System Does Not Activate

EKS00HLG

1.

POWER SUPPLY AND GROUND CIRCUIT CHECK

Check power supply and ground circuit for NAVI control unit. Refer to

AV-118, "Power Supply and Ground Cir-

cuit Check for NAVI Control Unit"

 .

OK or NG

OK

>> Replace NAVI control unit. Refer to

AV-159, "NAVI CONTROL UNIT"

 .

NG

>> Check the malfunctioning parts.

AV-148

NAVIGATION SYSTEM

2006 Pathfinder

Previous NAVI Conditions are Not Stored

EKS00HLH

1.

CHECK BATTERY POWER

Check NAVI control unit battery power.
Refer to

AV-118, "Power Supply and Ground Circuit Check for NAVI Control Unit"

 .

OK or NG

OK

>> Replace NAVI control unit. Refer to

AV-159, "NAVI CONTROL UNIT"

 .

NG

>> Check NAVI control unit battery power system harness.

Previous Vehicle Conditions are Not Stored

EKS00HLI

1.

CHECK BATTERY POWER

Check display control unit battery power.
Refer to

AV-119, "Power Supply and Ground Circuit Check for Display Control Unit"

 .

OK or NG

OK

>> Replace display control unit. Refer to

AV-161, "DISPLAY CONTROL UNIT"

 .

NG

>> Check display control unit battery power system harness.

Position of Current Location Mark is Not Correct

EKS00HLJ

1.

SELF-DIAGNOSIS

Perform “Self-diagnosis mode” of the self-diagnosis function. Refer to

AV-106, "Self-Diagnosis Mode (NAVI)"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Check the malfunctioning parts.

2.

ERROR HISTORY DIAGNOSIS

Was any error stored in

AV-112, "ERROR HISTORY"

  of the “CONFIRMATION/ADJUSTMENT” mode?

YES or NO

YES

>>

AV-112, "DIAGNOSIS BY ERROR HISTORY"

.

NO

>>

AV-149, "Driving Test"

.

Radio Wave From GPS Satellite is Not Received

EKS00HLK

1.

CHECK ENVIRONMENT

Check if any metal object that intercepts radio waves or an object that emits radio waves (such as a portable
phone) is located near the GPS antenna. Check if the vehicle is shielded by a building.

OK or NG

OK

>> System is not malfunctioning. The GPS antenna may not be able to receive radio waves from the

GPS satellite if it is shielded by metal object or an object emitting radio waves is placed near it.

NG

>> GO TO 2.

2.

SELF-DIAGNOSIS

Perform “Self-diagnosis mode” of the self-diagnosis function. Refer to

AV-106, "Self-Diagnosis Mode (NAVI)"

 .

OK or NG

OK

>> Replace GPS antenna. Refer to

AV-160, "GPS ANTENNA"

 .

NG

>> Check the malfunctioning parts.

NAVIGATION SYSTEM

AV-149

C

D

E

F

G

H

I

J

L

M

A

B

AV

2006 Pathfinder

Driving Test

EKS00HLL

1.

DRIVING TEST 1

1.

Scroll the map screen to display the area to make correction. Press “ENTER” and select “CURRENT
LOCATION CORRECTION”.

2.

Correct direction of the vehicle mark.

3.

Perform the distance correction of the "CONFIRMATION/ADJUSTMENT" mode.
Note: Normally, adjustment is not necessary because this system has automatic distance correction func-
tion. However, when a tire chain is fitted, adjustment in accordance with the tire diameter ratio must be
made.

4.

Are symptoms malfunctioning to the

AV-150, "Example of Symptoms Judged Not Malfunction"

   after driv-

ing the vehicle?

YES or NO

YES

>> Limit of the location detection capacity of the navigation system.

NO

>> GO TO 2.

2.

DRIVING TEST 2

Did any malfunction occur when the proper test in the following test patterns is performed?

Test pattern
Driving test finds the difference between the symptoms monitored with and without each sensor.

Test pattern 1: Test method with no GPS location correction
Disconnect GPS antenna connector connected to the NAVI control unit. Accurately adjust the current
location and the direction, then drive the vehicle.

Test pattern 2: Test method with no map-matching
Accurately adjust the current location and the direction. Eject the map DVD-ROM from the NAVI control
unit with ignition switch turned to OFF, then drive the vehicle. After driving, insert the map DVD-ROM back
in the unit, display the track of the vehicle on the map screen and compare it with the actual road configu-
ration.

Sample tests

<To determine if the current-location mark skips at the same position, if so, whether it is caused by map-
matching or by GPS>
Perform test pattern 1.

<To determine if the pattern of streets displayed is correct or not>
Perform test pattern 1 & 2.
Compare the track of the vehicle on the map screen and the actual road configuration. For fairly accurate
tracking, plotting shall be made every several hundred meters (feet).

<When the distance is adjusted accurately>
Perform test pattern 1 & 2.
Drive on a road of which distance is accurately known (by utilizing distance posts on a highway). Calculate
the rate of change (increased/decreased) of the distance by comparing with the actual distance.
Correction = A/B
A: Distance shown on the screen
B: Actual distance

YES or NO

YES

>>

If adjustment is insufficient, perform adjustment again.

If any error is found in the map, please contact map data supplier. Refer to Navigation System
Owner's Manual for contact information.

Replace NAVI control unit. Refer to

AV-159, "NAVI CONTROL UNIT"

  .

NO

>> Limit of the location detection capacity of the navigation system.

AV-150

NAVIGATION SYSTEM

2006 Pathfinder

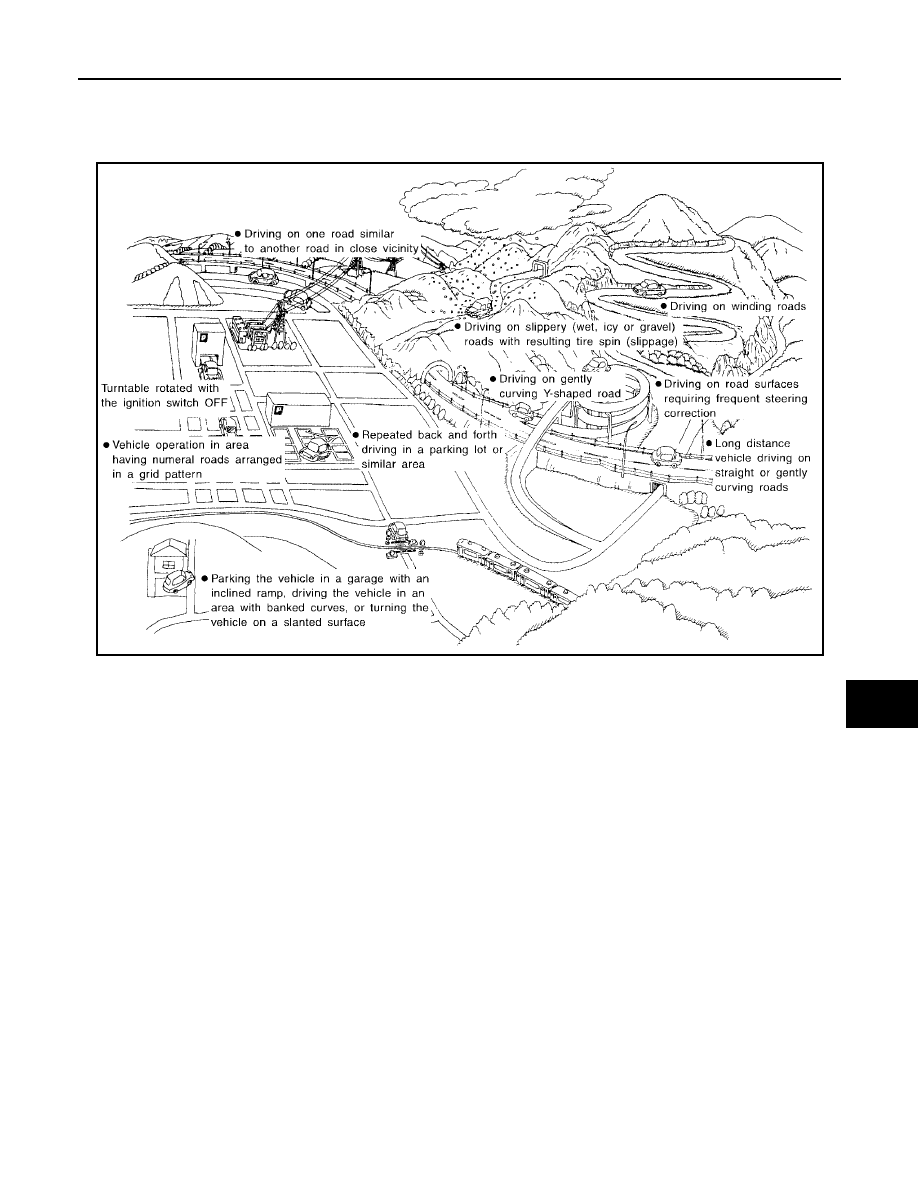

Example of Symptoms Judged Not Malfunction

EKS00HLM

BASIC OPERATION

VEHICLE MARK

Symptom

Cause

Remedy

No image is shown.

Display brightness adjustment is set fully to
DARK side.

Adjust the display brightness.

No guide sound is heard.
Audio guide volume is too low or
too high.

Volume control is set to OFF, MIN or MAX.

Adjust the audio guide volume.

Audio guidance is not available while the vehicle
is driving on a dark pink route.

System is not malfunctioning.

Screen is too dark.
Motion of the image is too slow.

Temperature inside the vehicle is low.

Wait until the temperature inside the vehicle
reaches the proper temperature.

Small black or bright spots appear
on the screen.

Symptom peculiar to a liquid crystal display (dis-
play unit).

System is not malfunction.

Symptom

Cause

Remedy

Map screen and BIRDVIEW™
Name of the place varies with the
screen.

Some thinning of the character data is done to
prevent the display becoming to complex. In
some cases and in some locations, the display
contents may differ.
The same place name, street name, etc. may not
be displayed every time on account of the data
processing.

System is not malfunctioning.

Vehicle mark is not positioned cor-
rectly.

Vehicle is transferred by ferry or by towing after its
ignition switch is turned to OFF.

Drive the vehicle for a while in the GPS sat-
ellite signal receiving condition.

Screen will not switch to nighttime
mode after the lighting switch is
turned ON.

The daytime screen is selected by the “SWITCH
SCREENS” when the last time the screen dim-
ming setting is done.
Switching between daytime/nighttime screen may
be inhibited by the automatic illumination adjust-
ment function.

Perform screen dimming and select the
nighttime screen by “SWITCH SCREENS”.

Map screen will not scroll in accor-
dance with the vehicle travel.

Current location is not displayed.

Press “MAP” button to display the current
location.

Vehicle mark will not be shown.

Current location is not displayed.

Press “MAP” button to display the current
location.

Accuracy indicator (GPS satellite
mark) on the map screen stays
gray.

GPS satellite signal is intercepted because the
vehicle is in or behind a building.

Move the vehicle out to an open space.

GPS satellite signal cannot be received because
an obstacle is placed on top of the instrument
panel.

Do not place anything in the center on top of
the display.

GPS satellites are not visible from current loca-
tion.

Wait until GPS satellites are visible by mov-
ing the vehicle.

Vehicle location accuracy is low.

Accuracy indicator (GPS satellite mark) on the
map screen stays gray.

Current location is not determined.

Vehicle speed setting by the vehicle speed pulse
has been deviated (advanced or retarded) from
the actual vehicle speed because tire chain is fit-
ted or the system has been used on another vehi-
cle.

Drive the vehicle for a while [for approx. 30
minutes at approx. 30 km/h (19 MPH)] and
the deviation will be automatically adjusted.
If advancement or retard still occur, perform
the distance adjustment by CONFIRMA-
TION/ADJUSTMENT mode of diagnosis
function.

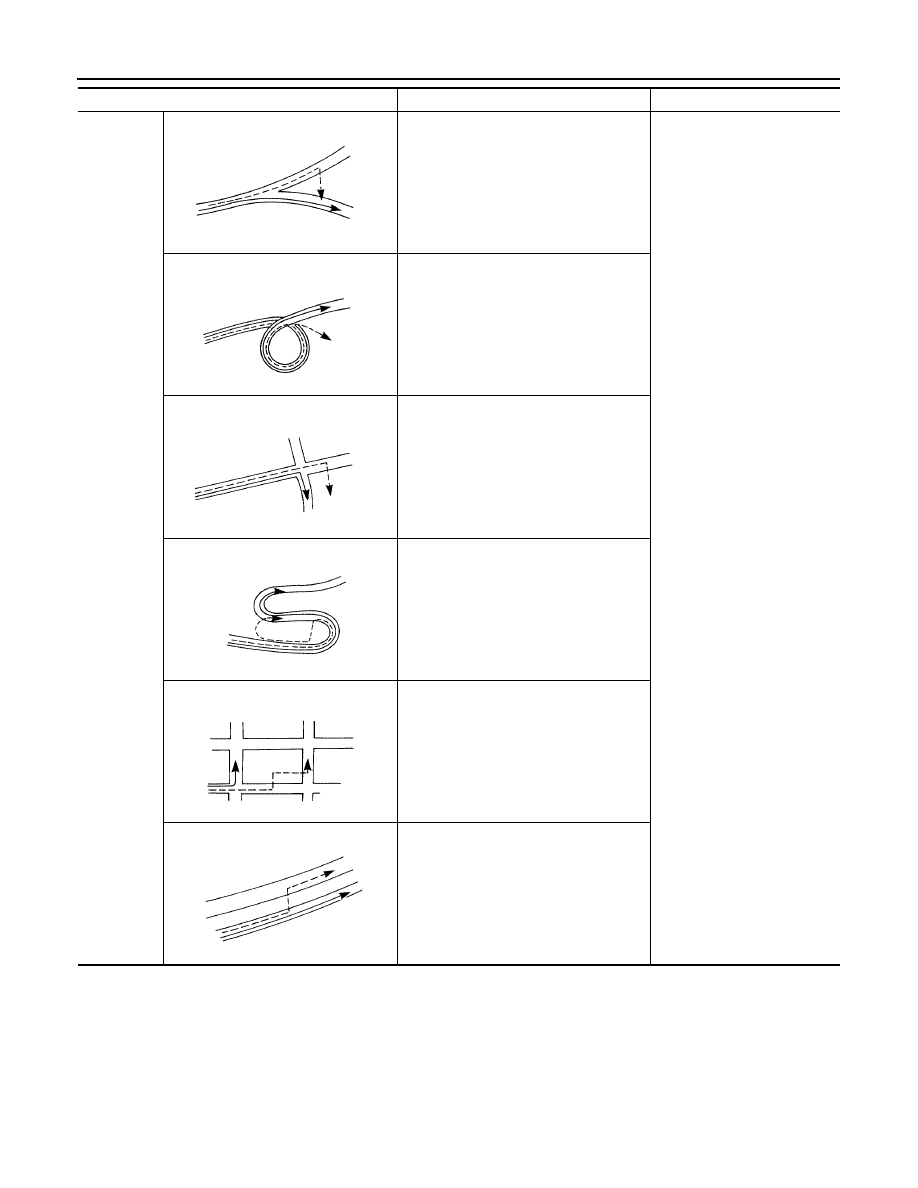

Map data has error or omission. (Vehicle mark is
always deviated to the same position.)

As a rule, an updated map DVD–ROM will
be released once a year.

NAVIGATION SYSTEM

AV-151

C

D

E

F

G

H

I

J

L

M

A

B

AV

2006 Pathfinder

DESTINATION, PASSING POINTS, AND MENU ITEMS CANNOT BE SELECTED/SET

VOICE GUIDE

Symptom

Cause

Remedy

Destination cannot be set.

Destination to be set is on an expressway.

Set the destination on an ordinary road.

Passing point is not searched
when re-searching the route.

The vehicle has already passed the passing point,
or the system judged so.

To include the passing points that have been
passed into the route again, set the route
again.

Route information will not be dis-
played.

Route searching has not been done.

Set the destination and perform route
searching.

Vehicle mark is not on the recommended route.

Drive on the recommended route.

Route guide is turned OFF.

Turn route guide ON.

Route information is not available on the dark pink
route.

System is not malfunctioning.

After the route searching, no guide
sign will appear as the vehicle
goes near the entrance/exit to the
toll road.

Vehicle mark is not on the recommended route.
(On the display, only guide signs related to the
recommended route will be shown.)

Drive on the recommended route.

Automatic route searching is not
possible.

Vehicle is driving on a highway (gray route), or no
recommended route is available.

Drive on a road to be searched. Or re–
search the route manually. In this case, how-
ever, the whole route will be searched.

Performed automatic detour
search (or detour search). How-
ever, the result is the same as that
of the previous search.

Performed search with every condition consid-
ered. However, the result is the same as that of
the previous search.

System is not malfunctioning.

Passing points cannot be set.

More than five passing points were set.

Passing points can be set up to five. To stop
at more than five points, perform sharing in
several steps.

When setting the route, the start-
ing point cannot be selected.

The current vehicle location is always set as the
starting point of a route.

System is not malfunctioning.

Some menu items cannot be
selected.

The vehicle is being driven.

Stop the vehicle at a safe place and then
operate the system.

Symptom

Cause

Remedy

Voice guide will not operate.

Note: Voice guide is only available at intersections
that satisfy certain conditions (indicated by

 on

the map). Therefore, guidance may not be given
even when the route on the map changes direc-
tion.

System is not malfunctioning.

The vehicle is not on the recommended route.

Return to the recommended route or re-
search the route.

Voice guide is turned OFF.

Turn voice guide ON.

Route guide is turned OFF.

Turn route guide ON.

Voice guide does not match the
actual road pattern.

Voice guide may vary with the direction to which
the vehicle is turned and the connection of the
road to other roads.

Drive in conformity to the actual traffic rules.

AV-152

NAVIGATION SYSTEM

2006 Pathfinder

ROUTE SEARCH

NOTE:
Except for the ordinance-designated cities. (Malfunctioning areas may be changed in the updated map disc.)

Symptom

Cause

Remedy

No route is shown.

No road to be searched is found around the des-
tination.

Find wider road (orange road or wider)
nearby and reset the destination and passing
points onto it. Take care of the traveling
direction when there are separate up and
down roads.

Starting point and the destination are too close.

Set the destination at more distant point.

Conditional traffic regulation (day of the week/
time of the day) is set at the area around the cur-
rent location or the destination.

Turn the time-regulating search conditions
OFF. Turn “Avoid regulation time” in the
search conditions OFF.

Indicated route is intermittent.

In some areas, highways (gray routes) are not

used for the search

(Note)

 Therefore, the route to

the current location or the passing points may be
intermittent.

System is not malfunctioning.

When the vehicle has passed the
recommended route, it is deleted
from the screen.

A recommended route is controlled by each sec-
tion. When the vehicle has passed the passing
point 1, then the map data from the starting point
up to the passing point 1 will be deleted. (The
data may remain undeleted in some areas.)

System is not malfunctioning.

Detouring route is recommended.

In some areas, highways (gray routes) are not
used for the search. (Note). Therefore, detour
route may be recommended.

Set the route closer to the basic route (gray
route).

A detour route may be shown when some traffic
regulation (one-way traffic, etc.) is set at the area
around the starting point or the destination.

Slightly move the starting point or the desti-
nation, or set the passing point on the route
of your choice.

In the area where highways (gray routes) are
used for the search, left turn has priority around
the current location and the destination (passing
points). For this reason, the recommended route
may be detouring.

System is not malfunctioning.

Landmarks on the map do not
match the actual ones.

This can be happen due to omission or error in
the map data.

As a rule, an updated map DVD-ROM will be
released once a year. Wait until the latest
map has become available.

Recommended route is far from
the starting point, passing points,
and destination.

Starting point, passing points, and destination of
the route guide were set far from the desired
points because route searching data around
these area were not stored.

Reset the destination onto the road nearby. If
this road is one of the highways (gray
routes), an ordinary road nearby may be dis-
played as the recommended route.

NAVIGATION SYSTEM

AV-153

C

D

E

F

G

H

I

J

L

M

A

B

AV

2006 Pathfinder

EXAMPLES OF CURRENT-LOCATION MARK DISPLACEMENT

Vehicle's travel amount is calculated by reading its travel distance and turning angle. Therefore, if the vehicle
is driven in the following manner, an error will occur in the vehicle's current location display. If correct location
has not been restored after driving the vehicle for a while, perform location correction.

SEL698V

AV-154

NAVIGATION SYSTEM

2006 Pathfinder

Cause (condition)

–: While driving

ooo: Display

Driving condition

Remarks (correction, etc.)

Road config-
uration

Y–intersections

At a Y intersection or similar gradual divi-
sion of roads, an error in the direction of
travel deduced by the sensor may result in
the current-location mark appearing on the
wrong road.

If after travelling about 10 km (6
miles) the correct location has
not been restored, perform
location correction and, if nec-
essary, direction correction.

Spiral roads

When driving on a large, continuous spiral
road (such as loop bridge), turning angle
error is accumulated and the vehicle mark
may deviate from the correct location.

Straight roads

When driving on a long, straight road and
slow curve without stopping, map-match-
ing does not work effectively enough and
distance errors may accumulate. As a
result, the vehicle mark may deviate from
the correct location when the vehicle is
turned at a corner.

Zigzag roads

When driving on a zigzag road, the map
may be matched to other roads in the simi-
lar direction nearby at every turn, and the
vehicle mark may deviate from the correct
location.

Roads laid out in a grid pattern

When driving where roads are laid out in a
grid pattern, or where many roads are run-
ning in the similar direction nearby, the
map may be matched to them by mistake
and the vehicle mark may deviate from the
correct location.

Parallel roads

When two roads are running in parallel
(such as highway and sideway), the map
may be matched to the other road by mis-
take and the vehicle mark may deviate
from the correct location.

ELK0192D

ELK0193D

ELK0194D

ELK0195D

ELK0196D

ELK0197D















Content      ..     80      81      82      83     ..
