DISASSEMBLY

AT-271

D

E

F

G

H

I

J

K

L

M

A

B

AT

2006 Pathfinder

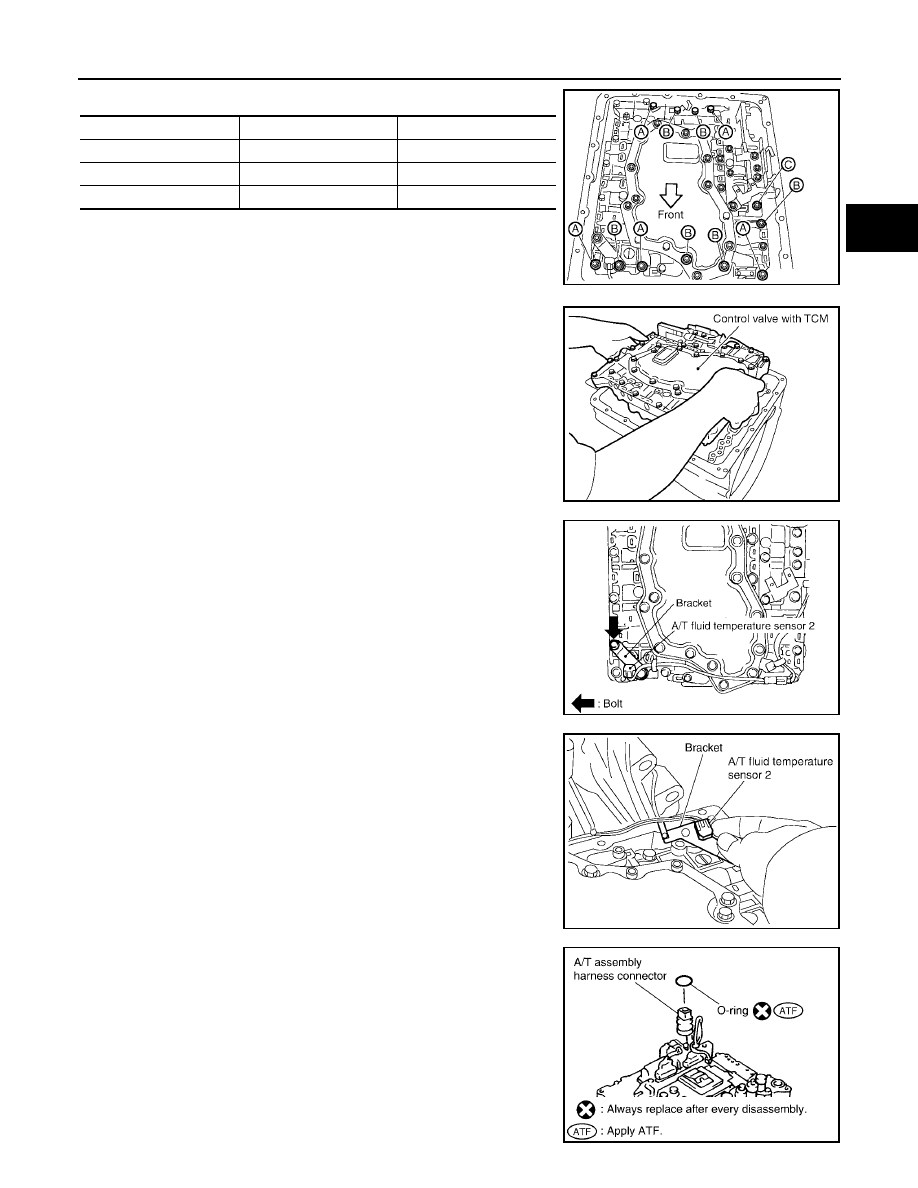

35. Remove bolts A, B and C from control valve with TCM.

36. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and
manual plate height. Remove it vertically.

37. Remove A/T fluid temperature sensor 2 with bracket from con-

trol valve with TCM.

38. Remove bracket from A/T fluid temperature sensor 2.

39. Remove O-ring from A/T assembly harness connector.

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA5025E

SCIA5260E

SCIA5301E

SCIA5264E

SCIA5155E

AT-272

DISASSEMBLY

2006 Pathfinder

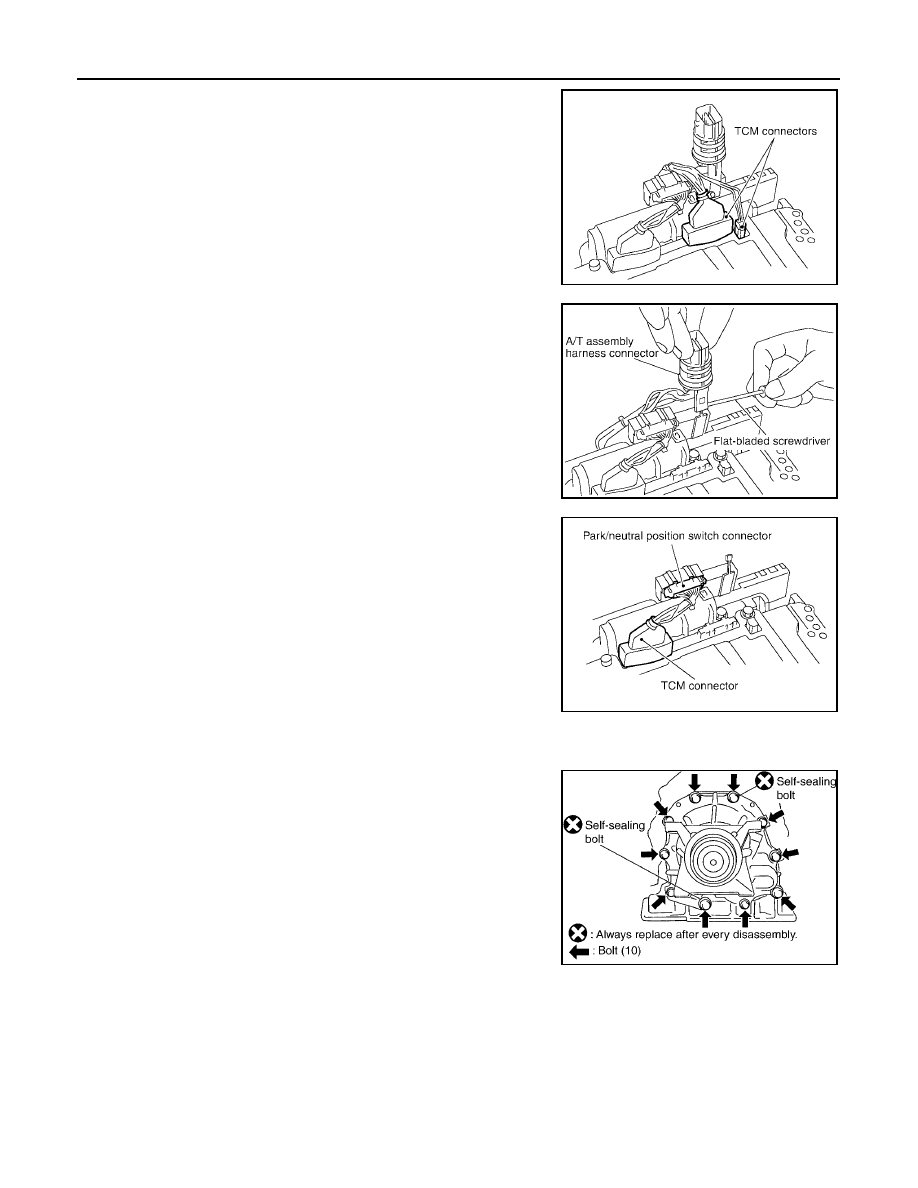

40. Disconnect TCM connectors.

CAUTION:

Be careful not to damage connectors.

41. Remove A/T assembly harness connector from control valve

with TCM using suitable tool.

42. Disconnect TCM connector and park/neutral position switch

connector.

CAUTION:

Be careful not to damage connectors.

43. Remove rear extension assembly (2WD models) or adapter case assembly (4WD models) according to

the following procedures.

a.

2WD models

i.

Remove bolts for rear extension assembly and transmission
case.

SCIA5447E

SCIA5448E

SCIA5449E

SCIA6941E

DISASSEMBLY

AT-273

D

E

F

G

H

I

J

K

L

M

A

B

AT

2006 Pathfinder

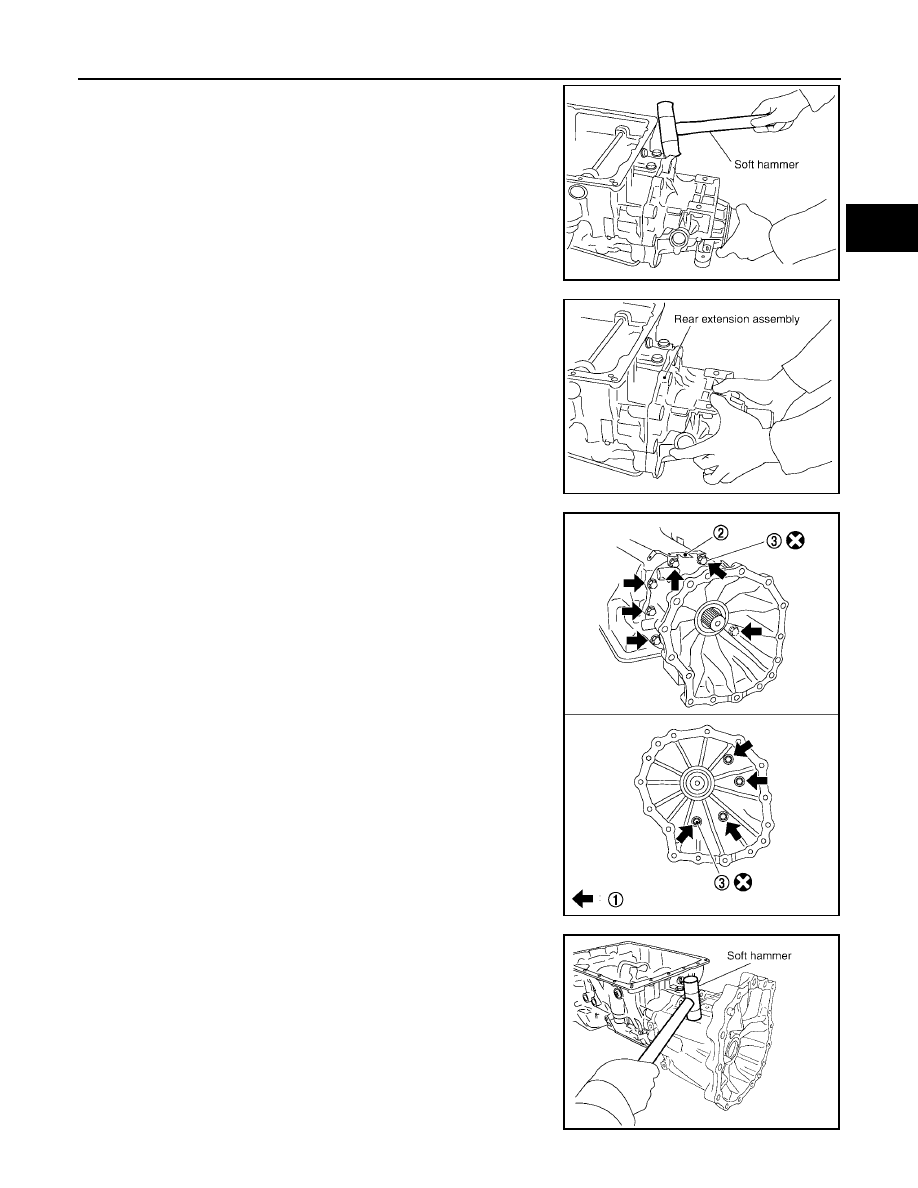

ii.

Tap rear extension assembly with soft hammer.

iii.

Remove rear extension assembly from transmission case. (With
needle bearing.)

b.

4WD models

i.

Remove bolts (1) for adapter case assembly and transmission
case. (With terminal bracket (2).)

●

Self-sealing bolt (3)

ii.

Tap adapter case assembly with soft hammer.

SCIA5028E

SCIA5029E

SCIA7220E

SCIA5201E

AT-274

DISASSEMBLY

2006 Pathfinder

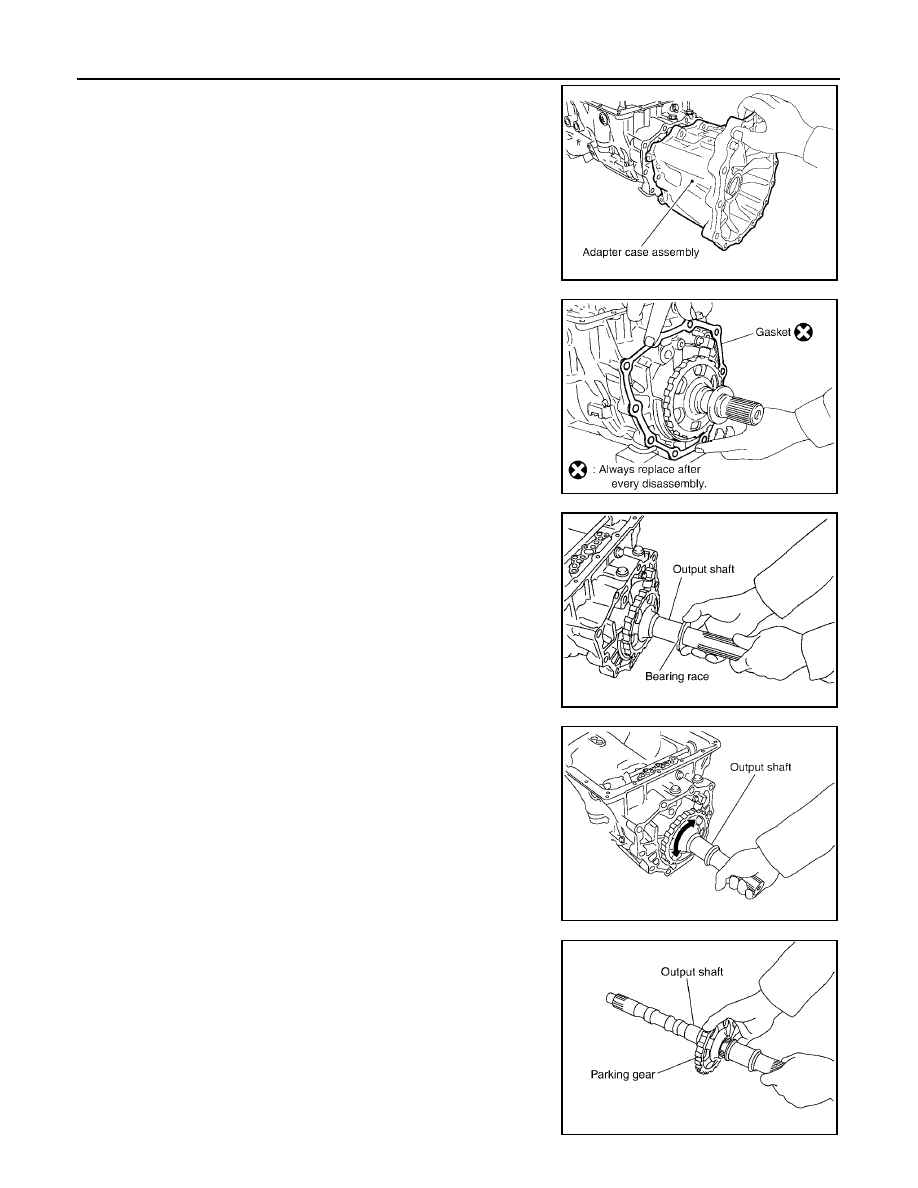

iii.

Remove adapter case assembly from transmission case. (With
needle bearing)

iv.

Remove gasket from transmission case.

44. Remove bearing race from output shaft.

45. Remove output shaft from transmission case by rotating left/

right.

46. Remove parking gear from output shaft.

SCIA5186E

SCIA5231E

SCIA5245E

SCIA5030E

SCIA5247E

DISASSEMBLY

AT-275

D

E

F

G

H

I

J

K

L

M

A

B

AT

2006 Pathfinder

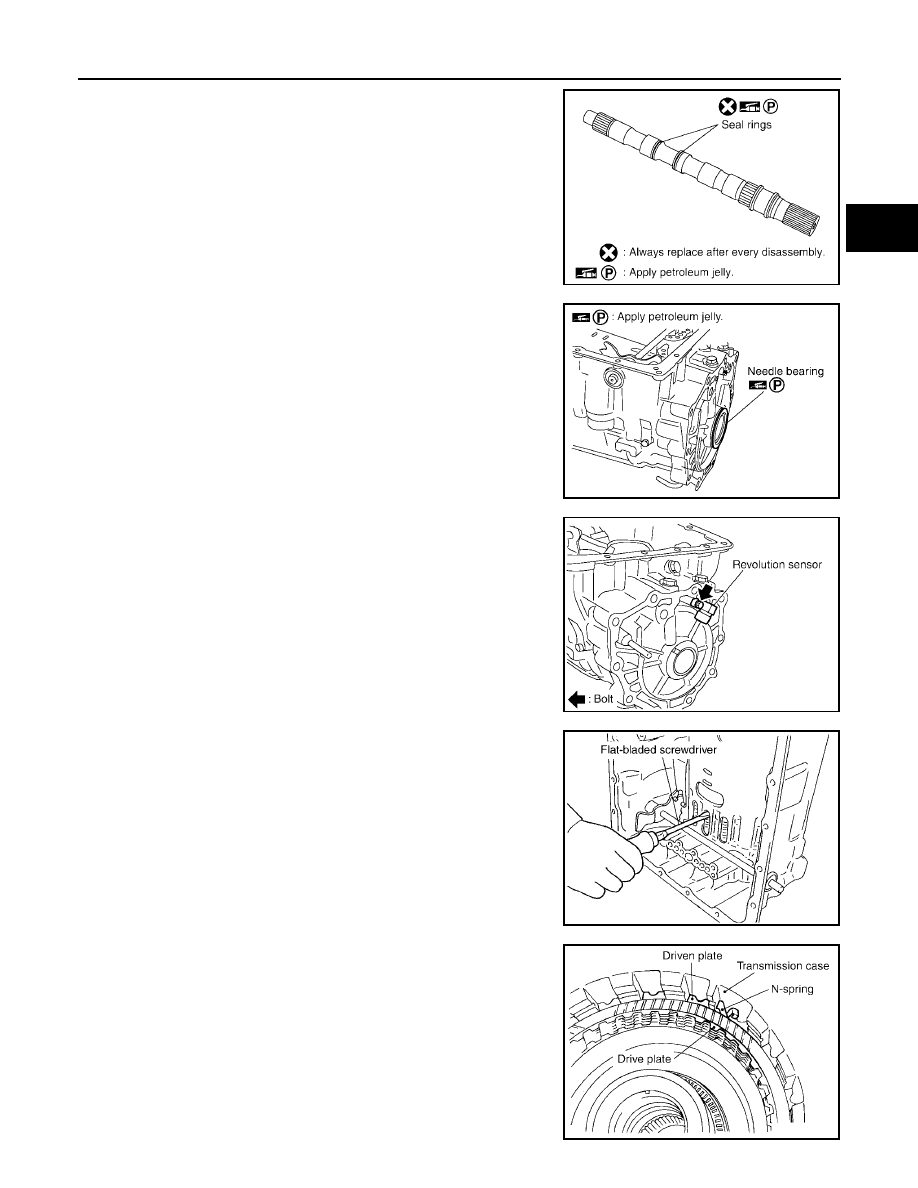

47. Remove seal rings from output shaft.

48. Remove needle bearing from transmission case.

49. Remove revolution sensor from transmission case.

CAUTION:

●

Do not subject it to impact by dropping or hitting it.

●

Do not disassemble.

●

Do not allow metal filings, etc. to get on the sensor's front
edge magnetic area.

●

Do not place in an area affected by magnetism.

50. Remove reverse brake snap ring using 2 flat-bladed screwdriv-

ers.

NOTE:
Press out snap ring from the transmission case oil pan side gap
using a flat-bladed screwdriver, and remove it using a another
screwdriver.

51. Remove reverse brake retaining plate from transmission case.

●

Check facing for burns, cracks or damage. If necessary,
replace the plate.

52. Remove N-spring from transmission case.

SCIA5209E

SCIA5031E

SCIA2320E

SCIA5032E

SCIA5214E

AT-276

DISASSEMBLY

2006 Pathfinder

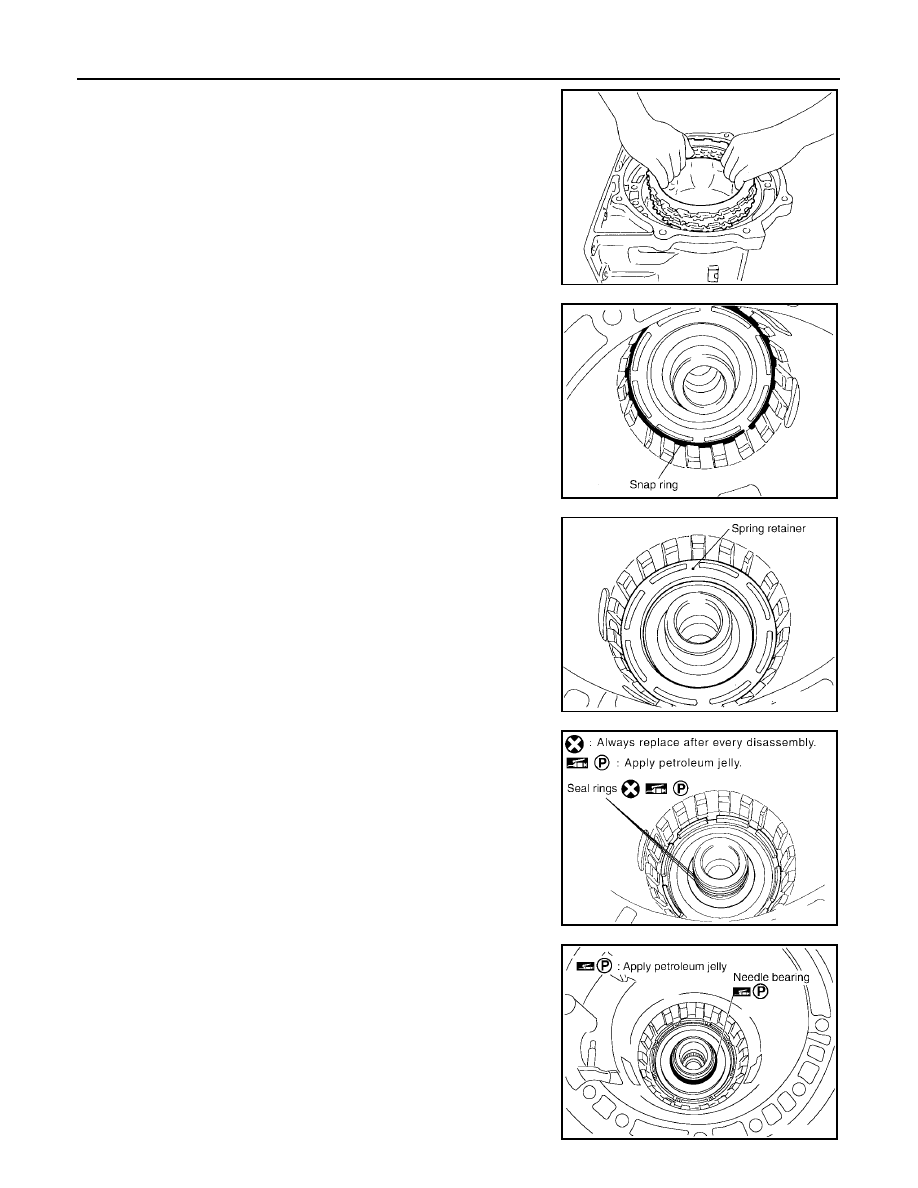

53. Remove reverse brake drive plates, driven plates and dish plate

from transmission case.

●

Check facing for burns, cracks or damage. If necessary,
replace the plate.

54. Remove snap ring using suitable tool.

55. Remove spring retainer and return spring from transmission

case.

56. Remove seal rings from drum support.

57. Remove needle bearing from drum support edge surface.

SCIA2322E

SCIA2323E

SCIA2324E

SCIA3333E

SCIA2796E

DISASSEMBLY

AT-277

D

E

F

G

H

I

J

K

L

M

A

B

AT

2006 Pathfinder

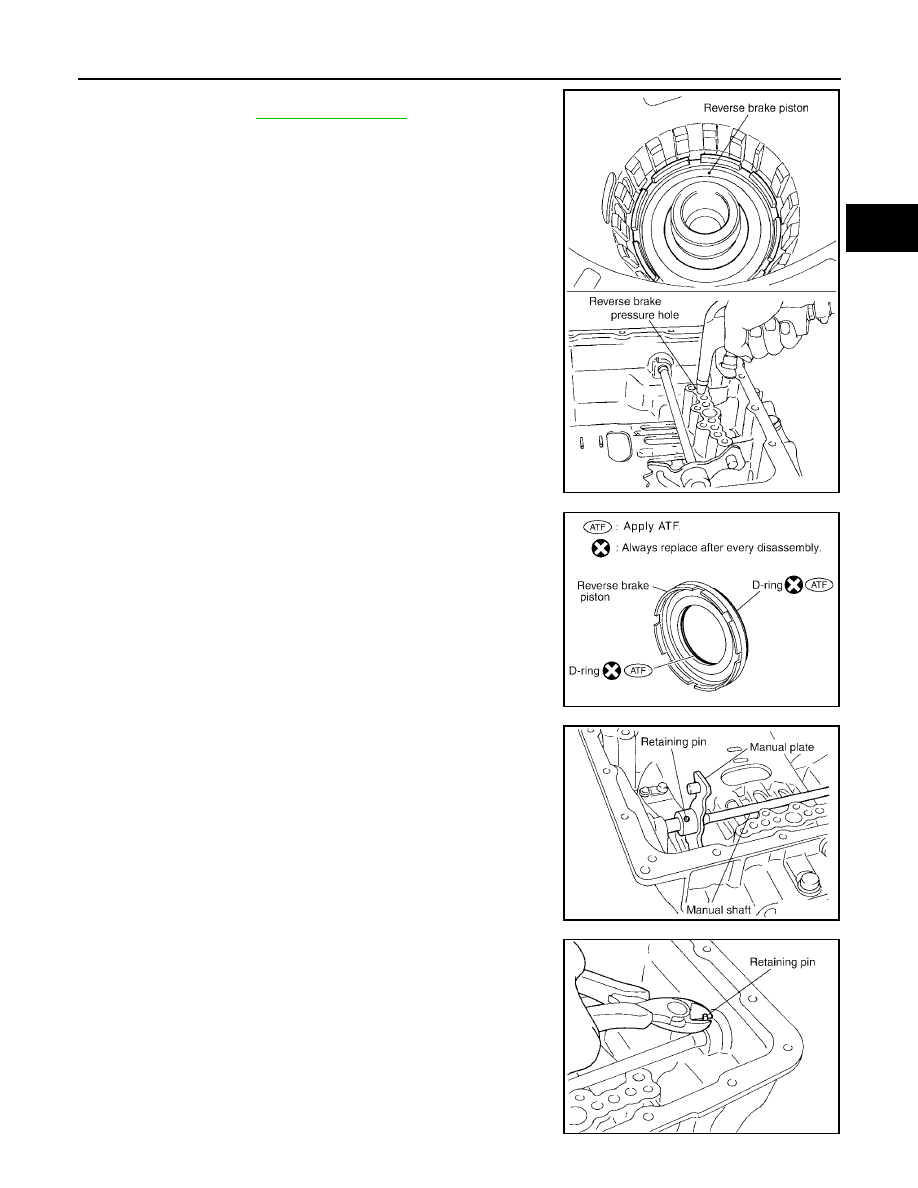

58. Remove reverse brake piston from transmission case with com-

pressed air. Refer to

AT-260, "Oil Channel"

 .

CAUTION:

Care should be taken not to abruptly blow air. It makes pis-
tons incline, as the result, it becomes hard to disassemble
the pistons.

59. Remove D-rings from reverse brake piston.

60. Use a pin punch (4mm dia. commercial service tool) to knock

out retaining pin.

61. Remove manual shaft retaining pin with a pair of nippers.

SCIA5047E

SCIA6330E

SCIA2328E

SCIA2329E

AT-278

DISASSEMBLY

2006 Pathfinder

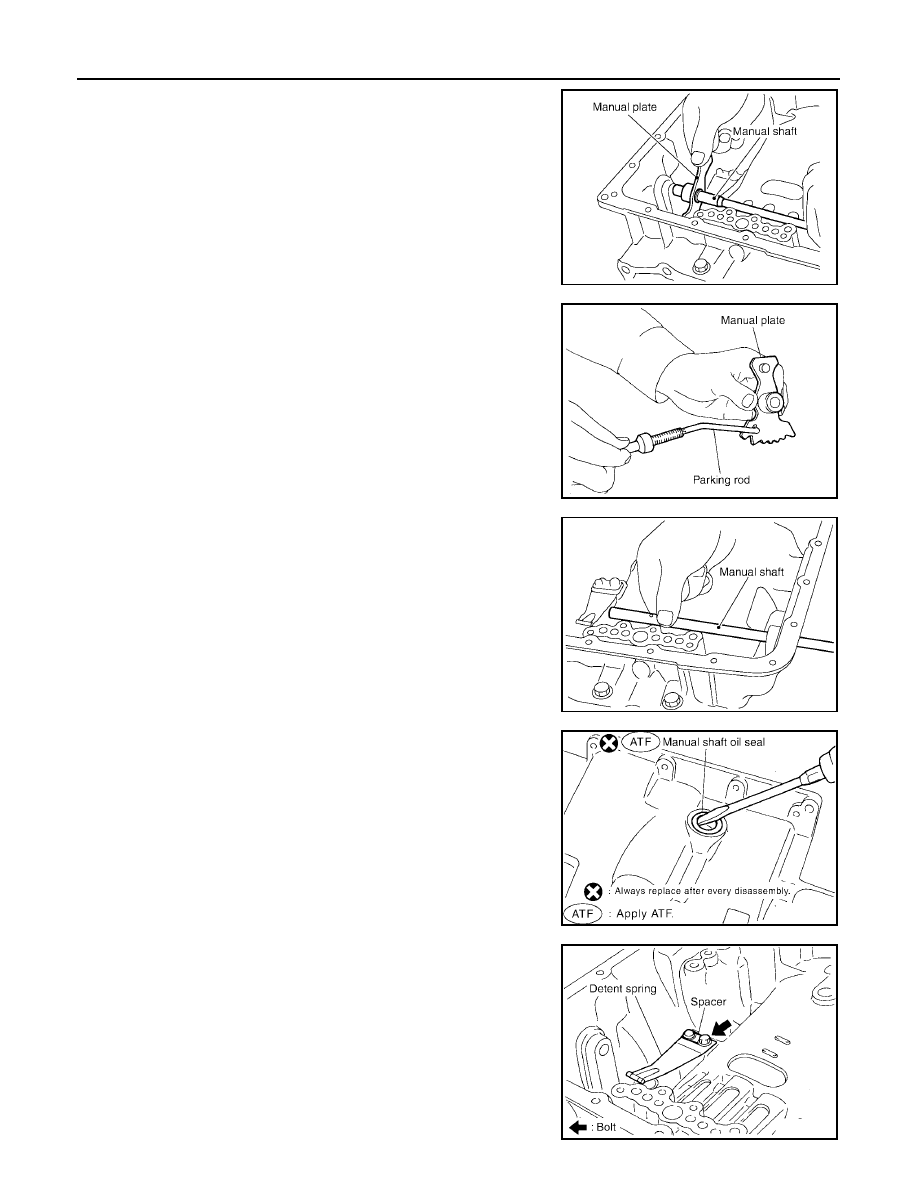

62. Remove manual plate (with parking rod) from manual shaft.

63. Remove parking rod from manual plate.

64. Remove manual shaft from transmission case.

65. Remove manual shaft oil seals using suitable tool.

CAUTION:

Be careful not to scratch transmission case.

66. Remove detent spring and spacer from transmission case.

SCIA5715E

SCIA5220E

SCIA5716E

SCIA2331E

SCIA5248E
