Nissan Pathfinder (2005 year). Manual - part 254





SERVICE DATA AND SPECIFICATIONS (SDS)

EM-137

C

D

E

F

G

H

I

J

K

L

M

A

EM

2005 Pathfinder

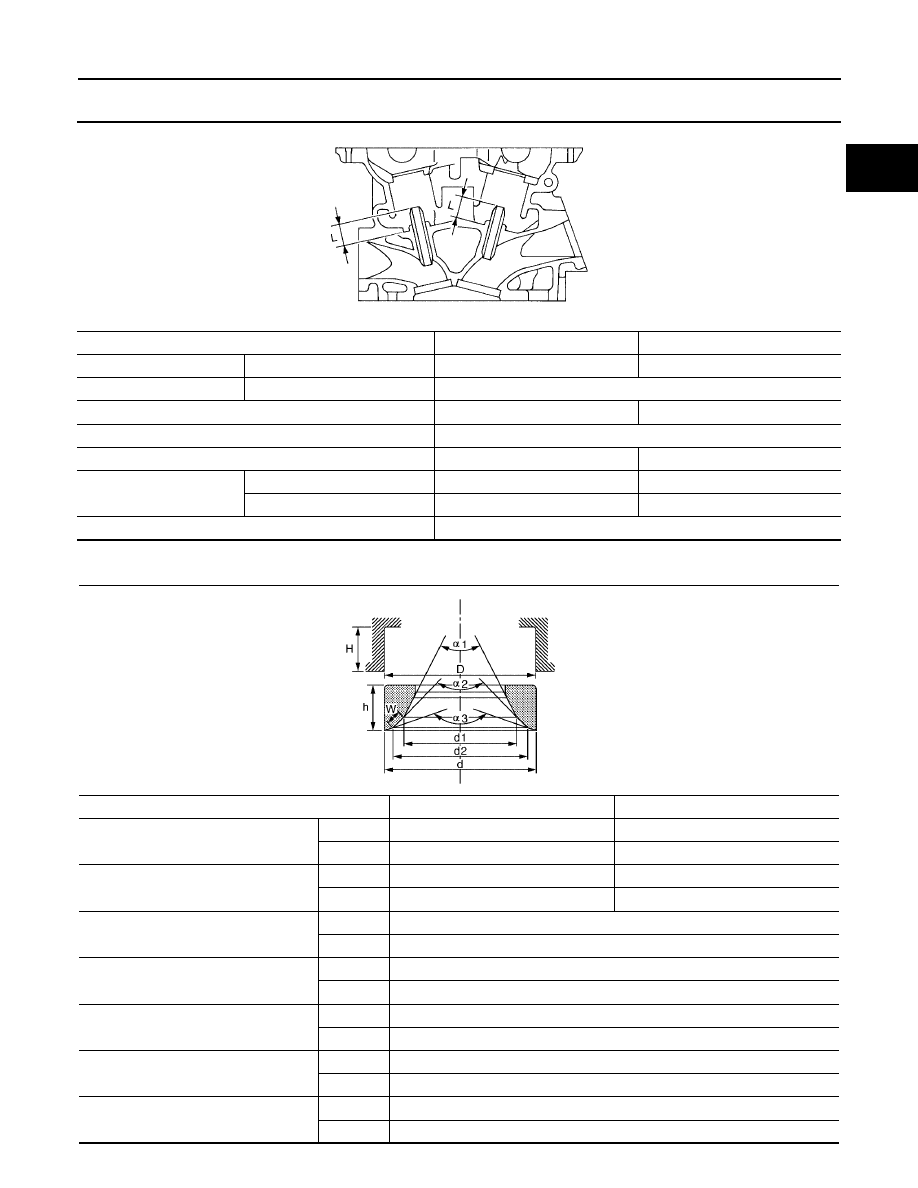

Valve Guide

Unit: mm (in)

Valve Seat

Unit: mm (in)

Items

Standard

0.2 (0.008) oversize (Service)

Valve guide

Outer diameter

10.023 - 10.034 (0.3946 - 0.3950)

10.223 - 10.234 (0.4025 - 0.4029)

Inner diameter (Finished size)

6.000 - 6.018 (0.2362 - 0.2369)

Cylinder head valve guide hole diameter

9.975 - 9.996 (0.3927 - 0.3935)

10.175 - 10.196 (0.4006 - 0.4014)

Interference fit of valve guide

0.027 - 0.059 (0.0011 - 0.0023)

Items

Standard

Limit

Valve guide clearance

Intake

0.020 - 0.053 (0.0008 - 0.0021)

0.08 (0.003)

Exhaust

0.030 - 0.063 (0.0012 - 0.0025)

0.09 (0.004)

Projection length “L”

12.6 - 12.8 (0.496 - 0.504)

SEM950E

Items

Standard

Oversize [0.5 (0.02)] (Service)

Cylinder head seat recess diameter “D”

Intake

38.000 - 38.016 (1.4961 - 1.4967)

38.500 - 38.516 (1.5157 - 1.5164)

Exhaust

32.200 - 32.216 (1.2677 - 1.2683)

32.700 - 32.716 (1.2874 - 1.2880)

Valve seat outer diameter “d”

Intake

38.097 - 38.113 (1.4999 - 1.5005)

38.597 - 38.613 (1.5196 - 1.5202)

Exhaust

32.280 - 32.296 (1.2709 - 1.2715)

32.780 - 32.796 (1.2905 - 1.2912)

Valve seat interference fit

Intake

0.081 - 0.113 (0.0032 - 0.0044)

Exhaust

0.064 - 0.096 (0.0025 - 0.0038)

Diameter “d1”*

1

Intake

35 (1.38)

Exhaust

28.7 (1.130)

Diameter “d2”*

2

Intake

36.3 - 36.8 (1.429 - 1.449)

Exhaust

30.3 - 30.8 (1.193 - 1.213)

Angle “

α

1”

Intake

60

°

Exhaust

60

°

Angle “

α

2”

Intake

88

°

45

- 90

°

15

Exhaust

88

°

45

- 90

°

15

PBIC2745E

EM-138

SERVICE DATA AND SPECIFICATIONS (SDS)

2005 Pathfinder

*

1

: Diameter made by intersection point of conic angles “

α

1” and “

α

2”

*

2

: Diameter made by intersection point of conic angles “

α

2” and “

α

3”

*3

: Machining data

Valve Spring

Angle “

α

3”

Intake

120

°

Exhaust

120

°

Contacting width “W”*

3

Intake

1.0 - 1.4 (0.039-0.055)

Exhaust

1.2 - 1.6 (0.047-0.063)

Height “h”

Intake

5.9 - 6.0 (0.232 - 0.236)

5.05 - 5.15 (0.1988 - 0.2028)

Exhaust

5.9 - 6.0 (0.232 - 0.236)

4.95 - 5.05 (0.1949 - 0.1988)

Depth “H”

6.0 (0.236)

Free height

mm (in)

47.07 (1.8531)

Pressure

N (kg, lb) at height mm (in)

Installation

166 - 188 (16.9 - 19.2, 37 - 42) at 37.00 (1.4567)

Valve open

373 - 421 (38.0 - 42.9, 84 - 95) at 27.20 (1.0709)

squareness

mm (in)

Limit

2.1 (0.083)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-139

C

D

E

F

G

H

I

J

K

L

M

A

EM

2005 Pathfinder

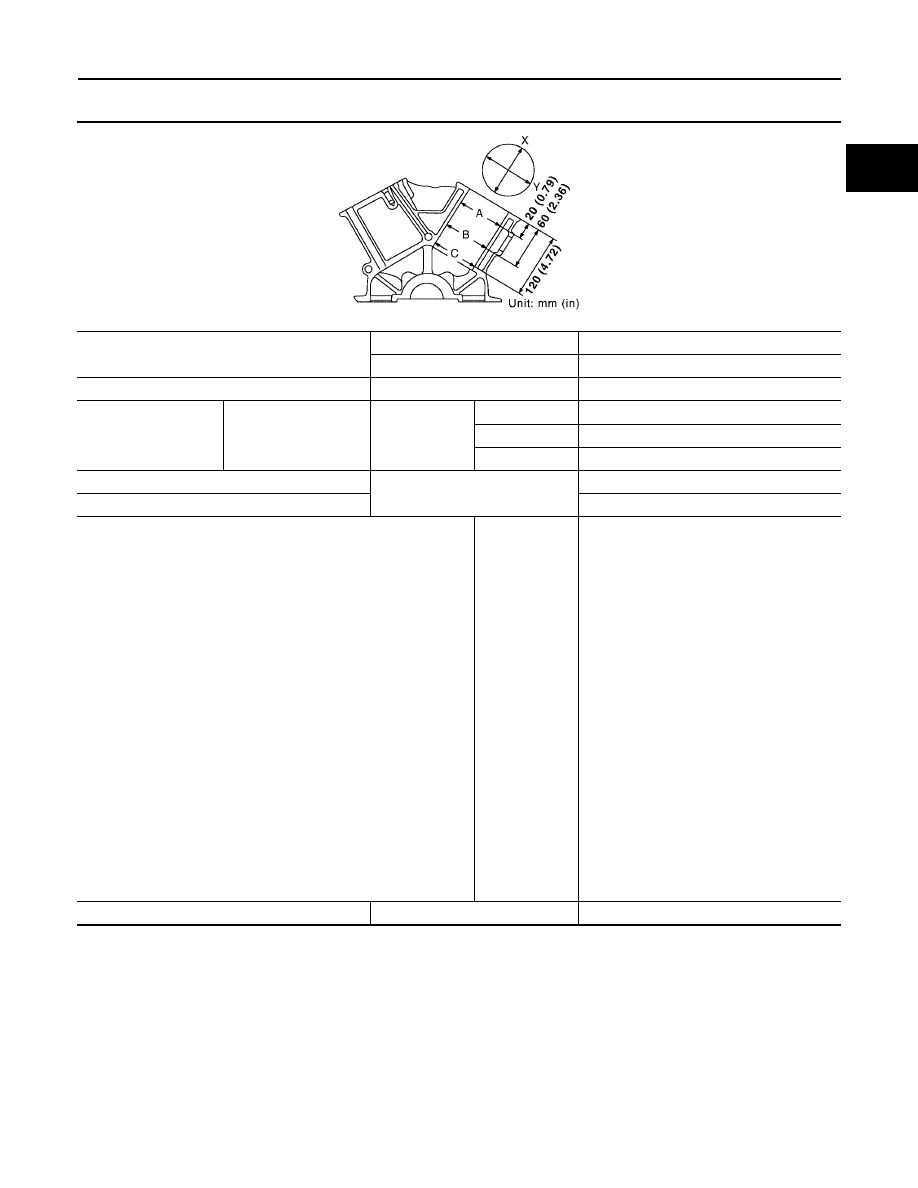

CYLINDER BLOCK

Unit: mm (in)

Surface flatness

Standard

Less than 0.03 (0.0012)

Limit

0.1 (0.004)

Main bearing housing inner diameter

Standard

74.993 - 75.017 (2.9525 - 2.9534)

Cylinder bore

Inner diameter

Standard

Grade No. 1

95.500 - 95.510 (3.7598 - 3.7602)

Grade No. 2

95.510 - 95.520 (3.7602 - 3.7606)

Grade No. 3

95.520 - 95.530 (3.7606 - 3.7610)

Out-of-round (Difference between “X” and “Y”)

Limit

0.015 (0.0006)

Taper (Difference between “A” and “C”)

0.01 (0.0004)

Main bearing housing inner diameter (Without bearing)

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W
Grade No. X
Grade No. Y
Grade No. 4
Grade No. 7

74.993 - 74.994 (2.9525 - 2.9525)
74.994 - 74.995 (2.9525 - 2.9526)
74.995 - 74.996 (2.9526 - 2.9526)
74.996 - 74.997 (2.9526 - 2.9526)
74.997 - 74.998 (2.9526 - 2.9527)
74.998 - 74.999 (2.9527 - 2.9527)
74.999 - 75.000 (2.9527 - 2.9528)
75.000 - 75.001 (2.9528 - 2.9528)
75.001 - 75.002 (2.9528 - 2.9528)
75.002 - 75.003 (2.9528 - 2.9529)
75.003 - 75.004 (2.9529 - 2.9529)
75.004 - 75.005 (2.9529 - 2.9529)
75.005 - 75.006 (2.9529 - 2.9530)
75.006 - 75.007 (2.9530 - 2.9530)
75.007 - 75.008 (2.9530 - 2.9531)
75.008 - 75.009 (2.9530 - 2.9531)
75.009 - 75.010 (2.9531 - 2.9531)

75.010 - 75.011 (2.9531 - 2.9532)
75.011 - 75.012 (2.9532 - 2.9532)

75.012 - 75.013 (2.9532 - 2.9533)
75.013 - 75.014 (2.9533 - 2.9533)
75.014 - 75.015 (2.9533 - 2.9533)
75.015 - 75.016 (2.9533 - 2.9534)
75.016 - 75.017 (2.9534 - 2.9534)

Difference in inner diameter between cylinders

Standard

Less than 0.03 (0.0012)

PBIC2955E

EM-140

SERVICE DATA AND SPECIFICATIONS (SDS)

2005 Pathfinder

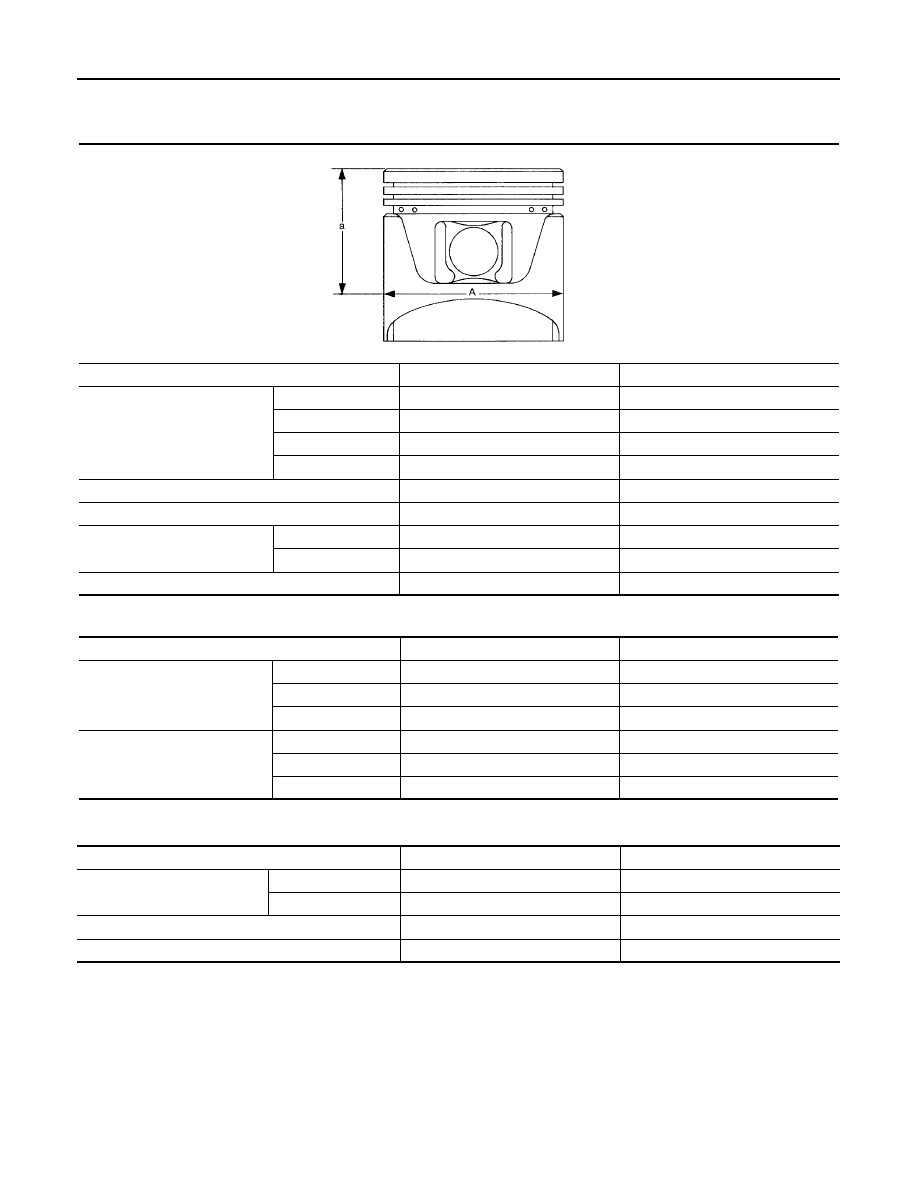

PISTON, PISTON RING AND PISTON PIN
Available Piston

Unit: mm (in)

Piston Ring

Unit: mm (in)

Piston Pin

Unit: mm (in)

Items

Standard

0.20 (0.0079) oversize

Piston skirt diameter “A”

Grade No. 1

95.480 - 95.490 (3.7590 - 3.7594)

Grade No. 2

95.490 - 95.500 (3.7594 - 3.7598)

Grade No. 3

95.500 - 95.510 (3.7598 - 3.7602)

Service

95.680 - 95.710 (3.7669 - 3.7681)

Items

Standard

Limit

“a” dimension

43.03 (1.6941)

Piston pin hole diameter

Grade No. 0

21.993 - 21.999 (0.8659 - 0.8661)

Grade No. 1

21.999 - 22.005 (0.8661 - 0.8663)

Piston to cylinder bore clearance

0.010 - 0.030 (0.0004 - 0.0012)

0.08 (0.0031)

SEM882E

Items

Standard

Limit

Side clearance

Top

0.045 - 0.080 (0.0018 - 0.0031)

0.11 (0.0043)

2nd

0.030 - 0.070 (0.0012 - 0.0028)

0.10 (0.0039)

Oil ring

0.065 - 0.135 (0.0026 - 0.0053)

End gap

Top

0.23 - 0.33 (0.0091 - 0.0130)

0.56 (0.0220)

2nd

0.33 - 0.48 (0.0130 - 0.0189)

0.68 (0.0268)

Oil (rail ring)

0.20 - 0.50 (0.0079 - 0.0197)

0.85 (0.0335)

Items

Standard

Limit

Piston pin outer diameter

Grade No. 0

21.989 - 21.995 (0.8657 - 0.8659)

Grade No. 1

21.995 - 22.001 (0.8659 - 0.8662)

Piston to piston pin oil clearance

0.002 - 0.006 (0.0001 - 0.0002)

Connecting rod bushing oil clearance

0.005 - 0.017 (0.0002 - 0.0007)

0.030 (0.0012)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-141

C

D

E

F

G

H

I

J

K

L

M

A

EM

2005 Pathfinder

CONNECTING ROD

Unit: mm (in)

*: After installing in connecting rod

Items

Standard

Limit

Center distance

165.82 - 165.92 (6.5283 - 6.5323)

Bend [per 100 (3.94)]

0.15 (0.0059)

Torsion [per 100 (3.94)]

0.30 (0.0118)

Connecting rod bushing inner diameter*

Grade No. 0

22.000 - 22.006 (0.8661 - 0.8664)

Grade No. 1

22.006 - 22.012 (0.8664 - 0.8666)

Connecting rod big end diameter (Without bearing)

57.000 - 57.013 (2.2441 - 2.2446)

Side clearance

0.20 - 0.35 (0.0079 - 0.0138)

EM-142

SERVICE DATA AND SPECIFICATIONS (SDS)

2005 Pathfinder

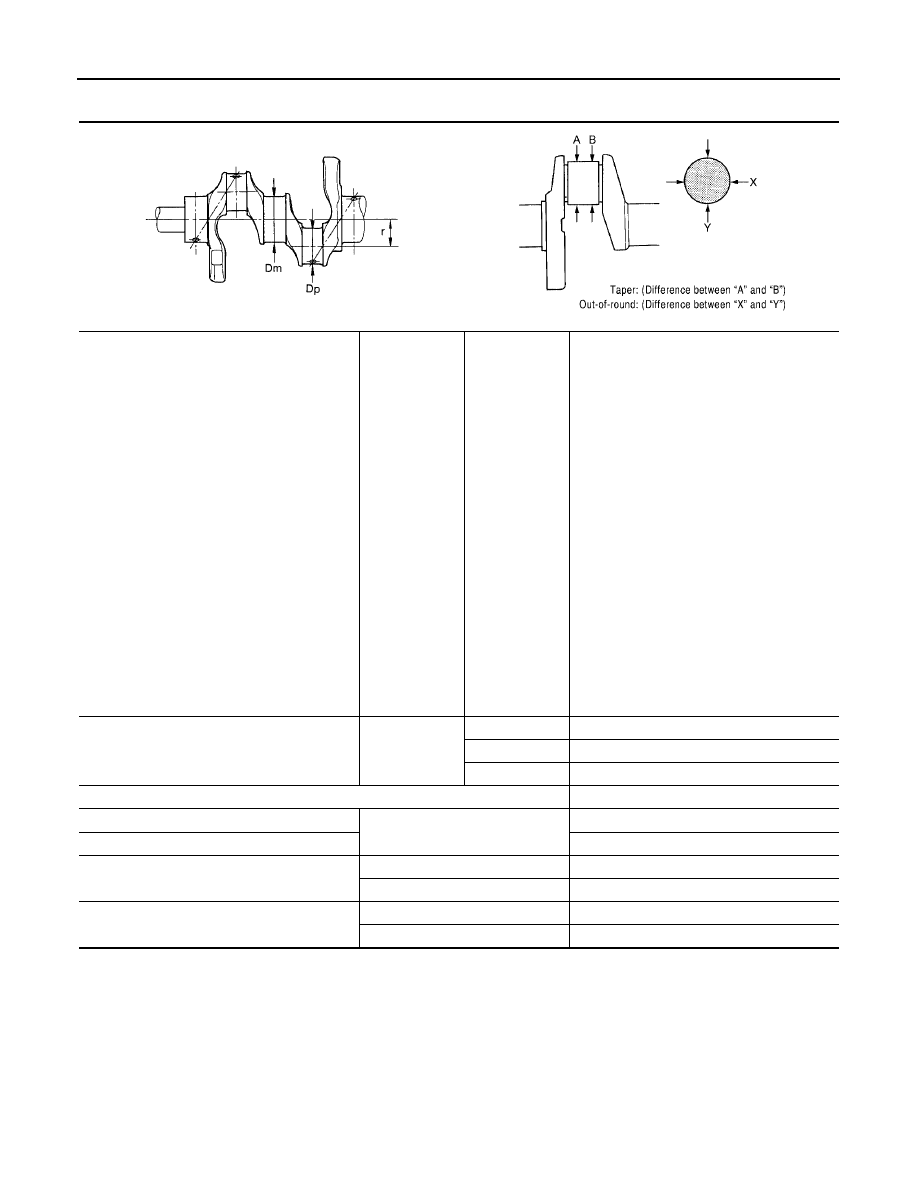

CRANKSHAFT

Unit: mm (in)

*: Total indicator reading

Main journal diameter. “Dm” grade

Standard

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W
Grade No. X
Grade No. Y
Grade No. 4
Grade No. 7

69.975 - 69.974 (2.7549 - 2.7549)
69.974 - 69.973 (2.7549 - 2.7548)
69.973 - 69.972 (2.7548 - 2.7548)
69.972 - 69.971 (2.7548 - 2.7548)
69.971 - 69.970 (2.7548 - 2.7547)
69.970 - 69.969 (2.7547 - 2.7547)
69.969 - 69.968 (2.7547 - 2.7546)
69.968 - 69.967 (2.7546 - 2.7546)
69.967 - 69.966 (2.7546 - 2.7546)
69.966 - 69.965 (2.7546 - 2.7545)
69.965 - 69.964 (2.7545 - 2.7545)
69.964 - 69.963 (2.7545 - 2.7544)
69.963 - 69.962 (2.7544 - 2.7544)
69.962 - 69.961 (2.7544 - 2.7544)
69.961 - 69.960 (2.7544 - 2.7543)
69.960 - 69.959 (2.7543 - 2.7543)
69.959 - 69.958 (2.7543 - 2.7542)
69.958 - 69.957 (2.7542 - 2.7542)
69.957 - 69.956 (2.7542 - 2.7542)
69.956 - 69.955 (2.7542 - 2.7541)
69.955 - 69.954 (2.7541 - 2.7541)
69.954 - 69.953 (2.7541 - 2.7540)
69.953 - 69.952 (2.7540 - 2.7540)
69.952 - 69.951 (2.7540 - 2.7540)

Pin journal diameter. “Dp” grade

Standard

Grade No. 0

53.968 - 53.974 (2.1247 - 2.1250)

Grade No. 1

53.962 - 53.968 (2.1245 - 2.1247)

Grade No. 2

53.956 - 53.962 (2.1242 - 2.1245)

Center distance “r”

45.96 - 46.04 (1.8094 - 1.8126)

Taper (Difference between “A” and “B”)

Limit

0.002 (0.0001)

Out-of-round (Difference between “X” and “Y”)

0.002 (0.0001)

Crankshaft runout [TIR*]

Standard

Less than 0.05 (0.002)

Limit

0.10 (0.0039)

Crankshaft end play

Standard

0.10 - 0.25 (0.0039 - 0.0098)

Limit

0.30 (0.0118)

SEM645

SBIA0535E

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-143

C

D

E

F

G

H

I

J

K

L

M

A

EM

2005 Pathfinder

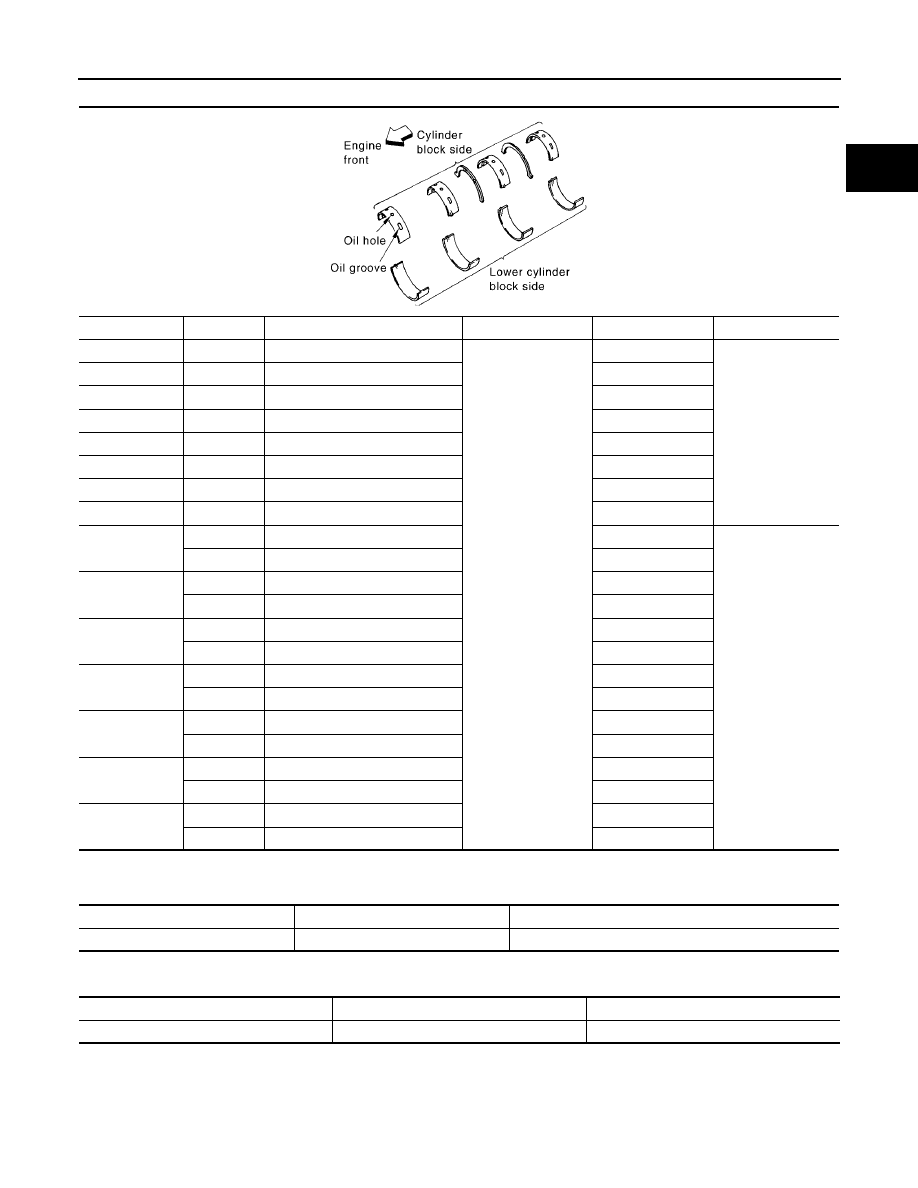

MAIN BEARING

Undersize

Unit: mm (in)

Main Bearing Oil Clearance

Unit: mm (in)

*: Actual clearance

Grade number

UPR/LWR

Thickness

mm (in)

Width

mm (in)

Identification color

Remarks

0

2.500 - 2.503 (0.0984 - 0.0985)

19.9 - 20.1

(0.783 - 0.791)

Black

Grade is the same
for upper and lower
bearings.

1

2.503 - 2.506 (0.0985 - 0.0987)

Brown

2

2.506 - 2.509 (0.0987 - 0.0988)

Green

3

2.509 - 2.512 (0.0988 - 0.0989)

Yellow

4

2.512 - 2.515 (0.0989 - 0.0990)

Blue

5

2.515 - 2.518 (0.0990 - 0.0991)

Pink

6

2.518 - 2.521 (0.0991 - 0.0993)

Purple

7

2.521 - 2.524 (0.0993 - 0.0994)

White

01

UPR

2.503 - 2.506 (0.0985 - 0.0987)

Brown

Grade is different
for upper and lower
bearings.

LWR

2.500 - 2.503 (0.0984 - 0.0985)

Black

12

UPR

2.506 - 2.509 (0.0987 - 0.0988)

Green

LWR

2.503 - 2.506 (0.0985 - 0.0987)

Brown

23

UPR

2.509 - 2.512 (0.0988 - 0.0989)

Yellow

LWR

2.506 - 2.509 (0.0987 - 0.0988)

Green

34

UPR

2.512 - 2.515 (0.0989 - 0.0990)

Blue

LWR

2.509 - 2.512 (0.0988 - 0.0989)

Yellow

45

UPR

2.515 - 2.518 (0.0990 - 0.0991)

Pink

LWR

2.512 - 2.515 (0.0989 - 0.0990)

Blue

56

UPR

2.518 - 2.521 (0.0991 - 0.0993)

Purple

LWR

2.515 - 2.518 (0.0990 - 0.0991)

Pink

67

UPR

2.521 - 2.524 (0.0993 - 0.0994)

White

LWR

2.518 - 2.521 (0.0991 - 0.0993)

Purple

PBIC2969E

Items

Thickness

Main journal diameter

0.25 (0.0098)

2.633 - 2.641 (0.1037 - 0.1040)

Grind so that bearing clearance is the specified value.

Items

Standard

Limit

Main bearing oil clearance

0.035 - 0.045 (0.0014 - 0.0018)*

0.065 (0.0026)

EM-144

SERVICE DATA AND SPECIFICATIONS (SDS)

2005 Pathfinder

CONNECTING ROD BEARING

Undersize

Unit: mm (in)

Connecting Rod Bearing Oil Clearance

Unit: mm (in)

*: Actual clearance

Grade number

Thickness

mm (in)

Identification color (mark)

0

1.500 - 1.503 (0.0591 - 0.0592)

Black

1

1.503 - 1.506 (0.0592 - 0.0593)

Brown

2

1.506 - 1.509 (0.0593 - 0.0594)

Green

Items

Thickness

Crank pin journal diameter

0.25 (0.0098)

1.626 - 1.634 (0.0640 - 0.0643)

Grind so that bearing clearance is the specified value.

Items

Standard

Limit

Connecting rod bearing oil clearance

0.034 - 0.059 (0.0013 - 0.0023)*

0.070 (0.0028)















Content      ..     252      253      254      255     ..
