Nissan Pathfinder (2005 year). Manual - part 1





ACC-2

ACCELERATOR CONTROL SYSTEM

2005 Pathfinder

ACCELERATOR CONTROL SYSTEM

PFP:18005

Components

EBS00M4J

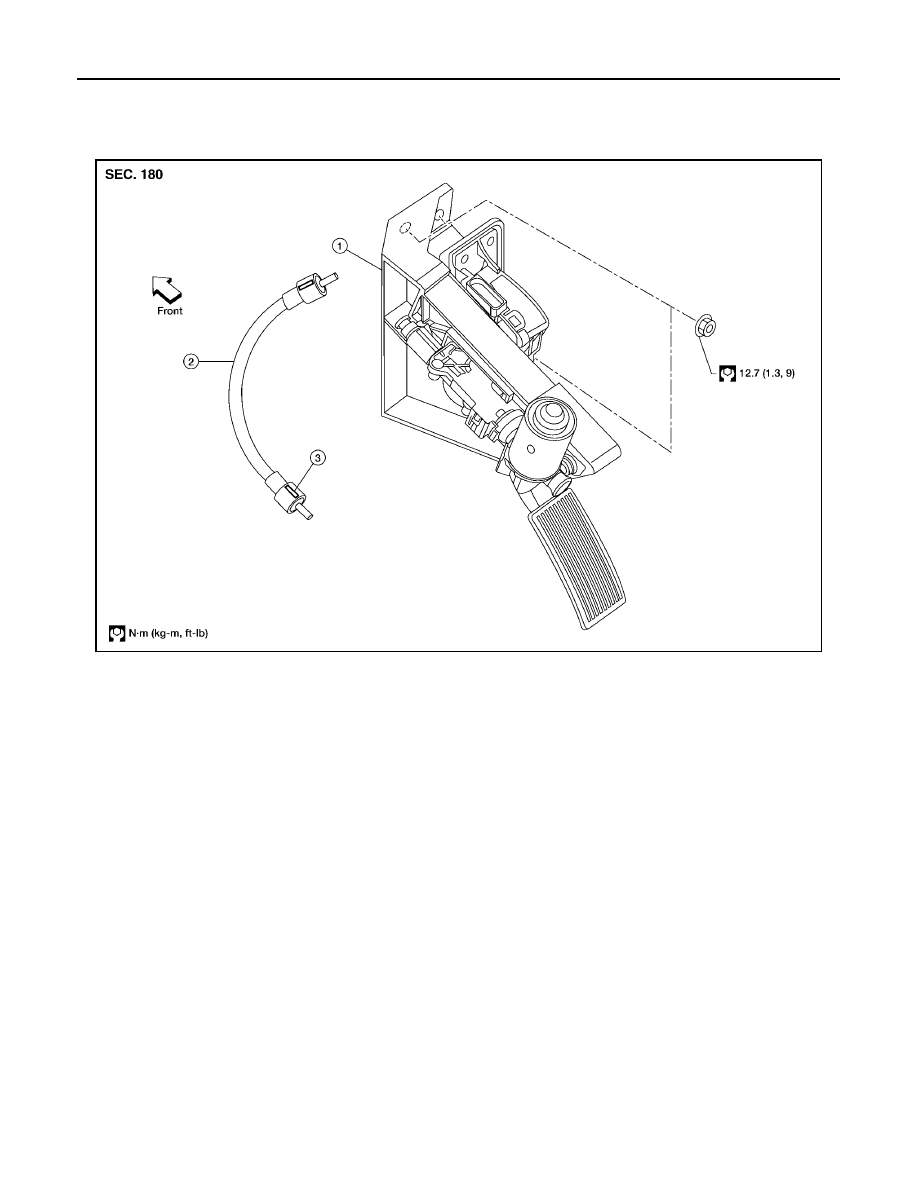

Adjustable Accelerator Pedal

WBIA0628E

1.

Adjustable accelerator pedal assembly

2.

Adjustable brake pedal cable

3.

Adjustable brake pedal cable lock
tab (part of the cable)

ACCELERATOR CONTROL SYSTEM

ACC-3

C

D

E

F

G

H

I

J

K

L

M

A

ACC

2005 Pathfinder

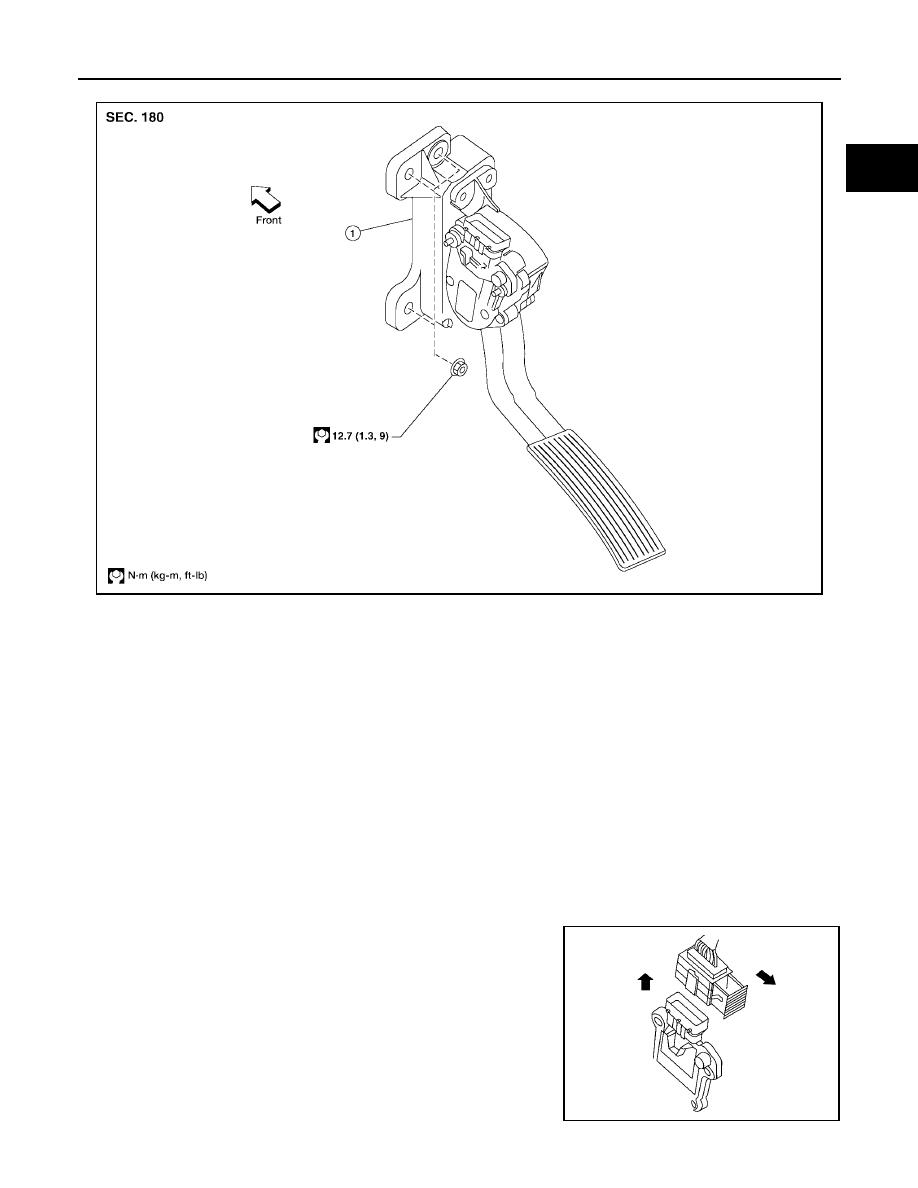

Non-adjustable Accelerator Pedal

CAUTION:

Before removal and installation, the adjustable accelerator and brake pedals must be in the front-
most position, if equipped. This is to align the base position of the accelerator and brake pedals.

Do not disassemble the accelerator pedal assembly.

Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.

Do not disassemble the accelerator pedal adjusting mechanism.

Avoid damage from dropping the accelerator pedal assembly during handling.

Keep the accelerator pedal assembly away from water.

Removal and Installation

EBS00KB3

REMOVAL FOR ADJUSTABLE ACCELERATOR PEDAL

1.

Move the accelerator and brake pedals to the frontmost position.

2.

Turn the ignition switch OFF and disconnect the negative battery terminal.

3.

Disconnect the adjustable pedal electric motor electrical connector.

4.

Disconnect the adjustable pedal electric motor memory electrical connector, if equipped.

5.

Disconnect the accelerator position sensor electrical connector.

a.

Pull the connector lock back to unlock the connector from the
accelerator pedal position sensor as shown.

b.

Pull up on the connector to disconnect it from the accelerator
pedal position sensor as shown.

WBIA0629E

1.

Non-adjustable accelerator pedal assembly

LBIA0333E

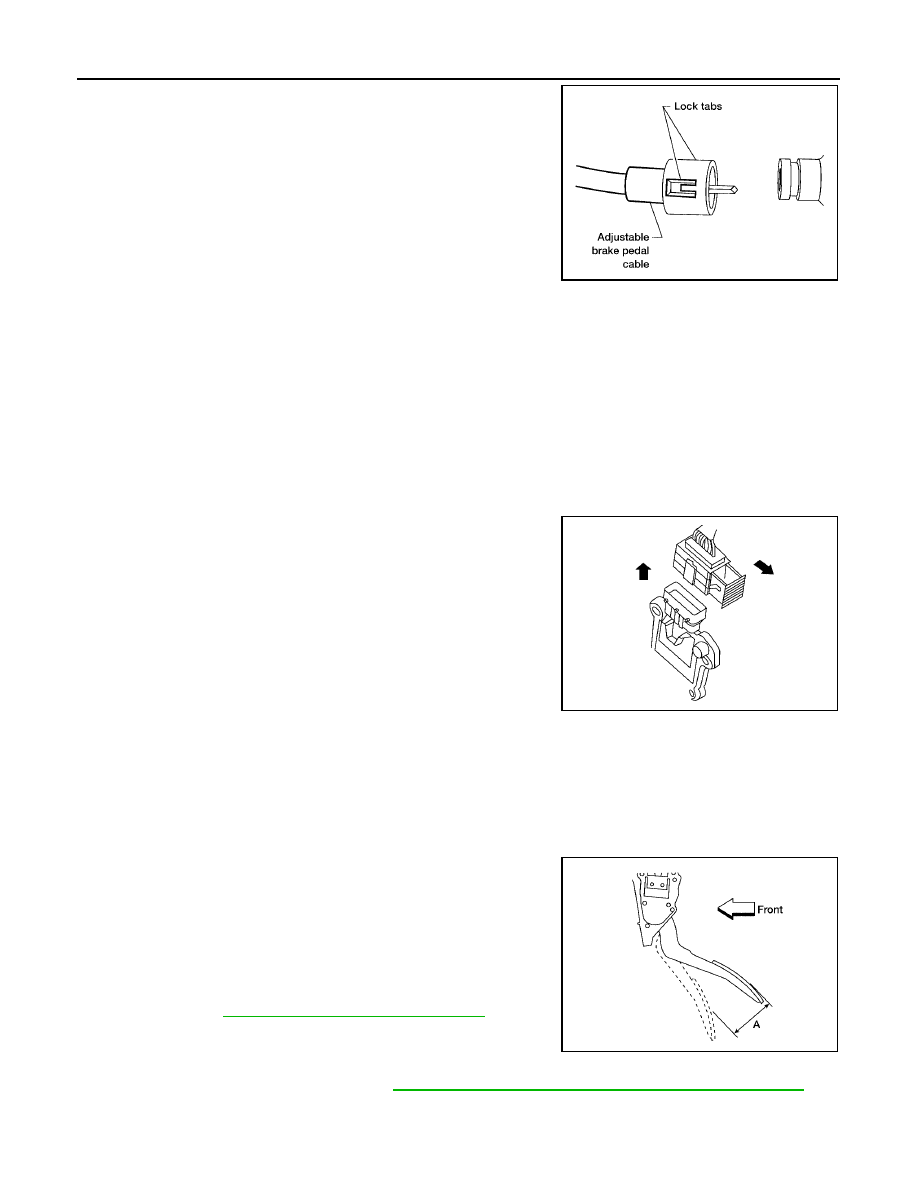

ACC-4

ACCELERATOR CONTROL SYSTEM

2005 Pathfinder

6.

Disconnect the adjustable brake pedal cable from the adjustable
accelerator pedal.

Release the two lock tabs, then pull the adjustable brake
pedal cable to disconnect it from the adjustable accelerator
pedal.

7.

Remove the two upper and one lower accelerator pedal nuts.

8.

Remove the adjustable accelerator pedal assembly.

CAUTION:

Do not disassemble the accelerator pedal assembly.

Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.

Do not disassemble the accelerator pedal adjusting mechanism.

Avoid damage from dropping the accelerator pedal assembly during handling.

Keep the accelerator pedal assembly away from water.

REMOVAL FOR NON-ADJUSTABLE ACCELERATOR PEDAL

1.

Disconnect the negative battery terminal.

2.

Disconnect the accelerator position sensor electrical connector.

a.

Pull the connector lock back to unlock the connector from the
accelerator pedal position sensor as shown.

b.

Pull up on the connector to disconnect it from the accelerator
pedal position sensor as shown.

3.

Remove the two upper and one lower accelerator pedal nuts.

4.

Remove the accelerator pedal assembly.

CAUTION:

Do not disassemble the accelerator pedal assembly.

Do not remove the accelerator pedal position sensor
from the accelerator pedal bracket.

Avoid damage from dropping the accelerator pedal assembly during handling.

Keep the accelerator pedal assembly away from water.

INSTALLATION

Installation is in the reverse order of removal.

INSPECTION AFTER INSTALLATION

Check that the accelerator pedal moves smoothly within the
specified range.

Check that the accelerator pedal smoothly returns to the original
position.

Perform an electrical inspection of the accelerator pedal position
sensor. Refer to

EC-650, "DTC P2138 APP SENSOR"

.

CAUTION:

When the harness connector of the accelerator pedal posi-
tion sensor is disconnected, perform

Accelerator Pedal

Released Position Learning

. Refer to

EC-88, "Accelerator Pedal Released Position Learning"

.

LFIA0233E

LBIA0333E

Accelerator pedal - total pedal
applied stroke “A”

: 48 mm (1.89 in)

LBIA0434E

SERVICE DATA AND SPECIFICATIONS (SDS)

ACC-5

C

D

E

F

G

H

I

J

K

L

M

A

ACC

2005 Pathfinder

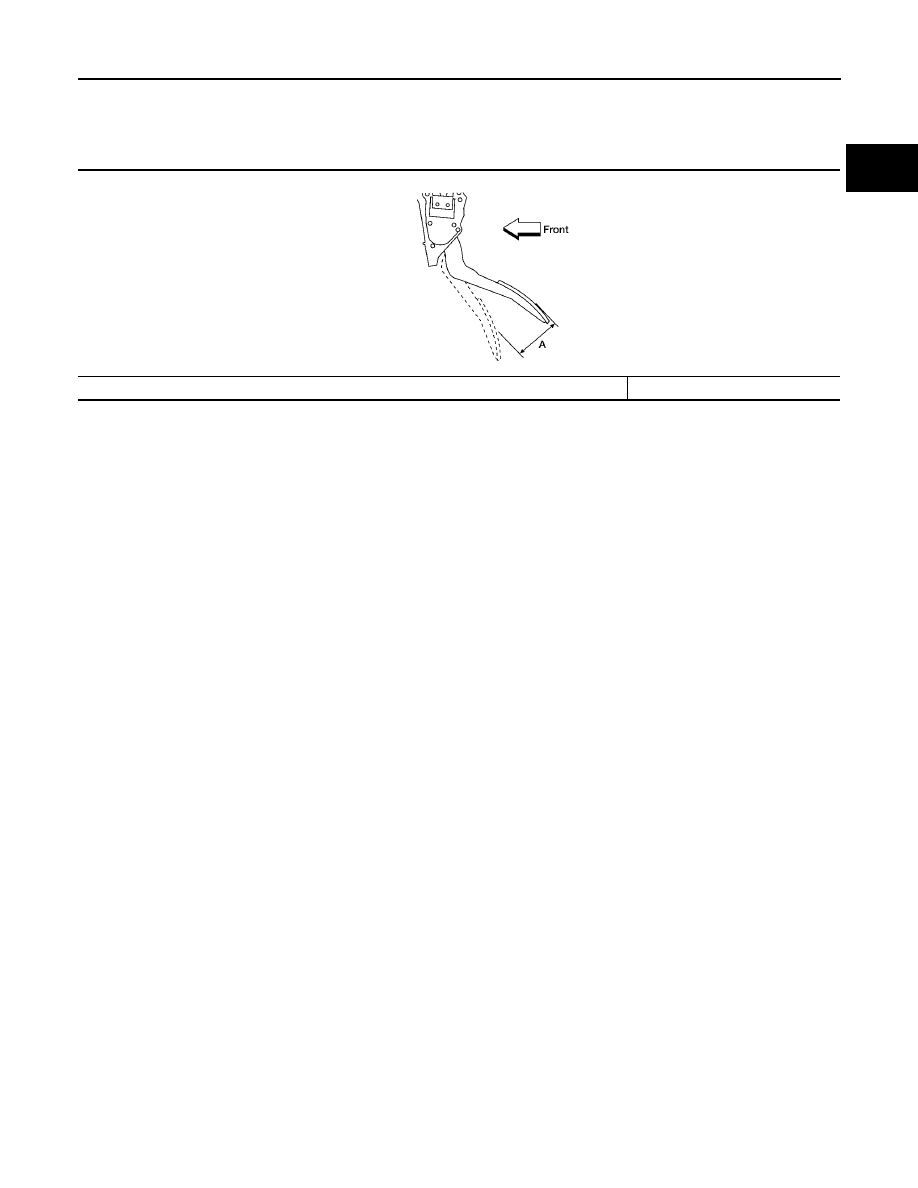

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Accelerator Control

EBS00KB4

ADJUSTABLE AND NON-ADJUSTABLE ACCELERATOR PEDAL

Unit: mm (in)

Accelerator pedal - total pedal applied stroke “A”

48 (1.89)

LBIA0434E

ACC-6

SERVICE DATA AND SPECIFICATIONS (SDS)

2005 Pathfinder

ACS-1

AUTO CRUISE CONTROL SYSTEM

K ELECTRICAL

CONTENTS

C

D

E

F

G

H

I

J

L

M

SECTION

A

B

ACS

2005 Pathfinder

ASCD

AUTOMATIC SPEED CONTROL DEVICE (ASCD)..... 2

Description ............................................................... 2

ACS-2

[ASCD]

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

2005 Pathfinder

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

PFP:18930

Description

EKS009X5

Regarding the information for ASCD system, refer to

EC-30, "AUTOMATIC SPEED CONTROL DEVICE

(ASCD)"

.
