SATELLITE RADIO TUNER

AV-239

< ECU DIAGNOSIS INFORMATION >

[MID AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

30

(B)

Ground

Communication signal
(CONT

→SAT)

Input

Ignition

switch

ON

When satellite radio
mode is selected

32

(SB)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

35

(GR)

Ground

Ground

—

Ignition

switch

ON

—

0V

36

(BG)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

37

(B)

—

Satellite antenna

—

—

—

—

Terminal

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIA9301J

AV-240

< ECU DIAGNOSIS INFORMATION >

[MID AUDIO WITH BOSE]

BLUETOOTH® CONTROL UNIT

BLUETOOTH® CONTROL UNIT

Reference Value

INFOID:0000000009174542

TERMINAL LAYOUT

PHYSICAL VALUES

AWNIA2564ZZ

Terminal

(wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/out-

put

1

 (Y)

Ground

Battery power

Input

–

–

Battery voltage

2

(R)

Ground

ACC power

Input

Ignition

switch

ACC/ON

–

Battery voltage

3

(P)

Ground

 IGN power

Input

Ignition

switch

ON/

START

–

Battery voltage

4

(B)

Ground

Ground

–

Ignition

switch ON

–

0V

5 –

Shield

–

–

–

—

7

 (B)

8 MIC

in

signal

Input

–

–

–

9

(W)

10

(B)

Audio out

Output

Ignition

switch

ACC/ON

Bluetooth

®

 control

unit sends audio sig-

nal

20

(B)

Ground

Ground

–

Ignition

switch ON

–

0V

22

(B)

Ground

Ground

–

Ignition

switch ON

–

0V

24

(B)

Ground

Ground

–

Ignition

switch ON

–

0V

27

(B)

Ground

Ground

–

Ignition

switch ON

–

0V

SKIB3609E

AV

BLUETOOTH® CONTROL UNIT

AV-241

< ECU DIAGNOSIS INFORMATION >

[MID AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

28

 (V)

Ground

Vehicle speed signal

(8-pulse)

Input

Ignition

switch ON

When vehicle speed

is approx. 40 km/h

(25 MPH)

29

(W)

Ground

Microphone power

Output

Ignition

switch ON

–

5V

35

(SB)

–

M-CAN1 (+)

–

–

–

—

36

(LG)

–

M-CAN1 (-)

–

–

–

—

43

(B)

–

Bluetooth

®

 antenna

–

–

–

—

44 –

Shield

–

–

–

—

Terminal

(wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/out-

put

PKIA1935E

AV-242

< WIRING DIAGRAM >

[MID AUDIO WITH BOSE]

MID AUDIO WITH BOSE

WIRING DIAGRAM

MID AUDIO WITH BOSE

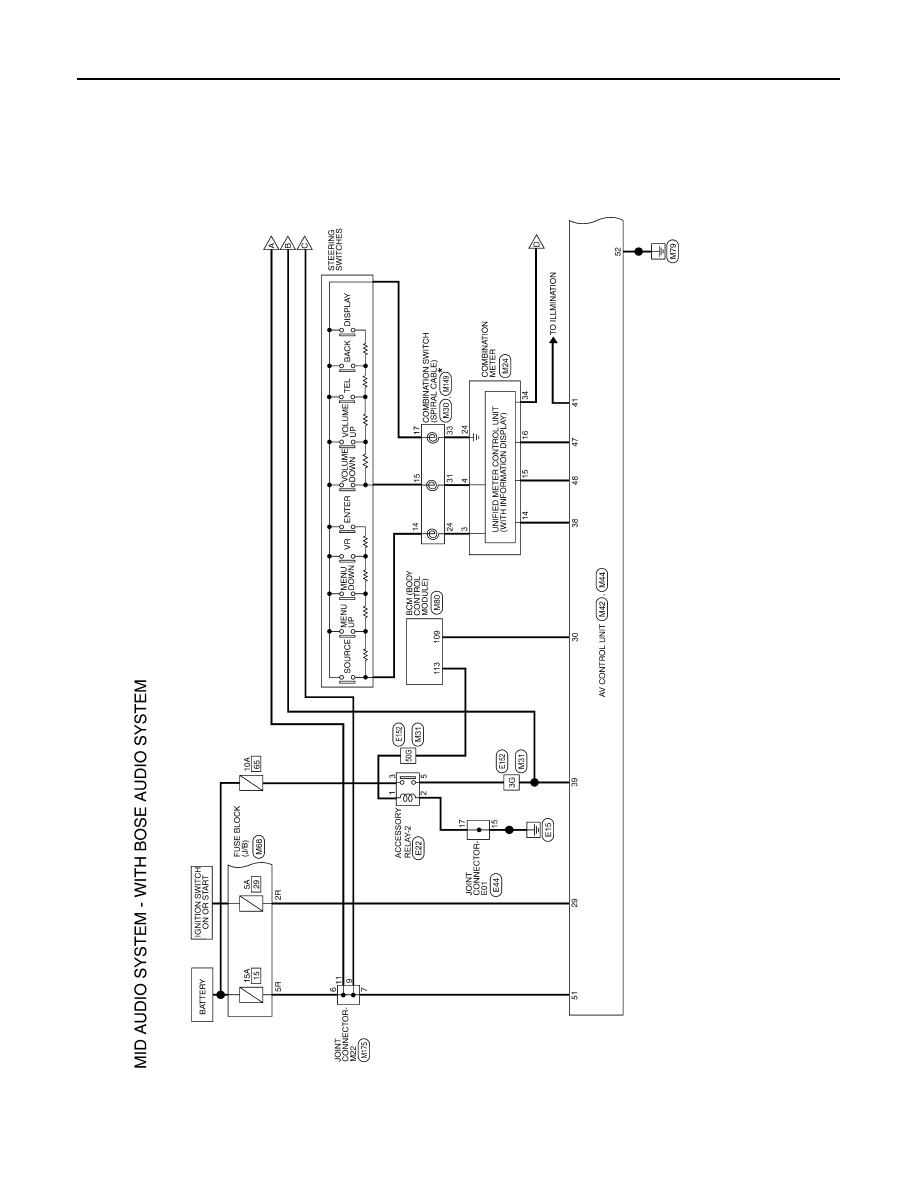

Wiring Diagram

INFOID:0000000009174543

ABNWA1840GB
