RF-78

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

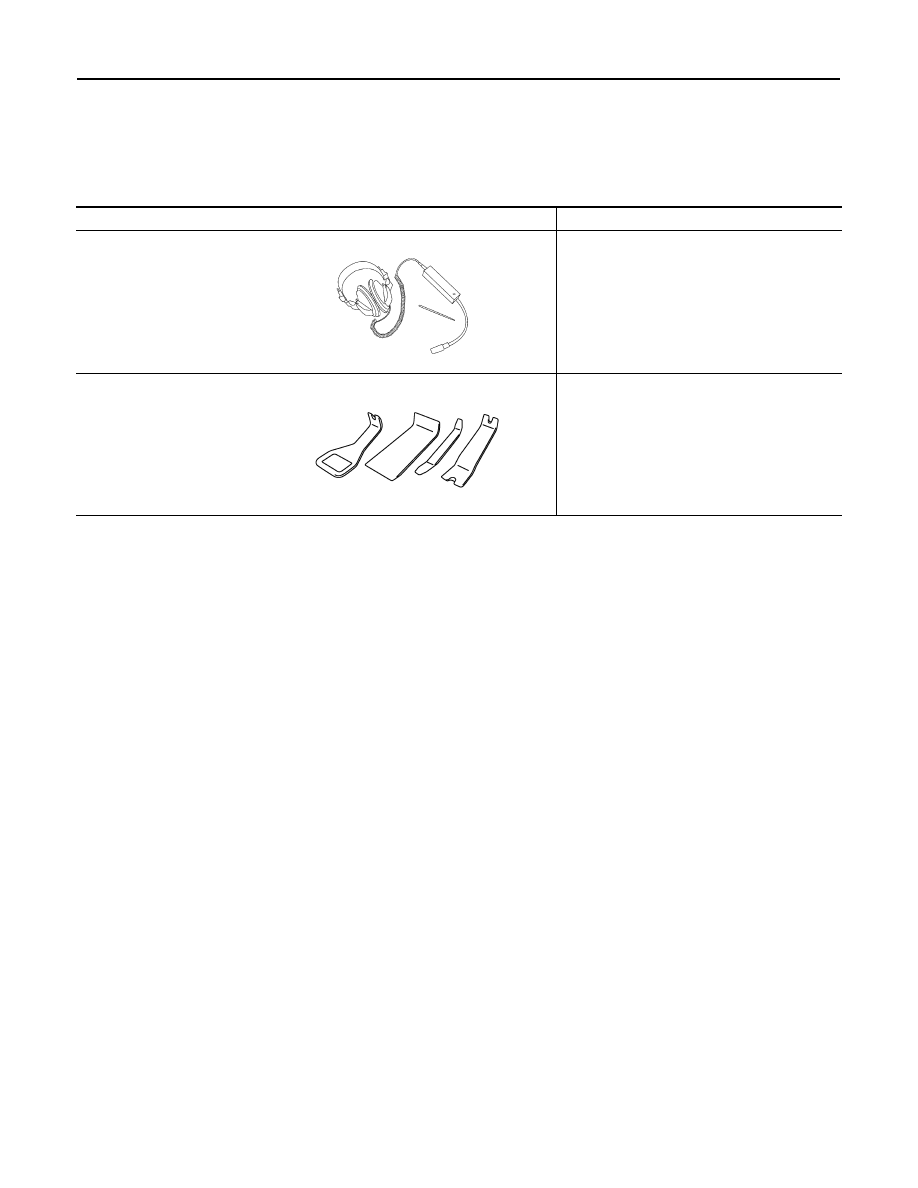

Commercial Service Tool

INFOID:0000000003812883

Tool name

Description

Engine ear

Locating the noise

Remover tool

Removes the clips, pawls and metal clips

SIIA0995E

PIIB7923J

GLASS LID

RF-79

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

ON-VEHICLE REPAIR

GLASS LID

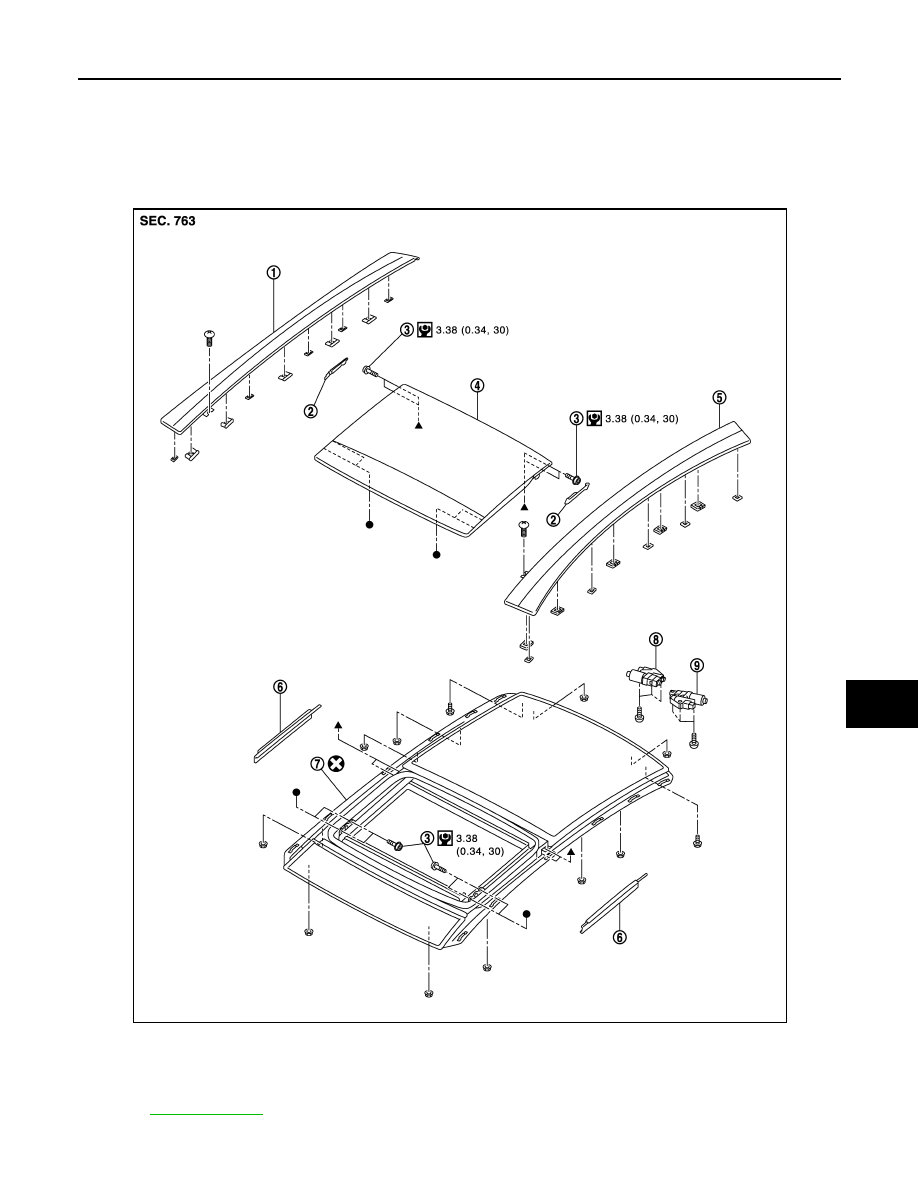

Exploded View

INFOID:0000000003812884

1.

Roof side finisher RH

2.

Rear link cover

3.

TORX bolt

4.

Glass lid

5.

Roof side finisher LH

6.

Inner blind

7.

Sunroof unit assembly

8.

Sunroof motor assembly

9.

Sunshade motor assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2488GB

RF-80

< ON-VEHICLE REPAIR >

GLASS LID

Removal and Installation

INFOID:0000000003812885

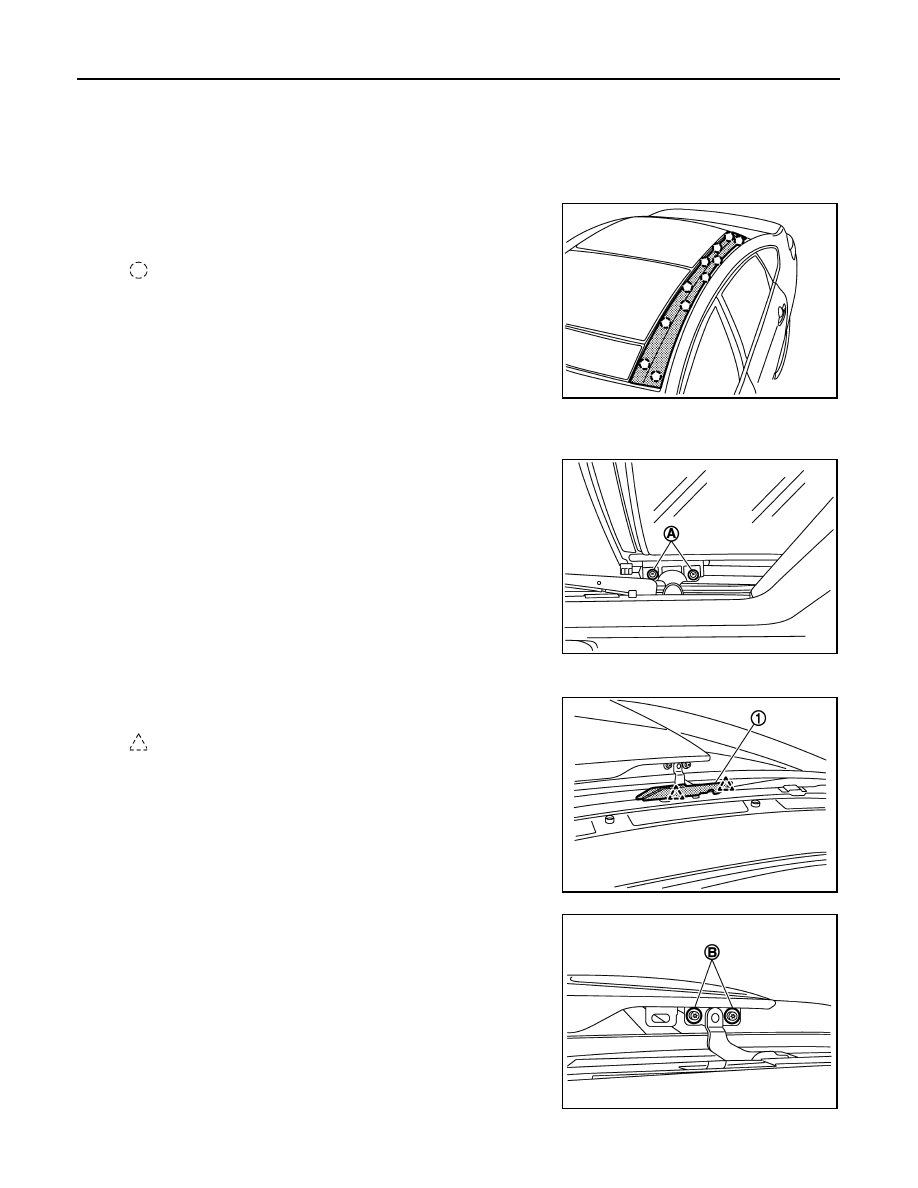

REMOVAL

CAUTION:

Always work with a helper.

1.

Remove the roof side finisher.
• Remove the mounting bolt.
• Remove the clips, and then pull out roof side finisher.

2.

Half open the glass lid.

3.

Remove the TORX bolts from inner side.
• Remove the inner blind.
• Remove the TORX bolts (A).

4.

Remove the TORX bolts from outer side.
• Remove the pawls, and then pull down rear link cover (1).

• Remove the TORX bolts (B).

: Clip

JMKIA2513ZZ

JMKIA2491ZZ

: Pawl

JMKIA2490ZZ

JMKIA1907ZZ

GLASS LID

RF-81

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

5.

Remove the glass lid from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

After installing the glass lid, perform the leak test and check that there is no malfunction.
NOTE:
After installation, carry out fitting adjustment. Refer to

RF-81, "Adjustment"

.

Adjustment

INFOID:0000000003812886

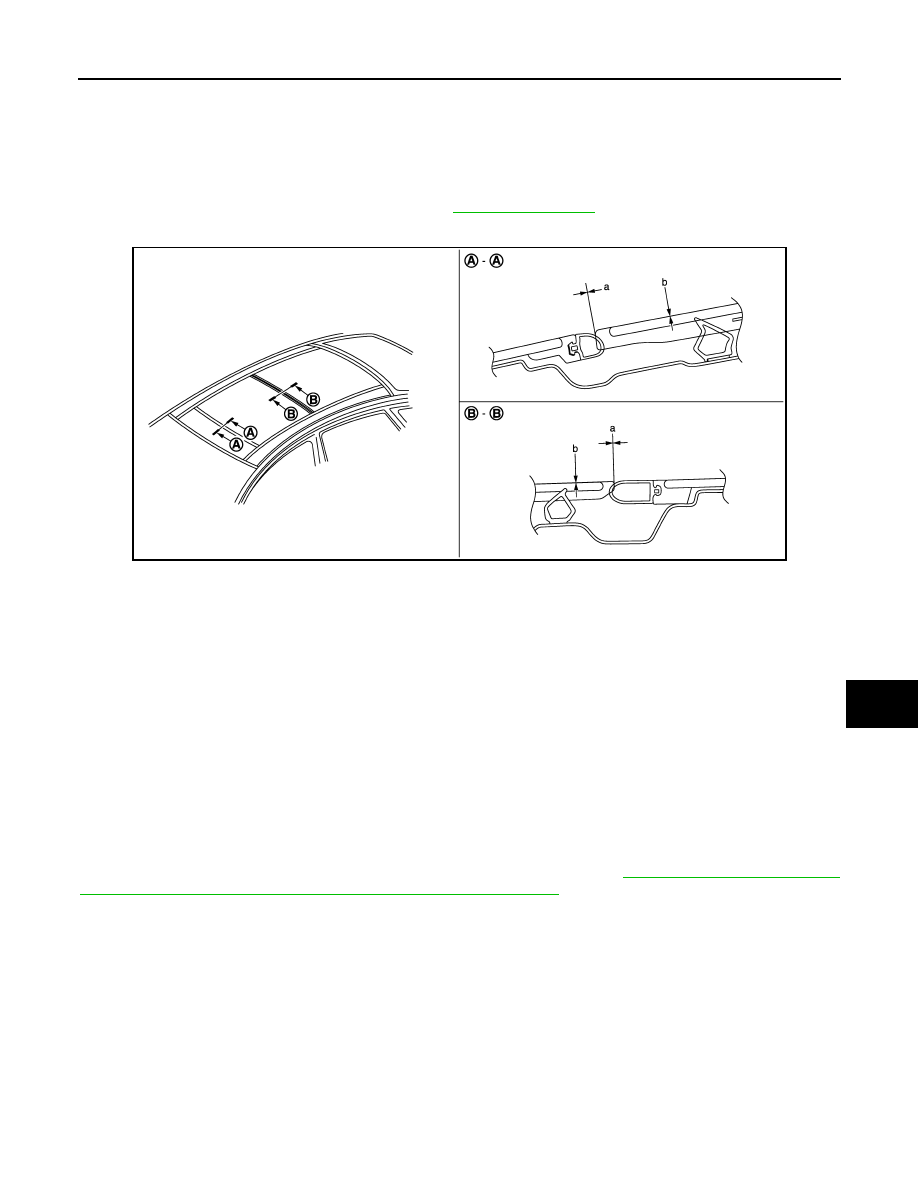

WEATHER-STRIP OVERLAP ADJUSTMENT AND SURFACE MISMATCH ADJUSTMENT

1.

Tilt up glass lid, and then remove inner blind and rear link cover.

2.

After loosening glass lid from TORX bolts (left and right), tilt down glass lid.

3.

Adjust glass lid from outside of vehicle so it resembles “ A – A” “B – B” as shown in the figure.

4.

To prevent glass lid from moving after adjustment, first tighten the TORX bolts of front left, and then
tighten the TORX bolts of rear right.

5.

Tighten remaining TORX bolts, being careful to prevent glass lid from moving.

6.

Tilt glass lid up and down several times to check that it moves smoothly.

NOTE:
After adjusting the sunroof unit assembly, perform additional service. Refer to

RF-4, "ADDITIONAL SERVICE

WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

.

JMKIA2506ZZ

a

b

A – A

0.2 - 4.6 mm (0.008 - 0.181 in)

-1.5 - 1.5 mm (-0.059 - 0.059 in)

B – B

0.5 - 4.9 mm (0.020 - 0.193 in)

-1.5 - 1.5 mm (-0.059 - 0.059 in)
