RF-62

< ECU DIAGNOSIS >

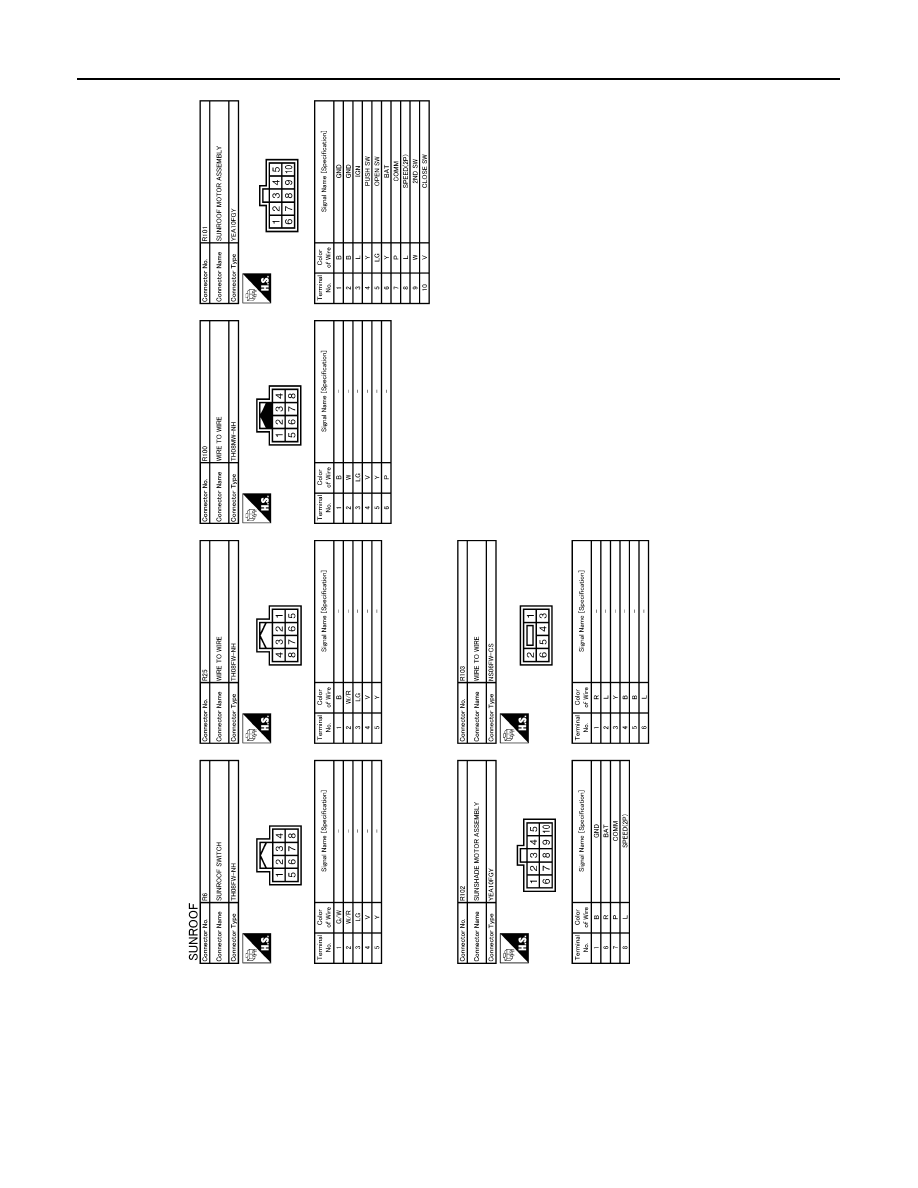

SUNSHADE MOTOR ASSEMBLY

JCKWM1233GB

SUNSHADE MOTOR ASSEMBLY

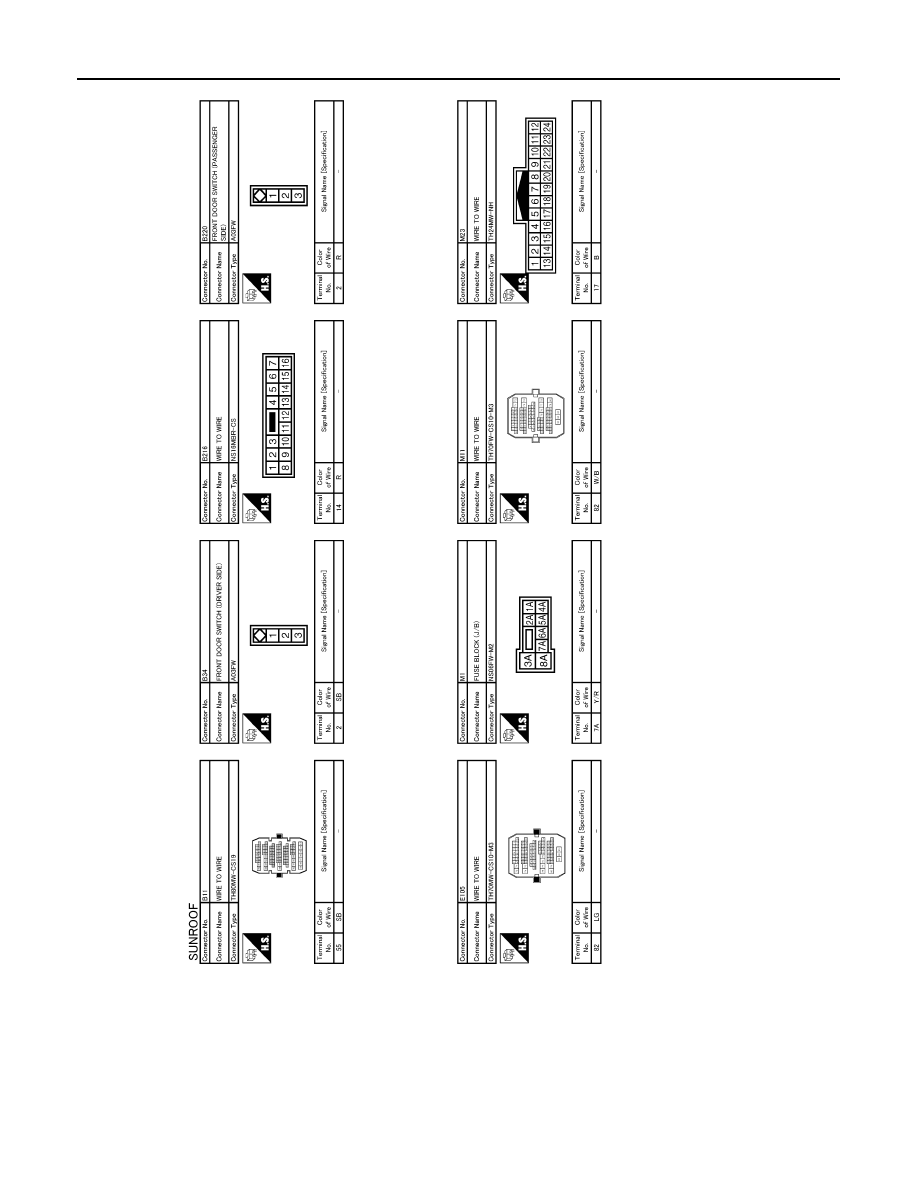

RF-63

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

JCKWM1234GB

RF-64

< ECU DIAGNOSIS >

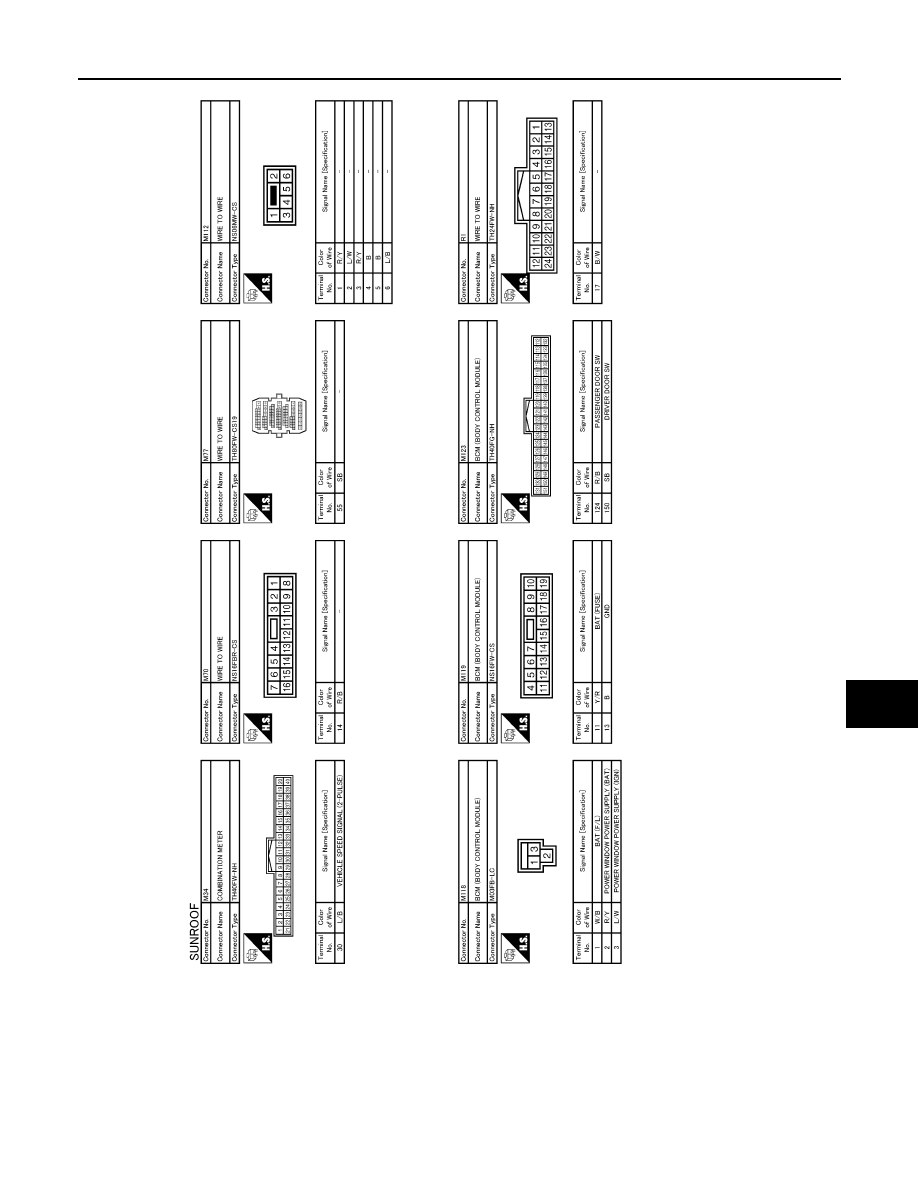

SUNSHADE MOTOR ASSEMBLY

JCKWM1235GB

SUNROOF DOES NOT OPERATE PROPERLY

RF-65

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SYMPTOM DIAGNOSIS

SUNROOF DOES NOT OPERATE PROPERLY

SUNROOF DOES NOT OPEN

SUNROOF DOES NOT OPEN : Description

INFOID:0000000003866181

Sunroof does not open when sunroof switch operated.

SUNROOF DOES NOT OPEN : Diagnosis Procedure

INFOID:0000000003812871

1.

CHECK SUNROOF MECHANISM

Check the following items.
• Operation malfunction caused by sunroof mechanism deformation, pinched harness or other foreign matter.
• Operation malfunction and interference with other parts by poor installation.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK SUNROOF MOTOR ASSEMBLY POWER SUPPLY AND GROUND CIRCUIT

Check sunroof motor assembly power supply and ground circuit.
Refer to

RF-11, "SUNROOF MOTOR ASSEMBLY : Diagnosis Procedure"

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CHECK SUNROOF SWITCH

Check sunroof switch.
Refer to

RF-15, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the malfunctioning parts.

4.

CONFIRM THE OPERATION

Confirm the operation again.

Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-35, "Intermittent Incident"

.

NO

>> GO TO 1.

SUNROOF DOES NOT CLOSE

SUNROOF DOES NOT CLOSE : Description

INFOID:0000000003866182

Sunroof does not close though sunroof opens.

SUNROOF DOES NOT CLOSE : Diagnosis Procedure

INFOID:0000000003866183

1.

CHECK SUNROOF SWITCH

Check sunroof switch.
Refer to

RF-16, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning part.

2.

CONFIRM THE OPERATION

Confirm the operation again.

Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-35, "Intermittent Incident"

.
