Nissan Teana J32. Manual - part 939





RF-22

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

REQ SW -RR

NOTE:
The item is indicated, but not monitored.

Off

REQ SW -RR

NOTE:
The item is indicated, but not monitored.

Off

REQ SW -BD/TR

Trunk lid opener request switch is not pressed

Off

Trunk lid opener request switch is pressed

On

PUSH SW

Push-button ignition switch (push switch) is not pressed

Off

Push-button ignition switch (push switch) is pressed

On

IGN RLY2 -F/B

Ignition switch in OFF or ACC position

Off

Ignition switch in ON position

On

CLUCH SW

NOTE:
The item is indicated, but not monitored.

Off

BRAKE SW 1

The brake pedal is not depressed

On

The brake pedal is depressed

Off

DETE/CANCL SW

Selector lever in P position

Off

Selector lever in any position other than P

On

SFT PN/N SW

Selector lever in any position other than P and N

Off

Selector lever in P or N position

On

S/L -LOCK

Steering is locked

Off

Steering is unlocked

On

S/L -UNLOCK

Steering is unlocked

Off

Steering is locked

On

S/L RELAY-F/B

Ignition switch in OFF or ACC position

Off

Ignition switch in ON position

On

UNLK SEN -DR

Driver door is unlocked

Off

Driver door is locked

On

PUSH SW -IPDM

Push-button ignition switch (push-switch) is not pressed

Off

Push-button ignition switch (push-switch) is pressed

On

IGN RLY1 -F/B

Ignition switch in OFF or ACC position

Off

Ignition switch in ON position

On

DETE SW -IPDM

Selector lever in P position

Off

Selector lever in any position other than P

On

SFT PN -IPDM

Selector lever in any position other than P and N

Off

Selector lever in P or N position

On

SFT P -MET

Selector lever in any position other than P

Off

Selector lever in P position

On

SFT N -MET

Selector lever in any position other than N

Off

Selector lever in N position

On

ENGINE STATE

Engine stopped

Stop

While the engine stalls

Stall

At engine cranking

Crank

Engine running

Run

S/L LOCK-IPDM

Steering is locked

Off

Steering is unlocked

On

Monitor Item

Condition

Value/Status

BCM (BODY CONTROL MODULE)

RF-23

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

S/L UNLK-IPDM

Steering is unlocked

Off

Steering is locked

On

S/L RELAY-REQ

Ignition switch in OFF or ACC position

Off

Ignition switch in ON position

On

VEH SPEED 1

While driving

Equivalent to speedometer reading

VEH SPEED 2

While driving

Equivalent to speedometer reading

DOOR STAT-DR

Driver door is locked

LOCK

Wait with selective UNLOCK operation (5 seconds)

READY

Driver door is unlocked

UNLOCK

DOOR STAT-AS

Passenger door is locked

LOCK

Wait with selective UNLOCK operation (5 seconds)

READY

Passenger door is unlocked

UNLOCK

ID OK FLAG

Ignition switch in ACC or ON position

Reset

Ignition switch in OFF position

Set

PRMT ENG STRT

The engine start is prohibited

Reset

The engine start is permitted

Set

PRMT RKE STRT

NOTE:
The item is indicated, but not monitored.

Reset

KEY SW -SLOT

The key is not inserted into key slot

Off

The key is inserted into key slot

On

RKE OPE COUN1

During the operation of the key

Operation frequency of the key

RKE OPE COUN2

NOTE:
The item is indicated, but not monitored.

CONFRM ID ALL

The key ID that the key slot receives does not accord with any key
ID registered to BCM.

Yet

The key ID that the key slot receives accords with any key ID regis-
tered to BCM.

Done

CONFIRM ID4

The key ID that the key slot receives does not accord with the fourth
key ID registered to BCM.

Yet

The key ID that the key slot receives accords with the fourth key ID
registered to BCM.

Done

CONFIRM ID3

The key ID that the key slot receives does not accord with the third
key ID registered to BCM.

Yet

The key ID that the key slot receives accords with the third key ID
registered to BCM.

Done

CONFIRM ID2

The key ID that the key slot receives does not accord with the sec-
ond key ID registered to BCM.

Yet

The key ID that the key slot receives accords with the second key
ID registered to BCM.

Done

CONFIRM ID1

The key ID that the key slot receives does not accord with the first
key ID registered to BCM.

Yet

The key ID that the key slot receives accords with the first key ID
registered to BCM.

Done

TP 4

The ID of fourth key is not registered to BCM

Yet

The ID of fourth key is registered to BCM

Done

TP 3

The ID of third key is not registered to BCM

Yet

The ID of third key is registered to BCM

Done

Monitor Item

Condition

Value/Status

RF-24

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

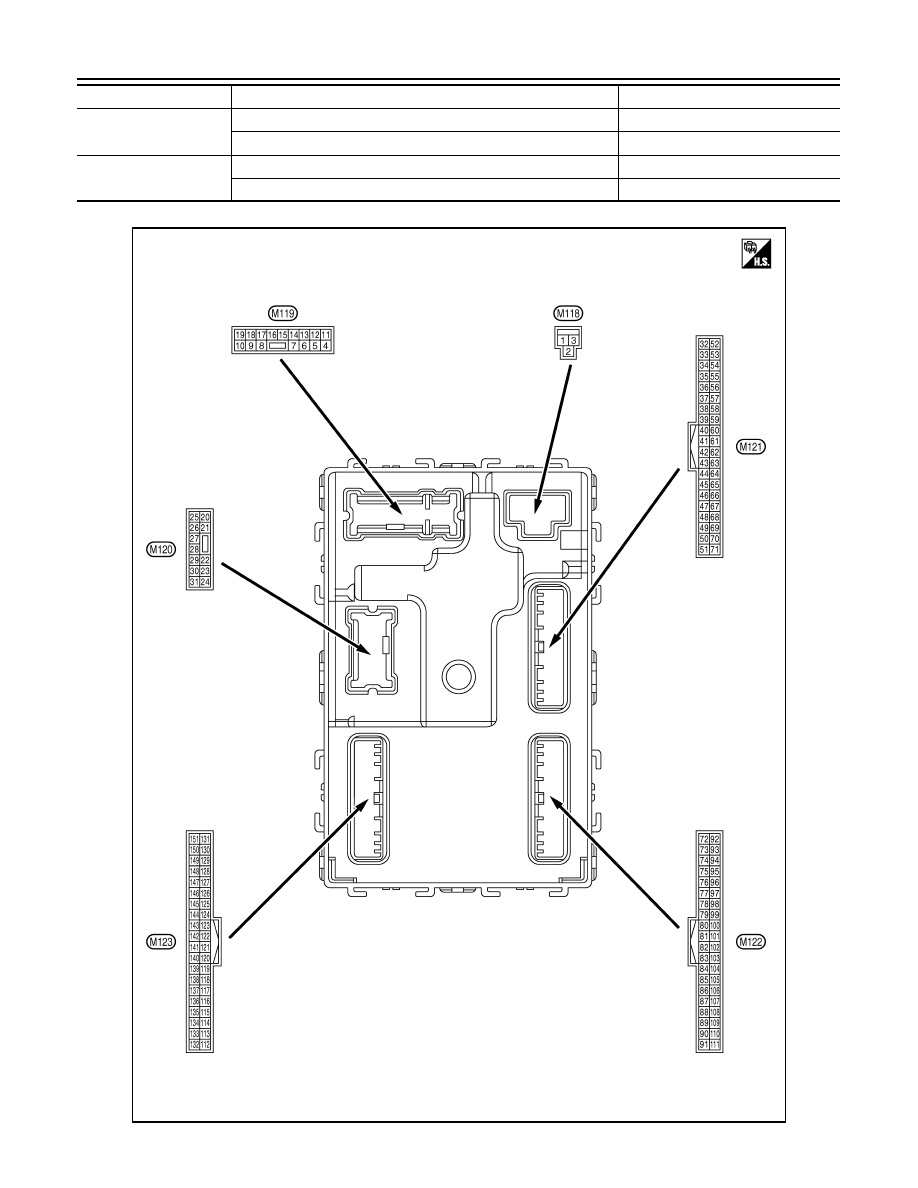

TERMINAL LAYOUT

TP 2

The ID of second key is not registered to BCM

Yet

The ID of second key is registered to BCM

Done

TP 1

The ID of first key is not registered to BCM

Yet

The ID of first key is registered to BCM

Done

Monitor Item

Condition

Value/Status

JPMIA0062ZZ

BCM (BODY CONTROL MODULE)

RF-25

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

PHYSICAL VALUES

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

1

(W/B)

Ground

Battery power sup-
ply

Input

Ignition switch OFF

Battery voltage

2

(R/Y)

Ground

P/W power supply
(BAT)

Output

Ignition switch OFF

Battery voltage

3

(L/W)

Ground

P/W power supply
(IGN)

Output

Ignition switch ON

Battery voltage

4

(P/W)

Ground

Interior room lamp
power supply

Output

Interior room lamp battery saver is activated.
(Cuts the interior room lamp power supply)

0 V

Interior room lamp battery saver is not activat-
ed.
(Outputs the interior room lamp power supply)

Battery voltage

5

(G/Y)

Ground

Passenger door
UNLOCK

Output

Passenger door

UNLOCK (Actuator is ac-
tivated)

Battery voltage

Other than UNLOCK (Ac-
tuator is not activated)

0 V

7

(R/W)

Ground

Step lamp

Output

Step lamp

ON

0 V

OFF

Battery voltage

8

(V)

Ground

All doors LOCK

Output

All doors

LOCK (Actuator is acti-
vated)

Battery voltage

Other than LOCK (Actua-
tor is not activated)

0 V

9

(G)

Ground

Driver door UN-
LOCK

Output

Driver door

UNLOCK (Actuator is ac-
tivated)

Battery voltage

Other than UNLOCK (Ac-
tuator is not activated)

0 V

10

(G/Y)

Ground

Rear RH door and
rear LH door UN-
LOCK

Output

Rear RH door
and rear LH door

UNLOCK (Actuator is ac-
tivated)

Battery voltage

Other than UNLOCK (Ac-
tuator is not activated)

0 V

11

(Y/R)

Ground

Battery power sup-
ply

Input

Ignition switch OFF

Battery voltage

13

(B)

Ground

Ground

Ignition switch ON

0 V

15

(Y)

Ground

ACC indicator lamp

Output

Ignition switch

OFF (LOCK indicator is
not illuminated)

Battery voltage

ACC or ON

0 V

17

(G/B)

Ground

Turn signal RH
(Front and door mir-
ror)

Output

Ignition switch
ON

Turn signal switch OFF

0 V

Turn signal switch RH

6.5 V

PKID0926E
