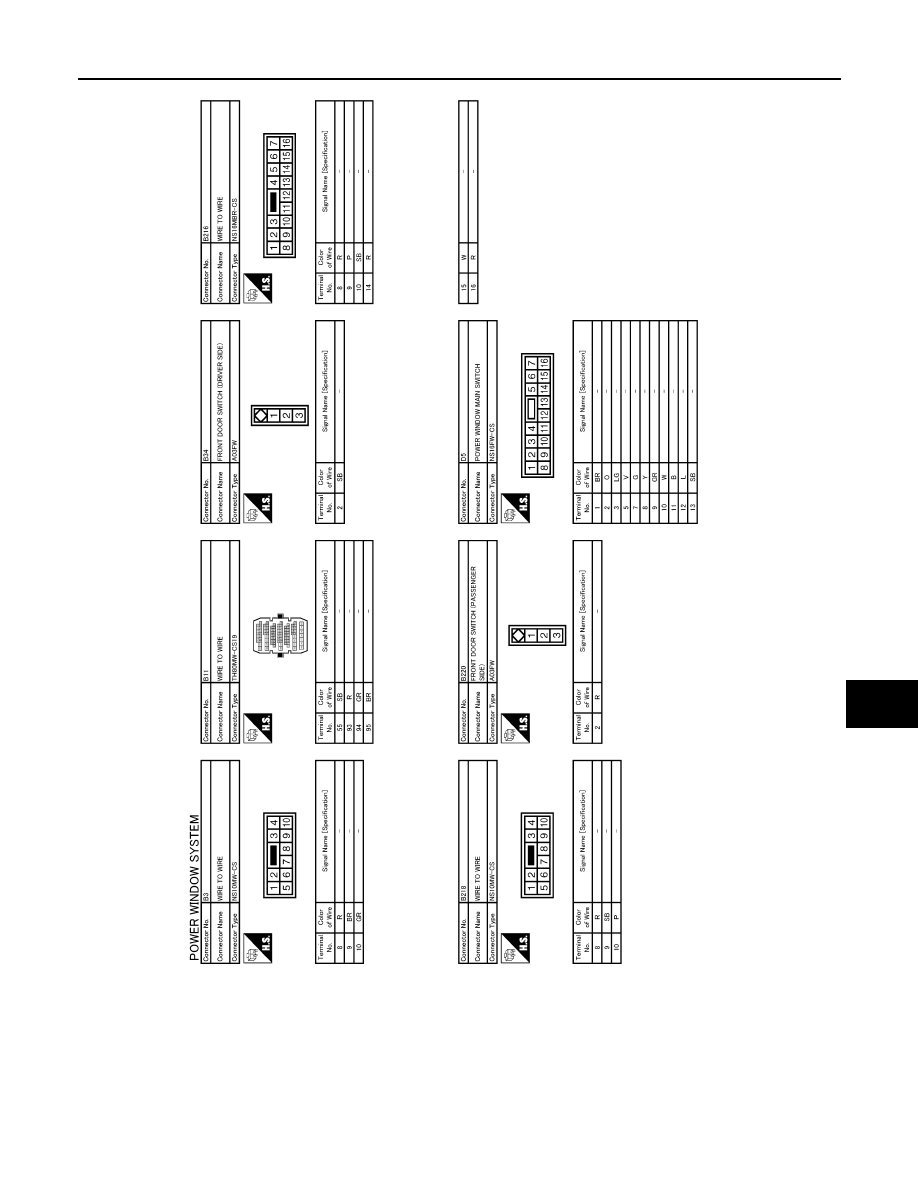

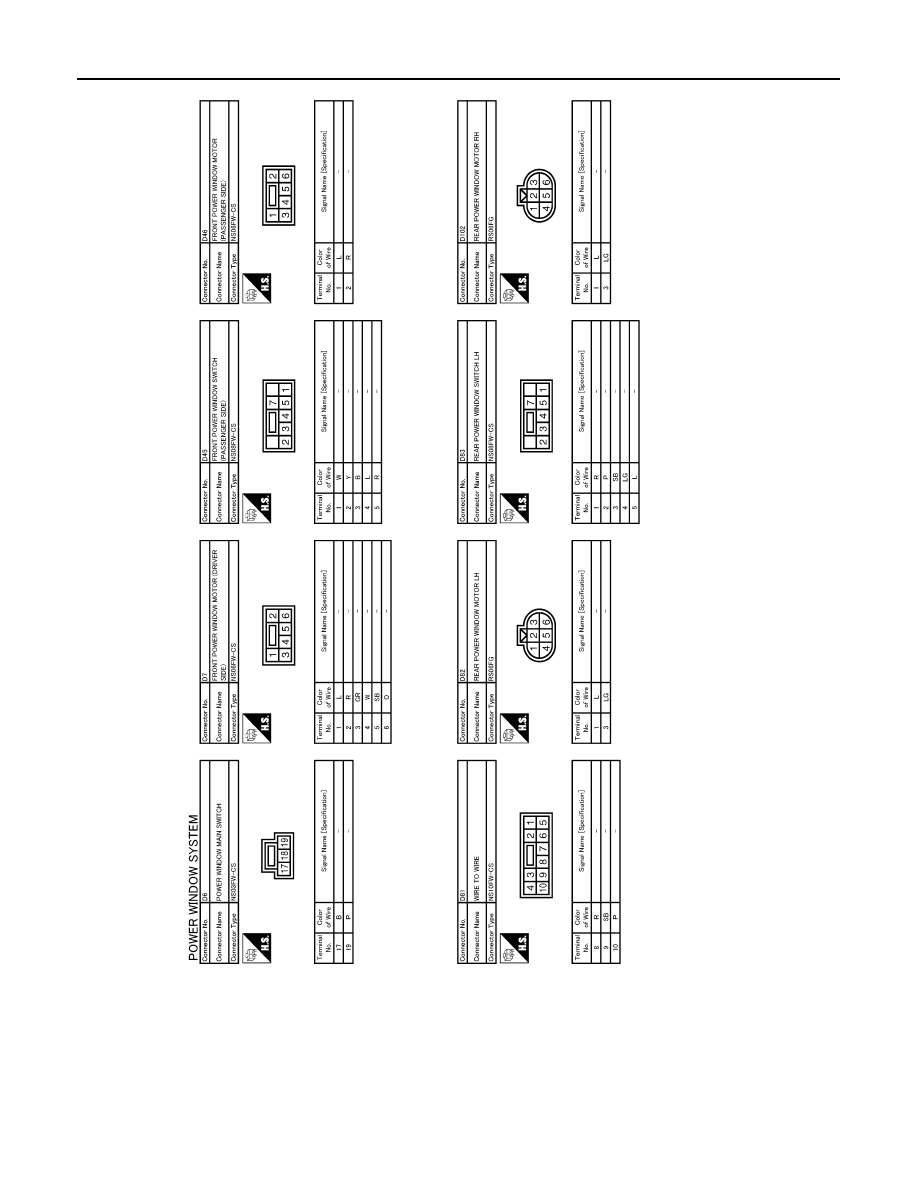

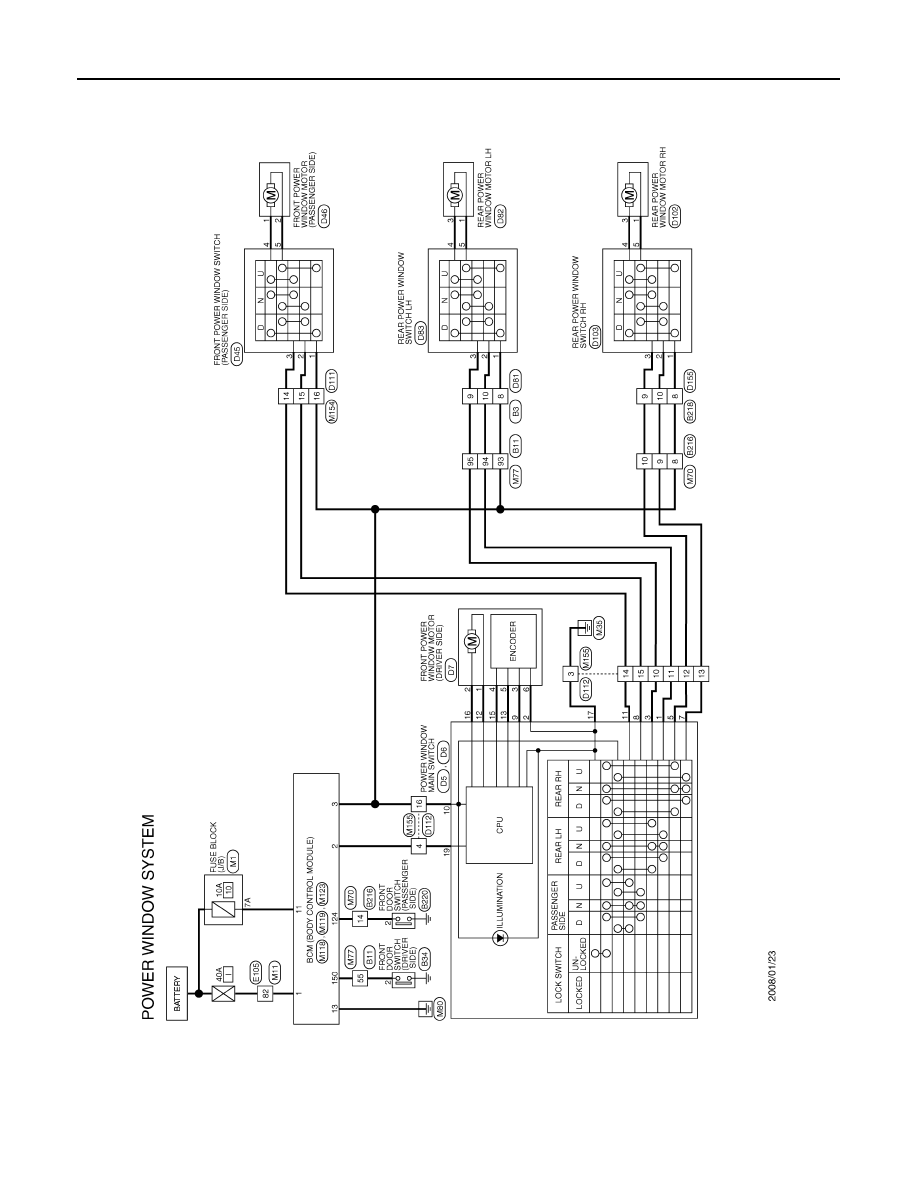

POWER WINDOW MAIN SWITCH
PWC-67
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
L
M
A
B
PWC
N
O
P
11
(B)
Ground
Front power window motor
(passenger side) DOWN signal
Output
When front power window
switch (passenger side) in
power window main switch
is operated DOWN
Battery voltage
12
(L)
Ground
Front power window motor
(driver side) DOWN signal
Output
When power window main
switch is operated DOWN
Battery voltage
13
(SB)
Ground
Encoder pulse signal 1
Input
When front power window
motor (driver side) operates.
15
(W)
Ground
Encoder power supply
Output
Ignition switch ON
Battery voltage
16
(R)
Ground
Front power window motor
(driver side) UP signal
Output
When power window main
switch is operated UP
Battery voltage
17
(B)
Ground
Ground
—
—
0
19
(P)
Ground
Battery power supply
Input
Ignition switch OFF
Battery voltage
Terminal No.
(Wire color)
Description
Condition
Voltage (V)
(Approx.)
+
-
Signal name
Input/
Output
JMKIA0070GB
