Nissan Teana J32. Manual - part 902

PG

HARNESS LAYOUT

PG-87

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

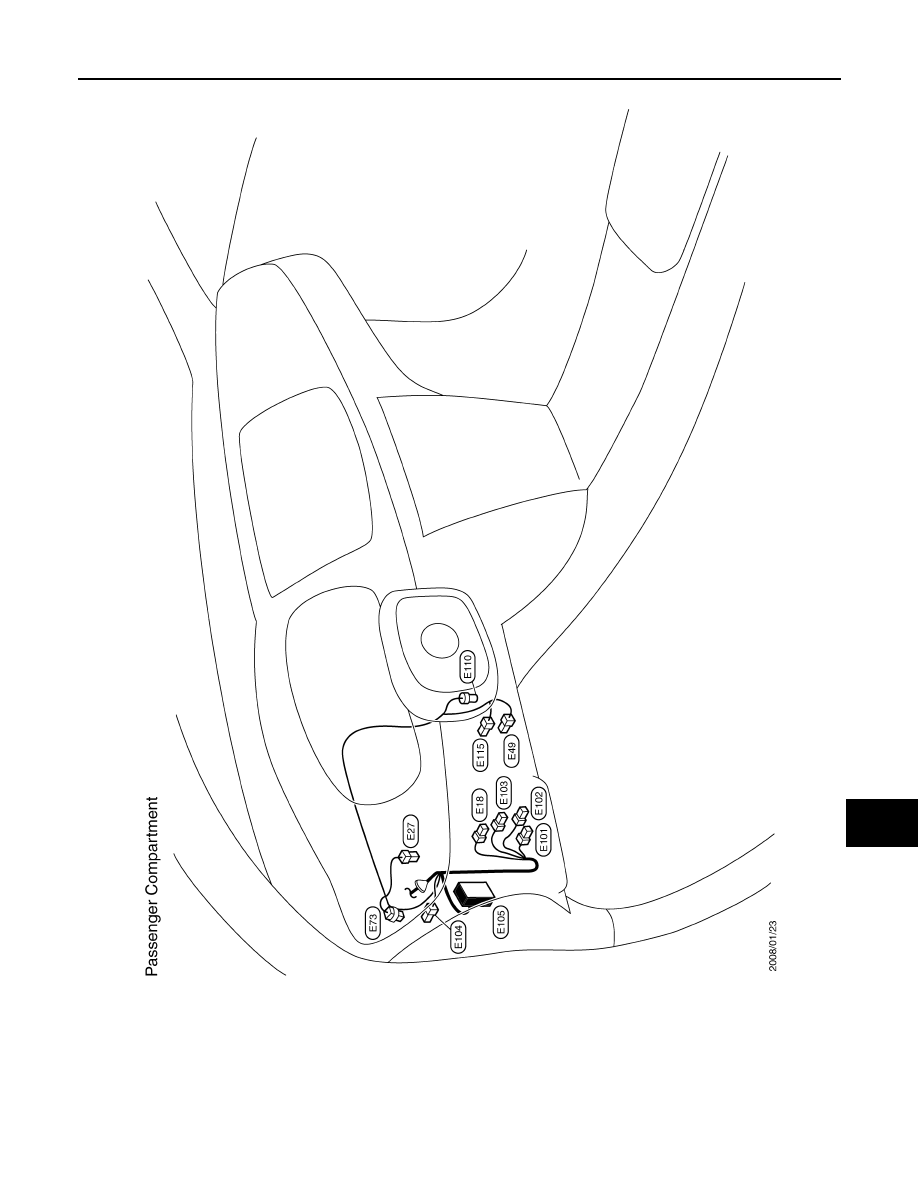

PASSENGER COMPARTMENT

JCMIM0321GB

PG-88

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

HARNESS LAYOUT

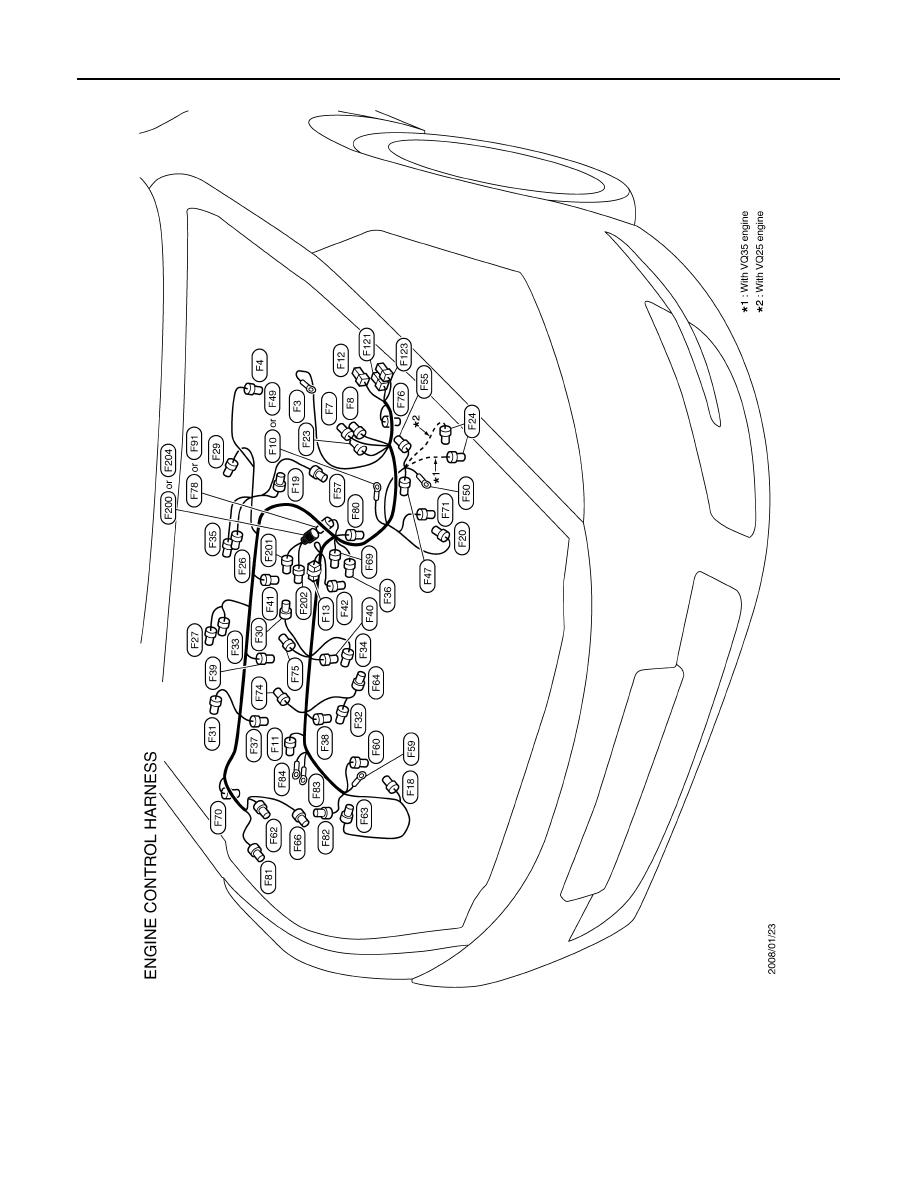

Engine Control Harness

INFOID:0000000003792673

JCMIM0322GB

PG

HARNESS LAYOUT

PG-89

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

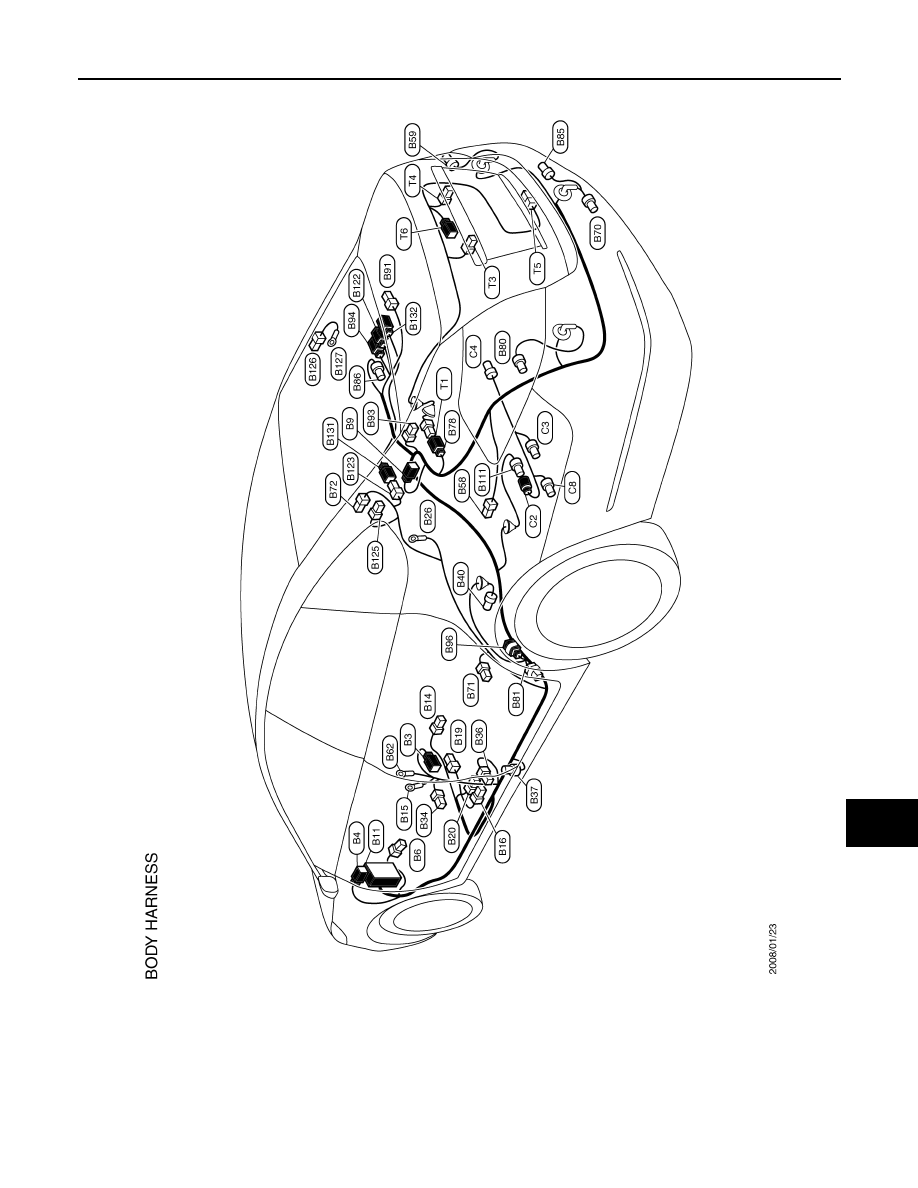

Body Harness

INFOID:0000000003792674

JCMIM0323GB

PG-90

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

HARNESS LAYOUT

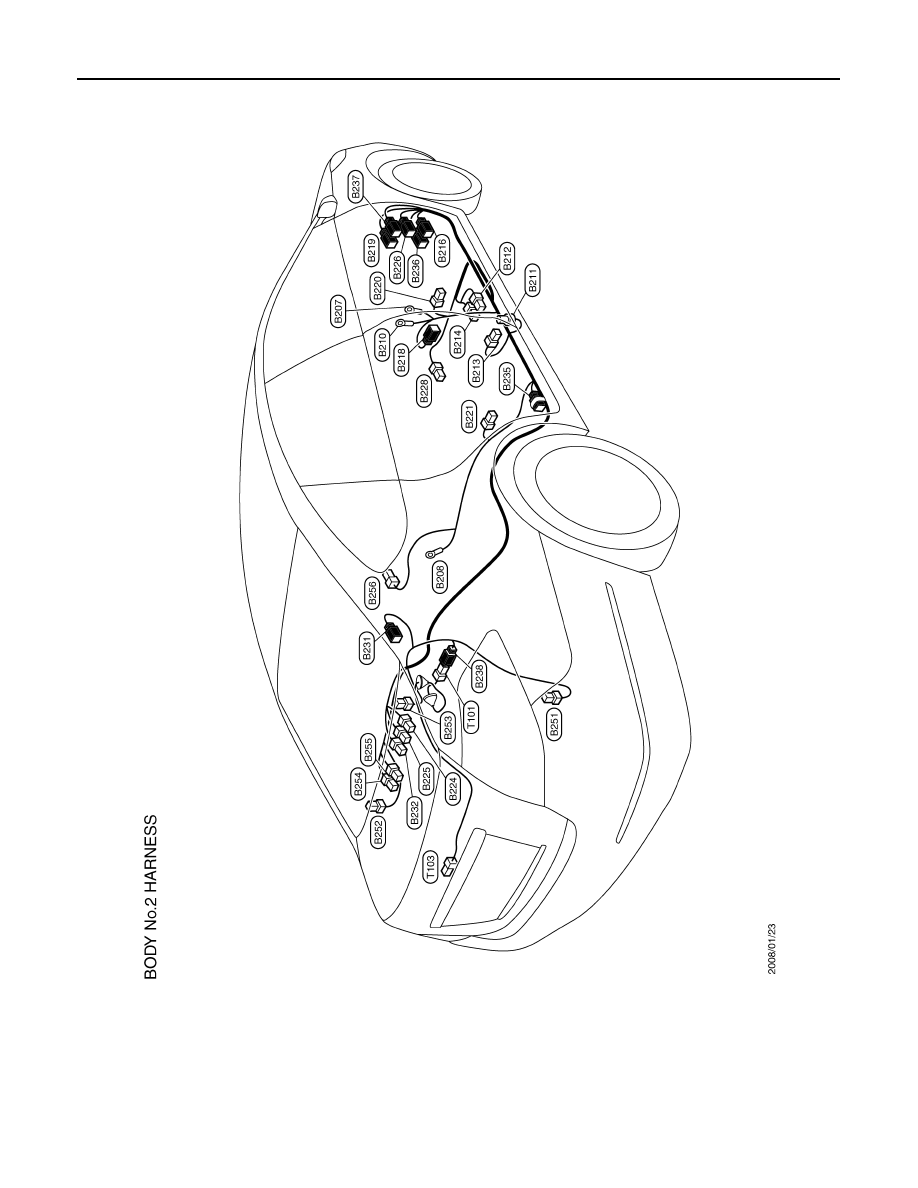

Body No. 2 Harness

INFOID:0000000003792675

JCMIM0324GB
