POWER SUPPLY ROUTING CIRCUIT

PG-51

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

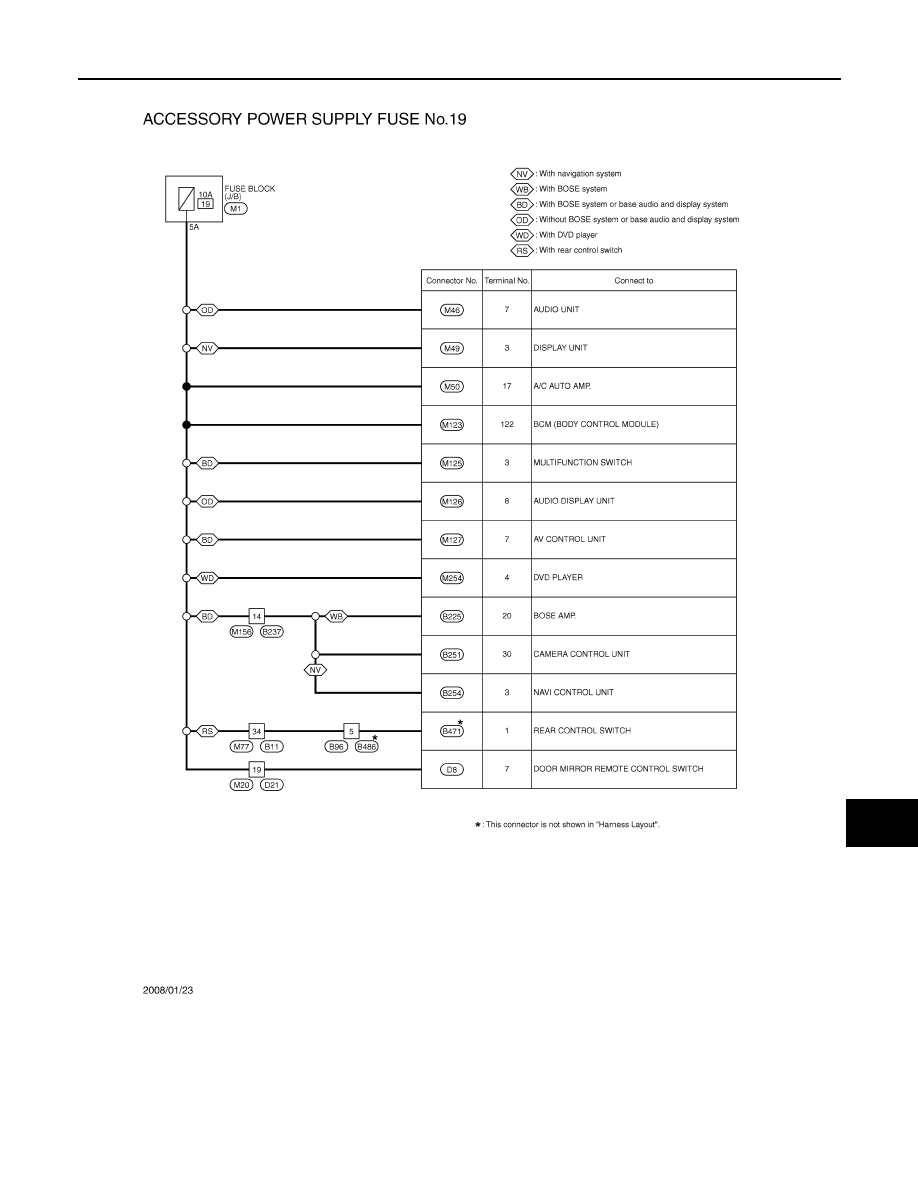

Wiring Diagram - ACCESSORY POWER SUPPLY FUSE No. 19 -

INFOID:0000000003792661

JCMWM1735GB

PG-52

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

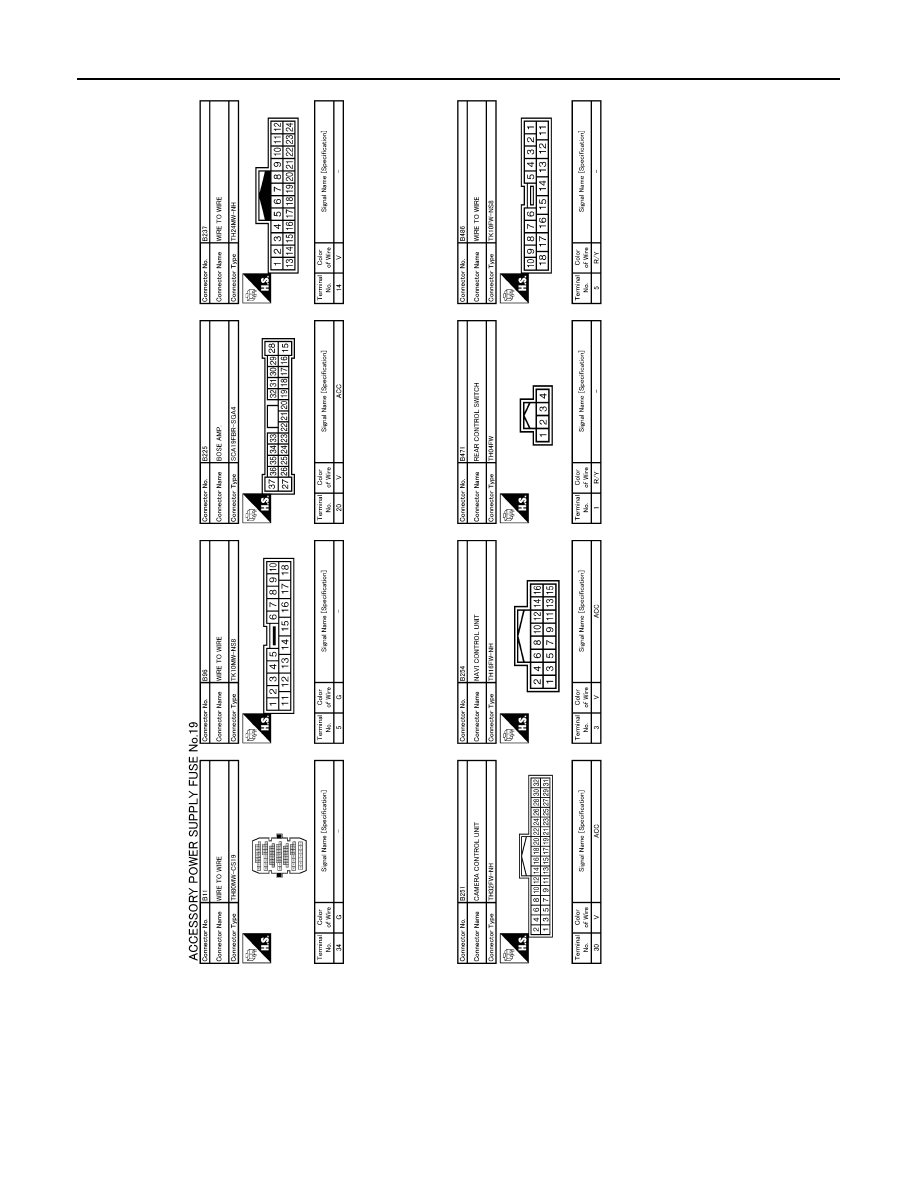

JCMWM1736GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-53

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

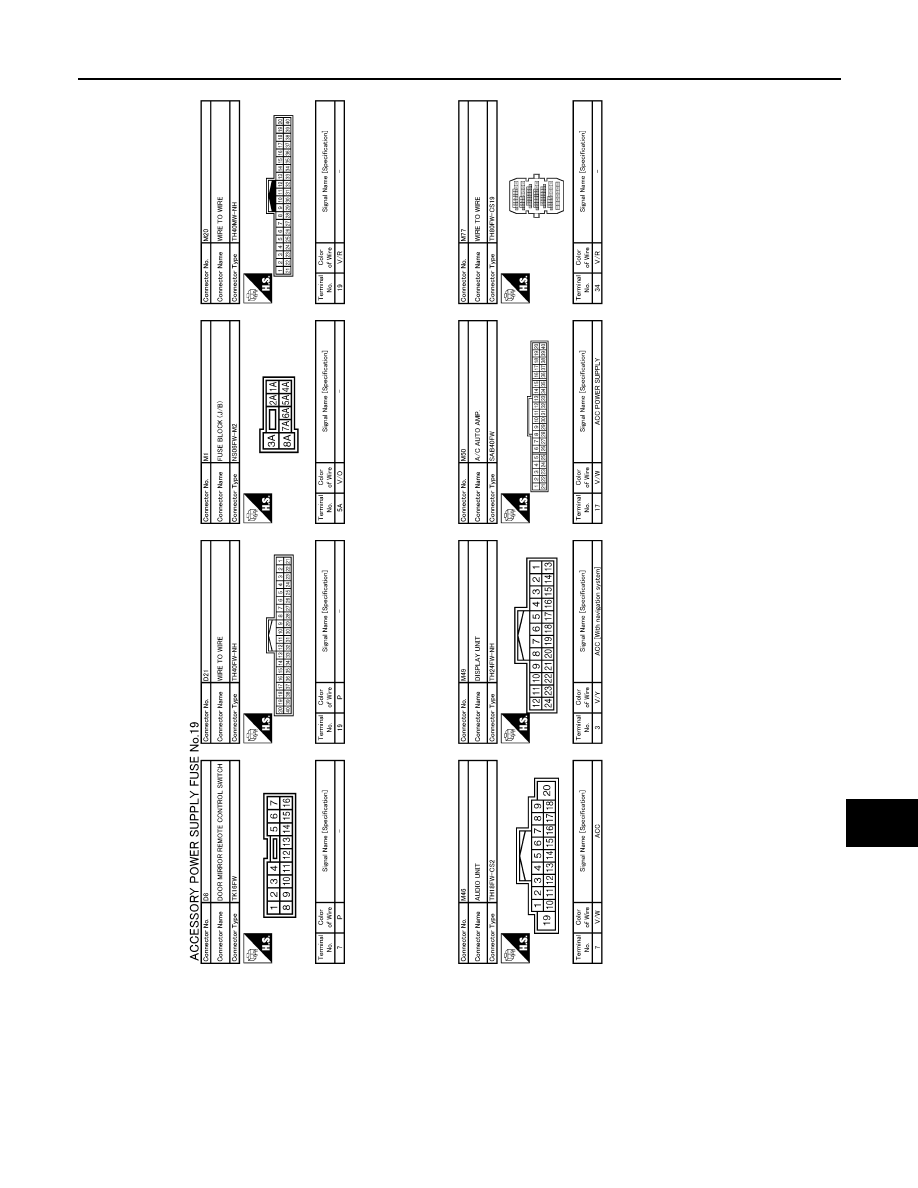

JCMWM1737GB

PG-54

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

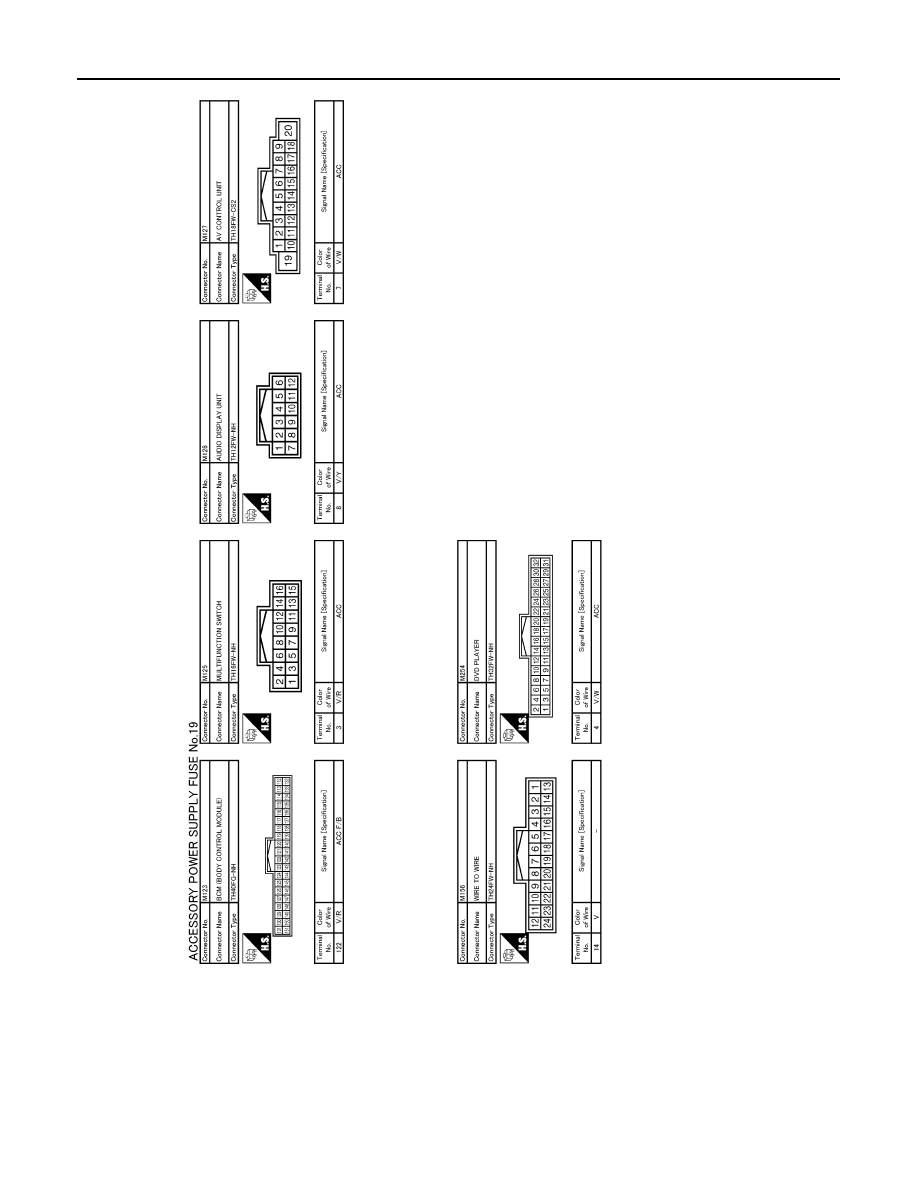

JCMWM1738GB
