[POWER DISTRIBUTION SYSTEM]

B2614 ACC RELAY

Is the inspection result normal?

YES

>> Replace BCM. Refer to

PCS-126, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK ACCESSORY RELAY GROUND CIRCUIT

Check continuity between accessory relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair accessory relay ground circuit.

4.

CHECK ACCESSORY RELAY

Refer to

PCS-54, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace accessory relay.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-35, "Intermittent Incident"

.

>> INSPECTION END

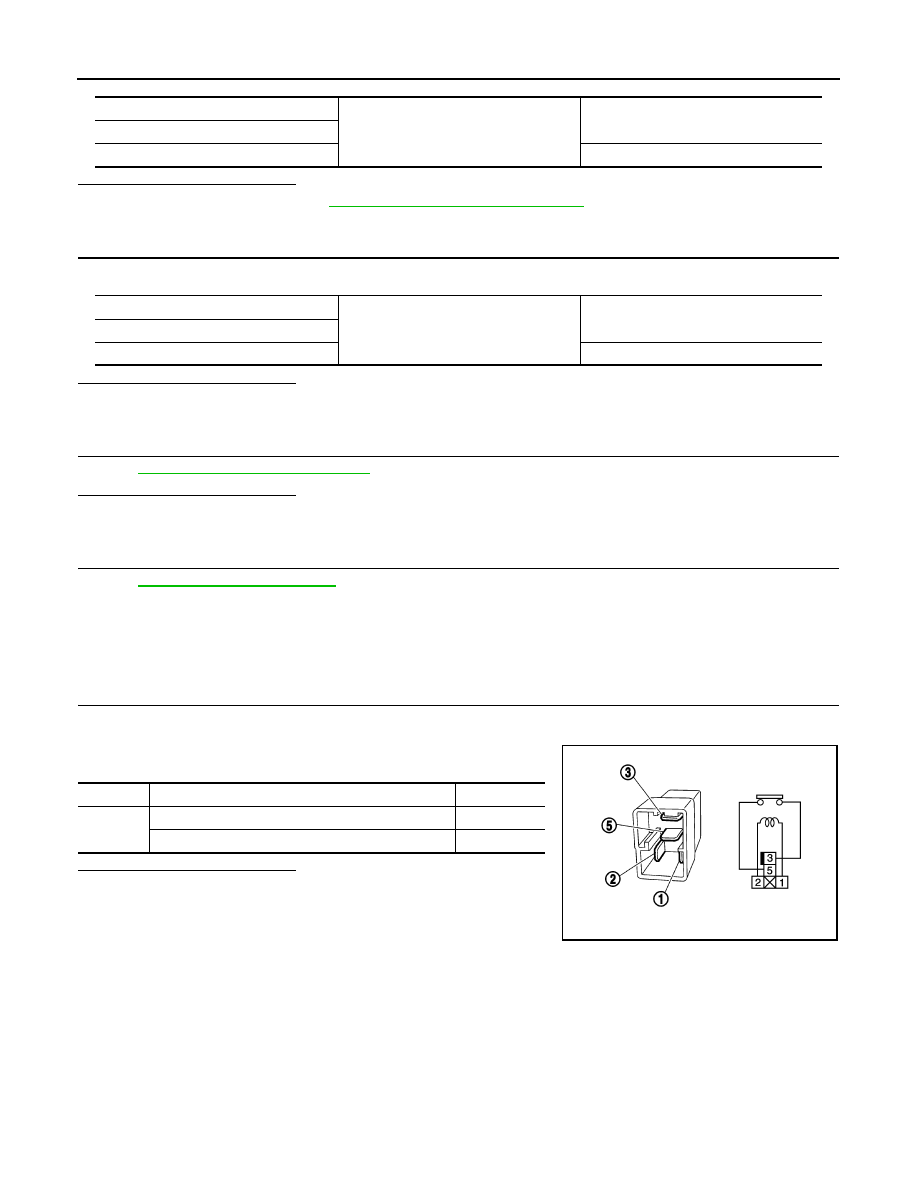

Component Inspection

INFOID:0000000003805743

1.

CHECK ACCESSORY RELAY

1.

Turn ignition switch OFF.

2.

Remove accessory relay.

3.

Check the continuity between accessory relay terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace accessory relay.

Accessory relay

Ground

Continuity

Terminal

1

Not existed

Accessory relay

Ground

Continuity

Terminal

2

Existed

Terminals

Condition

Continuity

3 and 5

12 V direct current supply between terminals 1 and 2

Existed

No current supply

Not existed

PBIB0098E

PCS

B2615 BLOWER RELAY CIRCUIT

PCS-55

< COMPONENT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B2615 BLOWER RELAY CIRCUIT

Description

INFOID:0000000003805744

BCM controls the various electrical components and simultaneously supplies power according to the power
supply position.
BCM checks the power supply position internally.

DTC Logic

INFOID:0000000003805745

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON under the following conditions, and wait for at least 1 second.

-

Selector lever is in the P or N position

-

Do not depress brake pedal

2.

Check “Self diagnostic result” with CONSULT-III.

Is DTC detected?

YES

>> Go to

PCS-55, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000003805746

1.

CHECK BLOWER RELAY POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect blower relay.

3.

Check voltage between blower relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK BLOWER RELAY POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector.

3.

Check continuity between blower relay harness connector and BCM harness connector.

4.

Check continuity between blower relay harness connector and ground.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2615

Blower relay circuit

BCM detects a difference of signal for 1 second or
more between the following information.
• Blower relay ON/OFF request
• Blower relay feedback

• Harness or connectors

(Blower relay circuit is open or
shorted)

• Blower relay

(+)

(–)

Condition

Voltage (V)

(Approx.)

Blower relay

Terminal

1

Ground

Ignition switch

OFF or ACC

0

ON

Battery voltage

Blower relay

BCM

Continuity

Terminal

Connector

Terminal

1

M122

102

Existed

PCS-56

< COMPONENT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

B2615 BLOWER RELAY CIRCUIT

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-78, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK BLOWER RELAY GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between blower relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair blower relay ground circuit.

4.

CHECK BLOWER RELAY

Refer to

PCS-56, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace blower relay.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-35, "Intermittent Incident"

.

>> INSPECTION END

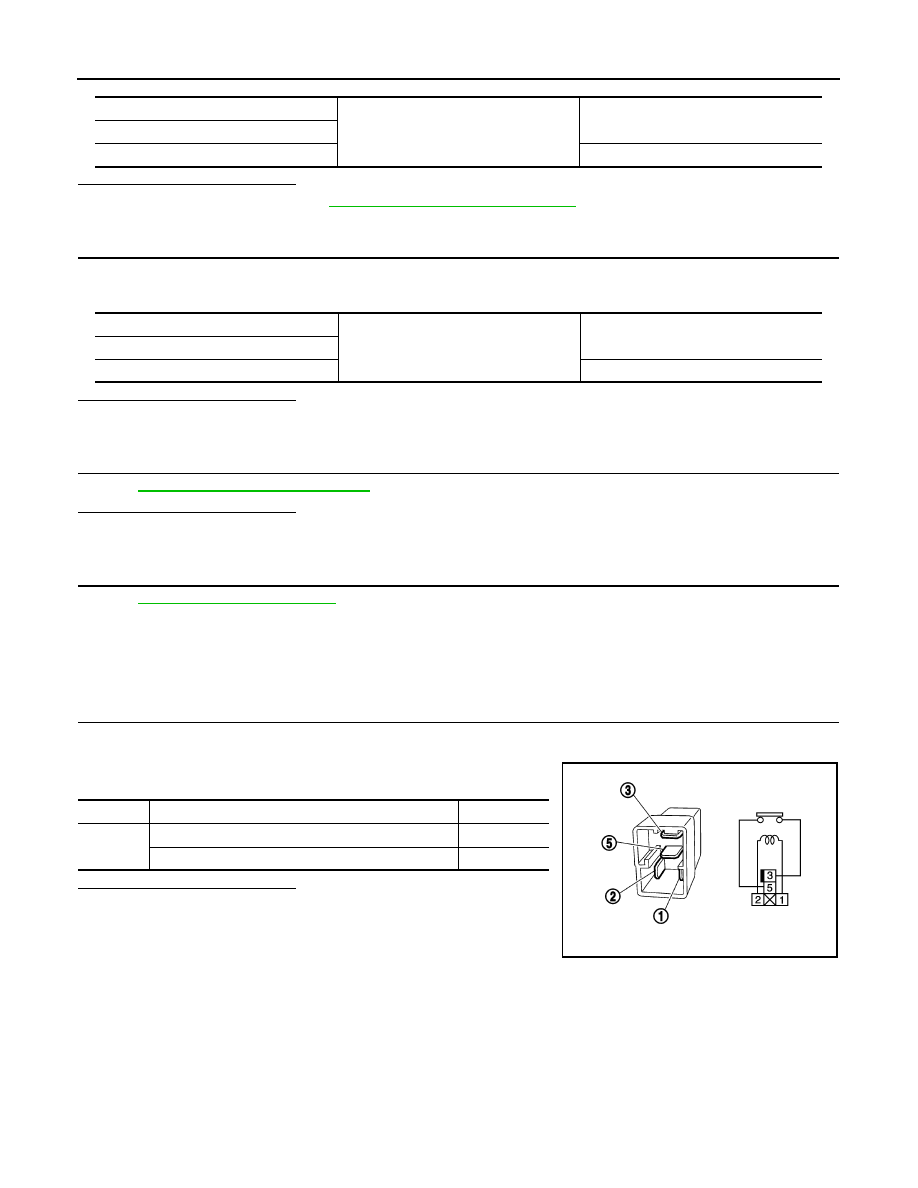

Component Inspection

INFOID:0000000003805747

1.

CHECK BLOWER RELAY

1.

Turn ignition switch OFF.

2.

Remove blower relay.

3.

Check the continuity between blower relay terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace blower relay

Blower relay

Ground

Continuity

Terminal

1

Not existed

Blower relay

Ground

Continuity

Terminal

2

Existed

Terminals

Condition

Continuity

3 and 5

12 V direct current supply between terminals 1 and 2

Existed

No current supply

Not existed

PBIB0098E

PCS

B2616 IGNITION RELAY CIRCUIT

PCS-57

< COMPONENT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B2616 IGNITION RELAY CIRCUIT

Description

INFOID:0000000003805748

BCM controls the various electrical components and simultaneously supplies power according to the power
supply position.
BCM checks the power supply position internally.

DTC Logic

INFOID:0000000003805749

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON under the following conditions, and wait for at least 1 second.

-

Selector lever is in the P or N position.

-

Do not depress brake pedal.

2.

Check “Self diagnostic result” with CONSULT-III.

Is DTC detected?

YES

>> Go to

PCS-57, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000003805750

1.

CHECK IGNITION RELAY POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect ignition relay.

3.

Check voltage between ignition relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK IGNITION RELAY POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector.

3.

Check continuity between ignition relay harness connector and BCM harness connector.

4.

Check continuity between ignition relay harness connector and ground.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2616

Ignition relay circuit

An immediate operation of ignition relay (fuse
block) is requested by BCM, but there is no re-
sponse for more than 1 second

• Harness or connectors

(Ignition relay circuit is open or
shorted)

• Ignition relay (Fuse block)

(+)

(–)

Condition

Voltage (V)

(Approx.)

Ignition relay

Terminal

1

Ground

Ignition switch

OFF or ACC

0

ON

Battery voltage

Ignition relay

BCM

Continuity

Terminal

Connector

Terminal

1

M122

82

Existed
