POWER DISTRIBUTION SYSTEM

FUNCTION DIAGNOSIS

POWER DISTRIBUTION SYSTEM

System Description

INFOID:0000000003805720

• PDS (POWER DISTRIBUTION SYSTEM) is the system that BCM controls with the operation of the push-

button ignition switch and performs the power distribution to each power circuit. This system is used instead
of the mechanical power supply changing mechanism with the operation of the conventional key cylinder.

• The push-button ignition switch can be operated when Intelligent Key is in the following condition. Refer to

Engine Start Function for details.

- Intelligent Key is in the detection area of the inside key antenna
- Insert Intelligent Key into the key slot
- Insert key fob into the key slot
• The push-button ignition switch operation is input to BCM as a signal. BCM changes the power supply posi-

tion according to the status and operates the following relays to supply power to each power circuit.

- Ignition relay (built into IPDM E/R)
- Ignition relay (inserted into fuse block)
- ACC relay
- Blower fan relay

NOTE:
The engine switch operation changes due to the conditions of brake pedal, selector lever and vehicle speed.

• The power supply position can be confirmed with the illuminating of the indicators around the push-button

ignition switch.

BATTERY SAVER SYSTEM

When all of the following conditions are met for 60 minutes, the battery saver system will cut off the power sup-
ply to prevent battery discharge.
• The ignition switch is in the ACC position
• All doors are closed
• Selector lever is in the P position

Reset Condition of Battery Saver System

In order to prevent the battery from discharging, the battery saver system will cut off the power supply when all
doors are closed, the selector lever is in the P position and the ignition switch is left in the ACC position for 60
minutes. If any of the following conditions are met the battery saver system is released and the steering will
change automatically to the LOCK position from the OFF position.
• Opening any door
• Operating with door key cylinder on door lock
• Operating with request switch on door lock
• Operating with Intelligent Key on door lock
Press push-button ignition switch and ignition switch will change to the ACC position from the OFF position.

STEERING LOCK OPERATION

Steering is locked by steering lock unit when ignition switch is in the OFF position, selector lever is in the P
position and any of the following conditions are met.
• Opening door
• Closing door
• Door is locked with request switch
• Door is locked with Intelligent Key

PUSH-BUTTON IGNITION SWITCH OPERATION PROCEDURE

The power supply position changing operation can be performed with the following operations.

Operation Enable Condition

• When an Intelligent Key is within the detection area of inside key antenna and when it is inserted into the key

slot, the operation is as per the following.

• When starting the engine, the BCM monitors the following engine start conditions,
- Brake pedal operating condition
- Selector lever position
- Vehicle speed
• Unless each start condition is fulfilled, the engine will not respond regardless of how many times the engine

switch is pressed. At that time, illumination repeats the position in the order of LOCK

→

ACC

→

ON

→

OFF.

PCS

POWER DISTRIBUTION SYSTEM

PCS-39

< FUNCTION DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Operation Condition

*1: When the selector lever position is in the N position, the engine start condition is different according to the vehicle speed.

• At a vehicle speed of less than 4 km/h (2.5MPH), the engine can start only when the brake pedal is depressed.

• At a vehicle speed of 4 km/h (2.5MPH) or more, the engine can start even if the brake pedal is not depressed. (It is the same as

“Engine stall return operation while driving”.)

*2: When the selector lever position is in any position other than the P position and when the vehicle speed is 5 km/h (3.1MPH) or more,
the engine stop condition is different.

• Press and hold the push-button ignition switch for 2 seconds or more. (When the push-button ignition switch is pressed for too short a

time, the operation may be invalid, so properly press and hold to prevent an incorrect operation.)

• Press the push-button ignition switch 3 times or more within 1.5 seconds. (Emergency stop operation)

Power supply position

Engine start/stop condition

Push-button ignition switch op-

eration frequency

Brake pedal

Selector lever position

LOCK

→

 ACC

Not depressed

Any position

1

LOCK

→

 ACC

→

 ON

Not depressed

Any position

2

LOCK

→

 ACC

→

 ON

→



OFF

Not depressed

Any position

3

LOCK

→

 START

ACC

→

 START

ON

→

 START

(Engine start)

Depressed

P or N position (*1)

1

[If the switch is pressed once,

the engine starts from any pow-

er supply position (LOCK, ACC

and ON)]

Engine is running

→



OFF
(Engine stop)

—

P position

1

Engine is running

→



ACC
(Engine stop)

—

Any position other than P (*2)

1

Engine stall return oper-
ation while driving

—

N position

1

PCS-40

< FUNCTION DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

POWER DISTRIBUTION SYSTEM

Component Parts Location

INFOID:0000000003805721

Component Description

INFOID:0000000003805722

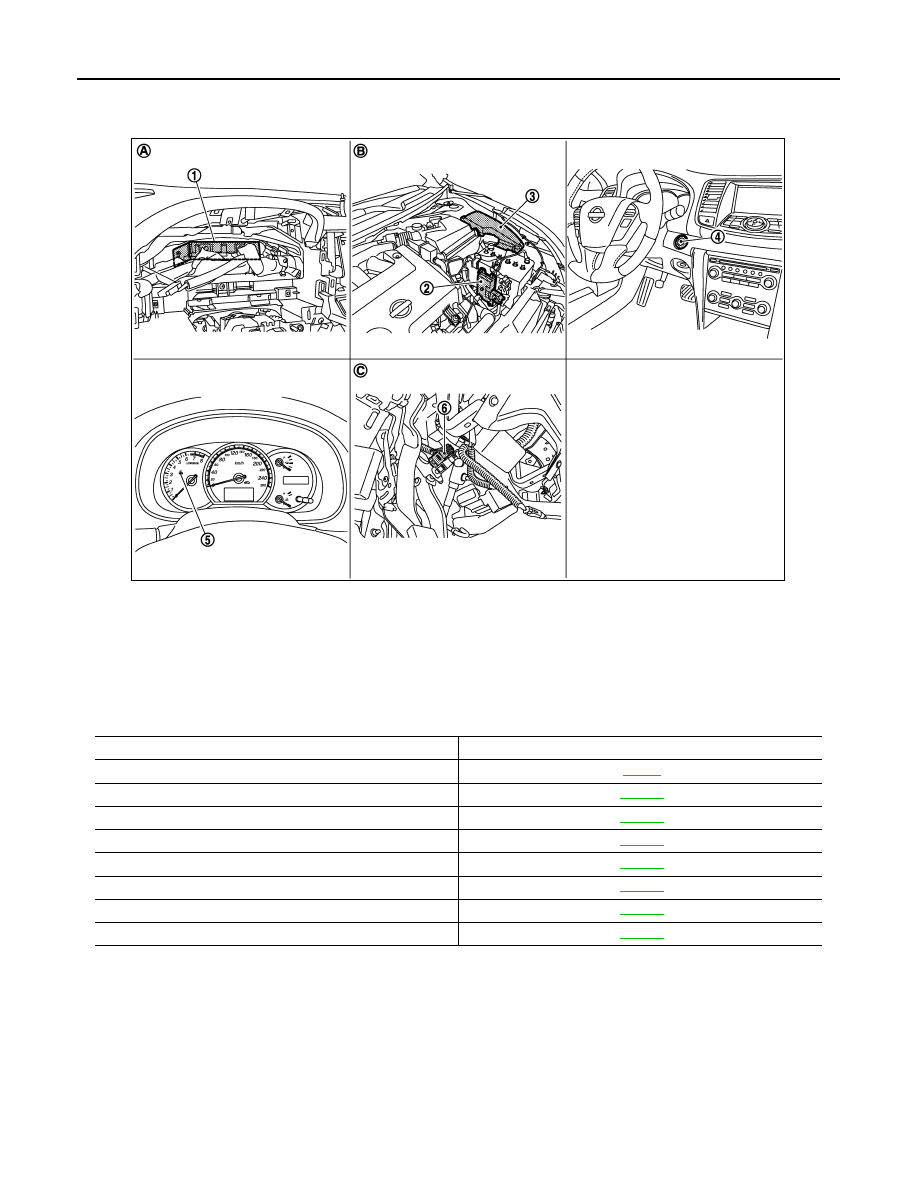

JMMIA0017ZZ

1.

BCM M118, M119, M121, M122, M123 2.

TCM F23

3.

IPDM E/R E10, E11, F12

4.

Push button ignition switch M101

5.

Combination meter (Key warning
lamp) M34

6.

Stop lamp switch E115

A.

Behind the combination meter

B.

Engine room dash panel (LH)

C.

Behind the instrument lower panel LH

Component

Reference

IPDM E/R

PCS-7

Ignition relay (built into IPDM E/R)

PCS-18

Ignition relay (inserted into fuse block)

PCS-49

Accessory relay

PCS-53

Blower relay

PCS-55

Stop lamp switch

SEC-50

Park/neutral position switch

SEC-56

Push-button ignition switch

PCS-63

PCS

DIAGNOSIS SYSTEM (BCM)

PCS-41

< FUNCTION DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000003839090

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

NOTE:

*: This item is displayed, but is not used.

FREEZE FRAME DATA (FFD) AND IGN COUNTER

Freeze Frame Data

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM. Refer to CONSULT-III opera-
tion manual.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

—

AIR CONDITONER*

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk lid opener system

TRUNK

×

×

Vehicle security system

THEFT ALM

×

×

×

—

RETAINED PWR*

×

Signal buffer system

SIGNAL BUFFER

×

×

—

TPMS (AIR PRESSURE MONITOR)*

×

×

×
