PCS-26

< ECU DIAGNOSIS >

[IPDM E/R]

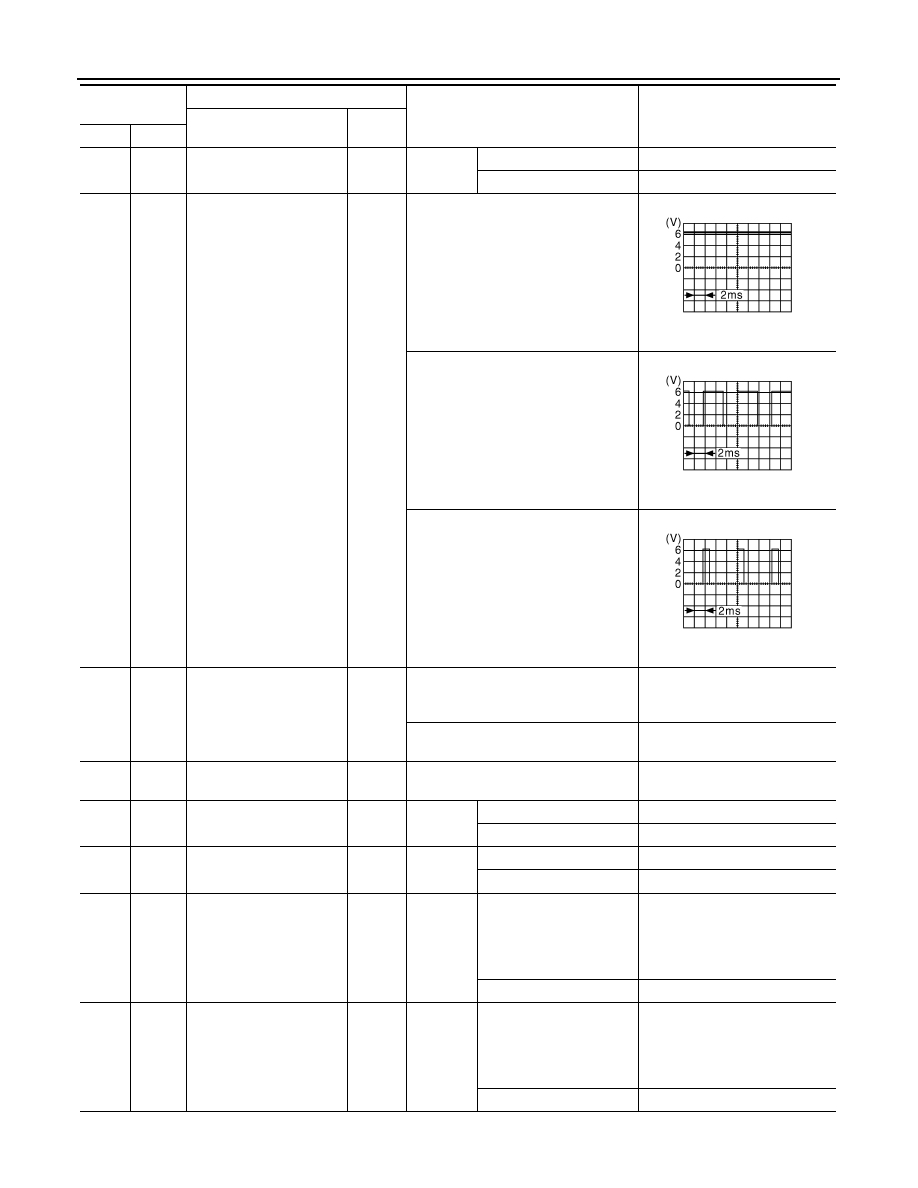

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

75

(P/L)

Ground

Oil pressure switch

Input

Ignition
switch ON

Engine stopped

0 V

Engine running

Battery voltage

76

(SB)

Ground

Power generation com-
mand signal

Output

Ignition switch ON

6.3 V

40% is set on “ACTIVE TEST”, “AL-
TERNATOR DUTY” of “ENGINE”

3.8 V

80% is set on “ACTIVE TEST”, “AL-
TERNATOR DUTY” of “ENGINE”

1.4 V

77

(GR)

Ground

Fuel pump relay control

Output

• Approximately 1 second after turning

the ignition switch ON

• Engine running

0 - 1.5 V

Approximately 1 second or more after
turning the ignition switch ON

Battery voltage

80

(B/W)

Ground

Starter motor

Output

At engine cranking

Battery voltage

83

(Y)

Ground

Headlamp LO (RH)

Output

Ignition
switch ON

Lighting switch OFF

0 V

Lighting switch 2ND

Battery voltage

84

(SB)

Ground

Headlamp LO (LH)

Output

Ignition
switch ON

Lighting switch OFF

0 V

Lighting switch 2ND

Battery voltage

86

(L)

Ground

Front fog lamp (RH)

Output

Lighting
switch
2ND

• Front fog lamp switch

ON

• Daytime running light

activated (Only for Can-
ada)

Battery voltage

Front fog lamp switch OFF

0 V

87

(R)

Ground

Front fog lamp (LH)

Output

Lighting
switch
2ND

• Front fog lamp switch

ON

• Daytime running light

activated (Only for Can-
ada)

Battery voltage

Front fog lamp switch OFF

0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JPMIA0001GB

JPMIA0002GB

JPMIA0003GB

PCS

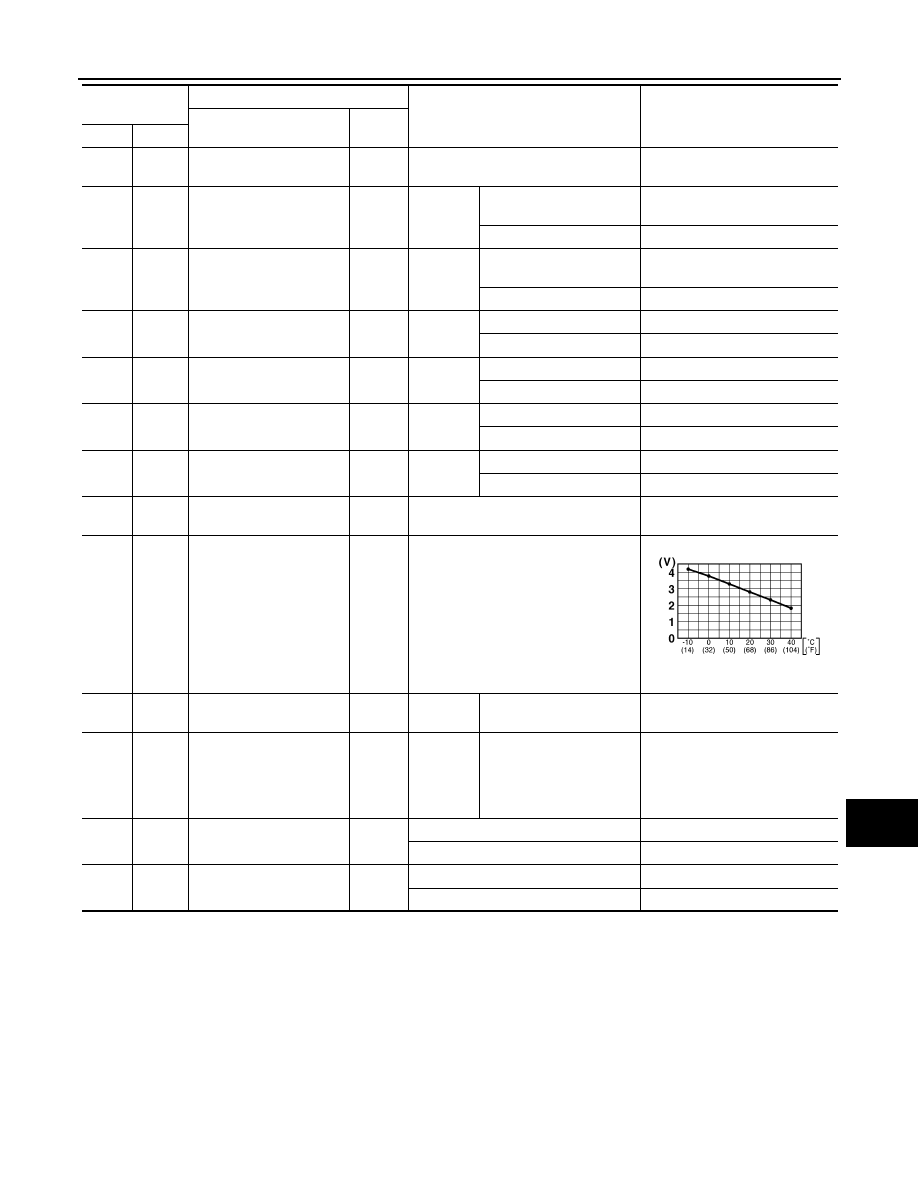

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-27

< ECU DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

88

(P)

Ground

Washer pump power sup-
ply

Output

Ignition switch ON

Battery voltage

89

(W)

Ground

Headlamp HI (RH)

Output

Ignition
switch ON

• Lighting switch HI
• Lighting switch PASS

Battery voltage

Lighting switch OFF

0 V

90

(O)

Ground

Headlamp HI (LH)

Output

Ignition
switch ON

• Lighting switch HI
• Lighting switch PASS

Battery voltage

Lighting switch OFF

0 V

91

(O)

Ground

Parking lamp (RH)

Output

Ignition
switch ON

Lighting switch 1ST

Battery voltage

Lighting switch OFF

0 V

92

(L)

Ground

Parking lamp (LH)

Output

Ignition
switch ON

Lighting switch 1ST

Battery voltage

Lighting switch OFF

0 V

93

(BR)

Ground

Headlamp aiming motor
(RH)

Output

Ignition
switch ON

Lighting switch 1ST

Battery voltage

Lighting switch OFF

0 V

94

(Y)

Ground

Headlamp aiming motor
(LH)

Output

Ignition
switch ON

Lighting switch 1ST

Battery voltage

Lighting switch OFF

0 V

99

(W)

Ground

Ambient sensor ground

Input

Ignition switch ON

0 V

100

(SB)

Ground

Ambient sensor

Output

Ignition switch ON
NOTE:
Changes depending to ambient tem-
perature

101

(GR)

Ground

Refrigerant pressure sen-
sor ground

Input

Engine
running

• Warm-up condition
• Idle speed

0 V

102

(R)

Ground

Refrigerant pressure sen-
sor

Input

Engine
running

• Warm-up condition
• Both A/C switch and

blower fan motor switch
ON
(Compressor operates)

1.0 - 4.0 V

103

(P)

Ground

Refrigerant pressure sen-
sor power supply

Output

Ignition switch OFF

0 V

Ignition switch ON

5.0 V

104

(LG)

Ground

Hood switch

Output

Close the hood

Battery voltage

Open the hood

0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JSNIA0014GB

PCS-28

< ECU DIAGNOSIS >

[IPDM E/R]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

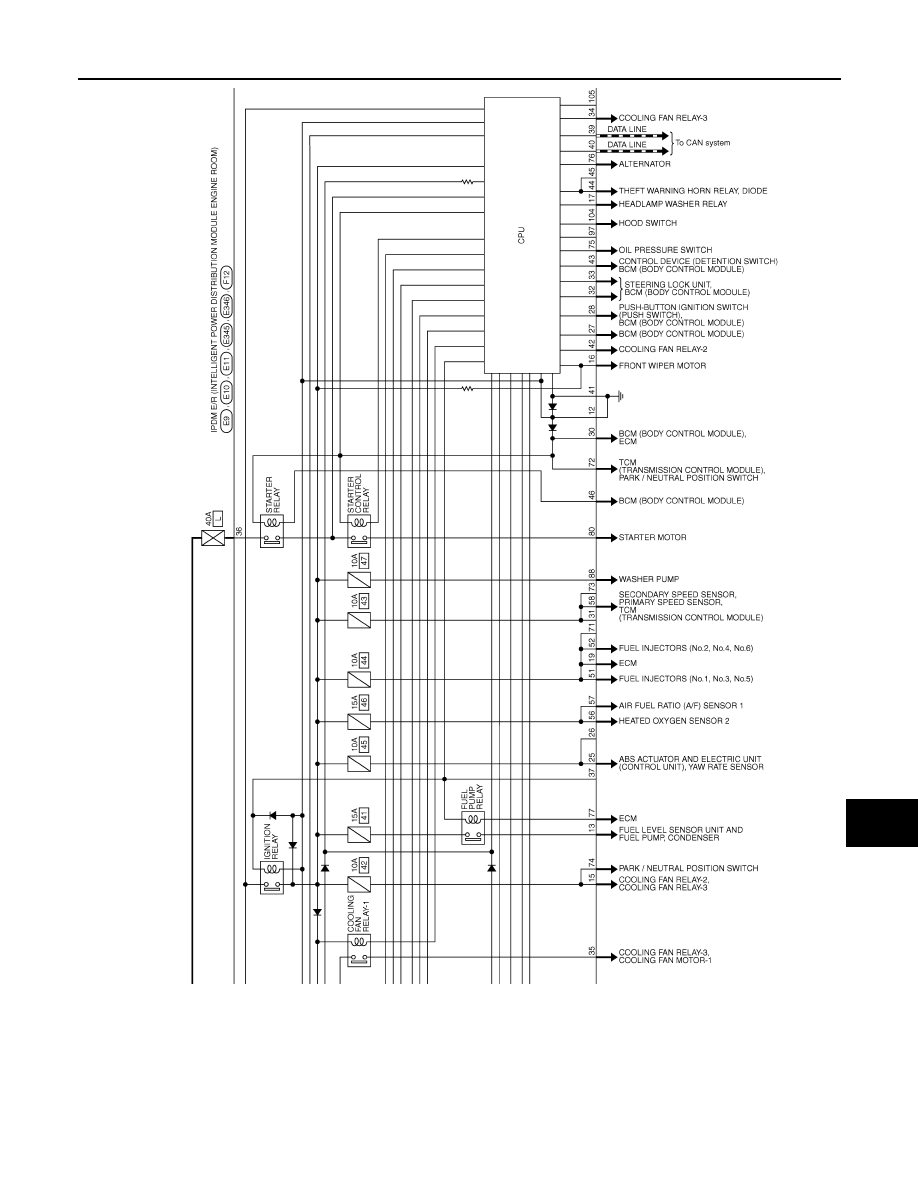

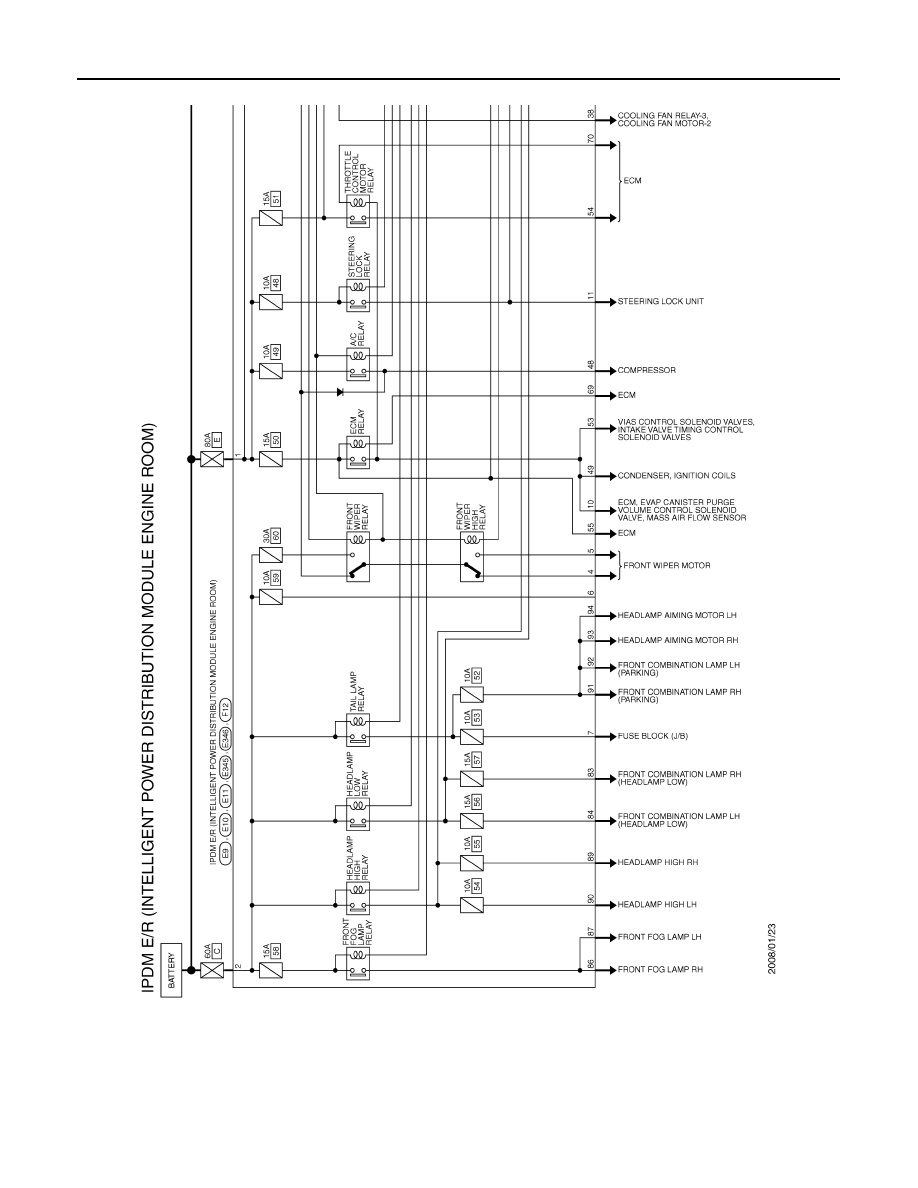

Wiring Diagram - IPDM E/R -

INFOID:0000000003773293

JCMWM1682GB

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-29

< ECU DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM1683GB
