Nissan Teana J32. Manual - part 812

MIR-12

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003815741

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PREPARATION

MIR-13

< PREPARATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000003815742

Tool name

Description

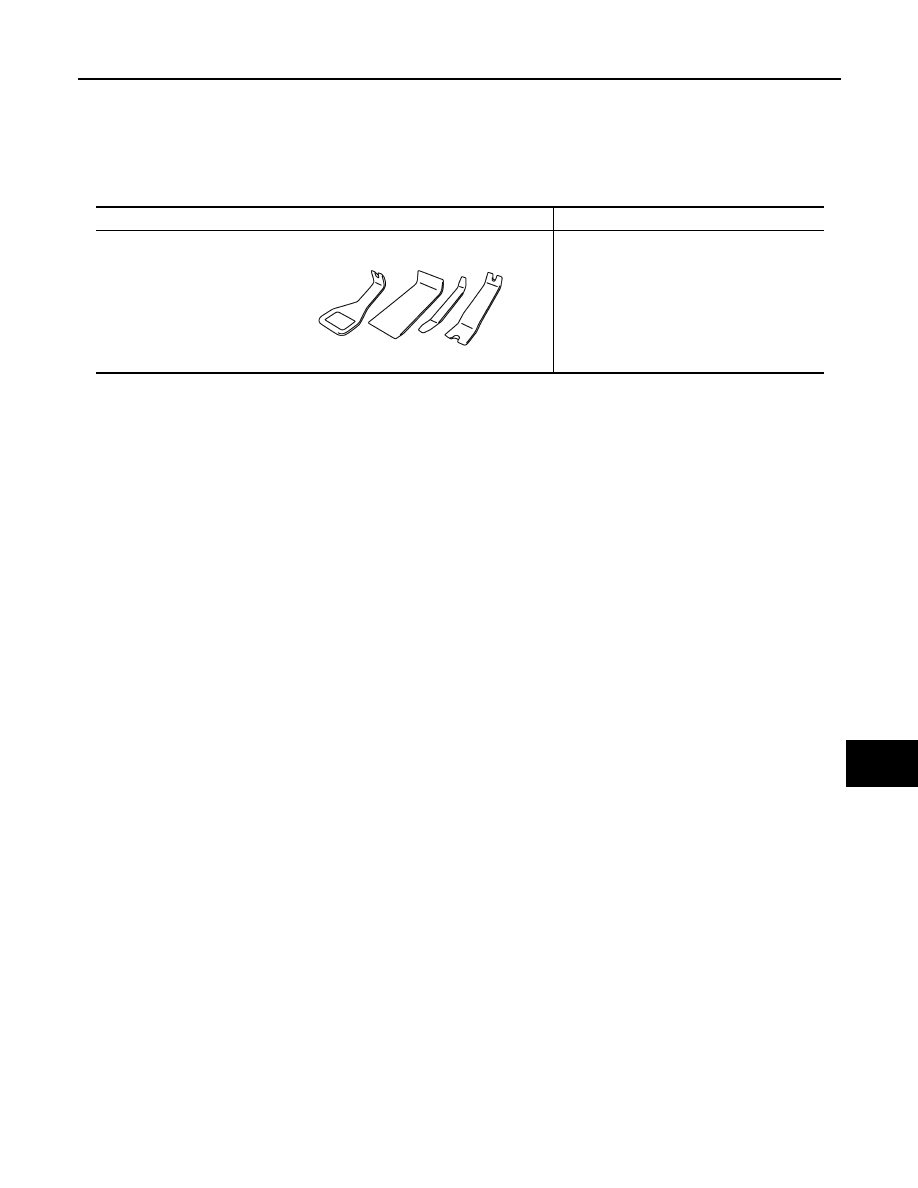

Remover tool

Removes the clip and pawl and metal clip

PIIB7923J

MIR-14

< ON-VEHICLE REPAIR >

INSIDE MIRROR

ON-VEHICLE REPAIR

INSIDE MIRROR

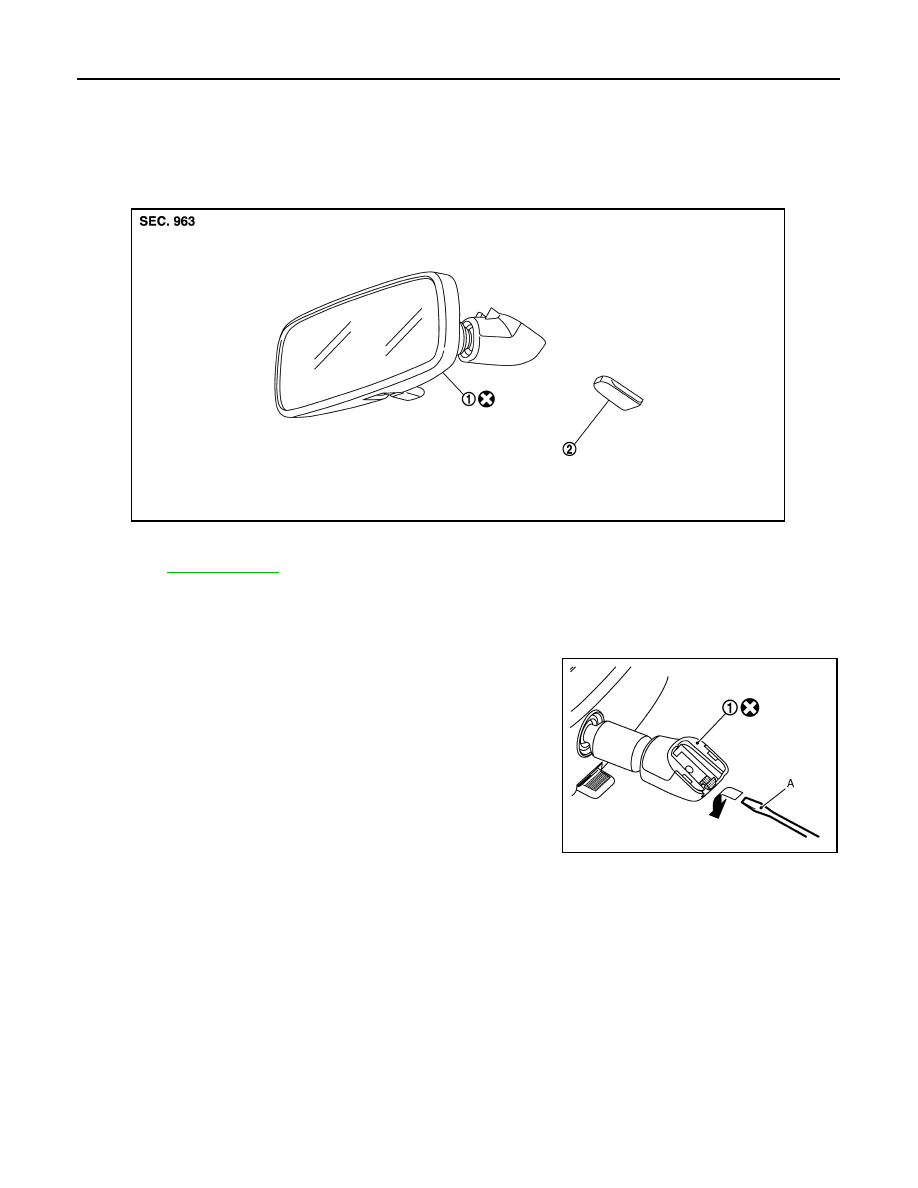

Exploded View

INFOID:0000000003815743

Removal and Installation

INFOID:0000000003815744

REMOVAL

1.

Insert flat-headed screwdriver (A) under the inside mirror (1).

2.

Slide the inside mirror to the upper side while pushing the pawl
downward.

CAUTION:

Never use excessive force to remove the inside mirror because
it is inserted tightly into the mirror base.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When inserting the inside mirror into the mirror base, be careful to push the pawl until it connects to
the mirror base.

1.

Inside mirror

2.

Mirror base

Refer to

GI-4, "Components"

 for symbols in the figure.

JMLIA0145ZZ

JMLIA0055ZZ

OUTSIDE MIRROR

MIR-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

OUTSIDE MIRROR

DOOR MIRROR ASSEMBLY

DOOR MIRROR ASSEMBLY : Exploded View

INFOID:0000000003815745

DOOR MIRROR ASSEMBLY : Removal and Installation

INFOID:0000000003815746

REMOVAL

1.

Remove front door finisher. Refer to

INT-30, "DRIVER SIDE : Removal and Installation"

 (driver side) or

INT-33, "PASSENGER SIDE : Removal and Installation"

 (passenger side).

2.

Remove clips and remove corner cover.

3.

Disconnect door mirror harness connector.

4.

Remove door mirror mounting nuts, and remove door mirror assembly.

INSTALLATION

Install in the reverse order of removal.

DOOR MIRROR ASSEMBLY : Disassembly and Assembly

INFOID:0000000003815747

DISASSEMBLY

1.

Remove door mirror assembly. Refer to

MIR-15, "DOOR MIRROR ASSEMBLY : Removal and Installa-

tion"

.

2.

Remove glass mirror. Refer to

MIR-18, "GLASS MIRROR : Disassembly and Assembly"

.

3.

Remove door mirror cover. Refer to

MIR-19, "DOOR MIRROR COVER : Disassembly and Assembly"

.

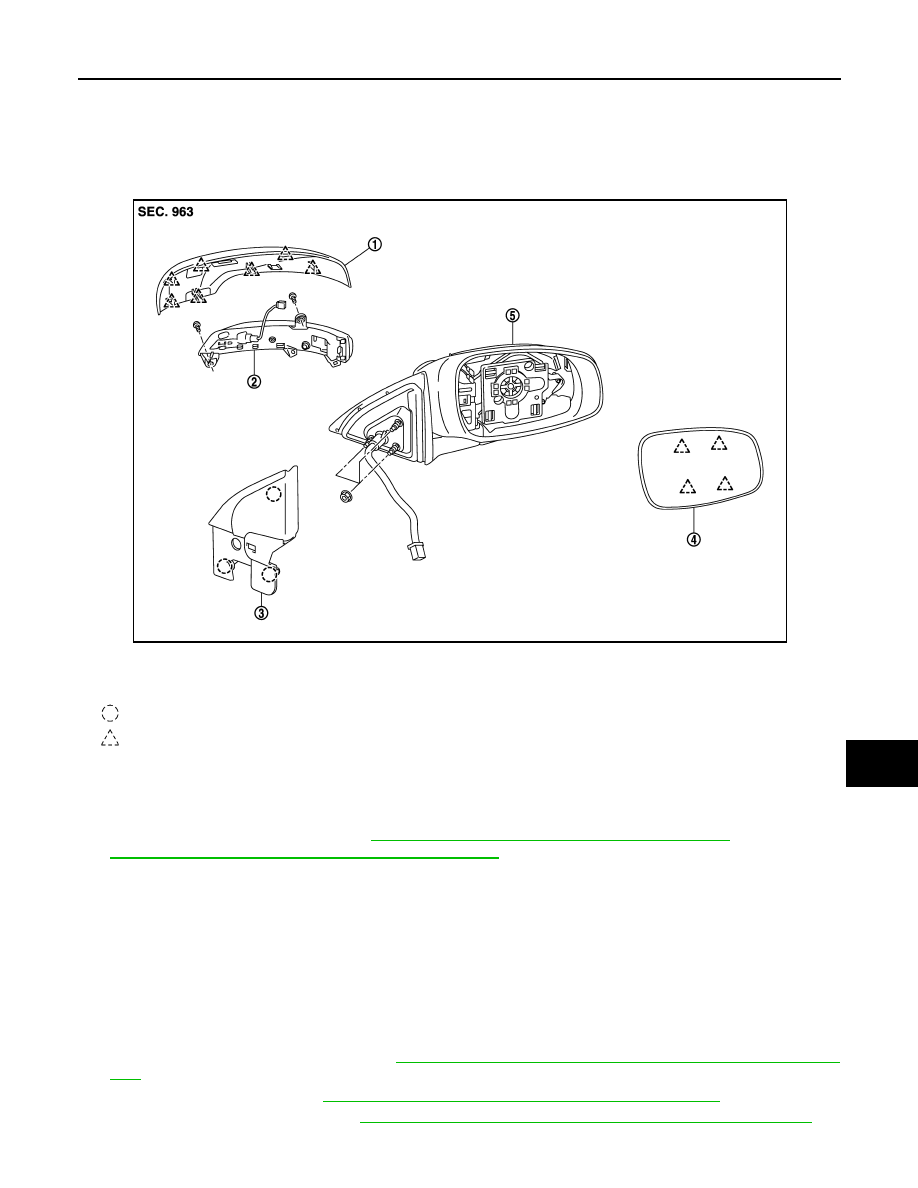

1.

Door mirror cover

2.

Side turn signal lamp assembly

3.

Corner cover

4.

Glass mirror

5.

Mirror assembly

: Clip

: Pawl

JMLIA0157ZZ
