CONTENTS

ENGINE LUBRICATION SYSTEM

FUNCTION DIAGNOSIS ...............................

2

DESCRIPTION ....................................................

2

Engine Lubrication System ......................................

2

Engine Lubrication System Schematic ......................

3

PRECAUTION ...............................................

4

PRECAUTIONS ...................................................

4

Precaution for Liquid Gasket .....................................

4

PREPARATION ............................................

5

PREPARATION ...................................................

5

Special Service Tool  .................................................

5

Commercial Service Tool  ..........................................

5

ON-VEHICLE MAINTENANCE .....................

7

ENGINE OIL  ........................................................

7

Inspection ..................................................................

7

Draining .....................................................................

8

Refilling .....................................................................

9

OIL FILTER  ........................................................

10

Removal and Installation .........................................

10

Inspection ................................................................

10

ON-VEHICLE REPAIR .................................

11

OIL COOLER  ....................................................

11

Exploded View .........................................................

11

Removal and Installation  .........................................

11

Inspection ................................................................

12

DISASSEMBLY AND ASSEMBLY ..............

13

OIL PUMP  .........................................................

13

Exploded View .........................................................

13

Removal and Installation  .........................................

13

Disassembly and Assembly .....................................

13

Inspection ................................................................

14

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

16

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

16

Periodical Maintenance Specification ....................

16

Engine Oil Pressure ...............................................

16

Oil Pump .................................................................

16

Regulator Valve ......................................................

16

LU-2

< FUNCTION DIAGNOSIS >

DESCRIPTION

FUNCTION DIAGNOSIS

DESCRIPTION

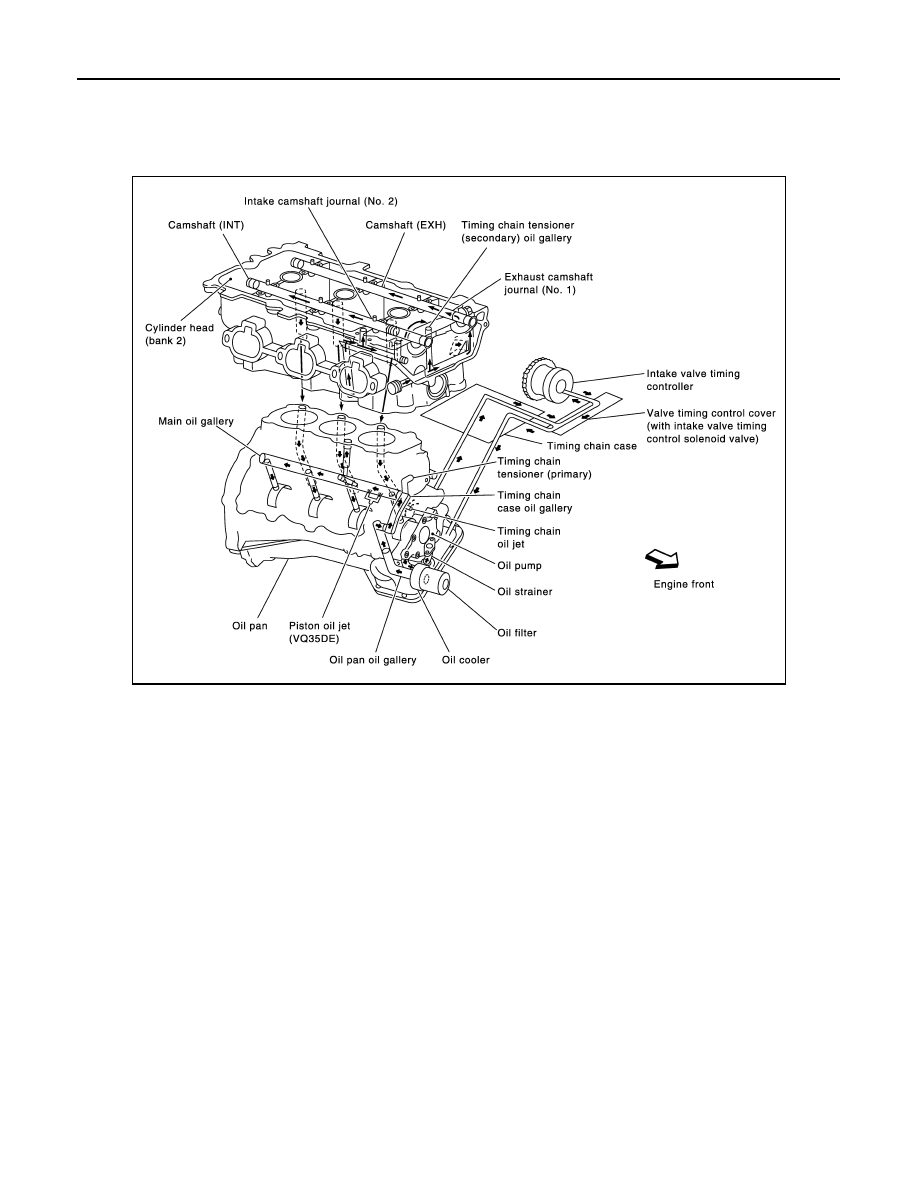

Engine Lubrication System

INFOID:0000000003793114

JPBIA2239GB

DESCRIPTION

LU-3

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

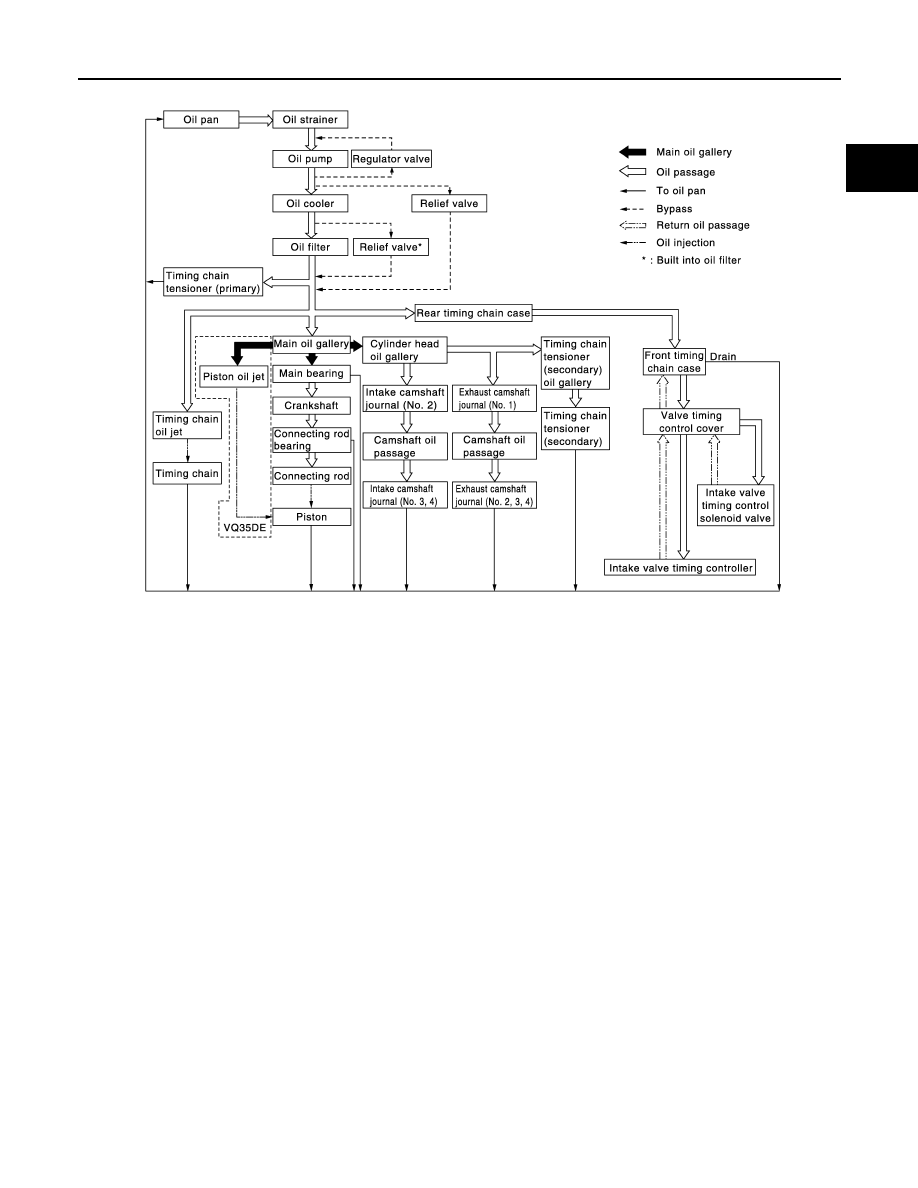

Engine Lubrication System Schematic

INFOID:0000000003793115

JPBIA2240GB

LU-4

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Liquid Gasket

INFOID:0000000003793117

LIQUID GASKET APPLICATION PROCEDURE

1.

Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.
• Remove liquid gasket completely from the liquid gasket application surface, mounting bolts, and bolt

holes.

2.

Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.

3.

Apply liquid gasket to the liquid gasket application surface.
Use Genuine Liquid Gasket or equivalent.
• Within 5 minutes of liquid gasket application, install the mating component.
• If liquid gasket protrudes, wipe it off immediately.
• Never retighten mounting bolts or nuts after the installation.
• After 30 minutes or more have passed from the installation, fill engine oil and engine coolant.
