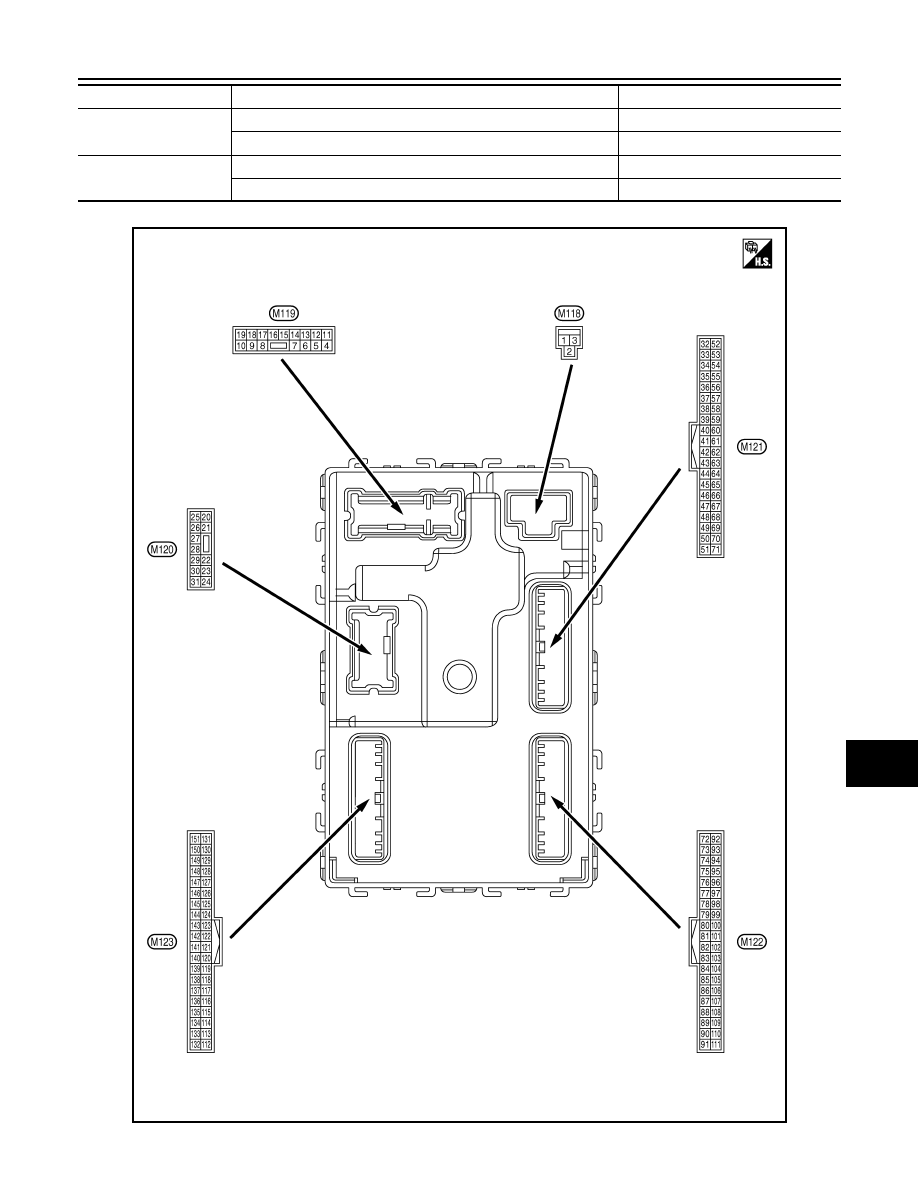

INL-54 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) DOOR SW-RL Rear LH door closed Off Rear LH door opened On DOOR SW-BK NOTE: Off CDL LOCK SW Other than power door lock switch LOCK Off Power door lock switch LOCK On CDL UNLOCK SW Other than power door lock switch UNLOCK Off Power door lock switch UNLOCK On KEY CYL LK-SW NOTE: Off KEY CYL UN-SW NOTE: Off KEY CYL SW-TR NOTE: Off HAZARD SW Hazard switch is OFF Off Hazard switch is ON On REAR DEF SW Rear window defogger switch is OFF Off Rear window defogger switch is ON On TR CANCEL SW NOTE: Off TR/BD OPEN SW Trunk lid opener switch OFF Off While the trunk lid opener switch is turned ON On TRNK/HAT MNTR Trunk lid closed Off Trunk lid opened On RKE-LOCK LOCK button of the key is not pressed Off LOCK button of the key is pressed On RKE-UNLOCK UNLOCK button of the key is not pressed Off UNLOCK button of the key is pressed On RKE-TR/BD TRUNK OPEN button of the key is not pressed Off TRUNK OPEN button of the key is pressed On RKE-PANIC NOTE: Off RKE-P/W OPEN NOTE: Off RKE-MODE CHG LOCK/UNLOCK button of the key is not pressed and held simulta- Off LOCK/UNLOCK button of the key is pressed and held simulta- On OPTICAL SENSOR Bright outside of the vehicle Close to 5 V Dark outside of the vehicle Close to 0 V REQ SW -DR Driver door request switch is not pressed Off Driver door request switch is pressed On REQ SW -AS Passenger door request switch is not pressed Off Passenger door request switch is pressed On Monitor Item Condition Value/Status |
