DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000003894737

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

NOTE:

*: This item is displayed, but is not used.

FREEZE FRAME DATA (FFD) AND IGN COUNTER

Freeze Frame Data

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM. Refer to CONSULT-III opera-
tion manual.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

—

AIR CONDITONER*

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk lid opener system

TRUNK

×

×

Vehicle security system

THEFT ALM

×

×

×

—

RETAINED PWR*

×

Signal buffer system

SIGNAL BUFFER

×

×

—

TPMS (AIR PRESSURE MONITOR)*

×

×

×

DIAGNOSIS SYSTEM (BCM)

INL-15

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

The BCM records the following condition at the moment a particular DTC is detected.
• Vehicle Speed
• Odo/Trip Meter
• Vehicle Condition (BCM detected condition)

IGN Counter

IGN counter indicates the number of times that ignition switch is turned ON after DTC is detected.
• The number is 0 when a malfunction is detected now.
• The number increases like 1

→

 2

→

 3...38

→

 39 after returning to the normal condition whenever ignition

switch OFF

→

 ON.

• The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.

INT LAMP

CONSULT screen terms

Description

SLEEP>LOCK

While turning BCM status from low power consumption mode to normal mode (Power supply
position is “LOCK”.)

SLEEP>OFF

While turning BCM status from low power consumption mode to normal mode (Power supply
position is “OFF”.)

LOCK>ACC

While turning power supply position from “LOCK” to “ACC”

ACC>ON

While turning power supply position from “ACC” to “IGN”

RUN>ACC

While turning power supply position from “RUN” to “ACC” (Vehicle is stopping and selector
lever is except P position.)

CRANK>RUN

While turning power supply position from “CRANKING” to “RUN” (From cranking up the en-
gine to run it)

RUN>URGENT

While turning power supply position from “RUN“ to “ACC” (Emergency stop operation)

ACC>OFF

While turning power supply position from “ACC” to “OFF”

OFF>LOCK

While turning power supply position from “OFF” to “LOCK”

OFF>ACC

While turning power supply position from “OFF” to “ACC”

ON>CRANK

While turning power supply position from “IGN” to “CRANKING”

OFF>SLEEP

While turning BCM status from normal mode (Power supply position is “OFF”.) to low power
consumption mode

LOCK>SLEEP

While turning BCM status from normal mode (Power supply position is “LOCK”.) to low pow-
er consumption mode

LOCK

Power supply position is “LOCK” (Ignition switch OFF with steering is locked.)

OFF

Power supply position is “OFF” (Ignition switch OFF with steering is unlocked.)

ACC

Power supply position is “ACC” (Ignition switch ACC)

ON

Power supply position is “IGN” (Ignition switch ON with engine stopped)

ENGINE RUN

Power supply position is “RUN” (Ignition switch ON with engine running)

CRANKING

Power supply position is “CRANKING” (At engine cranking)

INL-16

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

INT LAMP : CONSULT-III Function (BCM - INT LAMP)

INFOID:0000000003774552

WORK SUPPORT

*: Factory setting

DATA MONITOR

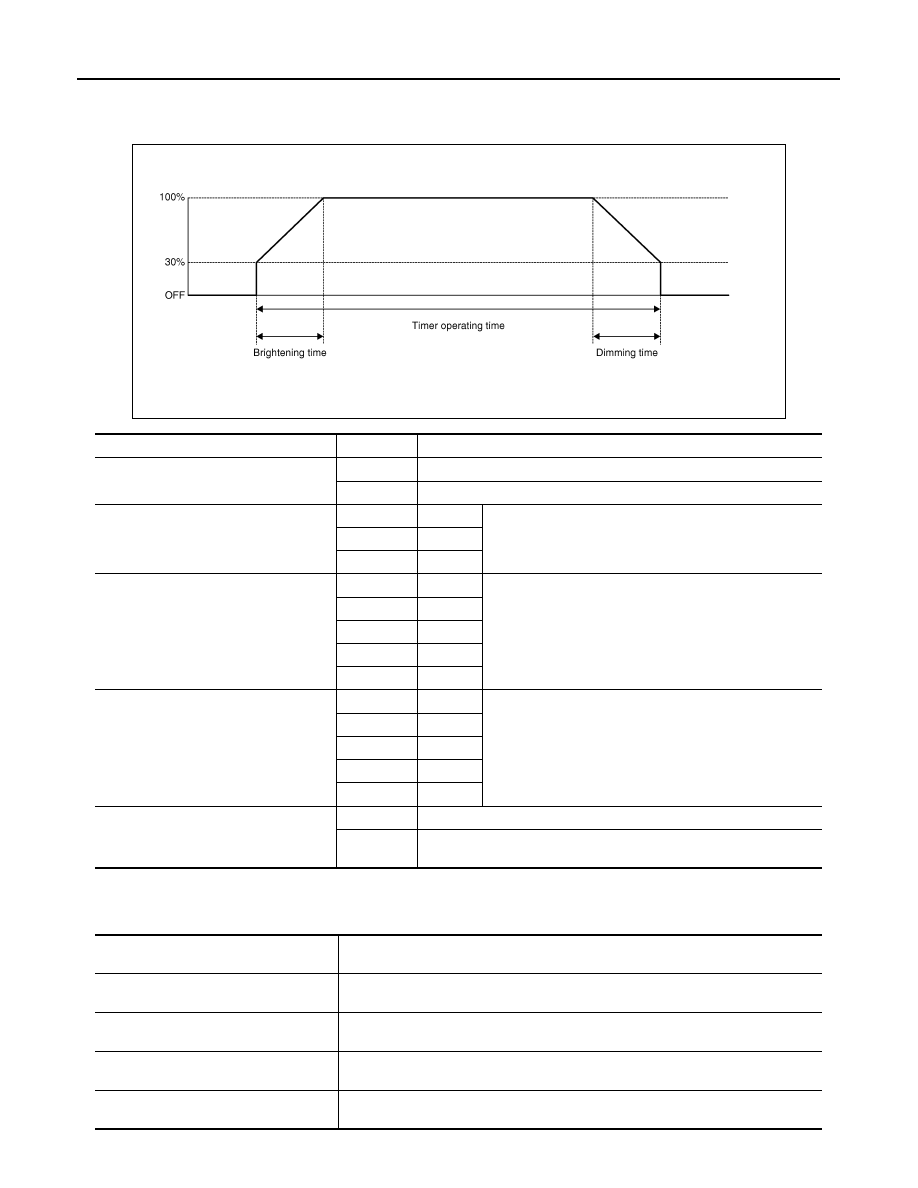

JPLIA0093GB

Service item

Setting item

Setting

SET I/L D-UNLCK INTCON

On*

With the interior room lamp timer function

Off

Without the interior room lamp timer function

ROOM LAMP TIMER SET

MODE 2

7.5 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 3*

15 sec.

MODE 4

30 sec.

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2

1 sec.

MODE 3

2 sec.

MODE 4*

3 sec.

MODE 5

0 sec.

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door
only.

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

The switch status input from request switch (driver side)

REQ SW-AS
[On/Off]

The switch status input from front request switch (passenger side)

PUSH SW
[On/Off]

The switch status input from push-button ignition switch

KEY SW-SLOT
[On/Off]

Key switch status input from key slot

DIAGNOSIS SYSTEM (BCM)

INL-17

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ACTIVE TEST

BATTERY SAVER

BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)

INFOID:0000000003774553

WORK SUPPORT

*: Factory setting

DATA MONITOR

DOOR SW-DR
[On/Off]

The switch status input from front door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from rear door switch RH

DOOR SW- RL
[On/Off]

The switch status input from rear door switch LH

DOOR SW-BK
[On/Off]

NOTE:
The item is indicated, but not monitored.

CDL LOCK SW
[On/Off]

Lock switch status received from door lock/unlock switch

CDL UNLOCK SW
[On/Off]

Unlock switch status received from door lock/unlock switch

KEY CYL LK-SW
[On/Off]

NOTE:
The item is indicated, but not monitored.

KEY CYL UN-SW
[On/Off]

NOTE:
The item is indicated, but not monitored.

TRNK/HAT MNTR
[On/Off]

The switch status input from trunk room lamp switch

RKE-LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver

Monitor item

[Unit]

Description

Test item

Operation

Description

INT LAMP

On

Outputs the interior room lamp control signal to turn map lamp and personal lamp ON
(Map lamp switch is in DOOR position).

Off

Stops the interior room lamp control signal to turn map lamp and personal lamp OFF.

STEP LAMP TEST

On

Outputs the step lamp control signal to turn step lamp ON.

Off

Stops the step lamp control signal to turn step lamp OFF.

LUGGAGE LAMP TEST

On

Outputs the trunk room lamp control signal to turn trunk room lamp ON.

Off

Stops the trunk room lamp control signal to turn trunk room lamp OFF.

Service item

Setting item

Setting

BATTERY SAVER SET

On*

With the exterior lamp battery saver function

Off

Without the exterior lamp battery saver function

ROOM LAMP BAT SAV SET

On*

With the interior room lamp battery saver function

Off

Without the interior room lamp battery saver function

ROOM LAMP TIMER SET

MODE 1*

30 min.

Sets the interior room lamp battery saver timer operating
time.

MODE 2

60 min.
