Nissan Teana J32. Manual - part 701





B2581, B2582 INTAKE SENSOR

HAC-173

< COMPONENT DIAGNOSIS >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

1.

Disconnect intake sensor connector.

2.

Turn ignition switch ON.

3.

Check voltage between intake sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND A/C AUTO AMP.

1.

Turn ignition switch OFF.

2.

Disconnect A/C auto amp. connector.

3.

Check continuity between intake sensor harness connector and A/C auto amp. harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK INTAKE SENSOR

Check intake sensor. Refer to

HAC-173, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace A/C auto amp.

NO

>> Replace intake sensor.

4.

CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND A/C AUTO AMP.

1.

Turn ignition switch OFF.

2.

Disconnect A/C auto amp. connector.

3.

Check continuity between intake sensor harness connector and A/C auto amp. harness connector.

4.

Check continuity between intake sensor harness connector and ground.

Is the inspection result normal?

YES

>> Replace A/C auto amp.

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000003884751

1.

CHECK INTAKE SENSOR

1.

Turn ignition switch OFF.

2.

Disconnect intake sensor connector.

3.

Check resistance between intake sensor terminals.

(+)

(

)

Voltage

Intake sensor

Connector

Terminal

M42

2

Ground

Approx. 5 V

Intake sensor

A/C auto amp.

Continuity

Connector

Terminal

Connector

Terminal

M42

1

M50

37

Existed

Intake sensor

A/C auto amp.

Continuity

Connector

Terminal

Connector

Terminal

M42

2

M50

16

Existed

Intake sensor

Continuity

Connector

Terminal

M42

2

Ground

Not existed

HAC-174

< COMPONENT DIAGNOSIS >

[WITH 7 INCH DISPLAY]

B2581, B2582 INTAKE SENSOR

Is the inspection result normal?

YES

>> END.

NO

>> Replace intake sensor.

Terminal

Condition

Resistance k

Temperature

°

C (

°

F)

1

2

15 (5)

17.73

10 (14)

13.46

5 (23)

10.33

0 (32)

8.00

5 (41)

6.26

10 (50)

4.93

15 (59)

3.92

20 (68)

3.14

25 (77)

2.54

30 (86)

2.06

35 (95)

1.69

40 (104)

1.39

45 (113)

1.15

B262A, B262B, B2657, B2658 GAS SENSOR

HAC-175

< COMPONENT DIAGNOSIS >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

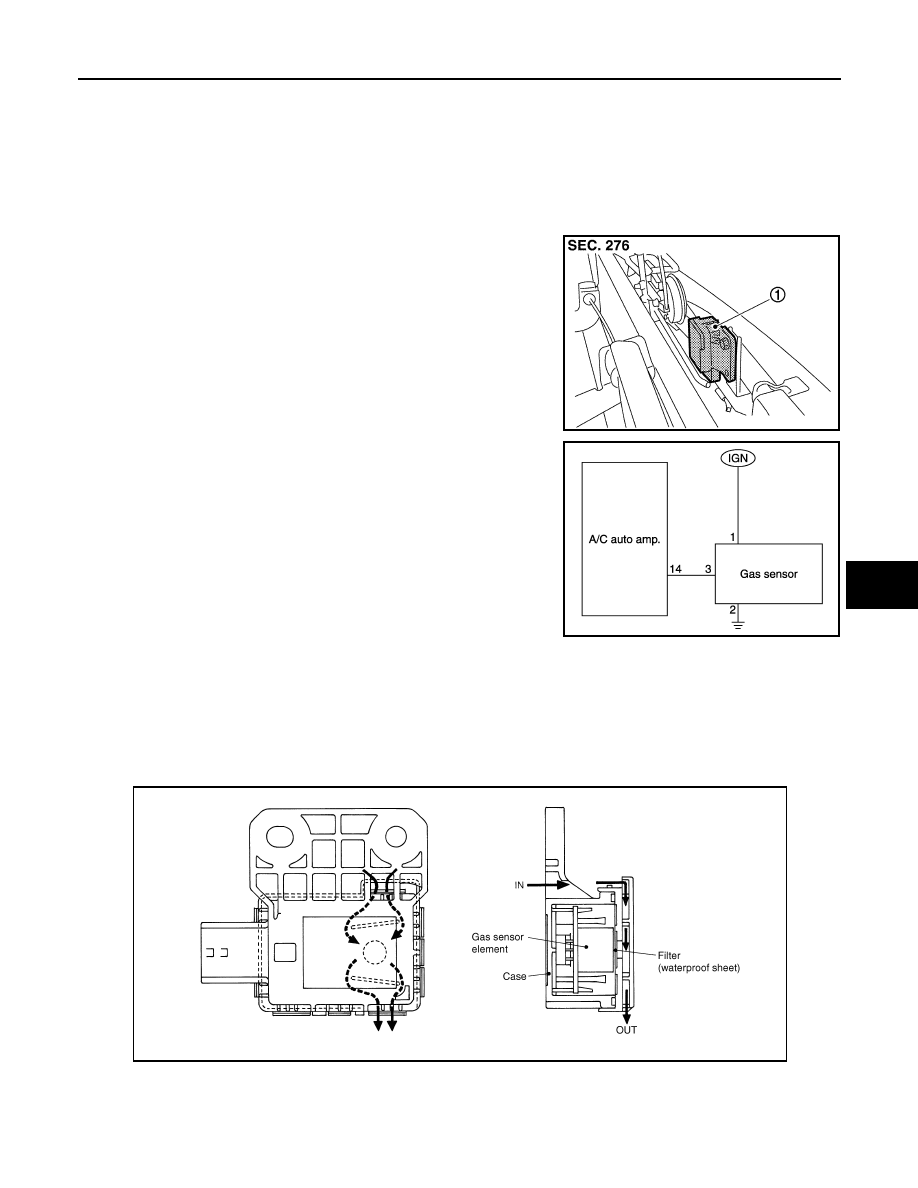

B262A, B262B, B2657, B2658 GAS SENSOR

WITH INTELLIGENT AIR CONDITIONER SYSTEM

WITH INTELLIGENT AIR CONDITIONER SYSTEM : Description

INFOID:0000000003884752

COMPONENT DESCRIPTION

Gas Sensor

The gas sensor (1) is attached on the bumper upper retainer. It
detects smell of exhaust gas and converts it into a duty ratio which is
then input into the A/C auto amp.

Gas Sensor Circuit

SMELL OF EXHAUST GAS INPUT PROCESS

Gas sensor detects ambient atmospheric CO and NO

2

, and converts them to values of resistance. The values

are converted to signals with the gas sensor internal circuit, then auto amp. inputs the signals.
Gas sensor has a construction that detects CO and NO

2

 by gas sensor element from the air intake of the case

through a filter (waterproof sheet). It sends output signals to auto amp. in response to a resistance value con-
version by gas sensor elements. Output signals prevent a smell of exhaust gas from getting into vehicle by
performing corrections according to various driving conditions.

WITH INTELLIGENT AIR CONDITIONER SYSTEM : DTC Logic

INFOID:0000000003884753

DTC DETECTION LOGIC

JPIIA0900ZZ

JPIIA1009GB

PJIA0049E

HAC-176

< COMPONENT DIAGNOSIS >

[WITH 7 INCH DISPLAY]

B262A, B262B, B2657, B2658 GAS SENSOR

NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to

HAC-

164, "DTC Logic"

 or

HAC-165, "DTC Logic"

DTC CONFIRMATION PROCEDURE

1.

CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT-III

1.

Using CONSULT-III, perform “SELF-DIAGNOSIS RESULTS” of HVAC.

2.

Check if any DTC is displayed in the self-diagnosis results.

NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to

HAC-

164, "DTC Logic"

 or

HAC-165, "DTC Logic"

Is DTC “B262A”, “B262B”, “B2657” or “B2658” displayed?

YES

>> Perform trouble diagnosis for the gas sensor. Refer to

HAC-176, "WITH INTELLIGENT AIR CON-

DITIONER SYSTEM : Diagnosis Procedure"

NO

>> INSPECTION END

WITH INTELLIGENT AIR CONDITIONER SYSTEM : Diagnosis Procedure

INFOID:0000000003884754

1.

ADJUST GAS SENSOR SENSITIVITY AND CLEAN SWITCH INTERLOCKING CHANGE

1.

Turn ignition switch ON.

2.

Adjust the gas sensor sensitivity and clean switch interlocking change. Refer to

HAC-116, "WITH INTEL-

LIGENT AIR CONDITIONER SYSTEM : Gas Sensor Sensitivity Adjustment Function (With Intelligent Air
Conditioner System)"

 and

HAC-116, "WITH INTELLIGENT AIR CONDITIONER SYSTEM : Clean Switch

Interlocking Movement Change Function (With Intelligent Air Conditioner System)"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK POWER SUPPLY FOR GAS SENSOR

1.

Turn ignition switch OFF.

2.

Disconnect gas sensor connector.

3.

Turn ignition switch ON.

4.

Check voltage between gas sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>>

Check power supply circuit and 10A fuse (No. 3, located in the fuse block). Refer to

PG-101,

"Fuse, Connector and Terminal Arrangement"

• If fuse is OK, check harness for open circuit. Repair or replace if necessary.
• If fuse is NG, check harness for short circuit and replace fuse.

3.

CHECK GROUND CIRCUIT FOR GAS SENSOR

1.

Turn ignition switch OFF.

2.

Check continuity between gas sensor harness connector and ground.

DTC

Items

 (CONSULT-III screen terms)

Diagnostic item is detected when...

Possible cause

B262A

GAS SENSOR (SHORT)

Gas sensor duty 10% or less

• Gas sensor
• A/C auto amp.
• Harness and connector

(Gas sensor circuit is open, or
there is a short in the circuit)

B262B

GAS SENSOR (OPEN)

Gas sensor duty 90% or more

B2657

GAS SENSOR CIRCUIT (SHORT)

Gas sensor duty 0%

B2658

GAS SEN CIRCUIT (OPEN)

Gas sensor duty 100%

(+)

(

)

Voltage

Gas sensor

Connector

Terminal

E351

1

Ground

Battery voltage
