AUTOMATIC AIR CONDITIONER SYSTEM

HAC-141

< FUNCTION DIAGNOSIS >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

WITH INTELLIGENT AIR CONDITIONER SYSTEM : Component Description

INFOID:0000000003885179

Component

Description

Refrigerant pressure sensor

EC-348, "Description"

Gas sensor

HAC-175, "WITH INTELLIGENT AIR CONDITIONER SYSTEM :
Description"

Compressor

HAC-197, "Description"

Ambient sensor

HAC-166, "Description"

Intake door motor

HAC-188, "Description"

Air mix door motor (driver side)

HAC-181, "Description"

Air mix door motor (passenger side)

HAC-183, "Description"

Mode door motor

HAC-185, "Description"

Sunload sensor

HAC-178, "Description"

In-vehicle sensor

HAC-169, "Description"

A/C auto amp.

HAC-192, "Description"

Intake sensor

HAC-172, "Description"

Blower motor

HAC-193, "Description"

HAC-142

< FUNCTION DIAGNOSIS >

[WITH 7 INCH DISPLAY]

PLASMACLUSTER SYSTEM

PLASMACLUSTER SYSTEM

WITH INTELLIGENT AIR CONDITIONER SYSTEM

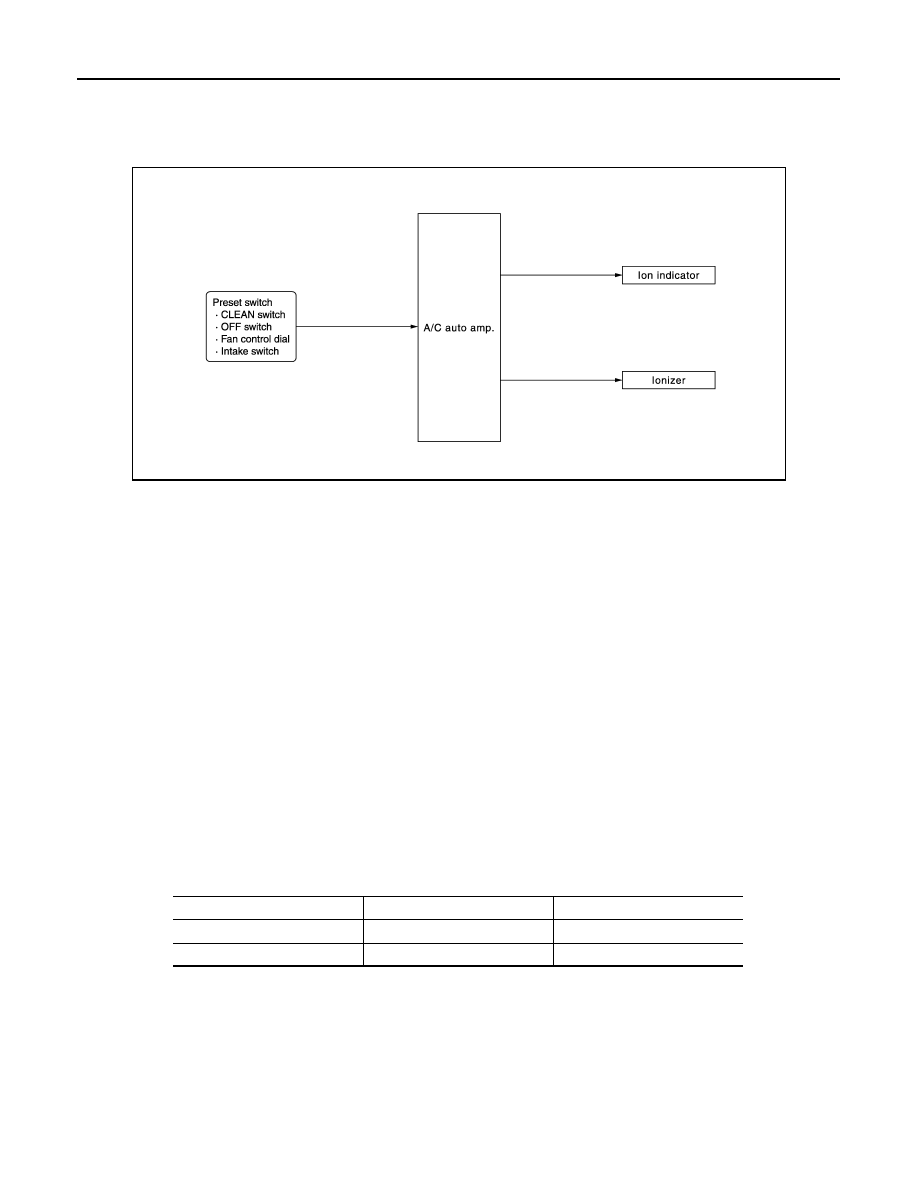

WITH INTELLIGENT AIR CONDITIONER SYSTEM : System Diagram

INFOID:0000000003884708

WITH INTELLIGENT AIR CONDITIONER SYSTEM : System Description

INFOID:0000000003884709

• Plasmacluster

™

 ion generation function, which generates ions inactivating bacteria and supplies to the pas-

senger compartment through air blown from air conditioner, has been adopted.

• Airborne mold and bacteria in the passenger compartment are inactivated by the effect of Plasmacluster

™

ion.

• Plasmacluster

™

 ion generation function is switched between 2 operation modes (clean mode and ion control

mode) automatically, and maintain the ion balance in the passenger compartment close to that in nature.

• The operating condition is displayed in the “ION” indicator in the display.
NOTE:
• Plasmacluster

™

 ion technology developed by Sharp Corporation is installed in this item.

• Plasmacluster

™

 is a trademark of Sharp Corporation.

OPERATION DESCRIPTION

• The Plasmacluster

™

 ion generation function operates synchronized with the blower motor. The Plasmaclus-

ter

™

 ion generation function operates when the blower motor operates.

• 2 ion generation modes (clean mode and ion control mode) are switched every 15 minutes while blower

motor turns ON with ignition switch ON.

• When the clean switch is turned ON, Plasmacluster

™

 ion generation function extends the operation time of

the clean mode to approximately 30 minutes for deactivating impurities more actively.

NOTE:
When the clean switch is not ON
• Ignition switch: OFF
• Blower motor: OFF
• Mode position: Defroster (DEF)
• Ambient temperature: At about 0

°

C (32

°

F) or below [Reactivate at about 2

°

C (36

°

F) or above]

• When the gas sensor is malfunctioning

• When the blower motor is stopped, the Plasmacluster

™

 ion generation function also stops operating

(“CLEAN” and “ION” indicators are OFF).

JPIIA1004GB

Condition

Clean mode

Ion control mode

Clean switch: OFF

15 minutes

15 minutes

Clean switch: ON

30 minutes

15 minutes

PLASMACLUSTER SYSTEM

HAC-143

< FUNCTION DIAGNOSIS >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

1.

Clean mode operation
Ion indicator (blue) (1) in the display is turns ON as per the fol-
lowings.
• Approximately 15 minutes after starting the blower motor.
• Approximately 30 minutes after the clean switch is turned ON

while the blower motor is operating.

• Clean mode is switched to operate, 15 minutes after ion con-

trol mode in operation.

2.

Ion control mode operation
Ion indicator (green) in the display is turns ON as per the follow-
ings.
• Ion control mode is switched to operate, 15 minutes after

clean mode in operation.

• After approximately 30 seconds of clean mode operation time has passed while the clean switch is ON.

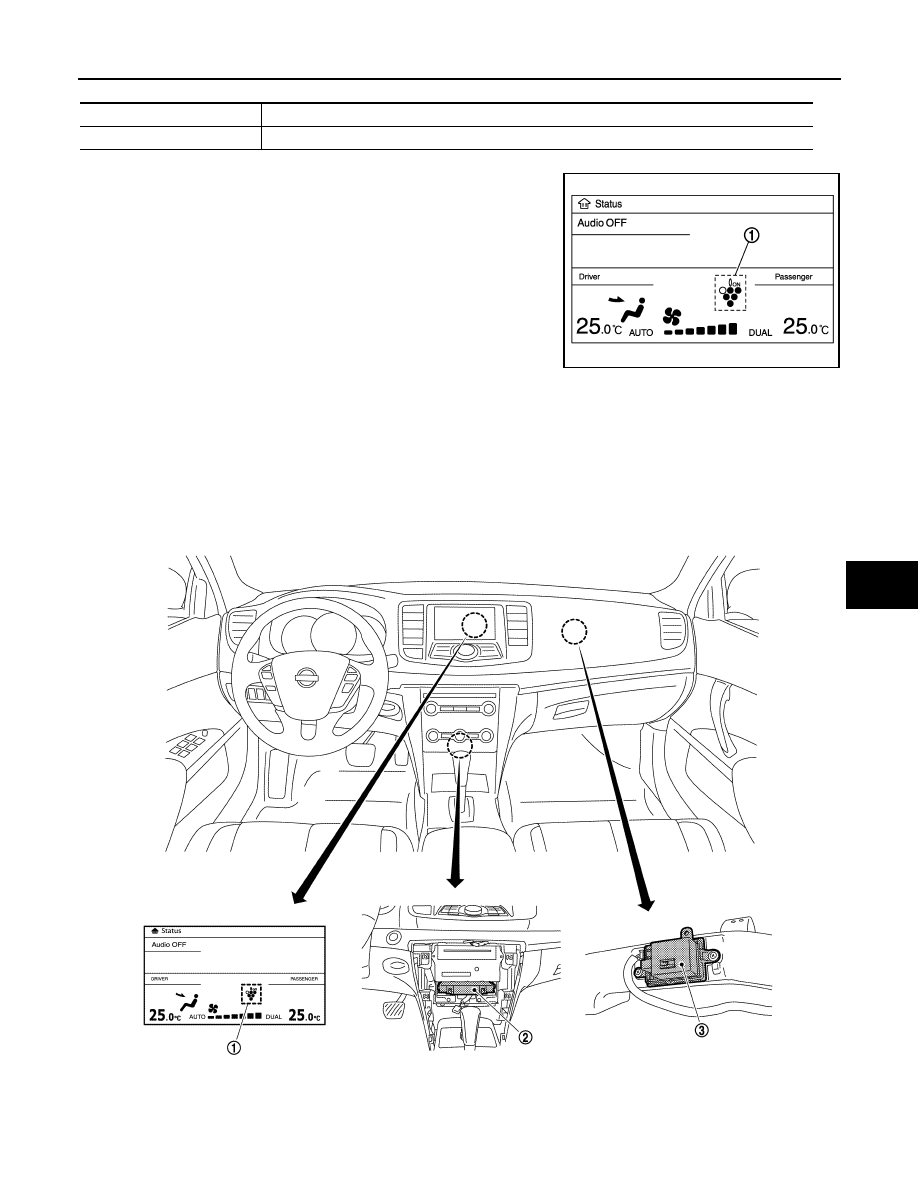

WITH INTELLIGENT AIR CONDITIONER SYSTEM : Component Part Location

INFOID:0000000003884710

PASSENGER COMPARTMENT

Clean mode

Emits positive and negative ions into air for deactivating impurities actively.

Ion control mode

Emits more negative ions after deactivating impurities actively in clean mode.

JSIIA1152ZZ

JPIIA0998ZZ

HAC-144

< FUNCTION DIAGNOSIS >

[WITH 7 INCH DISPLAY]

PLASMACLUSTER SYSTEM

WITH INTELLIGENT AIR CONDITIONER SYSTEM : Component Description

INFOID:0000000003884711

1.

Ion indicator

2.

A/C auto amp.

3.

Ionizer

Component

Description

A/C auto amp.

The A/C auto amp. controls ionizer ON/OFF and shifts an ion gen-
eration function.

Ion indicator

Plasmacluster ion generation function operating condition is dis-
played in the ion indicator in the display.

Ionizer

HAC-199, "WITH INTELLIGENT AIR CONDITIONER SYSTEM :
Description"
