B2578, B2579 IN-VEHICLE SENSOR

HAC-49

< COMPONENT DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

4.

CHECK CIRCUIT CONTINUITY BETWEEN IN-VEHICLE SENSOR AND A/C AUTO AMP.

1.

Turn ignition switch OFF.

2.

Disconnect A/C auto amp. connector.

3.

Check continuity between in-vehicle sensor harness connector and A/C auto amp. harness connector.

4.

Check continuity between in-vehicle sensor harness connector and ground.

Is the inspection result normal?

YES

>> Replace A/C auto amp.

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000003846335

1.

CHECK IN-VEHICLE SENSOR

1.

Turn ignition switch OFF.

2.

Disconnect in-vehicle sensor connector. Refer to

VTL-25, "Exploded View"

.

3.

Check resistance between in-vehicle sensor terminals.

Is the inspection result normal?

YES

>> END.

NO

>> Replace in-vehicle sensor.

In-vehicle sensor

A/C auto amp.

Continuity

Connector

Terminal

Connector

Terminal

M41

1

M50

36

Existed

In-vehicle sensor

Continuity

Connector

Terminal

M41

1

Ground

Not existed

Terminal

Condition

Resistance k

Temperature

°

C (

°

F)

1

2

15 (5)

12.73

10 (14)

9.92

5 (23)

7.80

0 (32)

6.19

5 (41)

4.95

10 (50)

3.99

15 (59)

3.24

20 (68)

2.65

25 (77)

2.19

30 (86)

1.81

35 (95)

1.51

40 (104)

1.27

45 (113)

1.07

HAC-50

< COMPONENT DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

B2581, B2582 INTAKE SENSOR

B2581, B2582 INTAKE SENSOR

Description

INFOID:0000000003846336

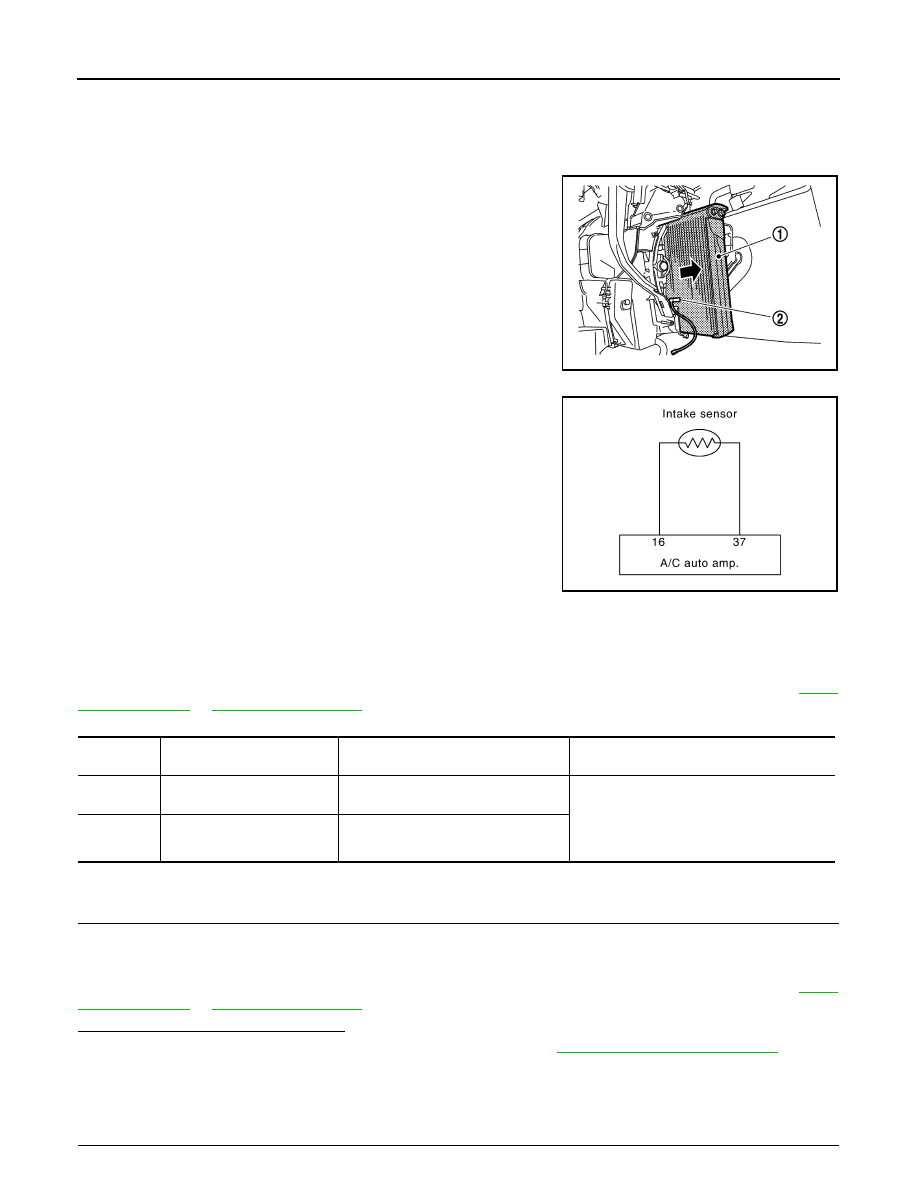

Intake Sensor
• The intake sensor (2) is located on the evaporator (1).
• It converts air temperature after it passes through the evaporator

into a resistance value which is then input to the A/C auto amp.

Intake Sensor Circuit

DTC Logic

INFOID:0000000003846337

DTC DETECTION LOGIC

NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to

HAC-

42, "DTC Logic"

 or

HAC-43, "DTC Logic"

DTC CONFIRMATION PROCEDURE

1.

CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT-III

1.

Using CONSULT-III, perform “SELF-DIAGNOSIS RESULTS” of HVAC.

2.

Check if any DTC is displayed in the self-diagnosis results.

NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to

HAC-

42, "DTC Logic"

 or

HAC-43, "DTC Logic"

Is DTC “B2581” or “B2582” displayed?

YES

>> Perform trouble diagnosis for the intake sensor. Refer to

HAC-50, "Diagnosis Procedure"

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000003846338

1.

CHECK VOLTAGE BETWEEN INTAKE SENSOR AND GROUND

JPIIA0907ZZ

JPIIA0614GB

DTC

Items

 (CONSULT-III screen terms)

Diagnostic item is detected when...

Possible cause

B2581

EVAP TEMP SEN (SHORT)

Detected temperature at intake sensor

33

°

C (

27

°

F) or less

• Intake sensor
• A/C auto amp.
• Harness and connector

(Intake sensor circuit is open, or there is a
short in the circuit)

B2582

EVAP TEMP SEN (OPEN)

Detected temperature at intake sensor
69

°

C (156

°

F) or more

B2581, B2582 INTAKE SENSOR

HAC-51

< COMPONENT DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

1.

Disconnect intake sensor connector.

2.

Turn ignition switch ON.

3.

Check voltage between intake sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND A/C AUTO AMP.

1.

Turn ignition switch OFF.

2.

Disconnect A/C auto amp. connector.

3.

Check continuity between intake sensor harness connector and A/C auto amp. harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK INTAKE SENSOR

Check intake sensor. Refer to

HAC-51, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace A/C auto amp.

NO

>> Replace intake sensor.

4.

CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND A/C AUTO AMP.

1.

Turn ignition switch OFF.

2.

Disconnect A/C auto amp. connector.

3.

Check continuity between intake sensor harness connector and A/C auto amp. harness connector.

4.

Check continuity between intake sensor harness connector and ground.

Is the inspection result normal?

YES

>> Replace A/C auto amp.

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000003846339

1.

CHECK INTAKE SENSOR

1.

Turn ignition switch OFF.

2.

Disconnect intake sensor connector.

3.

Check resistance between intake sensor terminals.

(+)

(

)

Voltage

Intake sensor

Connector

Terminal

M42

2

Ground

Approx. 5 V

Intake sensor

A/C auto amp.

Continuity

Connector

Terminal

Connector

Terminal

M42

1

M50

37

Existed

Intake sensor

A/C auto amp.

Continuity

Connector

Terminal

Connector

Terminal

M42

2

M50

16

Existed

Intake sensor

Continuity

Connector

Terminal

M42

2

Ground

Not existed

HAC-52

< COMPONENT DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

B2581, B2582 INTAKE SENSOR

Is the inspection result normal?

YES

>> END.

NO

>> Replace intake sensor.

Terminal

Condition

Resistance k

Temperature

°

C (

°

F)

1

2

15 (5)

17.73

10 (14)

13.46

5 (23)

10.33

0 (32)

8.00

5 (41)

6.26

10 (50)

4.93

15 (59)

3.92

20 (68)

3.14

25 (77)

2.54

30 (86)

2.06

35 (95)

1.69

40 (104)

1.39

45 (113)

1.15
