Nissan Teana J32. Manual - part 645





HA-8

< SYMPTOM DIAGNOSIS >

REFRIGERATION SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

REFRIGERATION SYSTEM SYMPTOMS

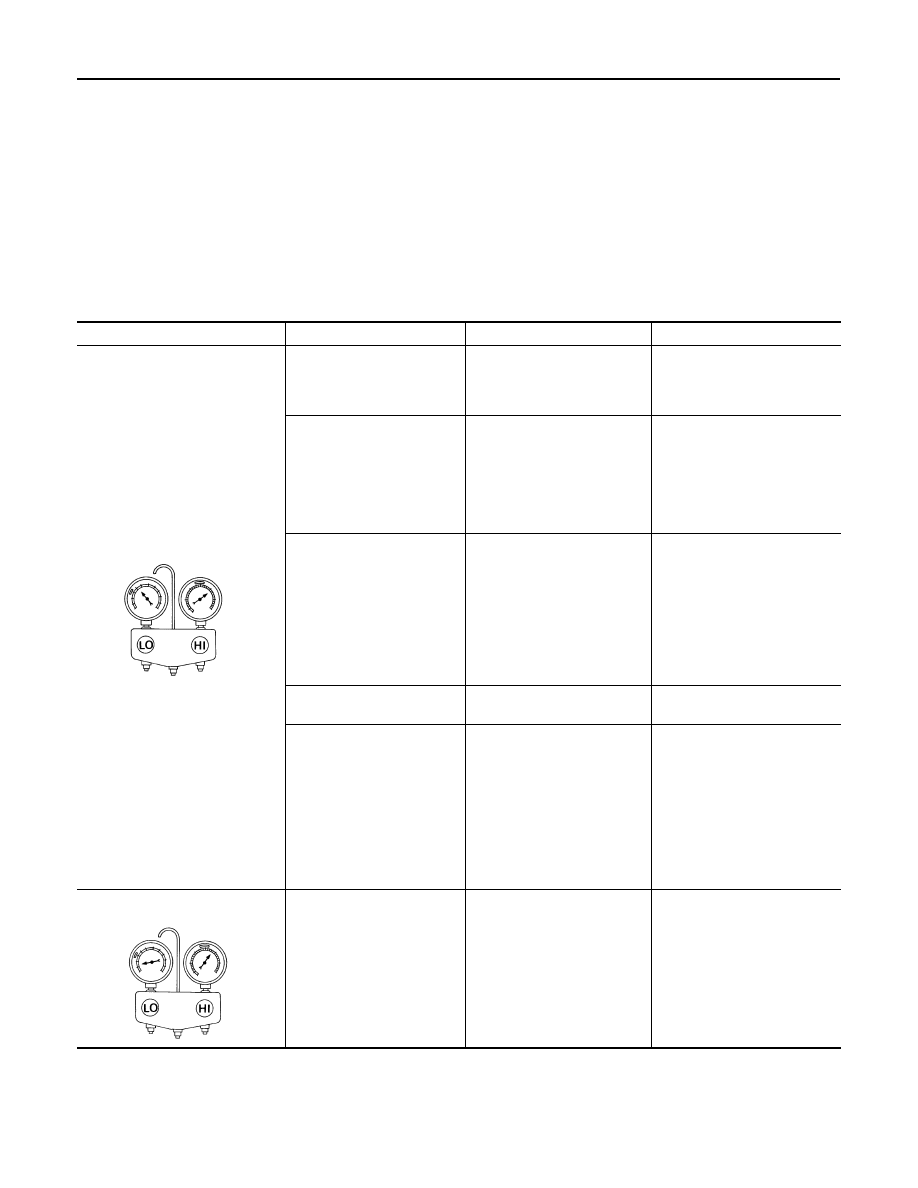

Trouble Diagnosis For Unusual Pressure

INFOID:0000000003795806

Diagnose using a manifold gauge whenever the system’s high and/or low side pressure(s) is/are unusual. The
marker above the gauge scale in the following tables indicates the standard pressure range. Refer to the
above table (Ambient air temperature-to-operating pressure table) since the standard pressure, however, dif-
fers from vehicle to vehicle.

Symptom Table

INFOID:0000000003795807

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

Both high and low-pressure sides
are too high.

The pressure returns to nor-
mal and is reduced soon after
water is splashed on con-
denser.

Excessive refrigerant charge in
refrigeration cycle.

Reduce refrigerant until speci-
fied pressure is obtained.

Air suction by cooling fan is in-
sufficient.

Insufficient condenser cooling
performance.

1.

Condenser fins are
clogged.

2.

Improper fan rotation of
cooling fan.

• Clean condenser.
• Check and repair cooling fan

if necessary.

• Low-pressure pipe is not

cold.

• When the compressor is

stopped the high-pressure
reading quickly drops by
approximately 196 kPa

(1.96 bar, 2 kg/cm

2

, 28 psi).

It then decreases gradually
thereafter.

Poor heat exchange in con-
denser
(After compressor operation
stops, high-pressure decreas-
es too slowly).

Air in refrigeration cycle.

Evacuate repeatedly and re-
charge system.

Engine tends to overheat.

Engine cooling systems mal-
function.

Check and repair each engine
cooling system.

• An area of the low-pressure

pipe is colder than areas
near the evaporator outlet.

• Low-pressure pipe is some-

times covered with frost.

• Excessive liquid refrigerant

on low-pressure side.

• Excessive refrigerant dis-

charge flow.

• Expansion valve is slightly

open compared with the
specification.

Improper expansion valve ad-
justment.

Replace expansion valve.

High-pressure side is too high and
low-pressure side is too low.

Upper side of condenser and
high-pressure side are hot,
however, the liquid tank is not
very hot.

High-pressure tube or parts lo-
cated between compressor
and condenser are clogged or
crushed.

• Check and repair or replace

malfunctioning parts.

• Check lubricant for contami-

nation.

AC359A

AC360A

REFRIGERATION SYSTEM SYMPTOMS

HA-9

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

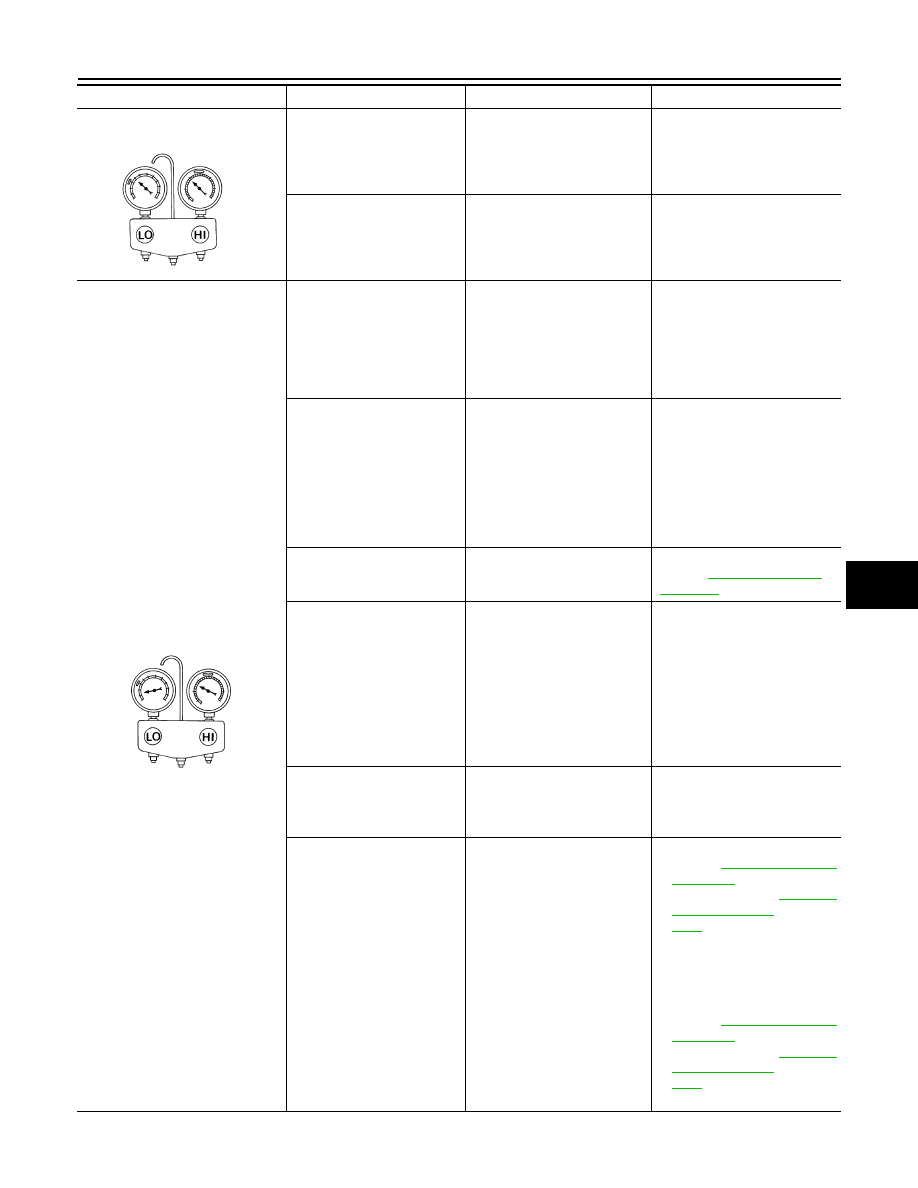

High-pressure side is too low and
low-pressure side is too high.

High- and low-pressure sides
become equal soon after
compressor operation stops.

Compressor pressure opera-
tion is improper.

Damaged inside compressor
packings.

Replace compressor.

No temperature difference be-
tween high- and low-pressure
sides.

Compressor pressure opera-
tion is improper.

Damaged inside compressor
packings.

Replace compressor.

Both high and low-pressure sides
are too low.

• There is a big temperature

difference between the liq-
uid tank outlet and inlet.
Outlet temperature is ex-
tremely low.

• Liquid tank inlet and expan-

sion valve are frosted.

Liquid tank inside is slightly
clogged.

• Replace liquid tank.
• Check lubricant for contami-

nation.

•  Expansion valve inlet tem-

perature is extremely low
compared with areas near
the liquid tank.

• Expansion valve inlet is

frosted.

• Temperature difference oc-

curs somewhere in high-
pressure side.

High-pressure pipe located be-
tween liquid tank and expan-
sion valve is clogged.

• Check and repair malfunc-

tioning parts.

• Check lubricant for contami-

nation.

Expansion valve and liquid
tank are warm or slightly cool
when touched.

Low refrigerant charge.

Leaking fittings or components.

Check refrigerant for leakages.
Refer to

HA-31, "Refrigerant

Leakages"

.

There is a big temperature dif-
ference between the expan-
sion valve inlet and outlet
while the valve itself is frost-
ed.

Expansion valve slightly closes
compared with the specifica-
tion.

1.

Improper expansion
valve adjustment.

2.

Malfunctioning expansion
valve.

3.

Outlet and inlet may be
clogged.

• Remove foreign materials by

using compressed air.

• Replace expansion valve.
• Check lubricant for contami-

nation.

An area of the low-pressure
pipe is colder than areas near
the evaporator outlet.

Low-pressure pipe is clogged
or crushed.

• Check and repair malfunc-

tioning parts.

• Check lubricant for contami-

nation.

Air flow volume is not suffi-
cient or is too low.

Evaporator is frozen.

• Check intake sensor circuit.

Refer to

HAC-50, "Diagnosis

Procedure"

(WITHOUT 7

INCH DISPLAY) or

HAC-172,

"Diagnosis Proce-
dure"

(WITH 7 INCH DIS-

PLAY).

• Replace compressor.
• Repair evaporator fins.
• Replace evaporator.
• Check blower motor circuit.

Refer to

HAC-68, "Diagnosis

Procedure"

(WITHOUT 7

INCH DISPLAY) or

HAC-193,

"Diagnosis Proce-
dure"

(WITH 7 INCH DIS-

PLAY).

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

AC356A

AC353A

HA-10

< SYMPTOM DIAGNOSIS >

REFRIGERATION SYSTEM SYMPTOMS

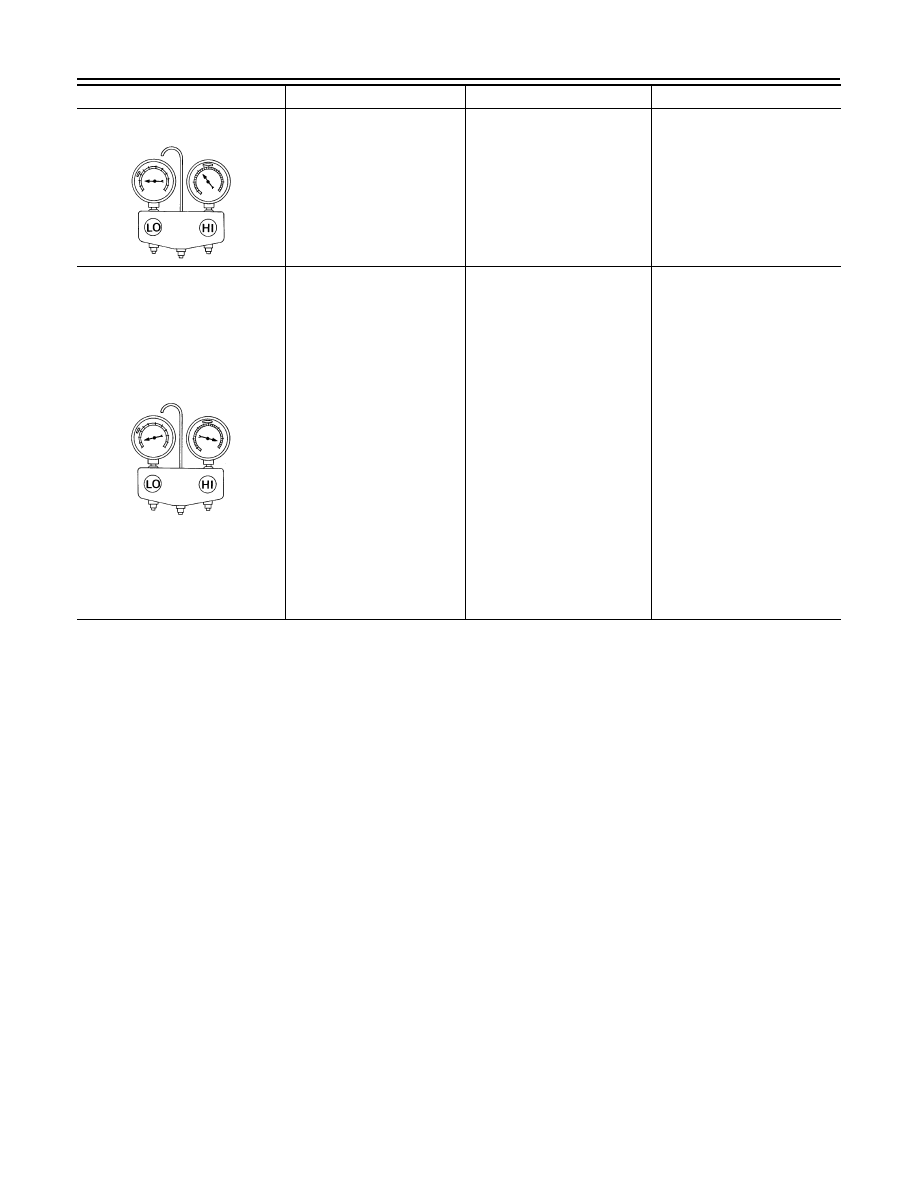

Low-pressure side sometimes be-
comes negative.

• Air conditioning system

does not function and does
not cyclically cool the com-
partment air.

• The system constantly

functions for a period of
time after compressor is
stopped and restarted.

Refrigerant does not discharge
cyclically.

Moisture is frozen at expansion
valve outlet and inlet.

Water is mixed with refrigerant.

• Drain water from refrigerant

or replace refrigerant.

• Replace liquid tank.

Low-pressure side becomes nega-
tive.

Liquid tank or front/rear side
of expansion valve’s pipe is
frosted or wet with dew.

High-pressure side is closed
and refrigerant does not flow.

Expansion valve or liquid tank
is frosted.

Do not use the system until the
frost has melted. Start it again to
check whether or not the mal-
function is caused by water or
foreign materials.
• Cooling is initially okay if wa-

ter is the cause. Then the wa-
ter freezes, which causes a
blockage. Drain water from
refrigerant or replace refriger-
ant.

• If due to foreign materials, re-

move expansion valve and
the particles with dry com-
pressed air (not shop air.)

• Replace expansion valve if

either of the above methods
cannot correct the malfunc-
tion.

• Replace liquid tank.
• Check lubricant for contami-

nation.

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

AC354A

AC362A

COMPRESSOR SYSTEM SYMPTOMS

HA-11

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

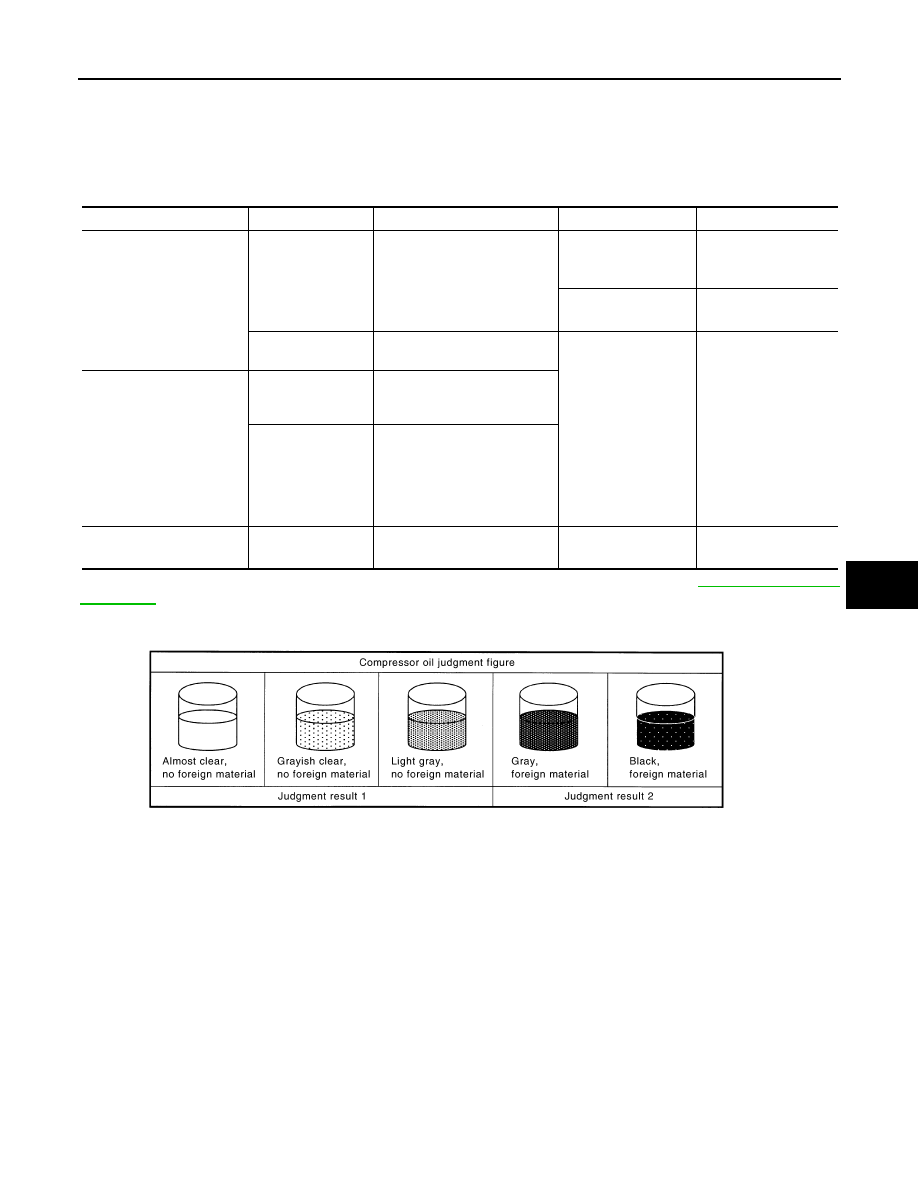

COMPRESSOR SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000003795808

Follow the next table and perform trouble diagnosis if there is a compressor unit malfunction (internal noise,
insufficient cooling).

*1: First conduct inspection according to trouble diagnosis for each malfunction. Refer to

HAC-88, "Inspection

procedure"

.

*2: Applicable to variable capacity compressor only.

Symptom

Inspection method

Check list

Result

Action

Noise from compressor unit
When A/C is ON.
(rattling or rolling sound)

Cooker system in-
ternal pressure

Check with manifold gauge

Both high- and low-
pressure sides are

high.

*2

Recharge with proper
amount of refrigerant.

High/low-pressures

hunt.

*2

Replace compressor
only.

Check compressor
oil condition.

Sample compressor oil and
judge.

Refer to the criteria
shown in compressor
lubricant.

Diagnostic result 1:
Replace compressor
only.

Diagnostic result 2:
Replace compressor
and liquid tank.

Insufficient cooling

*1

Compressor body

Check rotation of compressor.
If sized or stuck, sample com-
pressor oil and judge.

Cooler system inter-
nal pressure

Check with a manifold gauge.
Sample compressor oil and
judge if the difference between
high-pressure and low-pres-
sure is small or if they are al-
most the same.

Outlet air temperature rises

temporarily while driving.

*2

Replace compressor
only.

JSIIA0927GB
