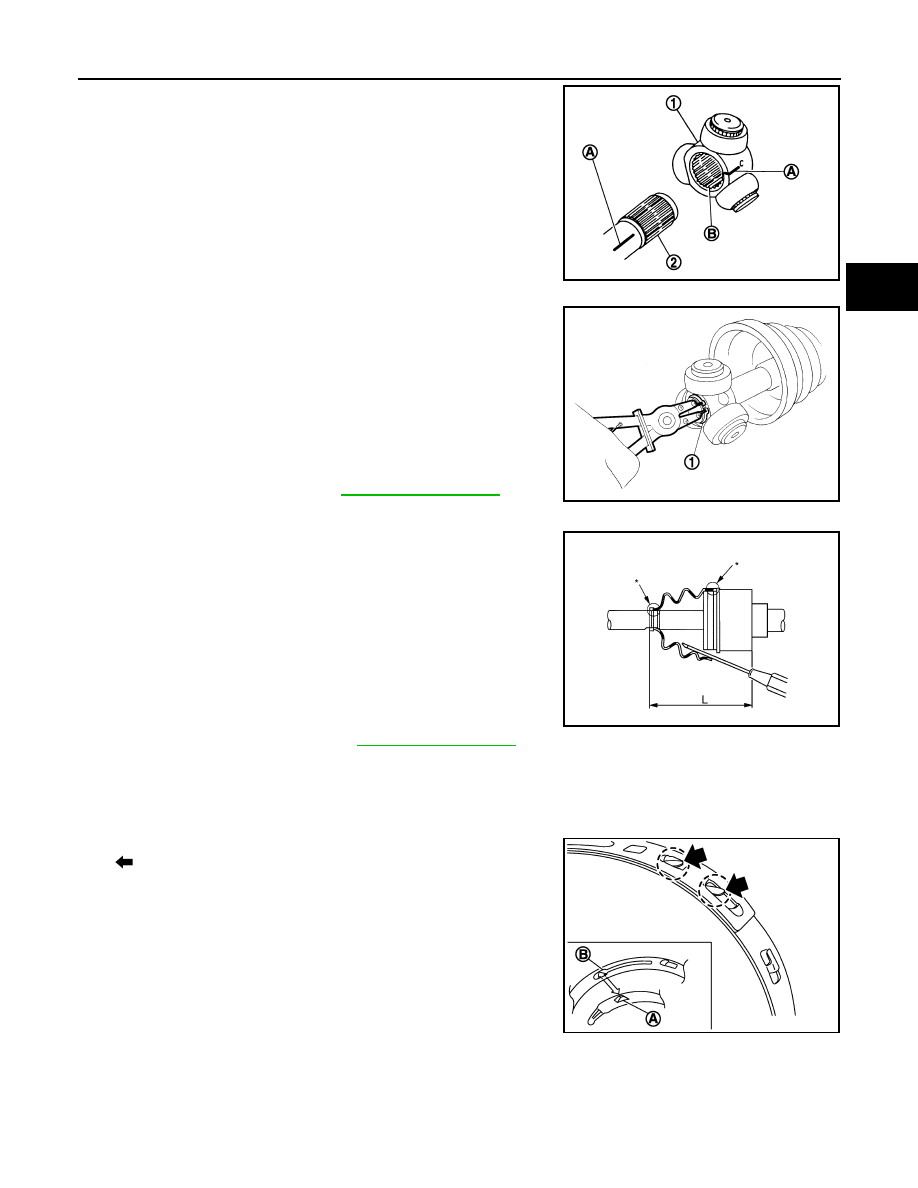

6.

Install the spider assembly (1), align it with the matching marks
(A) on the shaft (2) put during the removal, and direct the serra-
tion mounting surface (B) to the shaft.

7.

Secure spider assembly onto shaft with snap ring (1).

CAUTION:

Never reuse snap ring.

8.

Apply the appropriate amount of grease to spider assembly and
sliding surface.

9.

Assemble the housing onto spider assembly, and apply the bal-
ance of the specified amount grease.

10. Align matching marks put during the removal of housing.
11. Install boot securely into grooves (indicated by “*” marks) shown

in the figure.

CAUTION:

If grease adheres to the boot mounting surface (indicated
by “*” mark) on housing assembly, boot may be removed.
Remove all grease from the boot mounting surface.

12. To prevent from deformation of the boot, adjust the boot installa-

tion length (L) by inserting the suitable tool into the inside of boot
from the large diameter side of boot and discharging inside air.

CAUTION:

• If the boot installation length exceeds the standard, it may cause breakage in boot.
• Be careful not to touch the inside of the boot with the tip of tool.

13. Install boot bands securely as shown in the figure.
a.

Put boot band in the groove on drive shaft boot. Then fit pawls
(

) into holes to temporary installation.

NOTE:
For the large diameter side, fit projection (A) and guide slit (B) at
first.

JPDIF0017ZZ

Standard

Grease amount

: Refer to

FAX-35, "Drive Shaft"

.

Standard

L

: Refer to

FAX-35, "Drive Shaft"

.

JPDIF0014ZZ

JPDIF0144ZZ

JPDIF0157ZZ

FAX-28

< ON-VEHICLE REPAIR >

FRONT DRIVE SHAFT

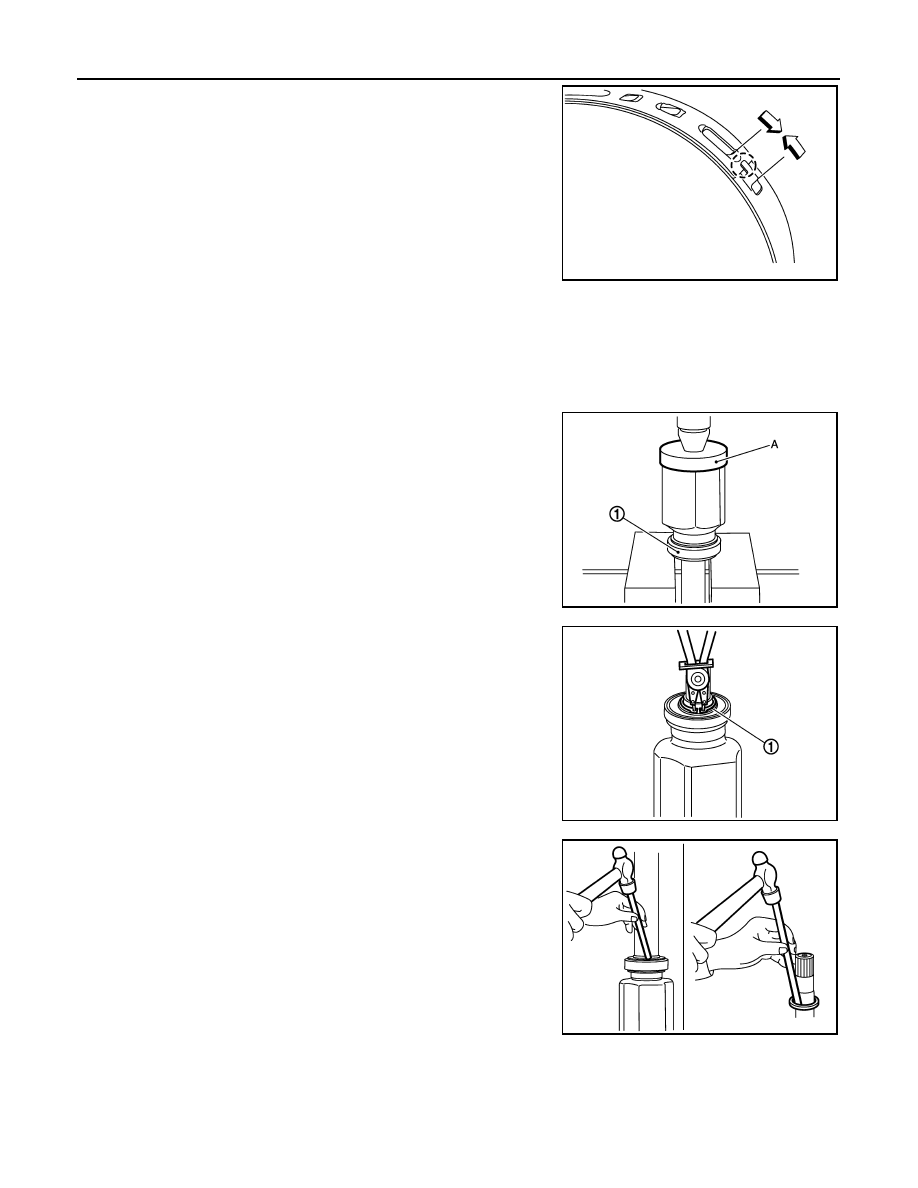

b.

Pinch projection on the band with suitable pliers to tighten band.

c.

Insert tip of band below end of the pawl.

14. Secure housing assembly, and then make sure that they are in

the correct position when rotating boot. Reinstall them with boot
bands when the mounting positions become incorrect.

Right side

1.

Clean old grease on housing with paper waste.

2.

Install support bearing, follow the procedure described below.

a.

Install dust shield on housing.

CAUTION:

Never reuse dust shield.

b.

Press support bearing (1) onto housing to using the suitable tool
(A).

c.

Install snap ring (1).

CAUTION:

Never reuse snap ring.

d.

Install dust shields.

CAUTION:

Never reuse dust shield.

3.

Install dynamic damper, follow the procedure described below.

a.

Install dynamic damper to shaft.

JPDIF0158ZZ

JPDIF0056ZZ

JPDIF0106ZZ

JPDIF0127ZZ

FRONT DRIVE SHAFT

FAX-29

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

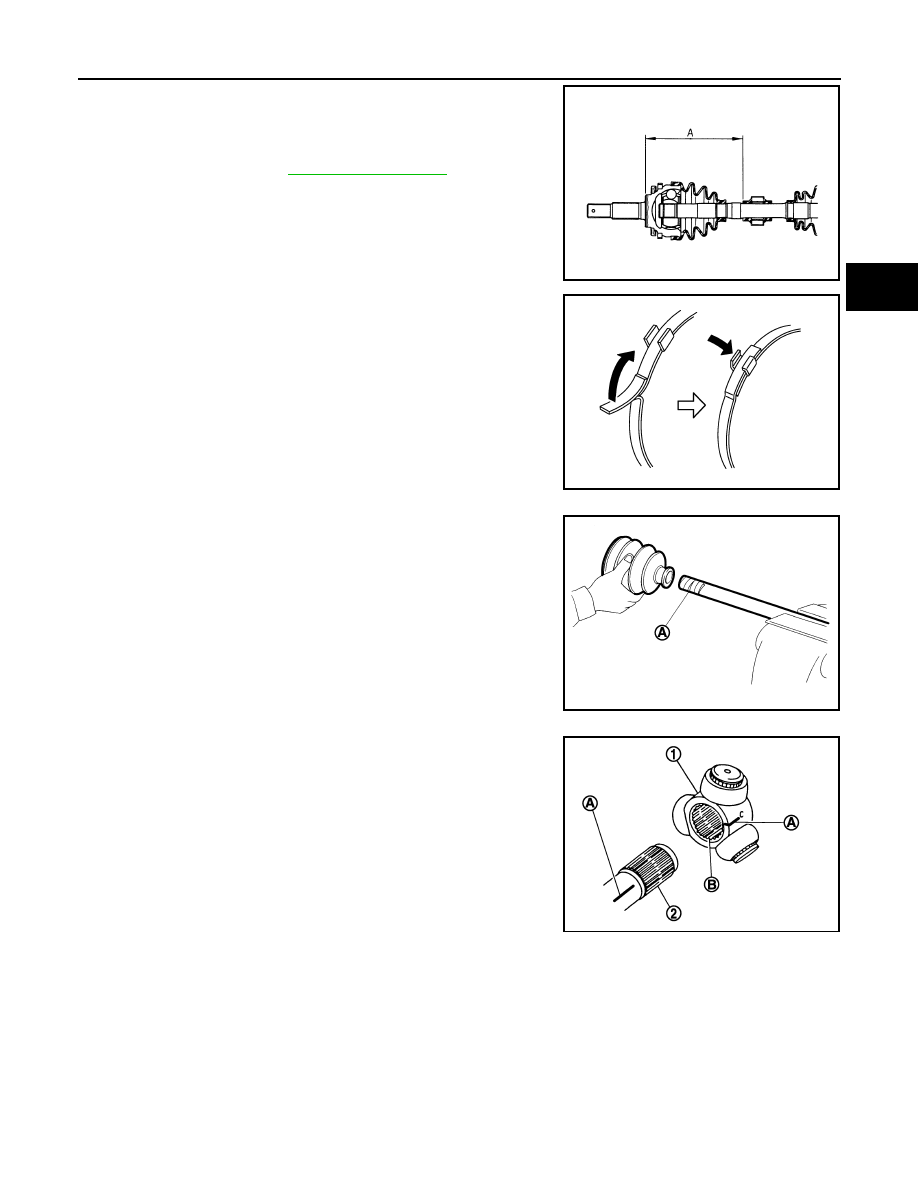

b.

Secure dynamic damper with bands in the following specified
position (A).

c.

Install damper bands securely as shown in the figure.

CAUTION:

Never reuse damper band.

4.

Wrap serration on shaft with tape (A) to protect boot from dam-
age. Install boot and boot bands to shaft.

CAUTION:

Never reuse boot and boot band.

5.

Install the spider assembly (1), align it with the matching marks
(A) on the shaft (2) put during the removal, and direct the serra-
tion mounting surface (B) to the shaft.

Standard

A

: Refer to

FAX-35, "Drive Shaft"

.

JPDIF0178ZZ

PDIA1188J

JPDIF0009ZZ

JPDIF0017ZZ

FAX-30

< ON-VEHICLE REPAIR >

FRONT DRIVE SHAFT

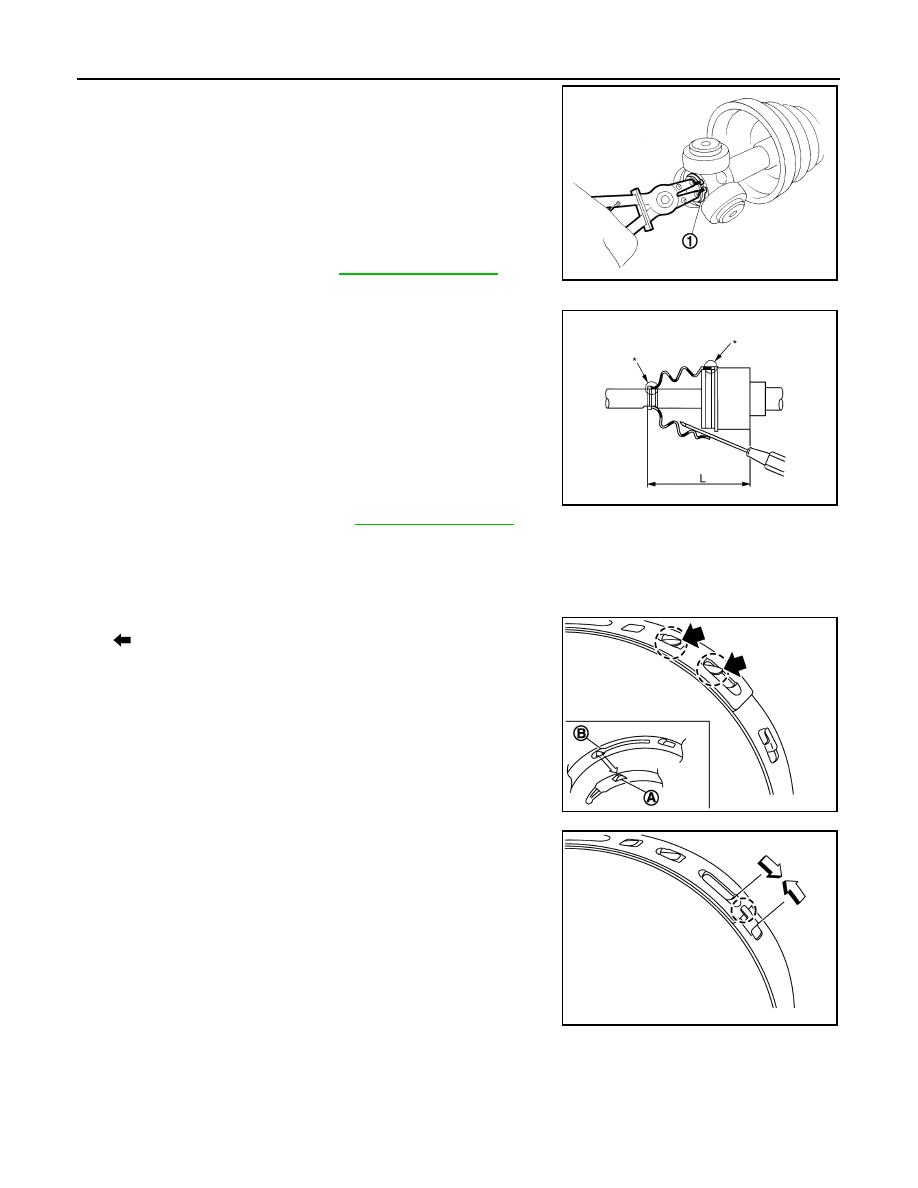

6.

Secure spider assembly onto shaft with snap ring (1).

CAUTION:

Never reuse snap ring.

7.

Apply the appropriate amount of grease to spider assembly and
sliding surface.

8.

Assemble the housing onto spider assembly, and apply the bal-
ance of the specified amount grease.

9.

Align matching marks put during the removal of housing.

10. Install boot securely into grooves (indicated by “*” marks) shown

in the figure.

CAUTION:

If grease adheres to the boot mounting surface (indicated
by “*” mark) on housing assembly, boot may be removed.
Remove all grease from the boot mounting surface.

11. To prevent from deformation of the boot, adjust the boot installa-

tion length (L) by inserting the suitable tool into the inside of boot
from the large diameter side of boot and discharging inside air.

CAUTION:

• If the boot installation length exceeds the standard, it may cause breakage in boot.
• Be careful not to touch the inside of the boot with the tip of tool.

12. Install boot bands securely as shown in the figure.
a.

Put boot band in the groove on drive shaft boot. Then fit pawls
(

) into holes to temporary installation.

NOTE:
For the large diameter side, fit projection (A) and guide slit (B) at
first.

b.

Pinch projection on the band with suitable pliers to tighten band.

c.

Insert tip of band below end of the pawl.

13. Secure housing assembly, and then make sure that they are in

the correct position when rotating boot. Reinstall them with boot
bands when the mounting positions become incorrect.

ASSEMBLY (VQ35DE)

Left side

1.

Clean old grease on housing assembly with paper waste.

2.

Install dust shield.

CAUTION:

Standard

Grease amount

: Refer to

FAX-35, "Drive Shaft"

.

Standard

L

:  Refer  to

FAX-35, "Drive Shaft"

.

JPDIF0014ZZ

JPDIF0144ZZ

JPDIF0157ZZ

JPDIF0158ZZ
