EXL-258

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

HEADLAMP AIMING CONTROL SYSTEM (MANUAL)

2.

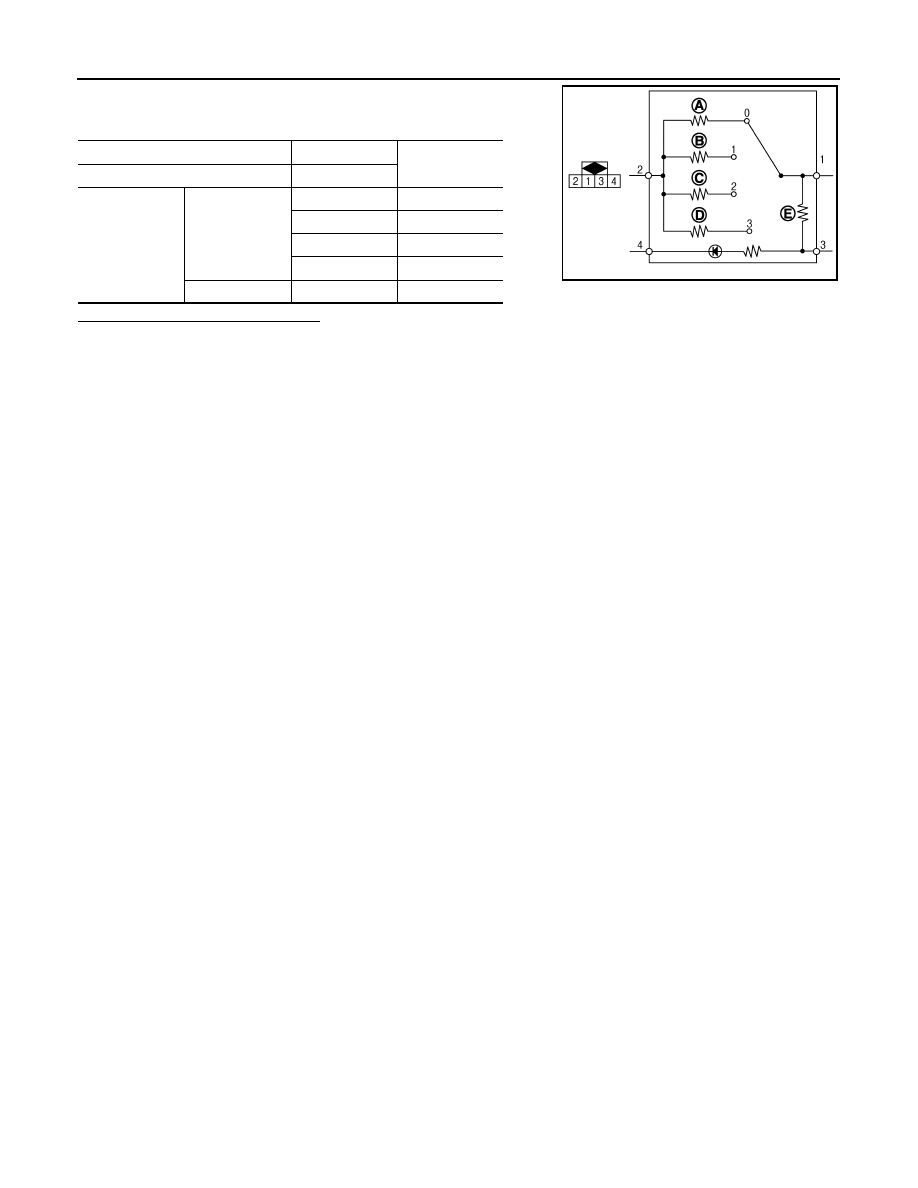

Check the resistance among each headlamp aiming switch ter-
minal.

Is the measurement value normal?

YES

>> Headlamp aiming switch is normal.

NO

>> Replace the headlamp aiming switch.

Headlamp aiming switch

Condition

Resistance

(Approx.)

Terminal

Switch position

1

2

0

A: 2000

Ω

1

B: 590

Ω

2

C: 324

Ω

3

D: 169

Ω

3

—

E: 390

Ω

JSLIA0084ZZ

FRONT FOG LAMP SYSTEM

EXL-259

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FRONT FOG LAMP SYSTEM

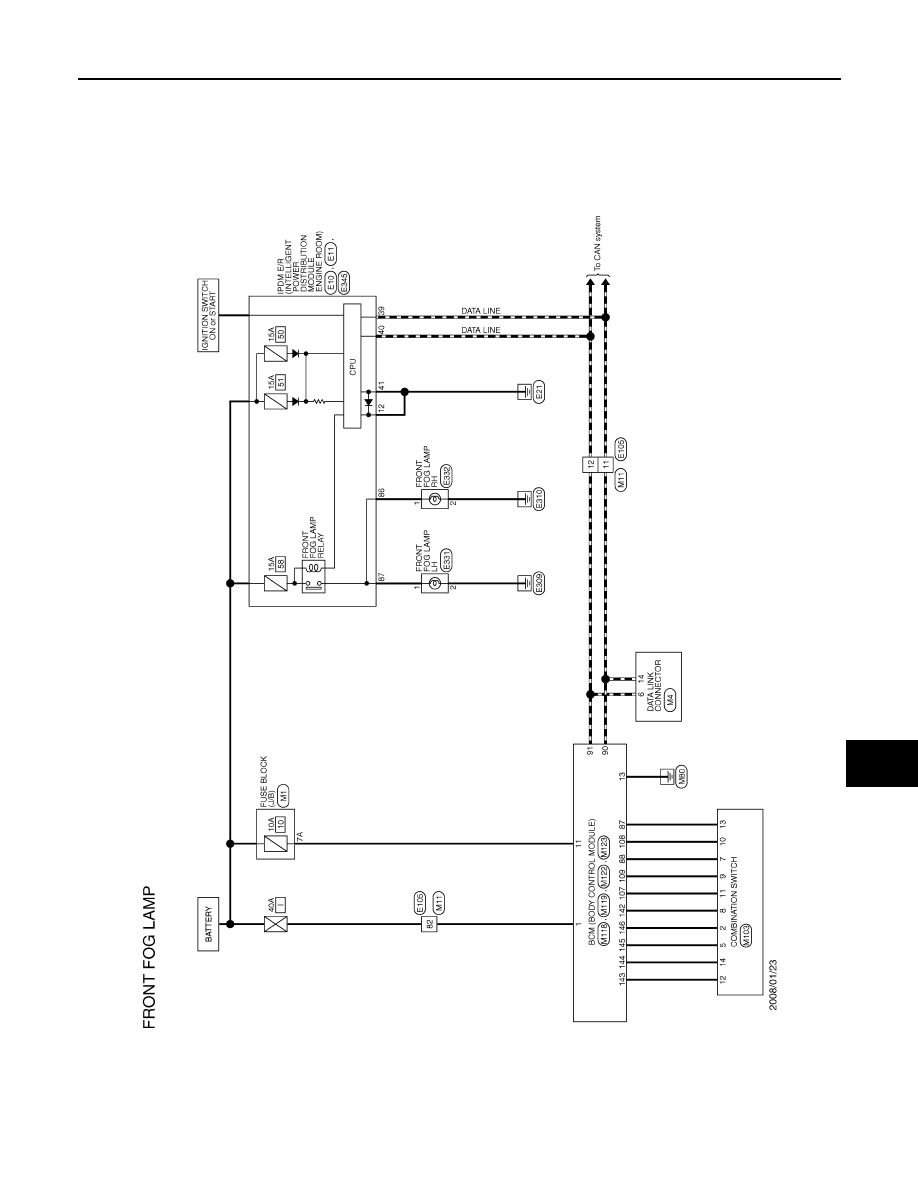

Wiring Diagram - FRONT FOG LAMP -

INFOID:0000000003894338

JCLWM1455GB

EXL-260

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

FRONT FOG LAMP SYSTEM

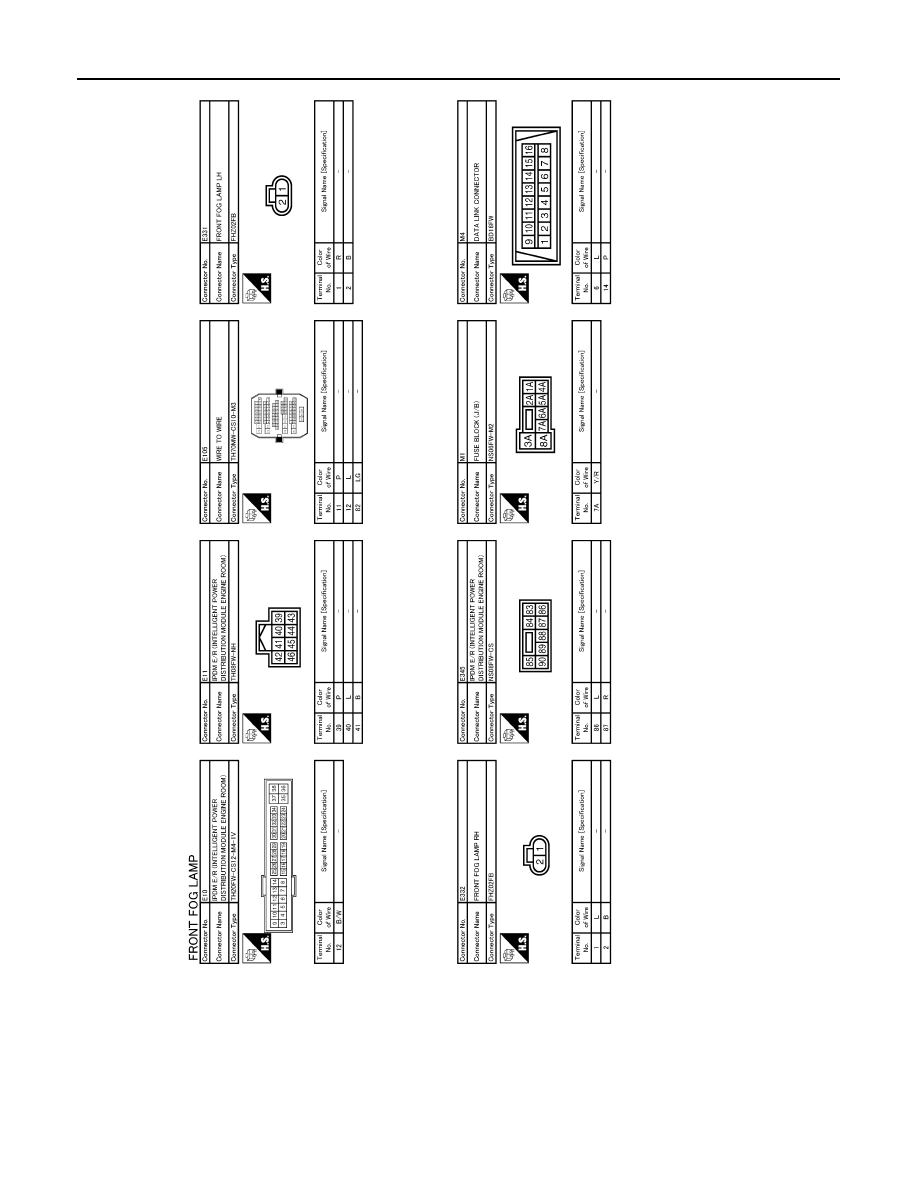

JCLWM1456GB

FRONT FOG LAMP SYSTEM

EXL-261

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

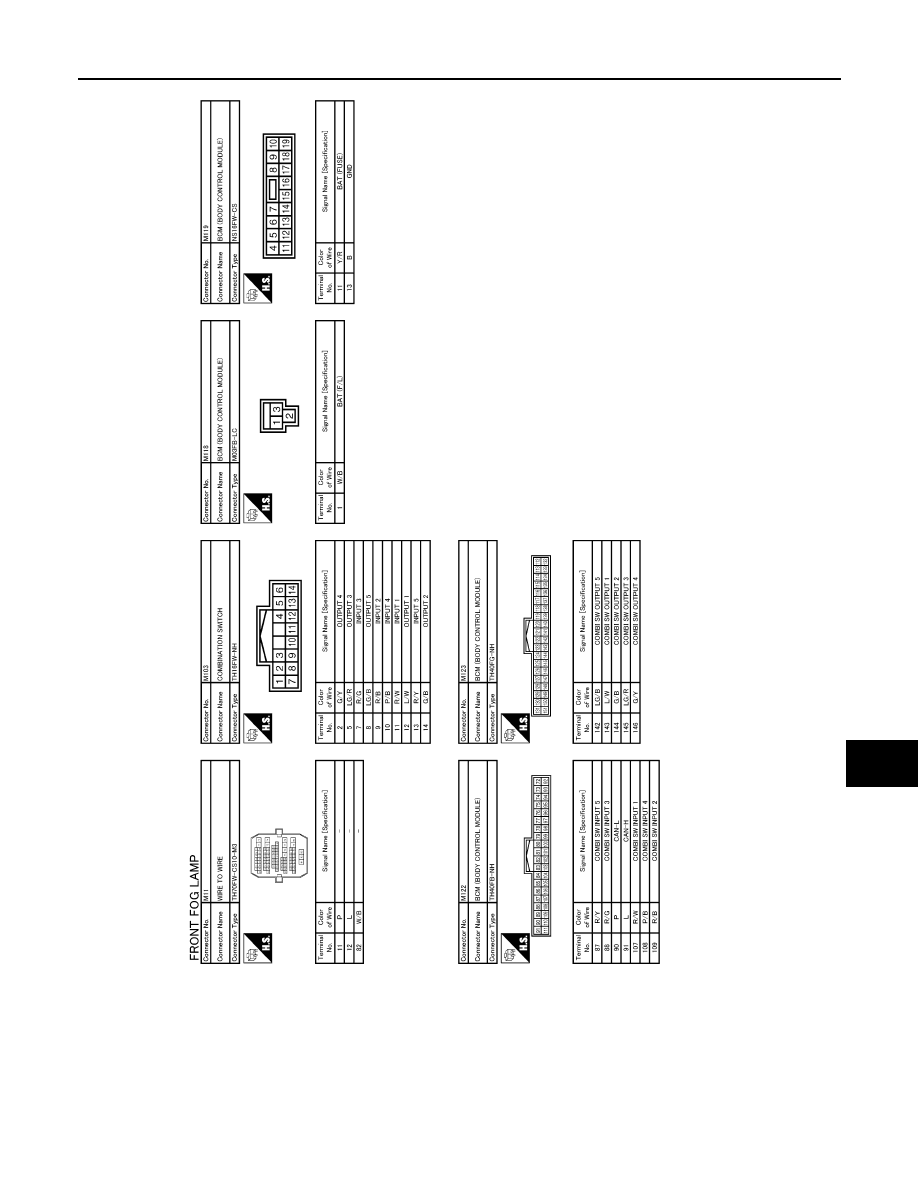

JCLWM1457GB
