EXL-106

< COMPONENT DIAGNOSIS >

[XENON TYPE]

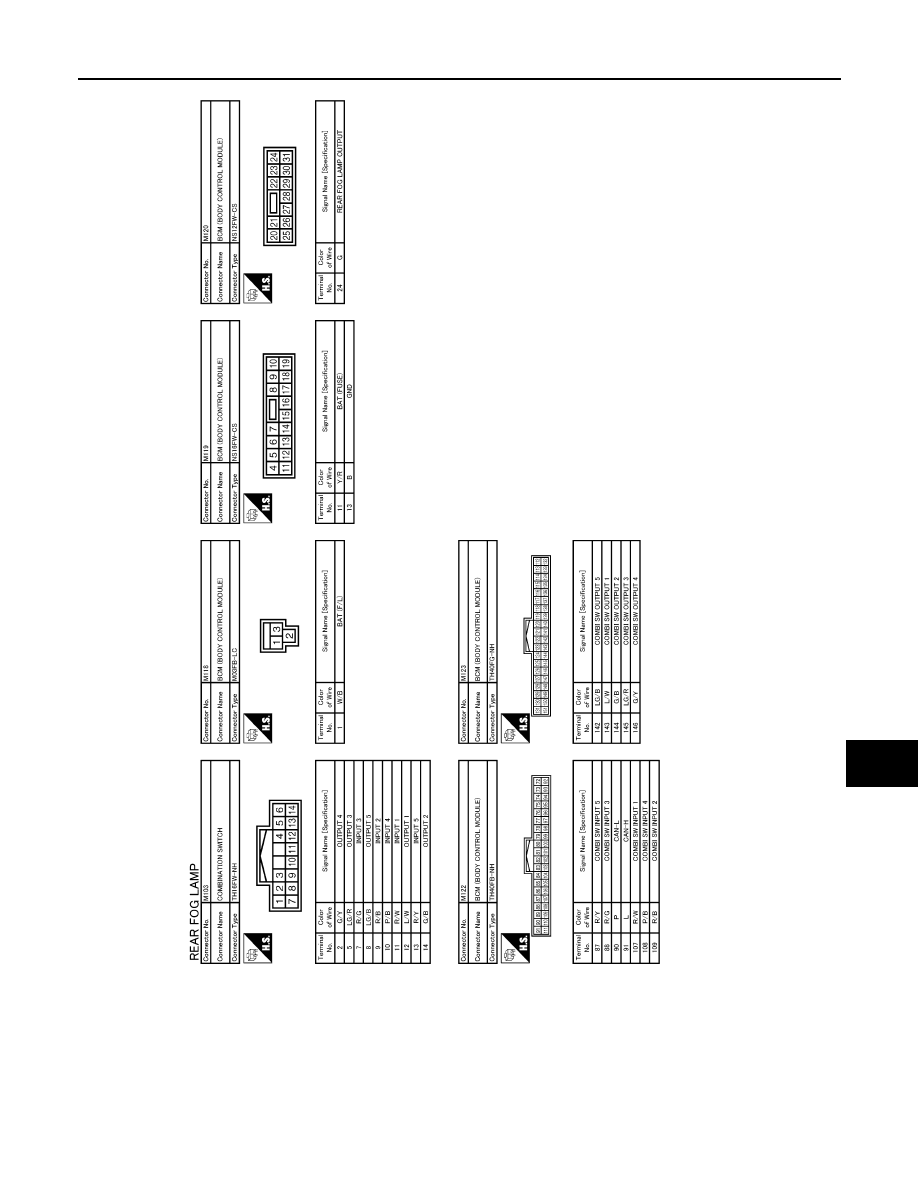

REAR FOG LAMP SYSTEM

JCLWM1459GB

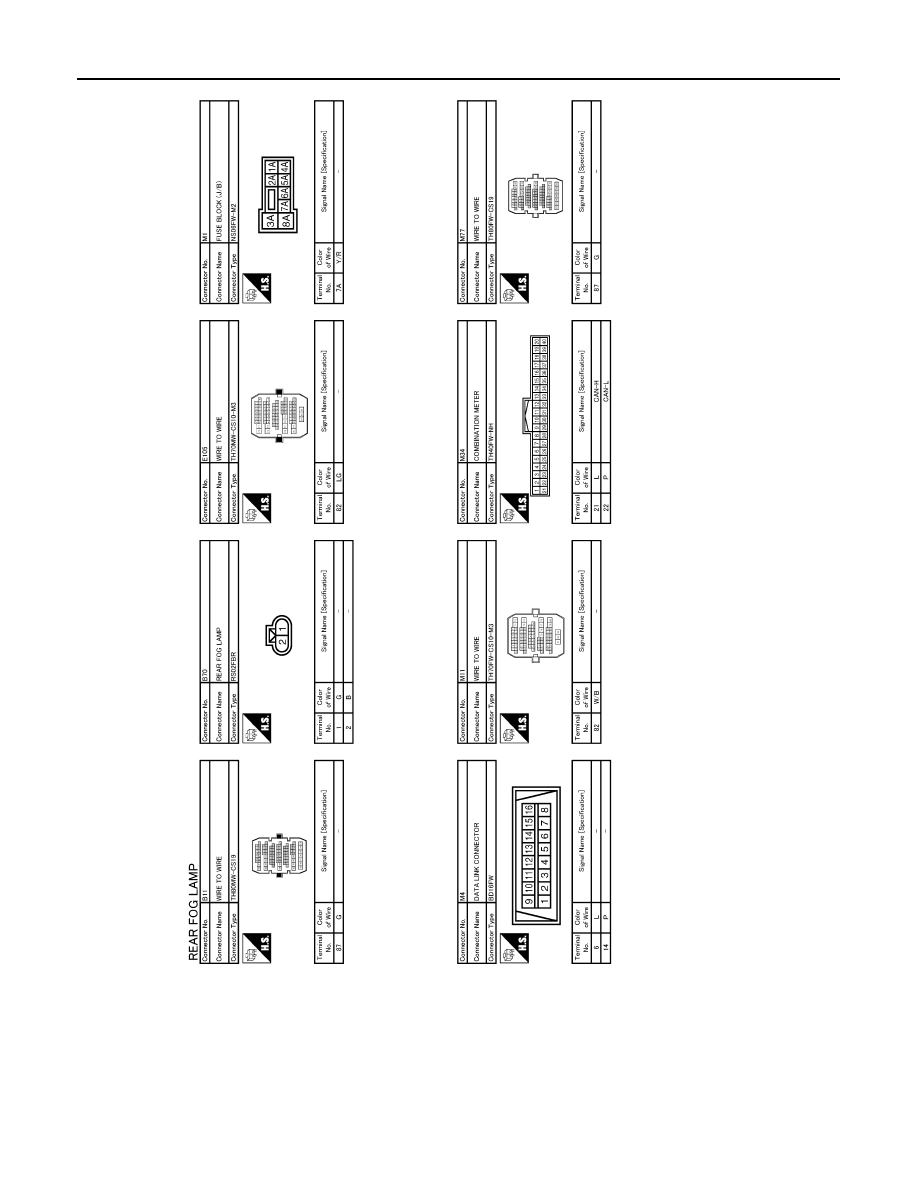

REAR FOG LAMP SYSTEM

EXL-107

< COMPONENT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

JCLWM1460GB

EXL-108

< ECU DIAGNOSIS >

[XENON TYPE]

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000003959690

VALUES ON THE DIAGNOSIS TOOL

CONSULT-III MONITOR ITEM

Monitor Item

Condition

Value/Status

FR WIPER HI

Other than front wiper switch HI

Off

Front wiper switch HI

On

FR WIPER LOW

Other than front wiper switch LO

Off

Front wiper switch LO

On

FR WASHER SW

Front washer switch OFF

Off

Front washer switch ON

On

FR WIPER INT

Other than front wiper switch INT

Off

Front wiper switch INT

On

FR WIPER STOP

Front wiper is not in STOP position

Off

Front wiper is in STOP position

On

INT VOLUME

Wiper intermittent dial is in a dial position 1 - 7

Wiper intermittent dial position

TURN SIGNAL R

Other than turn signal switch RH

Off

Turn signal switch RH

On

TURN SIGNAL L

Other than turn signal switch LH

Off

Turn signal switch LH

On

TAIL LAMP SW

Other than lighting switch 1ST and 2ND

Off

Lighting switch 1ST or 2ND

On

HI BEAM SW

Other than lighting switch HI

Off

Lighting switch HI

On

HEAD LAMP SW 1

Other than lighting switch 2ND

Off

Lighting switch 2ND

On

HEAD LAMP SW 2

Other than lighting switch 2ND

Off

Lighting switch 2ND

On

PASSING SW

Other than lighting switch PASS

Off

Lighting switch PASS

On

AUTO LIGHT SW

Other than lighting switch AUTO

Off

Lighting switch AUTO

On

FR FOG SW

Front fog lamp switch OFF

Off

Front fog lamp switch ON

On

RR FOG SW

Rear fog lamp switch OFF

Off

Rear fog lamp switch ON

On

DOOR SW-DR

Driver door closed

Off

Driver door opened

On

DOOR SW-AS

Passenger door closed

Off

Passenger door opened

On

DOOR SW-RR

Rear RH door closed

Off

Rear RH door opened

On

BCM (BODY CONTROL MODULE)

EXL-109

< ECU DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DOOR SW-RL

Rear LH door closed

Off

Rear LH door opened

On

DOOR SW-BK

NOTE:
The item is indicated, but not monitored.

Off

CDL LOCK SW

Other than power door lock switch LOCK

Off

Power door lock switch LOCK

On

CDL UNLOCK SW

Other than power door lock switch UNLOCK

Off

Power door lock switch UNLOCK

On

KEY CYL LK-SW

NOTE:
The item is indicated, but not monitored.

Off

KEY CYL UN-SW

NOTE:
The item is indicated, but not monitored.

Off

KEY CYL SW-TR

NOTE:
The item is indicated, but not monitored.

Off

HAZARD SW

Hazard switch is OFF

Off

Hazard switch is ON

On

REAR DEF SW
NOTE:
At model with BOSE au-
dio system this item is in-
dicated, but is not
monitored.

Rear window defogger switch is OFF

Off

Rear window defogger switch is ON

On

TR CANCEL SW

NOTE:
The item is indicated, but not monitored.

Off

TR/BD OPEN SW

Trunk lid opener switch OFF

Off

While the trunk lid opener switch is turned ON

On

TRNK/HAT MNTR

Trunk lid closed

Off

Trunk lid opened

On

RKE-LOCK

LOCK button of the key is not pressed

Off

LOCK button of the key is pressed

On

RKE-UNLOCK

UNLOCK button of the key is not pressed

Off

UNLOCK button of the key is pressed

On

RKE-TR/BD

TRUNK OPEN button of the key is not pressed

Off

TRUNK OPEN button of the key is pressed

On

RKE-PANIC

NOTE:
The item is indicated, but not monitored.

Off

RKE-P/W OPEN

NOTE:
The item is indicated, but not monitored.

Off

RKE-MODE CHG

LOCK/UNLOCK button of the key is not pressed and held simulta-
neously

Off

LOCK/UNLOCK button of the key is pressed and held simulta-
neously

On

OPTICAL SENSOR

Bright outside of the vehicle

Close to 5 V

Dark outside of the vehicle

Close to 0 V

REQ SW -DR

Driver door request switch is not pressed

Off

Driver door request switch is pressed

On

REQ SW -AS

Passenger door request switch is not pressed

Off

Passenger door request switch is pressed

On

Monitor Item

Condition

Value/Status
